Product Description

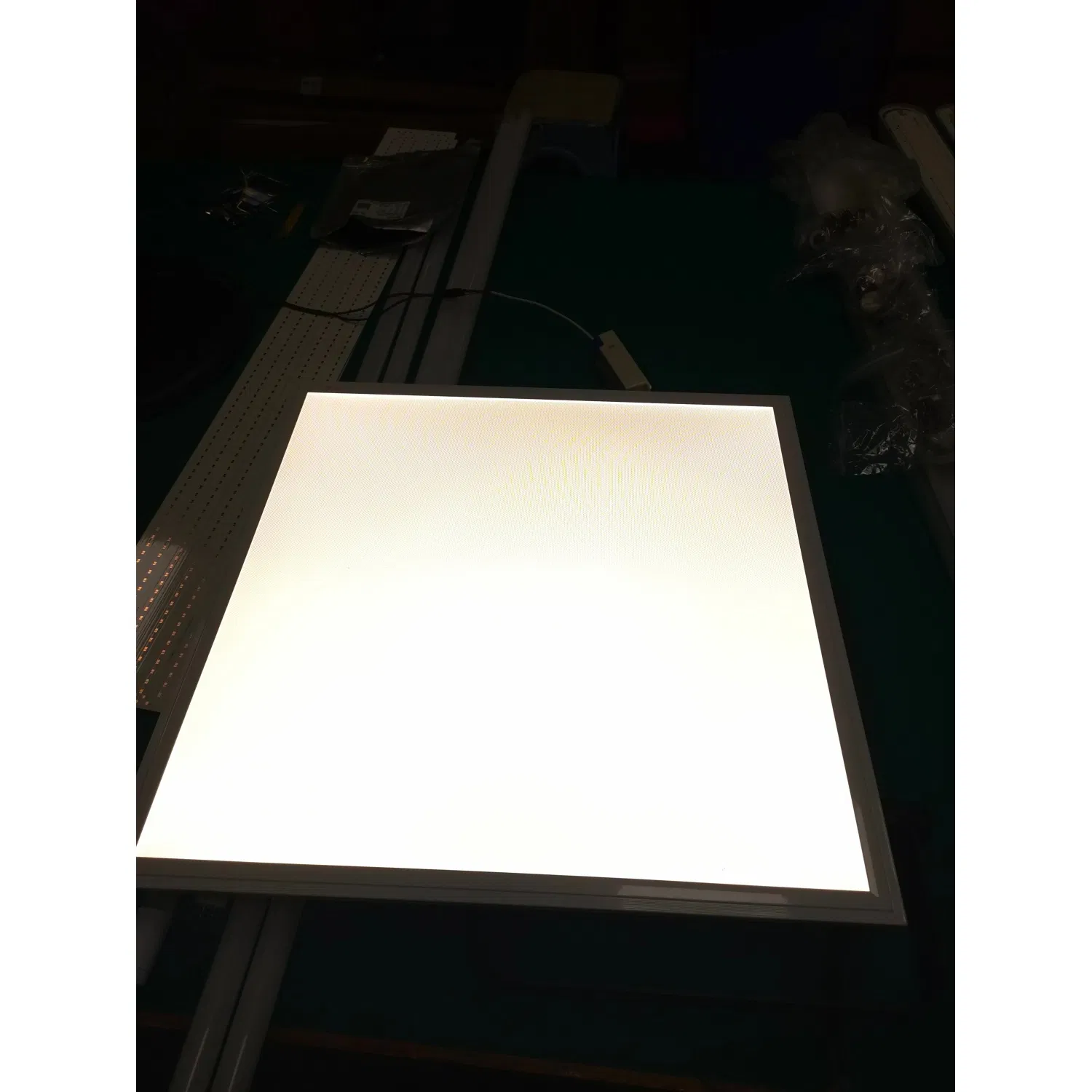

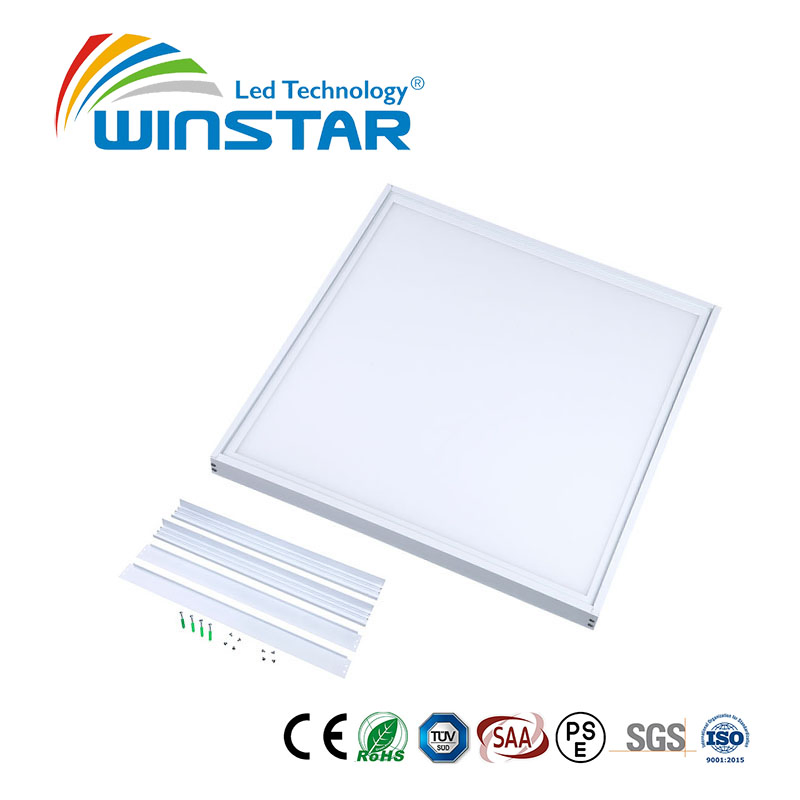

Office ceiling LED Panel Light
595*595 UGR<19 low glare Flicker free 36W
New series LED Backlit Panel Light. No radiation. No glare. No dark zone. Uniform luminescence.
LED Panel Light is dedicated to achieve end-user friendly performance, we keep working on the goals of super durability, highest lumen output, lowest consumption, top security structural design under this theory and our constant effort, series LED Panel Light is widely approved in regions of Europe, Asian countries, etc.
UGR<19
Flicker Free
Low Glare

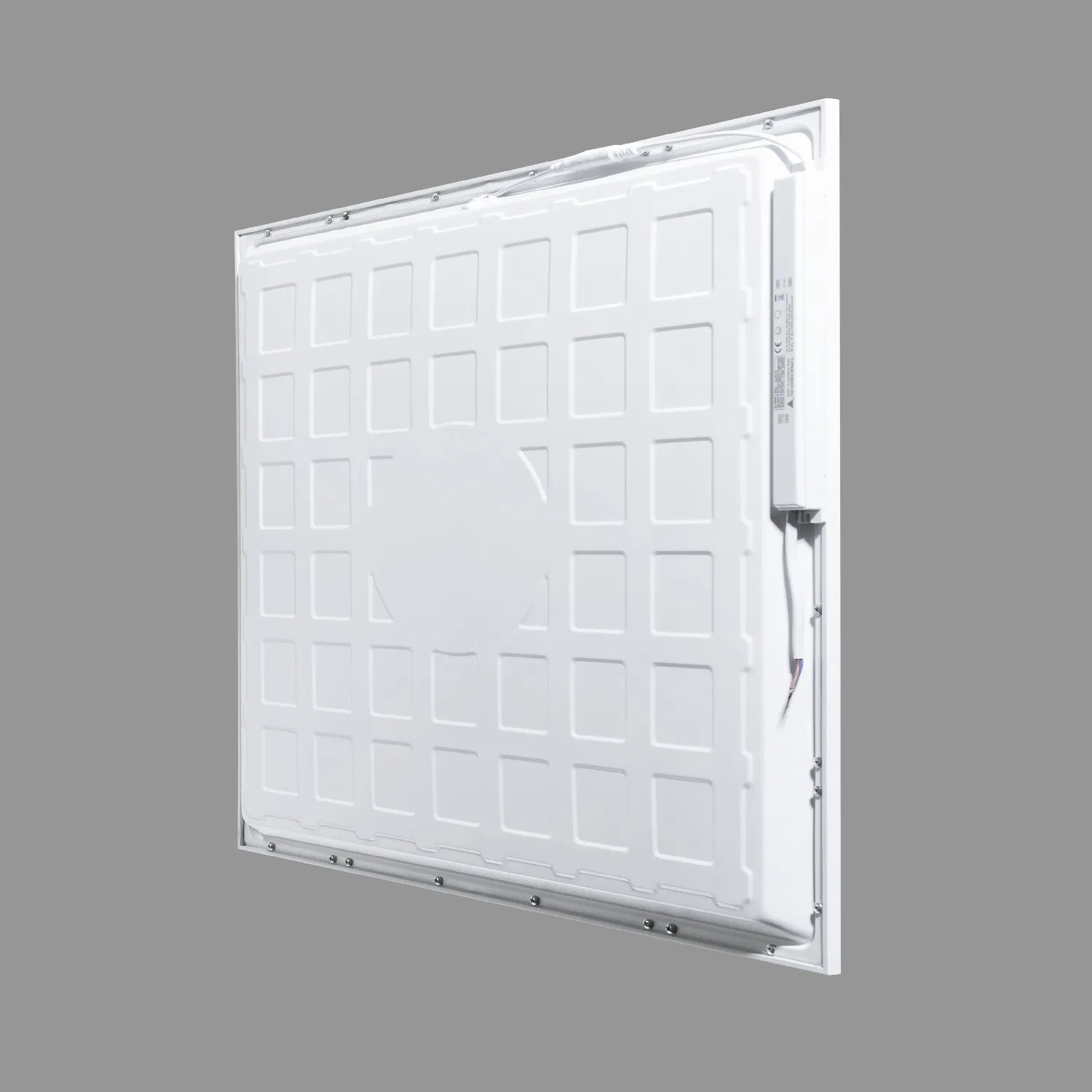

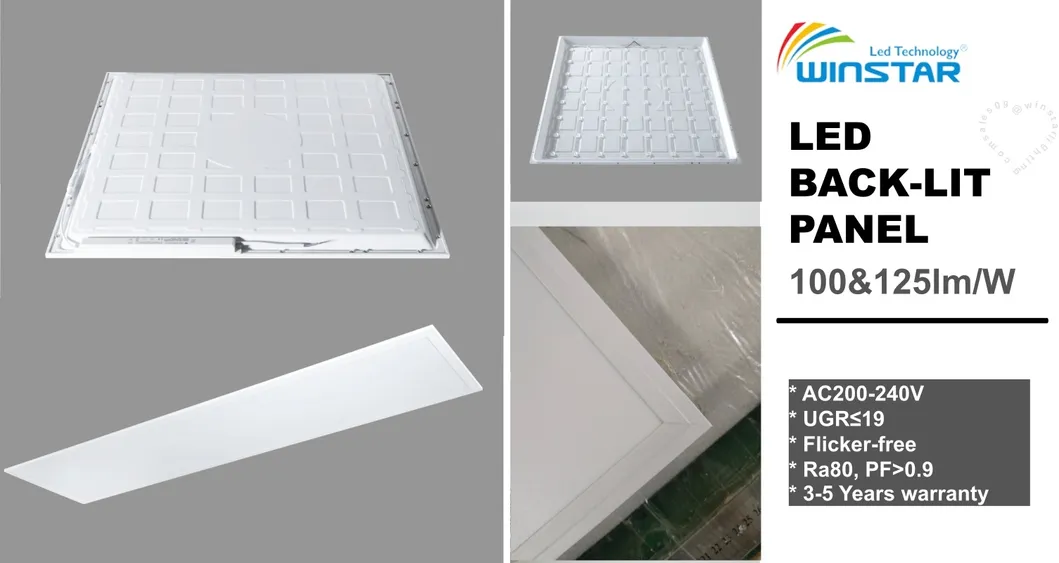

Backlit Panel
Product Parameters
| Model number |
Size(mm) |
Power |
CRI |
Luminous Efficiency |
| WS-PL-234B-300 |
595x595x30 |
36W |
Ra≥80 |
100/125 lm/W |
| WS-PL-233B-300 |
295x1195x30 |
36W |
Ra≥80 |
100/125 lm/W |
| WS-PL-235B-500 |
595x1195x30 |
44W |
Ra≥80 |
100/125 lm/W |
| Other parameters |
| Input Voltage |
200-240VAC (100-277VAC optional) |
| Power Factor |
>0.95 |
| LED Type |
SMD2835 |
| CRI |
Ra≥80 |
| Beam Angle |
120° |
| Optional functions/parameter: |
1-10V, DALI, UGR<19, SDCM<3 |
| Life Span |
50000 hours |
| Operating Temperature |
-20ºC~+45ºC |
| Efficiency |
>88% |
| Warranty |
3 years |
| Markings |
CE&RoHS |
Packaging & Shipping
| LED Panel |
Size(mm) |
Carton Size |
Qty/CTN |
G.W/CTN |
| WS-PL-6060 |
595*595*30 |
66*66*33cm |
10 pcs/Ctn |
19.2kg |
| WS-PL-30120 |
295*1195*30 |
126*65*23cm |
10 pcs/Ctn |
23.4kg |
| WS-PL-60120 |
595*1195*30 |
122*19*63cm |
4pcs/Ctn |
16kg |
| Ceiling surface mounting frame |
Carton Size |
Qty/Ctn |
GW/Ctn |
| - for 595*595Panel |
67*22*23cm |
15pcs |
12.1kg |
| - for 1195*295Panel |
127*22*23cm |
15pcs |
17.3kg |
Profile
We are a leading LED lighting manufacturer and exporter located in China, with 12 years experience, 10years-experience R&D team, 50,000sqm factory, focusing on the European, APAC, Latin america, Middle East and Australian market, Specialized in commercial lighting, industrial lighting, agricultural and farm lighting.
We committed to providing our esteemed customers with the qualified and reliable products to meet with their needs. We want to set up business partnerships and friendships with our clients based on mutually beneficial relationships and seek for win-win resolutions.

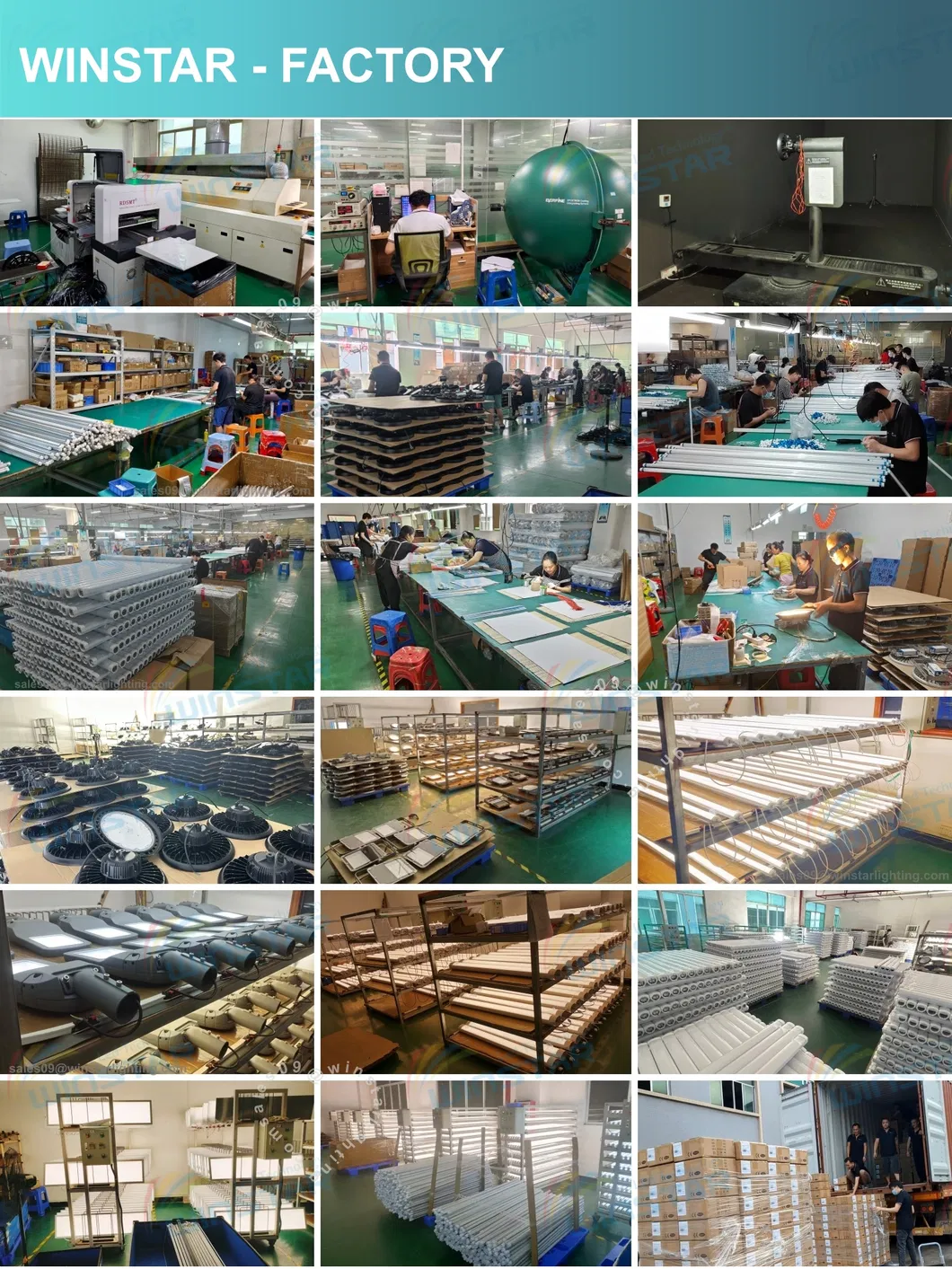

Workshop
We have set up a full set of scientific & standard production system strictly complying with ISO9001:2015; We own the advanced & modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line.
Quality Control
To guarantee the quality of our products, we have always insisted on 100% inspection of our finished products and we have adopted abundant inspection equipment in our QC department such as LED aging tester, withstand voltage tester, leakage current tester, insulation resistance tester, integrating sphere tester, intelligent electric quantity measuring instrument, etc.
Besides, we also adopt Goniophotometer to carry on tests of luminous flux, light intensity and color temperature distribution, and homogeneity of light to generate IES testing data so that our customers can design and simulate lighting effects via light design software such as the DIALux. We also provide DIALux simulation service.
LED aging test which is often used to identify product defects and measure product performance and safety in harsh testing environments such as high temperature and pressure is also necessary to ensure the stability and durability of lighting products.
What We Supply
- LED Tube light T5 T8 (100-200lm/W for option)
- LED High bay light (130-210lm/w)
- LED Linear High bay light (IP20/IP65 for option, 150-170lm/w)
- Triproof light (IP65, IP66 IP69K, 130-170lm/w)
- LED Panel (Side-lit or Back-lit panel)
- LED plant grow light (Full spectrum, or Blue+Red spectrum)
- LED Farm Light (IP66, anti-ammonia, for pig house, Dairy cow barn)
Specialized in industrial, agricultural/Farm/barn lighting; Certified with CE(EMC, LVD), ROHS, ISO, TUV, SAA, C-TICK and offering 3-5 years warranty.
Our Advantages
- 50,000sqm² ISO90001 factory, 100 workers - buy from us in an competitive price
- 12 years experience in LED light manufacturing & export
- 10 years experience R&D engineers team
- IES and DIALUX simulation
- Fast delivery time: Sample 3-7 days, Order: 12-20 days
- Payment: Support T/T, Paypal
- NO MOQ or Low MOQ
- OEM/ODM services, Product customization service
Frequently Asked Questions
1. What are the key features of the Backlit LED Panel Lights?
The LED Backlit Panel Lights feature a low glare design (UGR<19), flicker-free operation, no radiation, no dark zones, and uniform light distribution, making them ideal for office and workshop ceilings.
2. What are the payment and shipping terms for bulk orders?
We accept T/T (30% deposit and 70% balance before delivery) as well as PayPal and Western Union. Shipping options include DHL, FedEx, UPS, TNT, sea transport, and train shipping.
3. Can I customize products or packaging?
Yes, we support custom color boxes, custom laser-printed logos on products, and custom designs guided by our engineering team to meet your specific requirements.
4. How is the quality of your LED products guaranteed?
We implement 100% inspection of finished products. Our QC department uses high-precision tools such as LED aging testers, withstand voltage testers, leakage current testers, integrating sphere testers, and Goniophotometers for standard-compliant output.
5. What warranties do you offer on your products?
We offer a 3-year warranty as standard for our LED panel lights, and up to a 5-year warranty on specific products such as selected LED Tube Lights, Tri-proof Lights, and UFO Highbays.
6. Do you provide DIALux simulation services for lighting projects?
Yes. We generate standard IES testing files using our Goniophotometer and provide DIALux simulation services to help clients design and visualize their custom lighting setups.
