Seamless Connection & Wiring

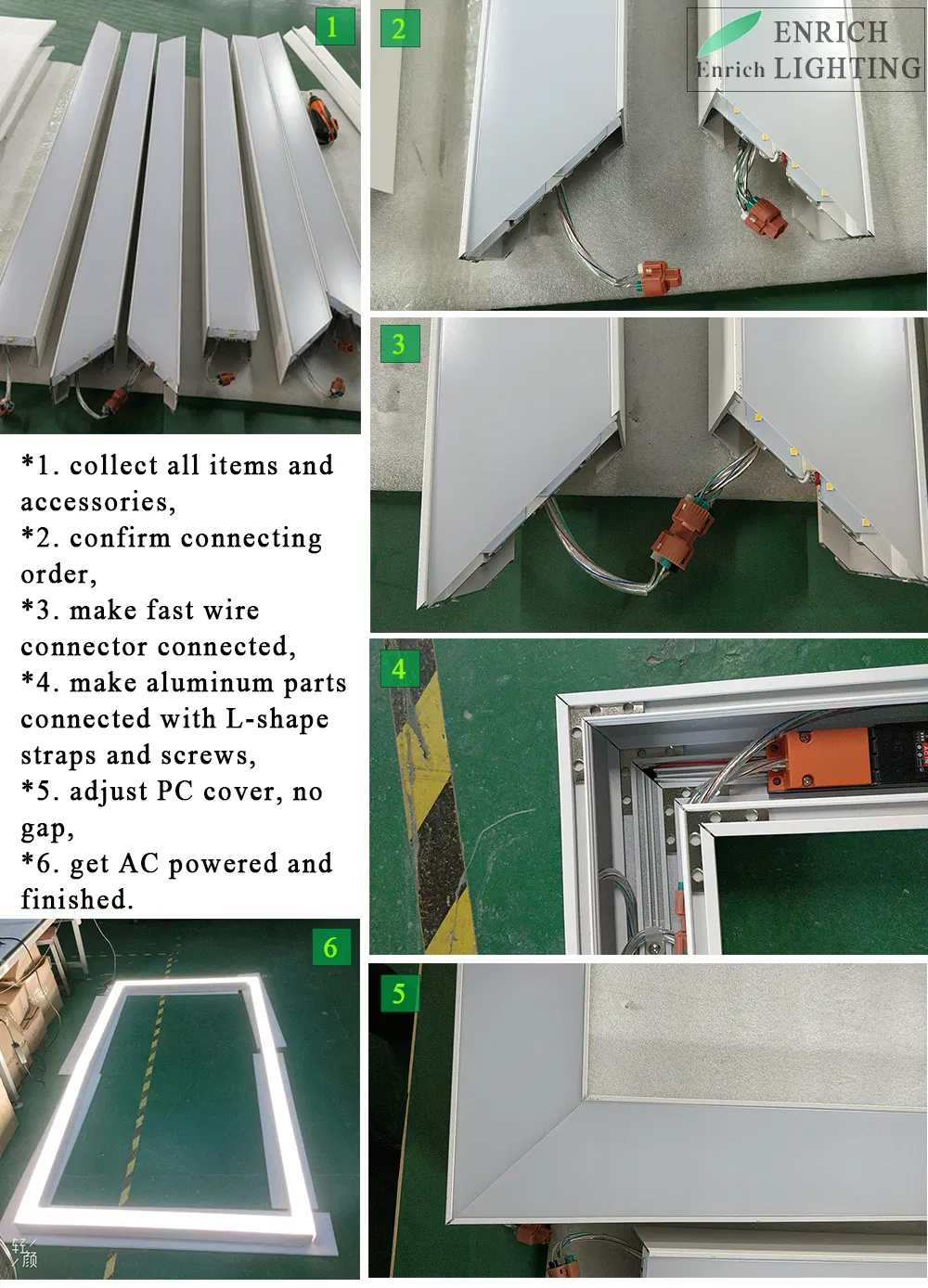

90 degree corner seamless connection and fast wire connection:

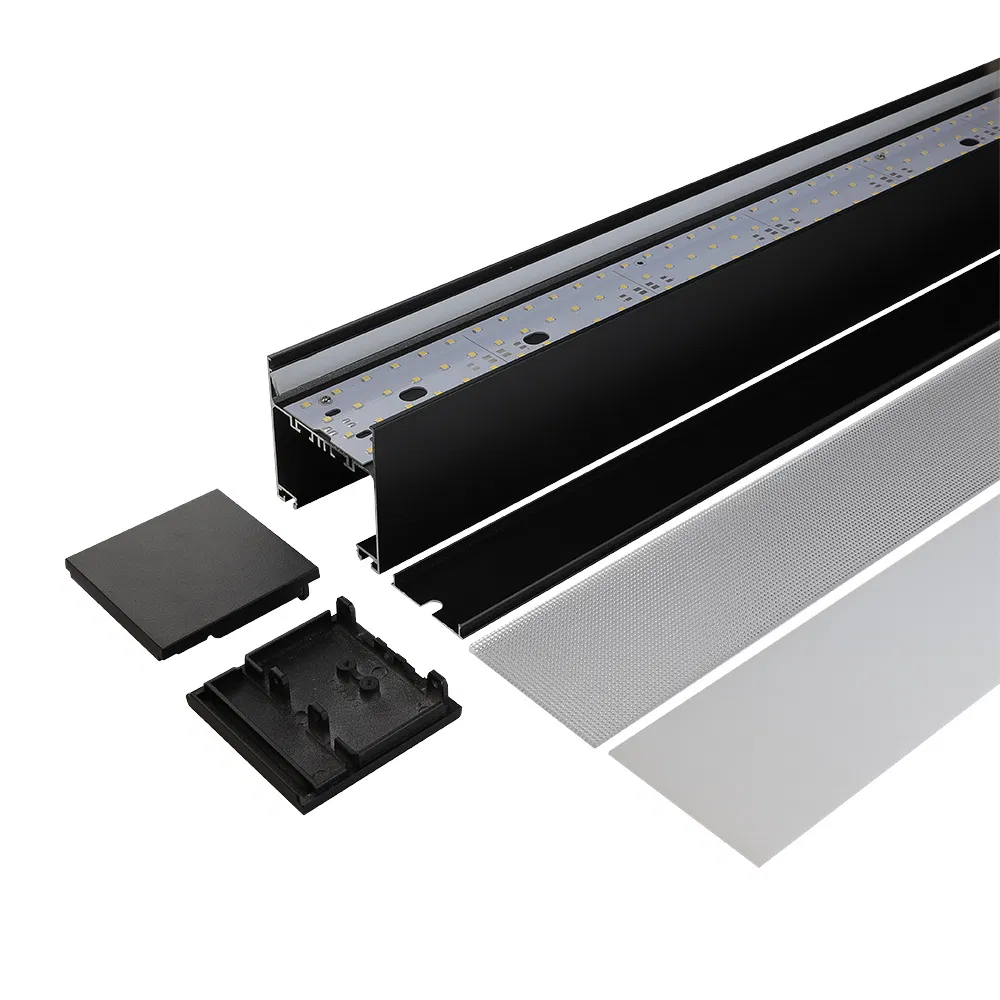

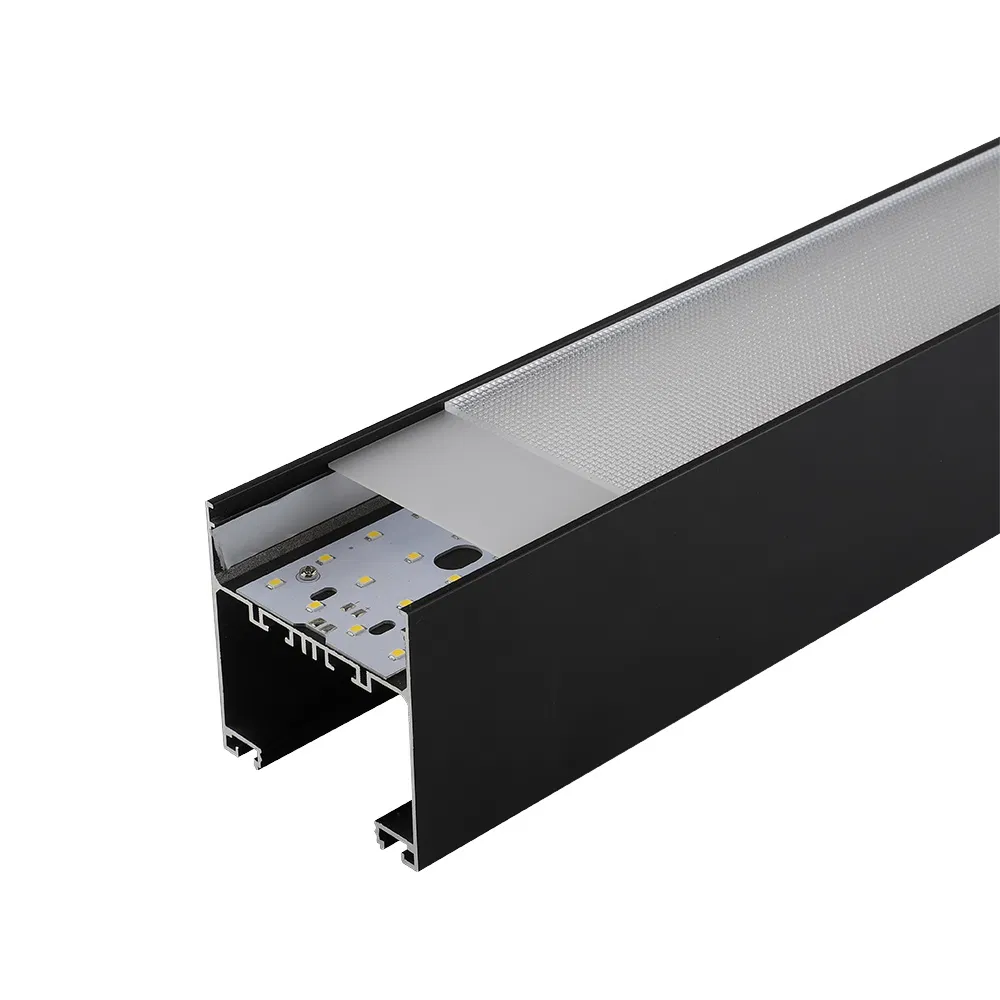

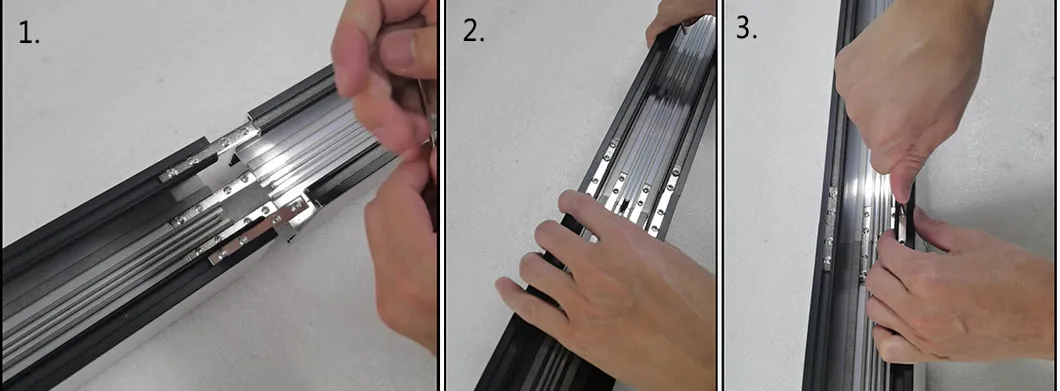

Connect with 4pcs metal pillars to connect aluminum body tightly.
Plug-in fast wiring connectors on both ends, only the first lamp requires power input.

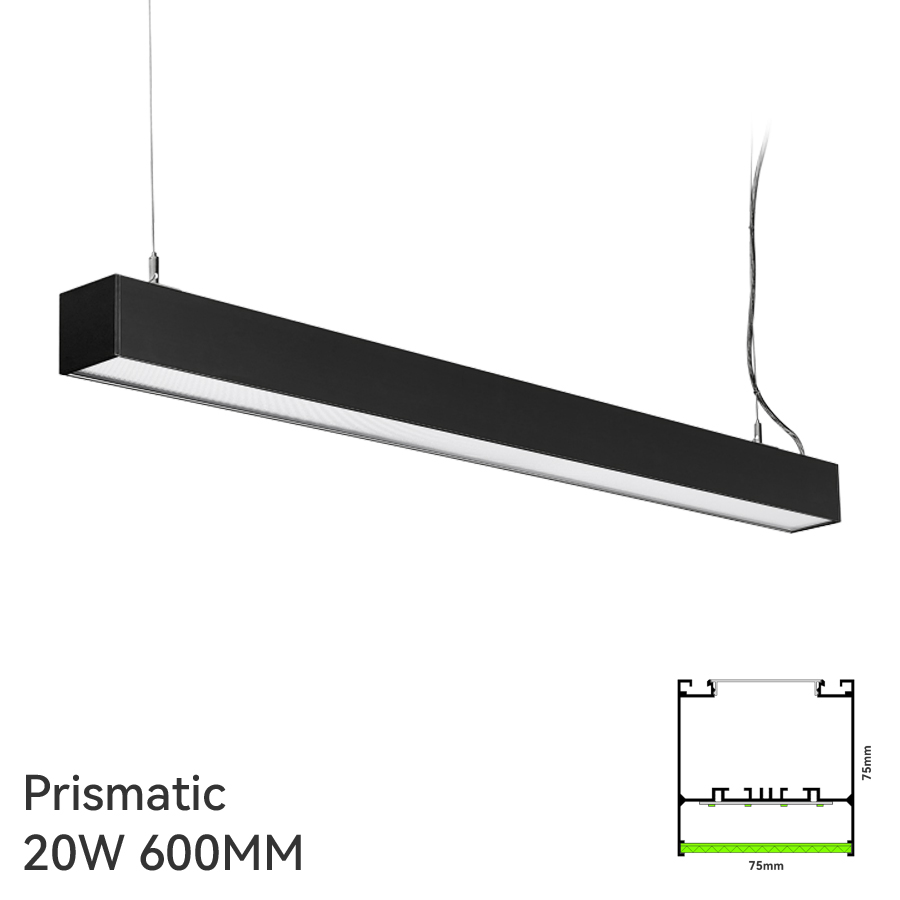

Dimension and Wattage Data
| Model Number |
Dimension |
Power |
Input Voltage |
CCT |
Shell Color |
| EN-7575D-LS20W06 |
L600xW75xH75mm |
20W |
AC200-240/AC100-265V |
3000K / 4000K / 6000K |
Black / White / Silver |
| EN-7575D-LS40W12 |
L1200xW75xH75mm |
40W |
AC200-240/AC100-265V |
| EN-7575D-LS50W15 |
L1500xW75xH75mm |
50W |
AC200-240/AC100-265V |
| EN-7575D-LS60W18 |
L1800xW75xH75mm |
60W |
AC200-240/AC100-265V |
| EN-7575D-LS80W24 |
L2400xW75xH75mm |
80W |
AC200-240/AC100-265V |
Remark: Clients can choose different lengths to form DIY shapes like long linear, rectangle, square, or L-shapes.
Installation & Application
📍 Mounting Options

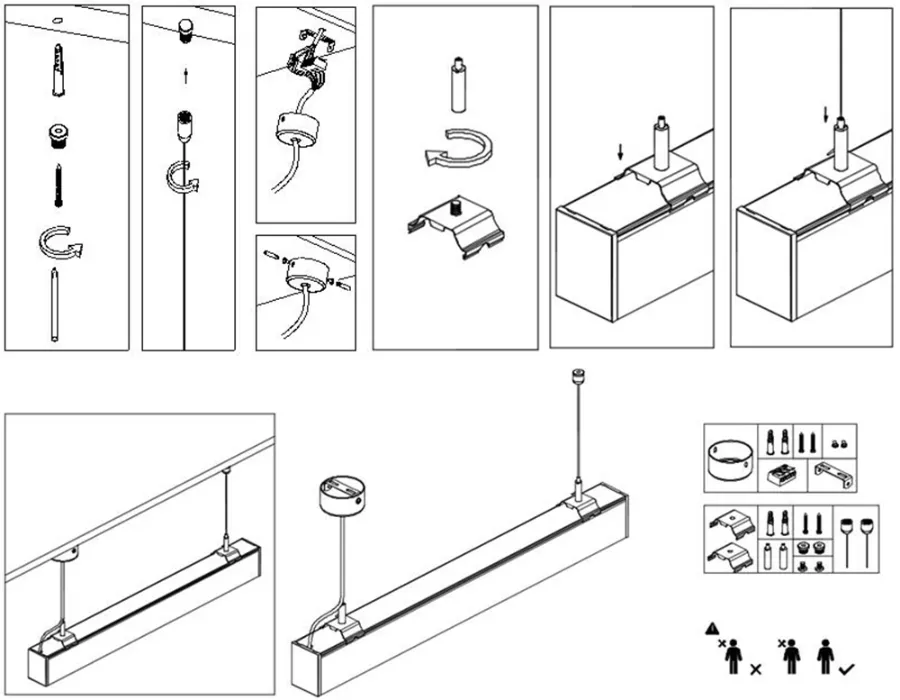

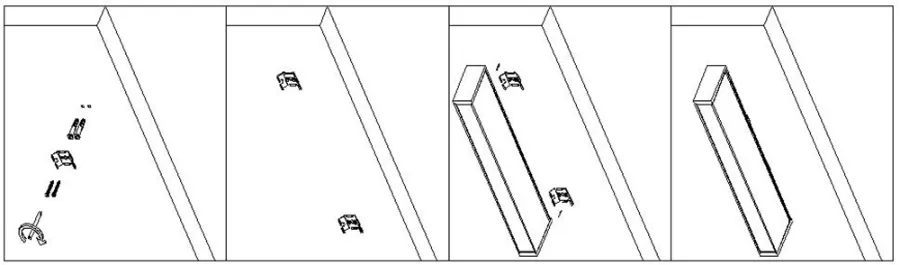

Suspended mounting is ideal for modern projects with adjustable kits. Ceiling surface mounting is suitable for lower ceiling environments.

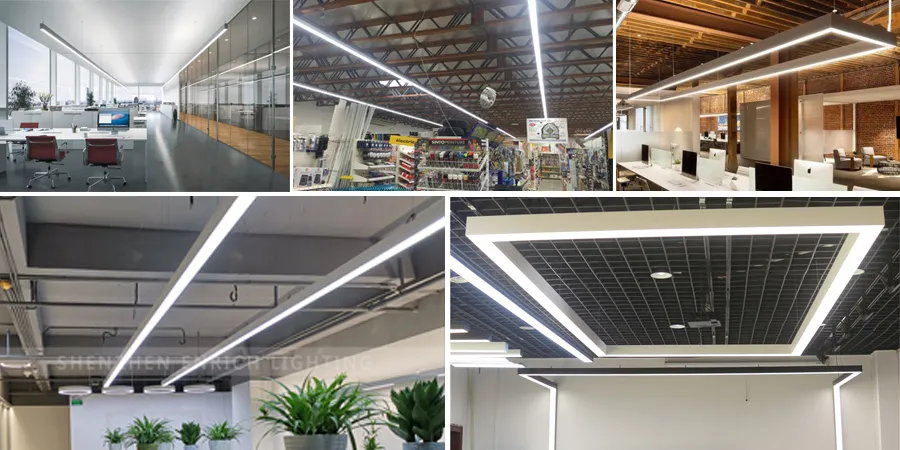

🏢 Wide Application

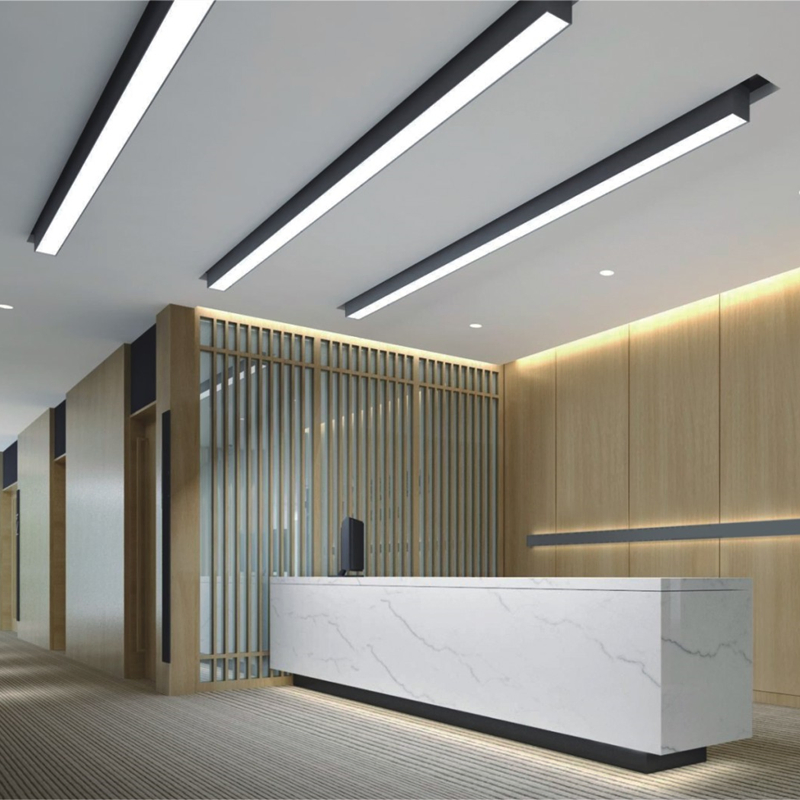

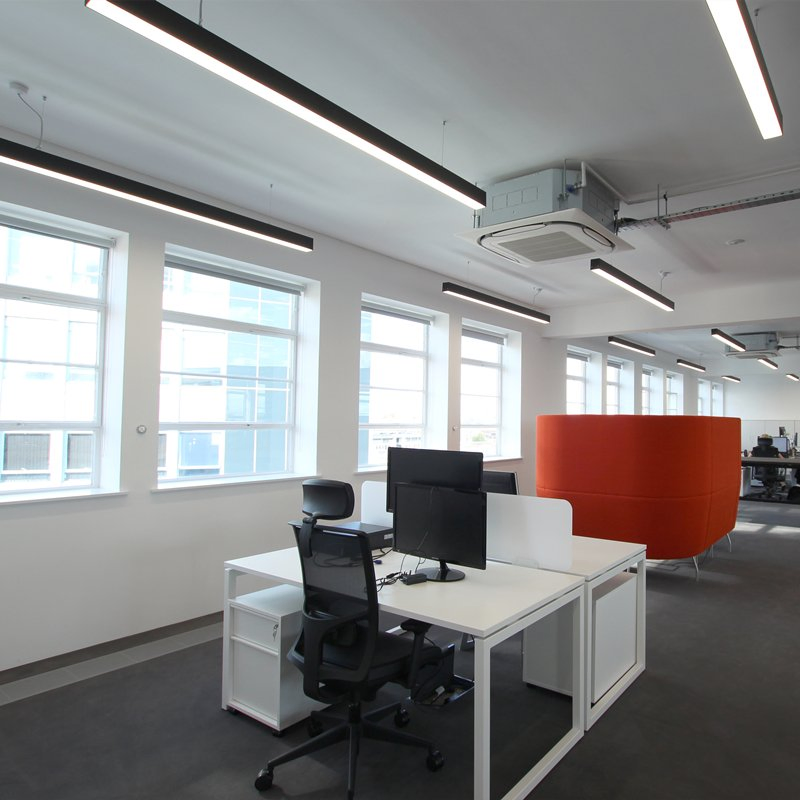

Perfect for both household and commercial lighting, including shops, offices, supermarkets, schools, hospitals, and banks.
Frequently Asked Questions
What is the UGR rating of this linear light?

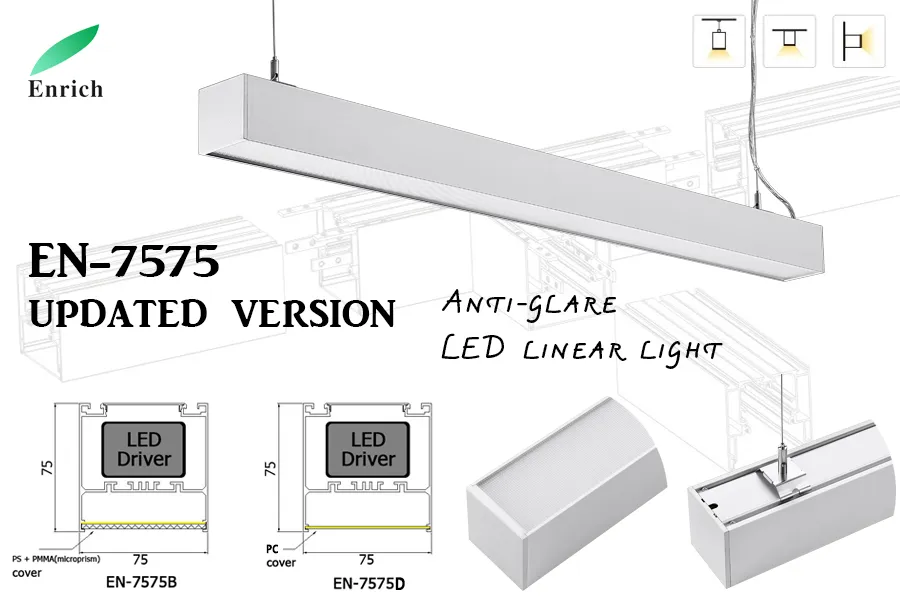

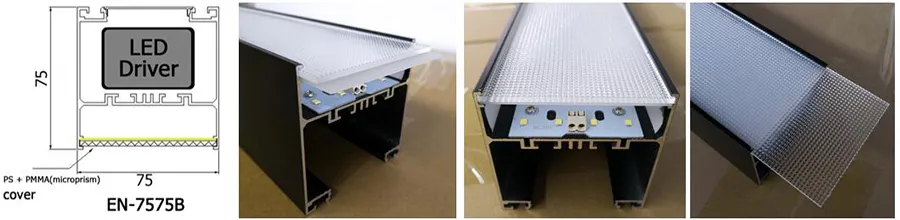

The EN-7575B model features a microprism cover specifically designed for anti-glare function, providing a low UGR suitable for office environments.
Can I connect multiple lights to form a square shape?
Yes, the lights support seamless 90-degree corner connections, allowing you to create rectangles, squares, and various DIY linear designs.
Is the driver dimmable?
We offer both 0-10V dimmable and Dali dimmable driver options to meet different project control requirements.
What installation methods are available?
The product supports both suspended mounting (with an adjustable suspension kit) and ceiling surface mounting.
What is the standard warranty period?
This high-quality aluminum LED linear light comes with a 5-year warranty for peace of mind.
Are different shell colors available?
Yes, we provide three standard shell colors: Black, White, and Silver to match various interior designs.
