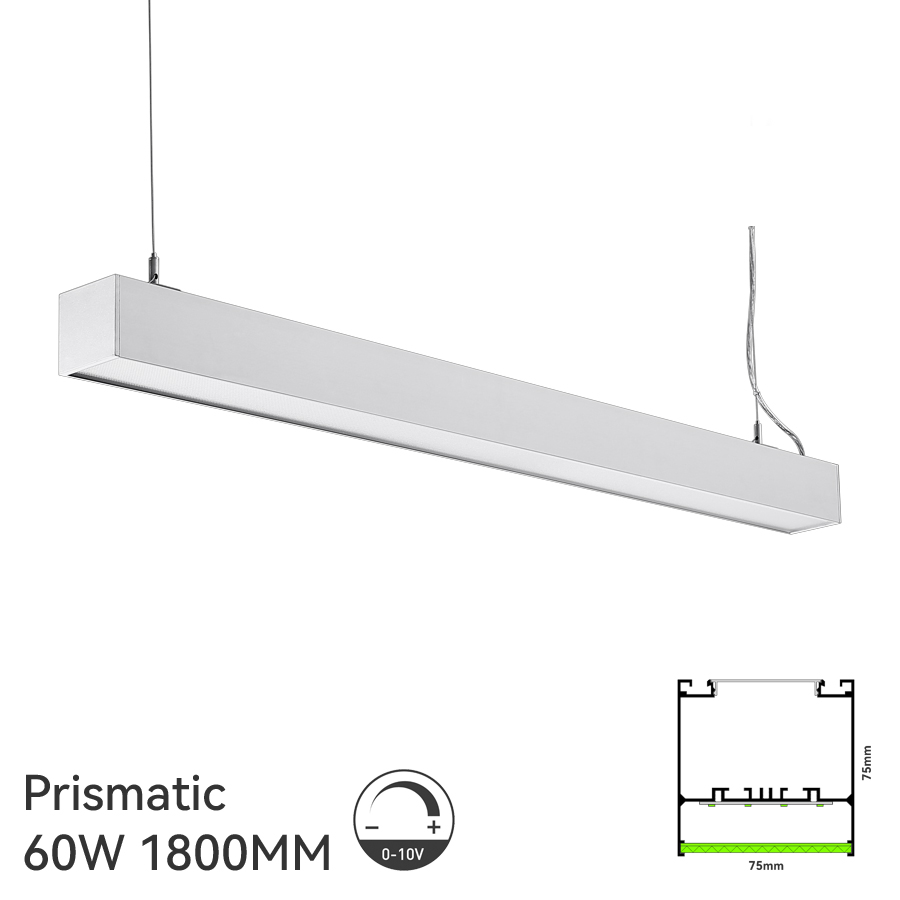

Top Quality Aluminum Prismatic Low UGR LED Linear Light
Attractive Features of This Product
Linkable and Seamless connection.
Easy to create rectangle LED light shapes.
Different shell colors available: Black, White, Silver.
Different lengths available: 0.6m, 1.2m, 1.5m, 1.8m, 2.4m, and customized lengths.
Top metal cover is removable for easy wiring operations.
0-10V dimmable and Dali dimmable support.
2 different covers option: PMMA microprism cover and PC extrusion cover.

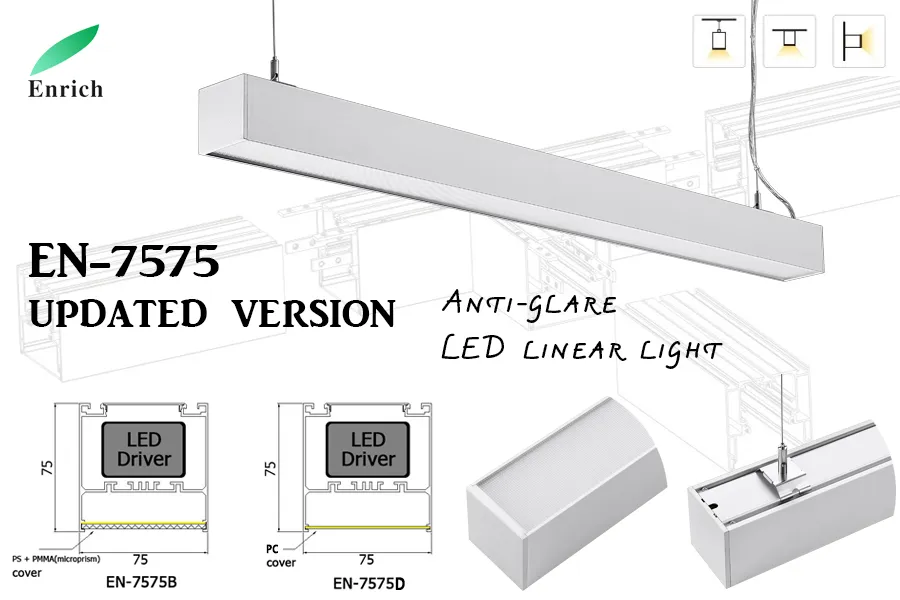

Cover Options and Product Details

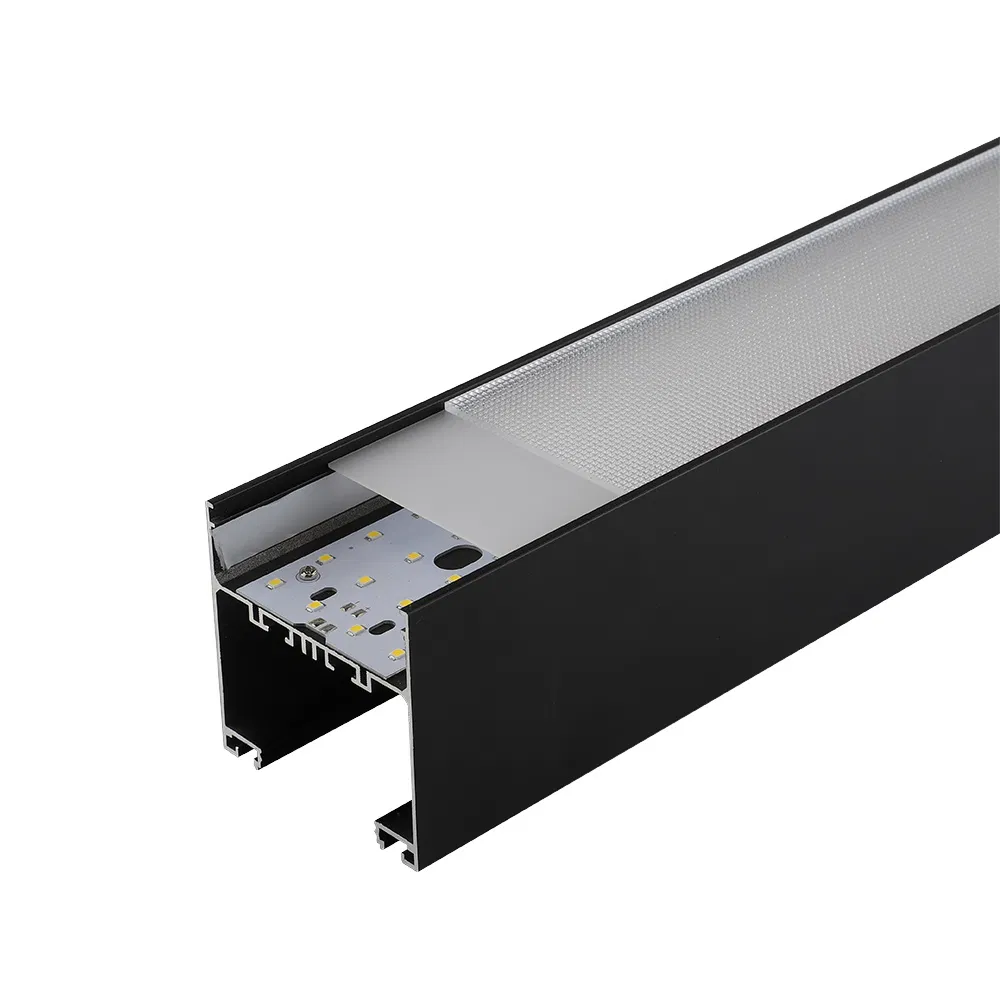

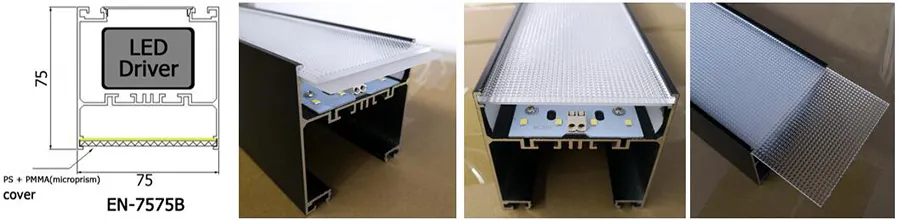

EN-7575B, with microprism cover, anti glare function.

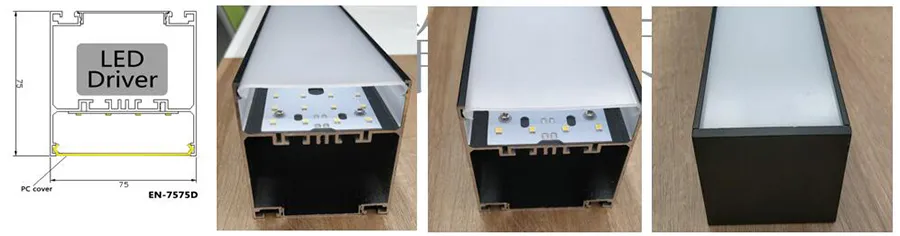

EN-7575D, with PC extrusion cover, normal type.

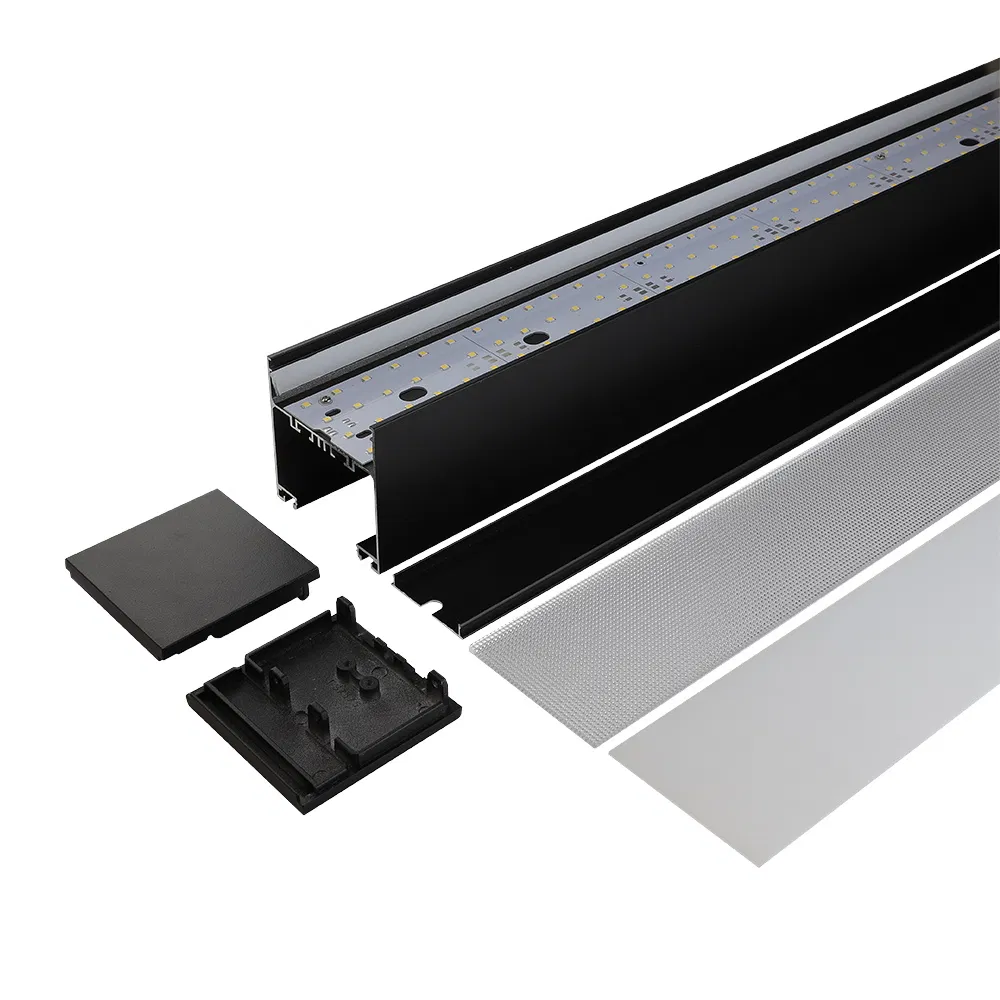

Product Details Overview
Dimensions and Structure Specifications

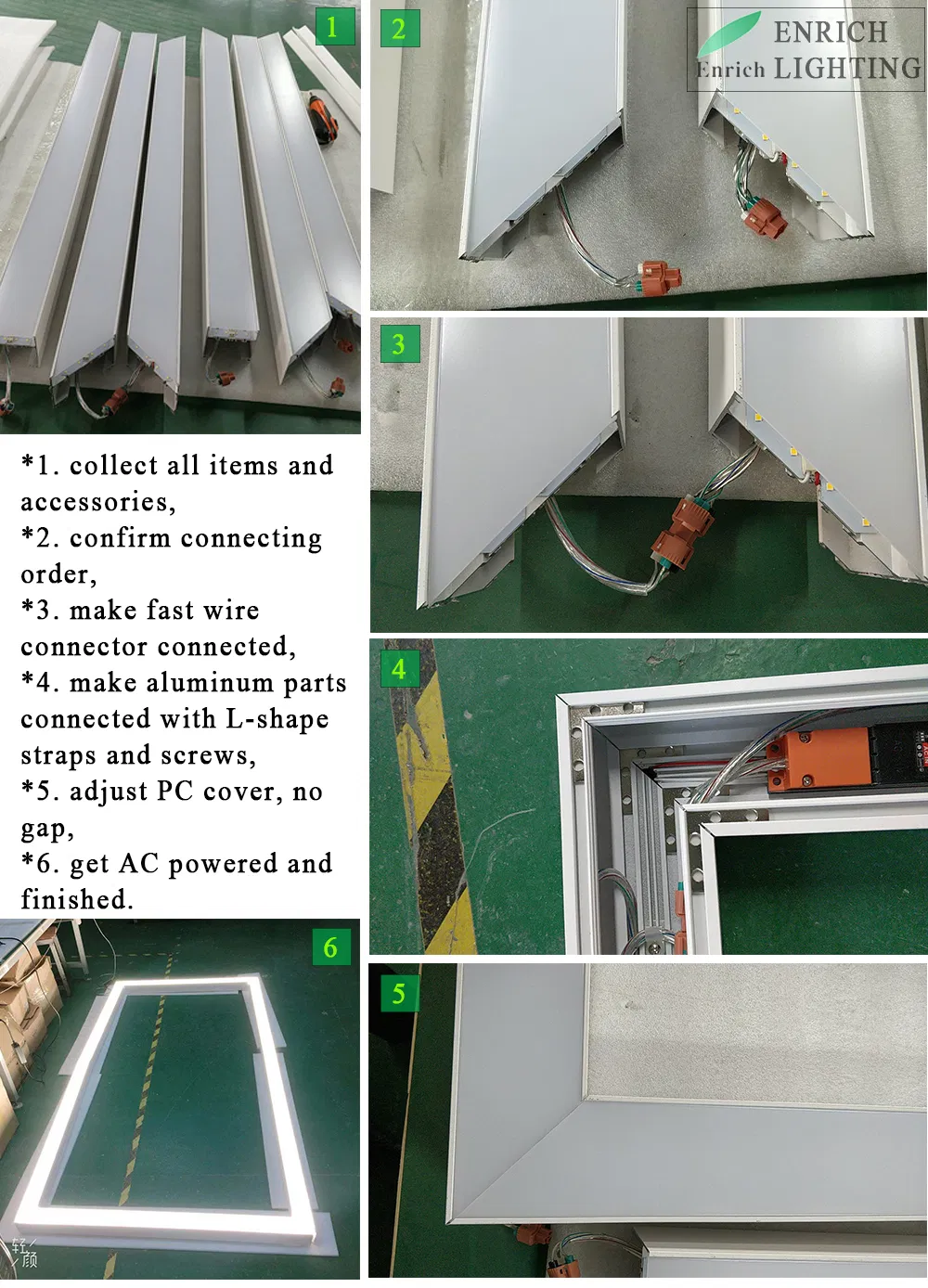

90 Degree Corner Seamless Connection & Fast Wiring
Innovative seamless alignment mechanics and modular connection options make building custom shapes simple:
Seamless Form Factor: Interlocks tightly using 4pcs metal pillars to connect the aluminum main body securely.
Fast Wiring Mechanism: Designed with quick plug-in connectors on both ends, so power input is only needed for the first fixture in the run.
Horizontal & Corner Seamless Assembly
Wiring & Pillar Alignment Details
Dimension and Wattage Table
Model number
Dimension
Power
Input voltage
CCT
Shell color
EN-7575D-LS20W06
L600xW75xH75mm
20W
AC200-240 / AC100-265V
3000K 4000K 6000K
Black White Silver
EN-7575D-LS40W12
L1200xW75xH75mm
40W
AC200-240 / AC100-265V
EN-7575D-LS50W15
L1500xW75xH75mm
50W
AC200-240 / AC100-265V
EN-7575D-LS60W18
L1800xW75xH75mm
60W
AC200-240 / AC100-265V
EN-7575D-LS80W24
L2400xW75xH75mm
80W
AC200-240 / AC100-265V
Remark: Clients can choose different lengths to build customizable structures, such as long continuous linear lights, rectangles, squares, L-shapes, or other tailored layout designs.

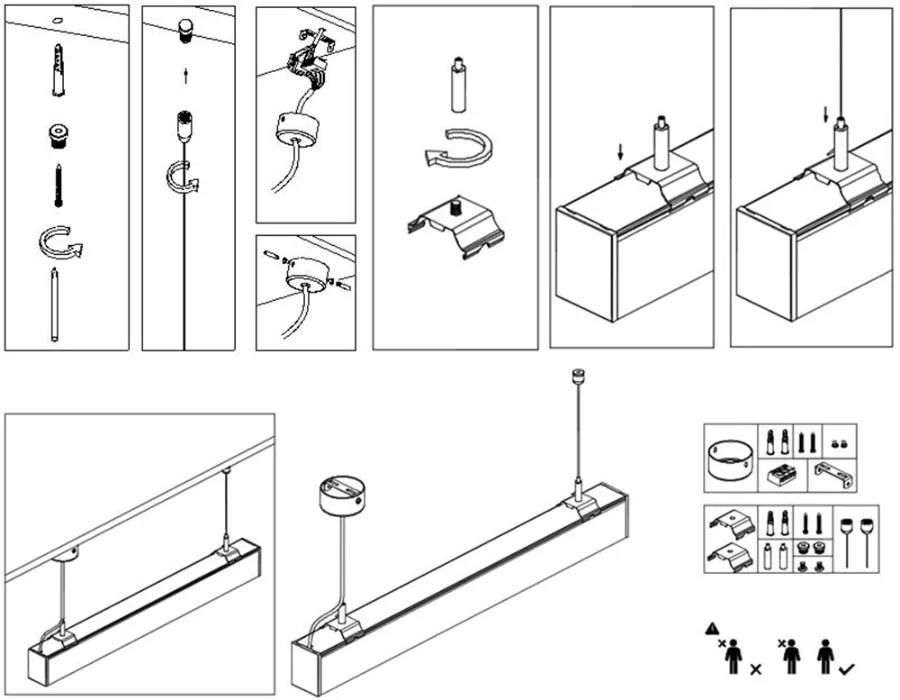

Installation Methods
Suspended Mounting (Includes adjustable suspension kit, ideal for project installations)

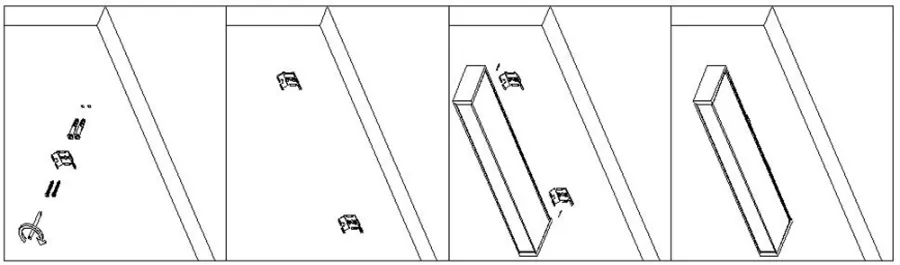

Ceiling Surface Mounting (Suitable for low-clearance ceilings)

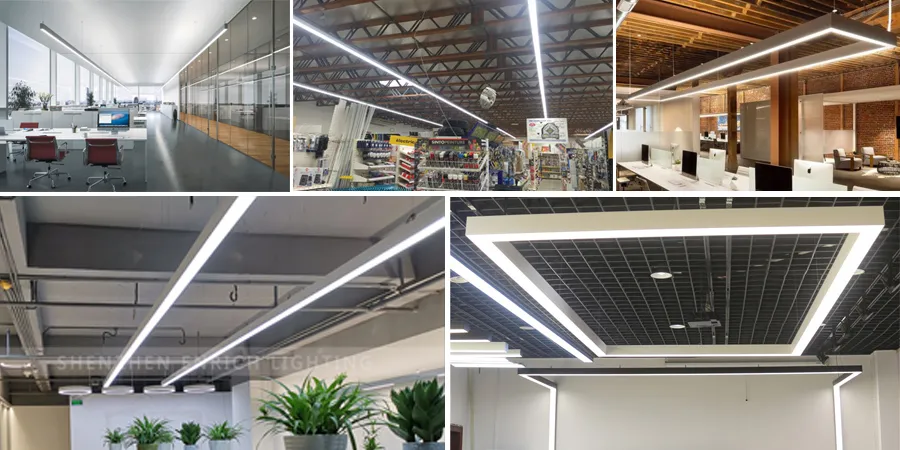

Versatile Applications
Designed for both high-end residential spaces and modern commercial settings, including shops, offices, supermarkets, schools, hospitals, and banks.

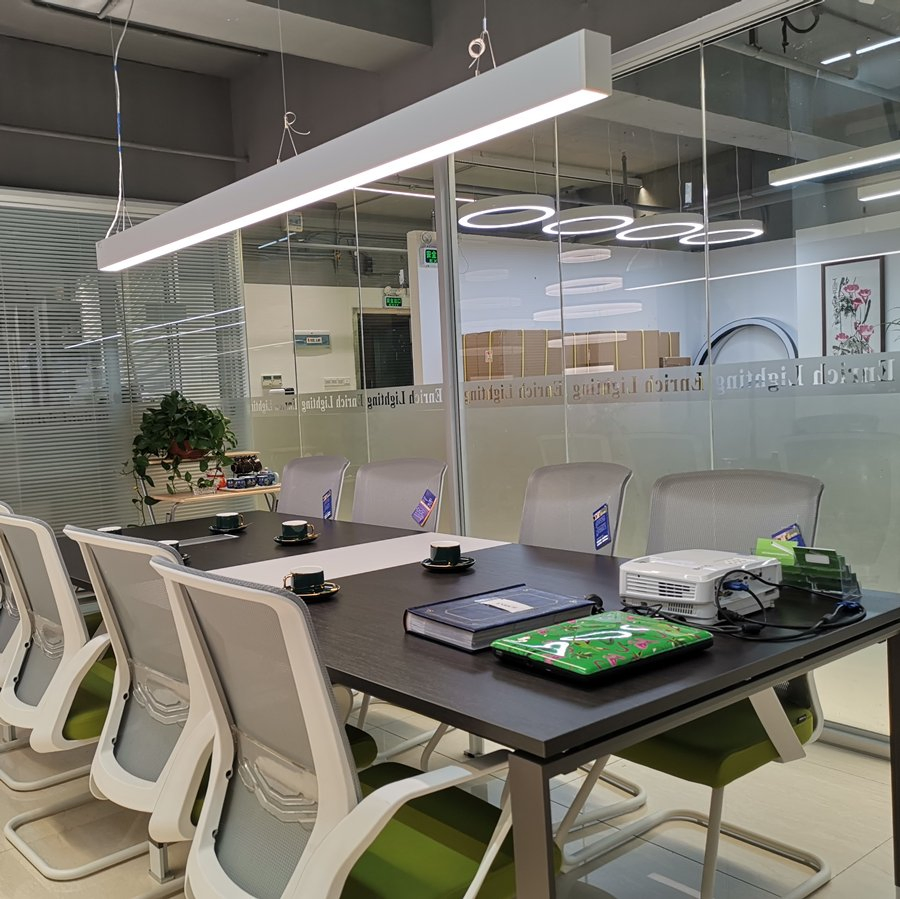

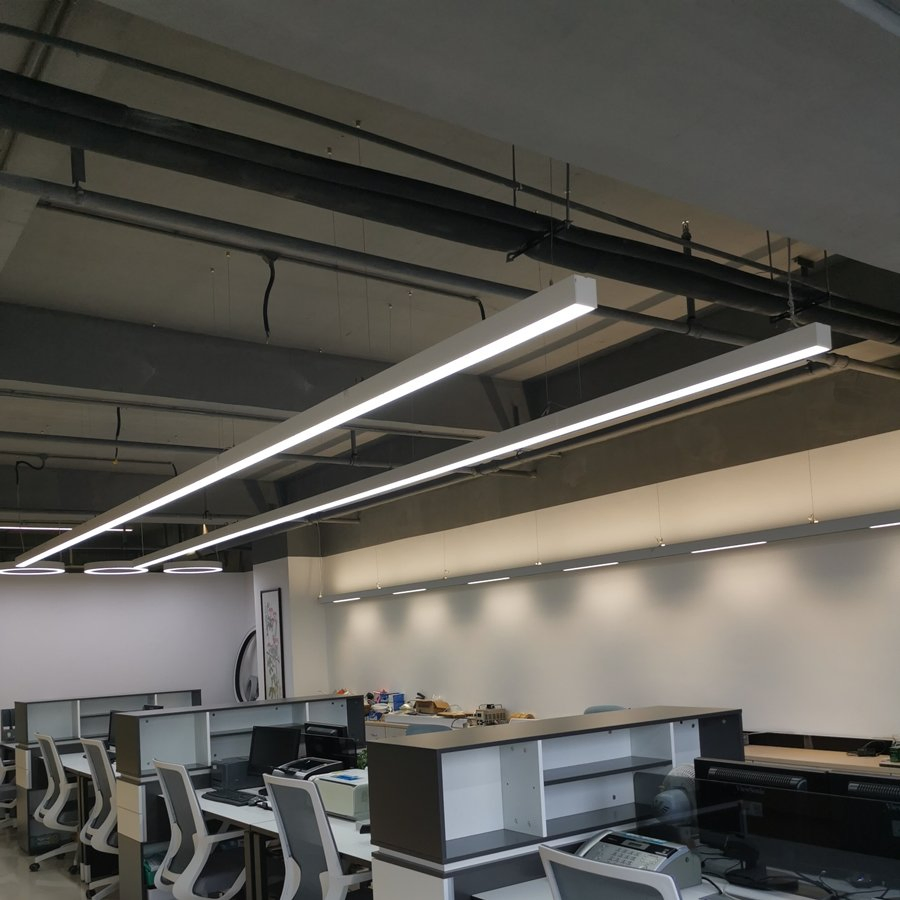

Office Space Installation Application Reference

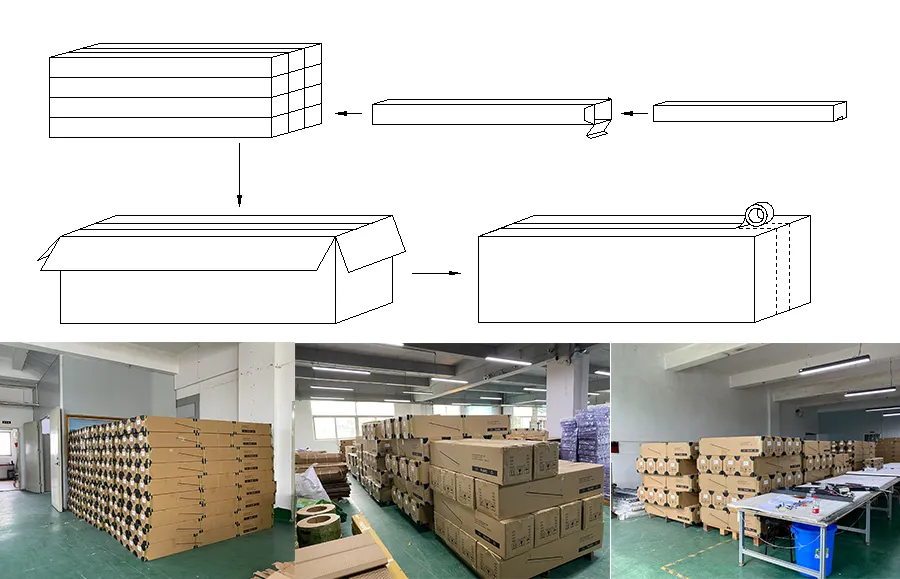

Packing Information
Each lamp is individually packaged inside a protective inner box to prevent any scratches or damage during shipping.
Standard Individual Inner Box Packaging
Frequently Asked Questions (FAQ)
Q1 What dimming control protocols do these linear lights support?
Our aluminum LED linear lights support 0-10V dimmable and DALI dimmable control options, allowing for smooth light level adjustments in high-end projects.
Q2 Can I join these lights together to form custom geometric configurations?
Yes. These lights feature a 90-degree corner seamless connection mechanism using 4 robust metal alignment pillars, enabling you to build customized shapes like rectangles, squares, L-shapes, and continuous runs.
Q3 What cover designs are available and how do they differ?
You can choose between a PMMA microprism cover (available on the EN-7575B model) which offers enhanced anti-glare, low UGR performance, and a PC extrusion cover (on the EN-7575D model) designed for standard, high-efficiency illumination.
Q4 Is the wiring difficult when connecting multiple fixtures?
Not at all. The design features plug-in fast wiring connectors on both ends. This means only the first lamp in the connected string needs to be hardwired to the mains power supply, significantly simplifying the installation process.
Q5 What mounting configuration options are available?
Two primary installation methods are supported: suspended mounting using an adjustable suspension kit (best suited for office or commercial projects), and ceiling surface mounting (ideal for low-clearance structures).
Q6 What color temperatures (CCT) and physical sizes can I order?
Our linear lights are available in standard lengths ranging from 0.6m to 2.4m (custom lengths accepted) and offer three color temperature options: Warm White (3000K), Neutral White (4000K), and Cool White (6000K).
