Basic Info.
Model NO.7575B
IP RatingIP20
Input Voltage200-240V/100-240V
Wattage20/40/50/60/80W
Length600/1200/1500/1800/2400mm
Luminous Efficiency100 Lm/W
DriverCE, RoHS
Shell ColorBlack/White/Silver
Dimmable0-10V/Dali
Warranty5 Years
Beam Angle120 Degree
CRI>80/>90
MaterialAluminum+PC
InstallationSuspended/ Ceiling Surface
Transport PackageStandard Export Packing
Specification600mm/1200/1500/1800/2400mm
OriginChina Mainland
HS Code9405110000
Production Capacity500, 000 PCS/Year
Product Description

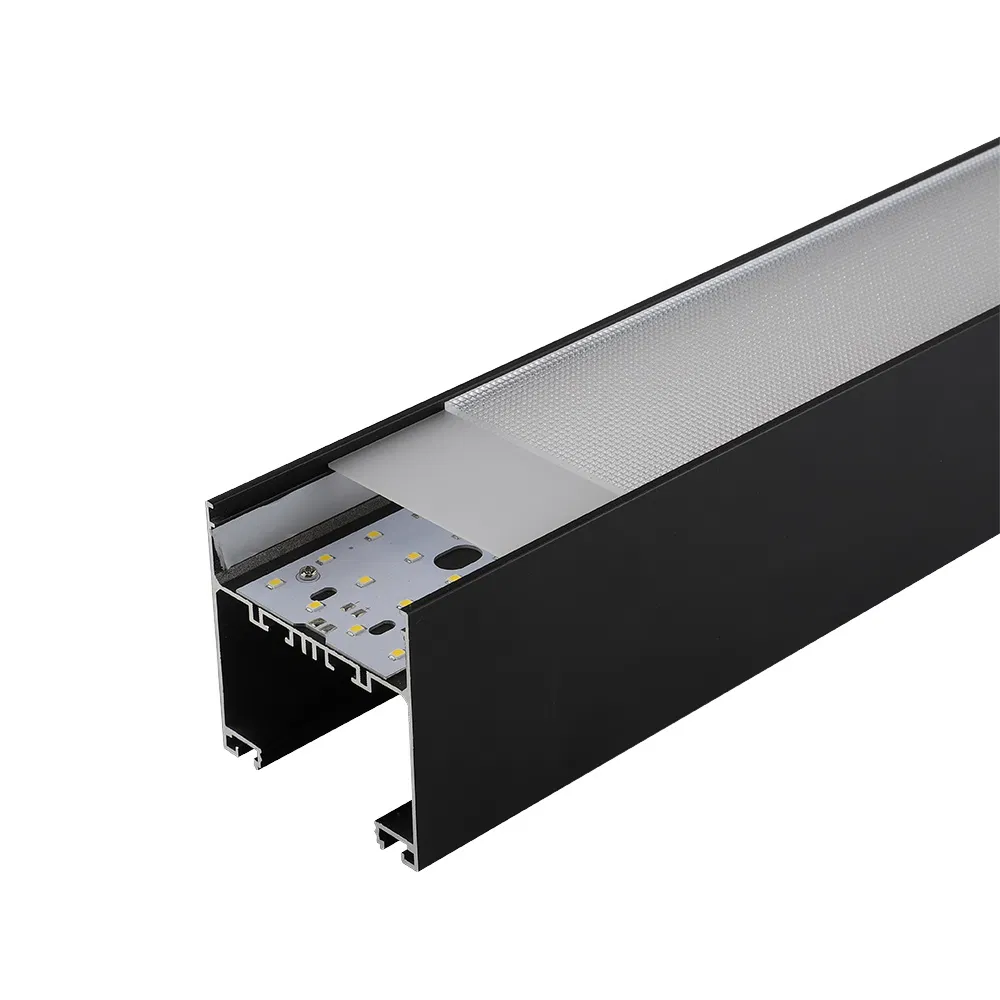

Top quality Aluminum Prismatic Low UGR LED linear light
Attractive features of this product:
- Linkable and Seamless connection
- Easy to create rectangle LED light
- Different shell colors available: Black, White, Silver
- Different lengths available: 0.6m, 1.2m, 1.5m, 1.8m, 2.4m, accept customized lengths
- Top metal cover is removeable for wiring operation
- 0-10V dimmable and Dali dimmable is available

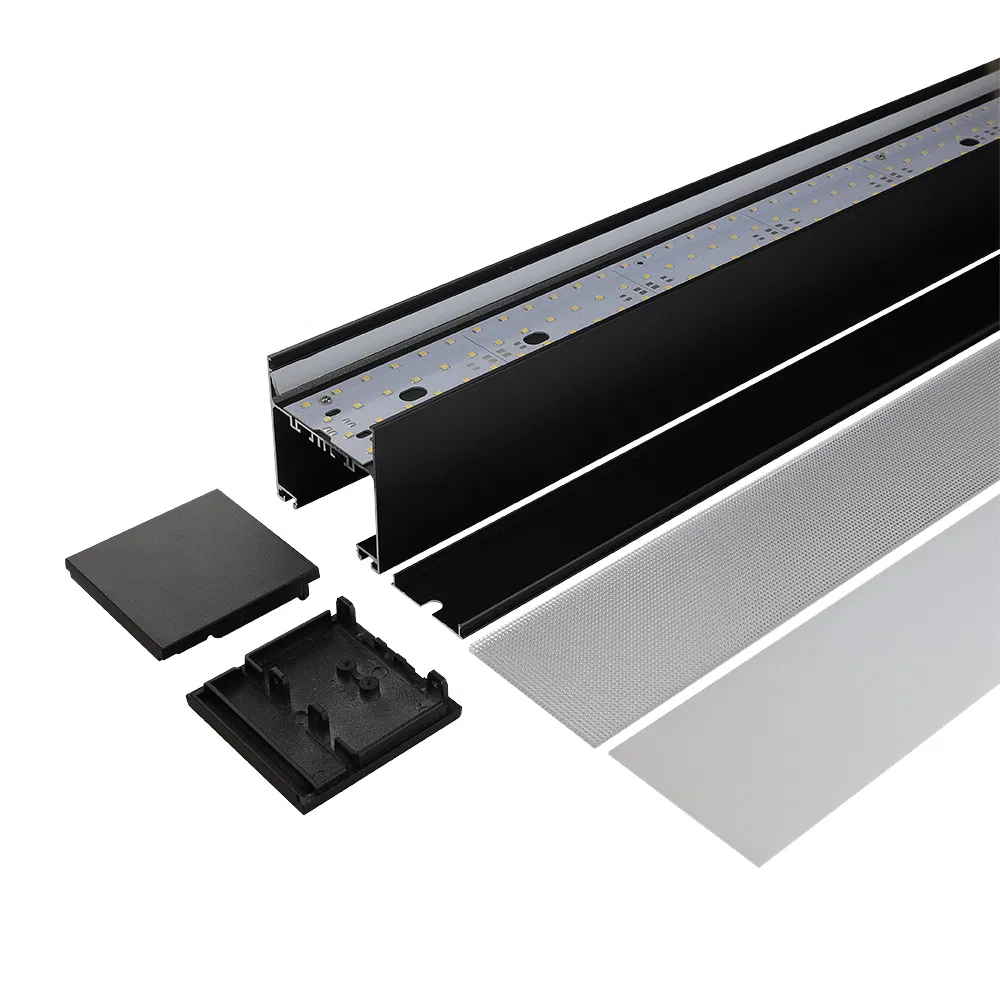

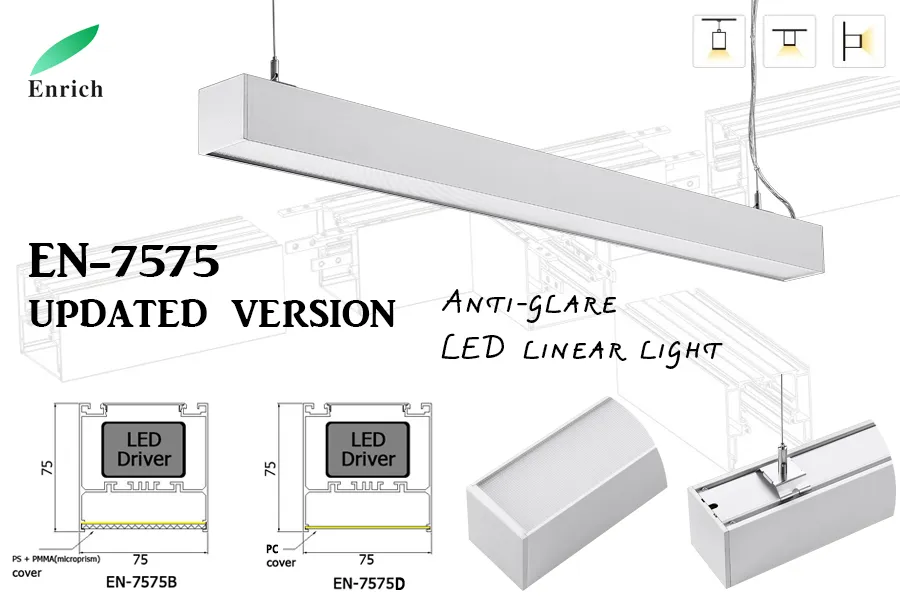

- 2 different covers are able to choose, PMMA microprism cover and PC extrusion cover

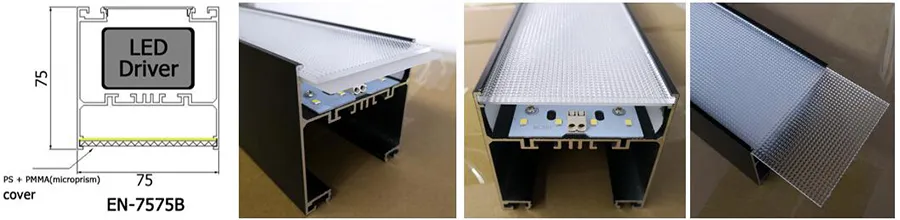

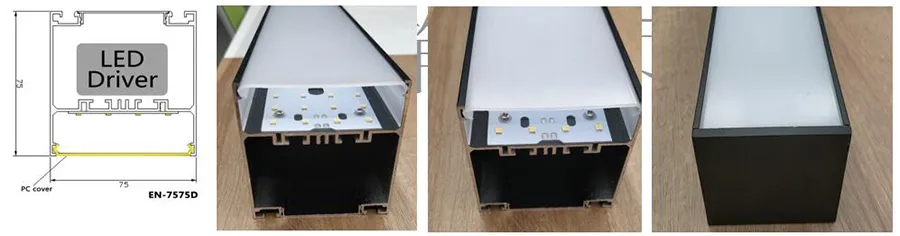

EN-7575B, with microprism cover, anti glare function.
EN-7575D, with PC extrusion cover, normal type.
Product Details

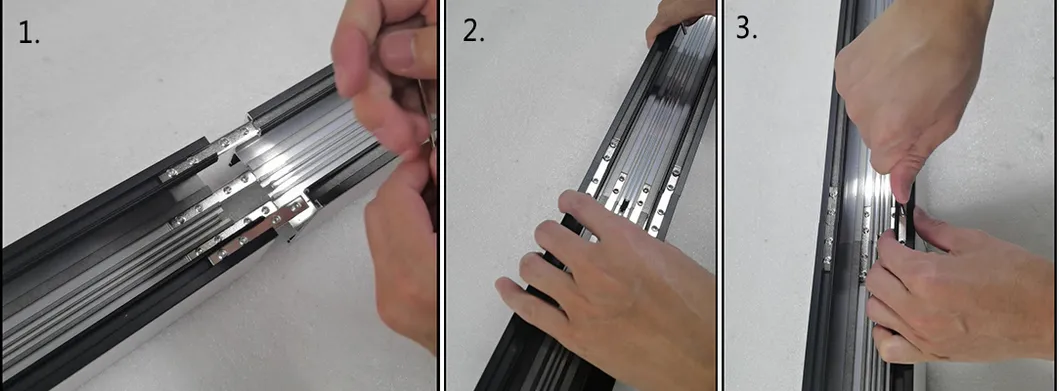

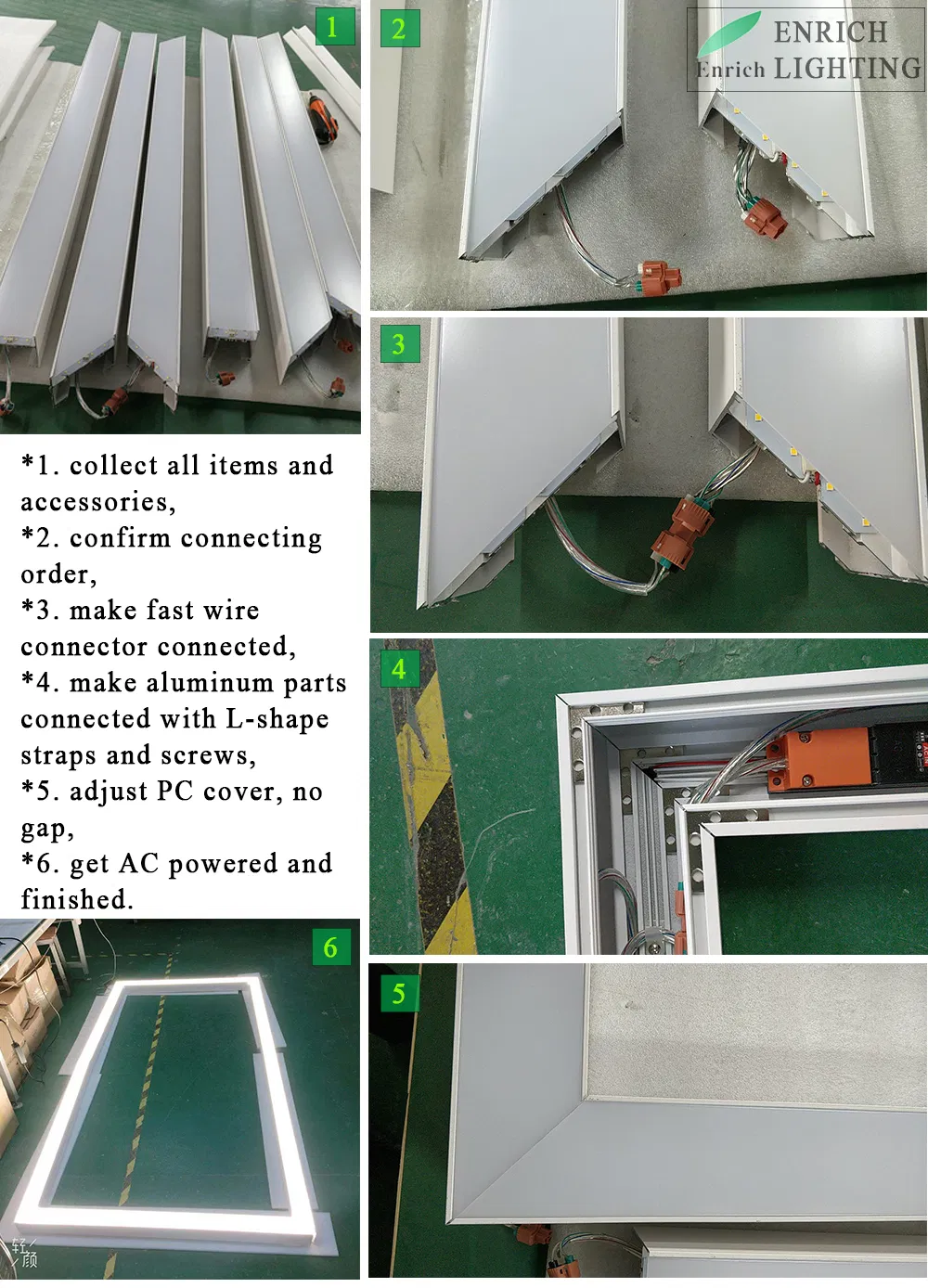

90 degree corner seamless connection and fast wire connection
- Connect with seamless, form with 4pcs metal pillars to connect aluminum body tightly.
- Plug-in fast wiring connectors on both ends, only the first lamp to get electricity.
Dimension and Wattage Specifications
| Model number |
Dimension |
Power |
Input voltage |
CCT |
Shell color |
| EN-7575D-LS20W06 |
L600xW75xH75mm |
20W |
AC200-240/AC100-265V |
3000K
4000K
6000K |
Black
White
Silver |
| EN-7575D-LS40W12 |
L1200xW75xH75mm |
40W |
AC200-240/AC100-265V |
| EN-7575D-LS50W15 |
L1500xW75xH75mm |
50W |
AC200-240/AC100-265V |
| EN-7575D-LS60W18 |
L1800xW75xH75mm |
60W |
AC200-240/AC100-265V |
| EN-7575D-LS80W24 |
L2400xW75xH75mm |
80W |
AC200-240/AC100-265V |
Remark: client could choose different length to form a DIY shapes, like long linear light, rectangle shape, square shape, L shape or other designs.
Installation Methods

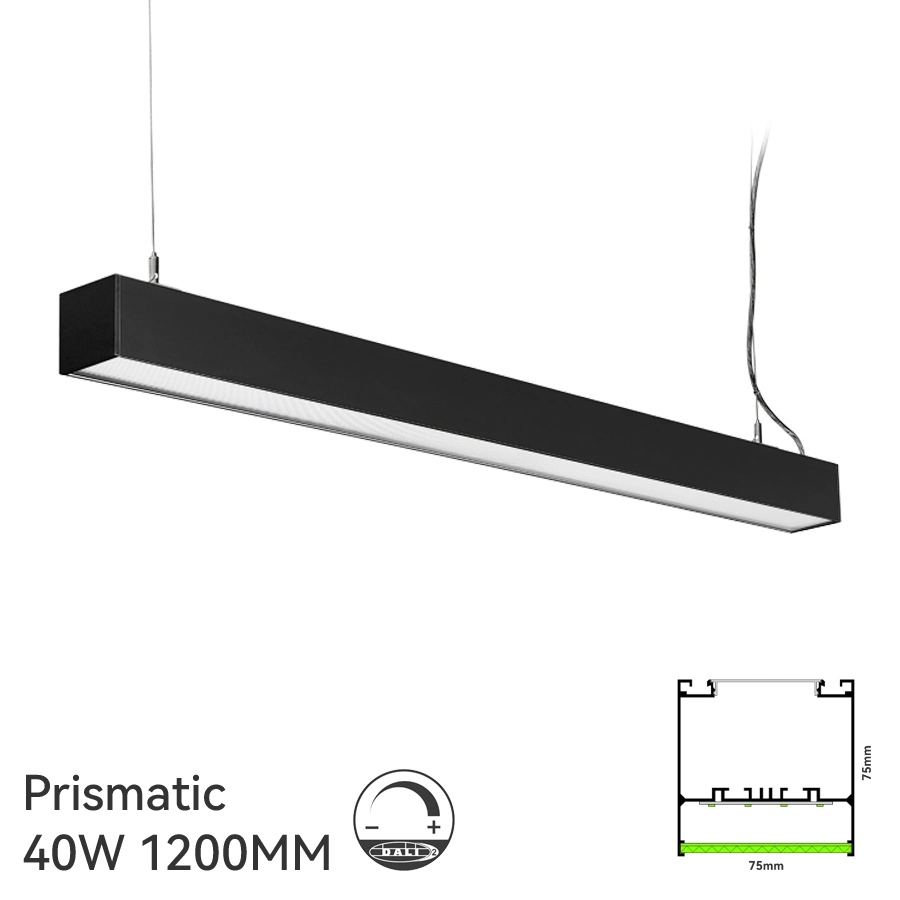

Suspended mounting is the hottest selling for projects. The suspension kit is adjustable. Ceiling surface mounting is suitable for lower ceiling.

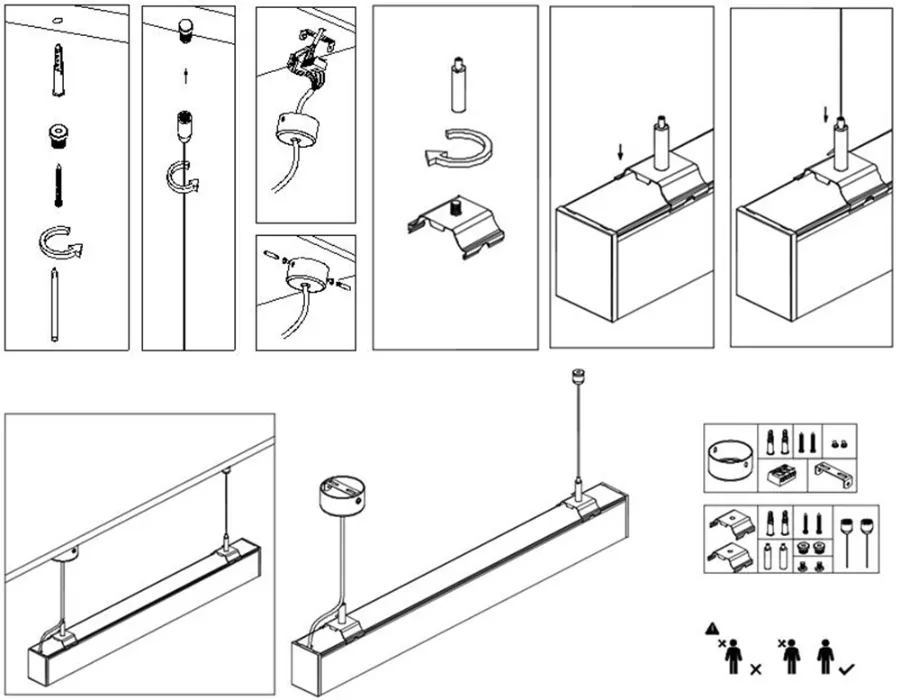

Suspended Installation Setup

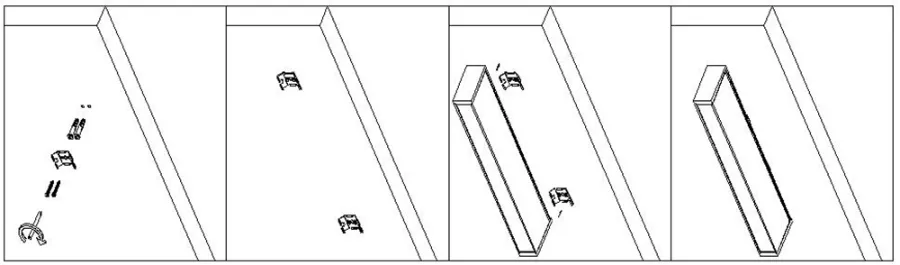

Ceiling Surface Installation Setup

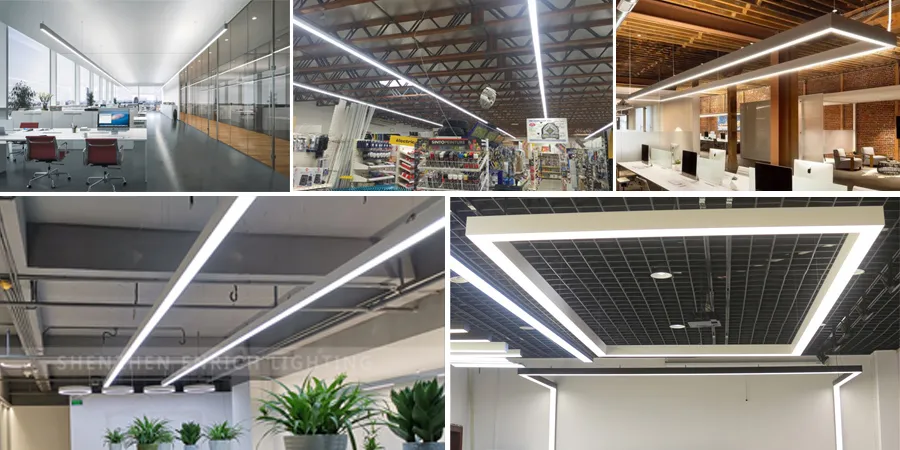

Applications

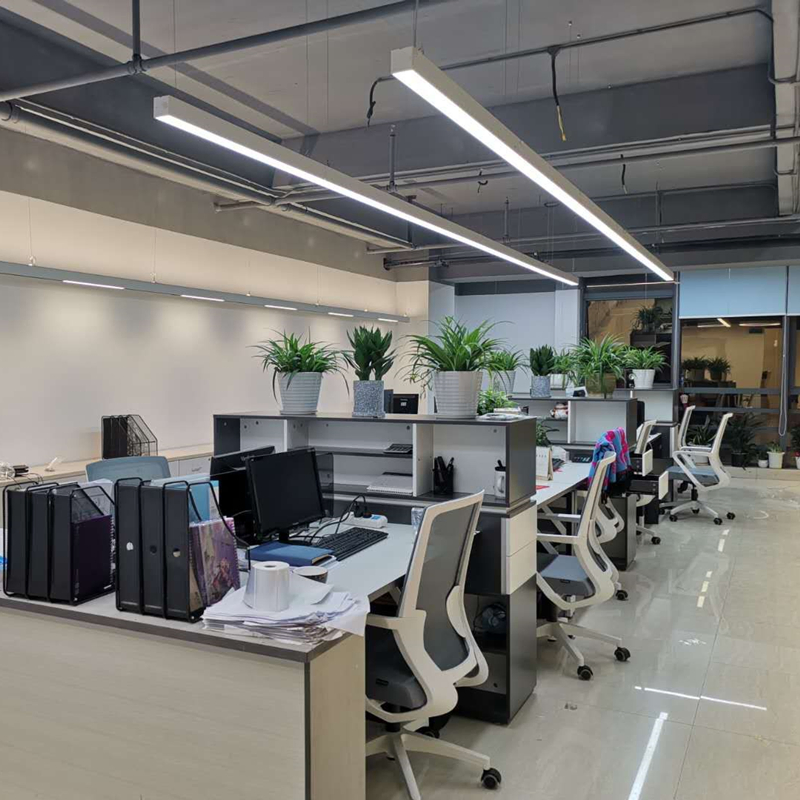

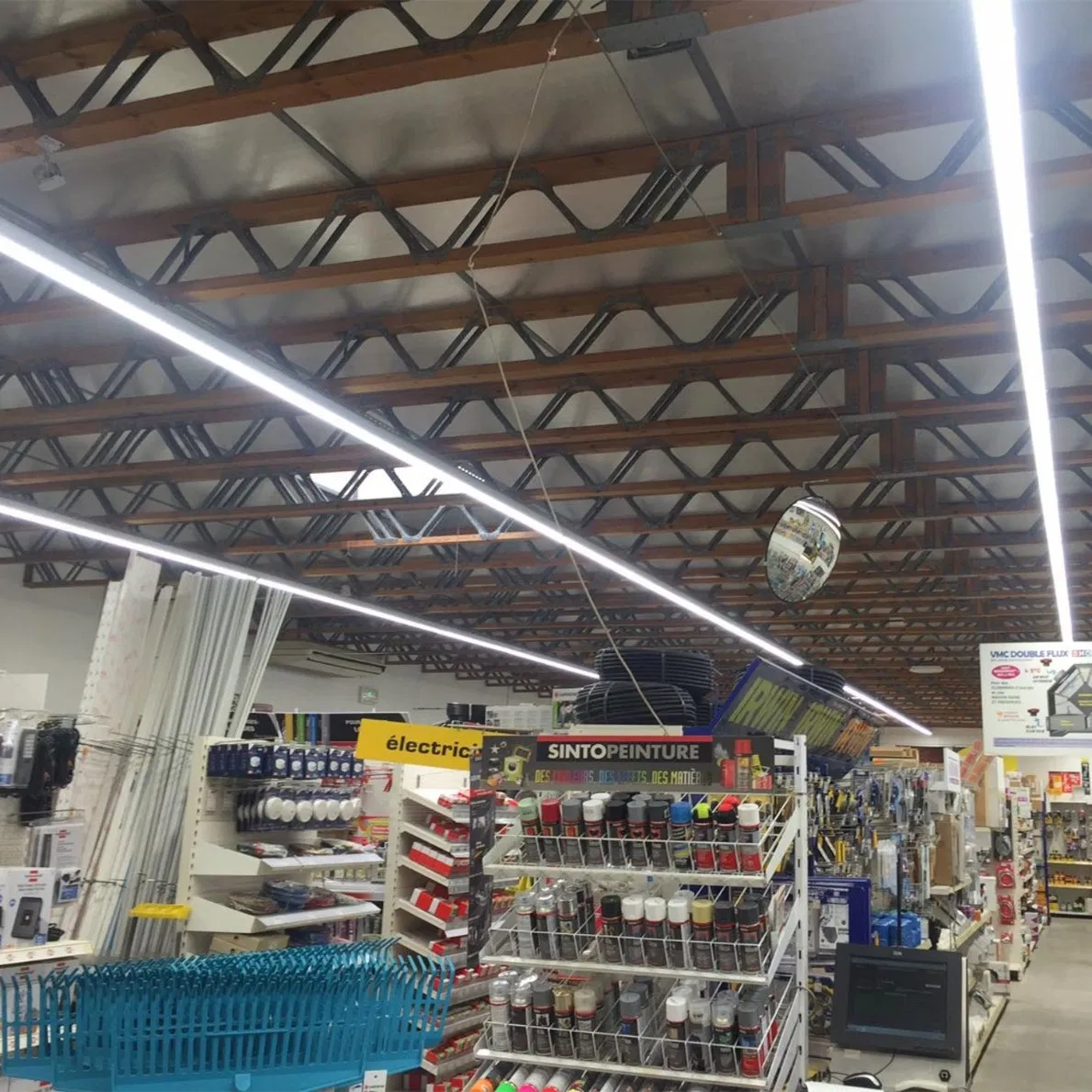

Widely using both on household lighting and commercial lighting. Such as shops, office, super market, school, hospital, bank etc.

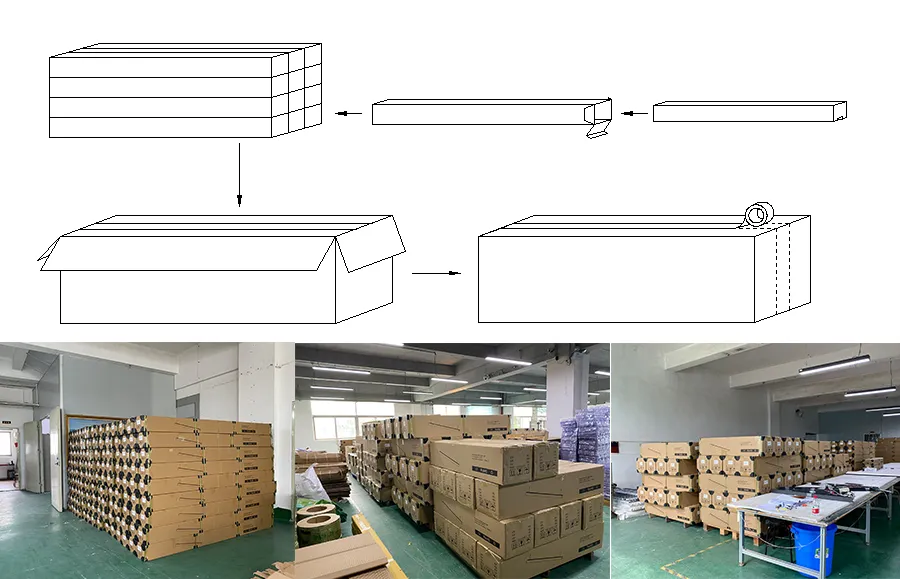

Packing Information
Each lamps has a inner box, individual packing.
Frequently Asked Questions
What cover options are available for this LED linear light?
You can choose between a PMMA microprism cover, which provides an anti-glare anti-UGR function, or a standard PC extrusion cover.
Does this product support dimming controls?
Yes, this LED linear light is compatible with both DALI dimming and 0-10V dimming systems.
Can these lights be seamlessly connected for custom shapes?
Yes, they support seamless 90-degree corner connections using 4 metal pillars to securely fit the aluminum body, along with plug-in fast wiring connectors at both ends so only the first light requires electricity.
What are the available installation methods?
They can be installed either via suspended mounting with an adjustable suspension kit, or surface mounted directly to the ceiling for lower clearance environments.
What CCT (Color Temperature) and shell colors are available?
The lights are available in Black, White, and Silver shell finishes, and support CCT options of 3000K, 4000K, and 6000K.
What is the warranty period for this linear lighting fixture?
The product is constructed from premium Aluminum and PC materials, and comes backed by a 5-year warranty.
