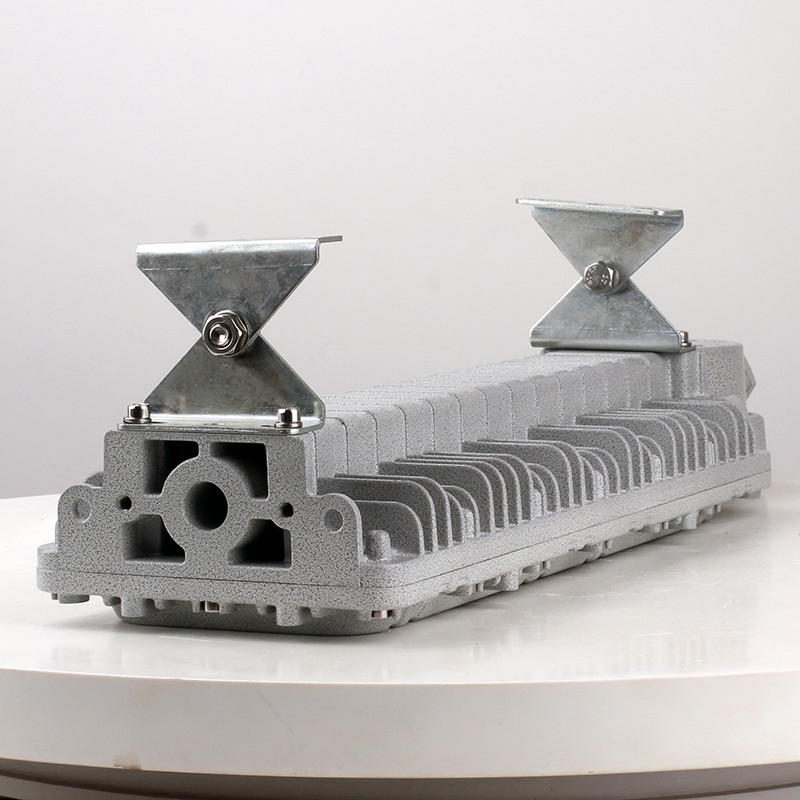

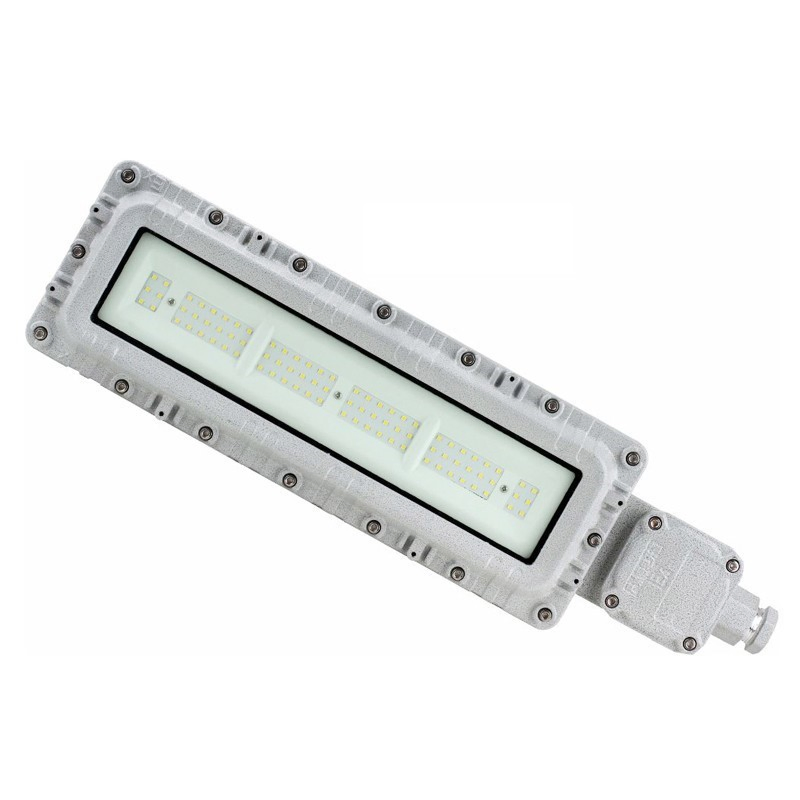

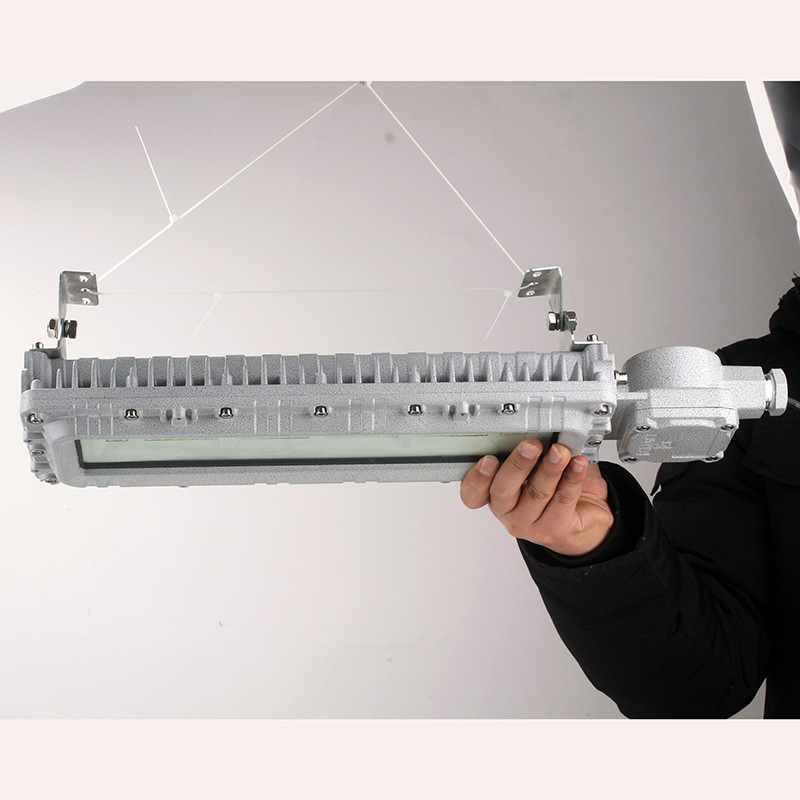

Tri-Proof Luz 4FT Explosion-Proof Fluorescent Lamp 0.7m Single 60W LED Tube Light Explosion Proof Liner Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO. BPY96-I
Input Voltage AC 220V/AC 380
Power 20W, 30W, 40W, 50W, 60W
Color Temperature 2700-6500K
Emitting Color Warm White or Cold White
LED Chips Brand CREE
Certification CCC, CE, RoHS, Iecex
Lighting Solutions Service Dialux Evo Layout
Warranty(Year) 3-Year
Working Lifetime(Hour) 50000
Characteristic Waterproof, Dustproof and Corrosion-Resistant
Lamp Luminous Efficiency(Lm/W) 120
Color Rendering Index(Ra) >80
Support Dimmer Yes
Working Temperature -40 - 80
CRI (Ra>) 80
Lamp Luminous Flux(Lm) 2400-4800
Transport Package Carton
Specification 4.66kg LED

Product Parameters

Product Parameters Banner

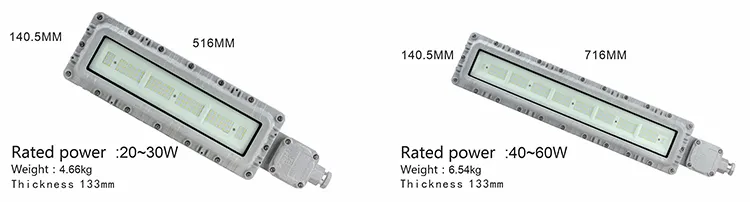

Model Specifications
Model and specification Explosion proof sign Light source Lamp type Power (W) Luminous flux (Lm) Color temperature (K) Weight (kg)
BPY96- Ex db eb IIC T6 Gb
Ex tb IIIC T80ºC Db
LED I 20~30 2400~3600 3000~5700 4.66
II 40~60 4800~7200 6.54
Rated voltage/frequency Inlet thread Cable outer diameter Emergency charging time Emergency starting time Emergency lighting time Degree of protection Anti corrosion grade
220V/50Hz G3/4 Φ10~Φ14mm 24h ≤0.3s ≥90min IP66 WF2

Product Description

Product Description Banner
1
The shell of this product is made of aluminum alloy die-casting, and the surface is shot blasted and then sprayed with high voltage static electricity, which is corrosion resistant and anti-aging; Transparent parts are made of physically toughened glass with high light transmittance and UV resistance; Exposed stainless steel fasteners with high corrosion resistance; The joint surface is made of high temperature resistant silicone rubber seal ring, with protection performance of IP66, which can be used indoors and outdoors; Built in Special terminal blocks, reliable wire connection, convenient maintenance.
2
The natural ventilation convection heat dissipation technology is adopted, and the air flow is used to effectively dissipate the heat to the space outside the lamp through the heat dissipation channel and heat flow channel to ensure the long service life of the lamp.
3
Independent anti surge device of power module can effectively filter the damage to lamps caused by voltage fluctuation caused by large equipment; Special constant current waterproof power supply, wide voltage input, constant power rate output, with short circuit, high temperature and other protection functions; Power factor cos Φ= zero point nine five.
4
The light source module adopts chips of international famous brands, which are reasonably arranged, unidirectional lighting, uniform and soft light, light efficiency ≥ 120lm/W, and high color rendering Ra>70.
5
This series of products can be equipped with a combined emergency device, which can automatically switch to the emergency lighting state when the power supply is cut off; Emergency parameters: a) Emergency starting time (s): ≤0.3s; b) Charging time (h): 24; c) Emergency power (W): ≤ 50; d) Emergency lighting time (min): ≥ 60, ≥ 90.
Security Level: WF2, Ex db IIC T6 Gb, Ex tb IIIC T80ºC Db
Emergency Lighting Time: ≥90min
Field of utilization: Industry, Gas Station, Refinery, Spray Booth, Hazardous Locations
Applicable Scope: Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC Explosive Gas Environments
Mounting Style: Bracket Type, Boom Type, Wall Type, Guardrail Type, Flange Type
Alias: Explosion Proof Linear Light, Explosion Proof Fluorescent Light, Explosion Proof Strip Light, Explosion Proof Tube Light

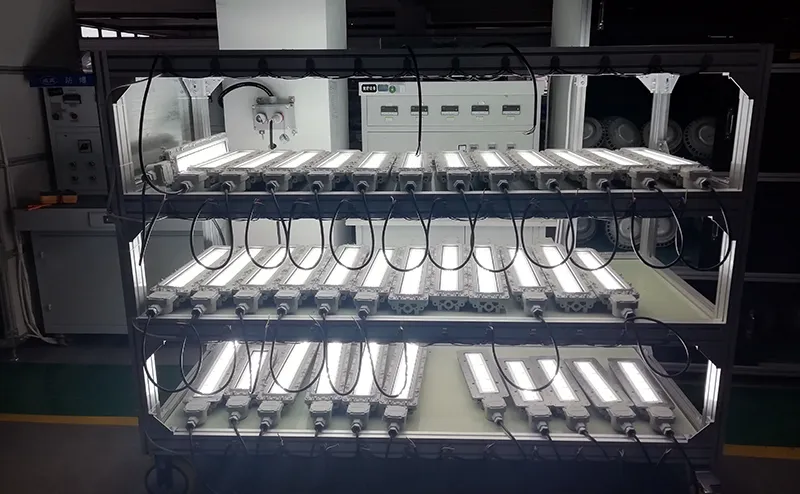

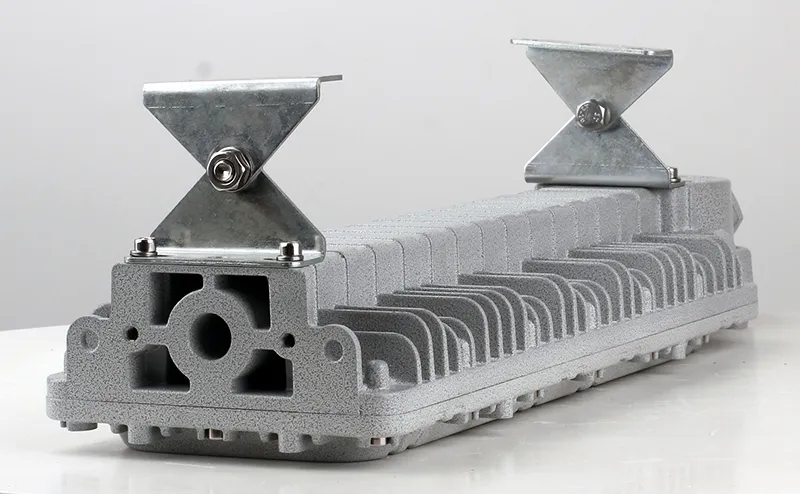

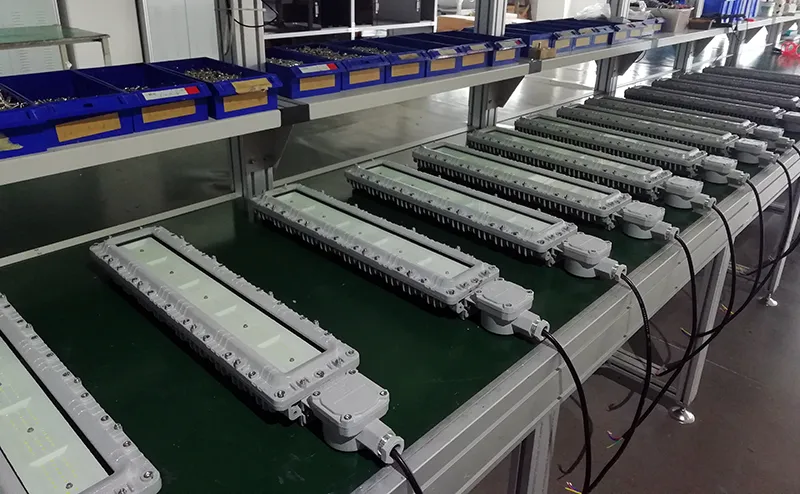

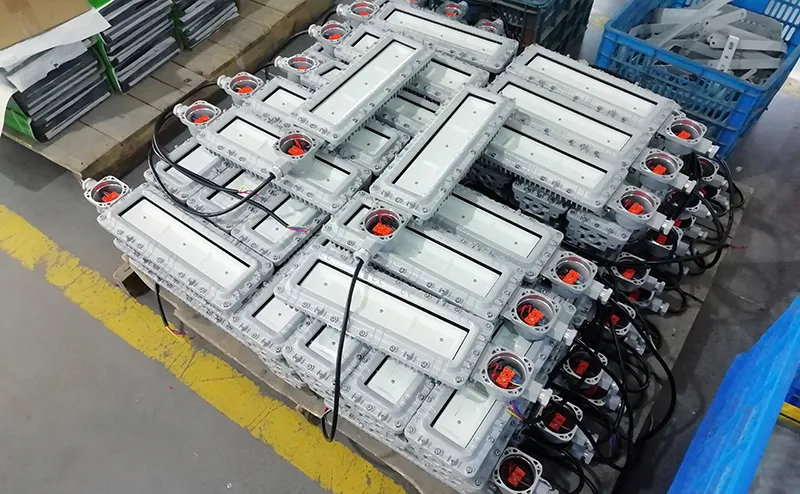

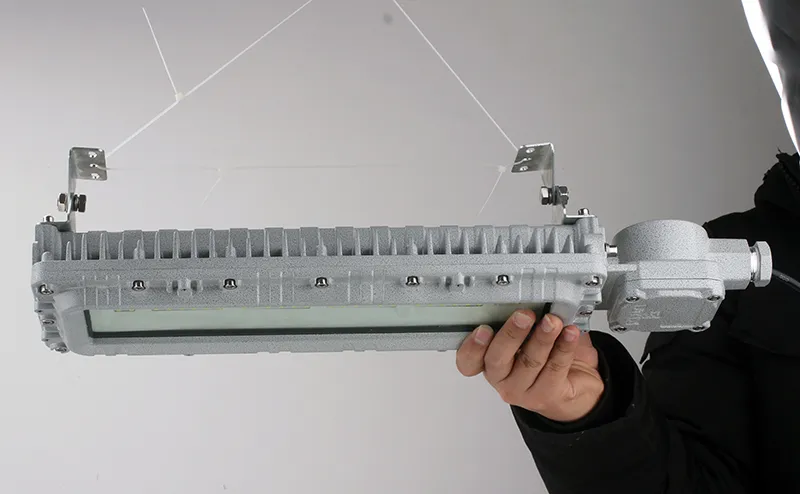

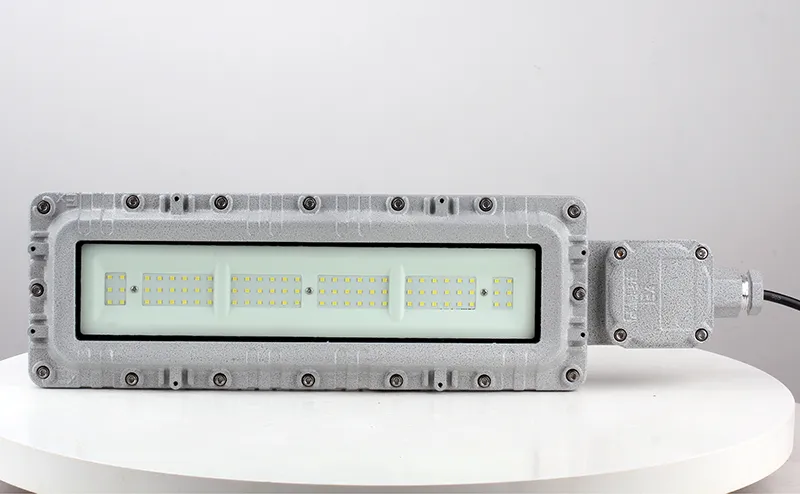

Explosion-Proof Light Render 1 Explosion-Proof Light Render 2 Explosion-Proof Light Render 3 Explosion-Proof Light Render 4 Explosion-Proof Light Render 5 Explosion-Proof Light Render 6

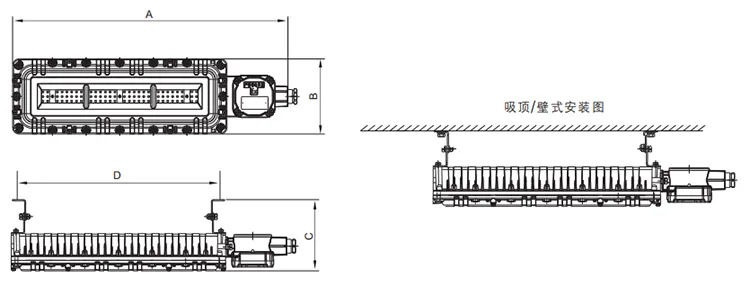

Dimensions Diagram
Model Power A(mm) B(mm) C(mm) D(mm)
I 20~30W 516 140.5 133 380
II 40~60W 716 579
It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
It is applicable to the places in Zone 21 and 22 of combustible dust environment;
Suitable for IIA, IIB and IIC explosive gas environment;
Applicable to T1~T6 temperature groups;
It is applicable to work and scene lighting in dangerous environments such as petroleum exploitation, oil refining, chemical industry and gas station.
Installation & Technical Diagram

About Us

About Us Banner

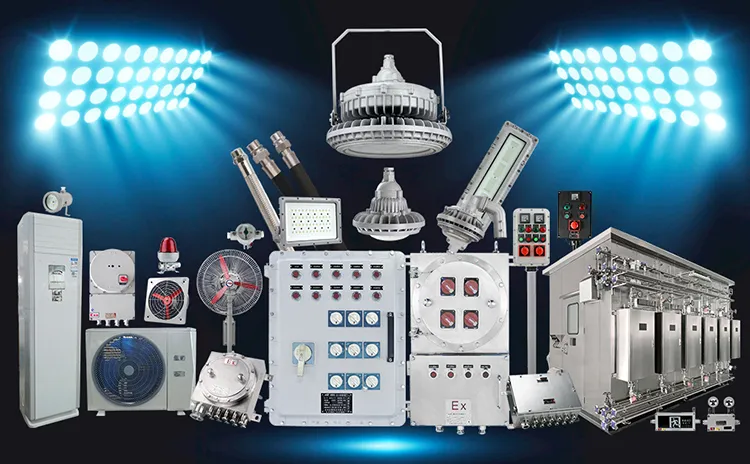

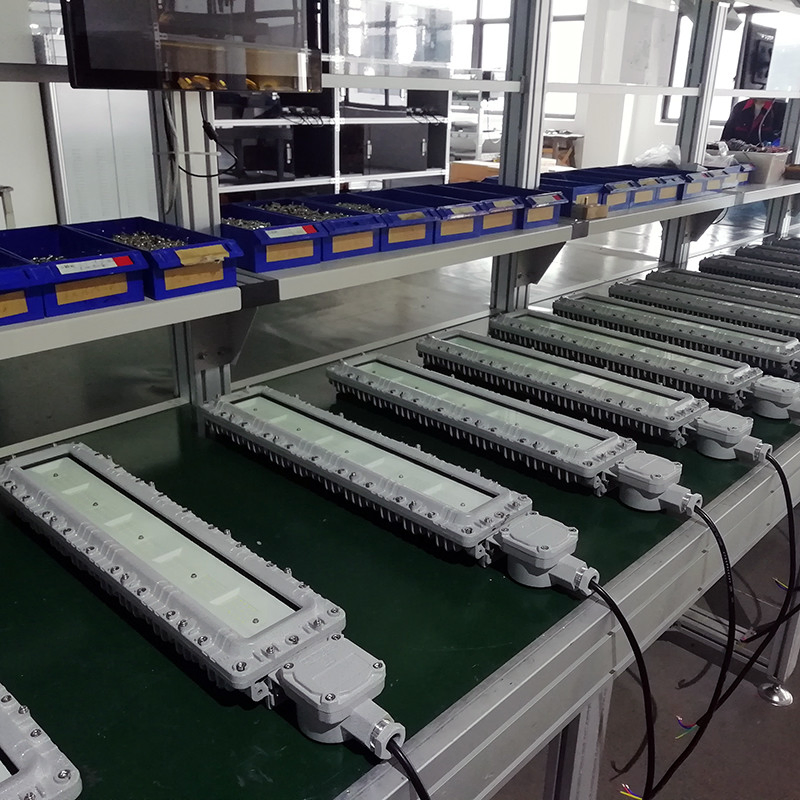

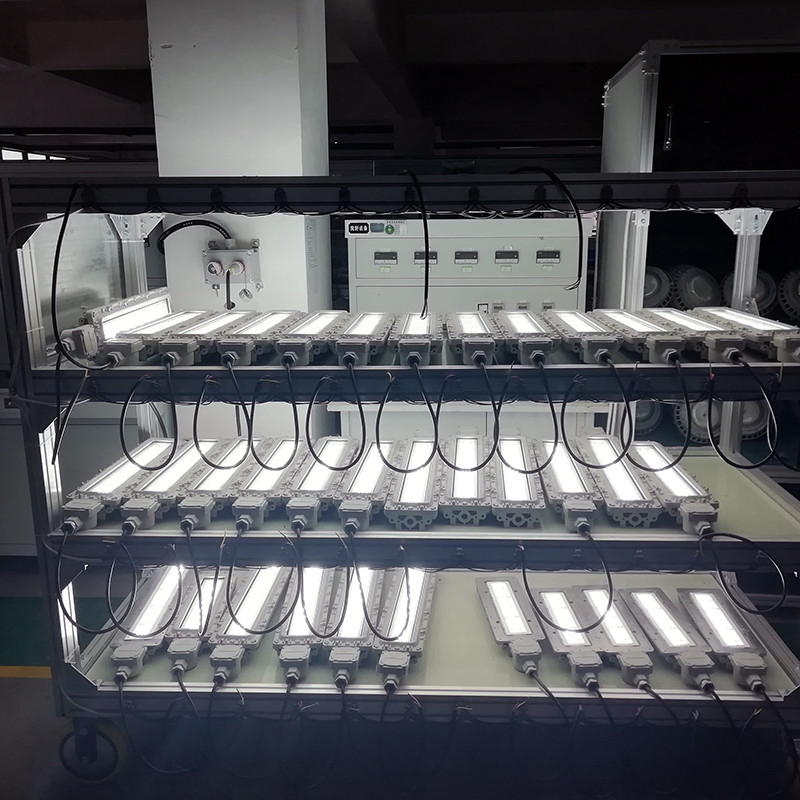

Factory Floor Production Equipment Testing Equipment
Certifications Showcase

FAQ

FAQ Banner
Q Are you a manufacturer or a trading company?
We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.
Q What certificates do you have?
We have passed ATEX, IECEx, and with a lot of National Patents.
Q What fields are your products used in?
They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.
Q Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q Will you accept customized products?
Yes. Please inform us and confirm the design firstly based on our sample.
