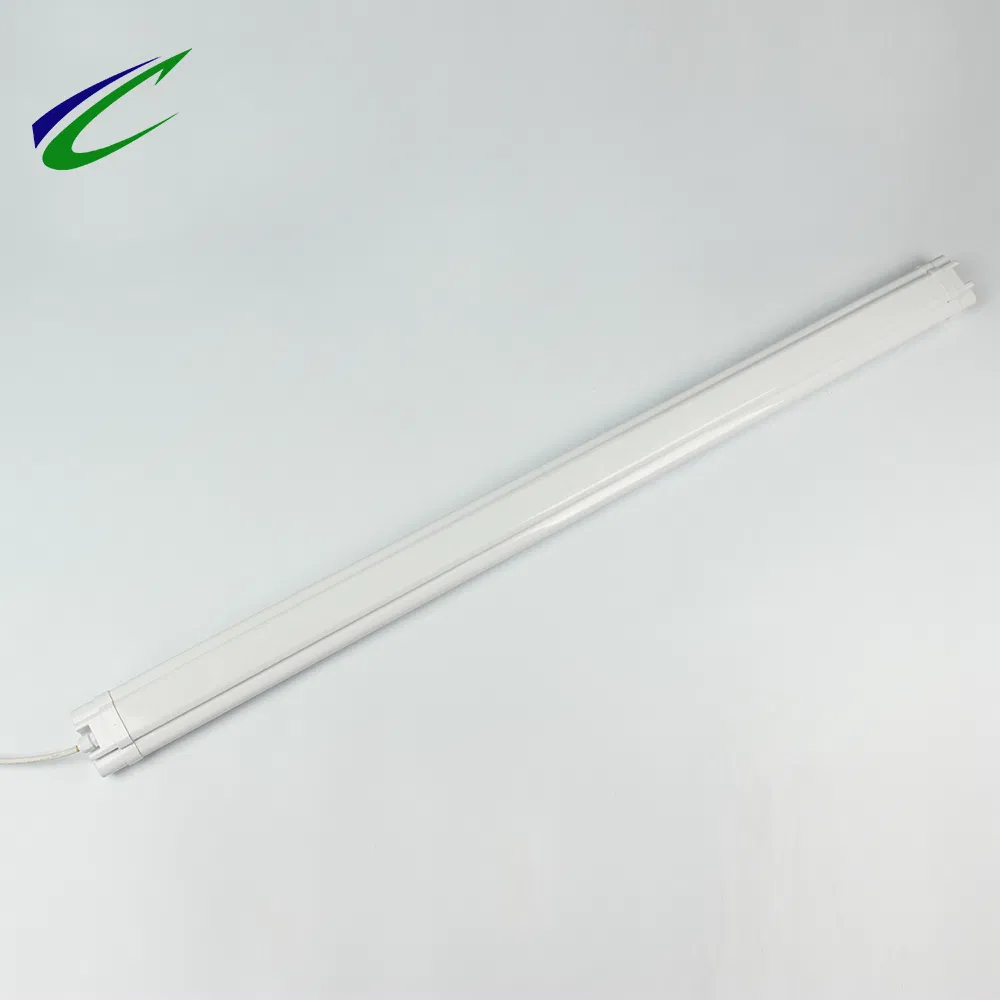

Basic Specifications
Product Name
LED Tri-Proof Light
Feature
Anti-corrosion, Dust-Proof, Waterproof
Light Body Material
Plastic (PC)
Color Temperature(CCT)
2700-6500K
Specification
1518*8.2*4.7cm
Production Capacity
1000/15 Days
Transport Package
Inner Box and Outside Carton
Product Description
| Parameter |
Specification |
| Material |
PC Cover + PC Housing |
| Colors Temperature Range |
3000-6500K |
| Color |
White |
| LED Lamp Bead |
SMD2835 |
| Beam Angle |
120° |
| Protection grade |
IP65 |
| Power factor |
>0.9; All optional driver flicker rate is less than 3% (no flicker in the camera) |
| Lifetime |
50,000 hours |
| Warranty |
2 years |
| Connector |
Single head connector |
| Package |
10 PCS/ 1 carton box ; 2 head box+shrink plastic bag; 0.25M cable |
| MOQ |
1000PCS |

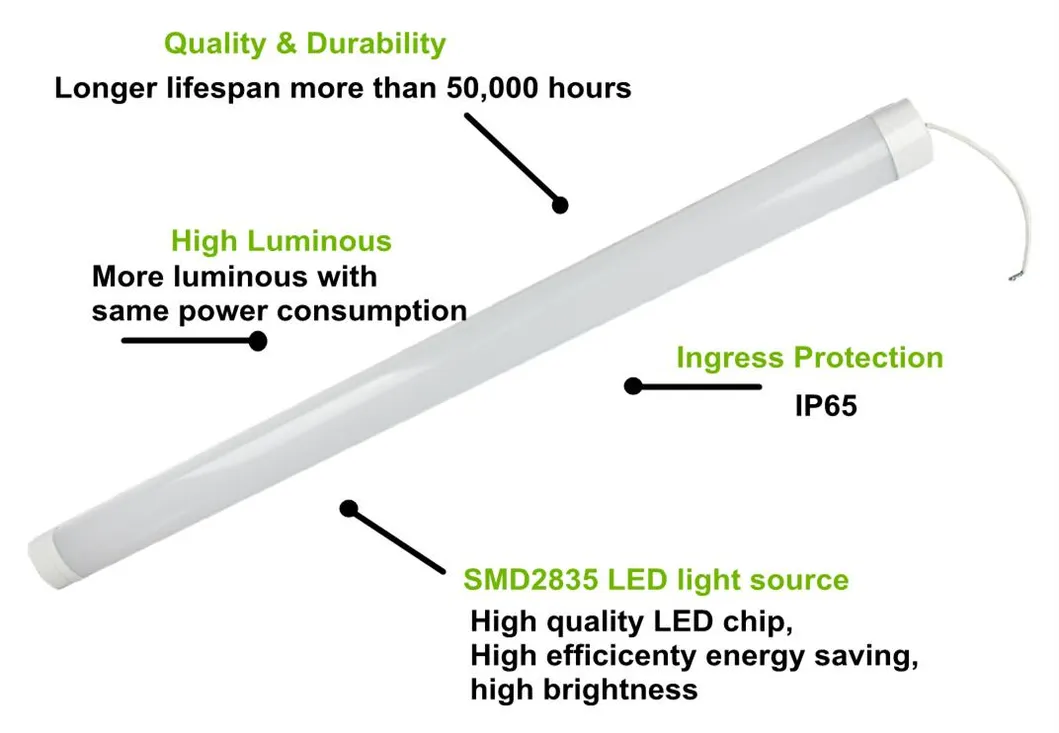

Key Features
-
1
Two color extrusion for PC housing and PC cover offering IP65 protection against moisture and dust, and an impact rating of IK08.
-
2
Integrated design without clips ensures electrical safety.
-
3

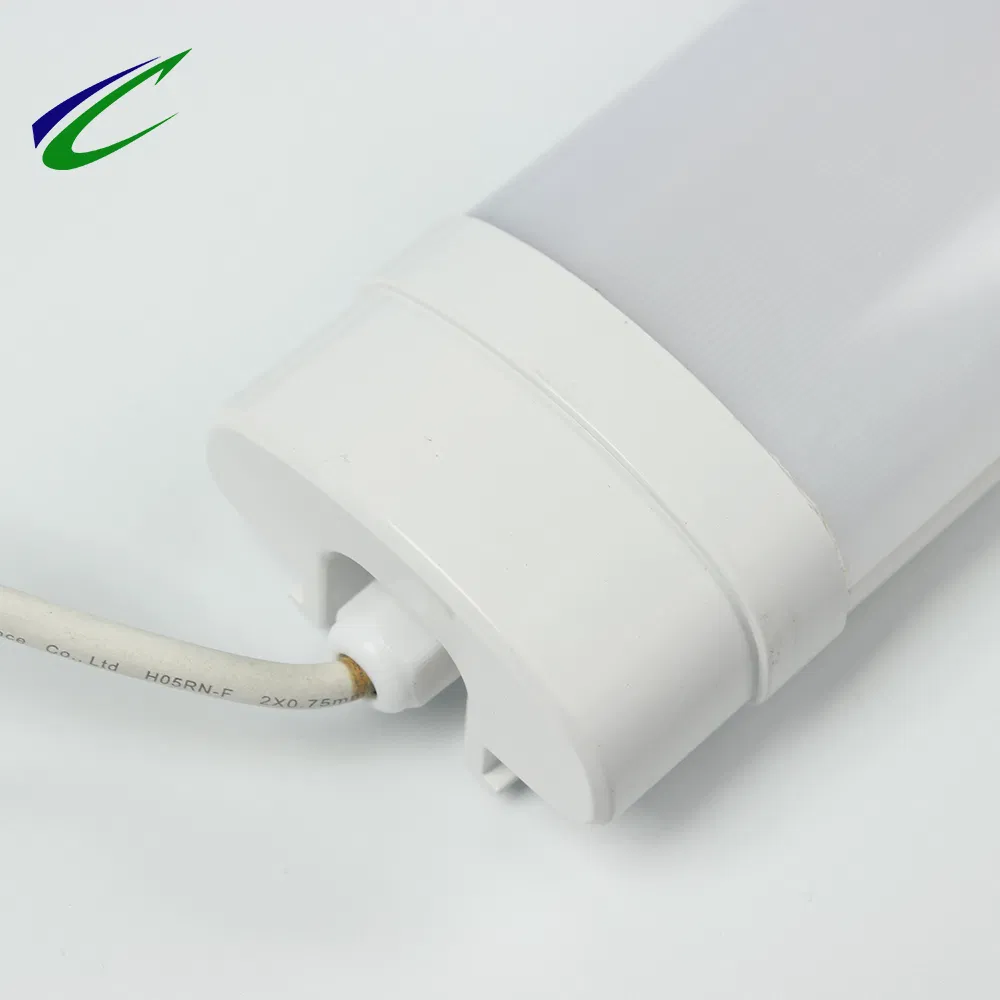

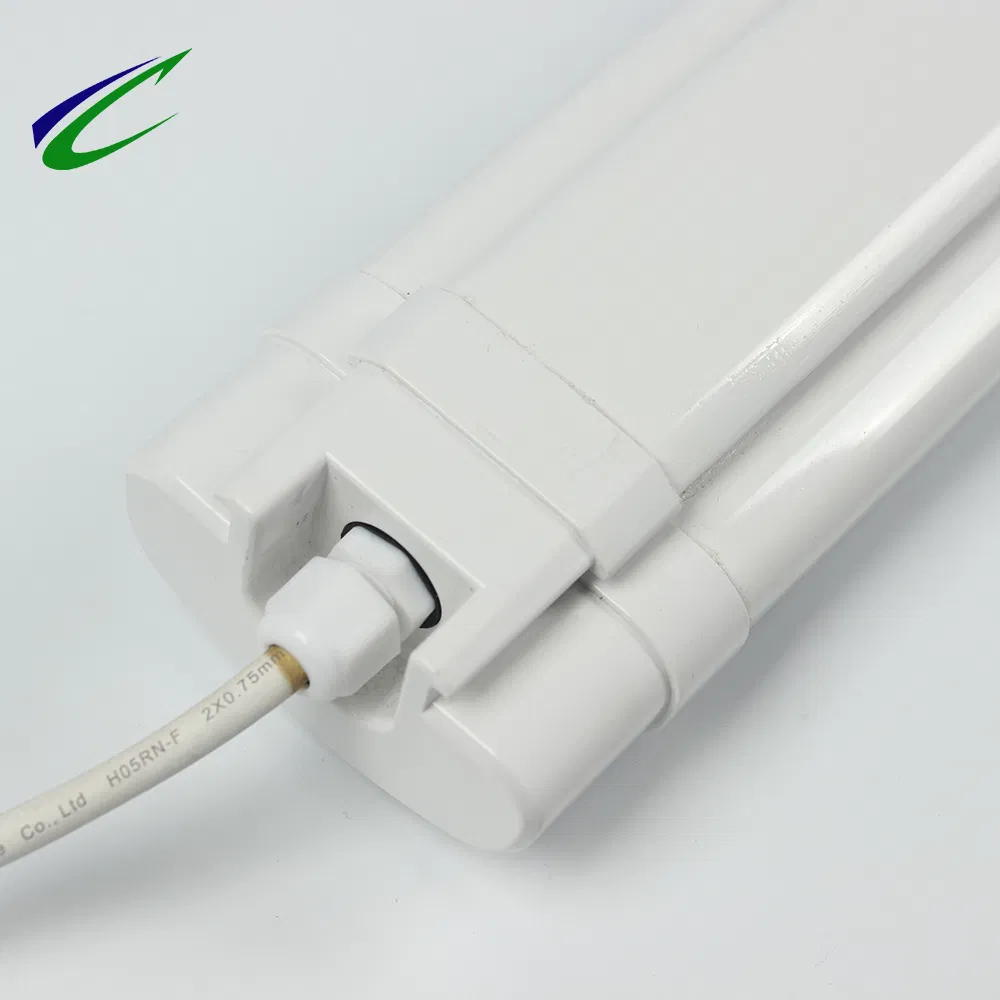

Easy for wire connection at one end side of the fitting, and convenience for series wiring.
-
4
LED-based light source provides energy-efficient solutions and reduces maintenance costs.

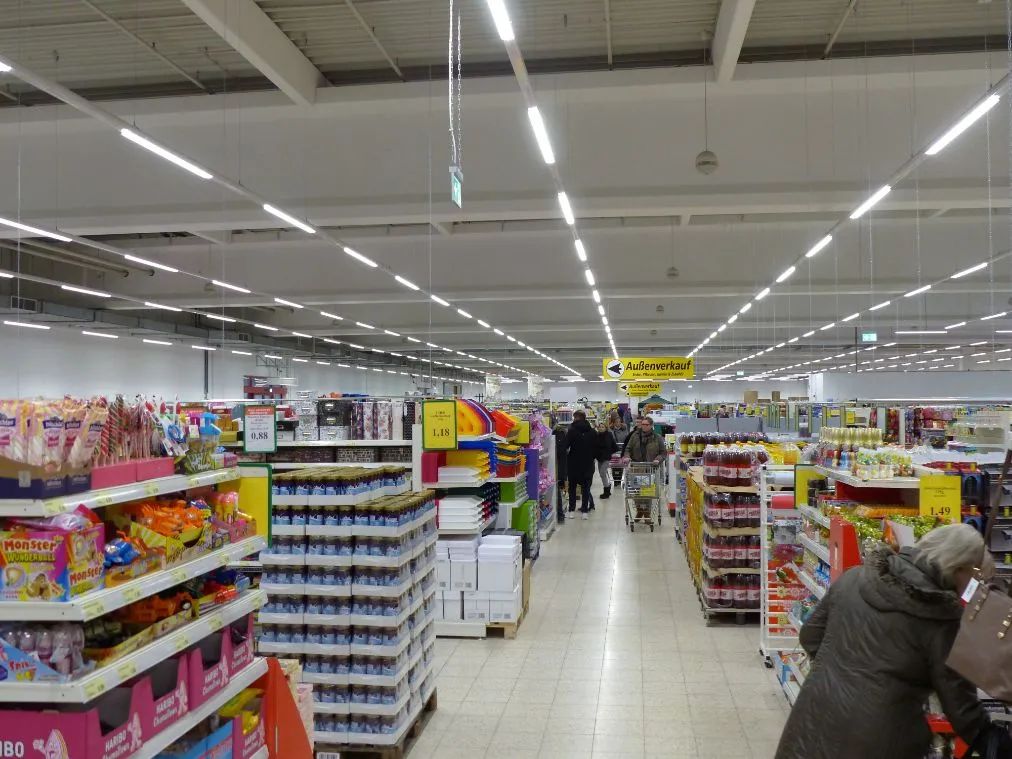

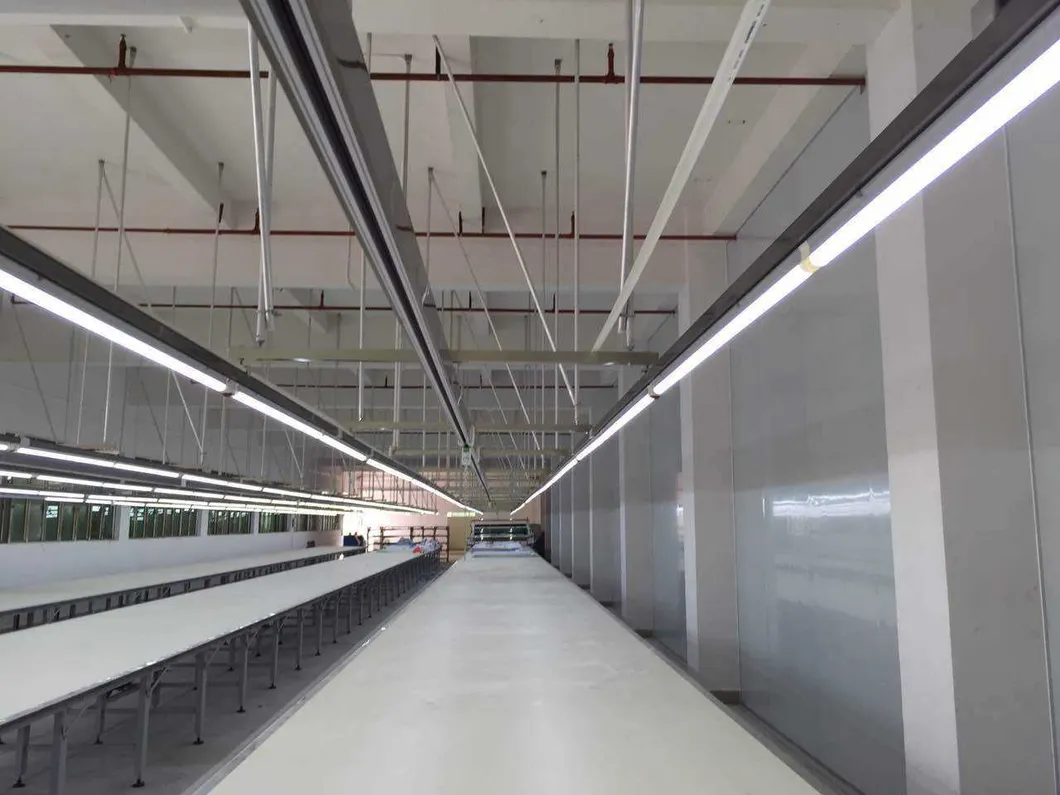

Applications

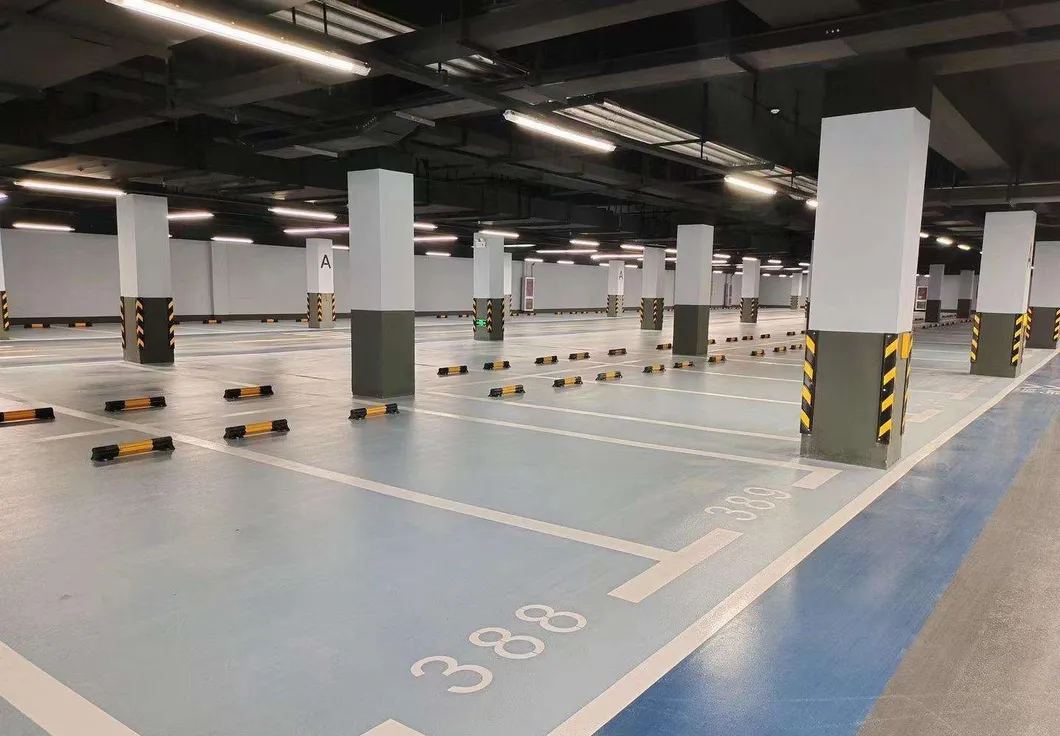

Car Parks
Industrial Areas
Offices
Corridors
Supermarkets & Shops
Bakeries
Storage Areas
Hospitals
Schools
Galleries

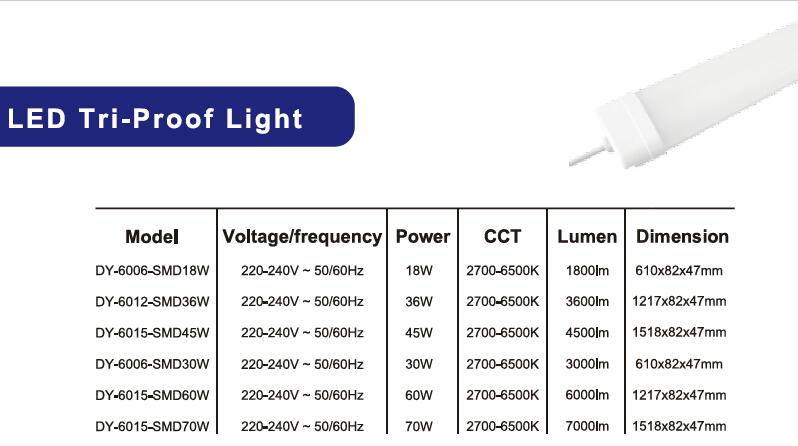

Model Specifications
| Model |
Voltage/Frequency |
Power |
CCT |
Lumen |
Dimension |
| DY-6006-SMD18W |
220-240V ~ 50/60Hz |
18W |
2700-6500K |
1800lm |
610*82*47mm |
| DY-6012-SMD36W |
220-240V ~ 50/60Hz |
36W |
2700-6500K |
3600lm |
1217*82*47mm |
| DY-6015-SMD45W |
220-240V ~ 50/60Hz |
45W |
2700-6500K |
4500lm |
1518*82*47mm |
| DY-6006-SMD30W |
220-240V ~ 50/60Hz |
30W |
2700-6500K |
3000lm |
610*82*47mm |
| DY-6015-SMD60W |
220-240V ~ 50/60Hz |
60W |
2700-6500K |
6000lm |
1217*82*47mm |
| DY-6015-SMD70W |
220-240V ~ 50/60Hz |
70W |
2700-6500K |
7000lm |
1518*82*47mm |
Frequently Asked Questions
❓
What makes this LED Tri-Proof Light suitable for harsh environments?
This light features anti-corrosion, dust-proof, and waterproof properties with an IP65 protection rating and an IK08 impact resistance. The body is built using two-color extrusion PC housing and cover, preventing moisture and dust ingress effectively.
❓
Does the light output flicker when captured on cameras?
No. The fixture features high-quality drivers with an optional flicker rate of less than 3%, ensuring a completely flicker-free performance even under camera surveillance.
❓
What options are available for power and dimensions?
We offer multiple configurations ranging from 18W up to 70W, with lumen outputs scaling from 1800lm up to 7000lm. Dimensions start from 610mm up to 1518mm in length to suit different spatial requirements.
❓
Is series wiring supported for this LED Tri-Proof Light?
Yes, the design enables easy wire connection at one end side of the fitting, making it highly convenient and structured for series wiring setups.
❓
What is the lifetime and warranty period for this product?
The product has a designed lifetime of 50,000 hours and is backed by a reliable 2-year warranty.
