IP66 LED Hazardous Location Lighting /Linear Batten Tri Proof/LED Explosion Proof Lighting

Basic Info.

Irradiated Area≥30m²

Input Voltage220v

Power60-100w

Color TemperatureWarm White

Emitting ColorWhite

LED Chips BrandCREE

CertificationCCC, CE, C-tick, RoHS

Rated Power20/40/60/120W

Beam Angle120 degree

Light Effect120lm/W

ThreadDN20, G3/4''

Life Hour100000h

Color RenderingMore Than 70ra

Transport PackageCarton

Specification300mm/600m/1200mm

HS Code9405409000

Production Capacity3000PCS/Month

Product Description

Typical lighting applications include industrial facilities, oil, gas, painting facilities, and auto service facilities. Mounting heights of 18 to 30 feet can be used based on light level and uniformity requirements.

Product Features

Can be used in Zone 1,2,21,22 Groups A, B, C, D
Ex e enclosure with explosion-proof components inside.
The safety interlock between the enclosure and diffuser switches off on opening.
Built-in electronic ballast, power factor ≥ 0.9
Emergency unit with protections against overcharge and over-discharge.
End of lamp life (EOL) rectification effect protection

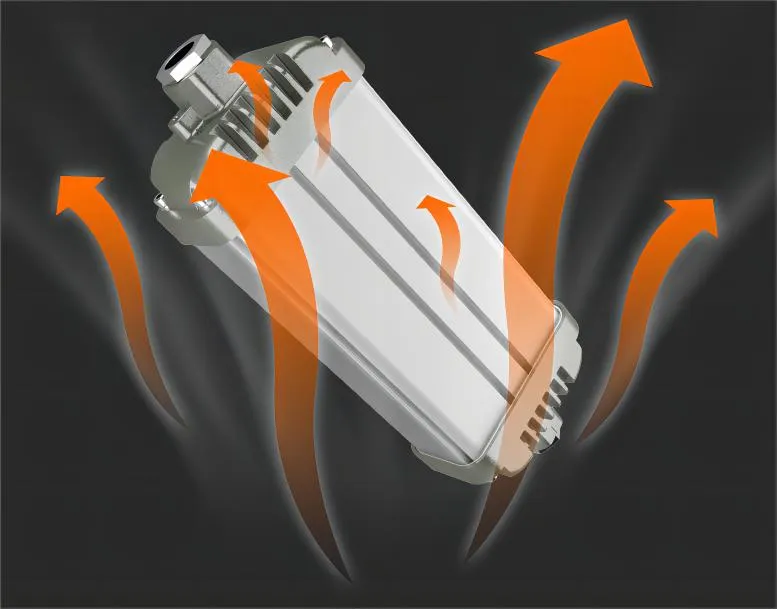

Excellent Heat Conduction and Stronger Heat

The whole lamp adopts air diversion and heat dissipation structure design;

The radiator adopts special ADC12 alloy aluminum material for die casting, which is formed by high pressure die casting, with high strength, fast heat conduction and strong heat dissipation;

Adopt silicone grease with thermal conductivity of 3.0, which can conduct heat more quickly.

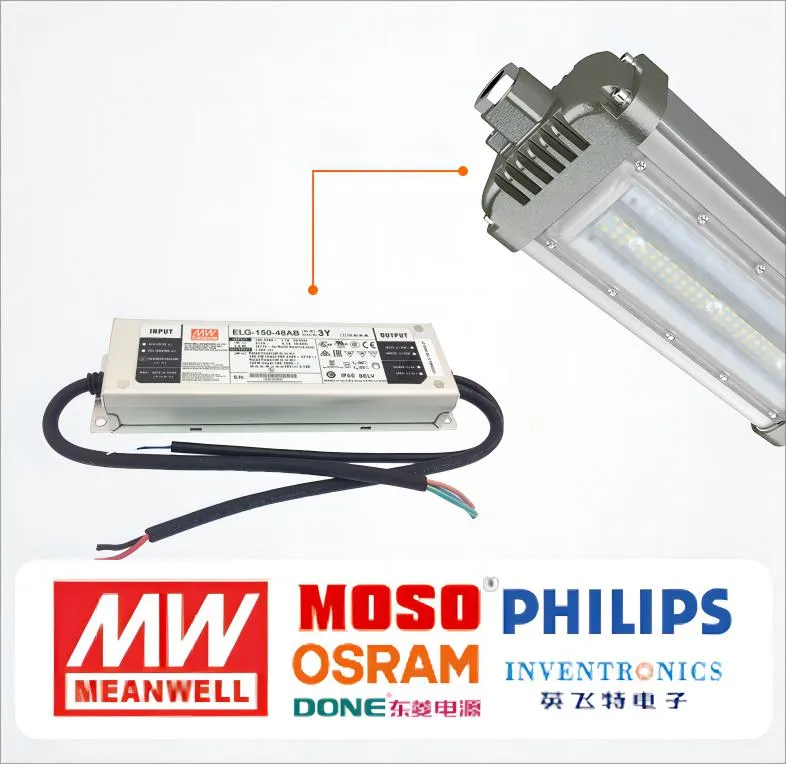

Brand-Driven and More Stable

Adopt first-line well-known brand power supply with guaranteed quality;

The power supply adopts the latest wide voltage technology, which has the characteristics of constant current output, lighting protection, surge protection, short circuit and overvoltage protection, etc. The power factor is as high as 0.99, and the quality is more stable.

Key Features

Configuration & Heat Dissipation

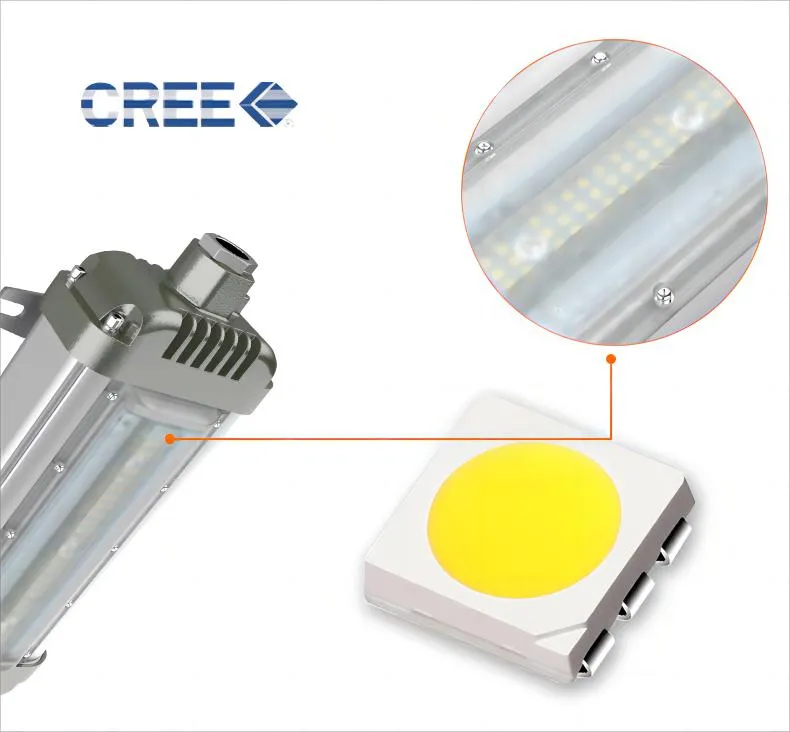

Configuration: It adopts an imported LED light source, with an average service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, and has short-circuited and over-voltage protection functions, which greatly prolongs the service life of the lamps.

Heat dissipation: Explosion-proof electrical box and lamp holder double cavity design, large space size to ensure the assembly of various large-scale electrical appliances. Excellent heat dissipation performance, so that the LED chip and power supply temperature rise is reasonably controlled within a reasonable range, greatly ensuring the service life of the lamp.

Light Distribution, Protection & Installation

Light distribution: Light projection is even and soft, especially suitable for all kinds of needs to cast light, floodlights as fixed lighting.

Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and never rust.

Installation method: Various installation methods such as ceiling, suction wall and U-shaped anti-vibration bracket (angle adjustable) can be used as needed.

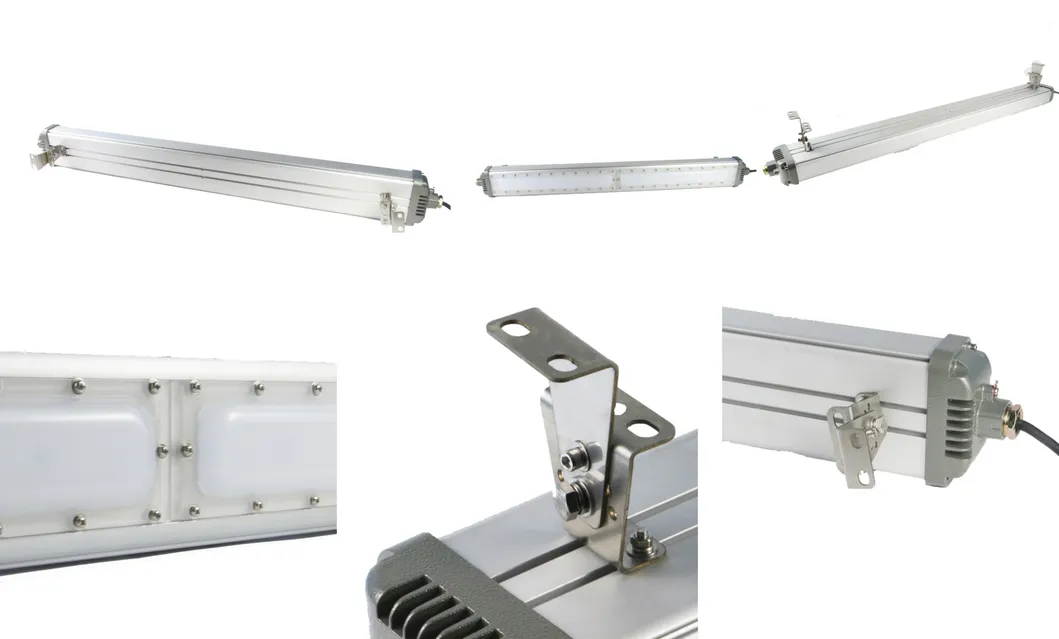

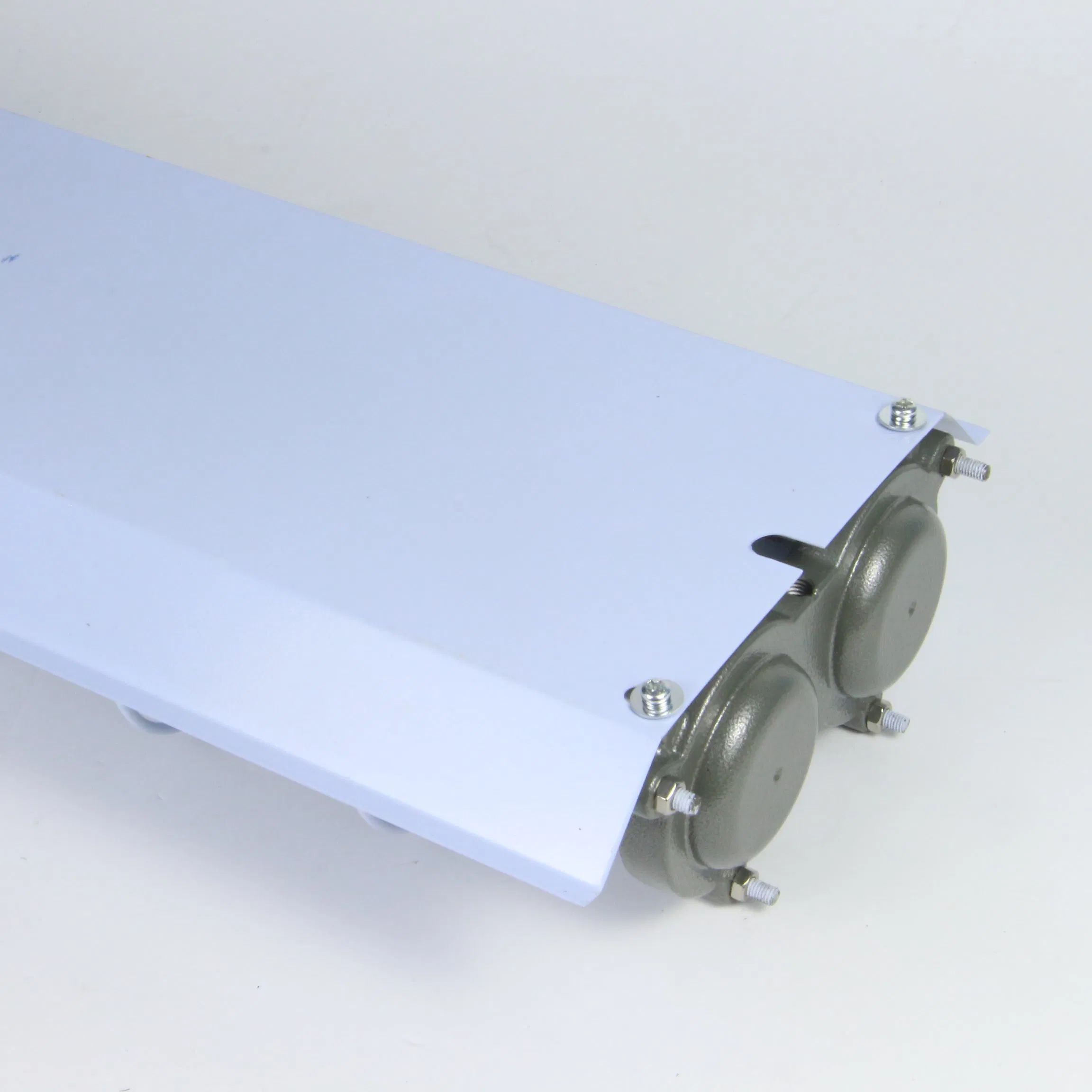

Detailed Photos

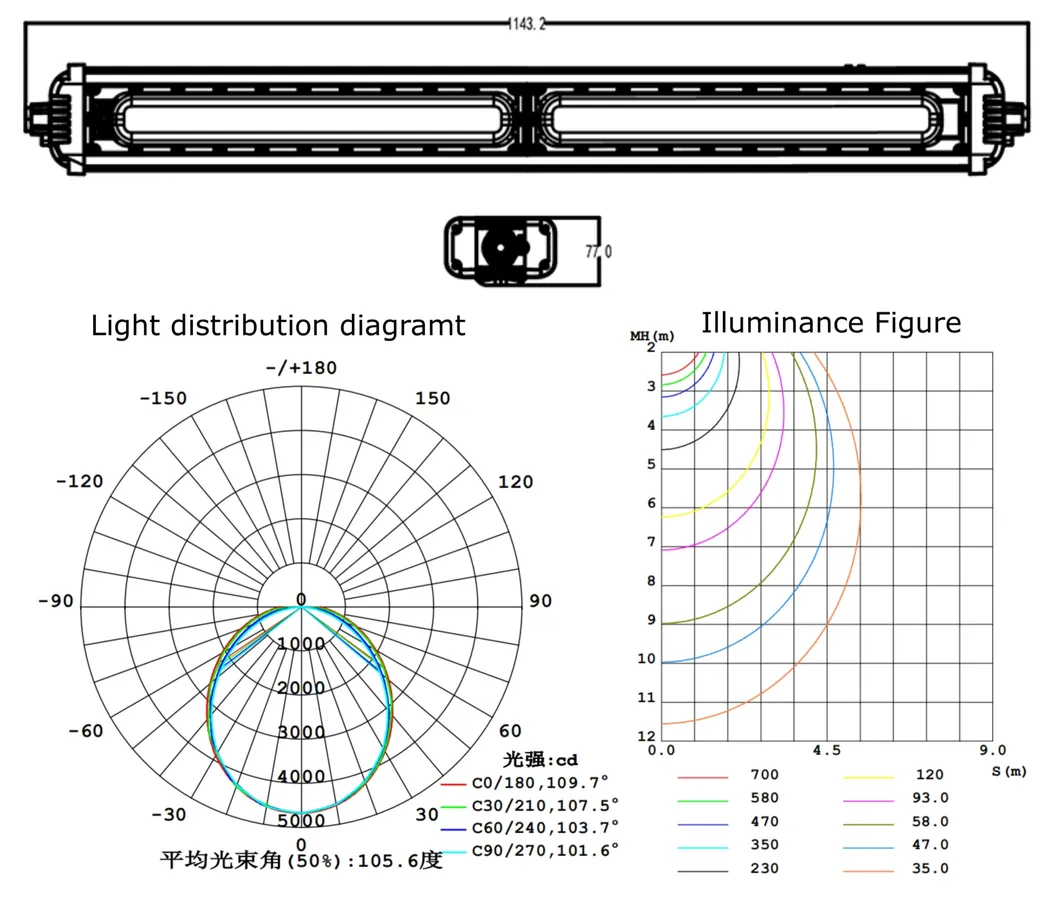

Product Parameters

The LED is built to perform effectively and economically in areas that may be difficult to service, expensive to shut down or any location requiring an increased degree of safety. Compared with conventional lighting, the LED consumes up to 85% less energy and typically lasts as long as 50,000 hours or more.

Rated Voltage	AC110-220V, DC12V/24V	Power Factor	>0.95PF
Power	40-120W	Operating Temperature	-30~50°C
Protection Level	IP66	Storage Temperature	-30~50°C
Lighting Angle	120°	Correlate Color Temperature	3000-6500K
Base Specifications	CREE 3030	Color Rendering Index	≥70RA
Anti-corrosion Grade	WF2	LED's Operating Life	100,000 Hours
Explosion Proof Grade	EX de mb IIC T6 Gb	Start-up Time	≤0.2S
Light Efficiency	120Lm/W	Weight	4.7Kg
Frequency	50/60Hz	Size	114312577MM

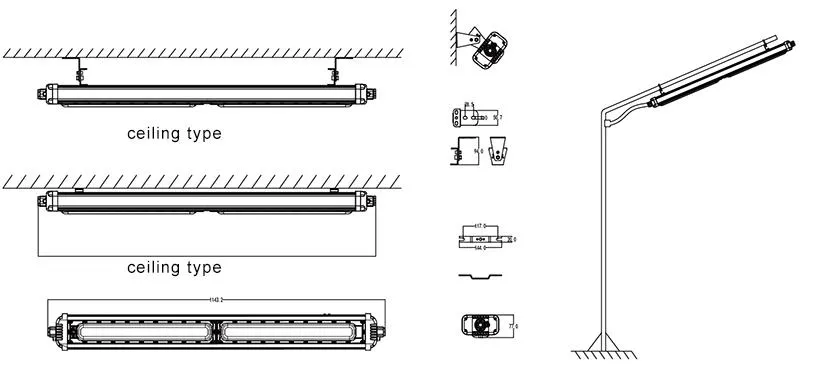

Installation Instructions

Packaging & Logistics

Outer Carton Size	1202229.2cm	Quantity	1
Inner Carton Size	1181013.2cm	N.W.	4.9*4 = 19.6kg
G.W.	21kg	Packaging Method	A box of four

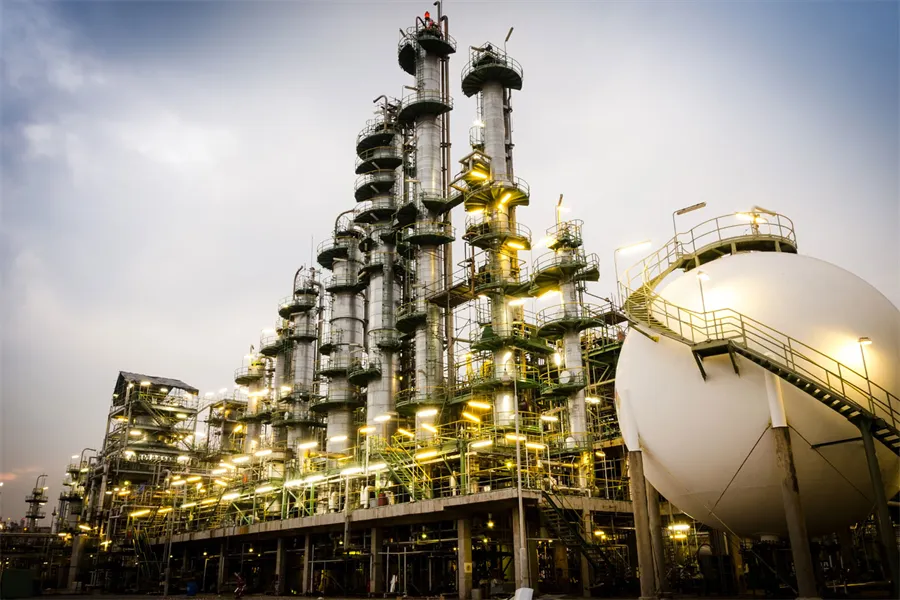

Application Scenarios

Abrasive Blasting

Automotive Repair Services

Chemical Plants

Dispensing Areas

Distilleries

Industrial Process Facilities

Rail Yard

Drilling Rigs

Granaries

Wastewater & Sewage

Gas & Oil Refineries

Food Processing Plants

Paint Booths

Frequently Asked Questions

1. Why is Explosion Proof Lighting necessary in your area?

Plenty of commercial facilities have areas where lighting fixtures can come into contact with hazardous materials. These can be flammable, combustible, or ignitable materials, gases, or vapors. These areas can be at risk of fire or even explosion if the lighting fixtures can't withstand the abnormal conditions.

2. What is hazardous location lighting?

Hazardous location lighting refers to fixtures that you can safely use in an area where it's likely that fire might start. According to the National Electrical Code, hazardous locations are those areas "where fire or explosion hazards may exist due to flammable gases or vapors, flammable liquids, combustible dust, or ignitable fibers or flyings."

3. What is an explosion-proof light fixture?

Explosion proof lighting refers to lighting fixtures that are able to contain sparks that could potentially ignite the flammable and explosive gases in the atmosphere. Therefore, explosion proof lighting does not refer to lighting equipment that are resistant to explosions but rather, the capacity to prevent external explosions from occurring in a hazardous location.

4. What environments require hazardous location lighting?

Wherever flammable gases, liquids, or dust are present, the location may be identified as hazardous. Gas and liquids have to achieve a critical concentration before becoming dangerous. However, once they do, that's when a potential disaster can occur if standard lighting triggers a spark.

5. What is the average lifespan of these LED explosion-proof lights?

The average operating lifespan of our explosion-proof LED light source is up to 100,000 hours, thanks to the premium LED chips and advanced dual-cavity thermal design which significantly lowers heat buildup.

6. What protection and durability ratings do these lights feature?

These light fixtures are certified with an IP66 ingress protection rating, making them highly resistant to dust and water jets. Additionally, they have a WF2 anti-corrosion grade to ensure they do not rust or corrode in harsh chemical environments.
