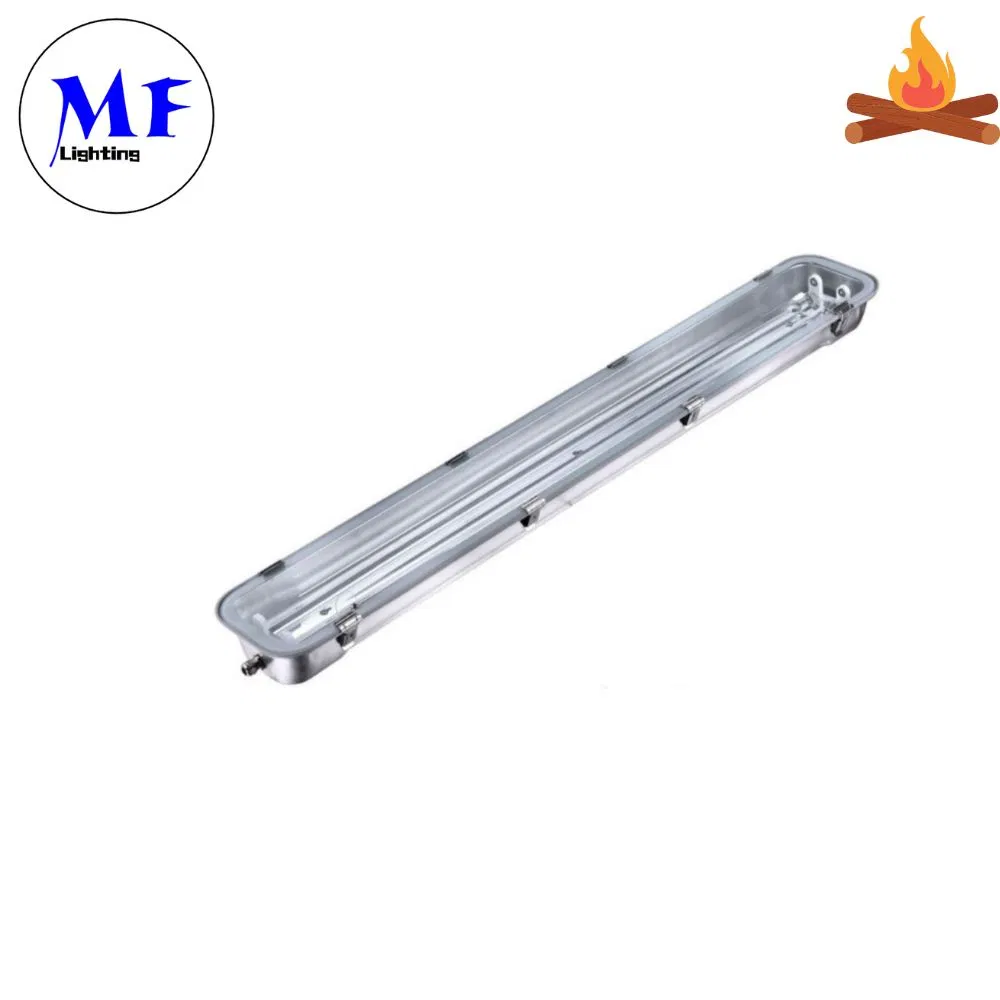

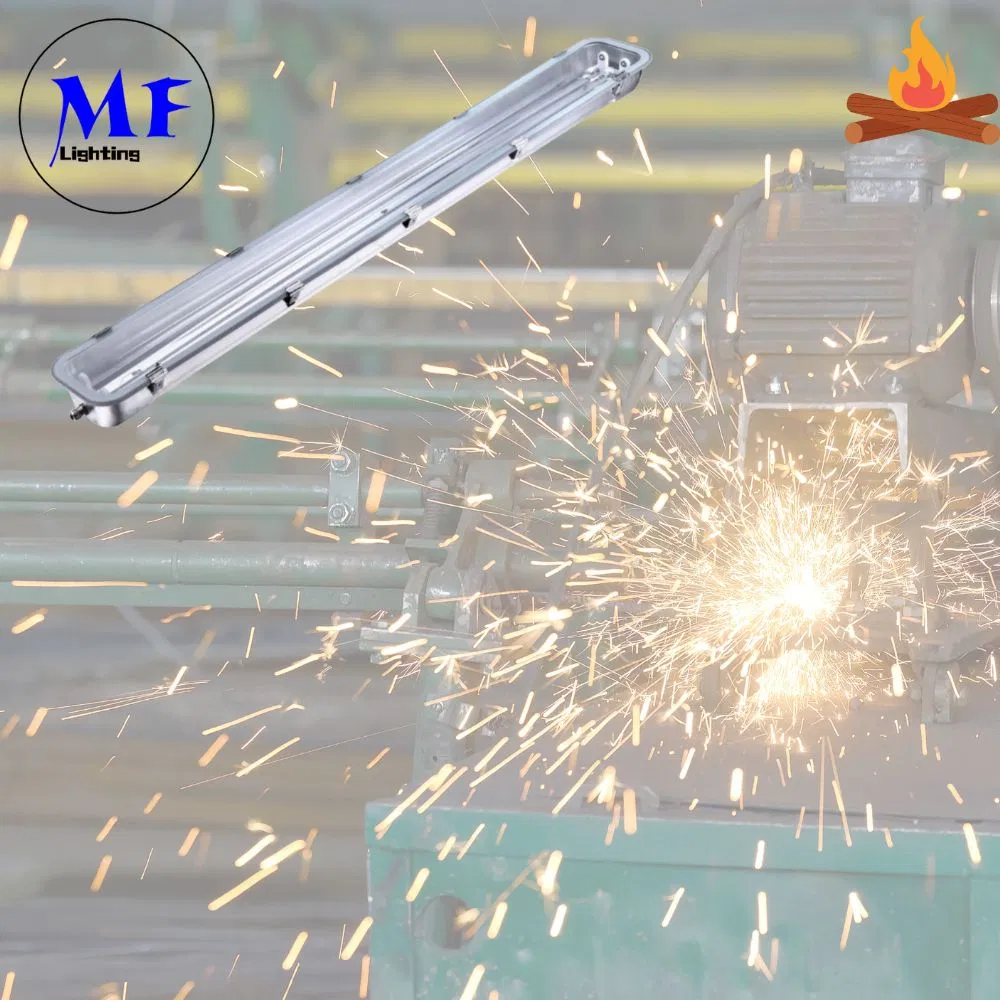

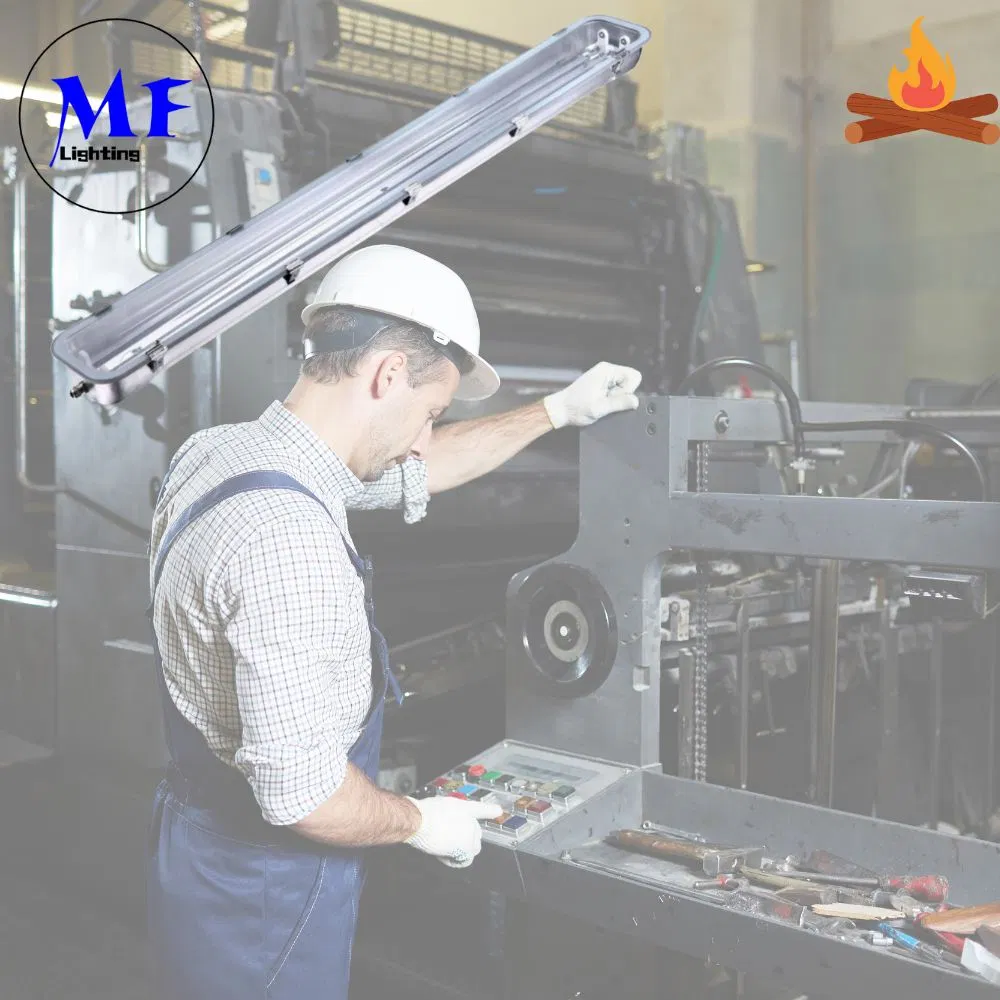

25W-65W Stainless Steel IP65 Waterproof Tempered Glass Explosion Proof Fixture LED Tri-Proof Light for Workshop Chemical Industry Tunnel

Basic Info

Feature	Anti-corrosion, Dust-Proof, Waterproof
Light Body Material	304 Stainless Steel Housing, Tempered Glass
Input Voltage/Frequency	AC 220-240V 50/60Hz
Housing/Diffuser	304 Stainless Steel Housing, Tempered Glass diffuser
LED Brand	SMD2835 / SMD3030
CCT	2700-6500K (Ansic78.377)
CRI	>80
PF	PF>0.9
Beam Angle	90° / 120°
IP Rating	IP65
Warranty	5 year
Operating Temp Range	-20°C - 40°C
Origin	China
HS Code	94054290
Production Capacity	10000PCS/Month

Product Description

25W-65W Stainless Steel IP65 Waterproof Tempered Glass Explosion Proof Fixture Led Tri-proof Light for Workshop Chemical Industry Tunnel

Suitable for extreme temperatures & high humidity outdoor environments;
Resistance to impact, seismic activities, and strong ultraviolet & infrared radiation;
Over 70% energy savings compared to conventional lights with similar lumen output;
Provides 50,000 hours lifetime & 5 years warranty;
Housing: Stainless steel Diffuser;
Tempered glass (clear or frosted) 60 90 120 Beam Angle;
Other characteristics: pollution free, low power consumption, high luminous efficiency & IP65;
High-low impact, high humidity environmental tests.

1. Technical Parameters (Test Conditions: 25°C / 55%-60% Humidity)
Item Code	SS-25W-600	SS-35W-1300	SS-50W-1300	SS-45W-1600	SS-65W-1600
Power(W) +/-10%	25w	35w	50w	45w	65w
Input Voltage/Frequency	AC 220-240V 50/60Hz
Installation	Easy and quick to install under ceiling or on surface
Housing/Diffuser	304 stainless steel housing, Tempered glass diffuser
Driver	Osram / Philips / Tridonic / Brand options
LED Brand	SMD2835 / SMD3030
CCT	2700-6500K (ANSI C78.377)
CRI	>80
5000K/Opal Diffuser Light Output (+/-3%)	3,500 lm	4,900 lm	7,000 lm	6,300 lm	8,680 lm
Power Factor	PF>0.9
Beam Angle	90° / 120°
IP Rating	IP65
Warranty	5 Year
Operating Temp Range	-20ºC ~ 40ºC
Clips Qty (pcs)	6	10	10	12	12
Product Size (mm)	67011065	128011065		159011065

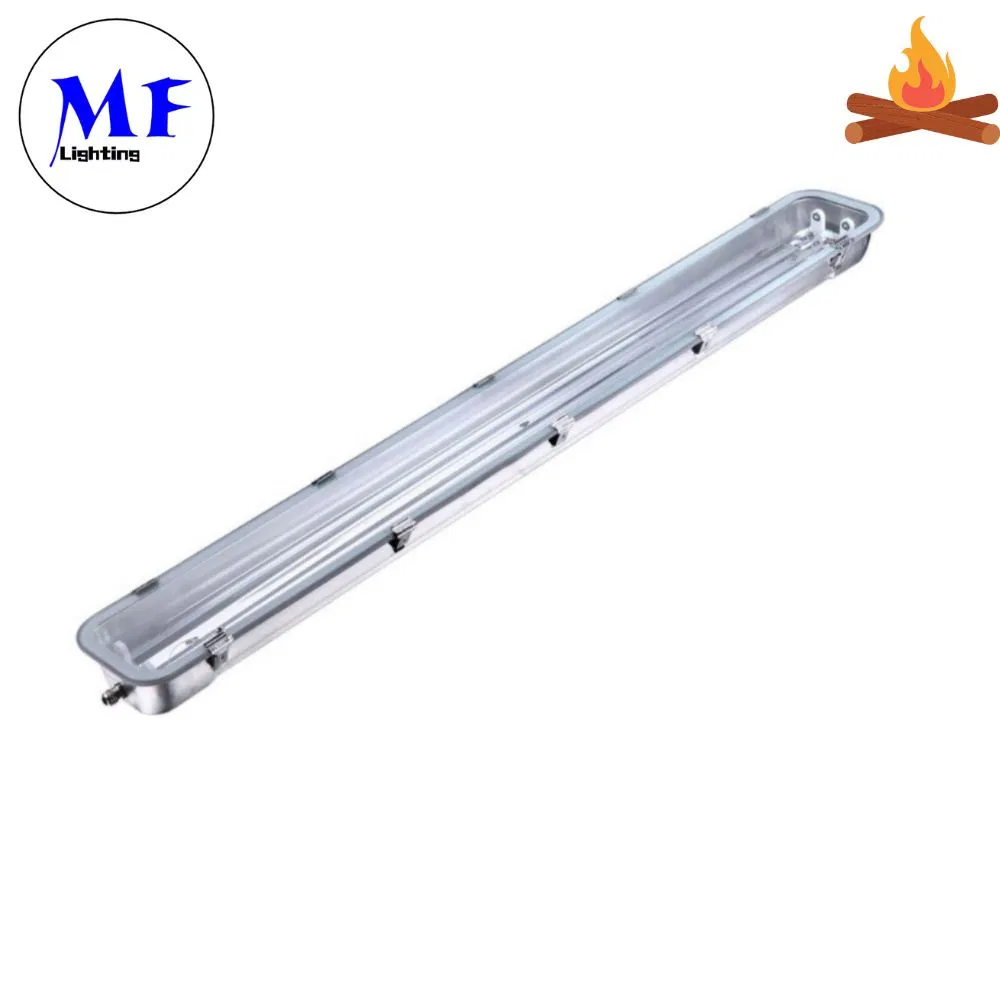

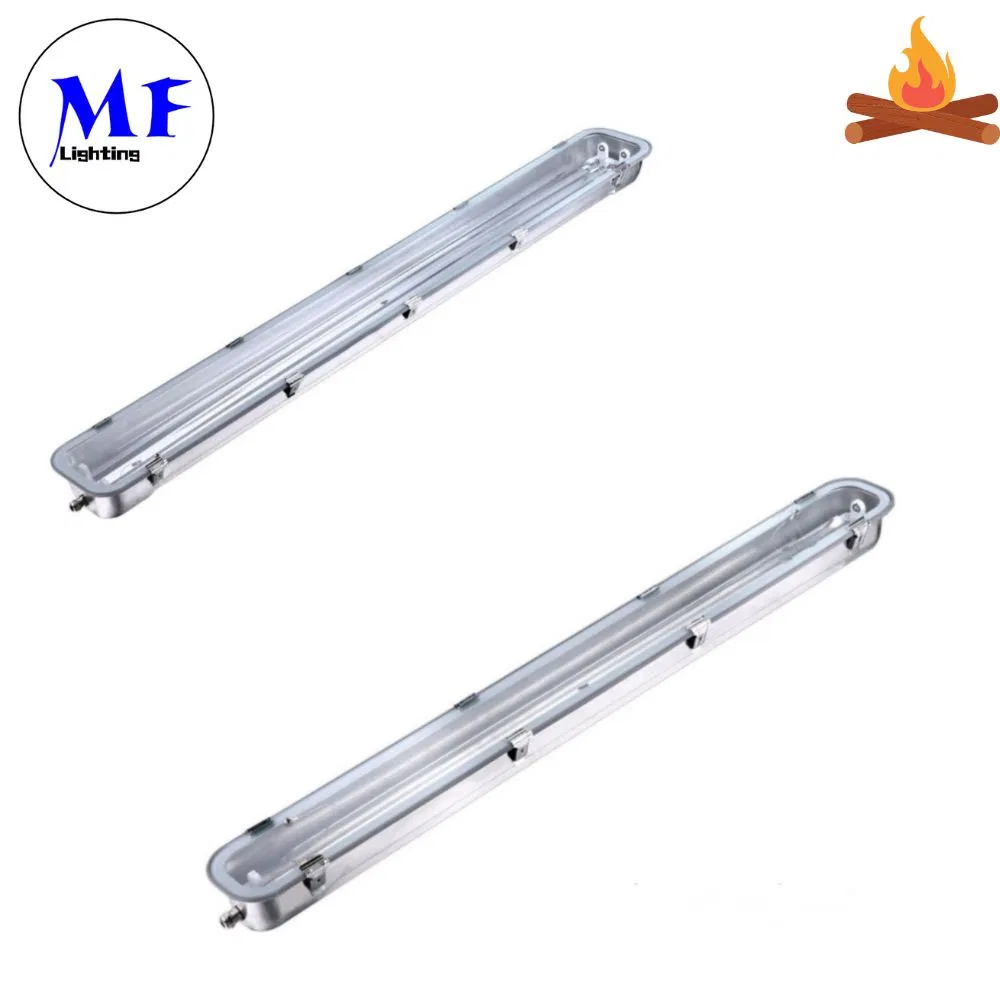

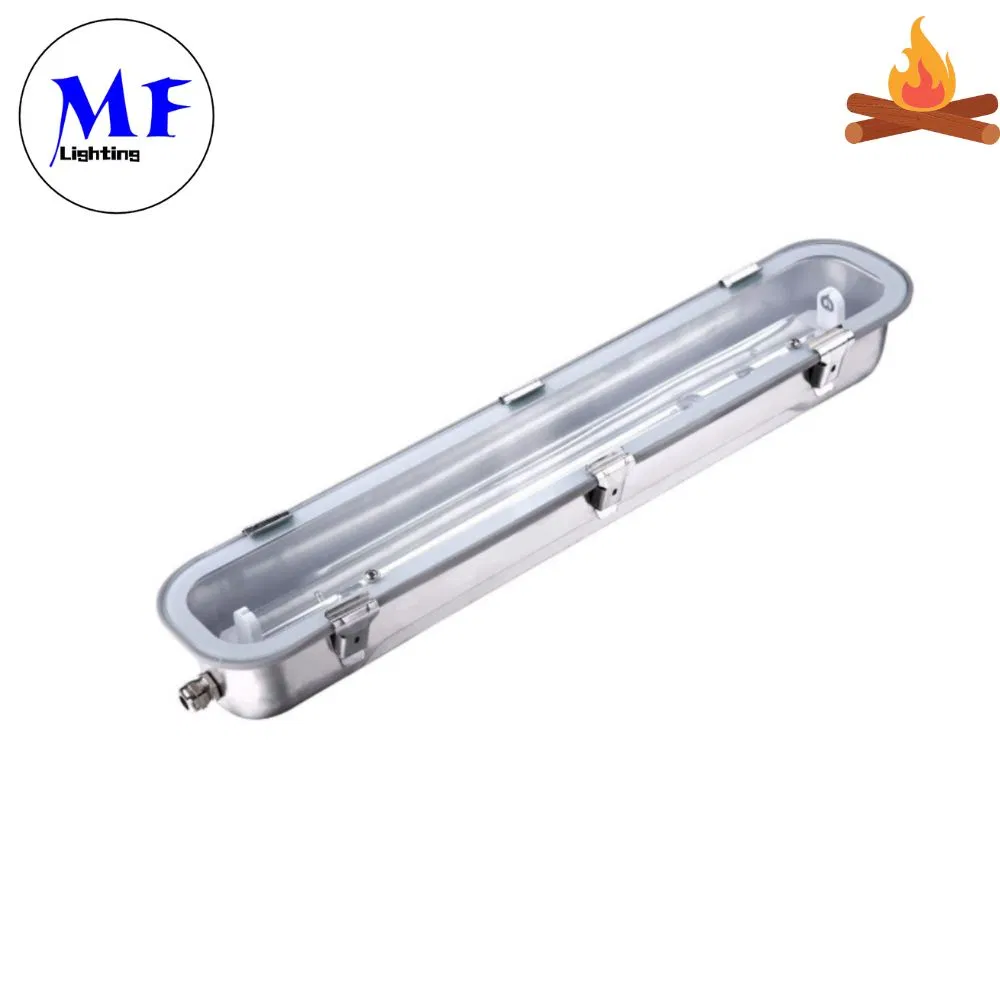

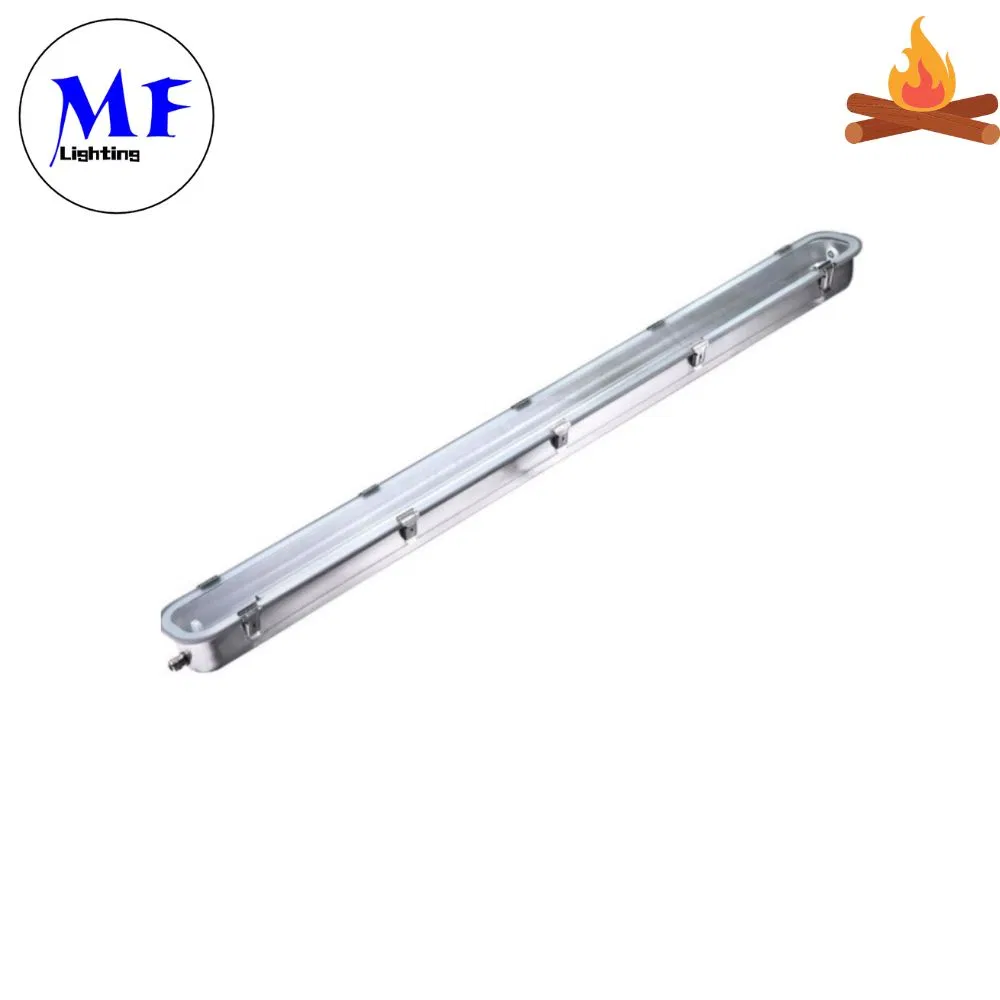

Detailed Photos

Explosion Proof Fixture Detailed Overview

Dimensions:

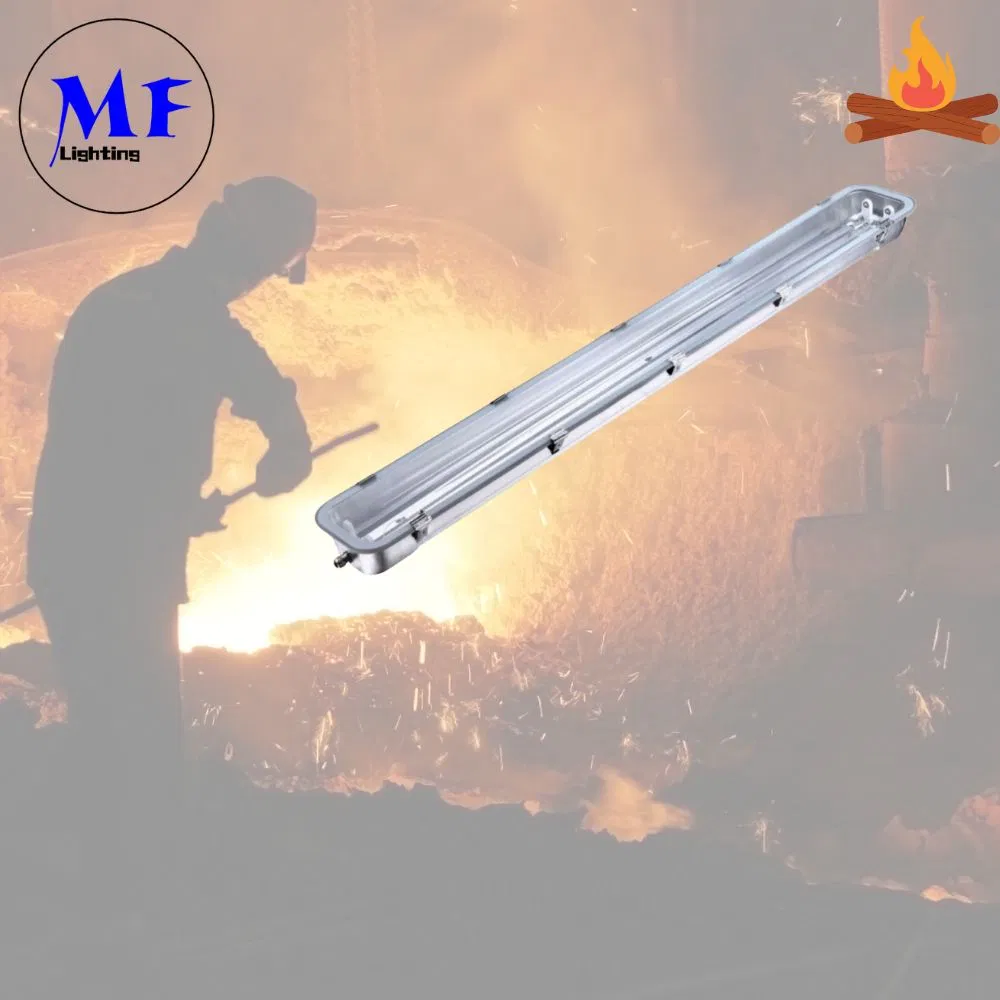

Waterproof Tri-proof LED Luminaire Section

Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)
High luminous efficacy - Up to 120-140 lumens per watt
0-10V dimming capability
Waterproof and dust-proof structure, minimizing internal maintenance
Simple design for easy and quick installation
Stainless steel fasteners, ADC12 aluminum housing, excellent corrosion resistance
Tempered glass diffuser offering high light transmittance and impact resistance

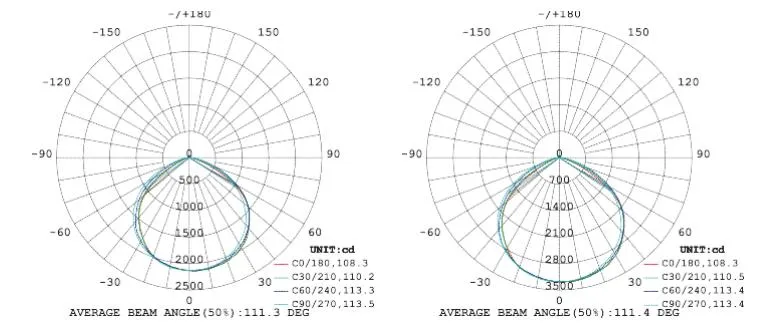

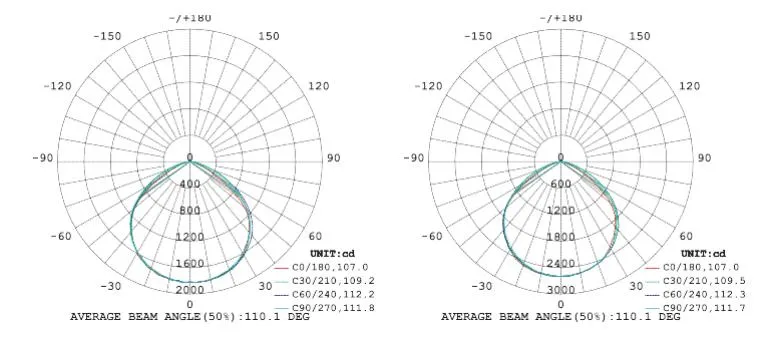

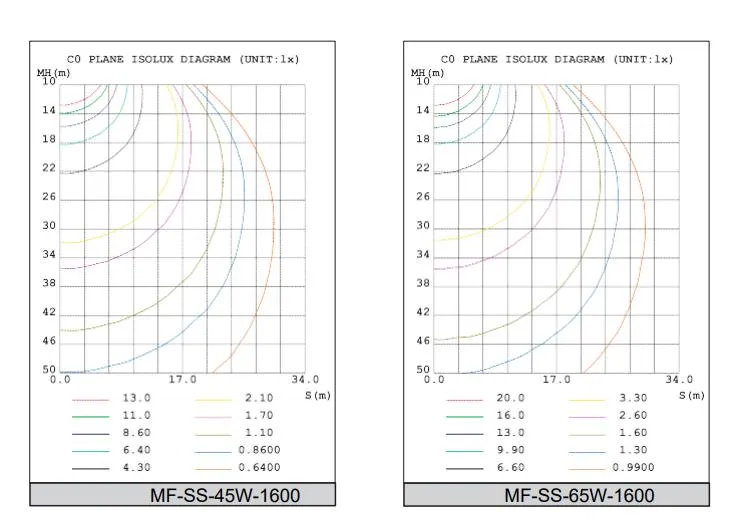

Photometric Data:

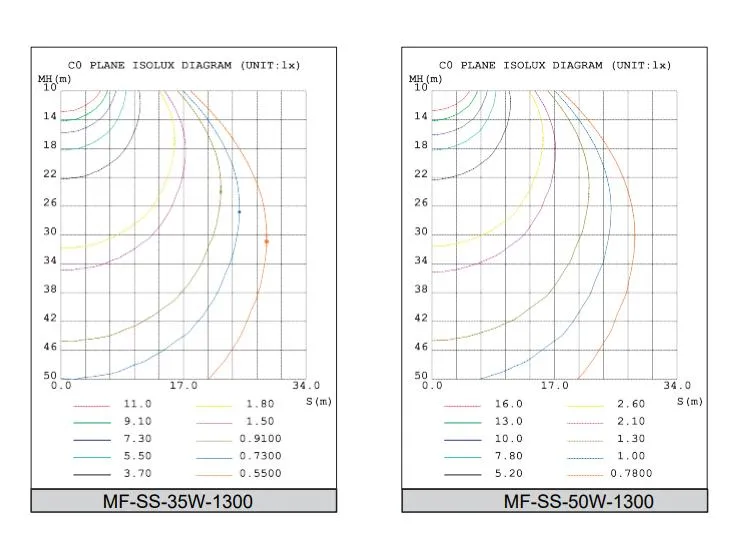

IP65 Stainless Steel Waterproof Luminaire Performance:

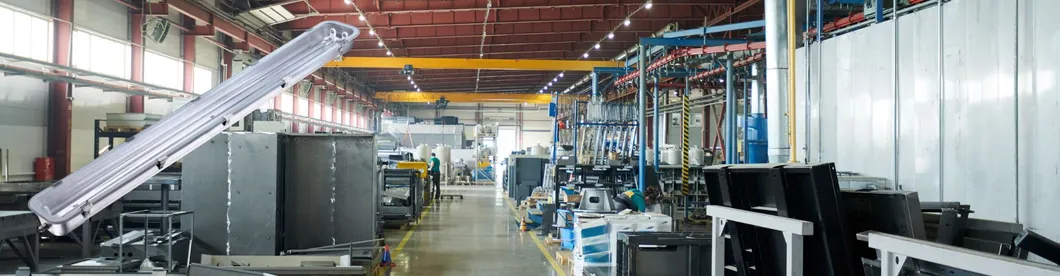

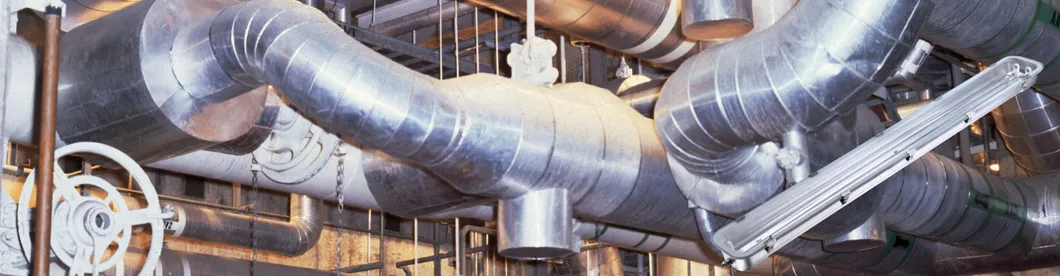

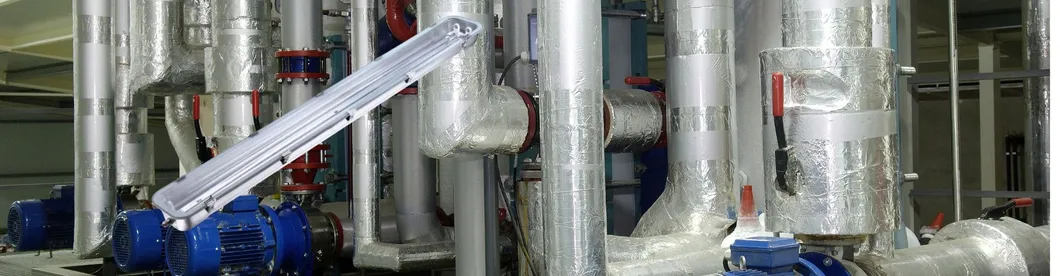

Application

This IP65 stainless steel LED triproof light is specially designed for harsh and demanding environments, making it an ideal lighting solution for manufacturing plants, warehouses, depots, toll booths, workshops, halls, and various high-ceiling areas. It performs exceptionally well under extreme temperatures, high humidity, and corrosive conditions, as well as in places exposed to strong ultraviolet and infrared radiation, ensuring stable, durable, and energy-efficient illumination for both indoor and outdoor industrial applications.

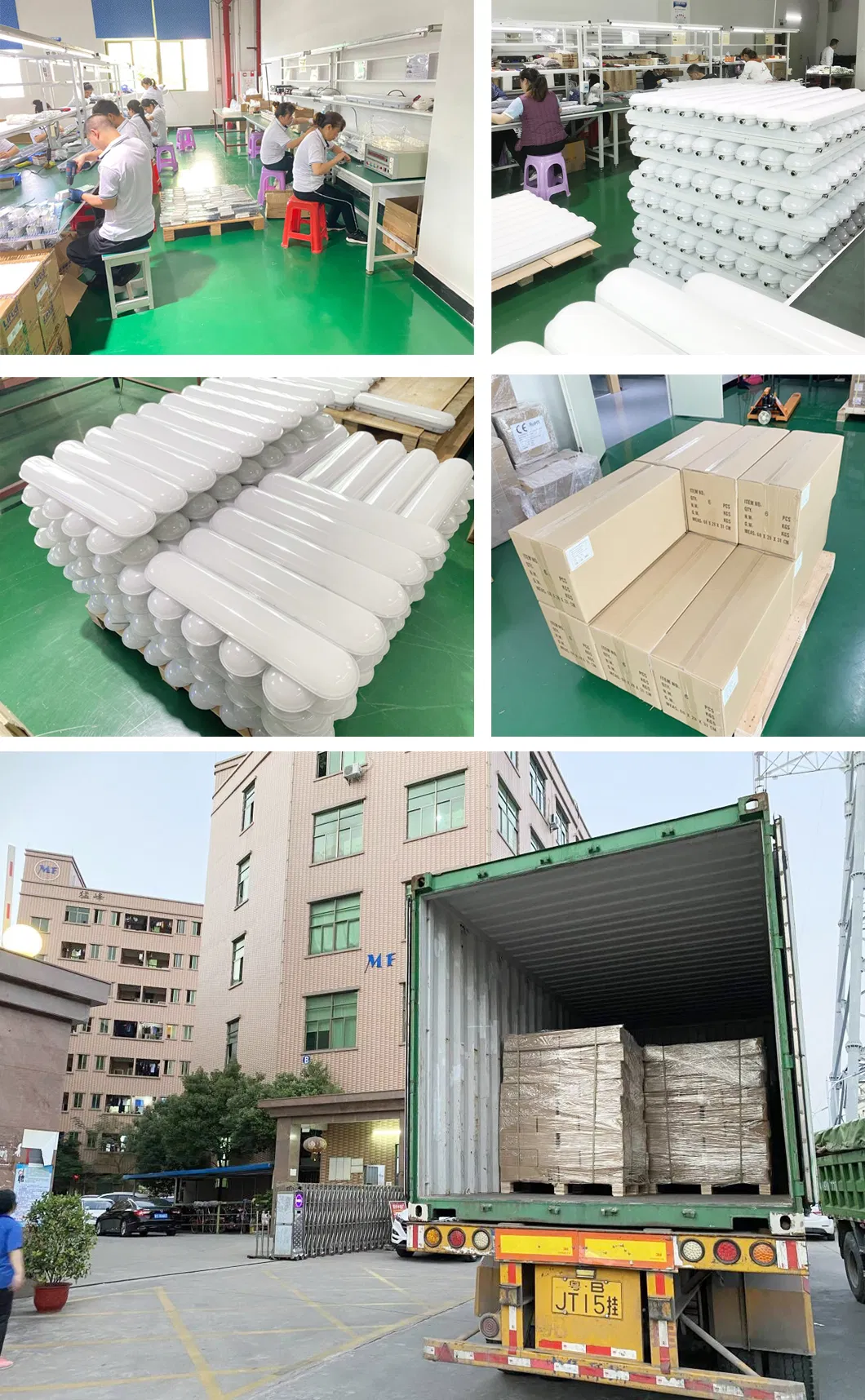

Packaging & Shipping

Certifications

Services & Capabilities

Offering comprehensive design, engineering, and manufacturing support globally. Valued services available to partners include:

★ OEM/ODM Service

★ Photometric/IES Files

★ Dialux Simulation Design

★ PCB & Driver Design

★ Thermal & Optical Design

★ Industrial Product Design

★ Market Support Material

★ Rapid 3D Printing

★ Multiple Listing / Private Label

FAQ

Q Can I have a sample order for the LED Tri-proof Light?

Yes, sample orders to test and check quality are welcomed. Mixed samples are acceptable.

Q What is the lead time of the LED Tri-proof Light?

Typically 3-7 days for sample orders and 15-25 days for mass production orders, depending on order quantities.

Q How do you ship the finished production?

Shipping by sea, air, or express courier (DHL, UPS, FedEx, TNT, etc.) are all optional and available.

Q Is it OK to print my logo on the LED Tri-proof Light?

Yes. We provide complete OEM services, including custom-branded labels and packaging boxes customized to your specifications.

Q How do we proceed with an order for the LED Tri-proof Light?

First, let us know your detailed requirements and installation environment. Second, we will recommend matching products and solutions. Third, upon detail confirmation, customers issue the purchase order and make the payment, after which production begins.

Q How do you handle defective units?

All products undergo a strict quality control system with a historical defective rate of less than 0.2%. We offer a 5-year warranty. For any defects confirmed during the warranty period, simply provide photos or video proof, and we will ship replacement fixtures either immediately or with your next order.
