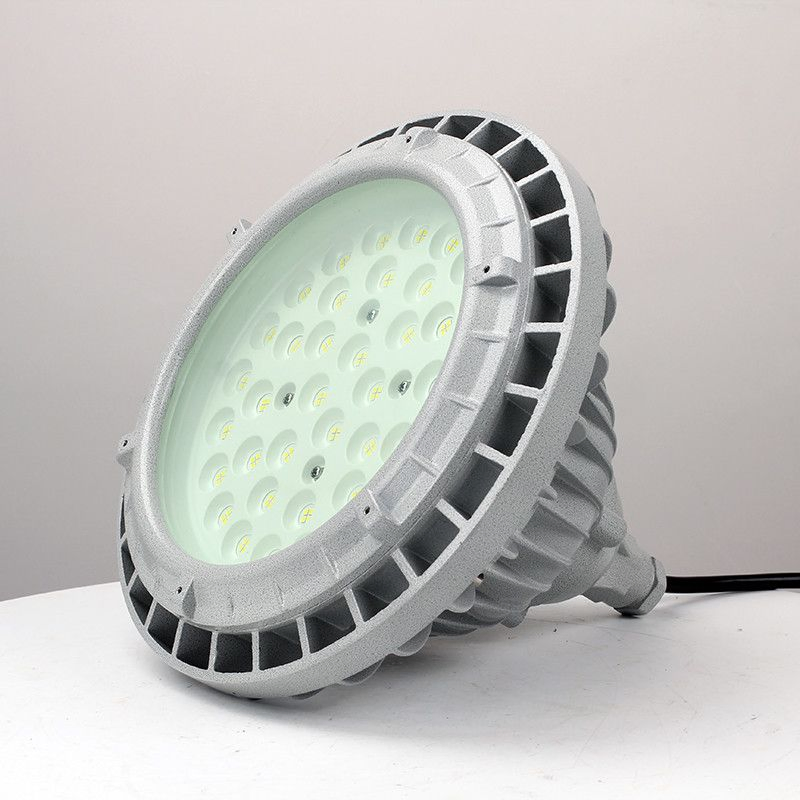

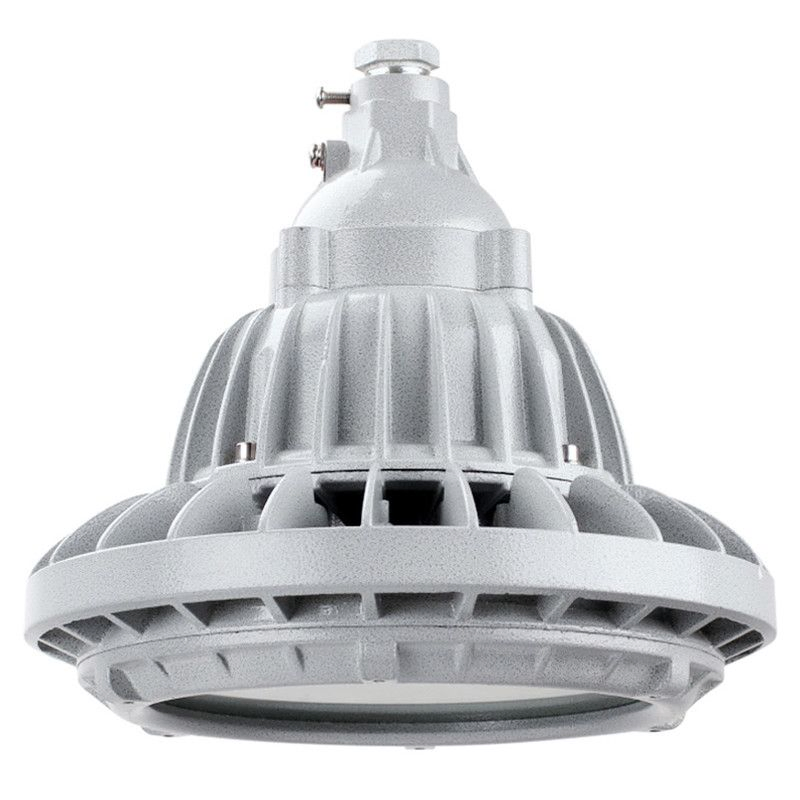

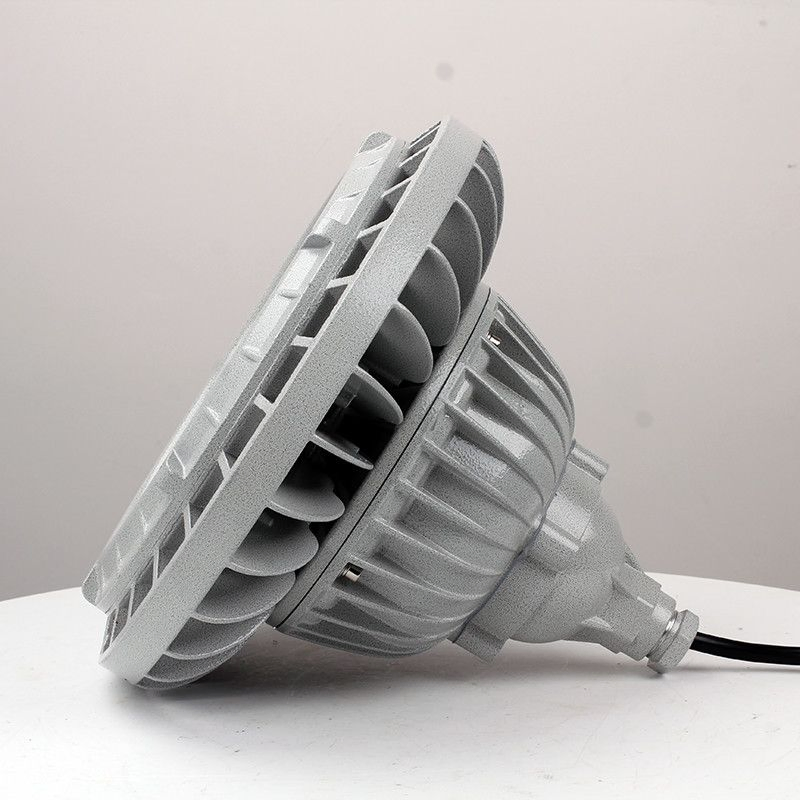

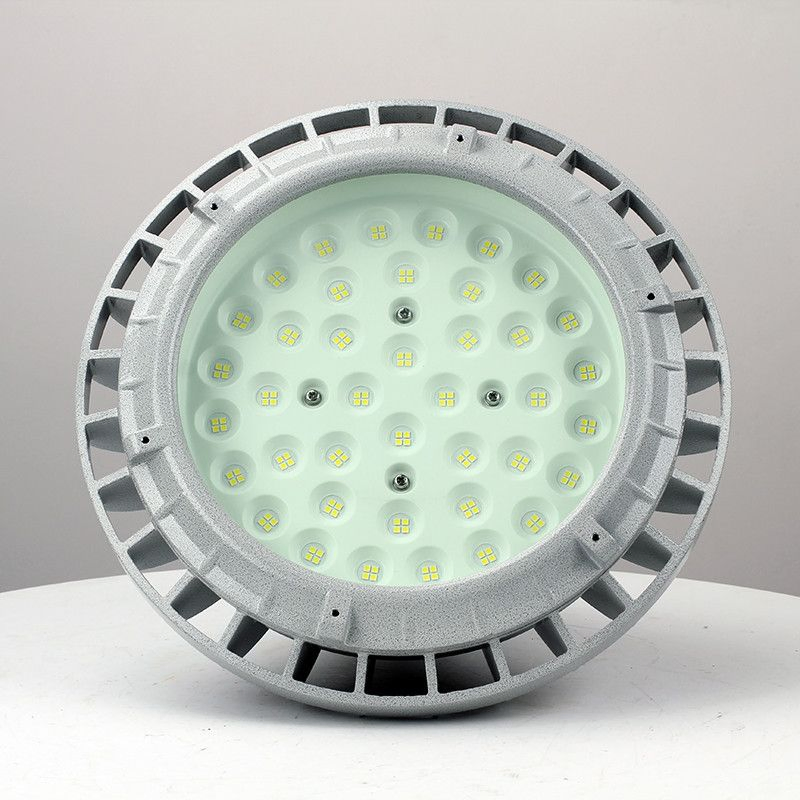

Industrial Explosion Proof Lighting Fixtures 80W Hazardous Location Lighting IP66 Outdoor Waterproof Anti Explosion Lamp

Basic Info.

Model NO. BED59-I

Shape Round

Certification CE, RoHS, CCC, Iecex

Working Temperature -40 -80

CRI (Ra>) 80

Lighting Solutions Service Dialux Evo Layout

Mounting Style Bracket, Boom, Wall, Guardrail, Flange Type

Characteristic Waterproof, Dustproof and Corrosion-Resistant

Lamp Luminous Efficiency(Lm/W) 120

Color Rendering Index(Ra) 80

Field of Utilization Gas Station, Refinery, Spray Booth, Hazardous

Support Dimmer Yes

Alias Explosion Proof Flood Light, High Bay Light

Lamp Luminous Flux(Lm) 6000-9600

Transport Package 1. Carton Box. 2. Customer Brand OEM Packing Box.

Specification 4.3kg, LED, 50000hr Lifespan

Origin China

Production Capacity 10000 Piece/Pieces Per Month

Packaging & Delivery

Package Size 59.00cm * 30.00cm * 31.00cm

Package Gross Weight 12.500kg

Product Parameters

Model and specification	Explosion proof sign	Light source	Lamp type	Power (W)	Luminous flux (Lm)	Color temp (k)	Weight (kg)
BED59-	Ex db IIC T6 Gb Ex tb IIIC T80ºC Db	LED	I	10~30	1200~3600	3000~5700	2.9
			II	40~60	4800~7200		3.6
			III	80~100	9600~12000		4.9
			IV	120~150	14000~18000		6.5
			V	160~200	19200~24000		7.1

Rated voltage/frequency	Inlet thread	Cable outer diameter	Degree of protection	Anti corrosion grade
220V/50Hz	G3/4	Φ10~Φ14mm	IP66	WF2

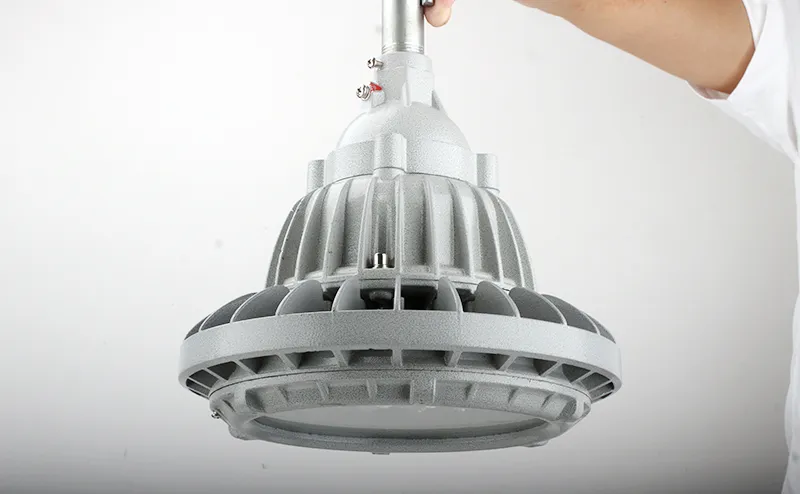

Product Description

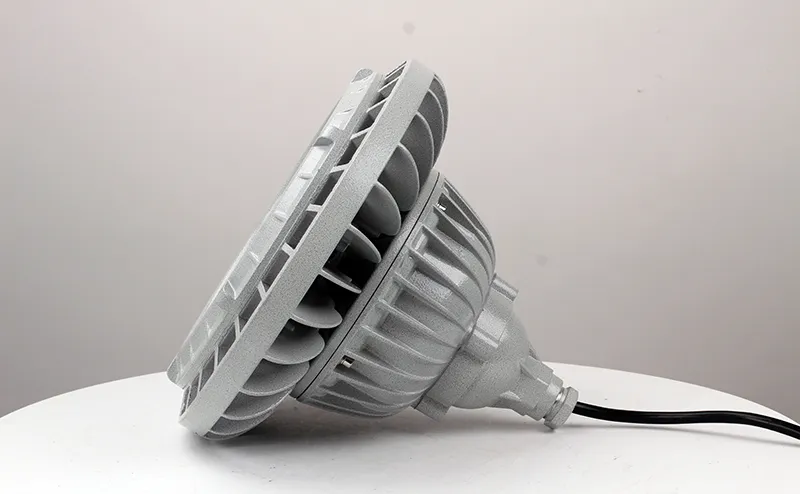

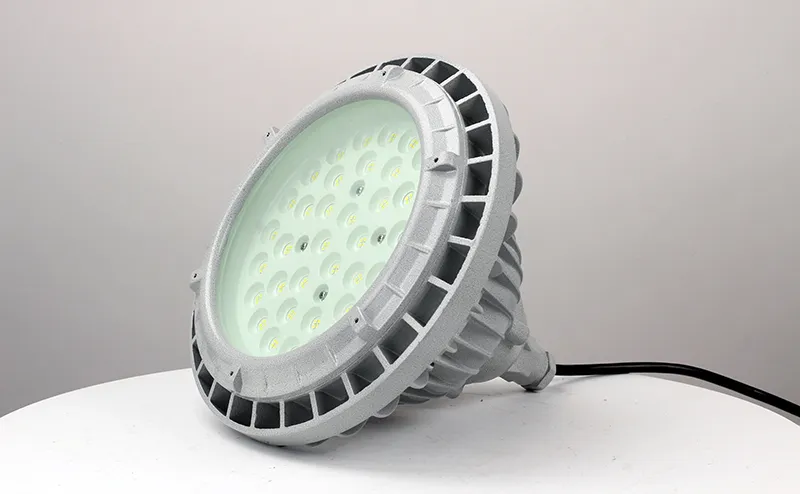

The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
Exposed stainless steel fasteners with high corrosion resistance;
The flame-proof thread flame-proof joint surface of the rabbet has a pure flame-proof structure and more reliable explosion-proof performance;
Standard three box separation structure design, modular installation and combination. Effectively reduce temperature rise to ensure long life of lamps;

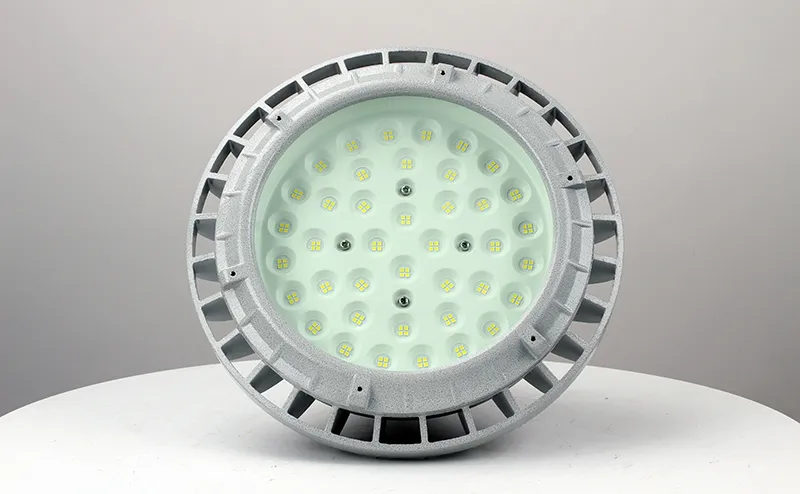

Multi point lighting, high light utilization, uniform illumination without glare;
High strength material, transparent tempered glass, with strong impact resistance, heat resistance and high light transmittance;
The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
Power factor cos φ ≥0.95;
Steel pipe or cable wiring.

Security Level:

WF2, Ex db IIC T6 Gb, Ex tb IIIC T80ºC Db

Applicable Scope:

Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC Explosive Gas Environments.

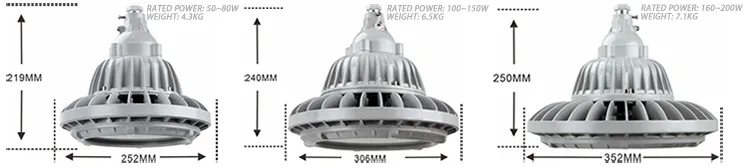

Serial No	Specification and model	Type of lamp housing	Power range (W)	Φ(mm)	A(mm)	H(mm)
1	BED59-30W	I	10-30	209	224	85
2	BED59-60W	II	40-60	236	224
3	BED59-100W	III	70-100	252	219
4	BED59-150W	IV	120-150	306	240
5	BED59-200W	V	160-200	352	250

It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
It is applicable to the places in Zone 21 and 22 of combustible dust environment;
Suitable for IIA, IIB and IIC explosive gas environment;
Applicable to T1~T6 temperature groups;
It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;
It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.

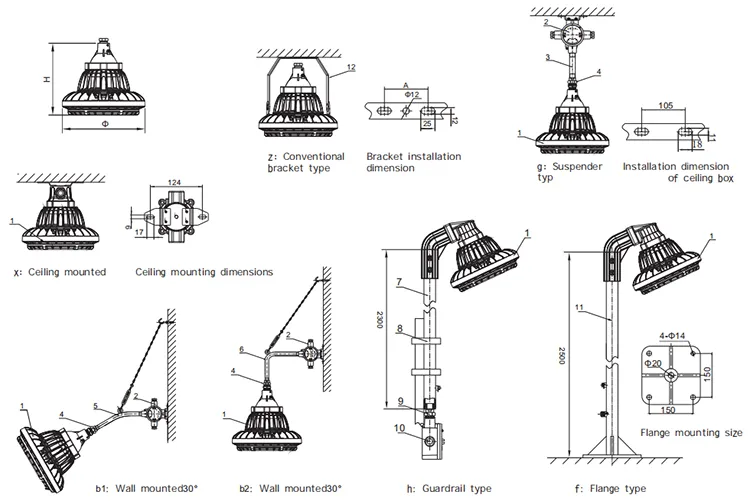

Installation and Mounting Specifications

About Us

FAQ

Are you a manufacturer or a trading company?

We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

What certificates do you have?

We have passed ATEX, IECEx, and with a lot of National Patents.

What field are your products used in?

They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.

Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Will you accept customized order?

Yes. Please inform us and confirm the design firstly based on our sample.

Product Detail

Industrial Explosion Proof Lighting Fixtures 80W Hazardous Location Lighting IP66 Outdoor Waterproof Anti Explosion Lamp

Product Description

Related Products

Product Detail

Industrial Explosion Proof Lighting Fixtures 80W Hazardous Location Lighting IP66 Outdoor Waterproof Anti Explosion Lamp

Product Description

Related Products

High Bay Lamp LED Street Lighting Waterproof High Lumen Aluminum Housing Outdoor for Industrial Lights

High Lumen Waterproof IP66 UFO LED High Bay Lamp 50W 100W 150W 200W 250W 3oow Industrial for Factory Warehouse Aluminum Body

Waterproof Triple Proof High Bay Lamp Industrial Zones with Hazardous Materials

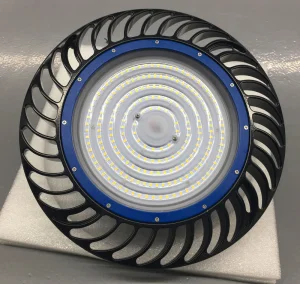

IP65 Waterproof Ce RoHS 100W 120W 200W 250W UFO LED Industrial High Bay Light LED Yard Lamp

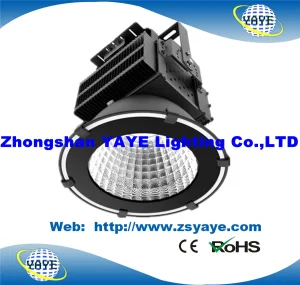

Yaye 18 Waterproof IP65 Ce/RoHS 100W LED High Bay Light / 100W LED Industrial Lamp with 5 Years Warranty
