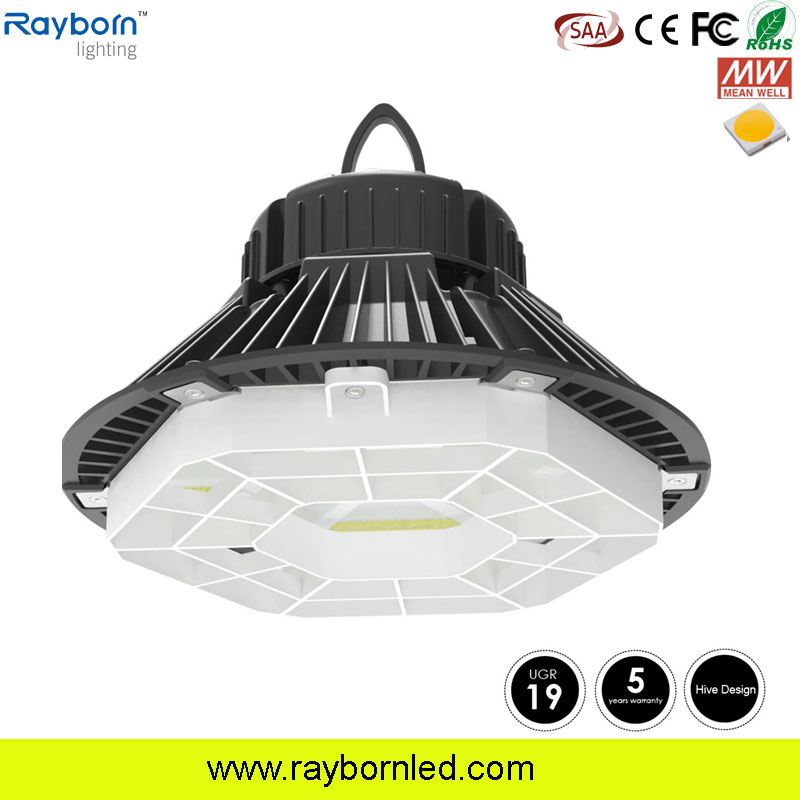

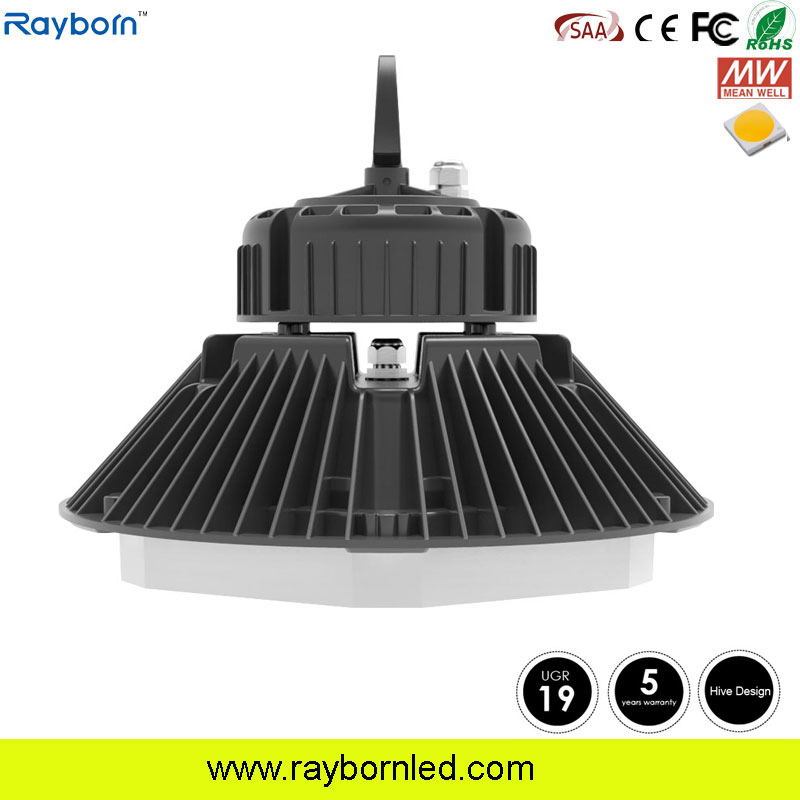

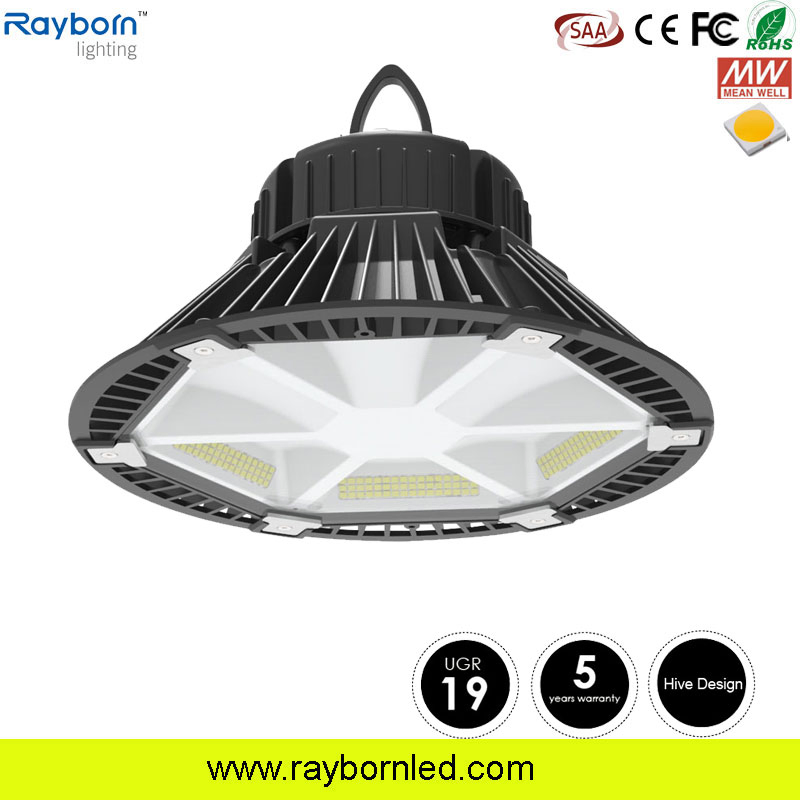

160LM/W 150w Industrial high bay replace 400w traditional metal halide lamp
Product Specifications:
UFO Hive LED High Bay Light/Industrial High Bay LED Lighting (100-250W)
150W UFO LED HIGH BAY LIGHT SPECIFICATIONS
Item No.:
RB-HB-150WU3
Input Voltage:
AC 100-277V
Frequency Range:
50Hz~60Hz
LED Chip:
Epistar led Chip
Power Driver:
Meanwell HBG driver
Power Factor:
>0.98
Power Efficiency:
>92%
Luminous Efficiency:
160LM/W
LED Power:
150W
LED QTY:
336pcs
LED Working Voltage:
DC 42~48V
System Consumption:
153W
LIGHT Luminous Flux
Warm White
22000LM
Pure White
24000LM
Cool White
24000LM
Viewing Angle:
120 degree
Center Luminance
Height 3M
818LUX
Height 4M
460LUX
Height 5M
295LUX
Illuminance Area
Height 3M
Dia.915CM points visible
Height 4M
Dia.1216CM points visible
Height 5M
Dia.1521 CM points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
3000K~3500K
Pure White
5000K~5700K
Cool White
6000K~6500K
Color Rendering Index:
Ra>80
Light Distribution:
LED points visible
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
IP Grade:
IP65
Working Life-span:
50000 H
Power Line:
1.0 mm three line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
Certificate:
CE/ROHS
Size:
Ф320*H161
Net Weight:
4.5KG

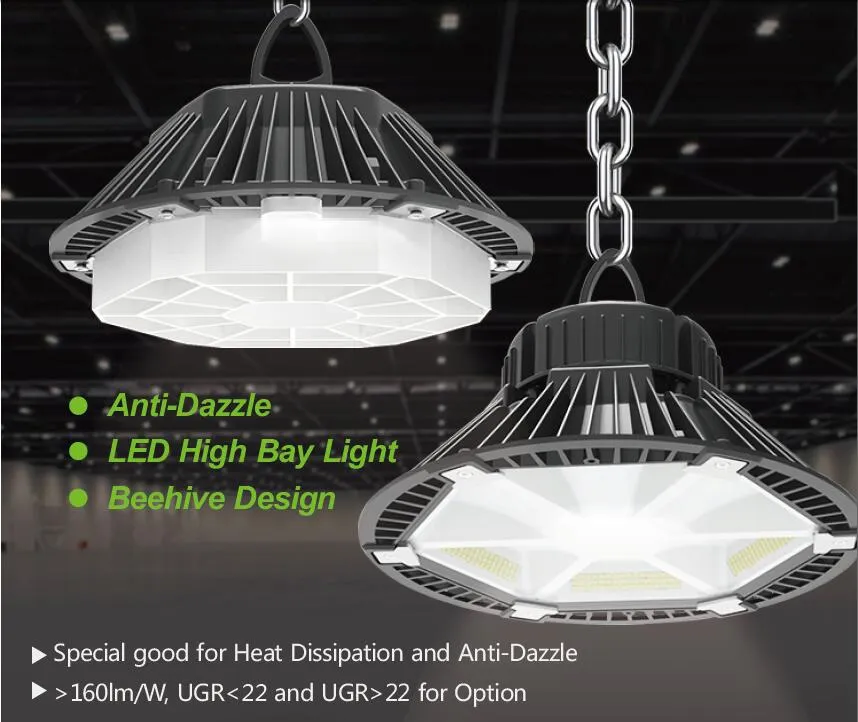

Features of UFO LED High bay Lamp
Hive New design LED High Bay light, available in 60W/100W/150W/200W variants.
Equipped with original high brightness Samsung, OSRAM, or Epistar led chips, configured with dependable Meanwell HBG drivers.
Remarkable luminous efficacy reaching up to 160LM/W.

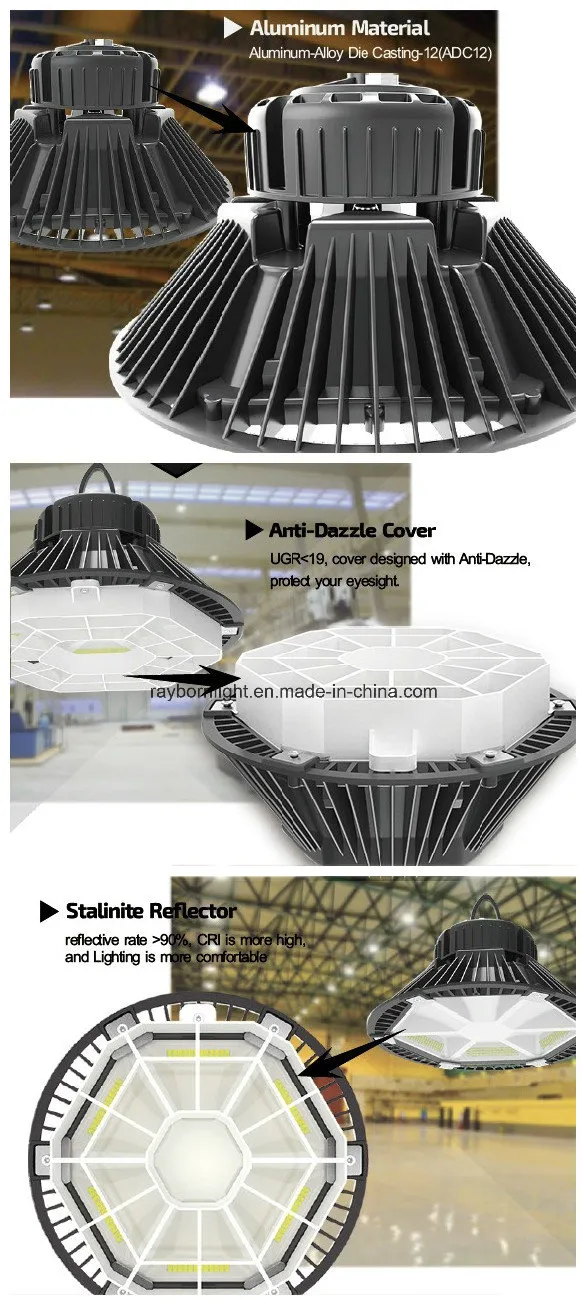

Advanced heat dissipation and Anti-Dazzle layout cover, supporting options for both UGR<22 and UGR>22 to protect eyesight.
Metal plate pure aluminum heat sink integrated with high conduction copper cylinders.
Multiple beam angle options including 120 and 130 degrees light distribution.
Tri-Angle structure design for extra secure physical lamp fixture installation.
Reflective index exceeding 90% alongside higher CRI values for visual comfort.
Premium 304 Stainless steel construction for easy installation, rust prevention, and sustained durability.
Highly efficient thermals: LED Chip welding points kept under 70ºC, and heat sink surfaces below 55ºC, extending overall longevity.
Supportive mounting configurations using rings, chains, or other specified utility hardware.
IP65 dustproof and waterproof rating suitable for severe indoor or outdoor settings like cold storages or steel workshops.
Competitive Advantages
CE, RoHS, SAA, and TUV quality compliance approvals.
Superior authentic imported light sources (Samsung, OSRAM, Epistar).
Strong design versatility backing OEM and ODM services.
Highly responsive production workflows ensuring delivery within 2-15 working days.
Up to 5 years product warranty coverage and a lifetime metric exceeding 50,000 hours.

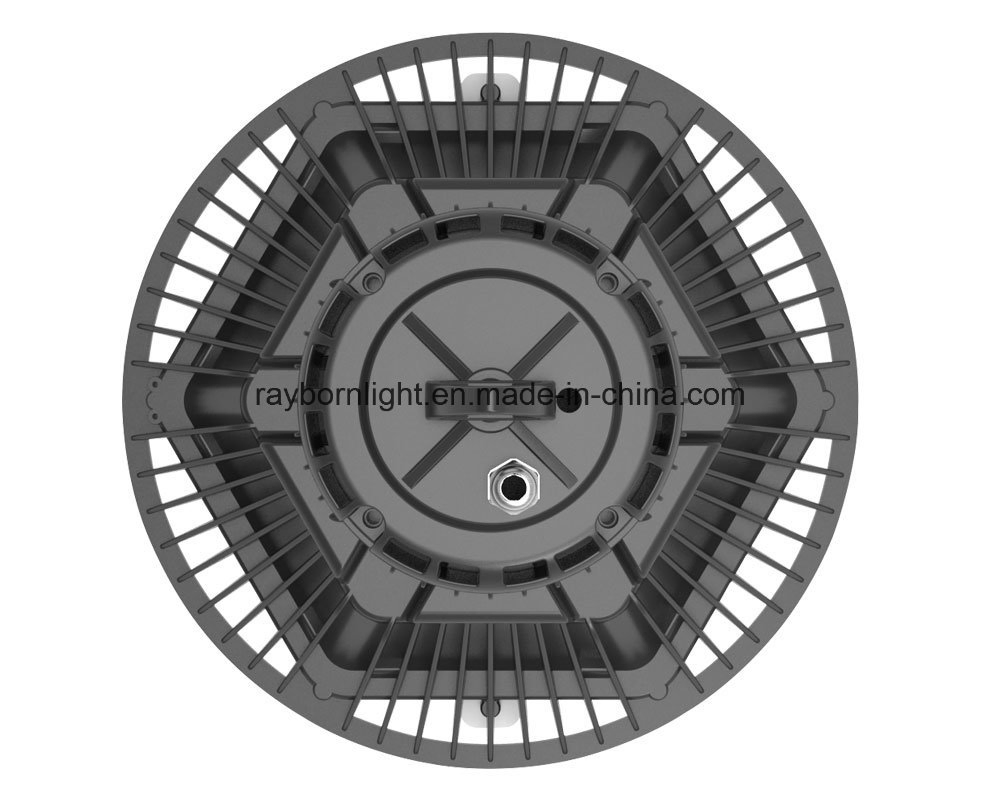

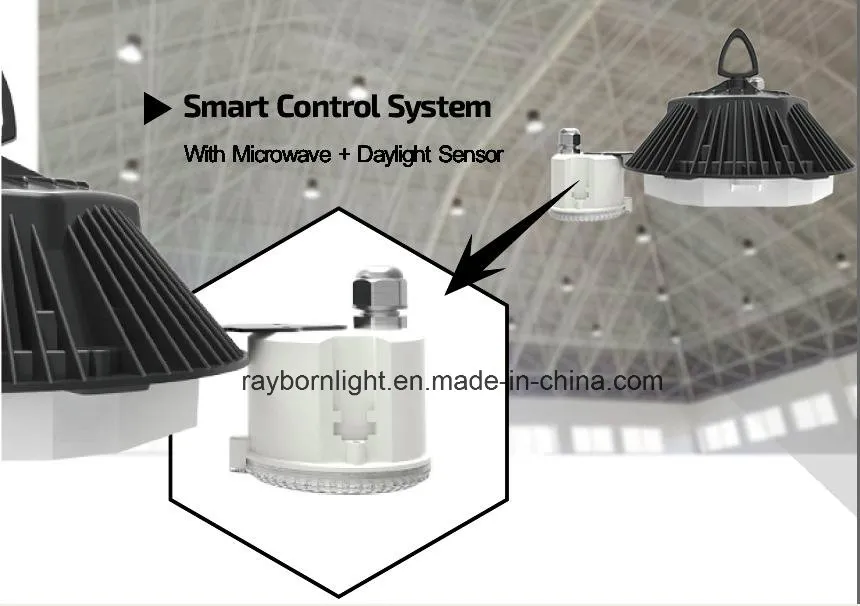

Product Details

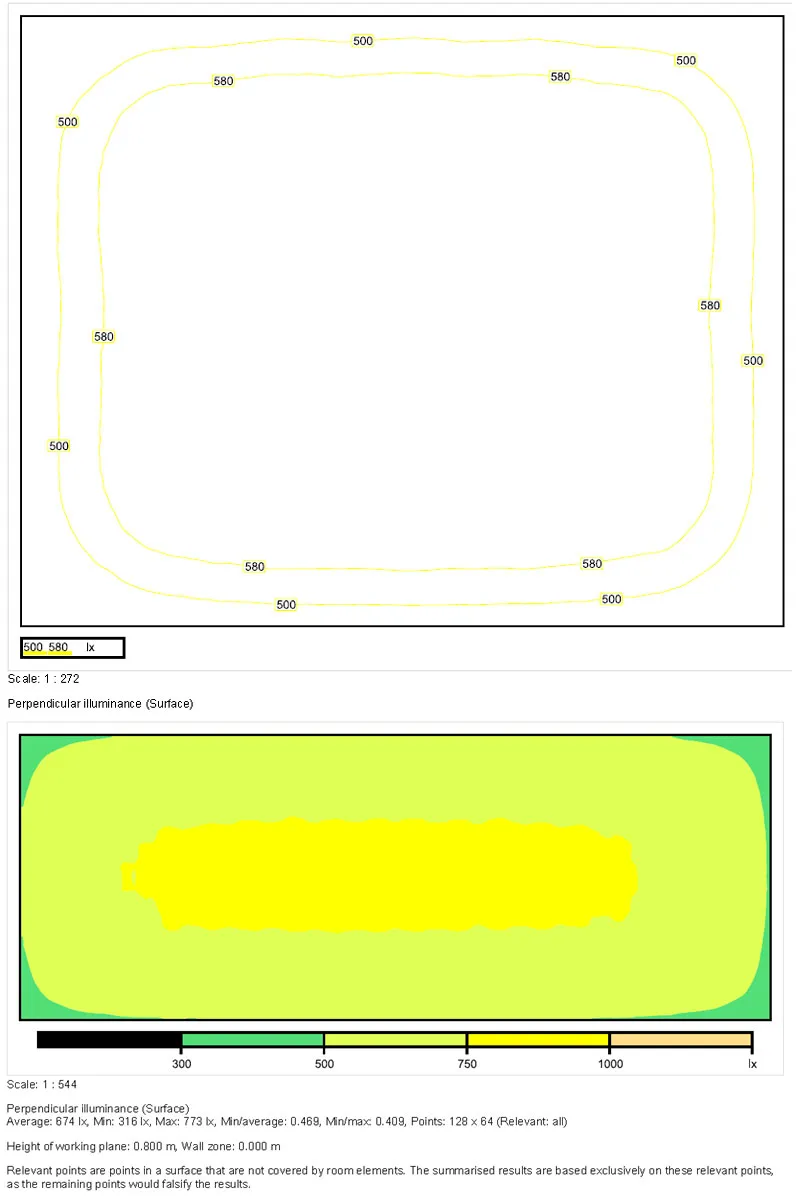

Professional Illumination Simulation

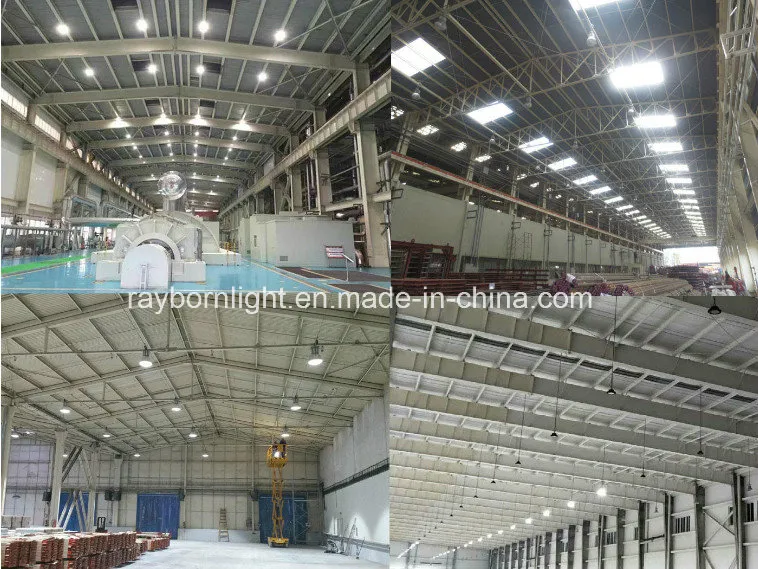

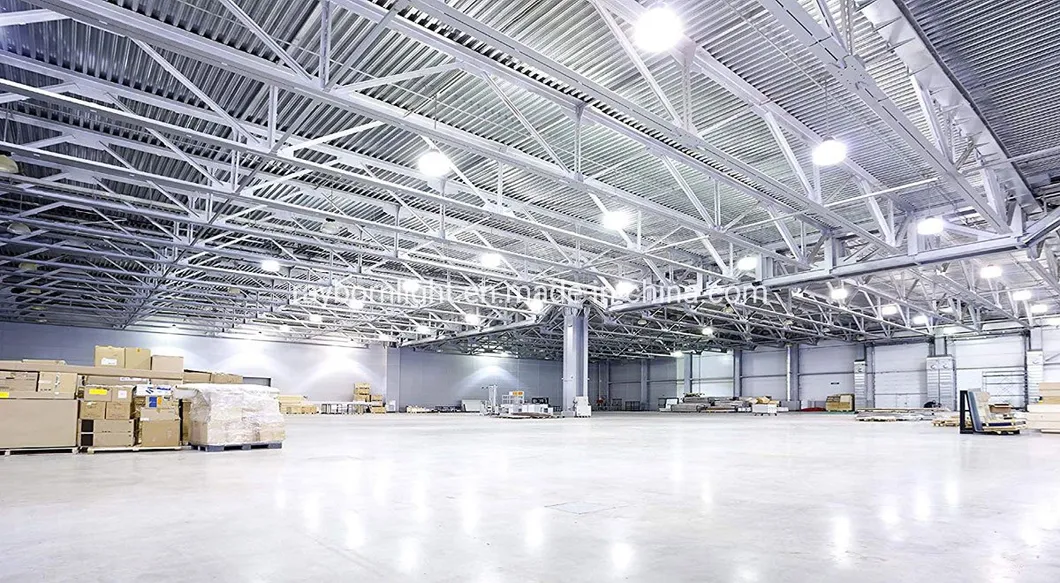

Installation & Applications
Heavy duty industrial workshops and manufacturing facilities.
Modern shopping complexes and department stores.
Exhibition halls, indoor sports gymnasiums, and stadiums.
Highways, commercial gas stations, and toll plazas.
Heavy metal smelteries and industrial warehouses.

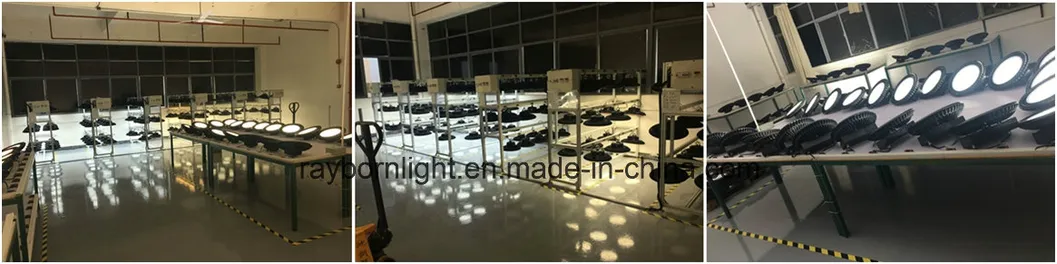

Product Aging & Quality Assurance Testing
Comprehensive Quality Protocols
All LED lighting units undergo a strict continuous aging process exceeding 24 hours. The internal testing unit performs thorough individual checks across electrical power wattage parameters, ground insulation connectivity, High-voltage thresholds, and complete waterproof safety limits, maintaining defect benchmarks strictly under 0.1%.

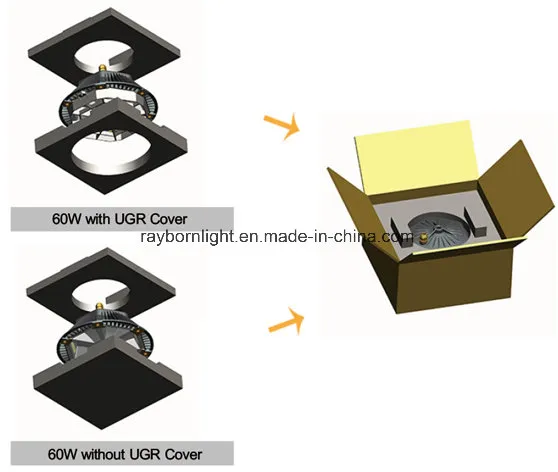

Packaging & Shipments
Customized individual packaging solutions are designed to fully isolate and shield structural components, avoiding potential surface degradation or impact issues during international logistics transits. Standard packs ship as one individual fixture per unit box. Custom layout markings, logo prints, and colored designs are supported upon request.
Payment & Commercial Terms
Payments Accepted: Wire transfer (T/T), L/C at sight, Western Union, and PayPal.
Production Lead Times: 5-7 working days for samples; 10-20 working days for commercial bulk orders.
FOB Port: Shenzhen, China.
Warranty Terms: Standard 5-year replacement guarantee based on configuration variables. Free product replacement services cover verified performance anomalies throughout the warranty cycle.
Frequently Asked Questions
What is the default commercial process flow?
Send Inquiry → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service.
How does the 5-year product warranty coverage work?
A 5-year warranty is offered depending on different types of lights. If an item fails due to quality problems during the warranty period, we can send a new replacement with shipping freight covered by us immediately if urgent. Alternatively, replacements are dispatched along with the customer's next scheduled bulk delivery order.
What payment term conditions do you accept?
For sample orders, we accept 100% advance payments via T/T, PayPal, or Western Union. For bulk commercial orders, a 30% advance deposit is standard, with the remaining 70% balance paid prior to shipping. Letters of Credit (L/C) are negotiable for large volume purchases.
Can I custom add my logo onto the product labels?
Yes, custom logo printing on product stickers and structural label tags is supported. Minimum order quantities vary depending on the chosen lamp structure.
Can you assist with building lighting layouts if I do not know how many fixtures to buy?
Yes. We provide comprehensive layout planning support. Standard IES formats can be shared directly with your configuration teams to assist in simulation setup.
Do you maintain minimum order limits (MOQ) for high bay orders?
We offer low minimum order quantities. Sample testing evaluation orders can be accommodated starting from a single unit.
