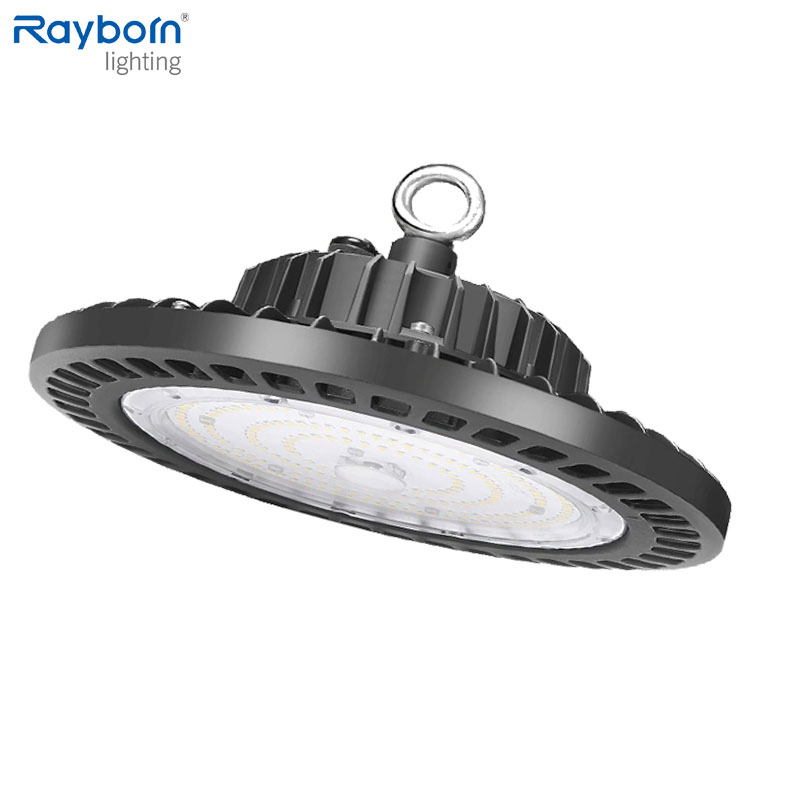

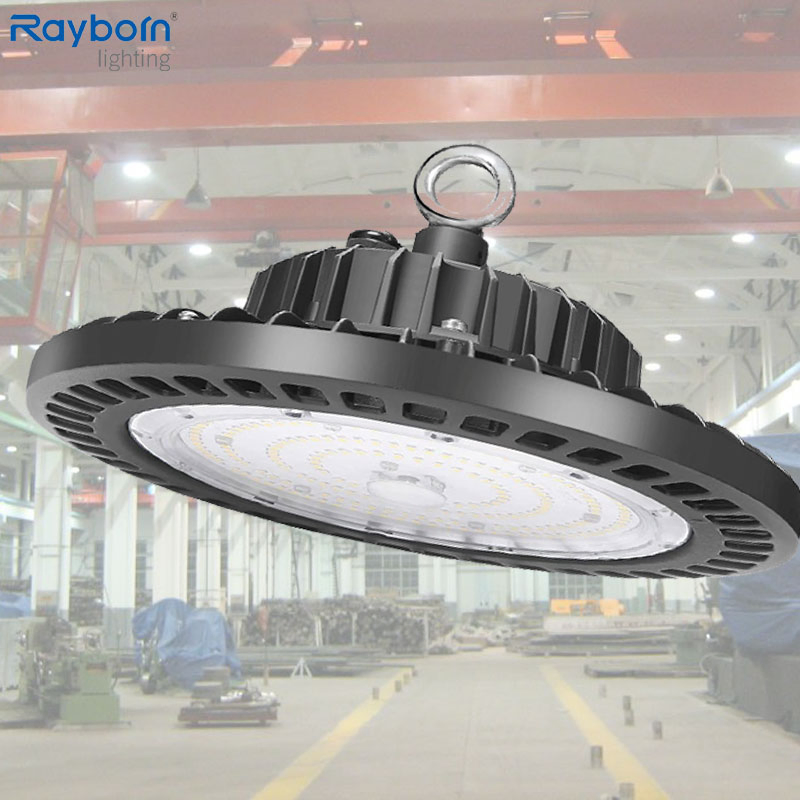

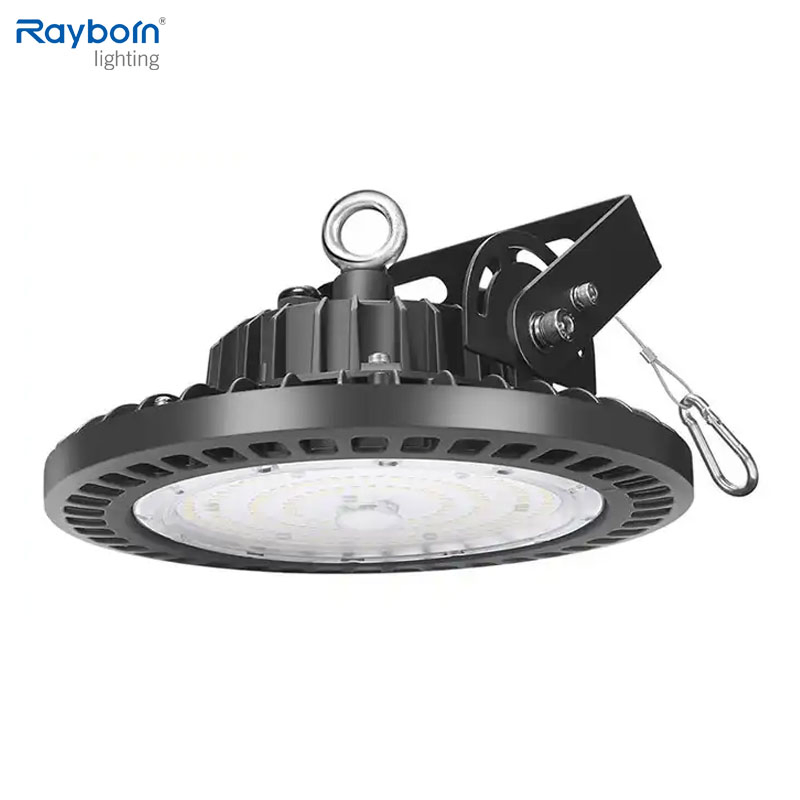

150W 200W Industrial Hanging High Bay LED Lamp for Warehouse

Basic Specifications

Model NO.

RB-HB-150WU1

Power

150W

Projection Distance

12-18m

Application

Park, Square, Factory, Garden, Plazza, High Mast, Pier, Marine, Billboard

IP Rating

IP65

Certification

CE, EMC, LVD, RoHS, SAA, VDE

Input Voltage

AC100-277V

LED Chips Brand

SMD3030

Item No.

Rb-Hb-150wu1

LED Qty

144PCS SMD3030 High Brightness LED Chip

CCT

3000K/4000K/5000K/6000K/Blue/Red/Green/Purple

Luminous Flux

19500lm Tower Crane Lighting

Material

Aluminum+Glass Modular SMD LED 3030

IP Rate

IP65 Waterproof Dustproof

Power Factor

>0.95 LED Reflector Floodlights

CRI (Ra)

>80

LED Power

150W LED Flood Light

Driver

Meanwell Driver

Transport Package

1PCS/Box

Specification

CE/RoHS/SAA

Origin

China Flood Light Ski Resort

HS Code

9405409000

Production Capacity

40, 000PCS/Month

Product Description

100% Satisfaction Service 100W 200W Warehouse UFO Lamp LED Industrial Light LED High Bay Light

150W 200W Industrial Hanging High Bay LED Lamp for Warehouse

Item No.

RB-HB-200WU2

Input Voltage

AC 100~277V 50-60HZ

Power Factor

>0.98

Power Efficiency

>0.90

Luminous Efficacy

130-140LM/W

Power Consumption

200W

System Power

205W

LED Chip

140lm/w 3030

Beam Angle

60, 90, 120 degrees

Color Index

Ra≥ 80

Color Temp

2700-7000K

Operating Temp

-40~55ºC

Protection Class

IP65

Lumen

28000LM

Useful Life

≥ 50000 hours

Material

Aluminum 1070+AL6061

Color of Housing

Black

200W UFO LED HIGH BAY-60D Technical Parameters

Parameter Name		Specifications / Details
Item No.		RB-HB-150WU1
Input Voltage		AC 100-277V
Frequency Range		50Hz~60Hz
LED Chip		SMD3030 Chip
Power Driver		Meanwell
Power Factor		>0.98
Power Efficiency		>92%
Luminous Efficiency		160LM/W
LED Power		150W
LED QTY		210pcs 3030SMD
LED Working Voltage		DC 42~48V
System Consumption		154W
LIGHT Luminous Flux	Warm White	19500LM
	Pure White	22000LM
	Cool White	22500LM
Viewing Angle		120/90/60 degree
Center Luminance	Height 3M	4119LUX
	Height 4M	2317LUX
	Height 5M	1483LUX
Illuminance Area	Height 3M	Dia.265CM points visible
	Height 4M	Dia.352CM points visible
	Height 5M	Dia.441CM points visible
Illuminance Uniformity		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	4000K~5500K
	Cool White	6000K~6500K
Color Rendering Index		Ra > 80
Light Distribution		LED points visible
LED Junction Temperature		≤115ºC
Working Temperature		-35ºC~65ºC
IP Grade		IP65
Working Life-span		50000 H
Power Line		1.0 mm2 three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Certificate		CE / ROHS
Size		Ф350*H196
Net Weight		3.2KG
Packaging		45.545.522.5cm

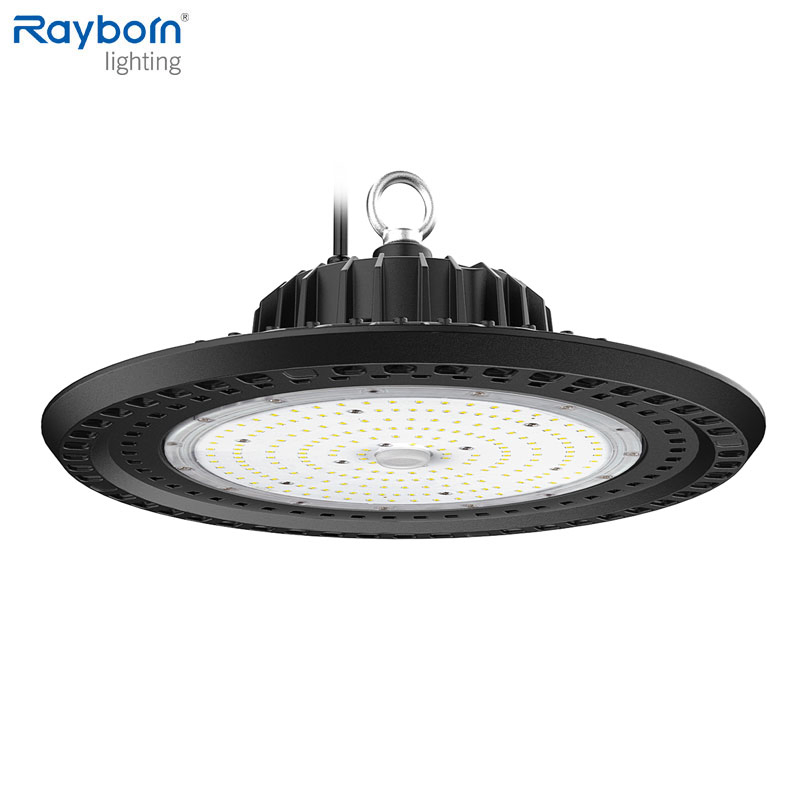

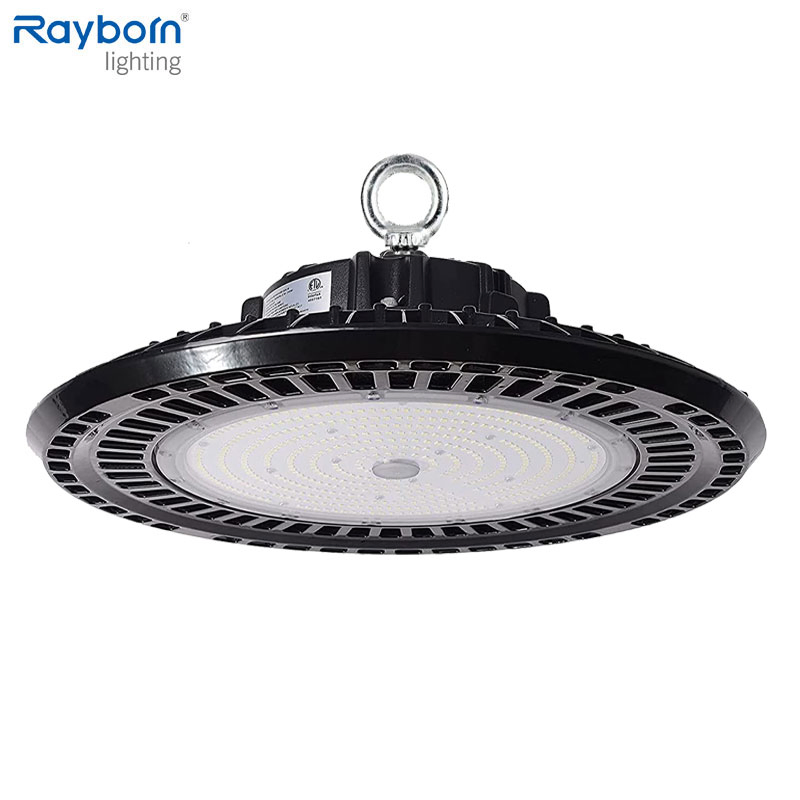

Key Features of UFO LED High Bay Light

Adopting 140-180lm/w 3030 chips with high quality Meanwell driver.
Private tooling and compact structural design.
Durable aluminum housing and optimized lens design.
System efficacy greater than 130lm/W.
IP65 weatherproof and dustproof rating.
5 years warranty with a lifetime of over 50,000 hours.
Flexible installation: loop hanging, pole hanging, ceiling mounting, and wall mounting.
Dimming and microwave sensor functions are available.
Ideal applications: warehouses, workshops, showrooms, indoor sports fields, and more.

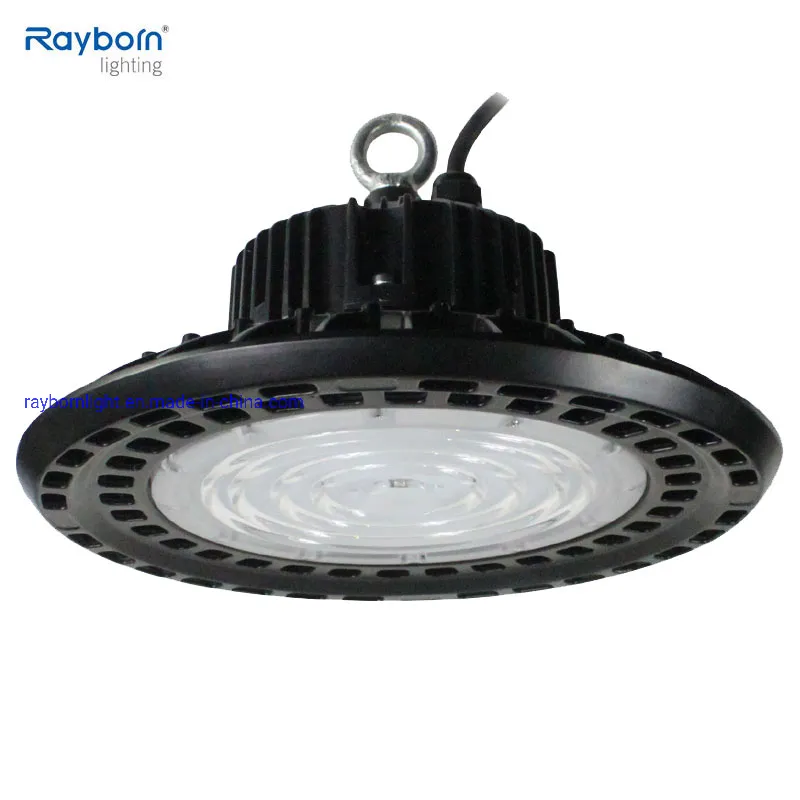

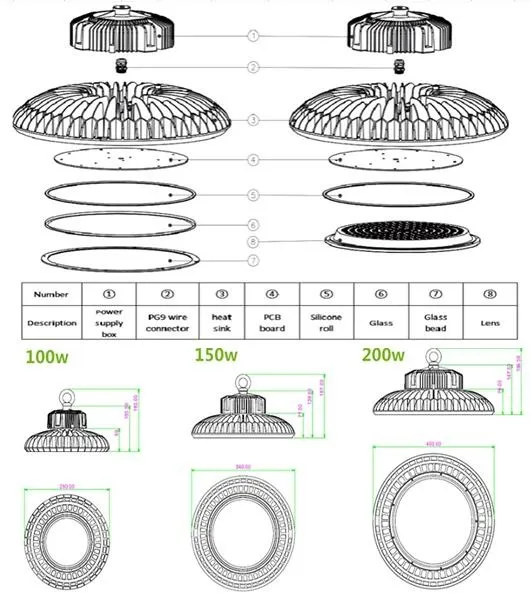

Detailed Drawing of UFO LED High Bay Light

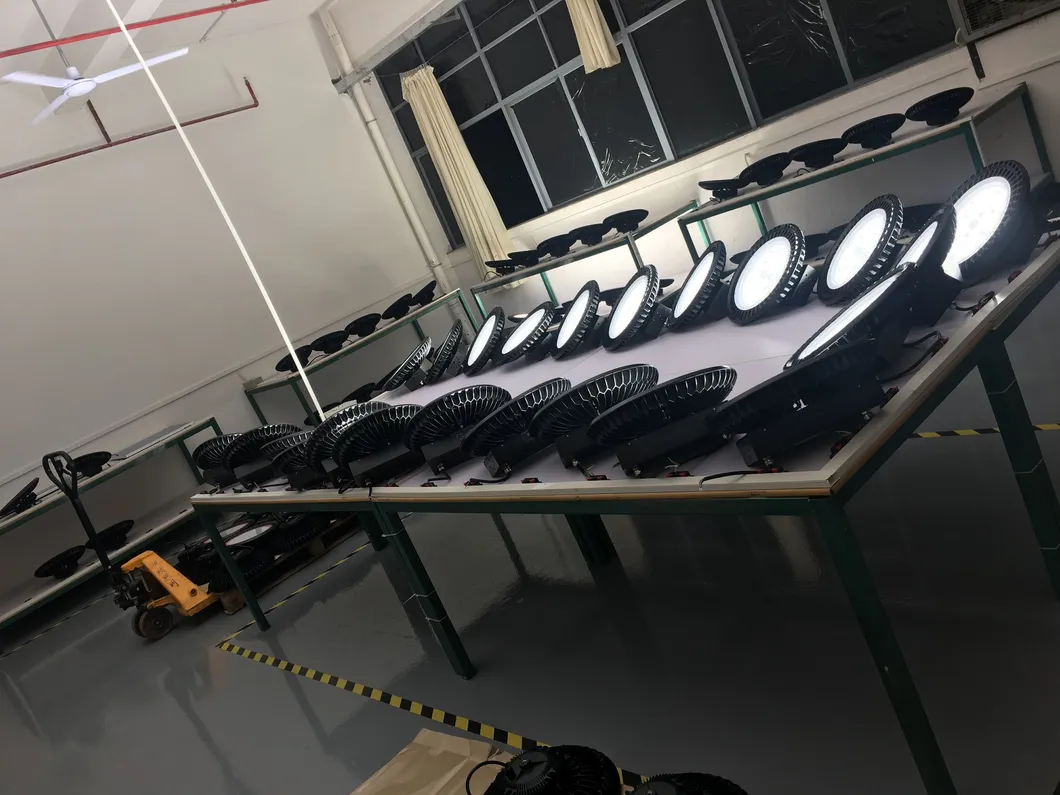

Strict Testing & Quality Assurance

All of our LED high bay lights will undergo rigorous testing before shipping. This includes current and functional tests, earth connection tests, temperature tests, light distribution analysis, vibration resistance testing, integrating sphere tests, salt spray exposure, and extended aging tests. Being responsible for our products is being responsible for our customers.

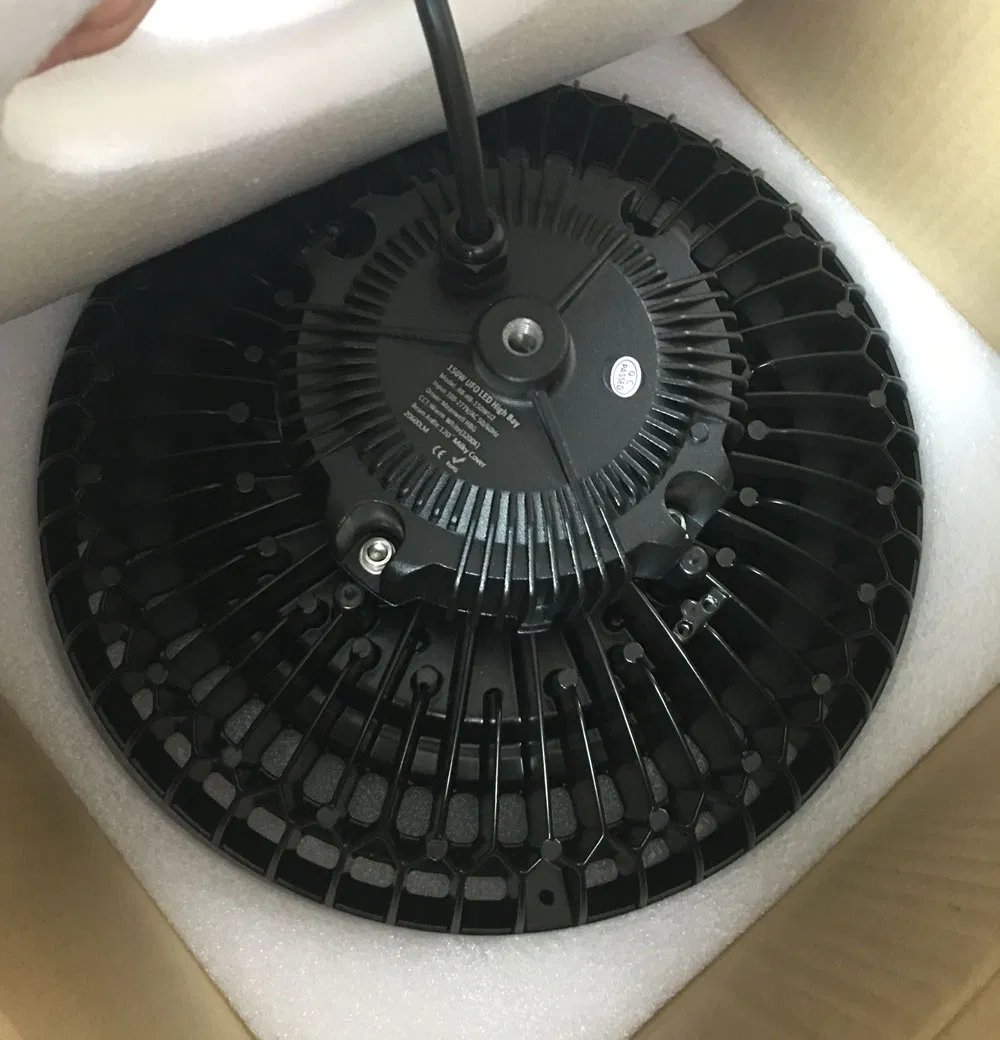

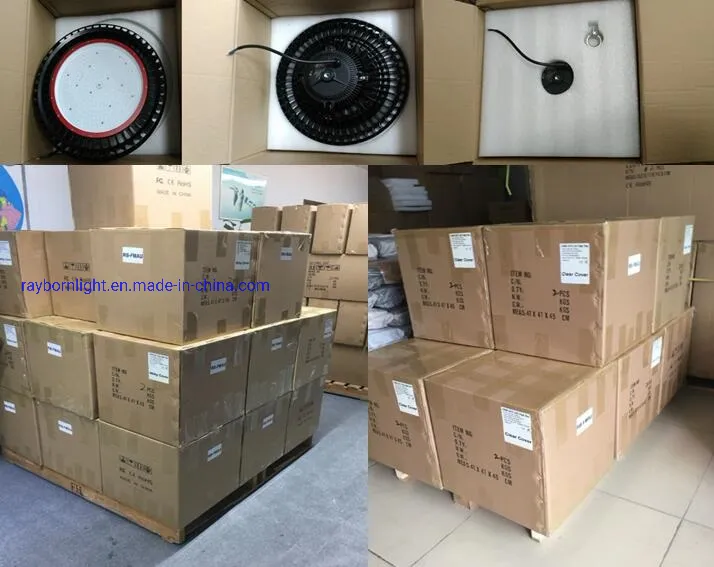

Packaging Specifications

Item	Carton Size	Gross Weight	Packaging
80w/100w ufo led light	35.535.542.5cm	10.0kg	2pcs/ carton
120w/150w ufo led light	41.541.543.5cm	13.5kg	2pcs/ carton
200w/250w ufo led light	46.546.543.5cm	16.8kg	2pcs/ carton

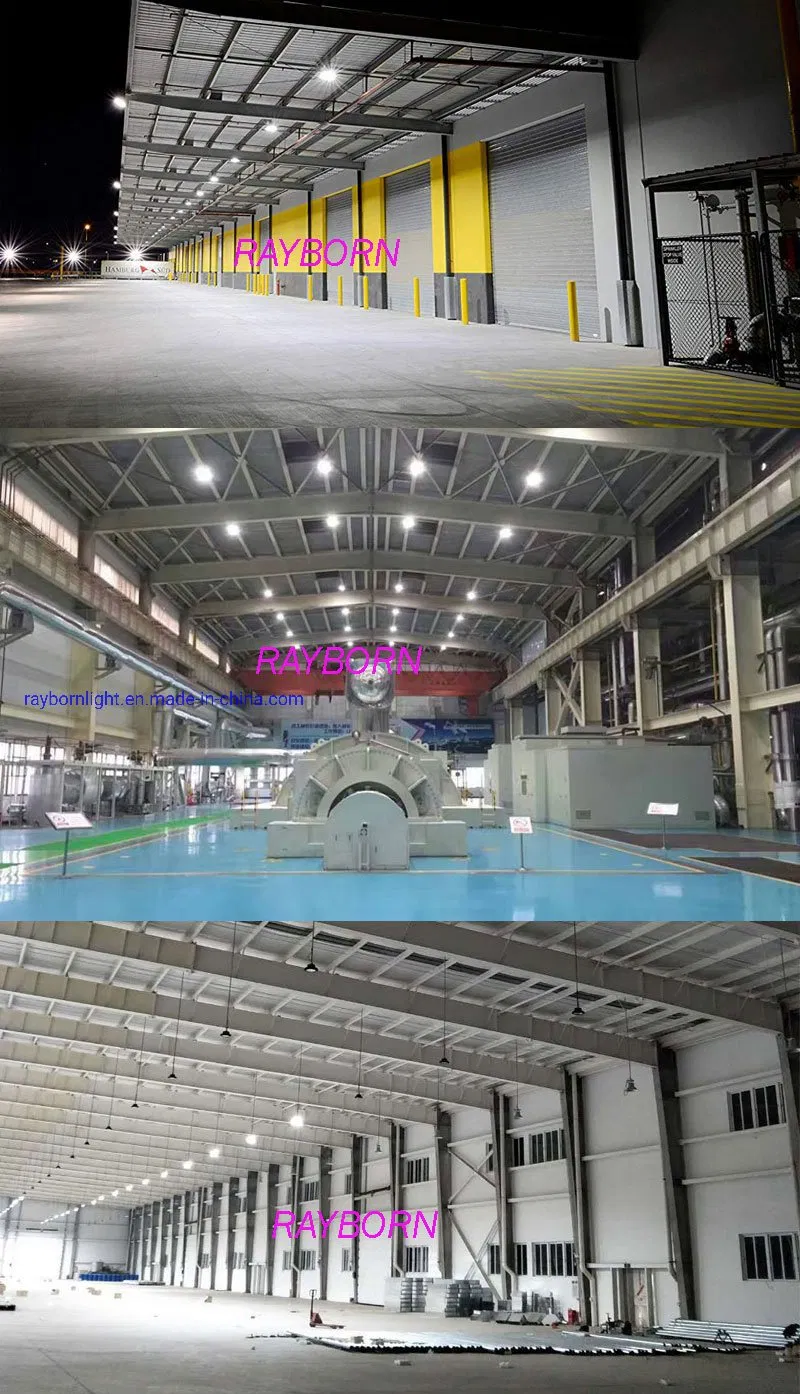

Applications

Warehouse, Factory & Industrial Lighting
Garage & Workshop Lighting
Outdoor Areas & High Mast Lighting
Supermarket & Store Lighting
Tunnel & Bridge Lighting
Gas Station Lighting

Shipping Methods

Large quantities are recommended to be shipped by sea.
Samples are recommended to be shipped by express (DHL, FedEx, UPS, TNT, etc.).
Small quantities are recommended to be shipped by air.

Terms & Warranties

After-sales Service

We offer a 5-year warranty based on different price points and products. For any quality issue within the guarantee period, we will replace the parts or components free of charge. Full accessory support is consistently provided to our customers.

Trade Terms

Payment: T/T, L/C, and Paypal are available. Lead time for sample orders is 5-7 working days, and bulk orders take 10-15 working days. Shipping port is Shenzhen port. Discounts are offered based on order quantities.

Warranty Policy

The 5-year guarantee is subject to use in normal environments with suitable maintenance. Within the warranty, we provide repairs, component replacement, or product exchanges. Beyond the warranty period, appropriate material and labor costs apply.

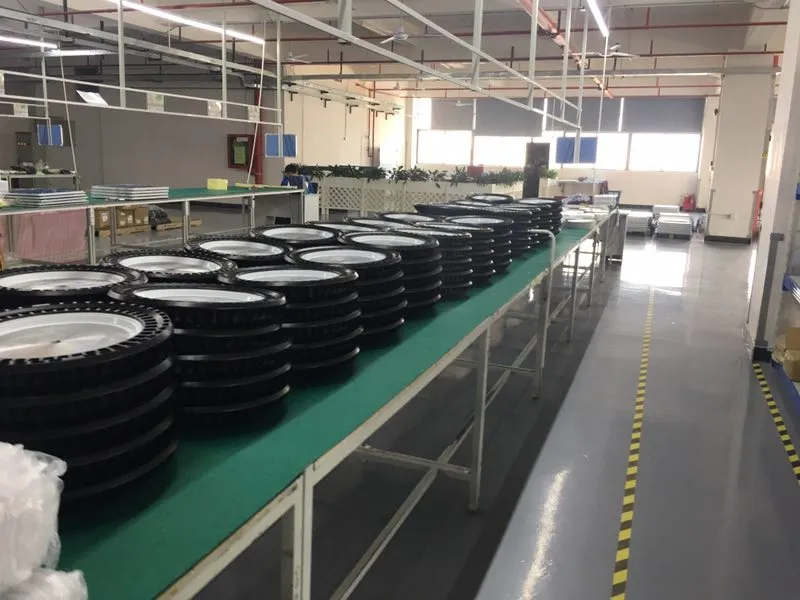

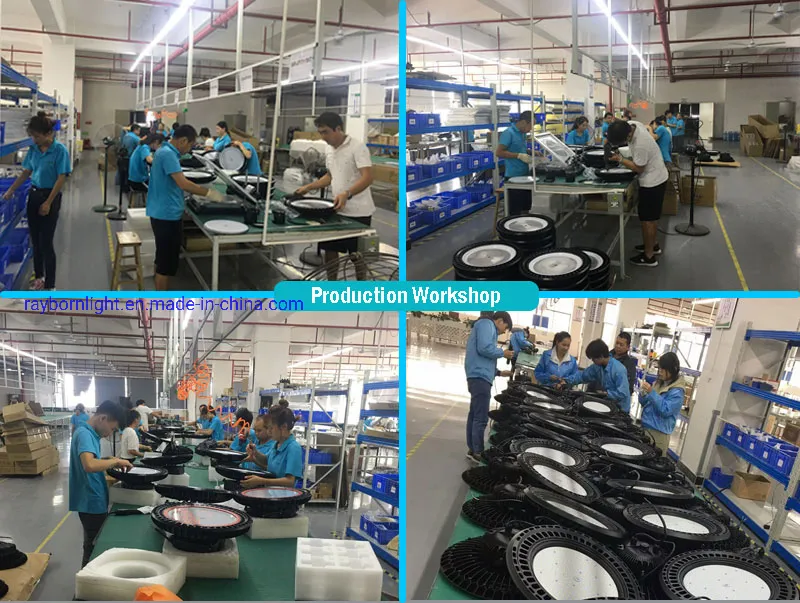

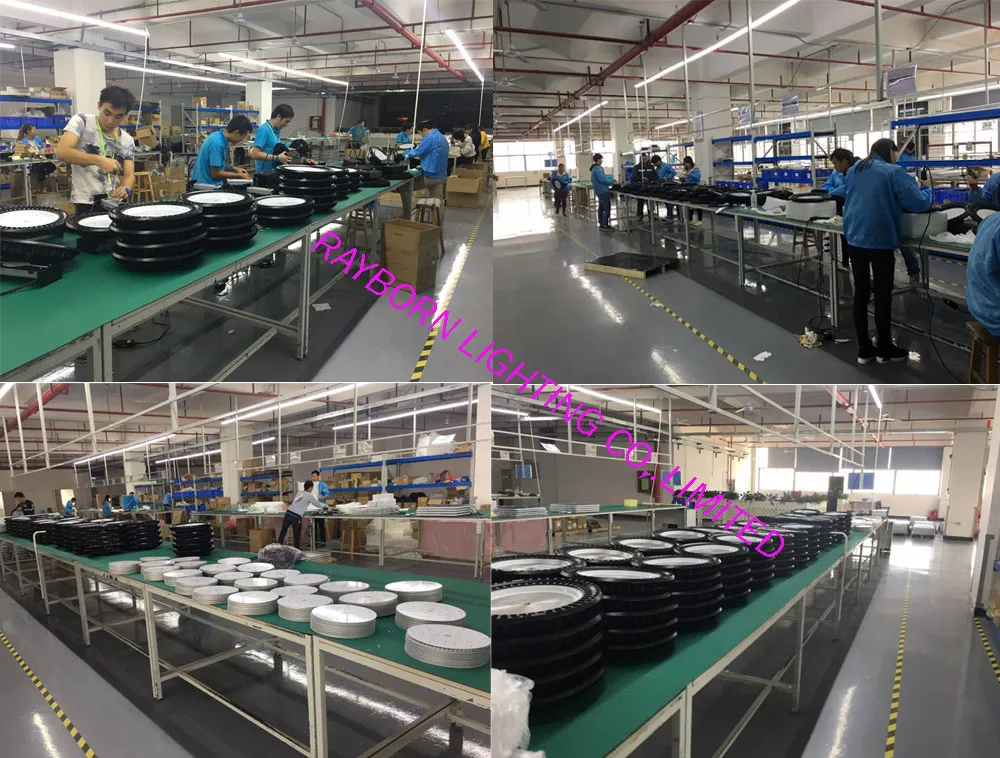

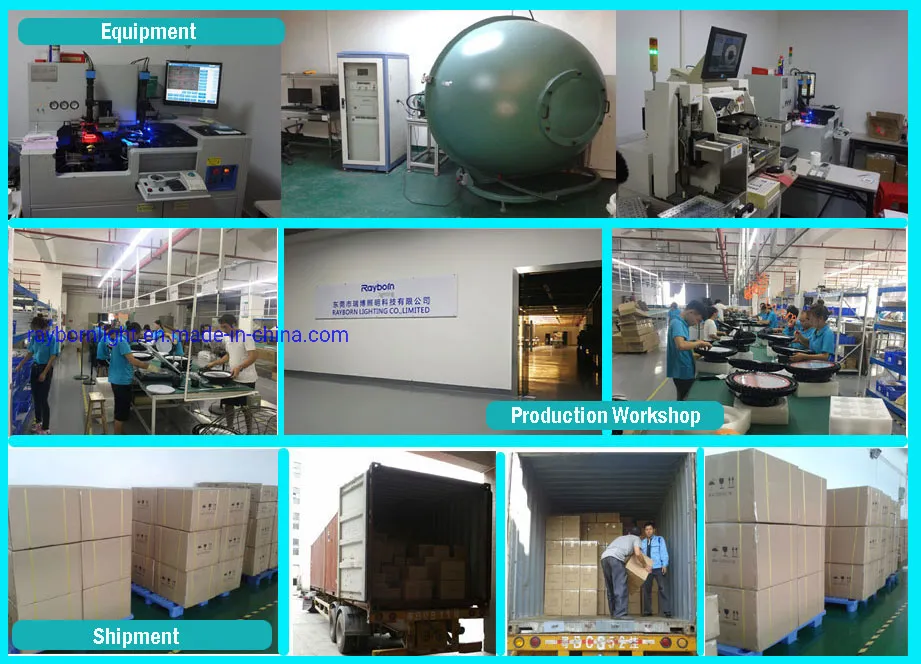

Production Showcase

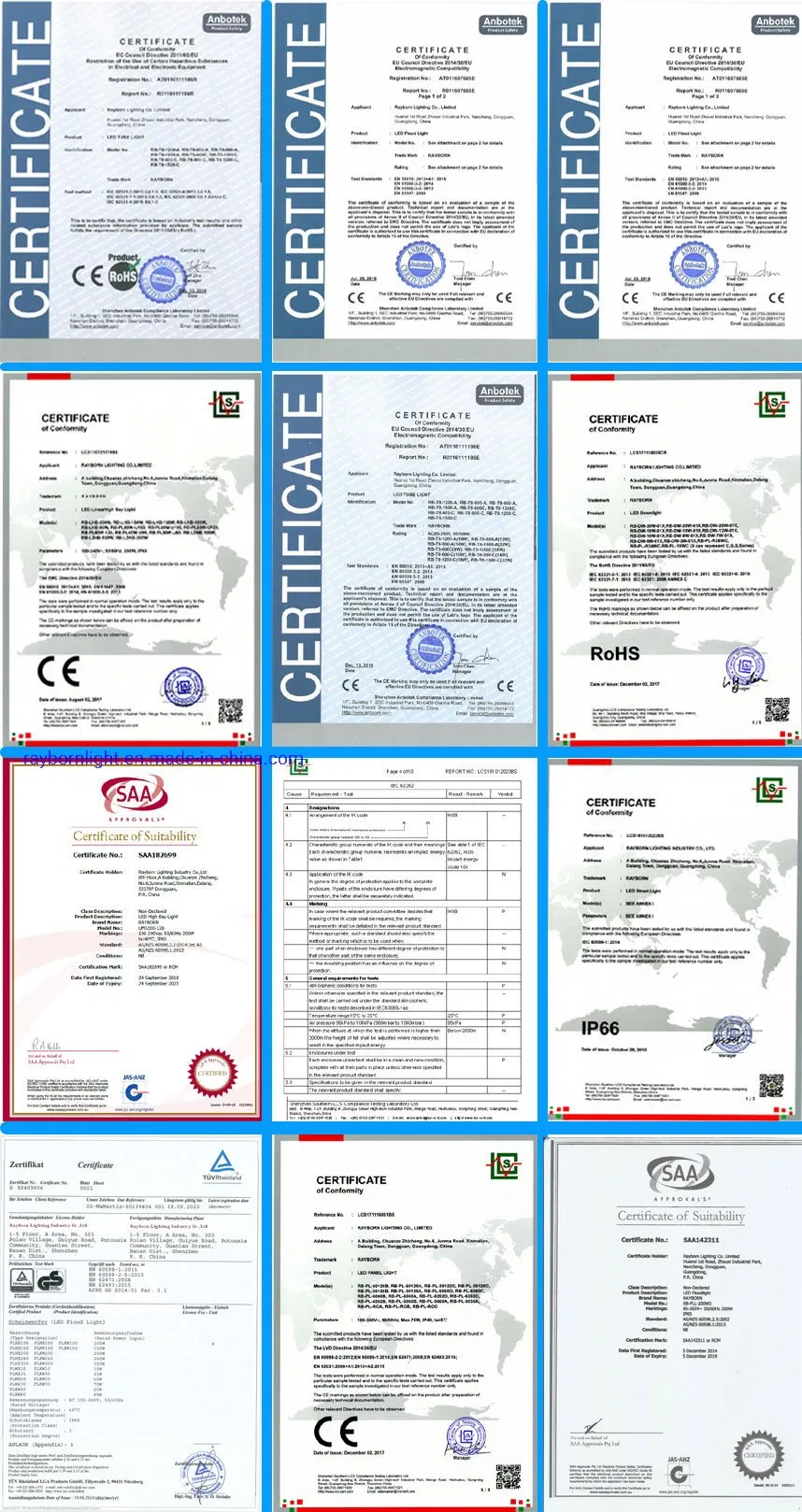

Certifications

Frequently Asked Questions

What is the main product focus of the LED lighting manufacturer?

We focus on high-quality LED indoor and outdoor lighting fixtures. Our indoor catalog features LED panel lights, LED tube lights, and LED downlights. The outdoor line centers primarily on LED floodlights, LED street lights, and high bay options.

What is the warranty policy for the outdoor LED lighting?

Our outdoor LED lighting fixtures offer a reliable 5-year warranty depending on the specific model and type selected.

What are the available payment terms for orders?

For sample orders, we accept 100% advance payments via T/T, Paypal, or Western Union. For bulk orders, we require a 30% deposit in advance by T/T, with the remaining 70% balance due before shipping. L/C terms are negotiable for large orders.

Can we add our custom logo on the LED lighting label?

Yes, our customization services allow customer logos to be printed on both the inner boxes and outer transport cartons.

What kind of quality certifications have been obtained?

Our LED lights have acquired extensive international certifications, including CE, EMC, LVD, ROHS, FCC, C-tick, and SAA.

What shipping methods do you support?

Large quantities are recommended to be shipped by sea. Small quantities are advised to be shipped by air, while samples are best sent via express options (such as DHL, FedEx, UPS, or TNT).
