Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
1 / 4
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects
Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects

Ultra-Thin Trimless LED Downlight 3in 5CCT Adjustable Beam Angle Recessed Round Slim Light for Hotel House Projects

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.

Model NO.KG3R-ABA
Power5-12W
Color Temperature5CCT
Lamp Body MaterialAluminum
Source NumberSingle Plug
InstallationRecessed
Switch TypeWall Switch
Warranty5 Years
ApplicationHome Furnishing
IP RatingIP54
CertificationCE, EMC, Energy Star, ETL, FCC, LVD, RoHS
Watt5-12W Adjustable
ColorWhite/Black/Bronze
CCT5CCT Adjustable
Cutout90mm
Transport PackageBox
Specification20pcs/Ctn
OriginChina
Production Capacity70,000 PCS/Month

Product Description

Innovative Modular Downlight

Our patent-pending adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20° and 50°. Featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.

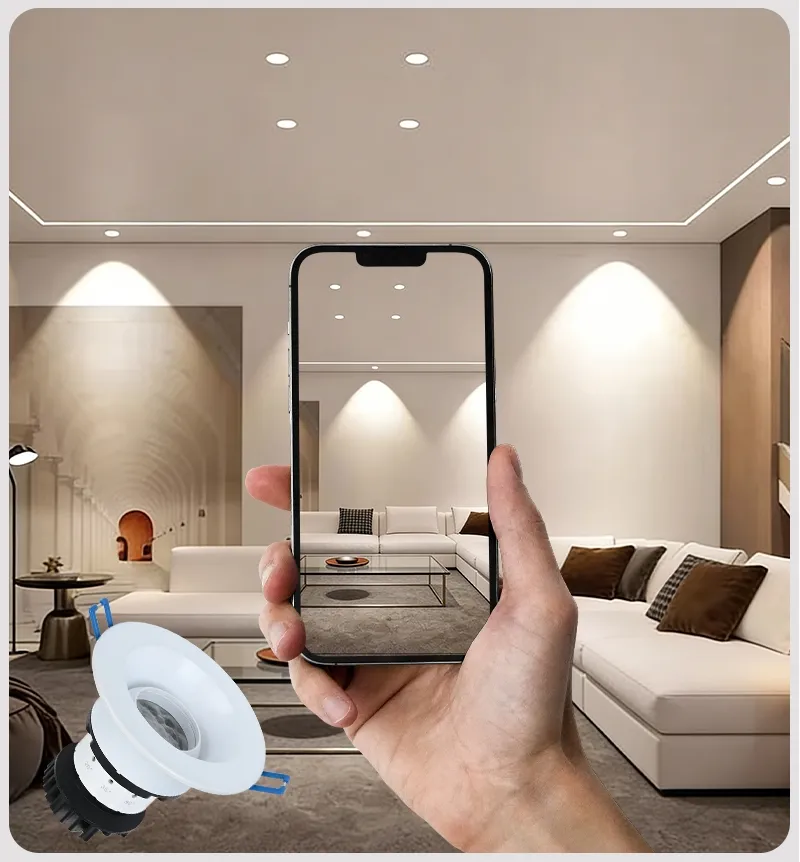

Ultra-Thin Trimless LED Downlight

Key Features

  • Durable Aluminum body for excellent heat dissipation
  • Beam angle adjustable effortlessly between 20°-50°

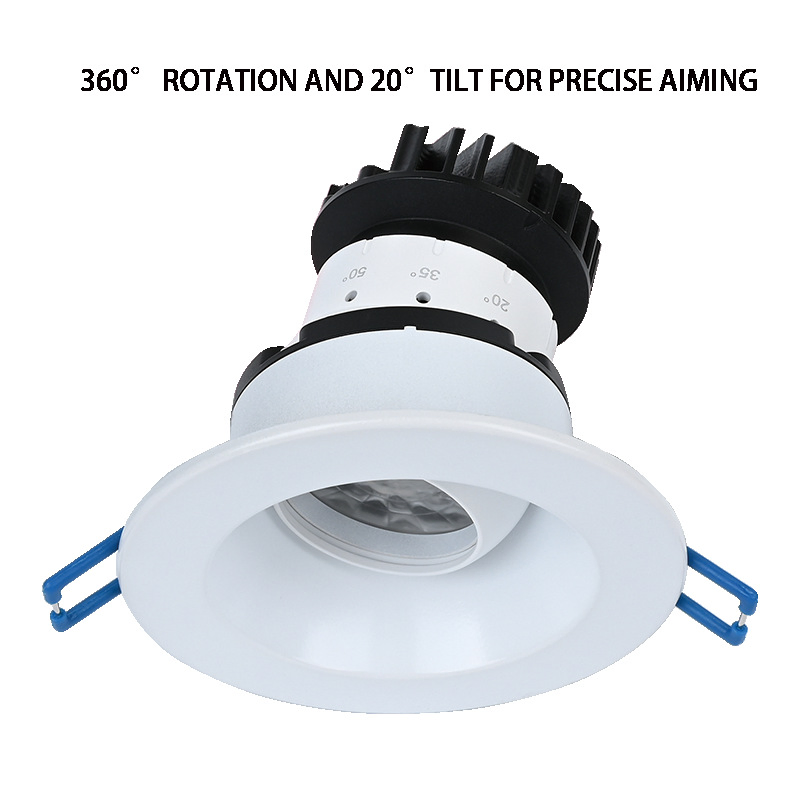

  • 360° rotation and 20° tilt for precise aiming
  • LEDiL Lens interchangeable to achieve low glare, wall washing or other lighting effects
  • Wattage selectable: 5W/7W/9W/12W
  • 5CCT-adjustable and compatible with TRIAC dimmer
  • High-efficiency Bridgelux LED, CRI > 90+ for true color rendering
  • Optional Driver: 0-10V dimmable / Smart RGBCW
Technical Specifications
Model KG3S-ABA
Power 5W/7W/9W/12W selectable
Input Voltage 120V-277V AC 50/60 Hz
CCT 5CCT (2700K/3000K/3500K/4000K/5000K) adjustable
Beam Angle Adjustable beam 20°/36°/60°
CRI >90+
Power Factor >0.9
Air Tight Yes
Dimension φ110*H100mm
Cut Hole 90mm
Finish White/Black/Bronze

Detailed Photos

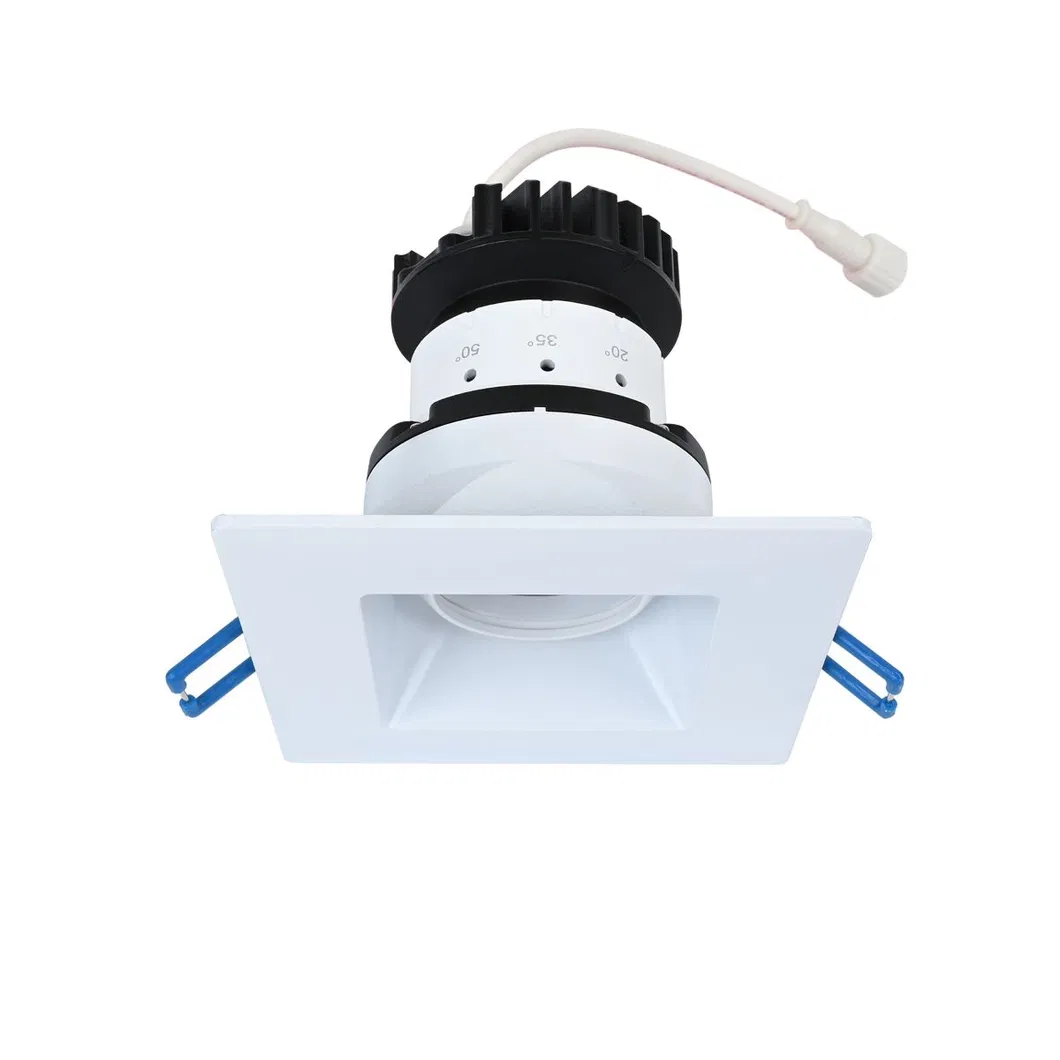

Detailed View 1

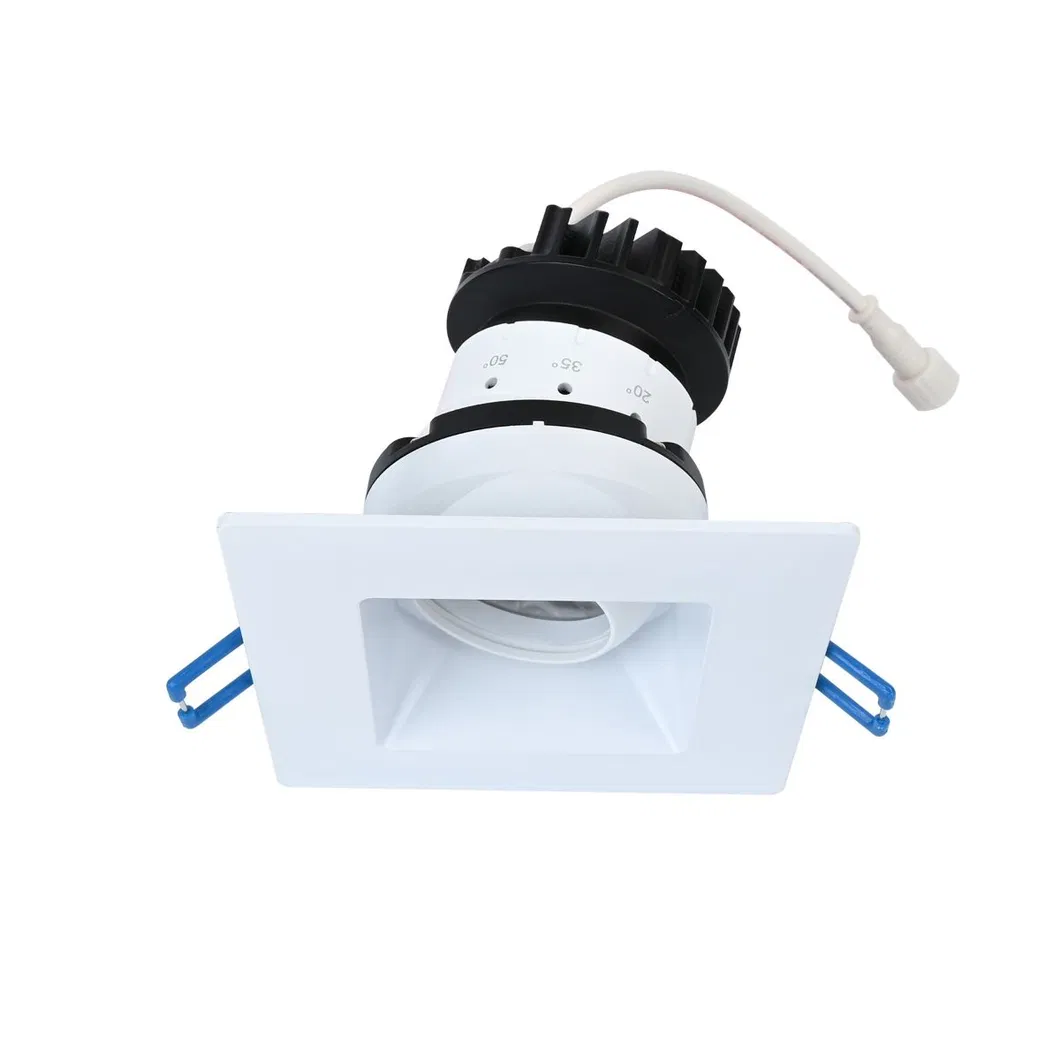

Detailed View 2

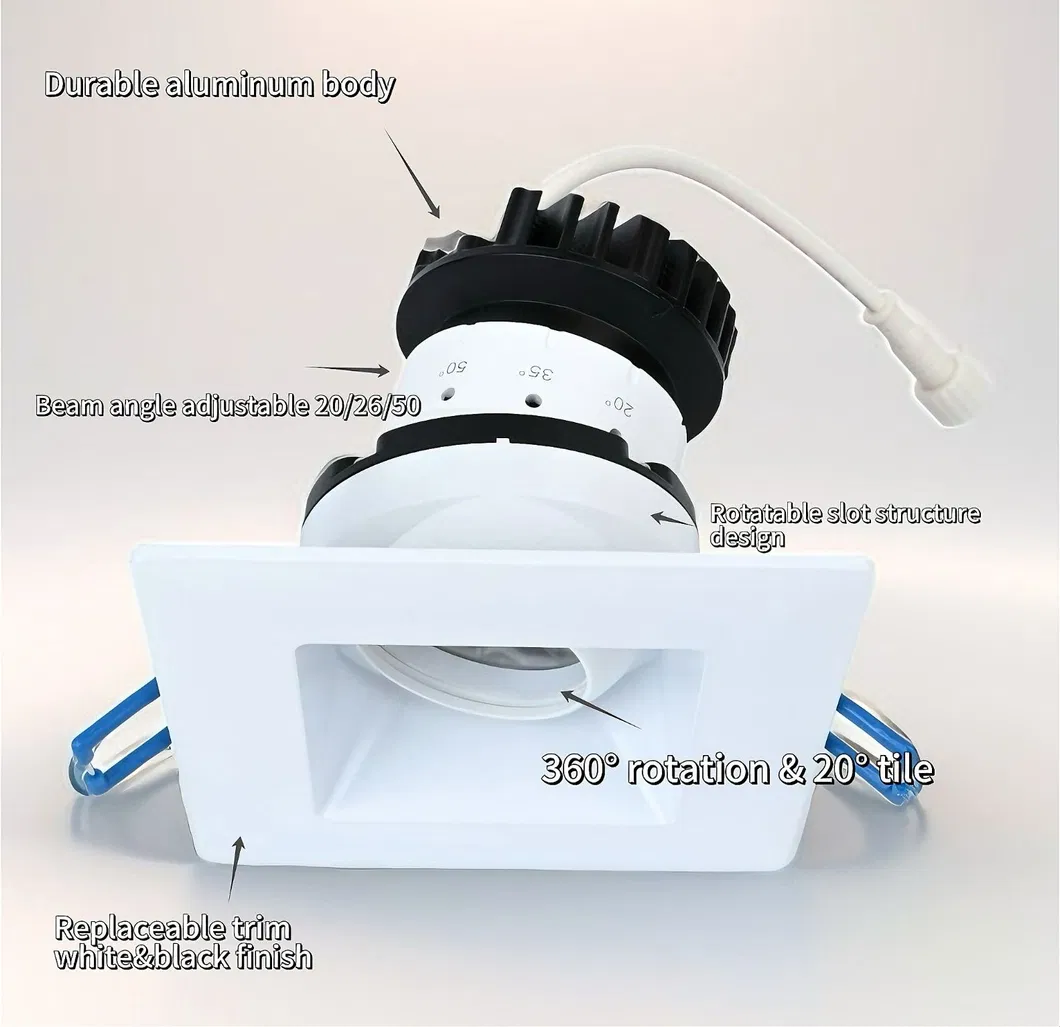

5CCT selectable illustration
5CCT Selectable Configuration
Adjustable Beam Angles
Adjustable Beam Angles: 20° / 36° / 60°
Driver Inside Connection Box
Driver Inside Connection Box (No Junction Box Required)

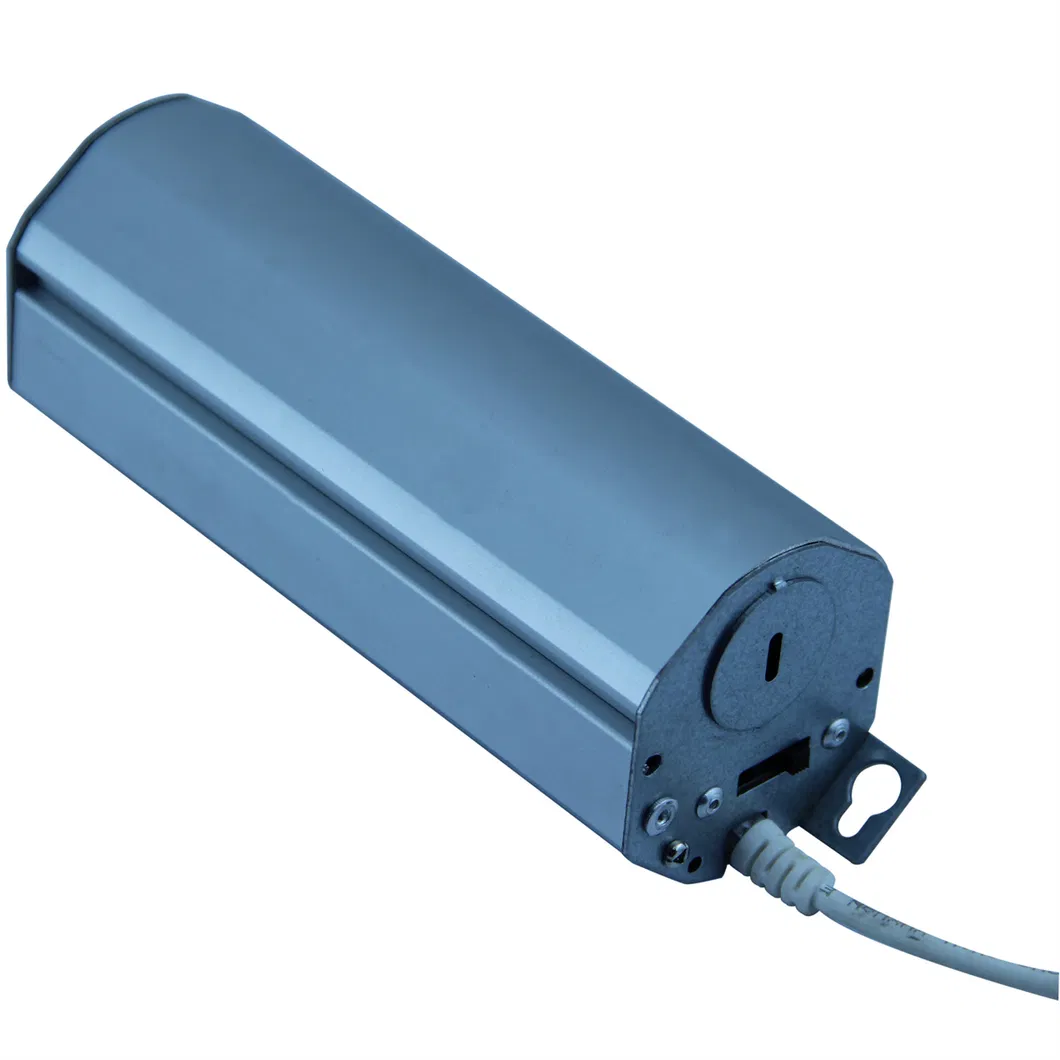

Product Structure Show 1

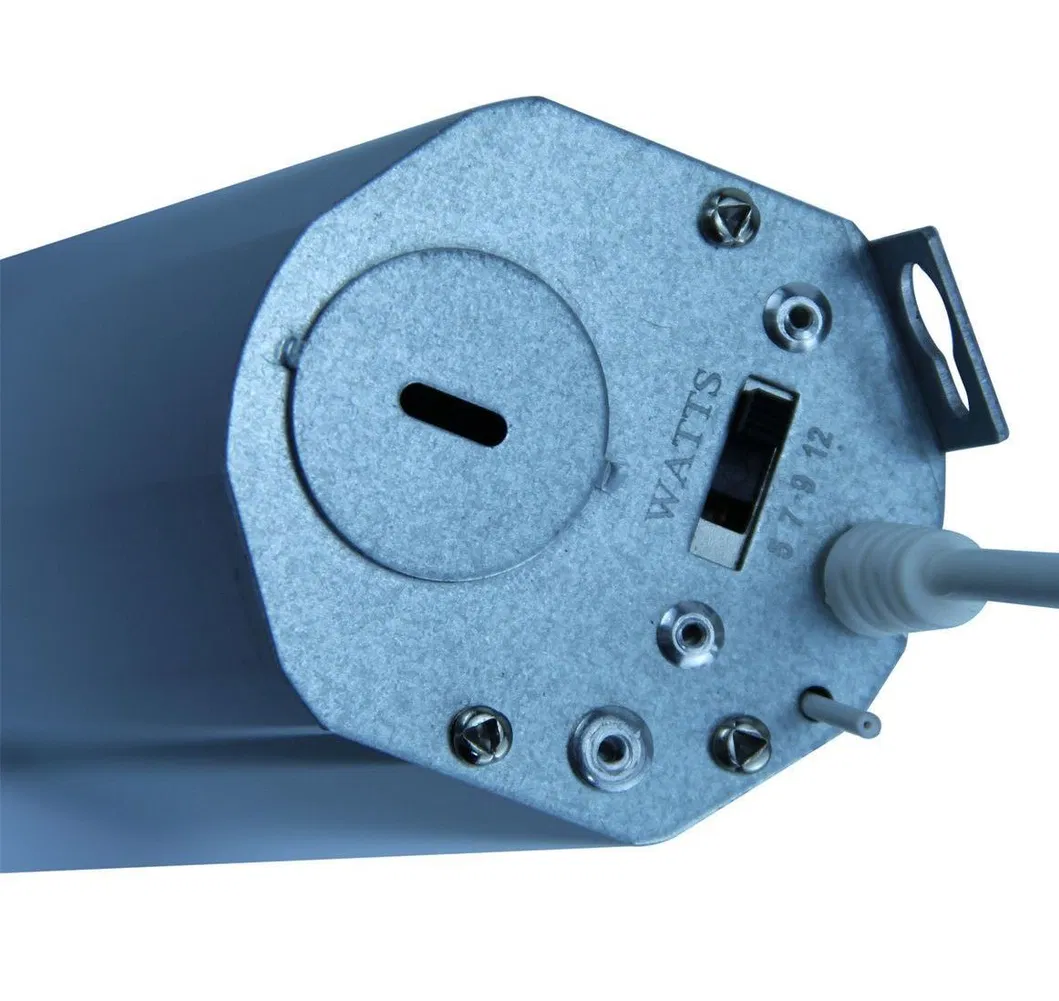

Product Structure Show 2

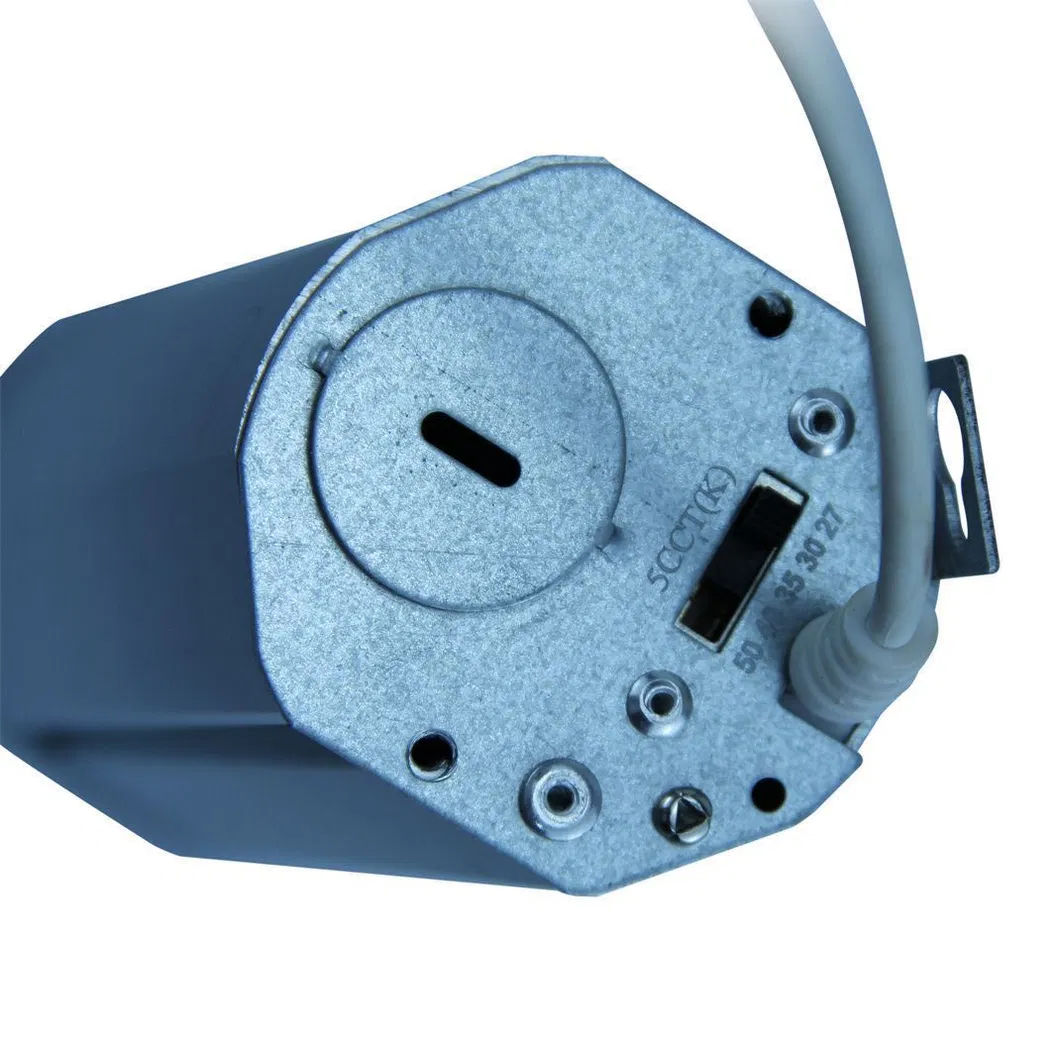

Product Structure Show 3
Related Products Overview

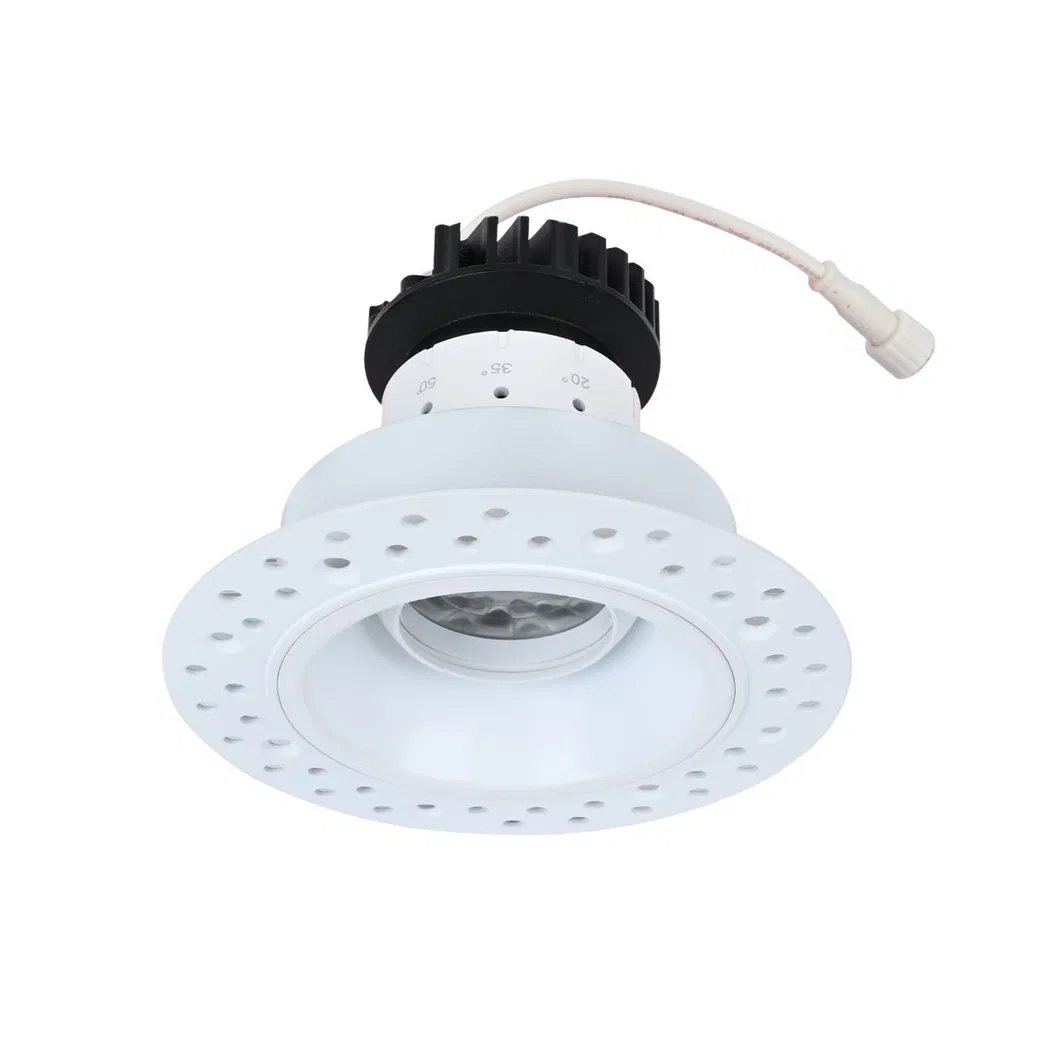

Related Product Option A
Related Product Option B

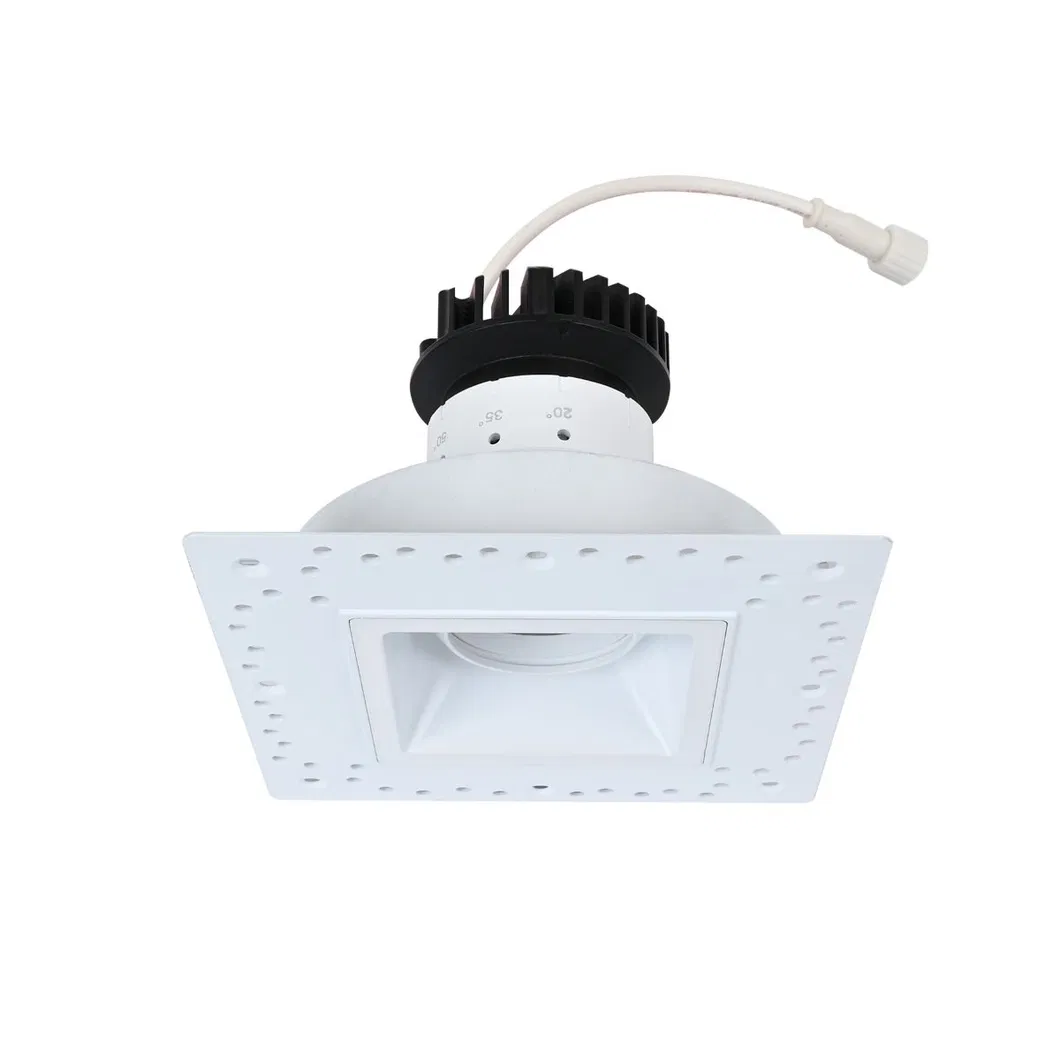

Related Product Option C

Applications

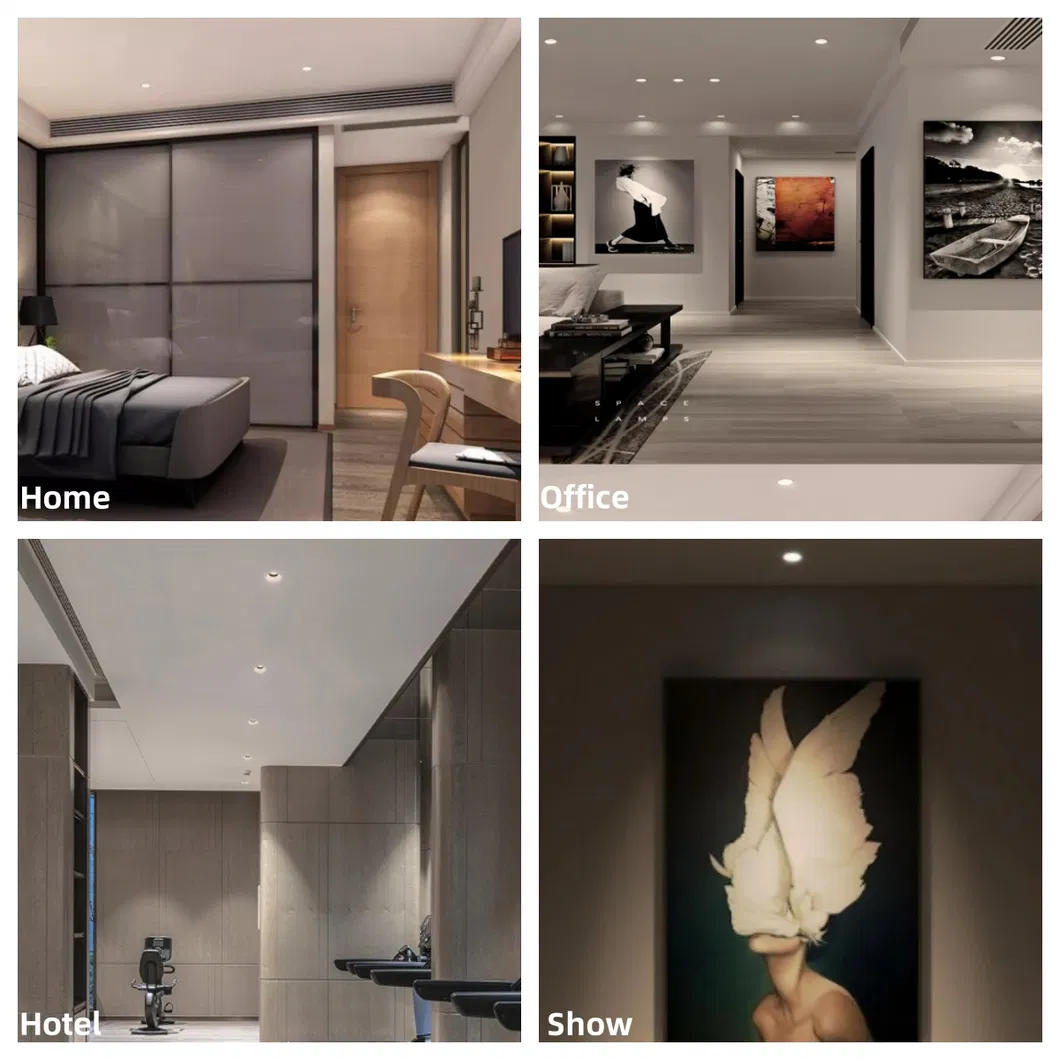

Application Scenarios

Packaging & Shipping

Cardbox packaging is robust enough for long distance transportation. We offer a wide range of logistics options including global express, ocean freight, air transport, and overland shipping.

Package Testing

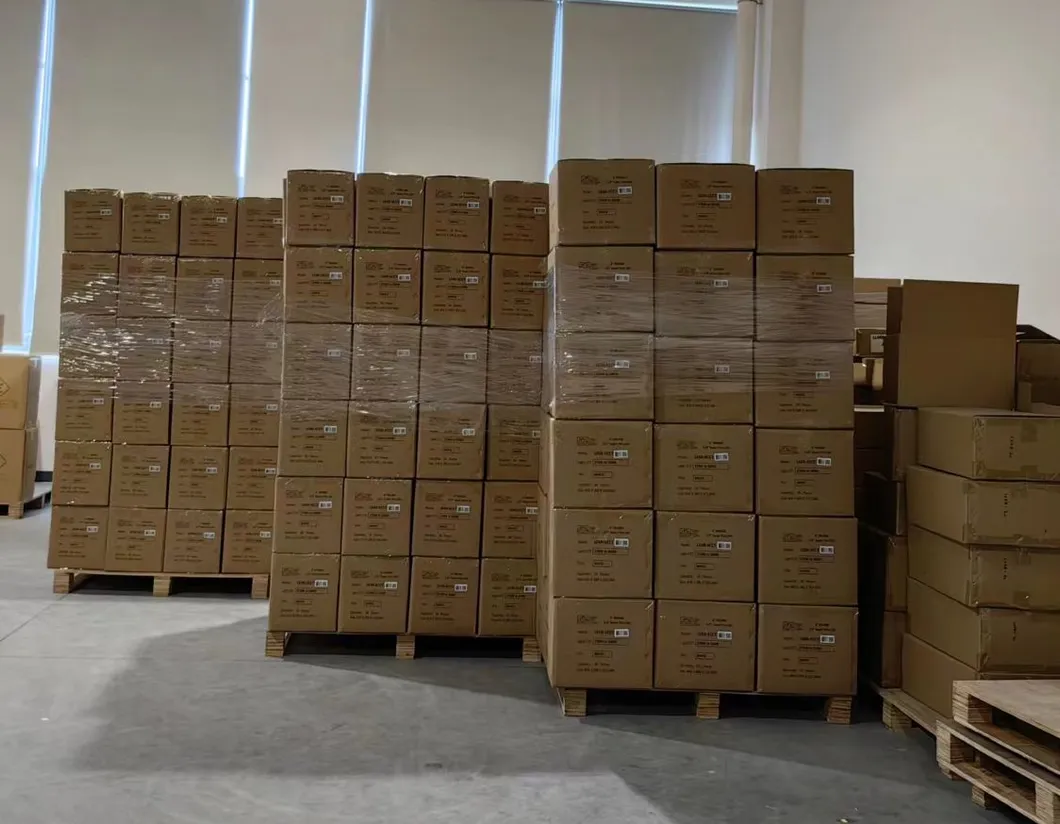

Palletized Cargo Loading
Logistics Flow Chart

Company Profile

We are a professional LED lighting manufacturer established in 2014, occupying a total facility area of 4,200 square meters. Having cooperated with leading retailers in North America for a decade, we offer high-quality lighting solutions and tailored services to support and elevate your business.

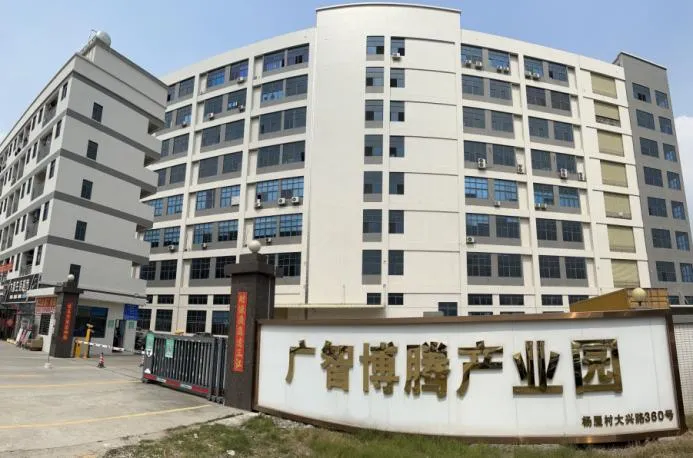

Office Showroom
Production Workshop

Advanced Production

Equipped with an independent hardware facility, power supplies R&D workshop, and advanced machinery including automatic soldering systems, SMT lines, die-casting units, CNC routers, laser etchers, integrating spheres, and distribution photometers. Over 10 low-voltage aging test lines ensure a stable output capacity of 500,000pcs monthly.

Experienced R&D Team

Our technical team consists of over 10 dedicated R&D engineers expert in custom casing design, driver circuitry development, optic lens simulation, and smart lighting system controls. Most items feature proprietary tooling and carry certifications including ETL, TUV, CE, and RoHS.

Quality Control

Adhering strictly to ISO9001 quality standards, our trained inspectors operate precision equipment checking electrical parameters, photometrics, thermal behavior, corrosion resistance, and waterproof ratings. Every single component undergoes exhaustive functional validation and a minimum 48-hour burn-in phase before release.

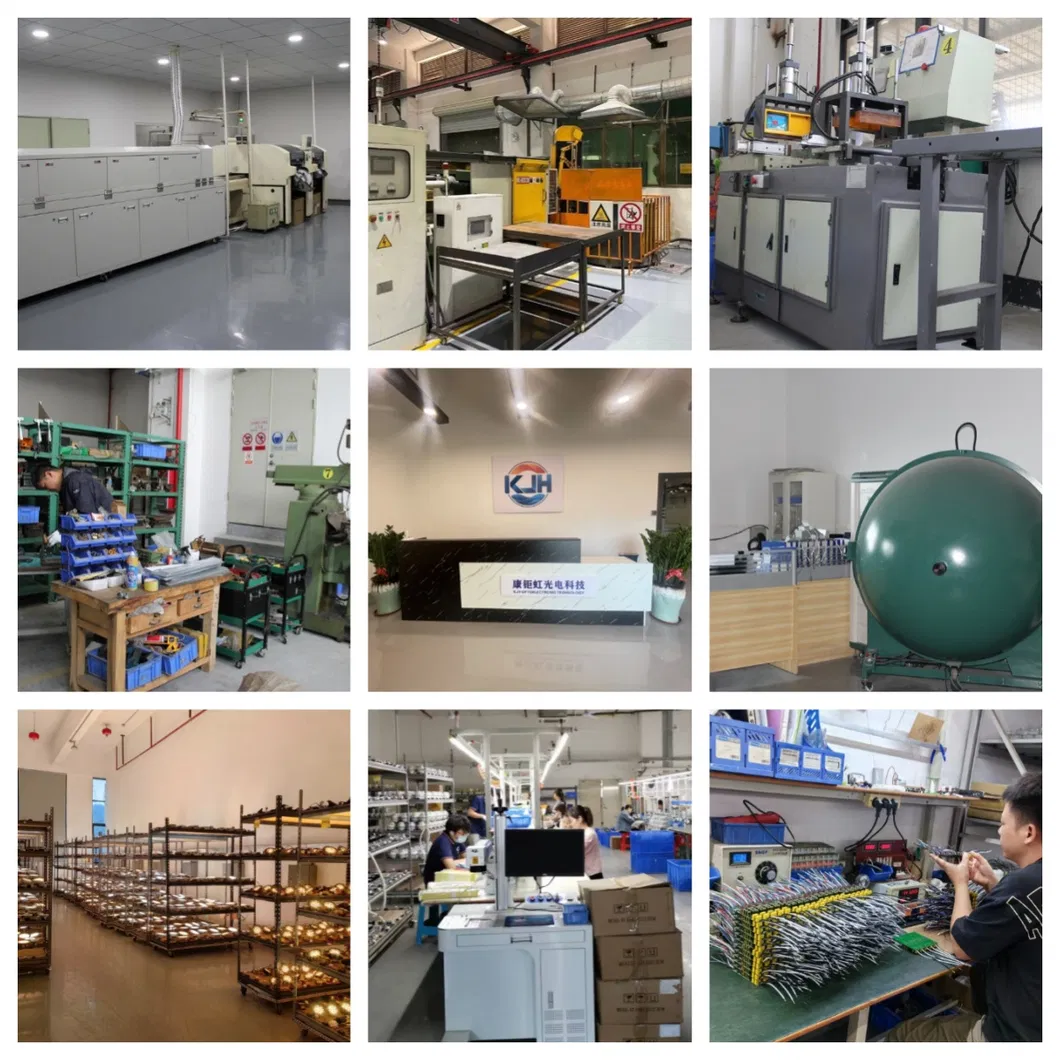

Production Line Aging Test Area
Testing and Quality Assurance Operations

Frequently Asked Questions

1 Are you a manufacturer?

Yes, we operate our own state-of-the-art production factory featuring integrated product manufacturing lines.

2 Can you provide product samples?

Yes, you are welcome to request and purchase sample products to verify and assess our output quality prior to finalizing bulk shipments.

3 What is the typical lead time for production?

For smaller orders, fabrication generally wraps within 5 to 7 days. Higher volumes require scheduling based directly on current booking quantities.

4 Are all products tested before dispatch?

Absolutely, every device undergoes a minimum of 48 hours continuous electrical and functional testing. Due to our stringent control protocols, defective rates are exceptionally low.

5 How are the products packaged?

We pack using robust neutral cartons configured for global shipping. Delicate items receive additional structural reinforcement or wooden framing to assure safe arrival.

6 How do you handle after-sales issues?

Please document any problem visually via photo or video and forward it to us. Once evaluated, our team will deliver a resolved remedy inside 24 hours.
