Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture

Product Description

Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture

Specification Datas

Items Specifications
Model No.ABC-T5-22w
Light name1500mm 22w T5 led tube
Power22w
Lumens140lm/w
Voltage(Input)AC85-265V
SizeD26*L1500mm
Led typeEpistar
Led quantityLed SMD2835
Lumens2240lm
CRI>85Ra
Beam Angle180 degrees

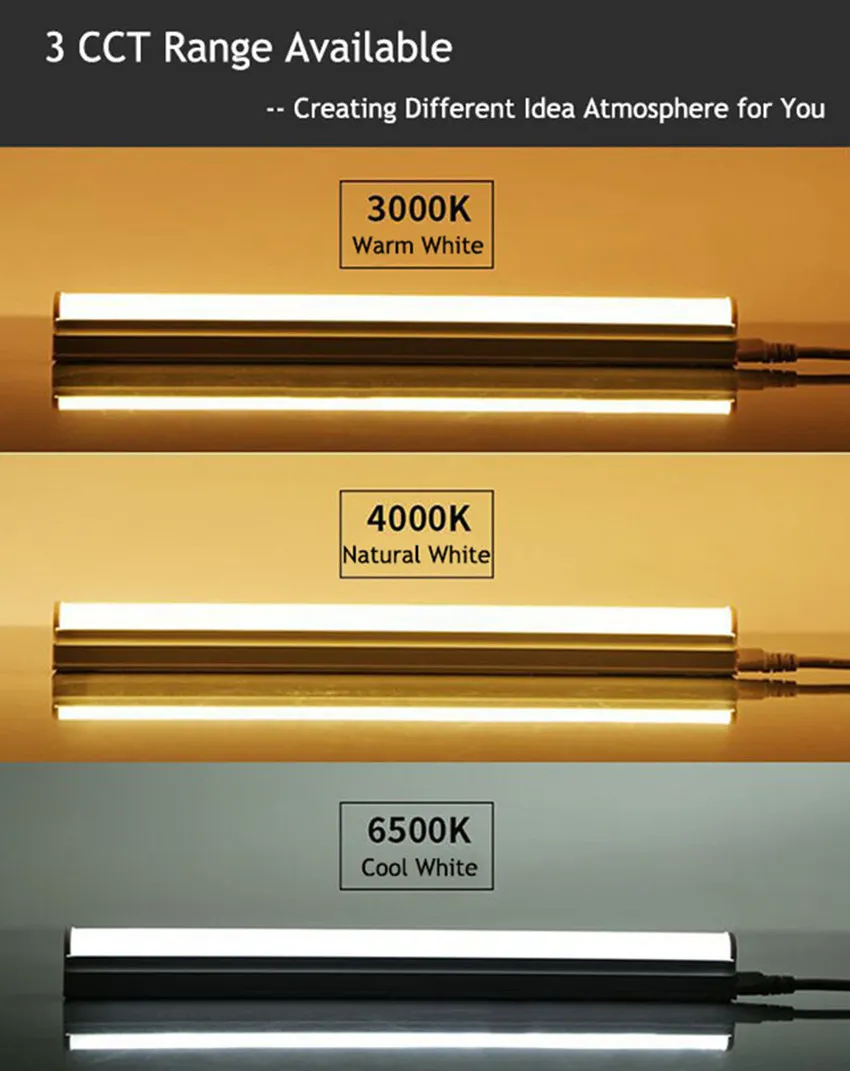

Color Temperatureww(2700-3500K) NW(4000-5000K) CW(6000-6500k)
Material6063 aluminum + PC
Driver Modeconstant current driver with IC
IP ratingIP44

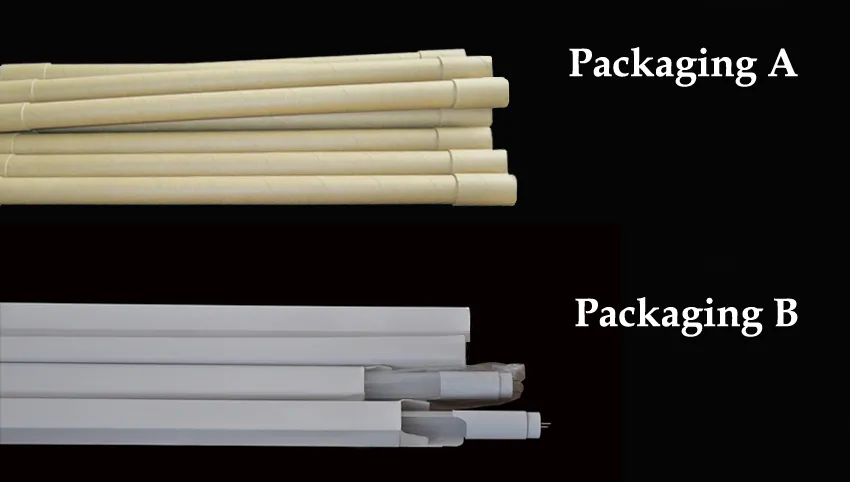

Packing info30pcs/CTN | GW: 8kg/CTN | Size: 124*20*21cm
Lamp socketG13 t8 led tube
Working Life50000 Hours
CertificatesCE, RoHS
Working Temp.-20-50 °C
Warranty2 years
Applicationshopping mall, commercial lighting, indoor lighting
MOQ5pcs, welcome sample order
Capacity100000pcs/month
Sample timewithin 3 working days
Payment terms30% deposit in advance, 70% before shipment
Payment methodsT/T, Western Union, Paypal, L/C

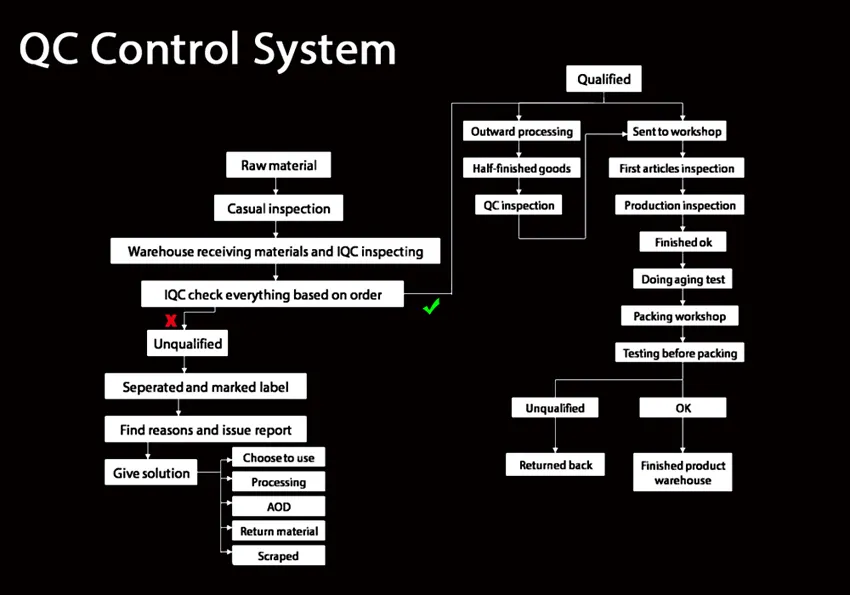

QC Control100% testing before packing, rechecked before shipping
After-sale servicesPromise 24 hrs reply and free charge exchange goods

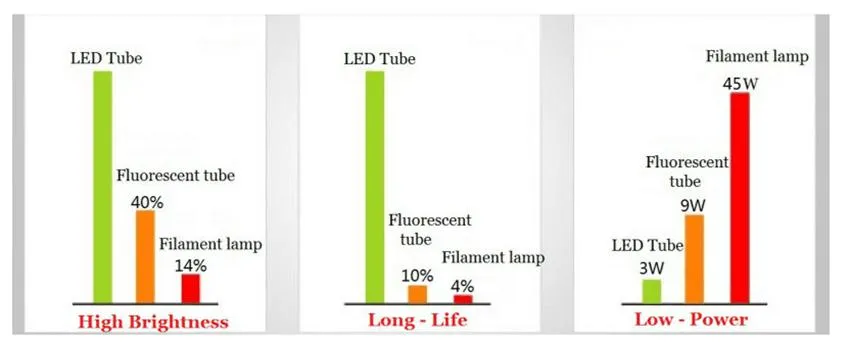

LED Tube Light VS Traditional Tube Light

LED Tube Lumens Output Equivalent Traditional Tube Equivalent CFL Bulb
8W led tube 800Lm traditional 25W tube 16W CFL bulb
12W led tube 1210Lm traditional 30W tube 20W CFL bulb
18w led tube 1850Lm traditional 45W tube 30W CFL bulb
22w led tube 2250Lm traditional 60W tube 40W CFL bulb
24w led tube 2580Lm traditional 60W tube 50W CFL bulb
Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture

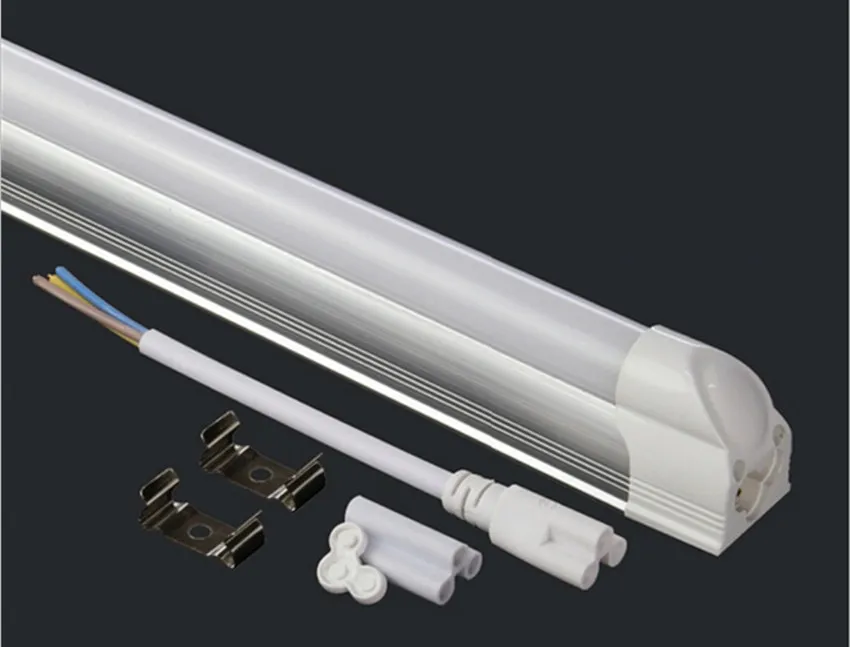

Features

1. Aluminum Base

Use high-end aluminum profile for better heat dissipation.

2. Driver

High efficiency, PF: >0.95, 3 years warranty, light start no delay, no stroboscopic, ensure T8 Led Tube Light a long lifespan.

3. Lamp Body

High heat dissipation, low thermal resistance, long lifespan, resistance to voltage fluctuation.

4. SMD2835 Chip

Epistar 2835smd, 0.2w/pcs, brighter and designed with good heat dissipation capability.

5. PC Cover

High-end PC cover with excellent light transmittance (>85%). Transparent PC and milk PC are optional.

Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture

Applications

Hotels, Conference, Meeting rooms, Schools, Hospitals
Factories, Production Area, Warehouse, Offices, Commercial Complexes
Residential, Institution Buildings, Retail store display lighting
Public buildings, parking garages, transportation, housing and underground garages
Coolers, Freezers & Damp Locations of supermarkets (no pollution to food)
Undercabinet Lighting, General & Street Sign Backlighting

Shipping & Trade Terms

1. Trade & Shipping
Payment: 30% T/T in advance, 70% balance before delivery.
Lead time: 3-5 days for sample orders; 12-15 days for bulk orders.
Shipment: DHL, Fedex, UPS, TNT, By Sea, By Train.
Nearest port: Shenzhen Port.
2. Customization
Custom color box: Supported by providing design templates to the printing supplier.
Logo printing: Supported via laser printing onto the product surface.
Custom parameters: Engineering assistance is available for tailor-made requests.
3. Quality Assurance
Certificate: CE, RoHS, and TUV certified. Production strictly complies with ISO9001.
Material control: Raw material verification prior to bulk manufacture.
Warranty: 5-year warranty provided for TUV T8 LED Tube Lights, LED Tri-proof Lights, LED Wall Lights, and LED Down Lights.
Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture Kitchen Indoor 120cm 150cm 2FT 3FT 4FT 18W 22W 36W Linkable Dimmable Integrated T5 LED Tube Light Fixture
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of this T5 LED Tube Light?
A: This T5 LED Tube Light features a working life of up to 50,000 hours, significantly reducing maintenance and replacement costs compared to traditional fluorescent tubes.
Q2: How much energy can I save by switching to LED tube lights?
A: Our LED tube lights offer high luminous efficiency of 140lm/w. For example, a 22W LED tube provides 2250 lumens, which delivers the equivalent output of a traditional 60W tube or a 40W CFL bulb, saving up to 60% in energy costs.
Q3: Do your products have quality certifications?
A: Yes, our products are certified with CE and RoHS. The production processes are conducted under strict compliance with ISO9001 quality management guidelines to ensure consistent high performance.
Q4: Can I request custom branding or custom packaging for my orders?
A: Yes. We offer customization services, including custom color boxes (built according to your design specifications) and laser logo printing on the product surface. For special requirements, our engineers can assist with custom developments.
Q5: What is the warranty terms for the lights?
A: We offer a standard 2-year warranty for this ABC-T5-22w LED Tube. Additionally, we provide a 5-year warranty for our TUV certified T8 LED Tube Lights, Tri-proof Lights, Wall Lights, and Down Lights.
Q6: Are samples available before bulk ordering?
A: Yes, sample orders are welcome. We have a low MOQ of 5pcs, and sample production typically takes within 3 working days.
