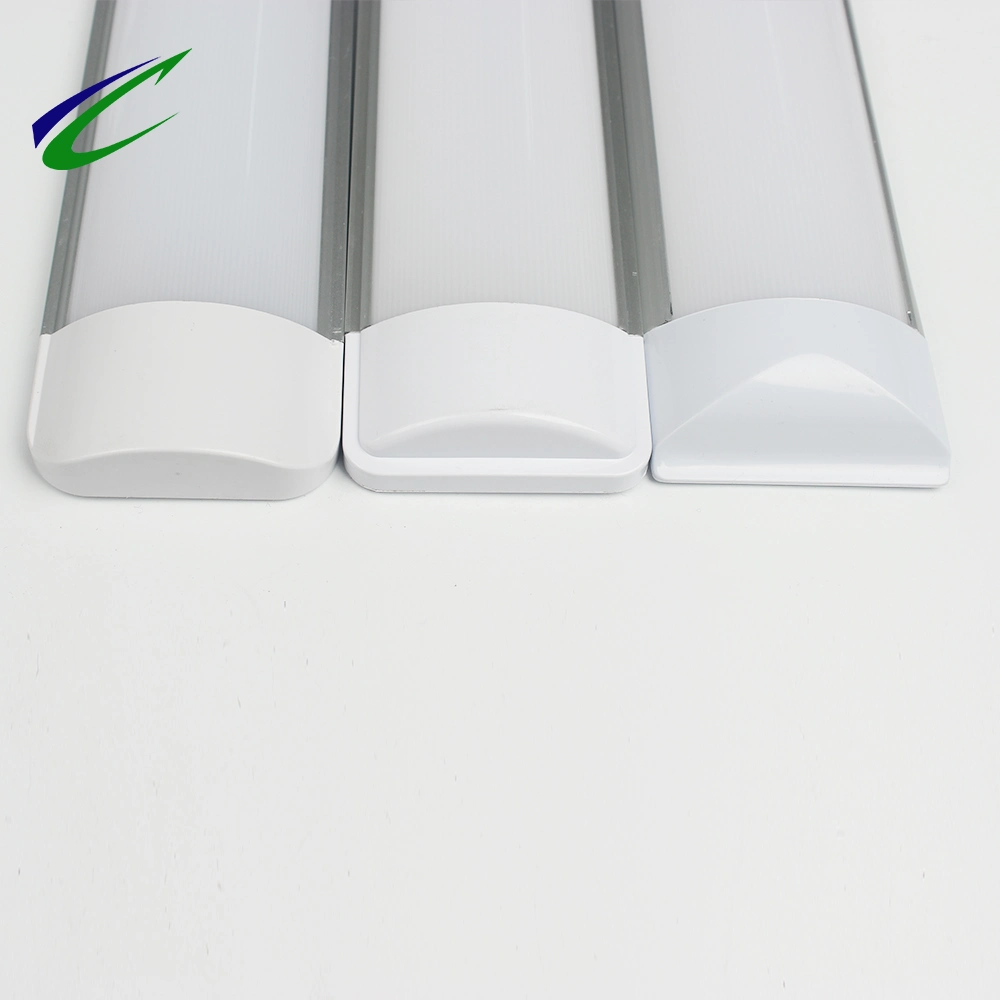

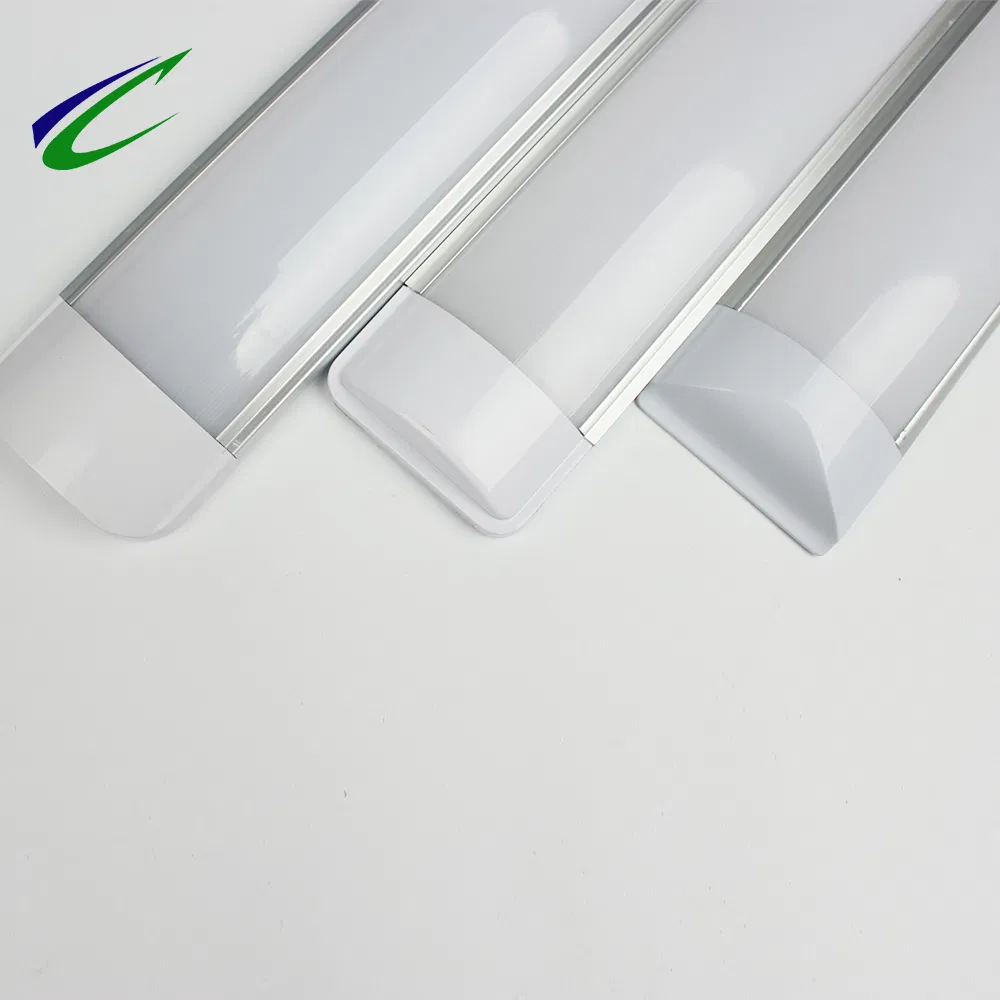

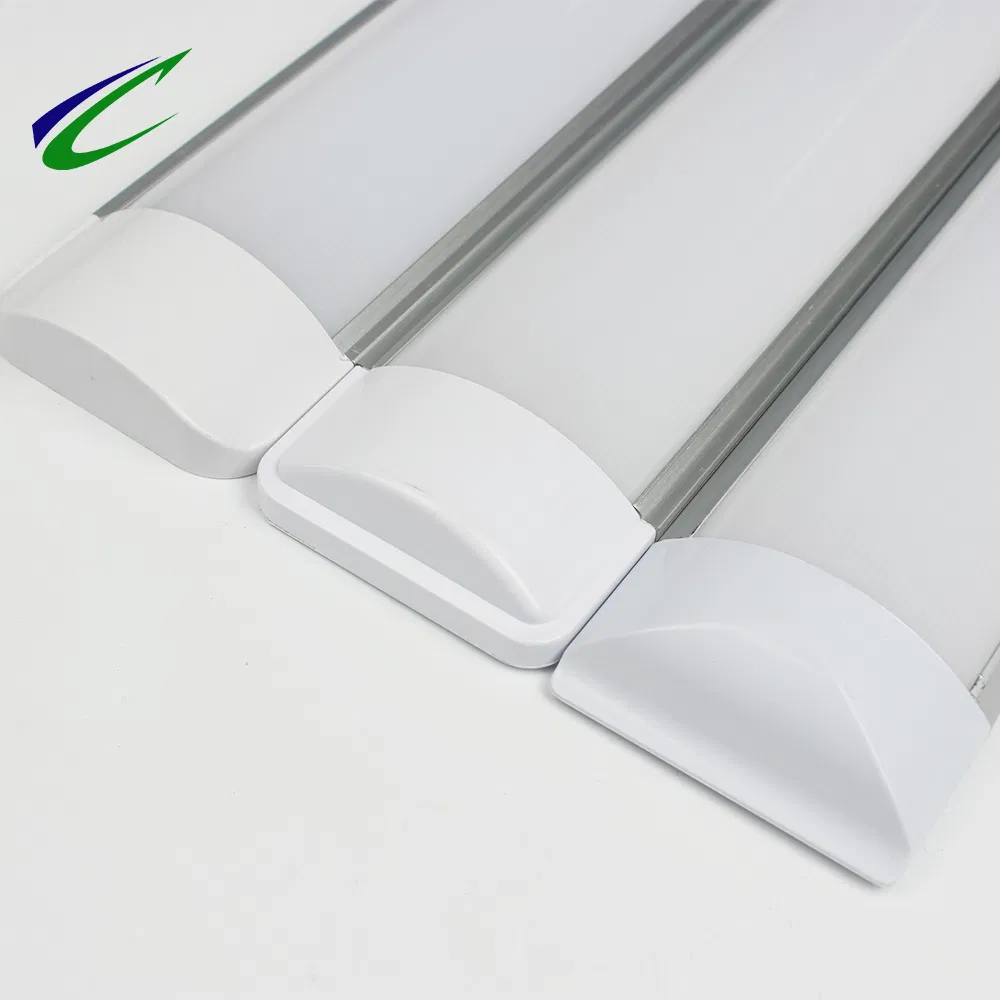

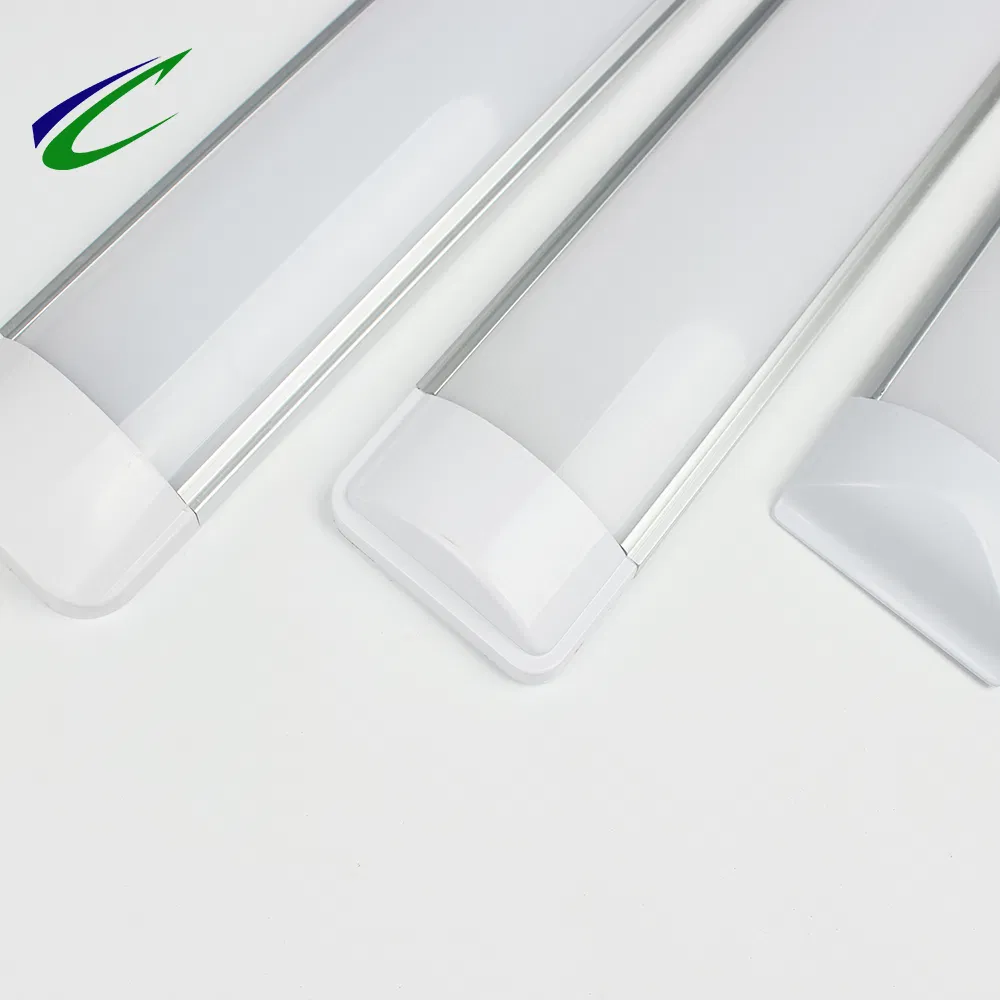

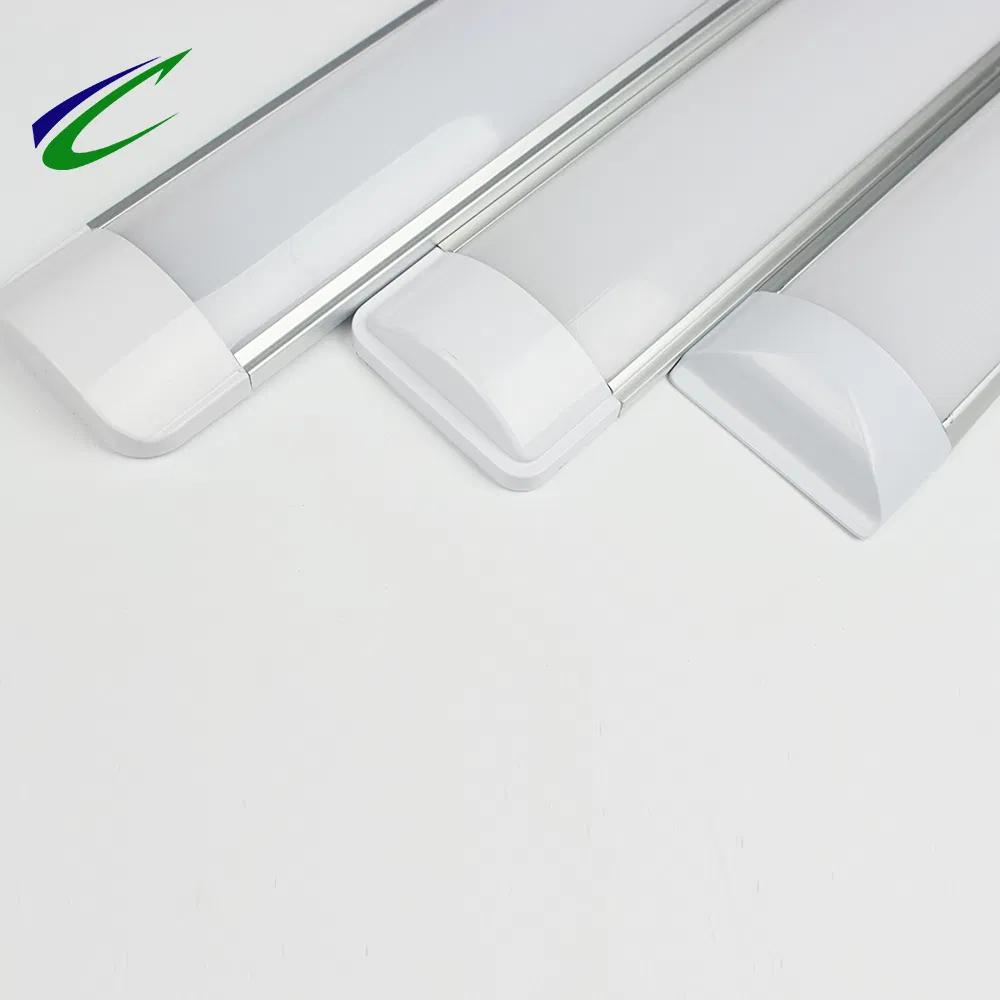

LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
1 / 5
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835
LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835

LED Batten Lamp 0.6m 0.9m 1.2m 1.5m 1.8m LED Liner Light Batten Light Fixture Tri-Colour Linkable Tube Light SMD2835

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Feature Anti-corrosion, Dust-Proof, Waterproof
Light Body Material Aluminum
Product Name LED Tri-Proof Light
Material Aluminum+PC
Power 36W
Color Temperature (CCT) 2700-6500K
MOQ 500PCS
PF 0.9
CRI Ra > 80
Transport Package Inner Box and Outside Carton
Trademark OEM
Origin China
HS Code 9405409000
Production Capacity 1000 / 15 Days

Product Overview

LED Batten Lamp Banner

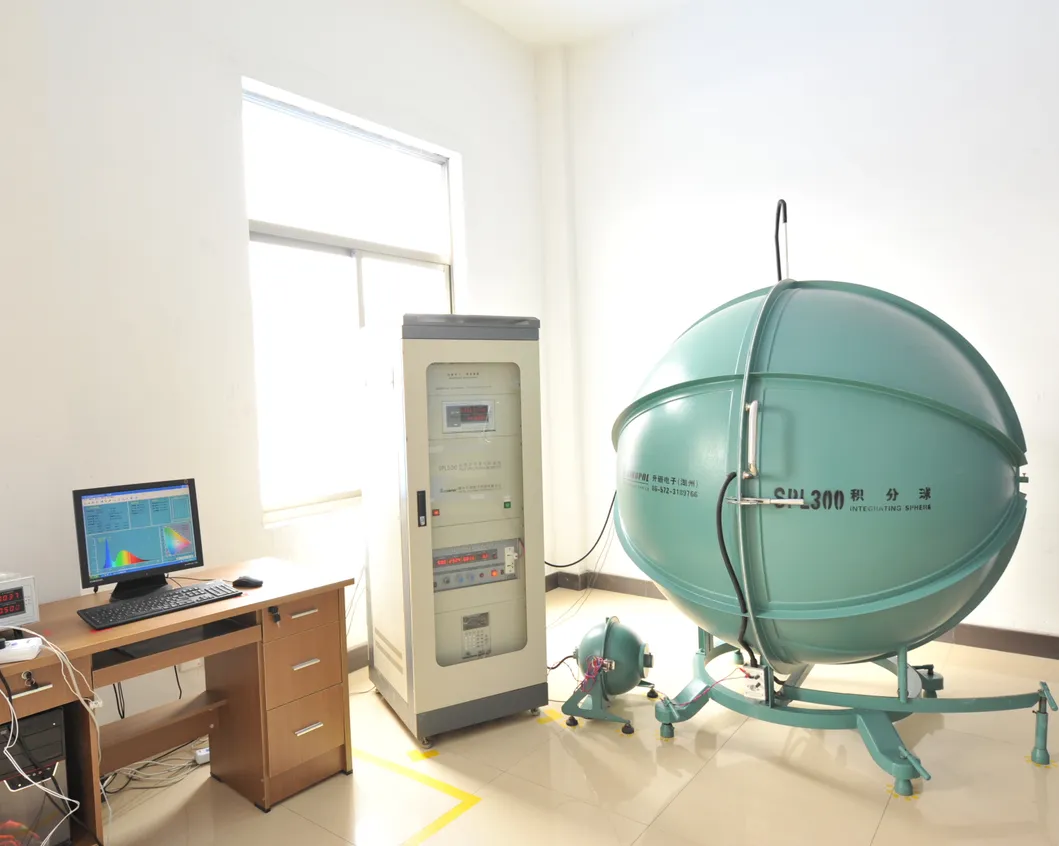

LED Tri-Proof Light Highlight 1

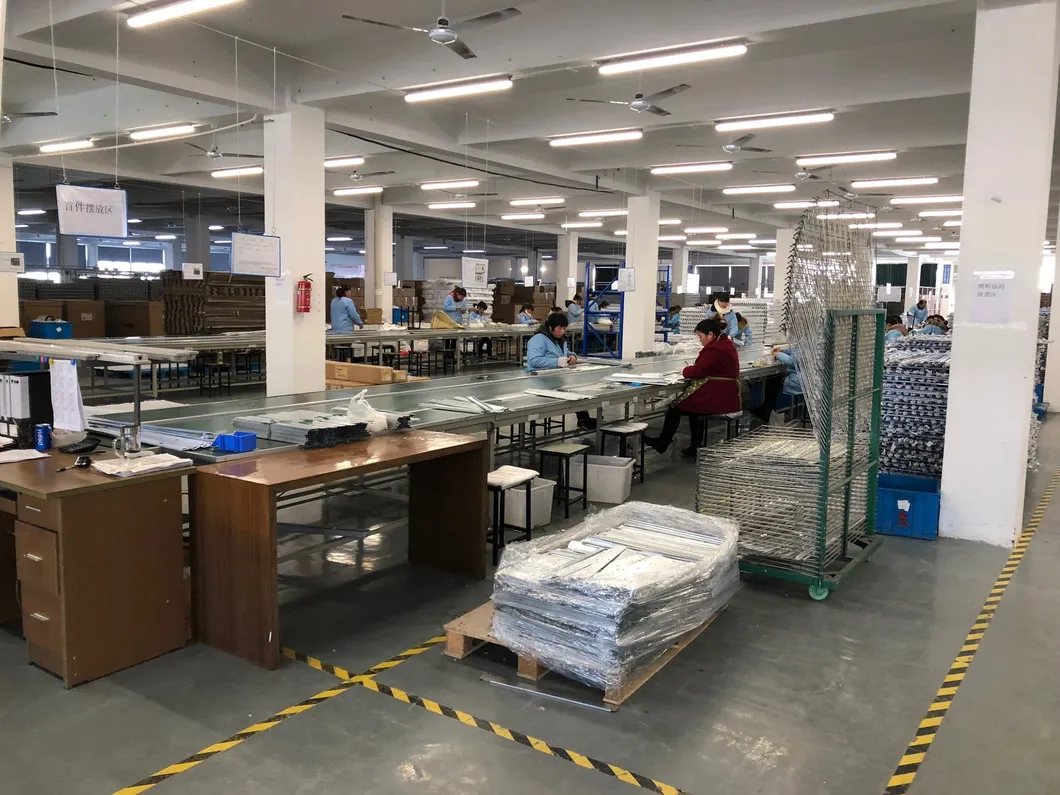

LED Tri-Proof Light Highlight 2

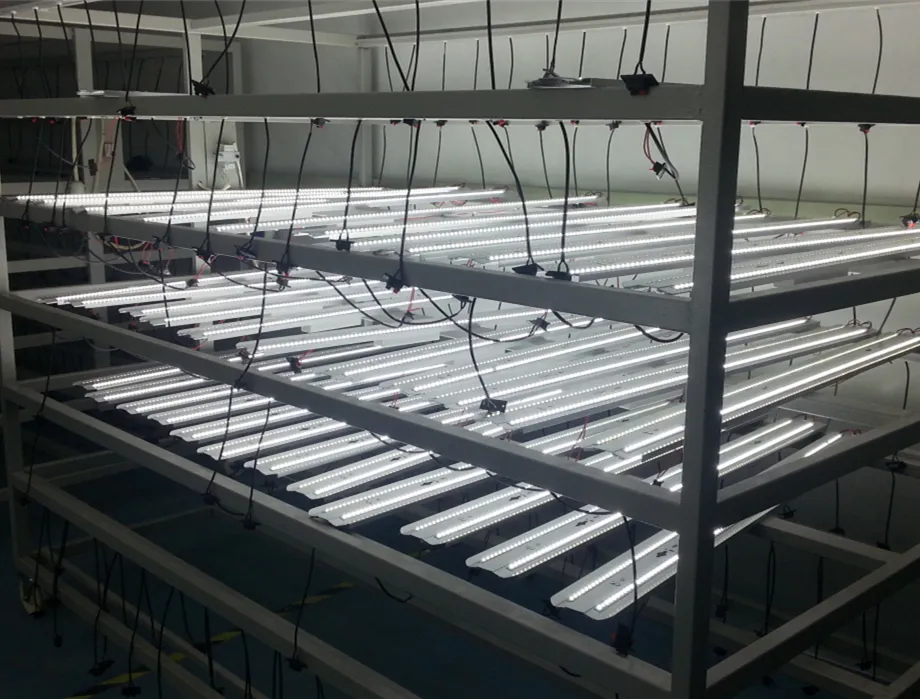

LED Liner Light Details 1

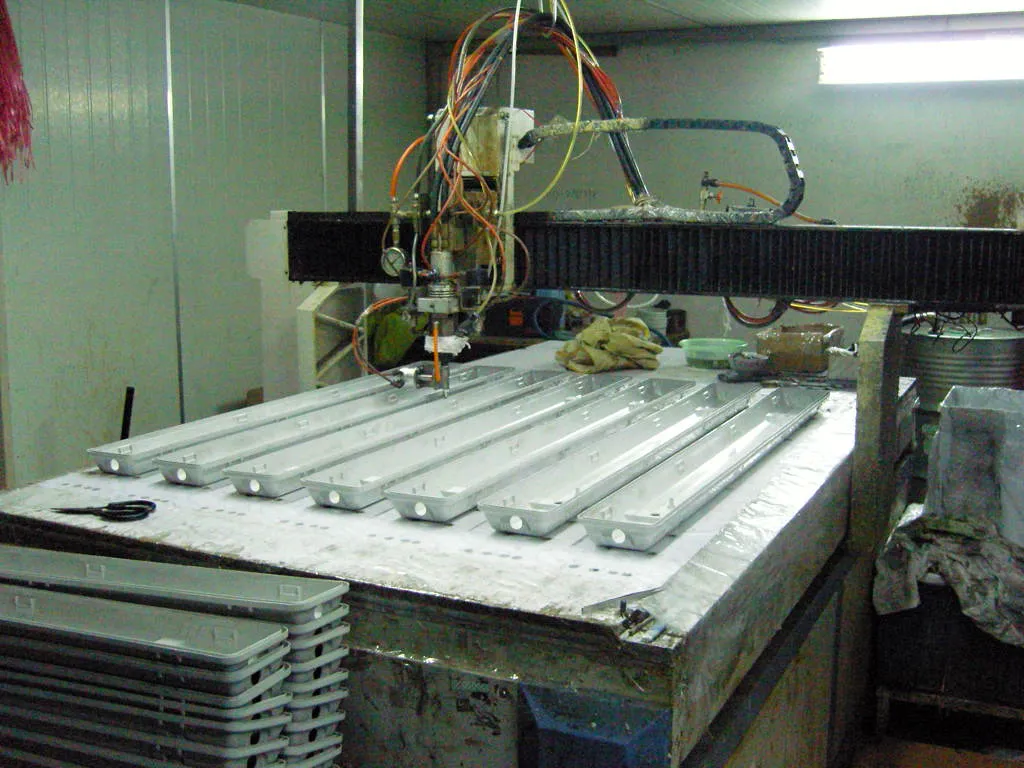

LED Liner Light Details 2
LED Batten Light Structure
Key Features
  • The product appearance is novel, and the structure is simplified for optimal performance.
  • Class II luminaire design ensures safer and more reliable operation.
  • High-grade 6063 aluminum lamp body guarantees excellent heat dissipation.
  • Multiple sizes and functions available: supports Tri-colour or linkable configuration.
Applications
  • Car parks & garages
  • Industrial areas & workshops
  • Offices & commercial corridors
  • Supermarkets, shops & bakeries
  • Storage facilities & warehouses

Technical Specifications

Model (Tri-Colour) Size Power CCT Lumen LED Qty Dimension
DY-LED18W/TRI 2ft 18W 3000K & 4000K & 5000K 110lm/w 192 600*85*29mm
DY-LED27W/TRI 3ft 27W 3000K & 4000K & 5000K 110lm/w 228 900*75*29mm
DY-LED36W/TRI 4ft 36W 3000K & 4000K & 5000K 110lm/w 288 1200*85*29mm
DY-LED45W/TRI 5ft 45W 3000K & 4000K & 5000K 110lm/w 480 1500*85*29mm
DY-LED55W/TRI 6ft 55W 3000K & 4000K & 5000K 110lm/w 576 1800*85*29mm
Model (Standard CCT) Size Power CCT Lumen LED Qty Dimension
DY-LED18W 2ft 18W 2700-6500K 110lm/w 96 600*75*23mm
DY-LED27W 3ft 27W 2700-6500K 110lm/w 144 900*75*23mm
DY-LED36W 4ft 36W 2700-6500K 110lm/w 184 1200*75*23mm
DY-LED45W 5ft 45W 2700-6500K 110lm/w 240 1500*75*23mm
DY-LED55W 6ft 55W 2700-6500K 110lm/w 288 1800*75*23mm

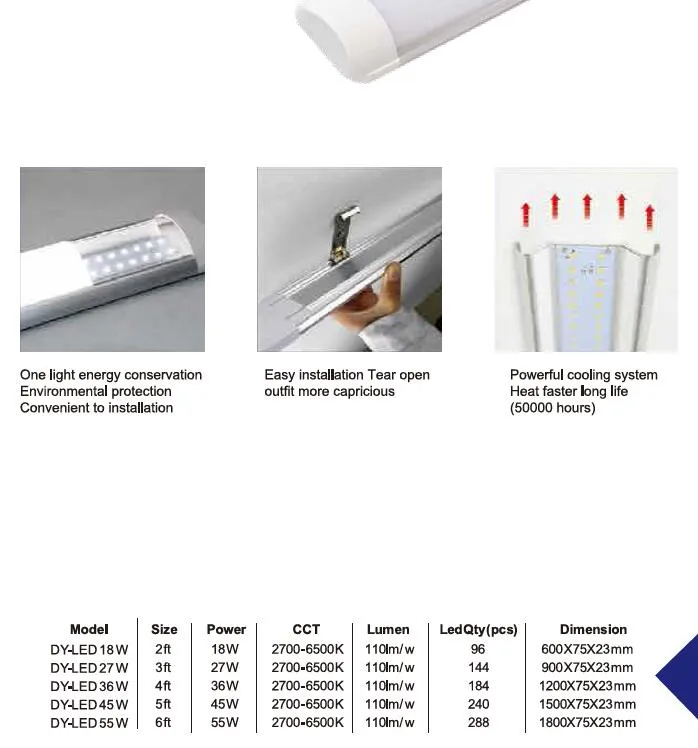

LED Batten Lamp Dimensions 1

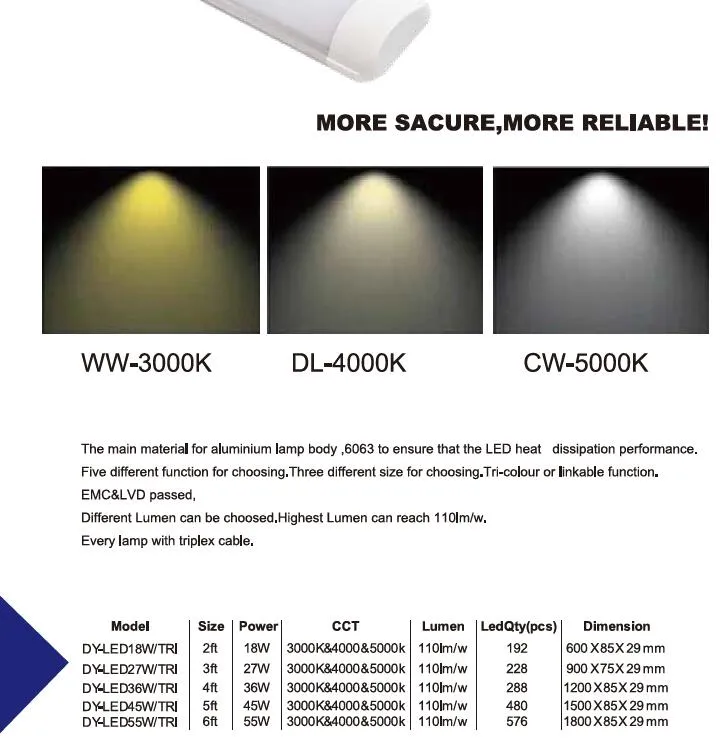

LED Batten Lamp Dimensions 2

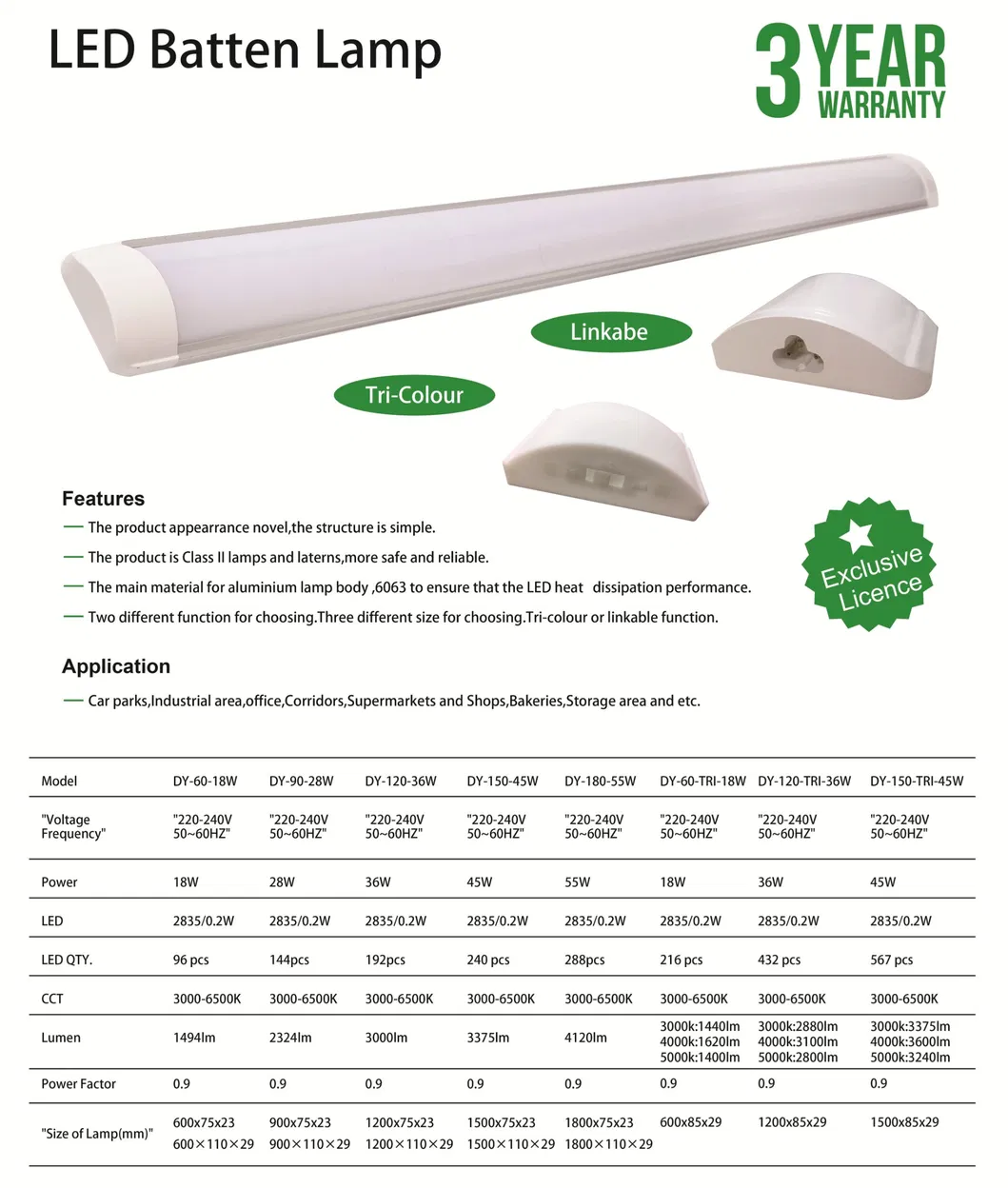

LED Batten Light Detailed Installation Diagram
Full Range Comparison Banner

Frequently Asked Questions

What features make this light "Tri-Proof"?
This LED light is engineered with specialized materials providing anti-corrosion, dust-proof, and waterproof qualities, making it ideal for harsh or high-humidity environments.
What are the main options for color temperature (CCT)?
We offer standard single-color temperature models ranging from warm to cool light (2700-6500K) as well as Tri-colour models that can switch between 3000K, 4000K, and 5000K.
How efficient are these LED Tri-Proof lights?
Our lights feature high efficiency with a luminous efficacy of 110lm/W, helping you save on energy costs while maintaining excellent brightness.
What sizes and wattages do you offer?
The series spans from 2ft up to 6ft, with corresponding wattages of 18W, 27W, 36W, 45W, and 55W to meet different installation requirements.
What is the minimum order quantity (MOQ) and production capacity?
Our MOQ is 500 pieces, and we support a production capacity of 1,000 units every 15 days.
