| Technical Parameters | ||||
|---|---|---|---|---|

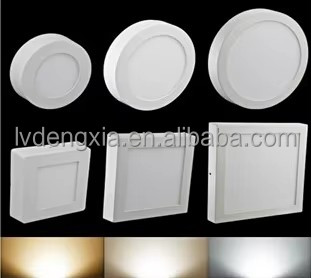

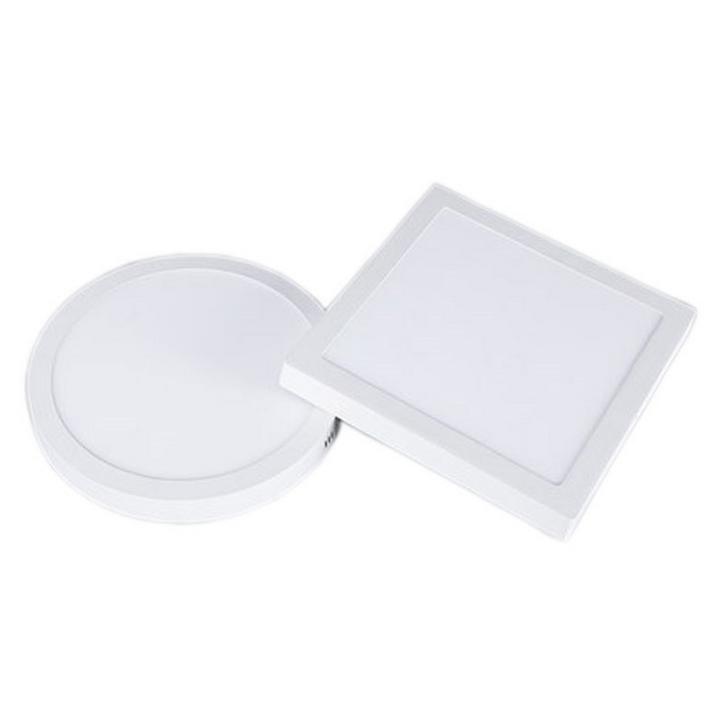

| Item Series | Ultra Slim LED Panel Light | |||
| Dimension (mm) | L120 * W120 * H10 mm | L170 * W170 * H10 mm | L225 * W225 * H10 mm | L300 * W300 * H10 mm |
| Opening Size (mm) | L105 * W105 mm | L150 * W150 mm | L205 * W205 mm | L275 * W275 mm |
| Wattage | 6W | 12W | 18W | 24W |

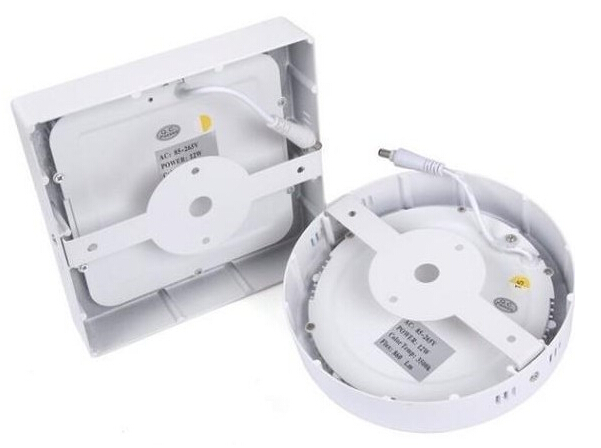

| Surface Installation | YES | YES | YES | YES |
| Input Voltage | AC85 ~ 265V | |||
| Current | 260-280mA or 280-300mA | |||
| Luminous Flux | 70 ~ 90 lm/W | |||

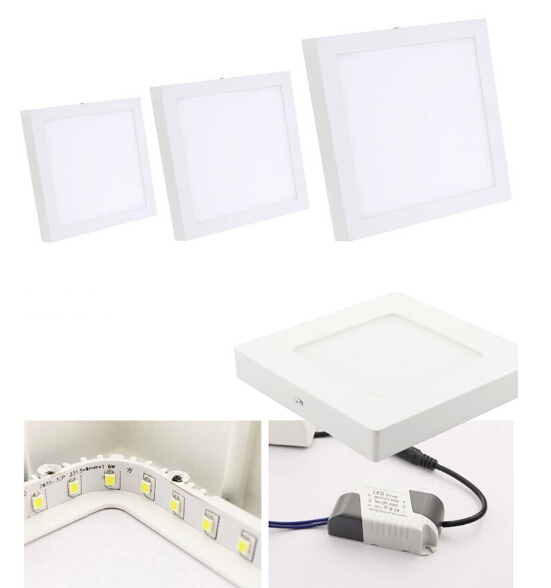

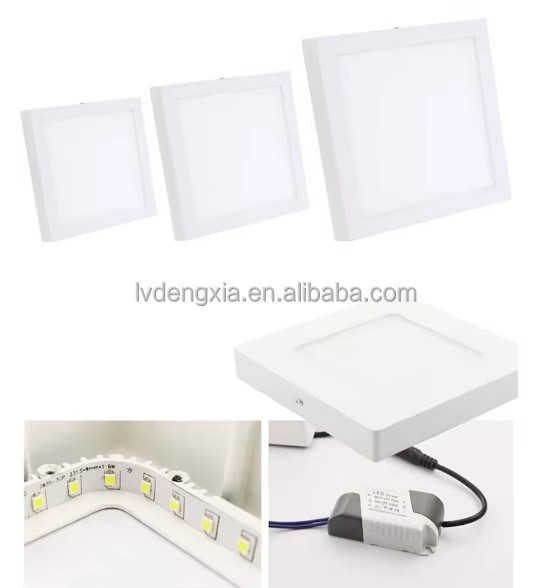

| Light Source | SMD2835 | |||
| Material | ABS + Aluminium + Acrylic | |||
| CRI | > 70 | |||

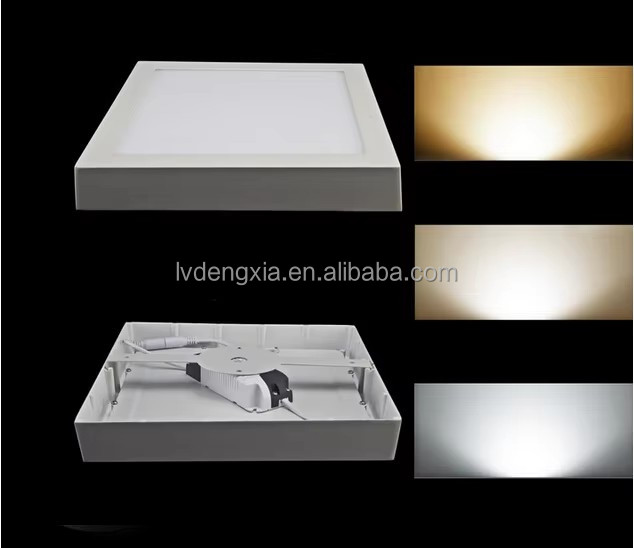

| Color Temperature | 3000K-3500K / 4000K-4500K / 6000K-6500K | |||
| Light Color | Warm White / Neutral White / Cool White | |||
| Working Temp. | -20℃ ± 45℃ | |||
| Beam Angle | 120° | |||
| IP Code | IP20 | |||
| Life Span | 30000 Hours | |||
| Warranty | 2 Years | |||
| Certificate | CCC, CE, ROHS, TUV, SAA | |||
| Application | Household, exhibition hall, hotel, shops, jewelry store, museums, stores, recreational space, etc. | |||
| Available Color | PKW / SN / CH | |||
| Pieces per Carton | 50 pcs/carton | 50 pcs/carton | 20 pcs/carton | 20 pcs/carton |
Saves 80% more energy compared with traditional light sources.
Equipped with premium quality LEDs inside the light source.
Delivers more than 50,000 hours of working lifetime.
No harmful radiation spectrums such as UV or infrared rays included.
Low power consumption with an energy conversion rate of over 95%.
Solid-state LED light source designed to be highly durable and damage-resistant.
Fully CE certified and ROHS compliant for safety and standard regulation.
Widely used in residential and commercial lighting fields, including brand stores, shopping malls, hotels, offices, and home environments.
A1: For the lamps, we have a 3 to 5-year warranty period.

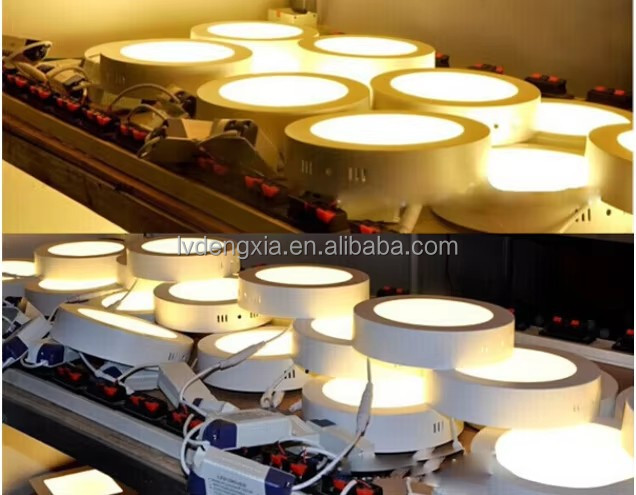

A2: We implement three strict quality control (QC) processes: 1. Raw material inspection; 2. Mid-production monitoring; 3. Final one-by-one QC testing following a 12-hour aging process.
A3: First, take photos or record a video of the problem as proof and send it to us. We will replace the defective products with brand new ones free of charge.
A4: Yes, we accept both OEM and ODM orders. Custom logo placement on either the light fixtures or the packaging is available.
A5: Generally, sample production takes 5-7 days. The lead time for mass production depends directly on the order quantity.
A6: Our Trade Assurance provides 100% product quality protection, 100% on-time shipment protection, and 100% payment protection up to your covered amount.
