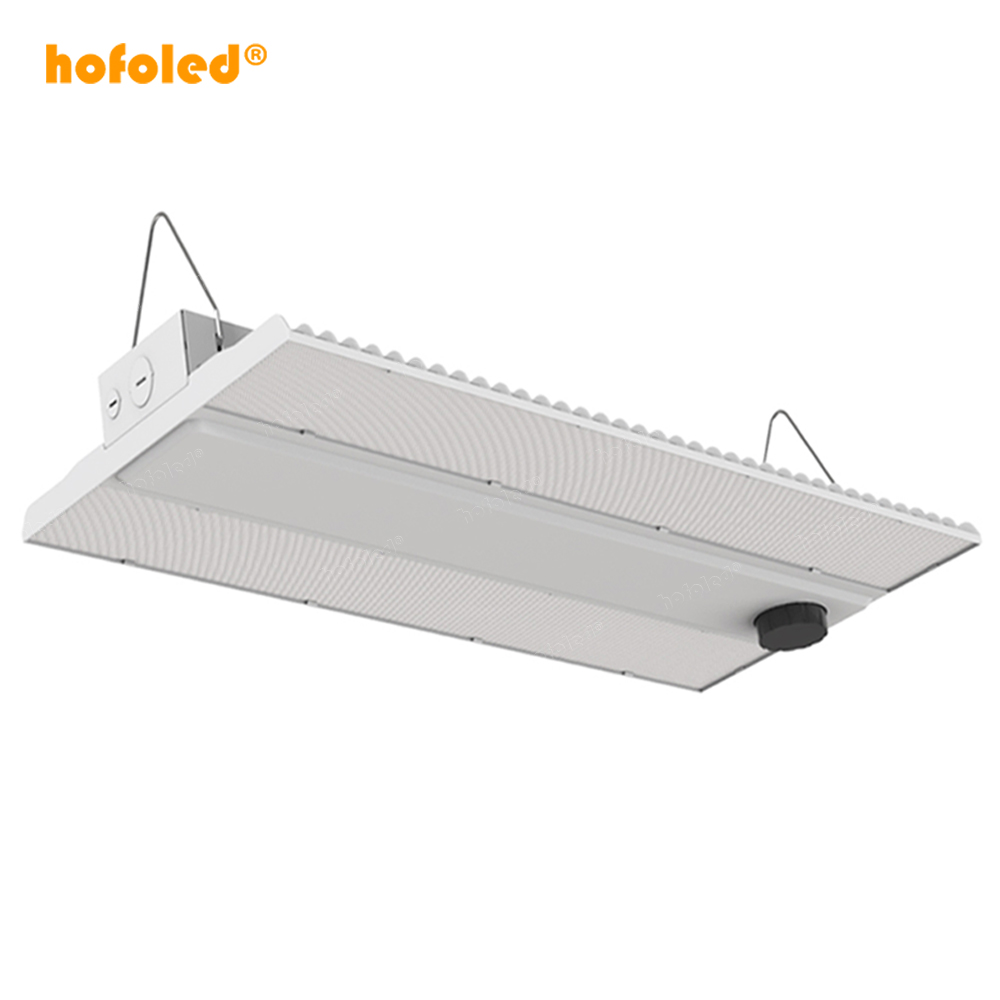

Recommended LED Linear High Bay Light
A versatile industrial/commercial linear high bay lighting fixture from a 16-year verified manufacturer (98.2% positive reviews), ideal for warehouses, factories, supermarkets, and sports venues, featuring high efficiency, smart controls, and durable construction.

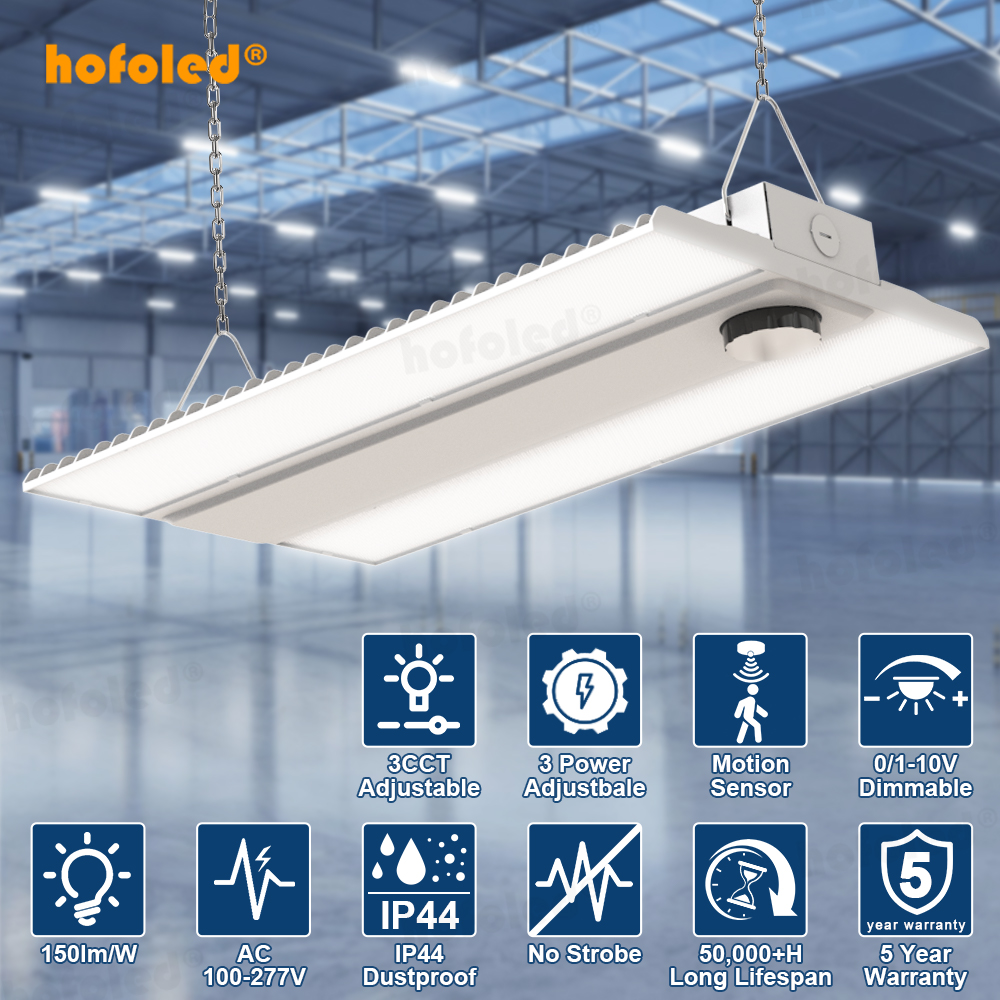

Core Highlights
1. Illumination Performance

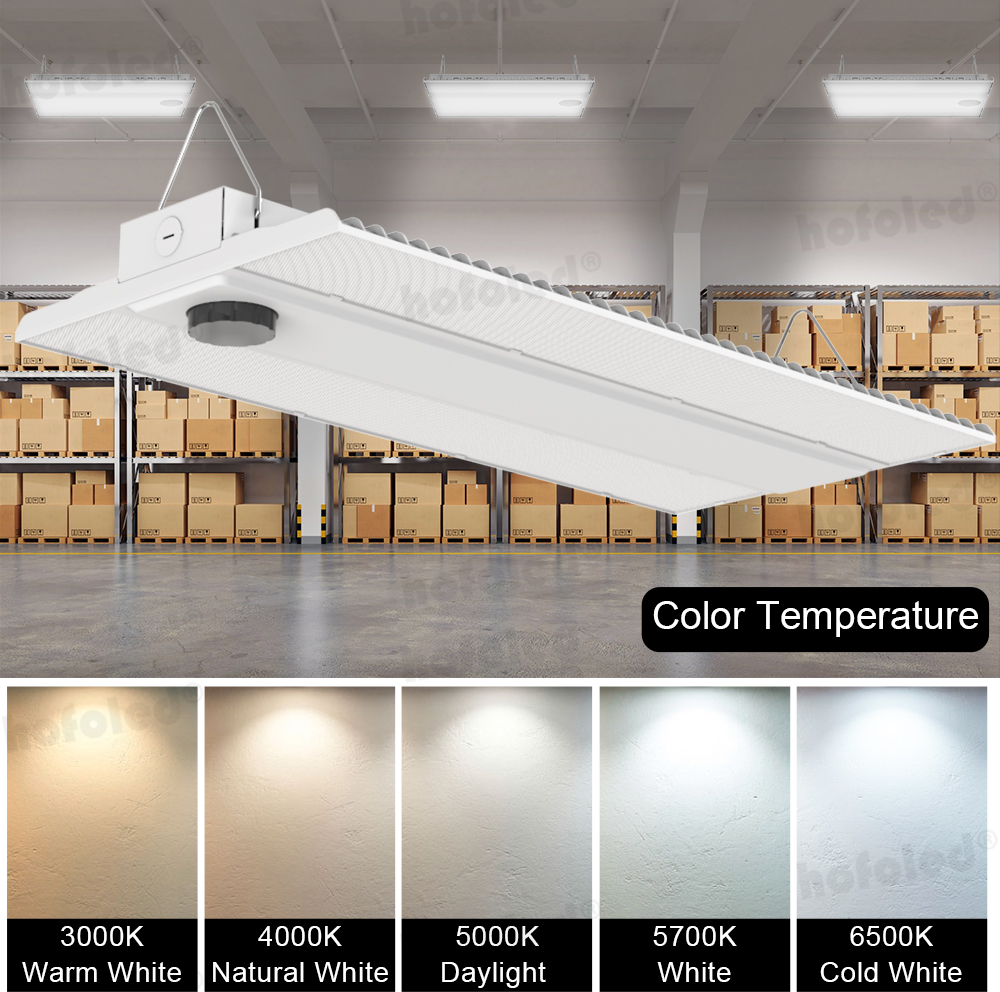

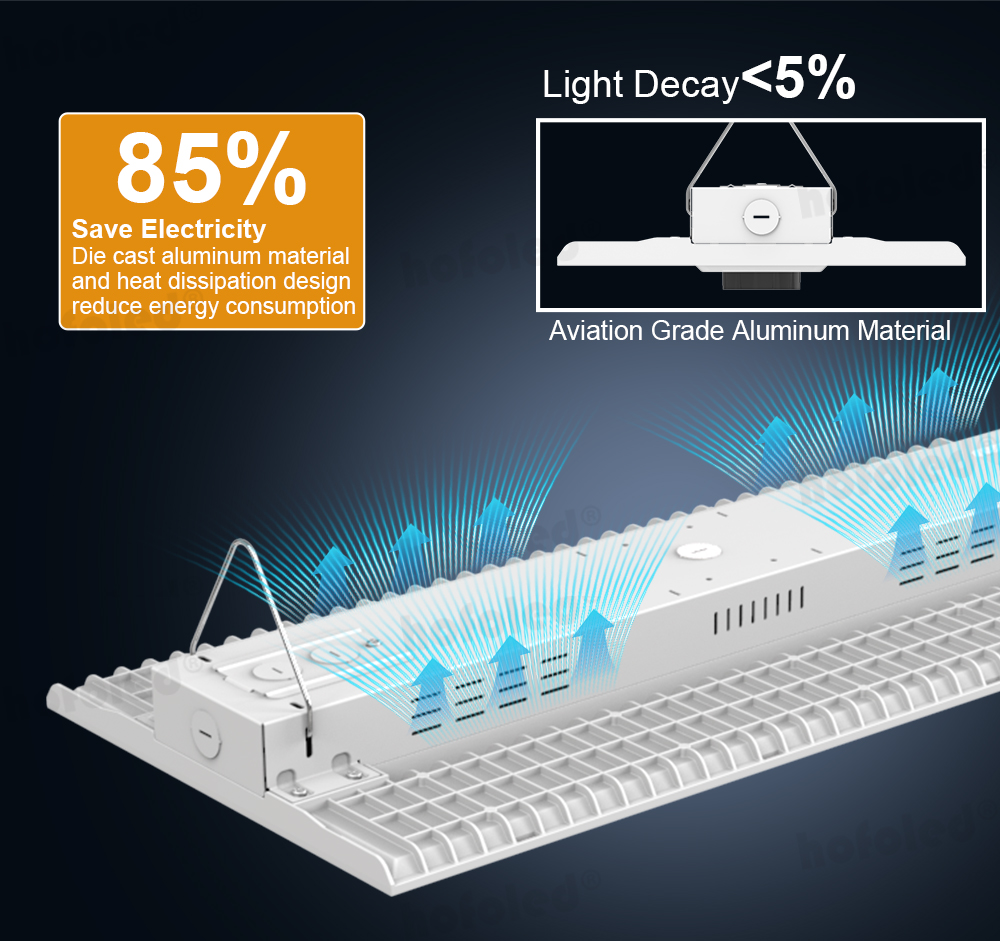

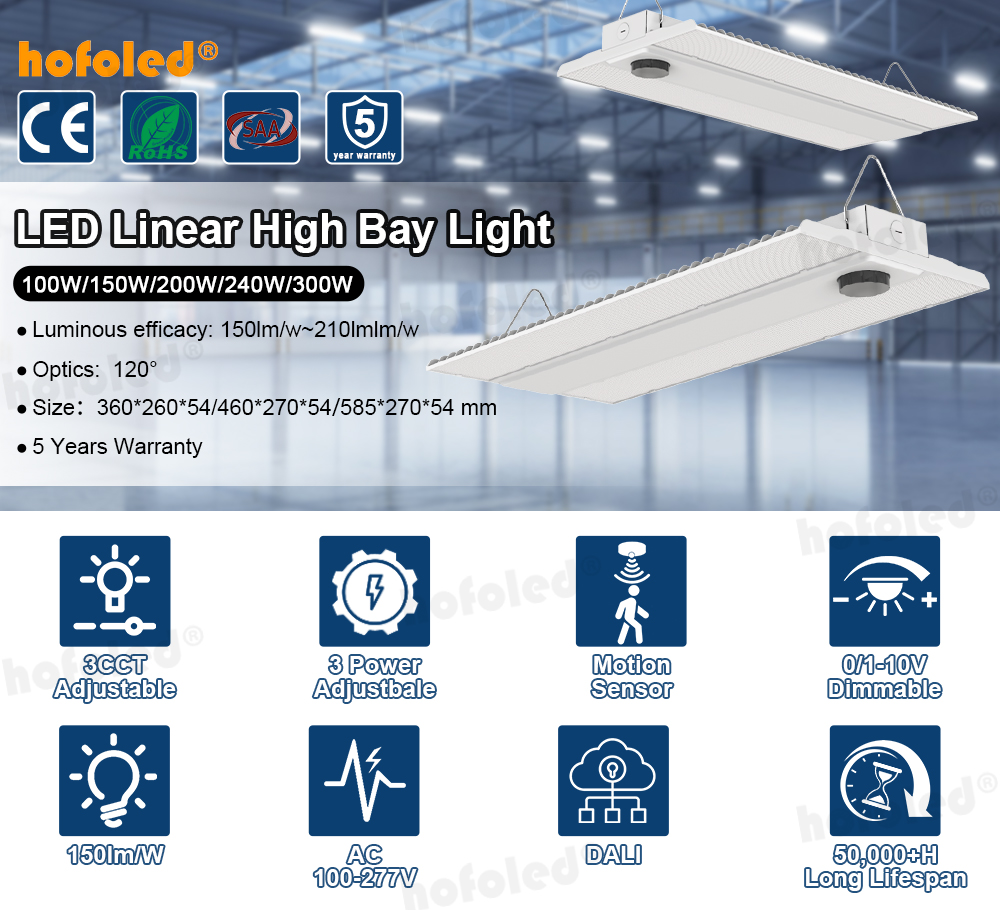

100W-300W options, 150–210lm/W efficacy, 15,000–63,000 lumens, and SMD2835 chips. 3000K–6500K CCT (optional 3-CCT/Watts DIP adjustability), 120° beam angle, and CRI>80 for true color rendering. Hollow aluminum heat sinks cut energy use by 85% with light decay <5%.
2. Smart Controls
Optional microwave sensor (25FT detection radius, 40FT max mounting height) for auto 30%–100% dimming; supports Zigbee communication, TUYA IoT linkage. 0/1-10V dimming, DALI protocol, and 3-power DIP adjustability; compatible with switch, remote, and app control.
3. Durability & Installation

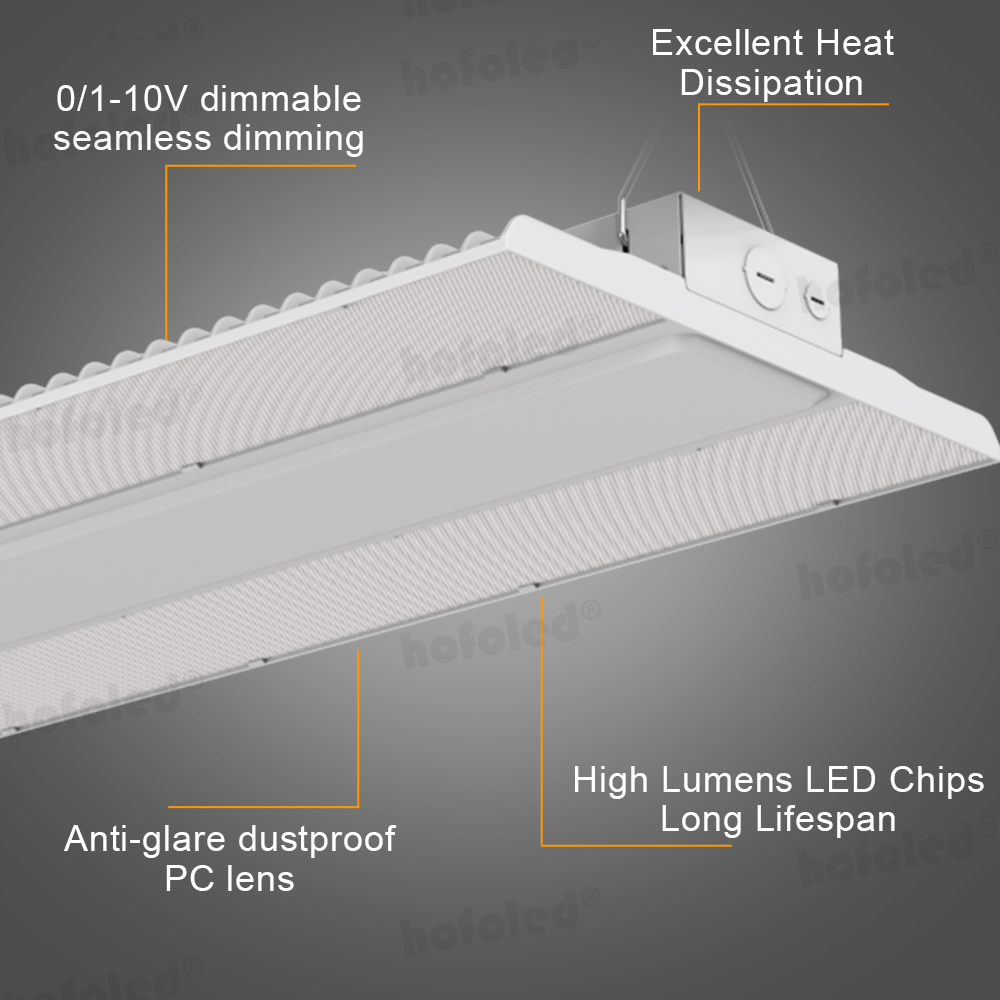

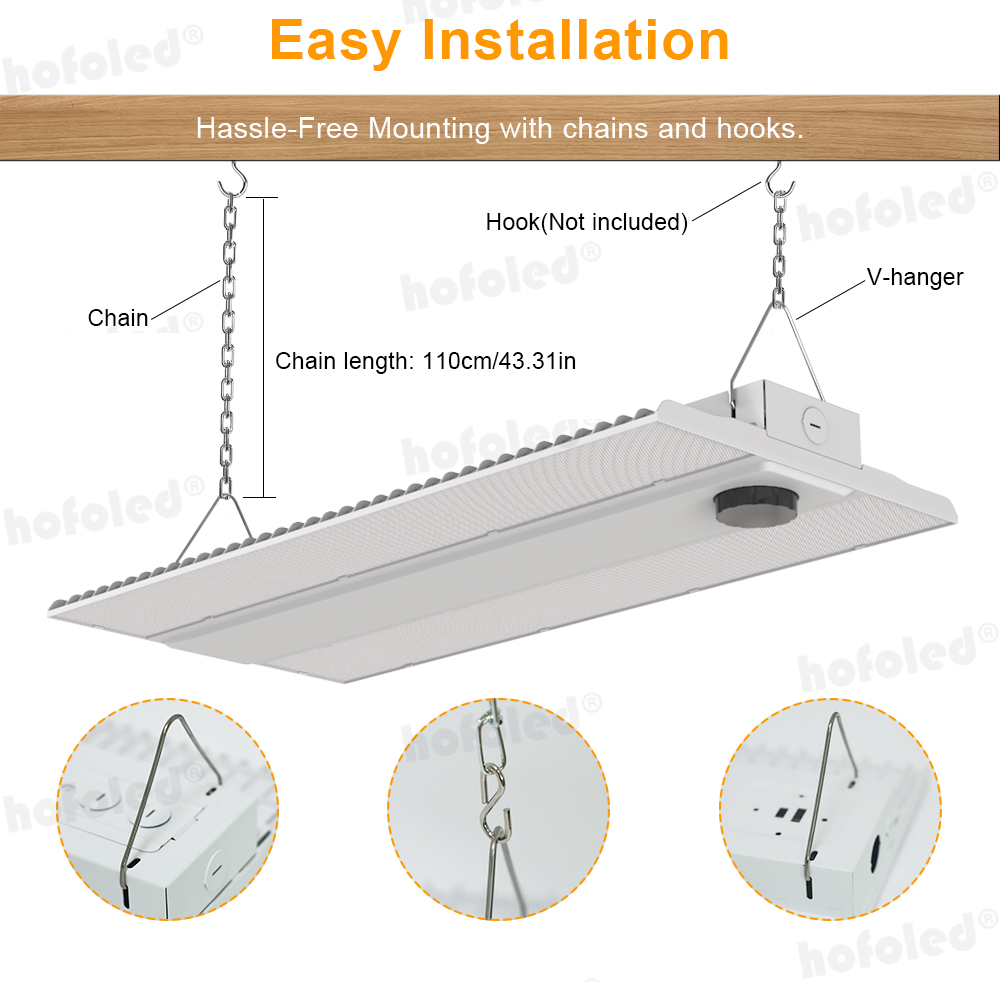

Aviation-grade aluminum housing, anti-glare PC lens, IP44 protection, and 50,000-hour lifespan (works in -40℃ to 60℃). 110cm chains for easy suspension; AC 100–277V global voltage compatibility.
4. Certifications & Support
CE/RoHS/ISO9001 certified, 5-year warranty, and OEM/ODM customization; 7~30-day lead time for 1–100 pieces.
5. Ideal Applications

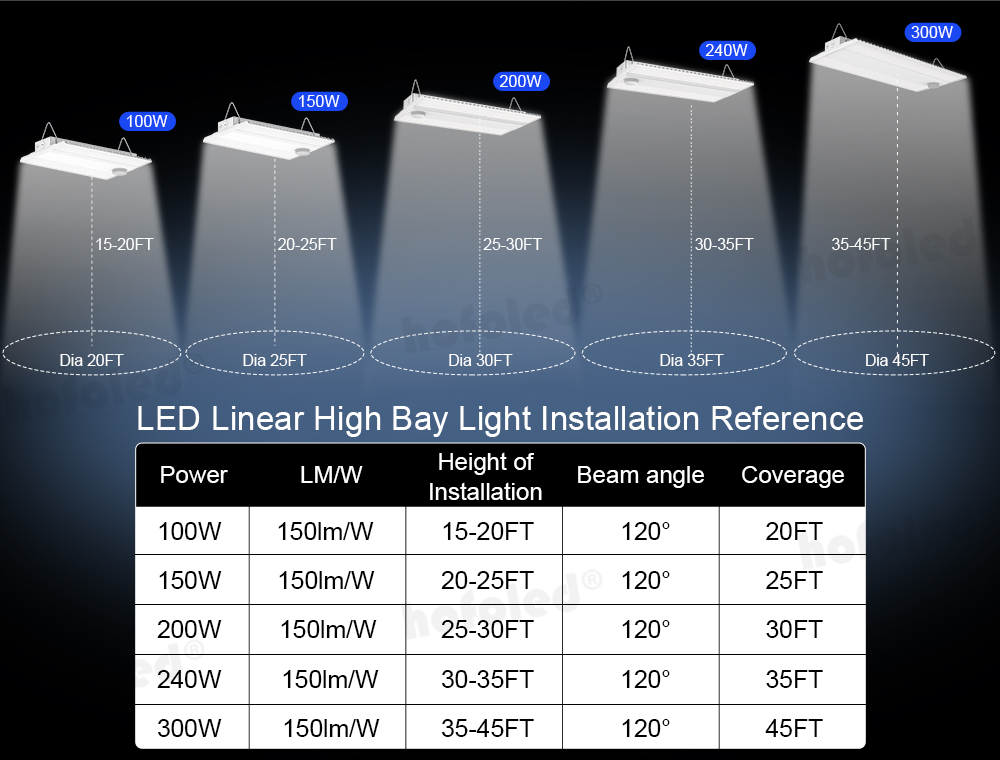

Suitable for warehouses, workshops, factories, supermarkets, badminton courts, gas stations, and tunnels, this fixture balances functionality and cost-effectiveness for large-scale indoor commercial and industrial lighting projects.
Multi-functional Selection
The linear high bay light features multiple functions: 0/1-10V Dimming, 3CCT/3 Power Adjustable, and Microwave Induction, allowing customization to your desired lighting style according to different environmental requirements.

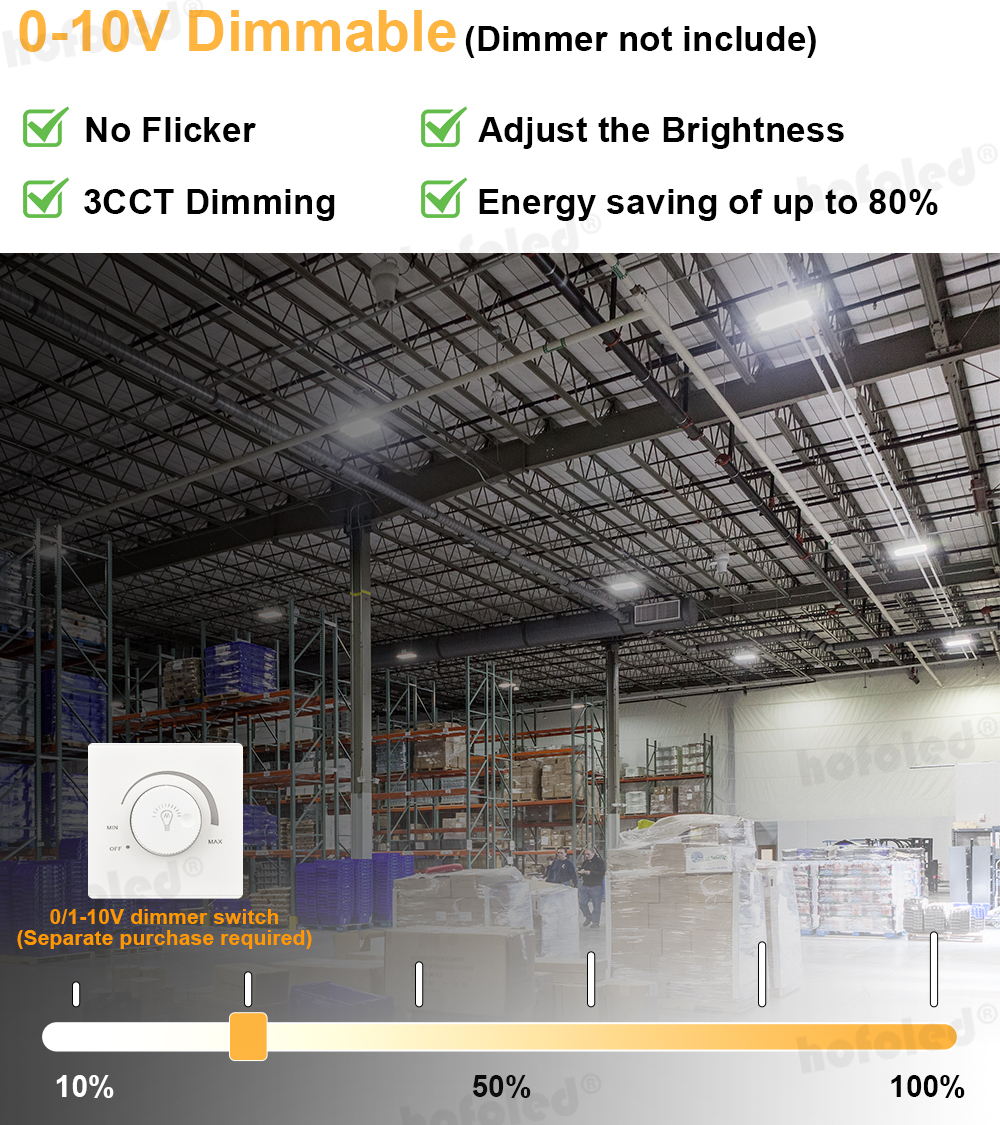

1. 0/1-10V Dimming Function
0-10V dimmable: After the lights went out, there was no afterglow and it became completely dark.
1-10V dimmable: After the lights went out, there was a lingering glow, which gradually dimmed until they completely went out.
In practice, 0/1-10V dimming operates through a simple analog signal system that connects a dimmer, LED driver, and LED fixture—relying on voltage changes (0/1V to 10V) to adjust brightness. It is an analog dimming protocol for LED lights, where a control signal (voltage) ranging from 0/1 to 10V is used to adjust brightness:
- 0/1V: Minimum brightness (often 10% of full output, though customizable).
- 10V: Maximum brightness (100% output).
- Voltages between 1V and 10V correspond to proportional brightness levels (e.g., 5V = 50% brightness).
Key Features:
• Smooth Dimming: Allows gradual, flicker-free brightness adjustment.
• Compatibility: Works with dedicated 0/1-10V dimmers and LED drivers that support this protocol.
• Wiring: Requires two additional wires (beyond power lines) to transmit the dimming signal, making it a wired control method.
2. 3CCT/3 Power Adjustable Function

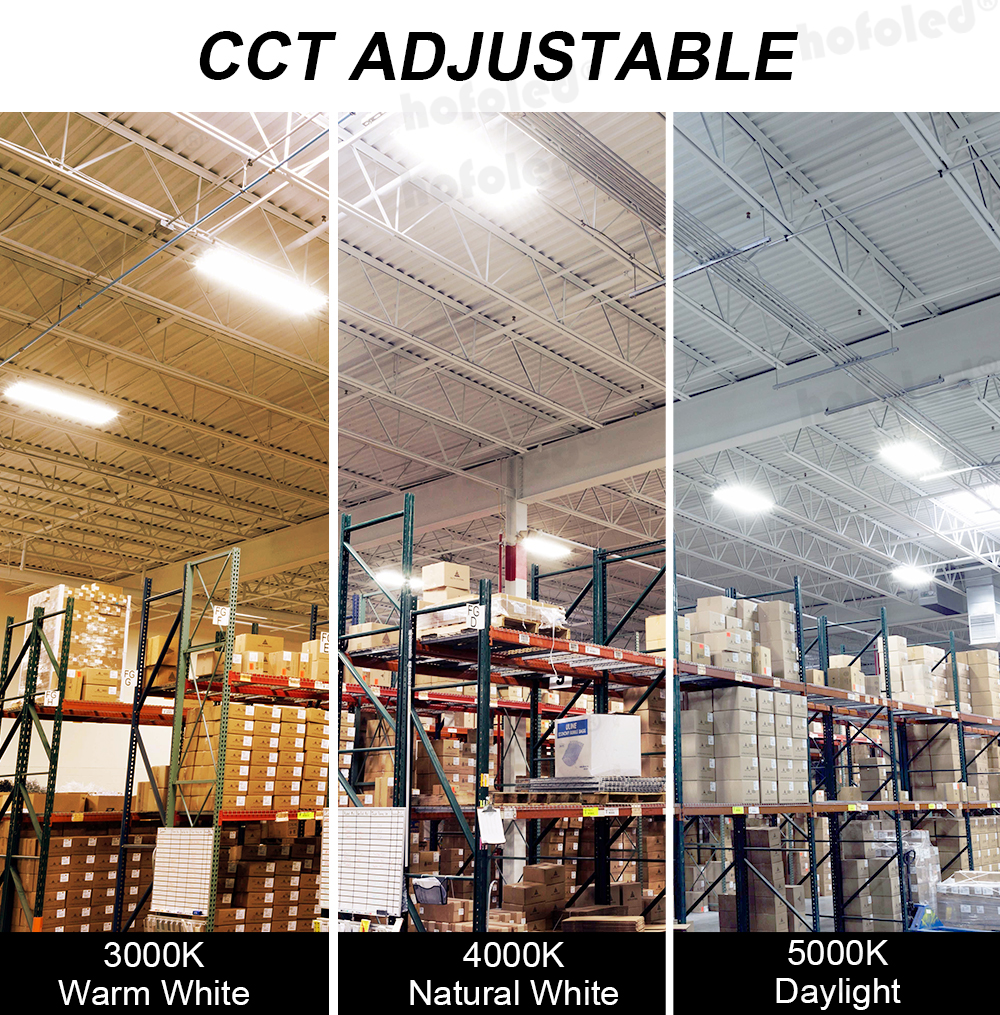

3CCT DIP Adjustable: Warm White 3000K / Natural White 4000K / Cold White 6000K. There are 3 color temperature adjustment DIP options available, allowing you to adjust according to your specific environmental needs.

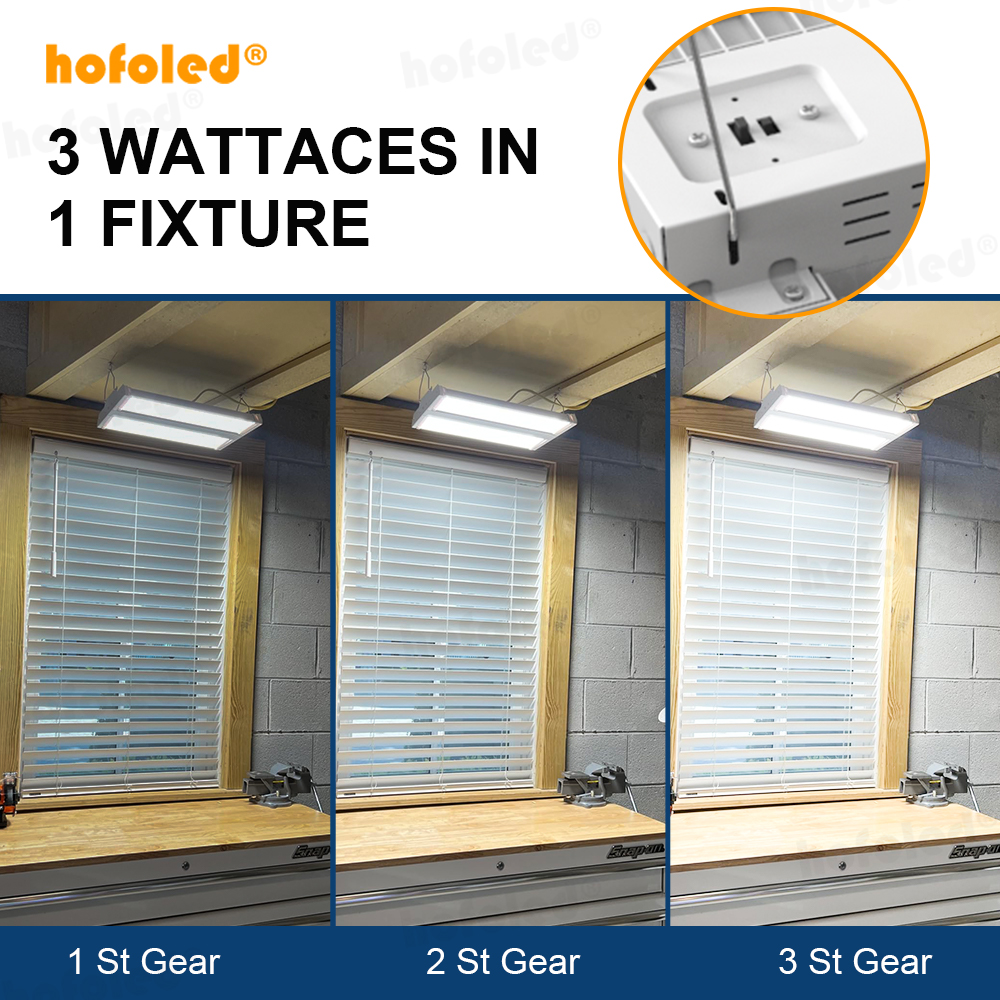

3 Power DIP Adjustable: Flexibly adapt to the lighting needs of different scenarios, and adjust the power and brightness without the need to replace the lamps. The brightness is dim adjustable for 100%-80%-60% based on your needs.

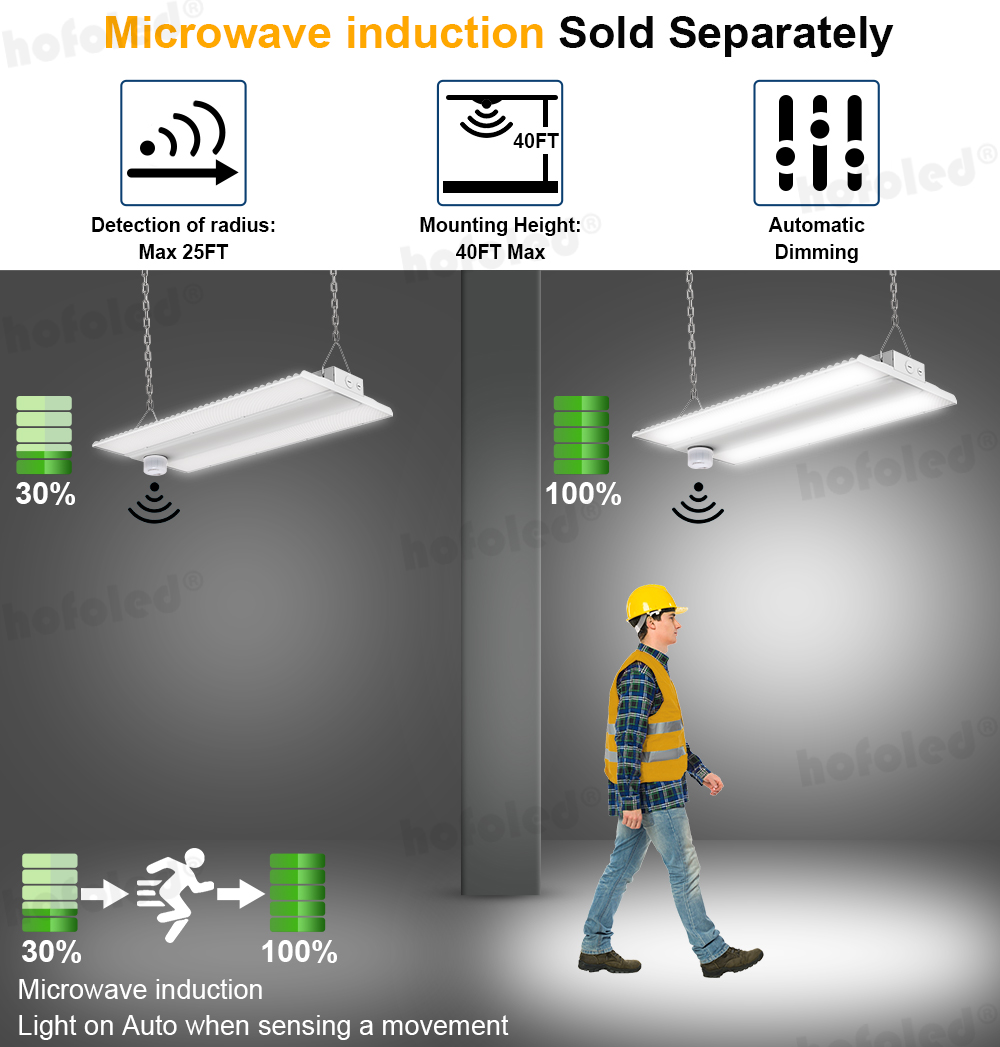

3. Microwave Sensing Function
Microwave induction: When people come, the lights go out; when people leave, the lights come on. Choose one of them and our engineers will set it up for you before shipment. You can install it and start using it immediately.
Product Features:
1. Patented high-gain microwave sensor, high anti-interference ability, no false trigger in metal installation site, especially designed for warehouse.
2. 12V DC input, for DC systems or LED power supplies with 12V DC auxiliary power output.
3. Using TUYA Bluetooth IOT module and supporting TUYA devices interconnects.
4. PWM high/low level, 0-10V dimming, 2-step dimming and 3-step dimming function.
5. Match Zhaga Book 18 base, plug-in design, waterproof.
6. Daylight priority function.
7. 12m maximum installation height, suitable for most warehouses.
Recommended Products
Payment & Shipping
1. Payment terms: Visa, Mastercard, T/T, PayPal, etc.
2. Delivery time: Samples in 3-5 days, large orders in 7-15 working days.
3. MOQ: 2 pcs.
4. Shipping: By express (DHL, UPS, FedEx, TNT, etc.), by Air DDP, or by Sea DDP.
