Products Detail
PRODUCTS PARAMETERS

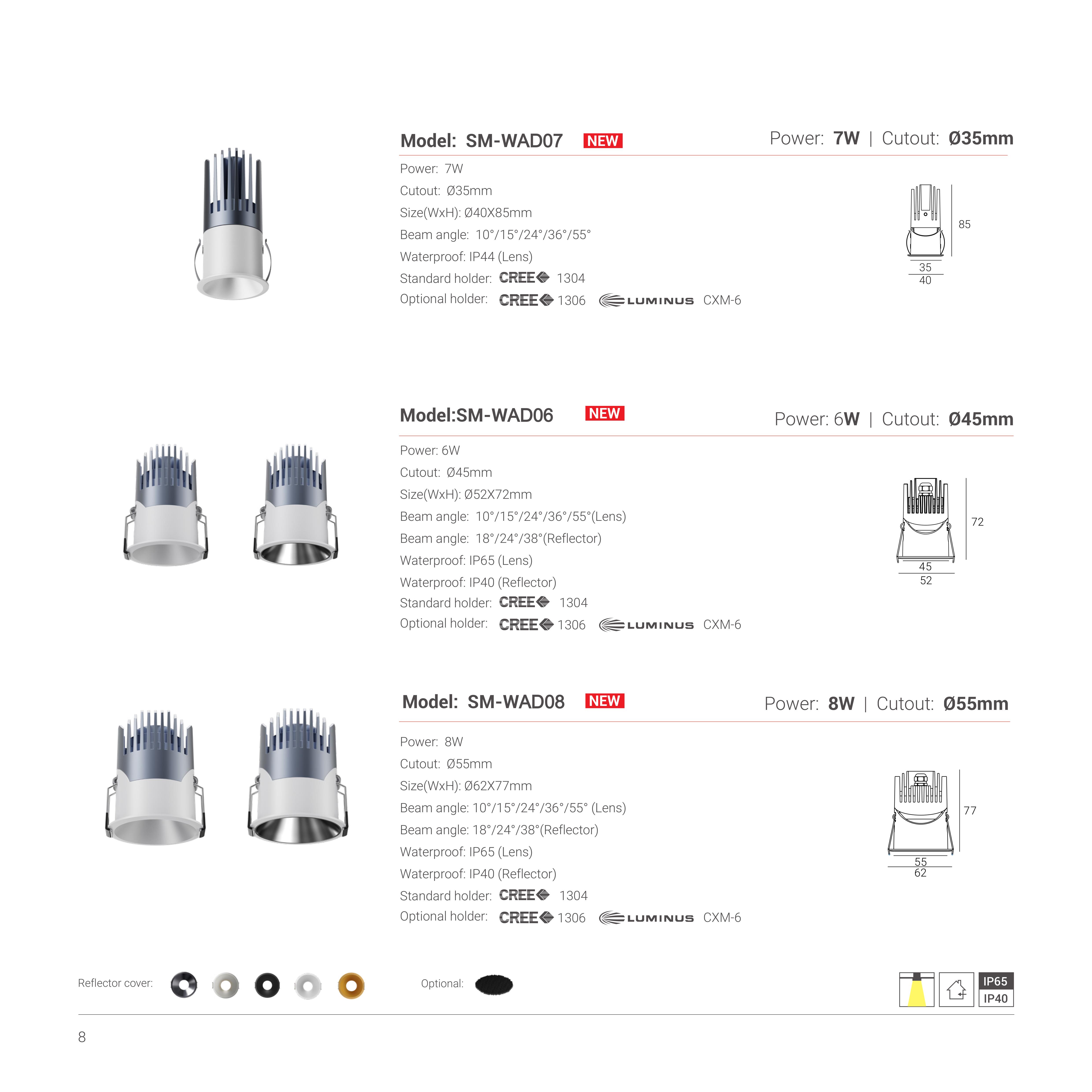

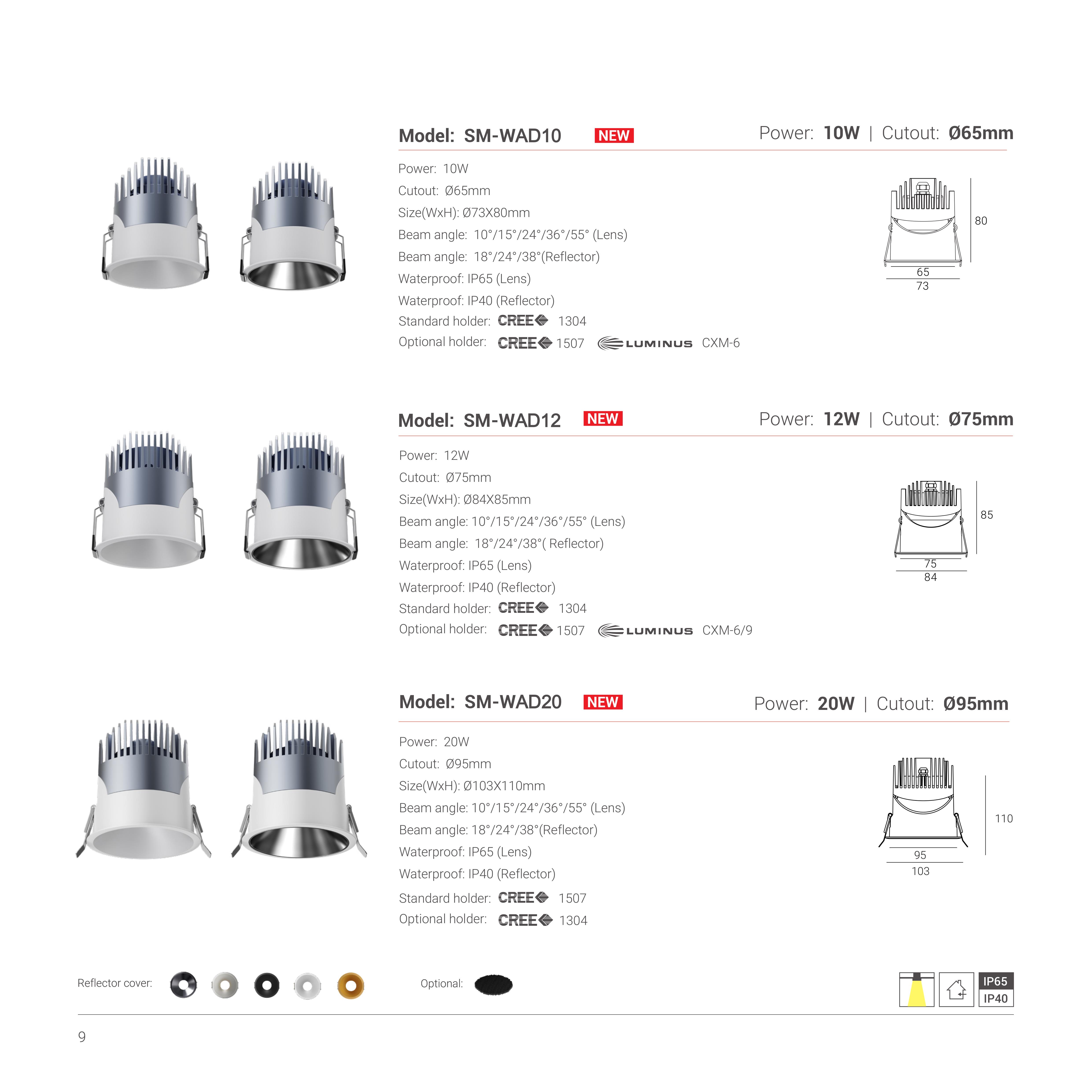

| Model Number |
SM-WAD07 |
SM-WAD06 |
SM-WAD08 |
SM-WAD10 |
SM-WAD12 |
SM-WAD25 |
SM-WAD35 |
| LED Chip |
COB |
COB |
COB |
COB |
COB |
COB |
COB |
| System Power |
7W |
6W |
8W |
10W |
12W |
25W |
35W |
| Input Voltage |
AC100-277V / AC100-240V |
| Frequency Range |
50Hz~60Hz |
| Led Initial Flux(lm) |
700lm (±50) |
600lm (±50) |
800lm (±100) |
1000lm (±100) |
1200lm (±150) |
2500lm (±200) |
3500lm (±200) |

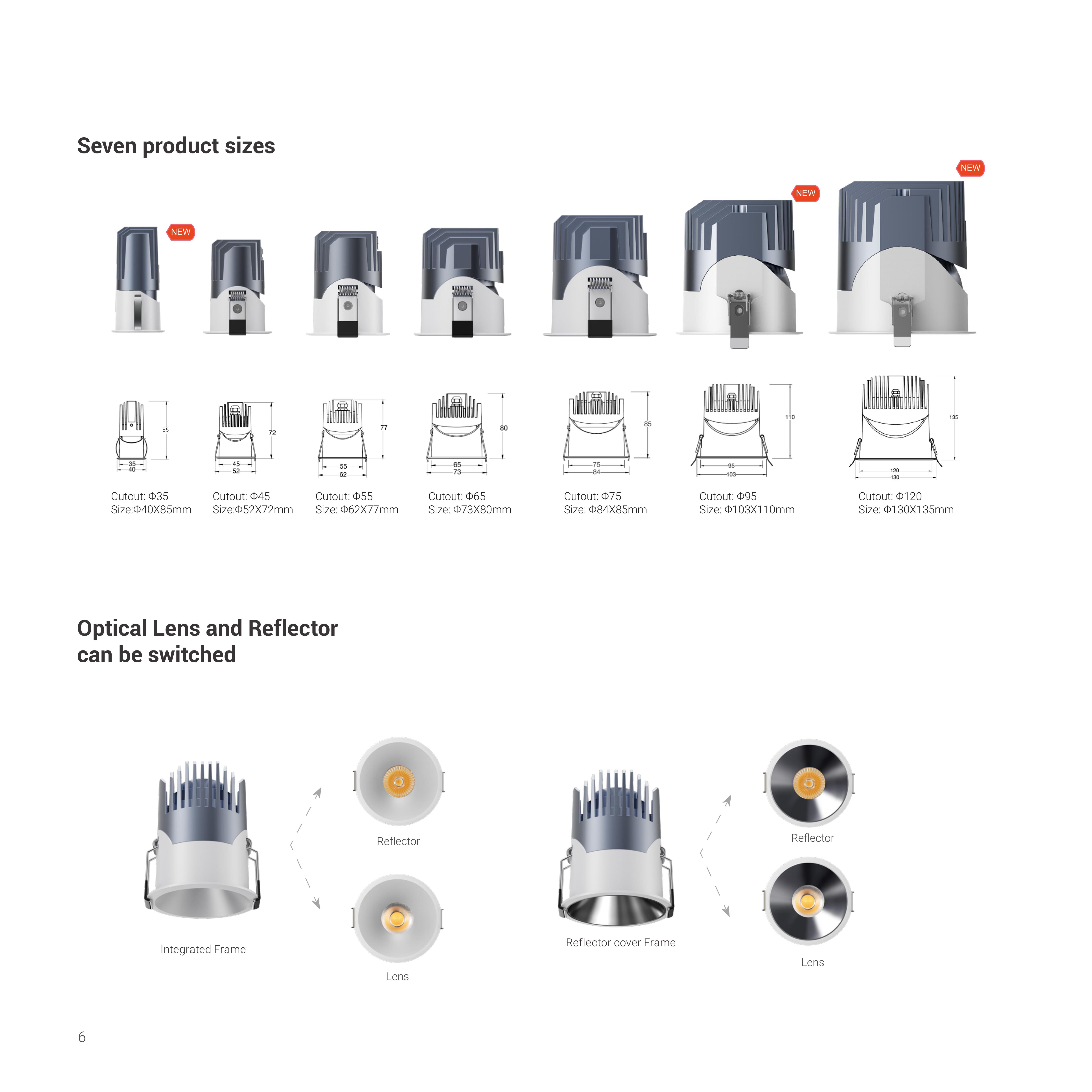

| Dimension(mm) |
40x80mm |
52x72mm |
62x77mm |
73x80mm |
84x85mm |
103x110mm |
130x135mm |
| Cut-out |
35mm |
45mm |
55mm |
65mm |
75mm |
95mm |
120mm |
| Color Rendering Index |
Ra80, Ra90, Ra97 |
| UGR |
10-19 |
| Beam Angle |
15°/ 24°/ 36°/ 55° |

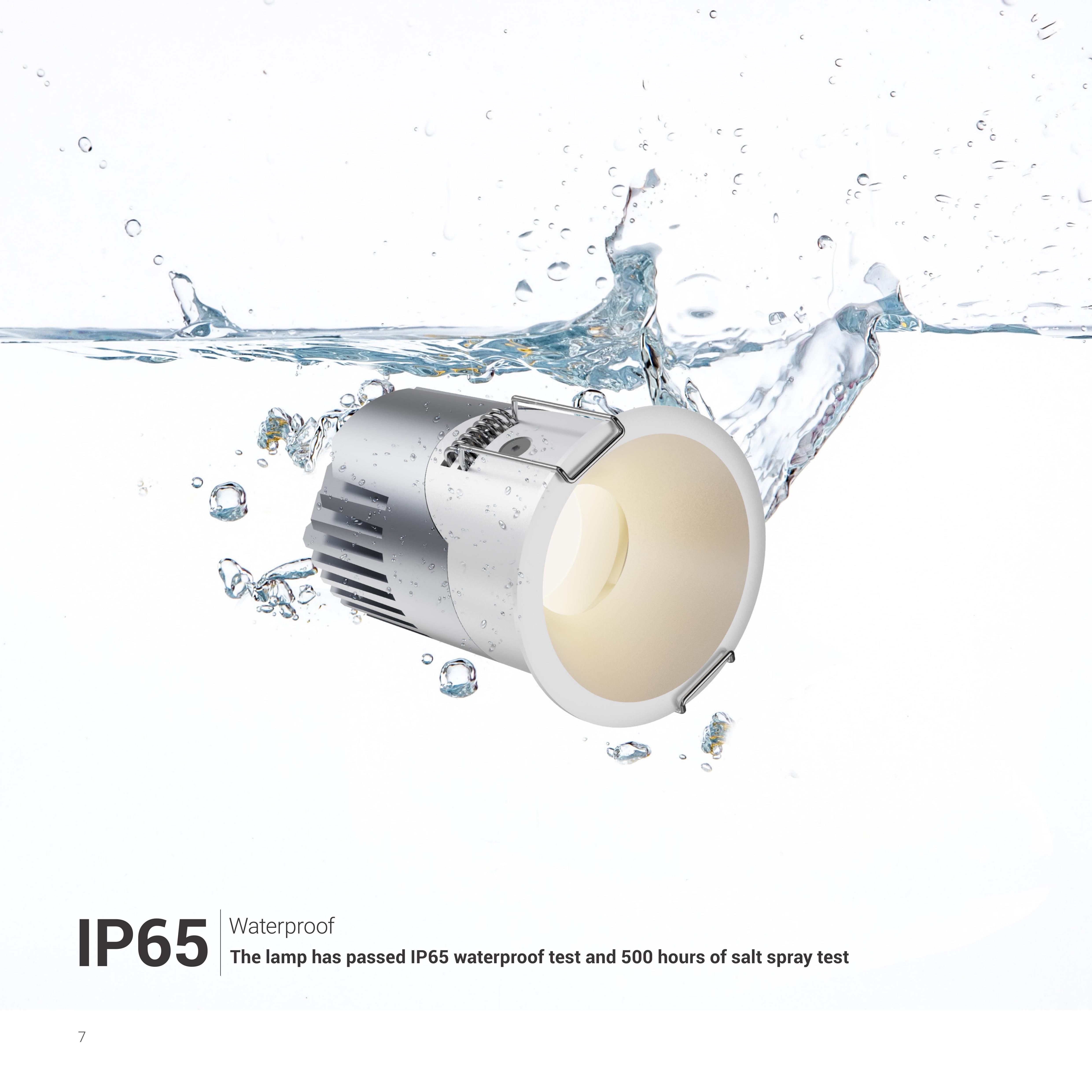

| IP Rank |
IP65 |

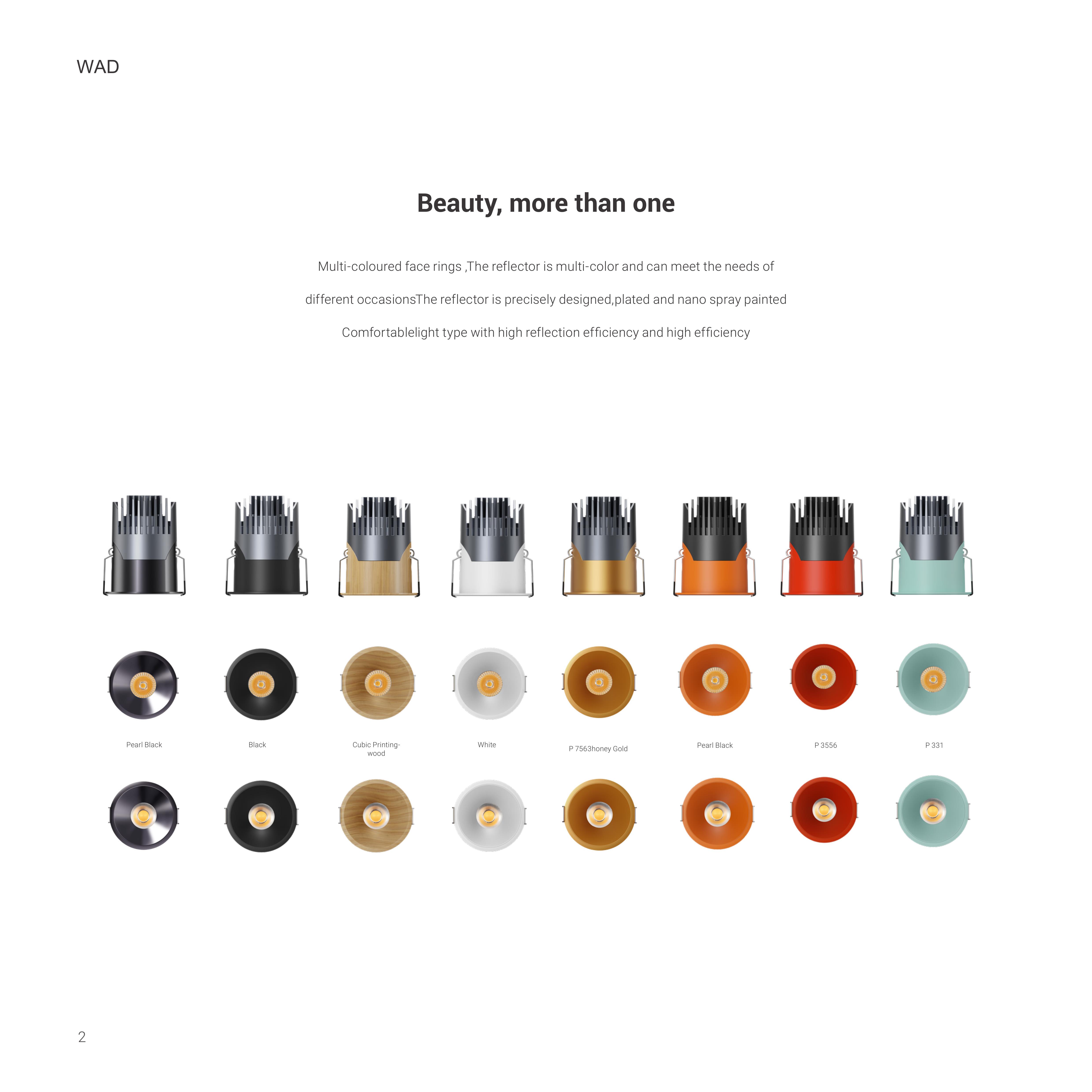

| Color of Shell |
White, Black |
| Storage Temperature |
-25°-45° |
| Working Temperature |
-45°-65° |
| Fireproof class |
V0 |
| Certification |
CE, Rohs, C-tick, FCC, PSE, REACH |
| Optical Data |
IES |
Installation
Hot Products
Magnetic Lighting
Led Linear Lighting
LED Track Light
LED Down Light
LED Light Strip
LED Suspension Light
Click here to get catalogues now
Click here to get catalogues now
Q1. Do you have certificate for your products?
A: Yes, for all of our products have CE (EMC+LVD), Rohs, C-tick, FCC, PSE, REACH, ERP etc. Certification
Q2. What's the warranty?
A: Our Commercial Light are 5 years warranty.
Q3. Can I have the sample light and What's the MOQ?
A: We very welcome you to set sample order to feel our quality, so MOQ=1, and mixed sample will acceptable.
Q4. How long is the delivery time?
A: Sample order is 3-5 days, massive order is 7-20 days depends on the quantity.
Q5. What's your payment terms please?
A: T/T in advance, L/C, Paypal, West Union.
Q6. How to process one order?
A:
- Please let us know your needed and requirement.
- According as your needed, we quote you all the cost.
- Please confirm all the details on the PI, and arrange the deposit.
- We arrange the production, and ship to you by express and tell you the tracking number to follow.
