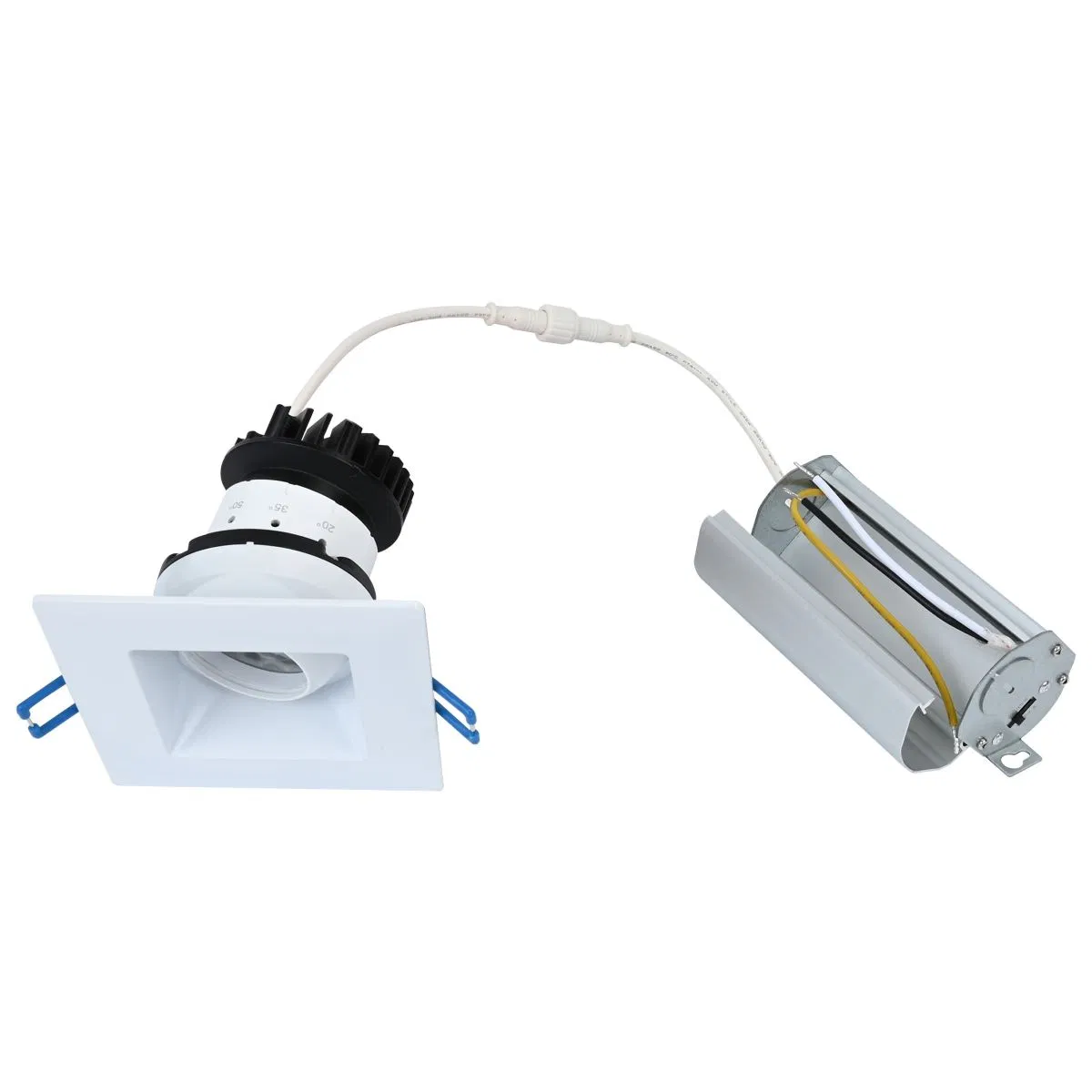

Modern Square LED Downlight Recessed Square Ceiling Light Adjustable Beam Angle Spot Lights

Innovative Technology

Description:

Our patent-pending adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20° and 50°. Featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.

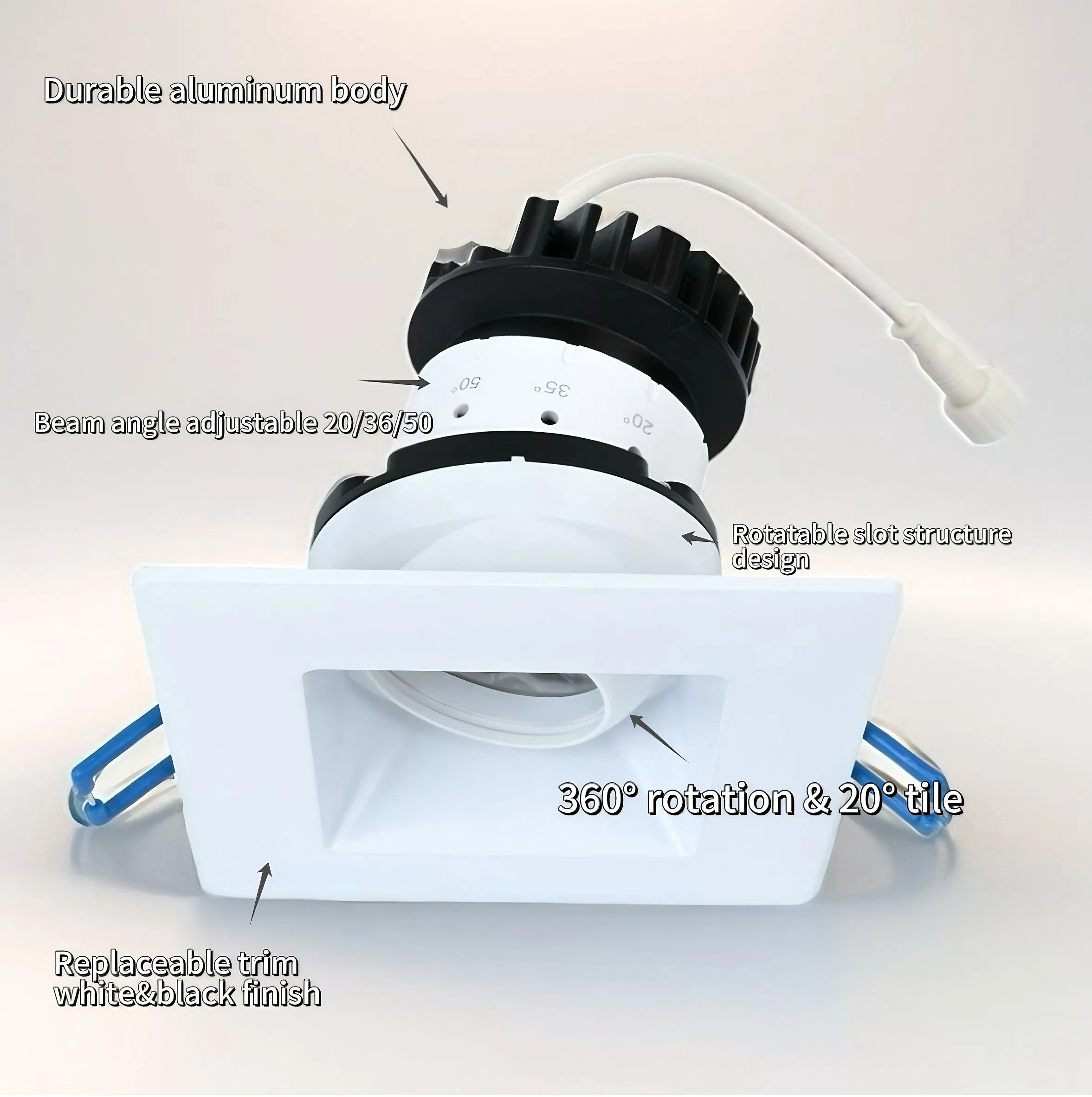

Key Features

Durable Aluminum body for good heat dissipation
Beam angle adjustable effortlessly between 20°-50°
360° rotation and 20° tilt for precise aiming
LEDiL Lens interchangeable to achieve low glare, wall washing or other lighting effects
Wattage selectable: 5W/7W/9W/12W
5CCT-adjustable and compatible with TRIAC dimmer
High-efficiency Bridgelux LED, CRI > 90+ for true color rendering
Optional Driver: 0-10V dimmable / Smart RGBCW

Product Specifications

Parameter	Specification Details
Model	KG3S-ABA
Power	5W/7W/9W/12W selectable
Input voltage	120V-277V AC 50/60 Hz
CCT	5CCT (2700K/3000K/3500K/4000K/5000K) adjustable
Beam Angle	Adjustable beam 20°/36°/60°
CRI	>90+
Power Factor	>0.9
Air Tight	Yes
Dimension	φ110*H100mm
Cut Hole	90mm
Finish	White/Black/Bronze

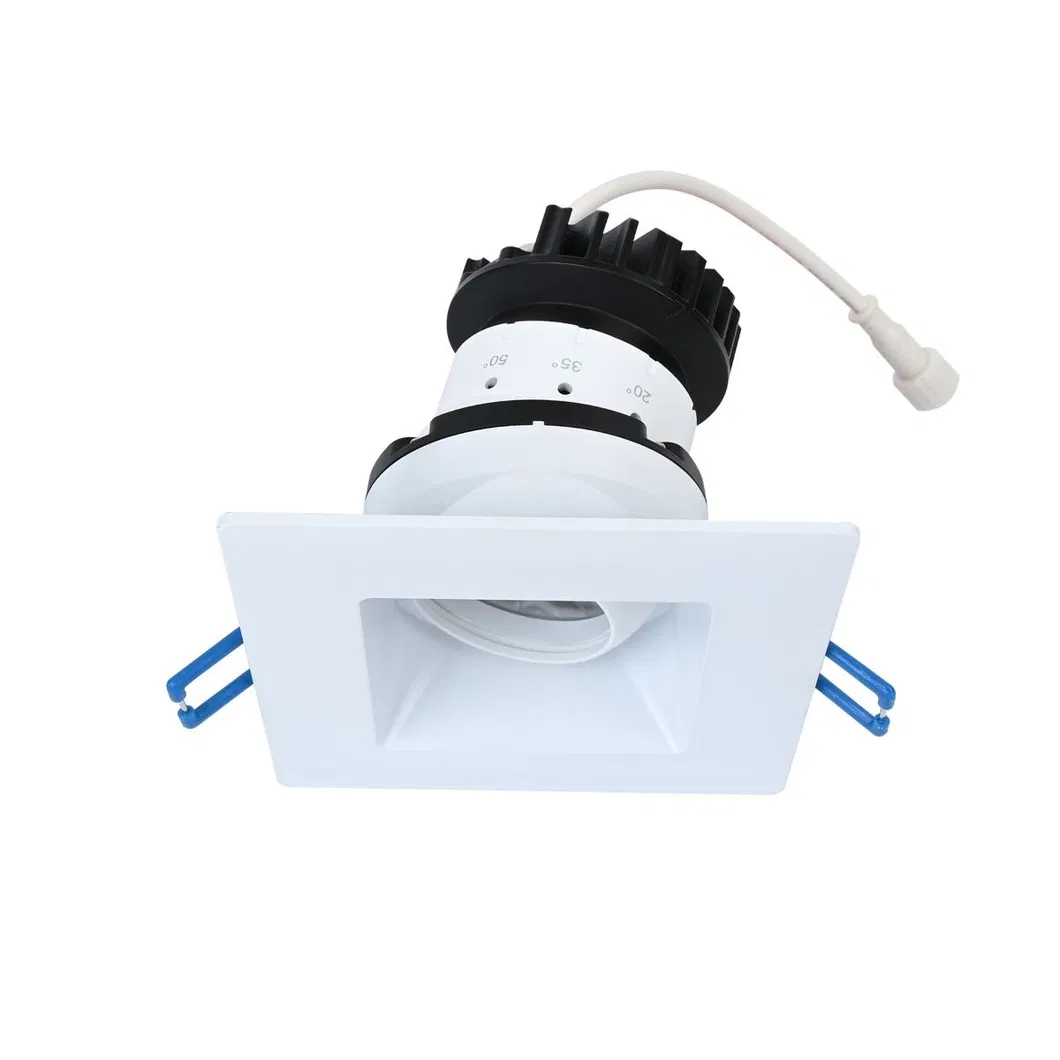

Detailed Photos

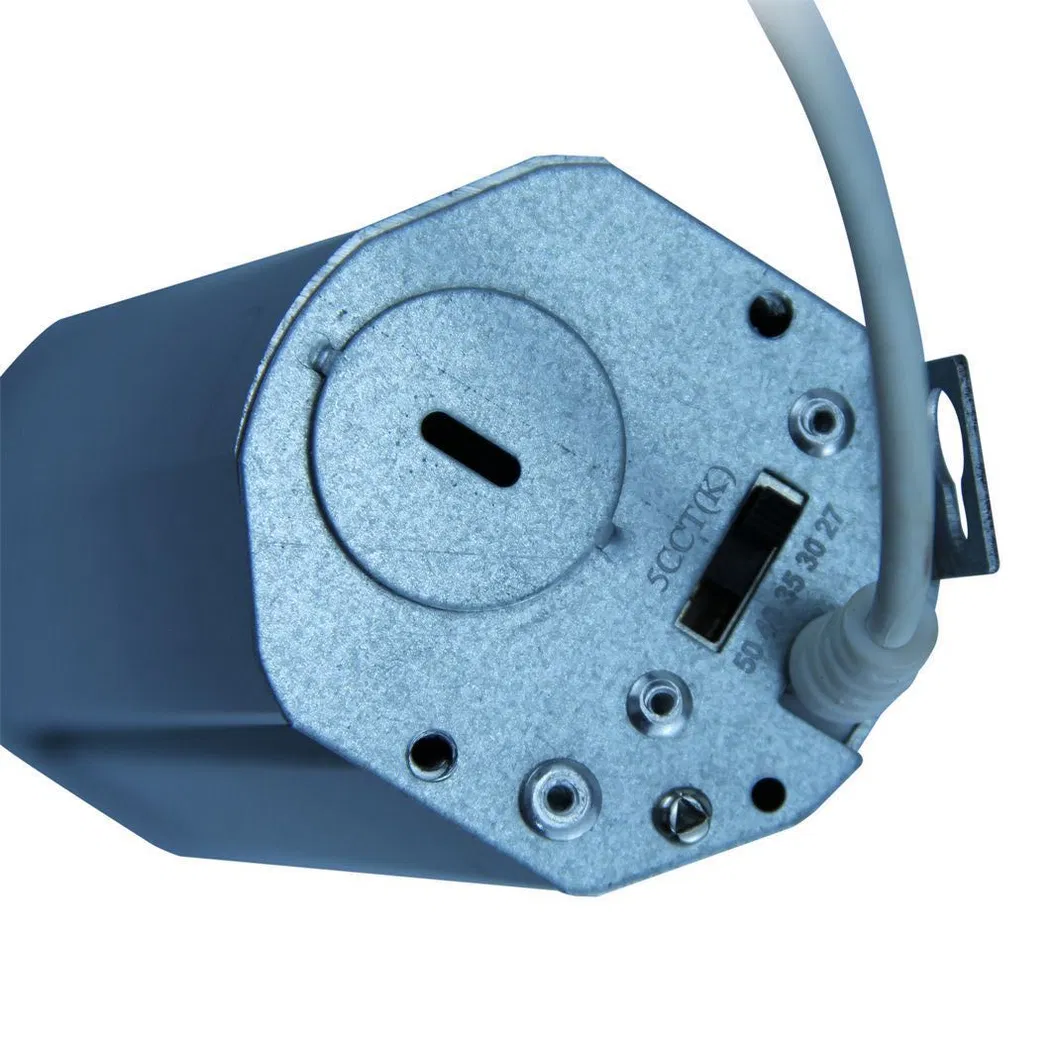

5CCT selectable

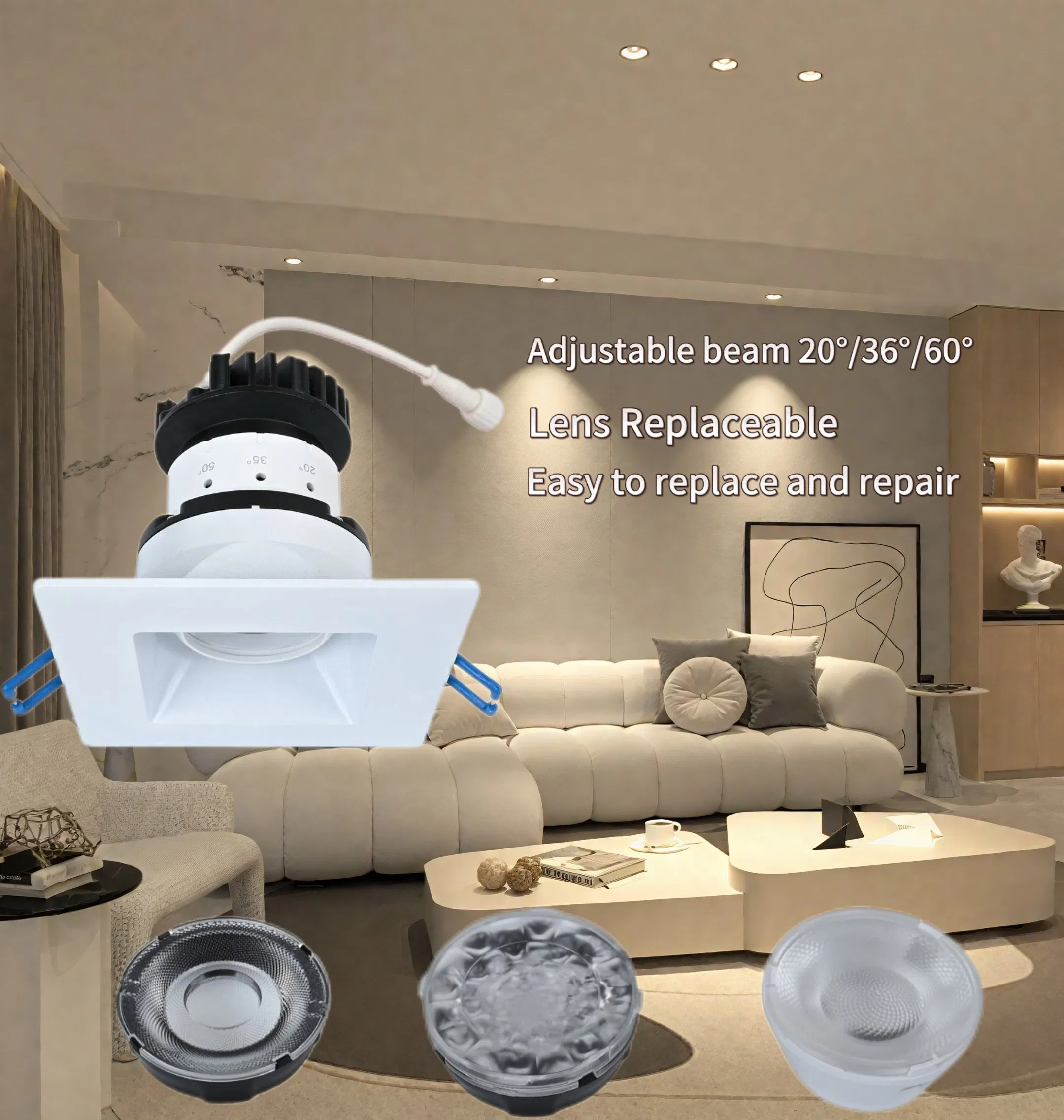

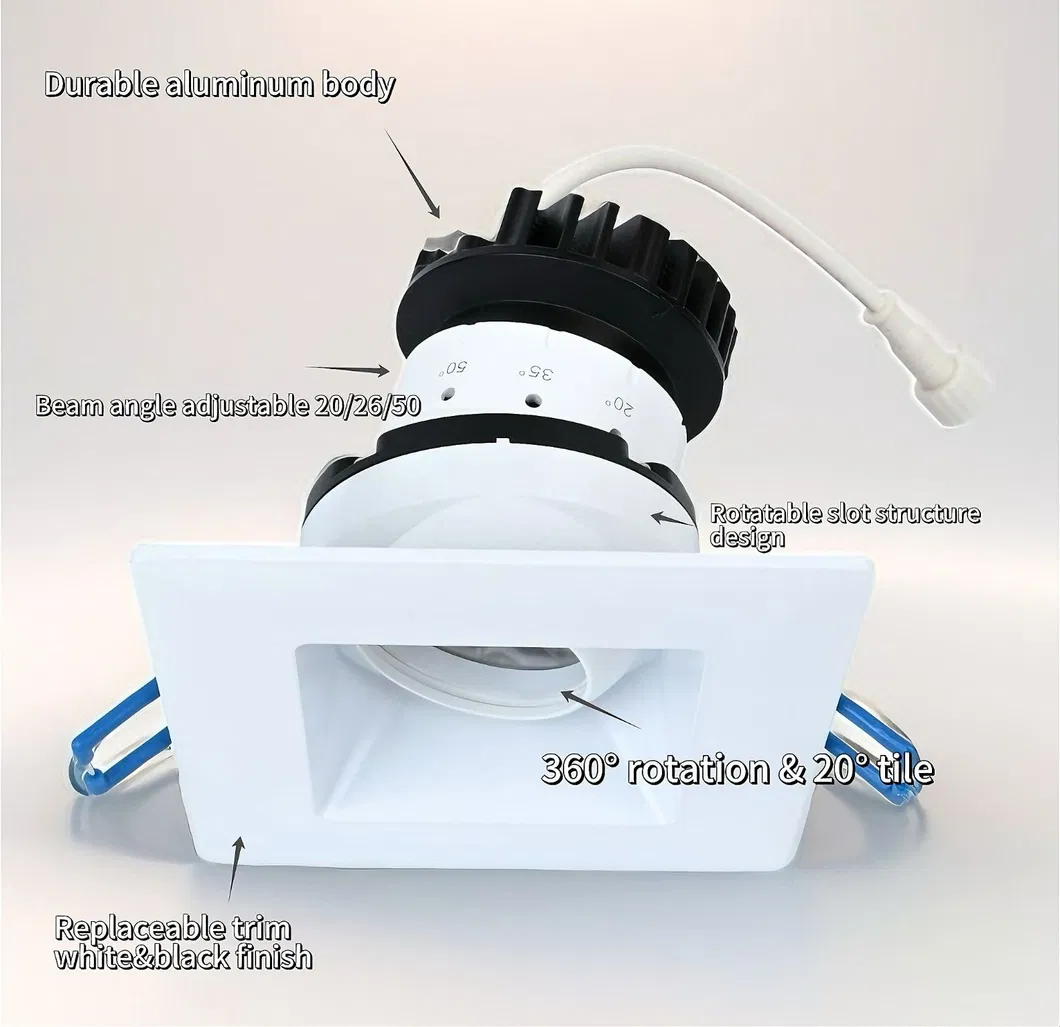

20° / 36° / 60° Adjustable Beam Angles

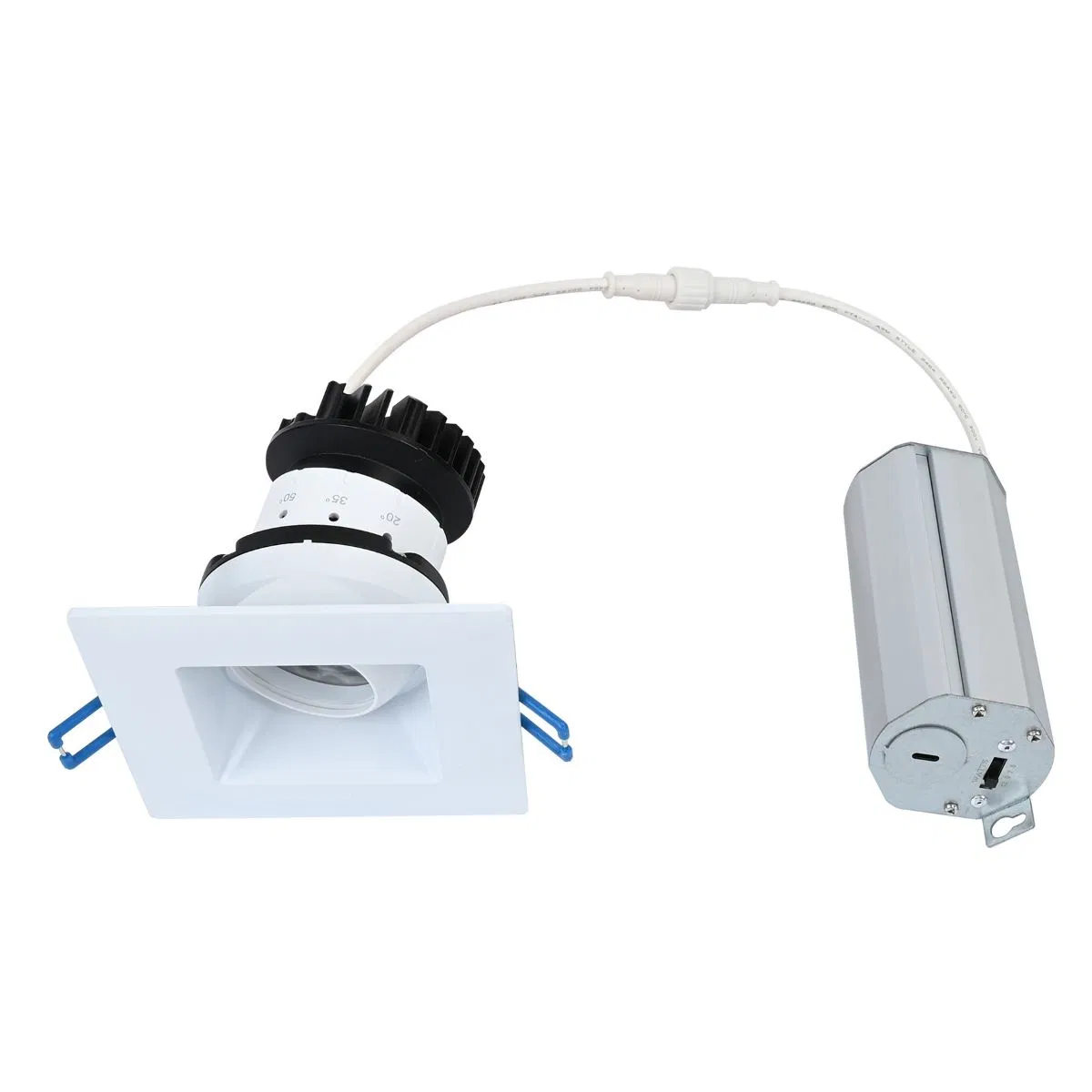

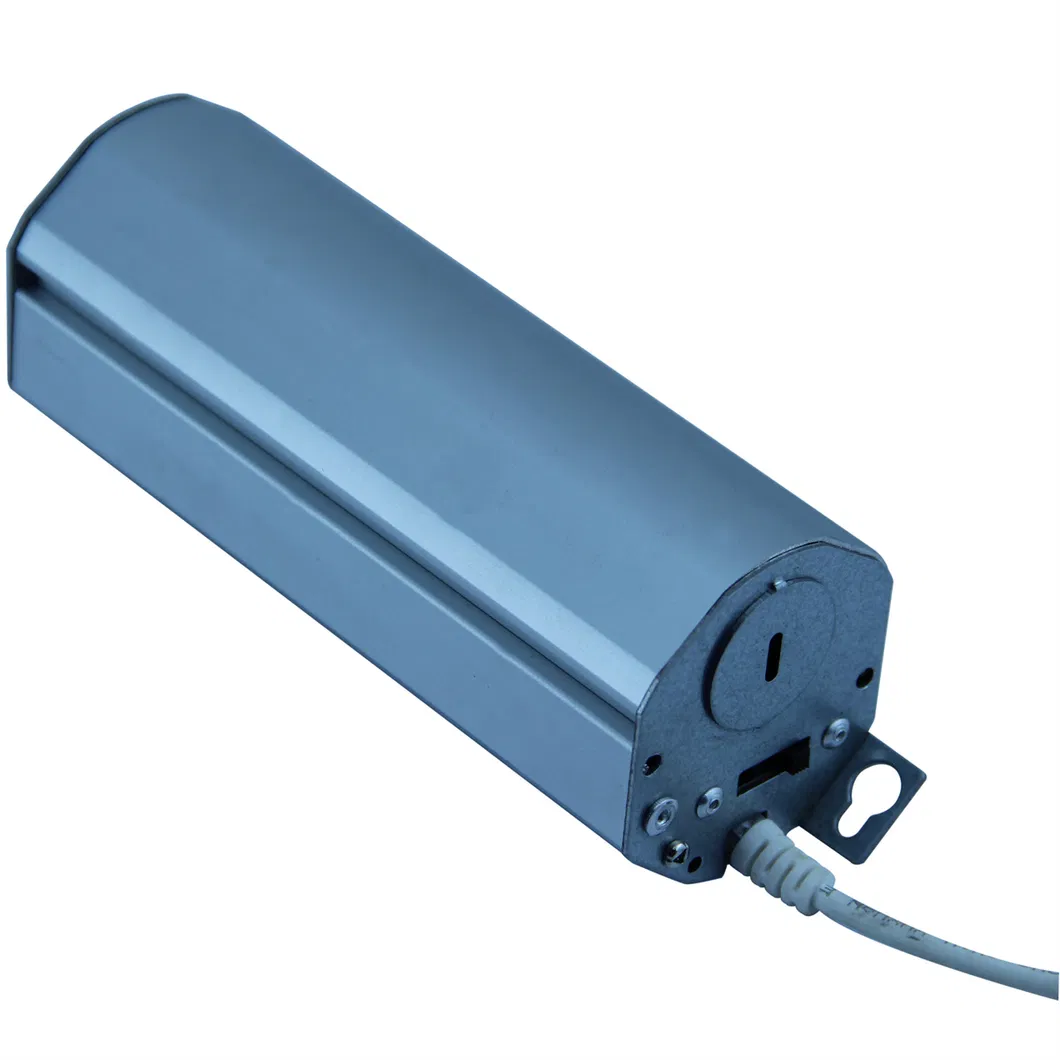

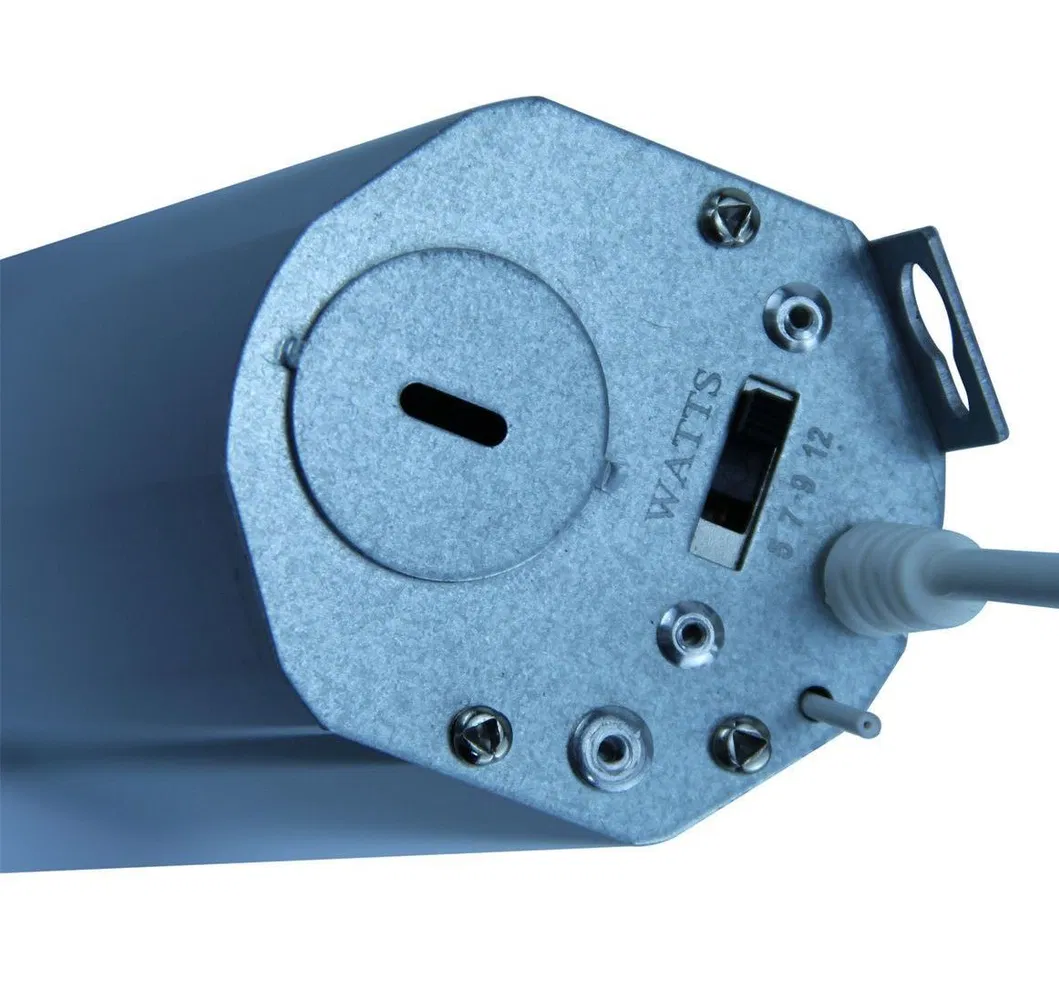

Driver Inside Connection Box - No Junction Box Required | 5W/7W/9W/12W Selectable | 5CCT Adjustable 27K/30K/35K/40K/50K

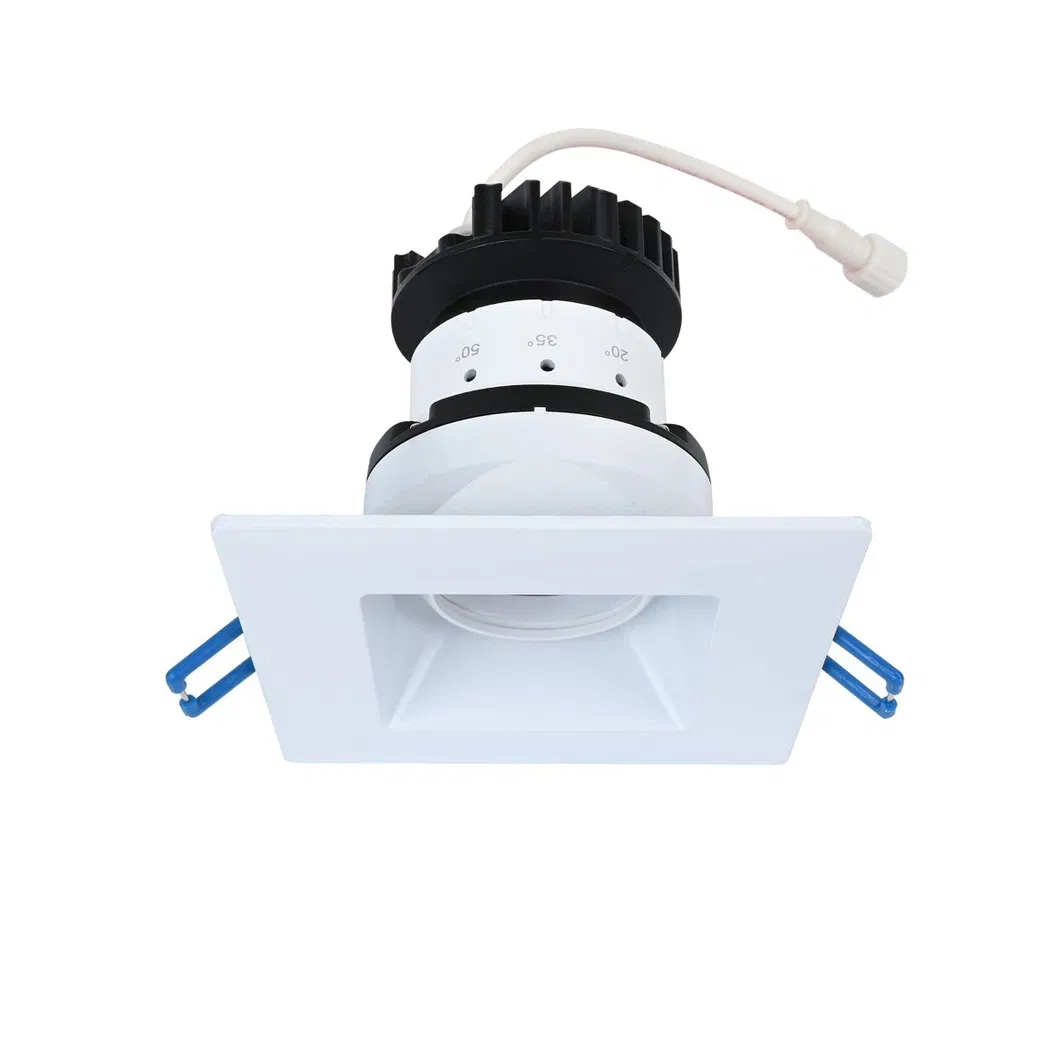

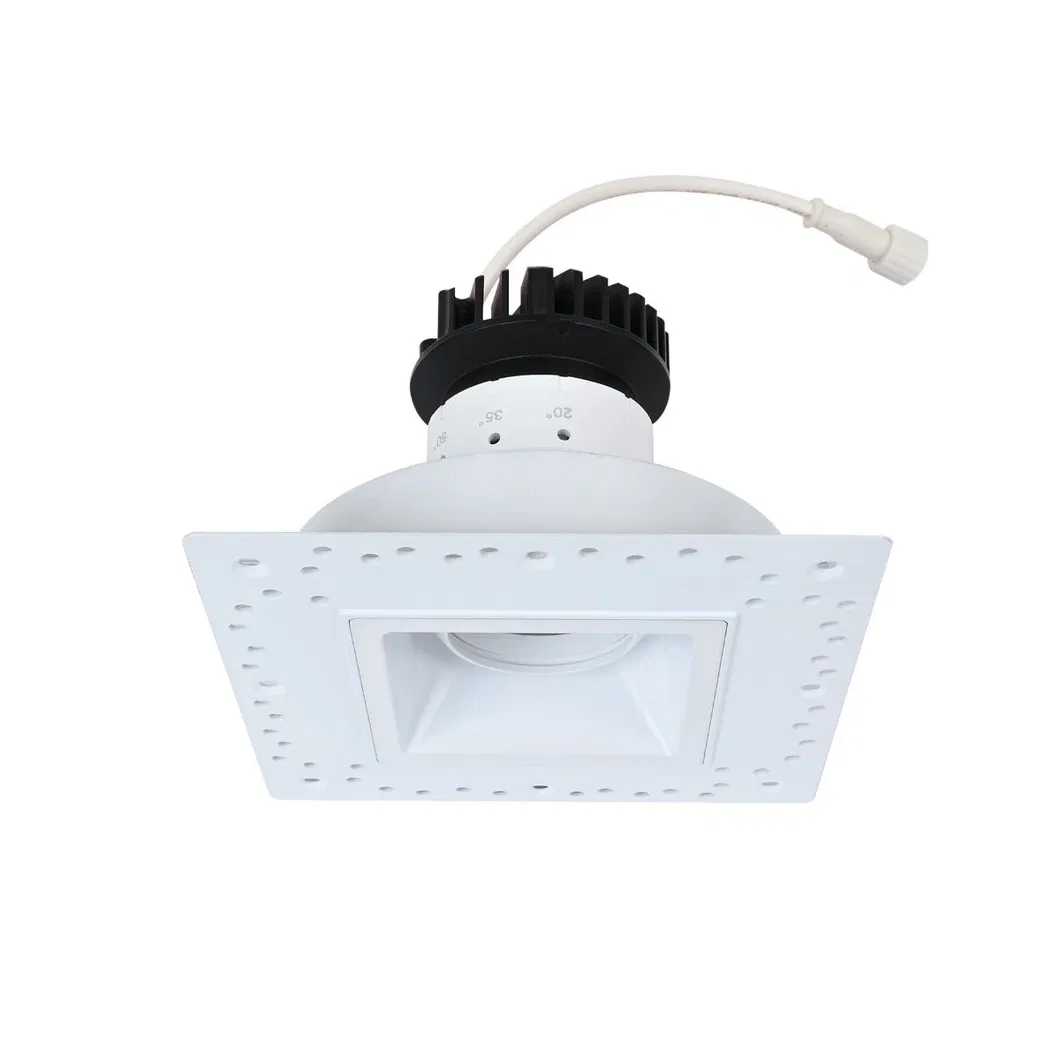

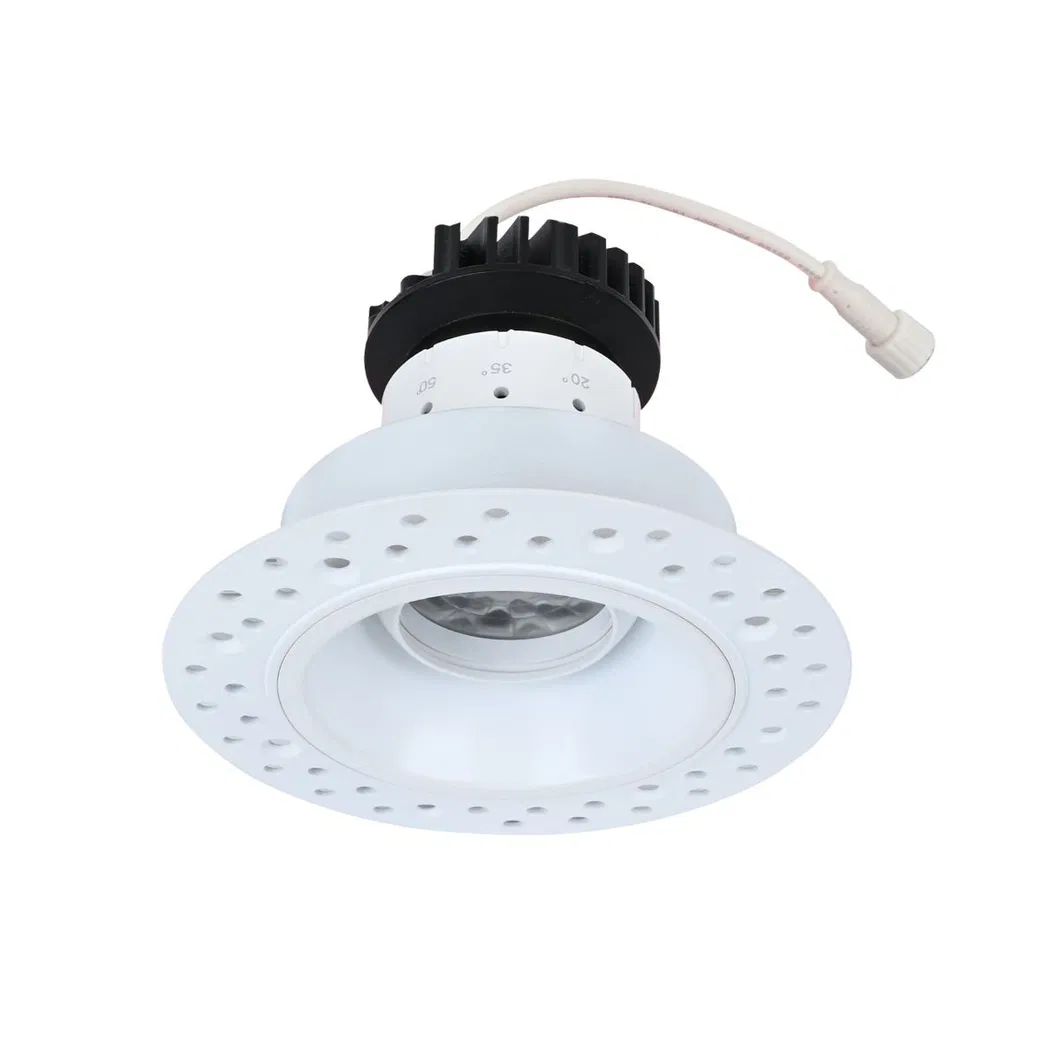

Related Products

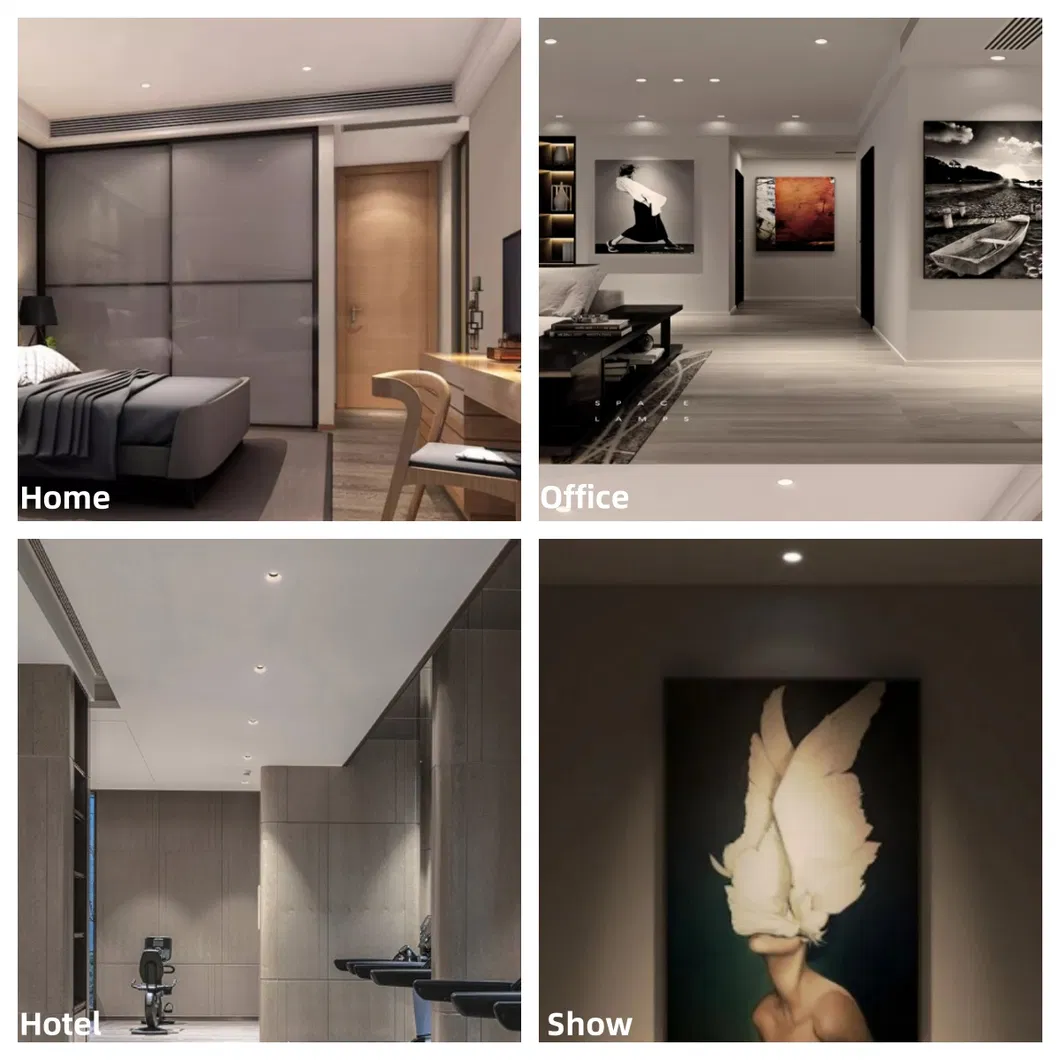

Applications

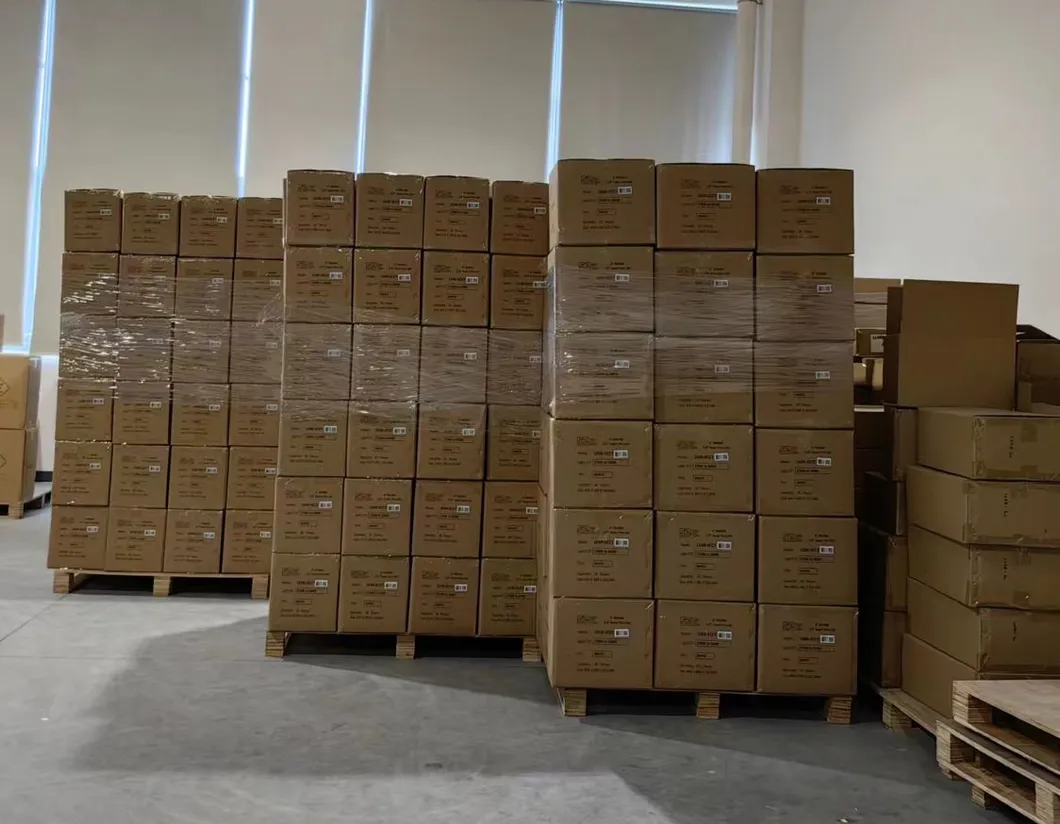

Packaging & Shipping

Cardbox package is hard enough for long distance transportation, and we offer a wide range of logistics options: world express, by sea, air, or land transportation.

Company Profile

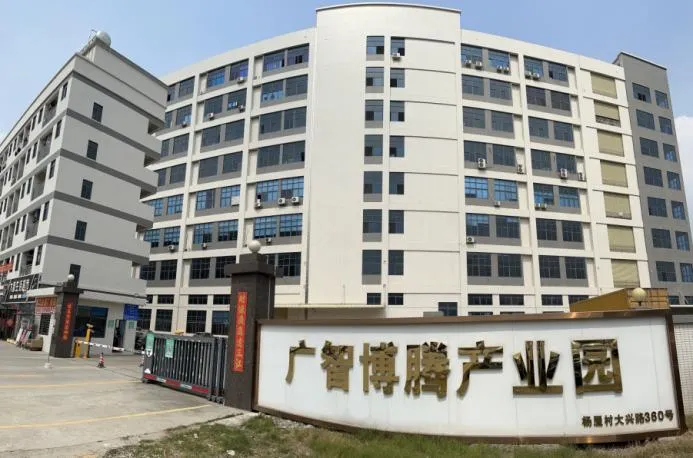

We are a professional LED lighting manufacturer since 2014, operating a production facility covering 4,200 square meters. Having cooperated with leading retailers in North America for over 10 years, you can trust us to provide high-quality lighting products and tailored engineering solutions for your business.

Production

We operate our own hardware factory, power supplies R&D center, and workshops equipped with advanced manufacturing facilities including auto soldering, SMT, die-casting, CNC laser machines, and electrical testing devices. Over 10 low-voltage aging lines support a monthly capacity of 500,000pcs.

R&D Team

We are dedicated to developing cutting-edge products. Our team of over 10 experienced R&D engineers specializes in industrial design, circuitry, electrical drivers, optics, and light control systems. Most designs feature private molds and carry ETL, TUV, CE, and RoHS certifications.

Q&C Control

Our professionally trained QC team enforces strict ISO9001 quality management processes. Using advanced testing equipment for electronic, optical, waterproofing, and anti-corrosion metrics, we conduct comprehensive inspections and subject all products to a minimum 48-hour aging process.

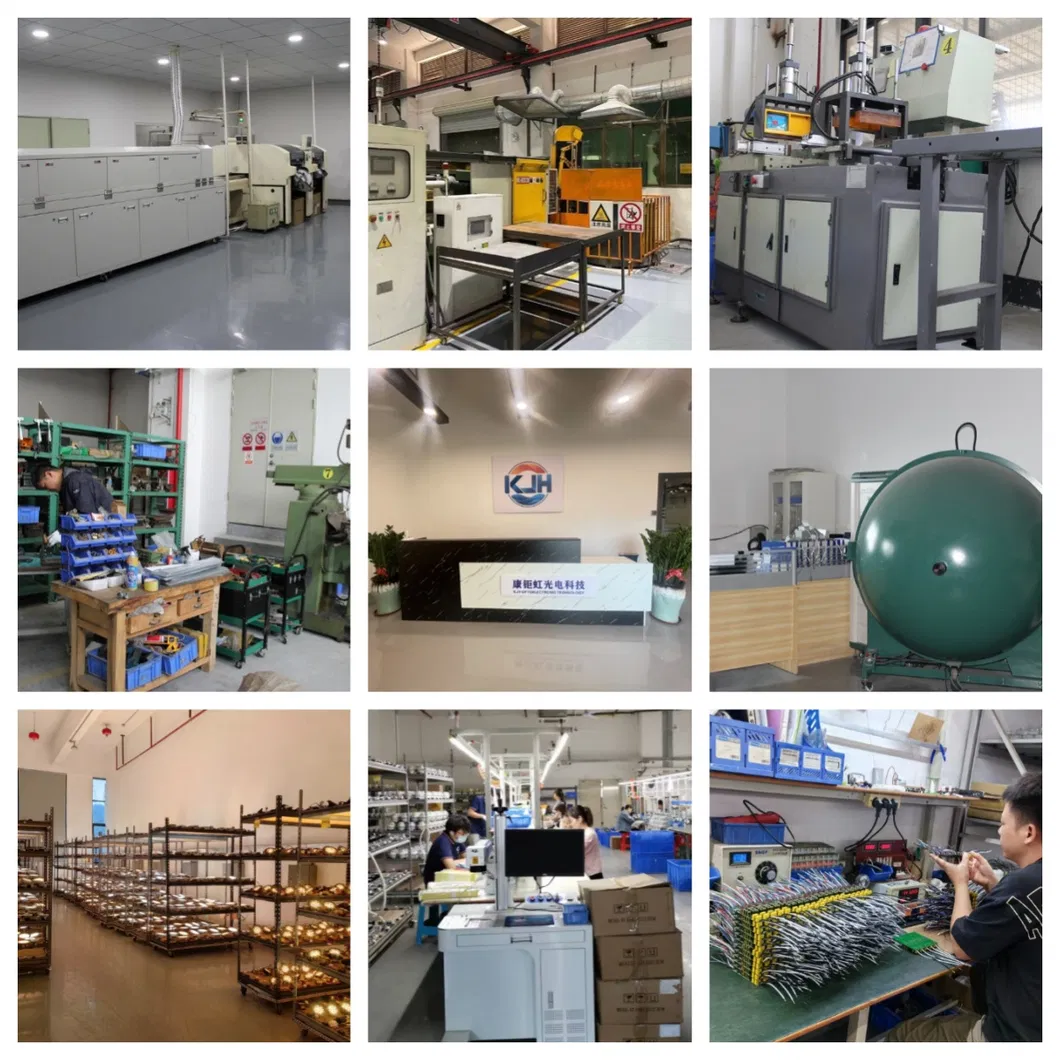

Factory Show

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we have our own fully integrated manufacturing facility with comprehensive production lines.

2. Can you provide product samples?

Yes, sample orders are welcome to test and verify our product quality before placing bulk orders.

3. What is the standard production lead time?

For smaller quantities, production typically takes 5-7 days. The final lead time is determined based on the specific requirements and quantity of your order.

4. Do all products undergo testing before shipping?

Yes, we perform a minimum of 48 hours of continuous aging and quality control testing on all products to ensure an exceptionally low failure rate.

5. What packaging options are available?

We pack our products in robust, neutral cartons engineered to withstand long-distance international transportation. Delicate items are reinforced with wooden crates when necessary.

6. How are after-sales issues resolved?

Please document the issue by taking photos or videos and sending them to us. Once verified, we will provide you with a satisfactory resolution or replacement within 24 hours.
