Basic Info
Transport Package
Carton Package
Specification
30 pcs per carton
Trademark
Goeser or OEM brand
Production Capacity
500000 Per Month

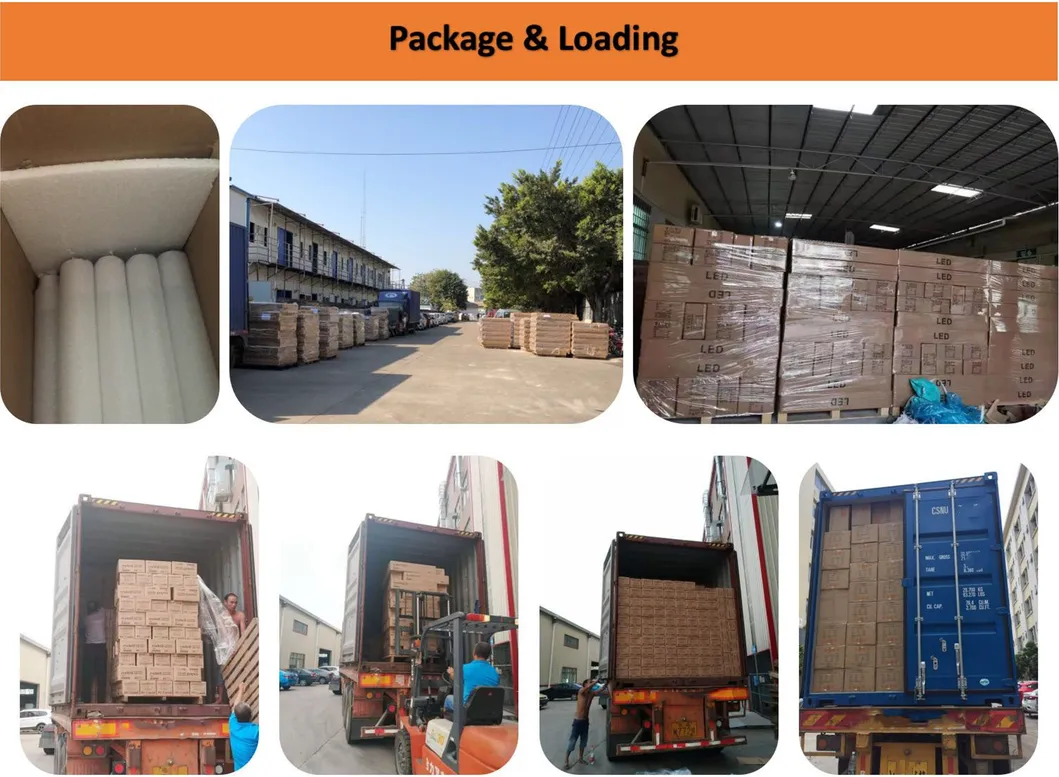

Packaging & Delivery
Package Size
62.00cm * 25.00cm * 20.00cm
Package Gross Weight
0.500kg
Product Description

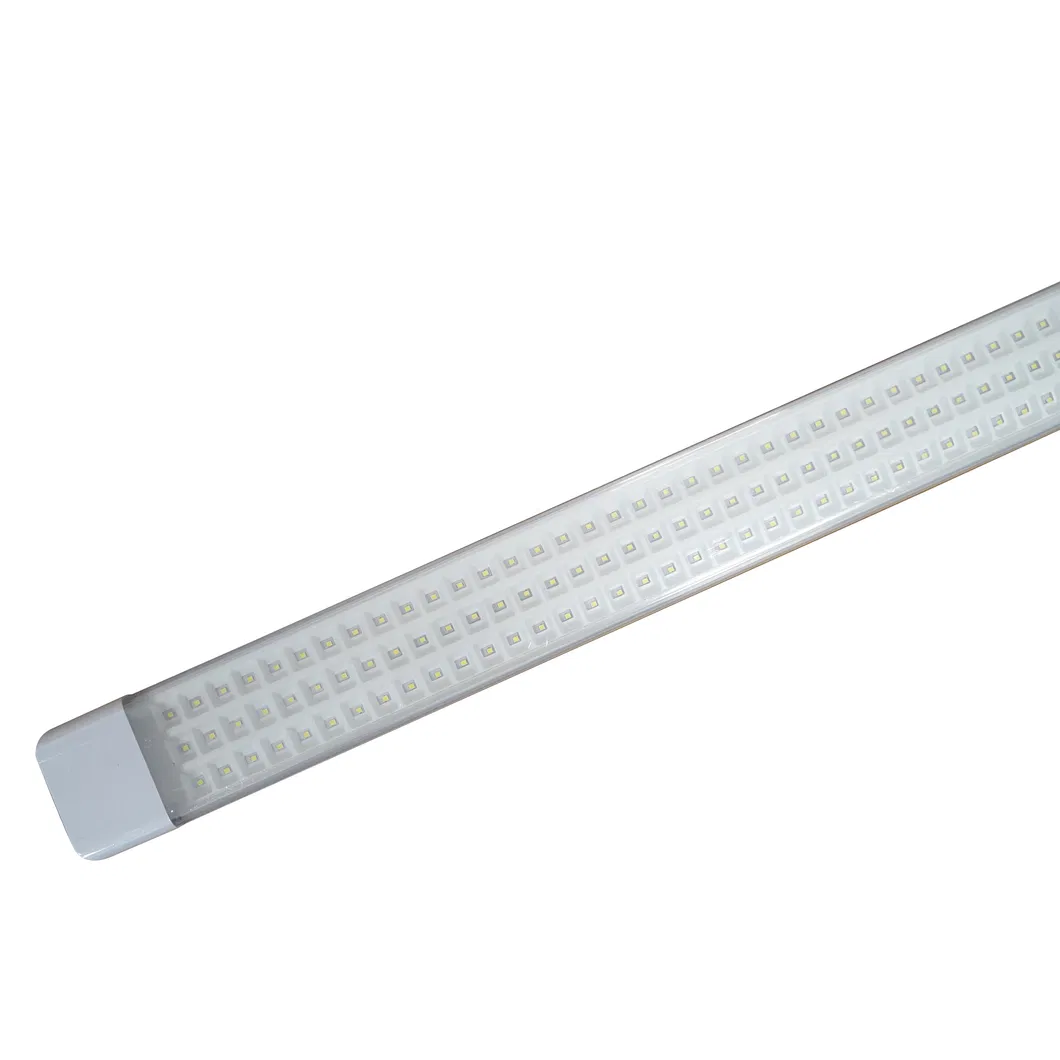

Best Sales Products
- LED Tube light
- LED Linear batten
- LED tri-proof light (water proof)
- LED panel light
- LED down light
Product Features
- Iron and PC body, efficient heat dissipating, enable a long-life time to the products.
- Energy saving: 90% savings compared to traditional incandescent tube, and 40%-50% compared to fluorescent tube.
- Long life with 180° beam angle.
- More environmentally friendly: No mercury lamp harmful substances, can be recycled to protect the green earth.

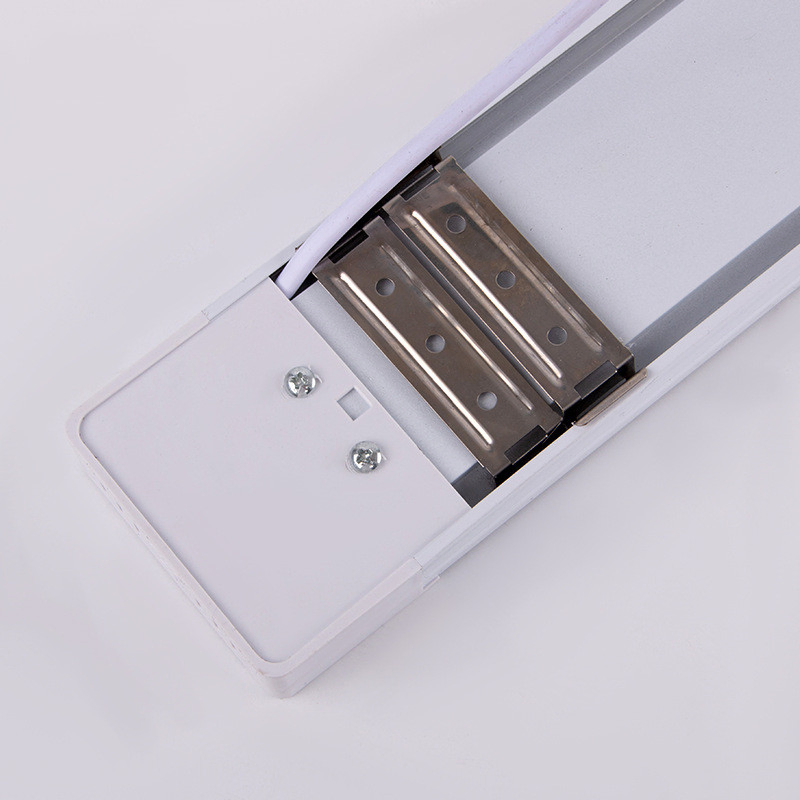

- Easy to install: surface-mounted to the ceiling or wall.
Application & Technical Parameters

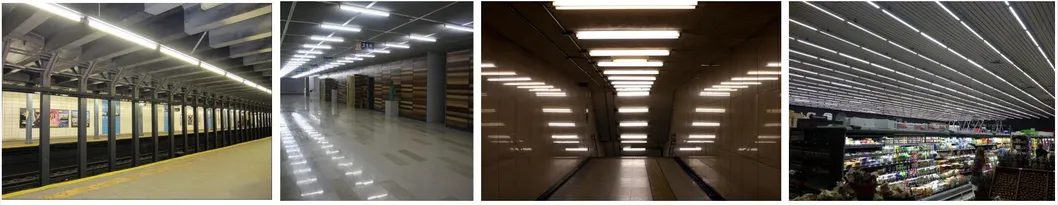

Application
For all indoor dry locations
Material
Iron body + PC cover
Power Options
20w, 40w, 60w, 80w, 100w, 120w
CCT
3000K / 4000K / 6500K / 7000K
Dimensions
L600*63mm / L1200*63mm
Parameter of Full set of LED Linear tube Iron body (LED batten tube)
| Product series |
Material (Base) |
Life Span (H) |
Material (Diffuser) |
Power (W) |
Voltage (V) |
Light source |
RA |
Beam Angle |
Size (mm) |
| LED Linear tube W63 |
PC+ iron |
15000hrs |
PC+Al |
54W |
165V-265V |
LED 2835/96*2 |
>=70 |
180° |
L1200*W63*H25 |
| PC+ iron |
15000hrs |
PC+Al |
40W |
165V-265V |
LED 2835/72*2 |
>=70 |
180° |
L900*W63*H25 |
| PC+ iron |
15000hrs |
PC+Al |
28W |
165V-265V |
LED 2835/48*2 |
>=70 |
180° |
L600*W63*H25 |
| LED Linear tube W75 |
PC+ iron |
15000hrs |
PC+Al |
75W |
165V-265V |
LED 2835/96*3 |
>=70 |
180° |
L1200*W75*H25 |
| PC+ iron |
15000hrs |
PC+Al |
56W |
165V-265V |
LED 2835/72*3 |
>=70 |
180° |
L900*W75*H25 |
| PC+ iron |
15000hrs |
PC+Al |
38W |
165V-265V |
LED 2835/48*3 |
>=70 |
180° |
L600*W75*H25 |
| LED Linear tube W100 |
PC+ iron |
15000hrs |
PC+Al |
100W |
165V-265V |
LED 2835/96*4 |
>=70 |
180° |
L1200*W100*H25 |
| PC+ iron |
15000hrs |
PC+Al |
75W |
165V-265V |
LED 2835/72*4 |
>=70 |
180° |
L900*W100*H25 |
| PC+ iron |
15000hrs |
PC+Al |
50W |
165V-265V |
LED 2835/48*4 |
>=70 |
180° |
L600*W100*H25 |

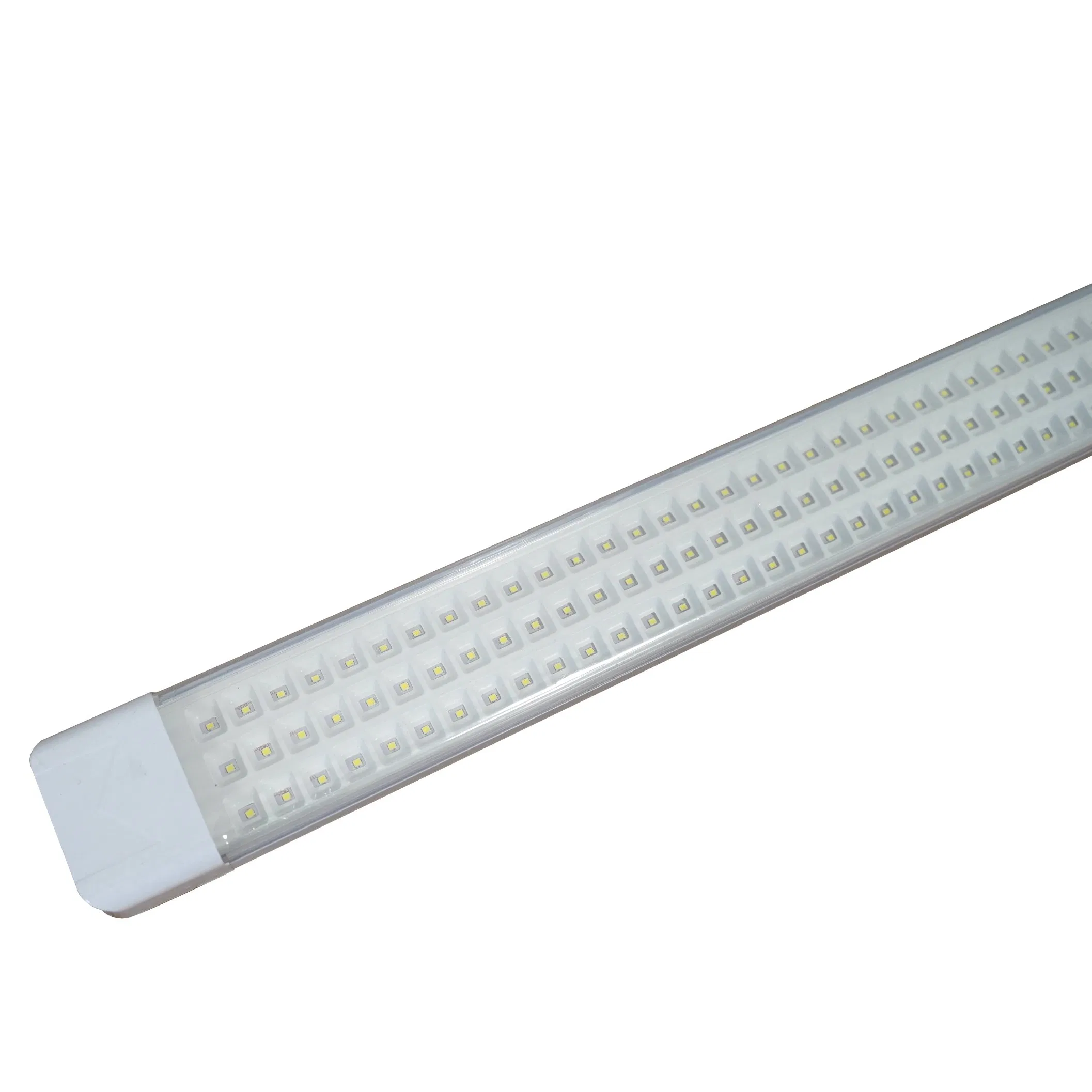

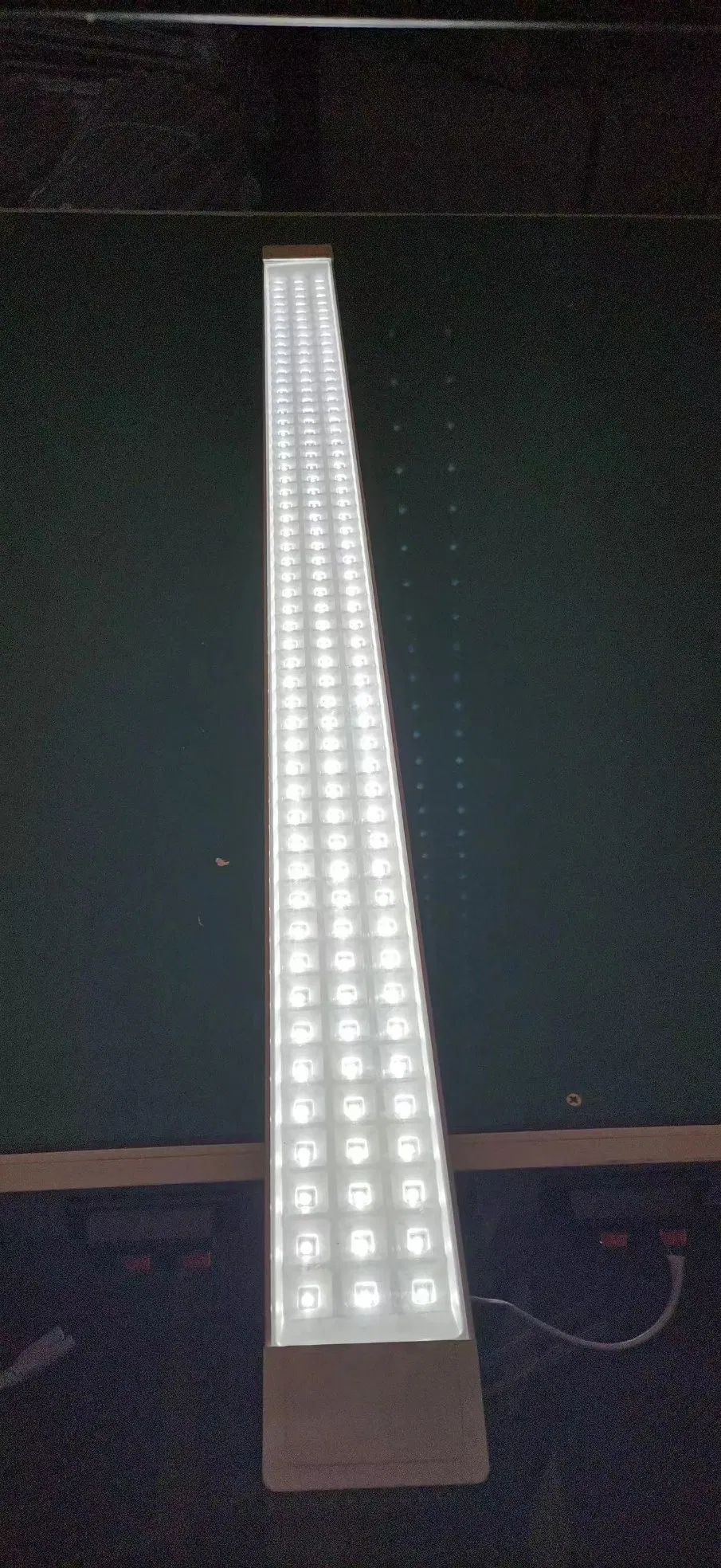

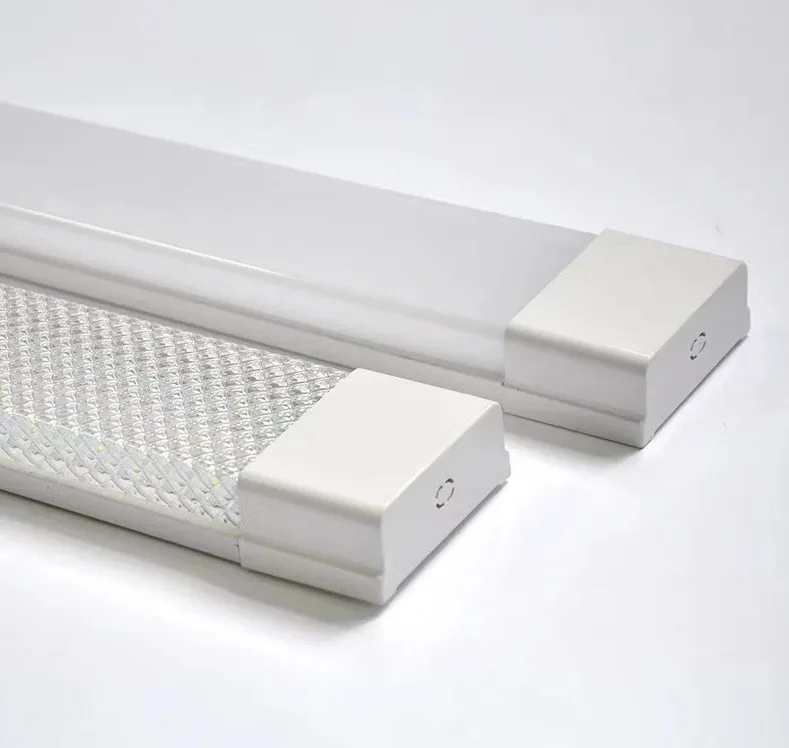

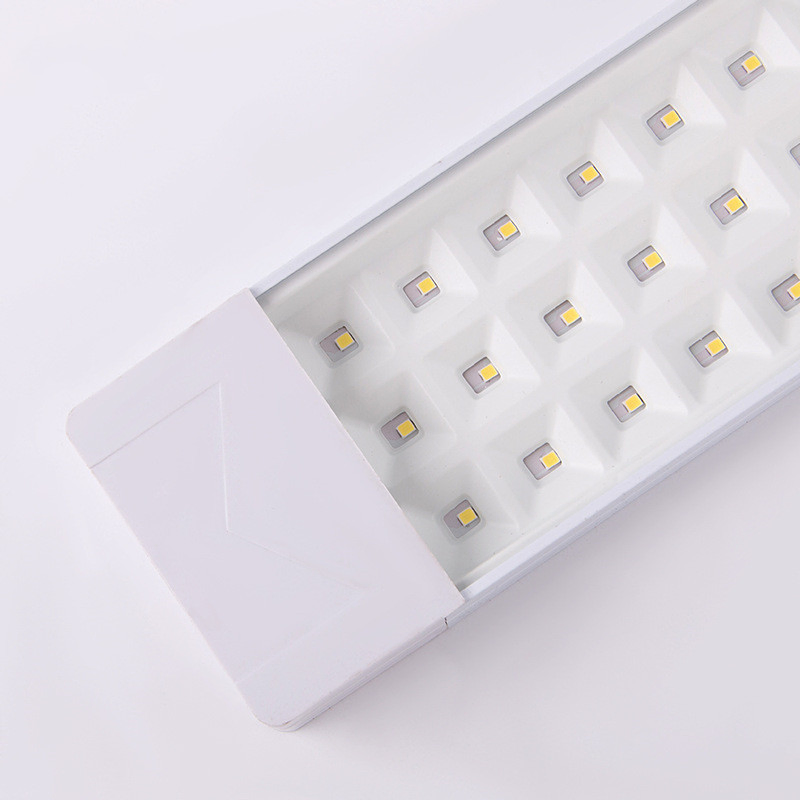

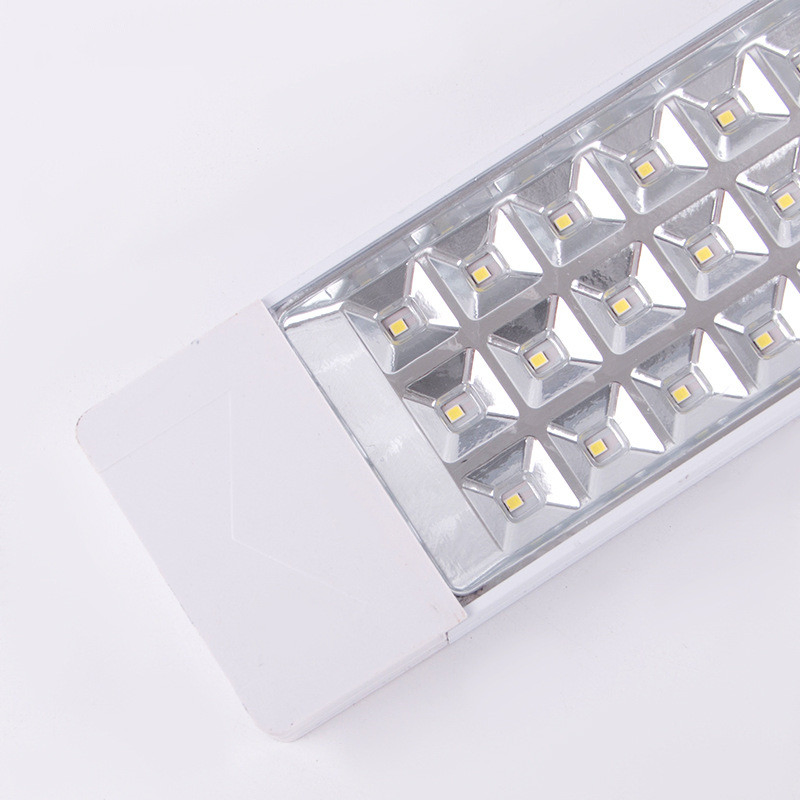

Product Images

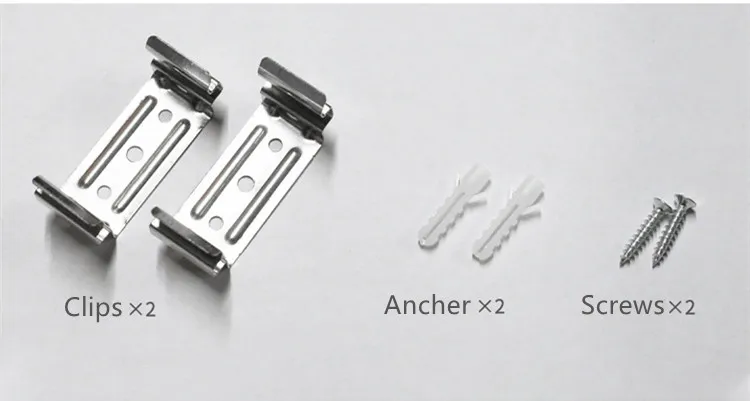

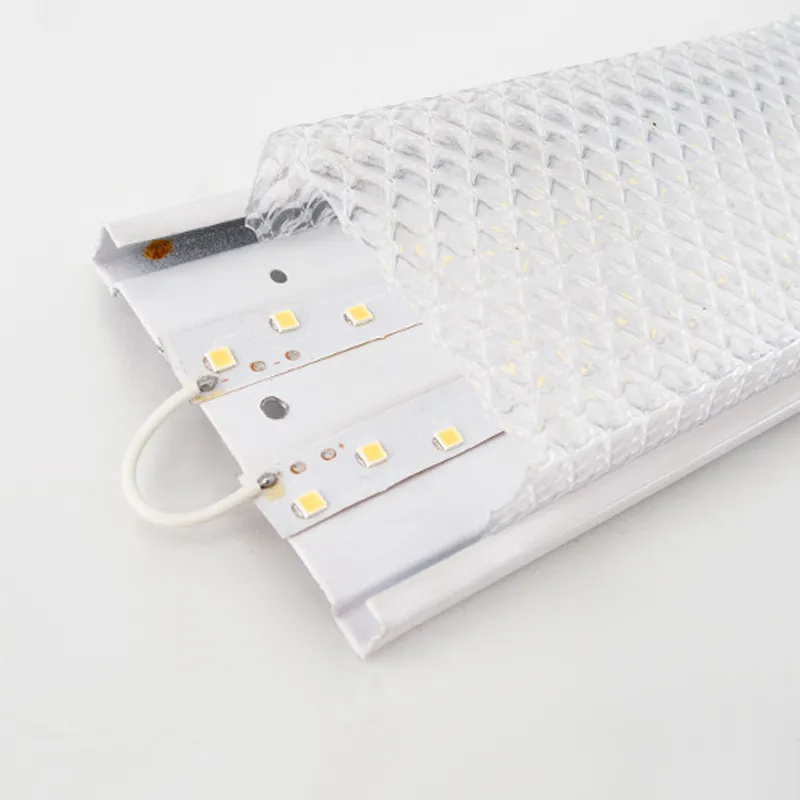

S.K.D Delivery Available
To support buyers and lower their import tax, S.K.D (Semi-Knocked Down) delivery options are available.

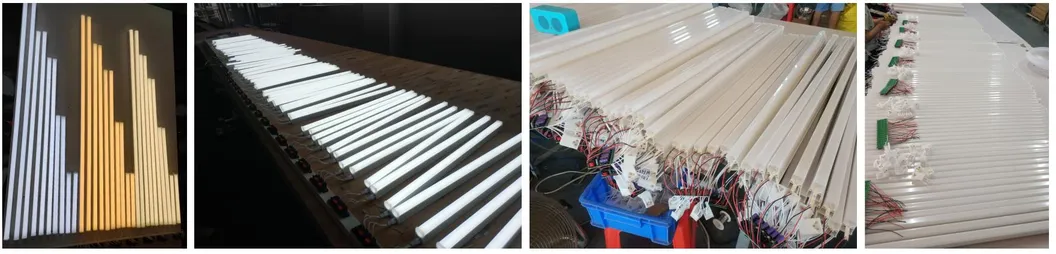

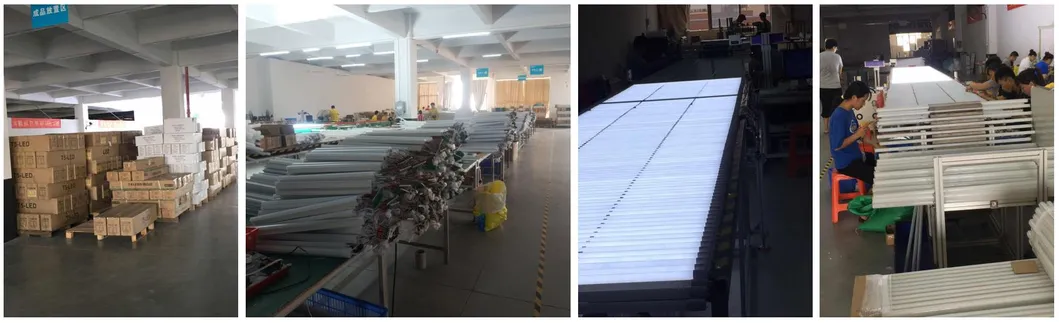

Views of Factory and Production Line
Frequently Asked Questions (FAQ)
What is the IP rating of these LED Linear Lights?
These LED Linear Lights carry an IP20 rating, which makes them ideal for all indoor dry locations.
What warranty options are provided for this product?
The product is backed by a 2-year warranty option under basic terms, while specific series offer standard long-life protection.

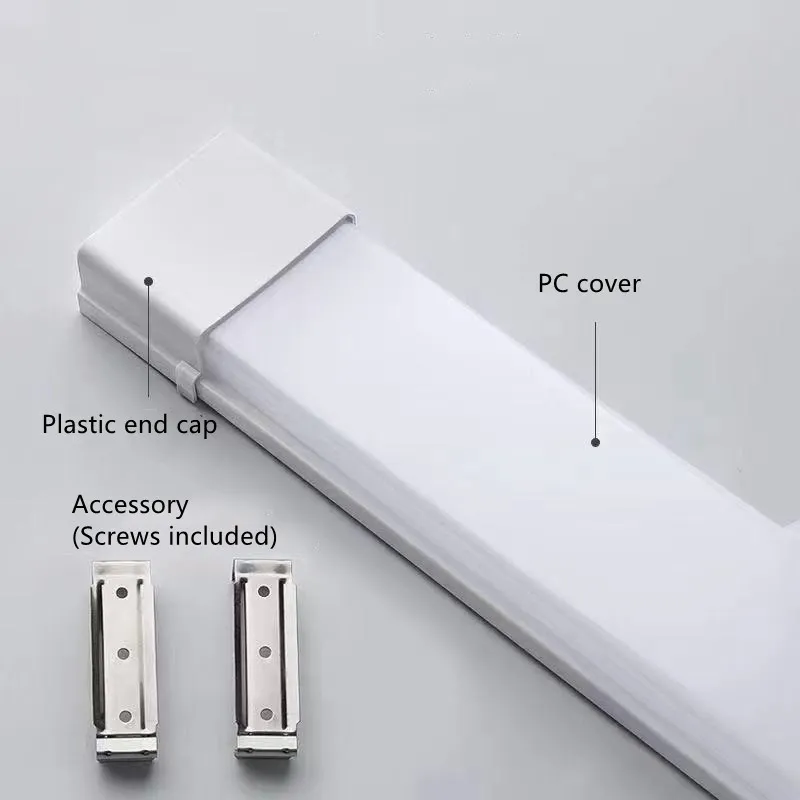

What materials are used for the structure of the light?
The body is built from a high-quality Iron base combined with a durable PC cover, designed for efficient heat dissipation.
Is S.K.D delivery supported for bulk importing?
Yes, we support S.K.D (Semi-Knocked Down) delivery options to help international buyers optimize logistics and reduce import taxes.
What color temperature (CCT) options are available?
We offer CCT variations including Warm White (3000K), Cool White (4000K), Daylight (6500K), and High Daylight (7000K).
What are the input voltage requirements?
The standard full sets support a wide voltage range of AC100-264V, with specific models optimized for AC165-265V.
