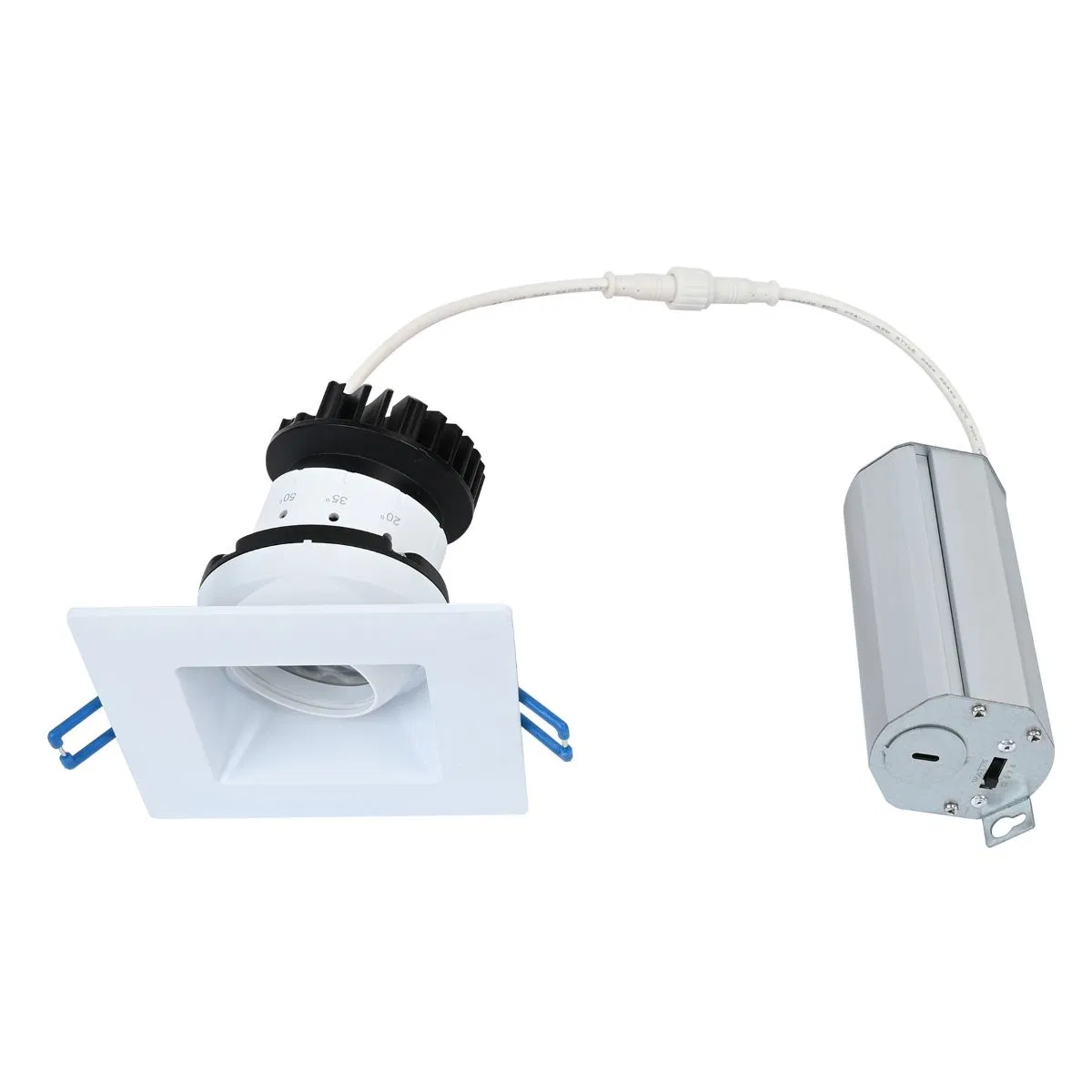

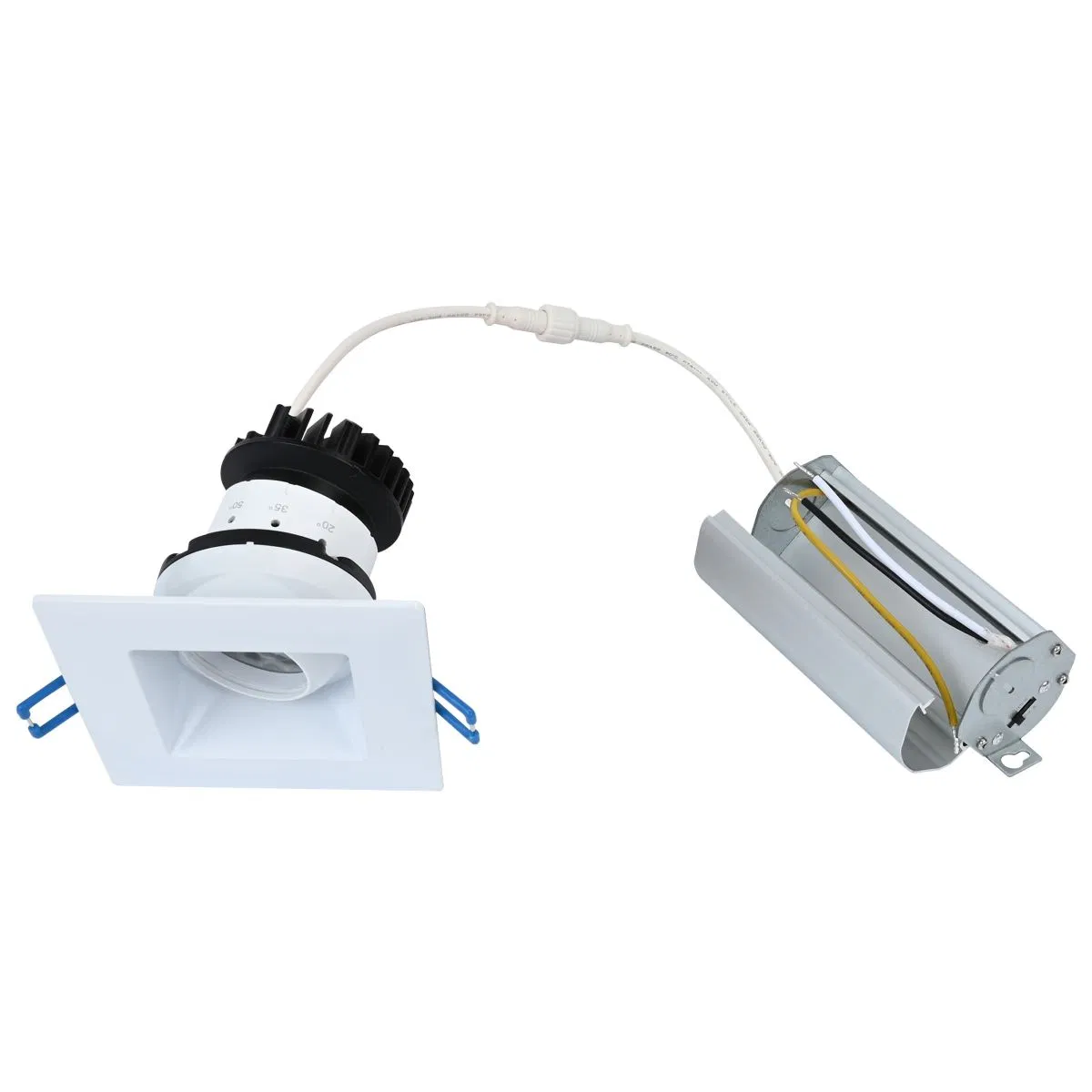

LED Smart Control 5CCT Adjustable Beam Angle Downlight Square Panel Light White Black for Indoor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO. KG3S-ABA
Power 5-12W
Color Temperature 5CCT
Lamp Body Material Aluminum
Source Number Single Plug
Installation Recessed
Switch Type Wall Switch
Warranty 5 Years
Application Home Furnishing
IP Rating IP54
Certification CE, EMC, Energy Star, ETL, FCC, LVD, RoHS
Watt 5-12W Adjustable
Color White/Black/Bronze
CCT 5CCT Adjustable
Cutout 90mm
Transport Package Box
Specification 20pcs/Ctn
Production Capacity 70,000 PCS/Month

Product Description

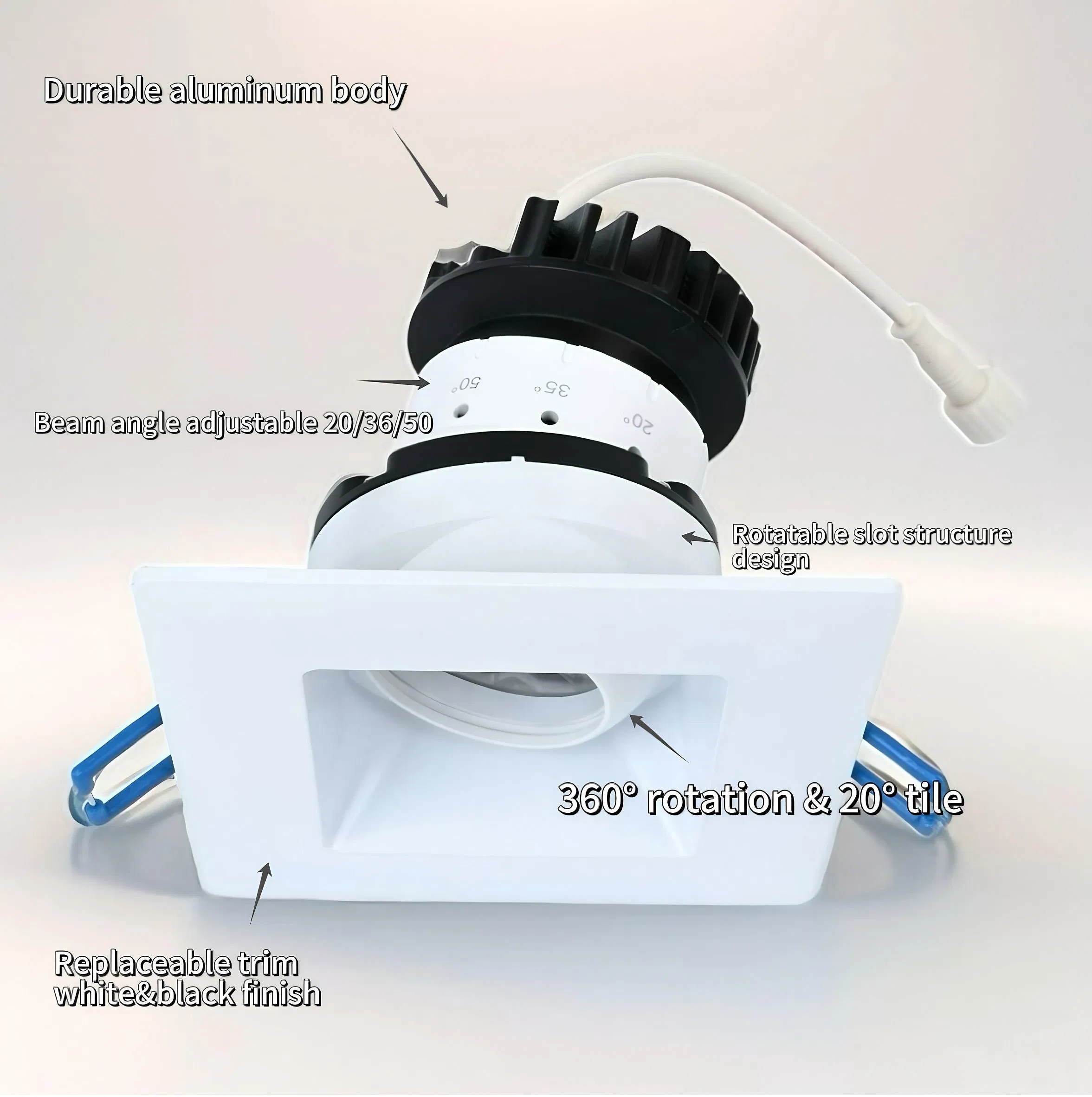

LED Smart Control 5CCT Adjustable Beam Angle Downlight

Our patent-pending adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angle adjustments between 20° and 50°. Featuring 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.

Key Features
Durable Aluminum body for excellent heat dissipation
Beam angle adjustable effortlessly between 20°-50°
360° rotation and 20° tilt for precise light aiming
LEDiL Lens interchangeable to achieve low glare, wall washing, or other lighting effects
Wattage selectable: 5W/7W/9W/12W
5CCT-adjustable and compatible with TRIAC dimmers
High-efficiency Bridgelux LED, CRI > 90+ for true color rendering
Optional Driver: 0-10V dimmable / Smart RGBCW
Technical Specifications
Model KG3S-ABA
Power 5W/7W/9W/12W selectable
Input Voltage 120V-277V AC 50/60 Hz
CCT 5CCT (2700K/3000K/3500K/4000K/5000K) adjustable
Beam Angle Adjustable beam 20°/36°/60°
CRI >90+
Power Factor >0.9
Air Tight Yes
Dimension φ110*H100mm
Cut Hole 90mm
Finish White/Black/Bronze

Detailed Photos

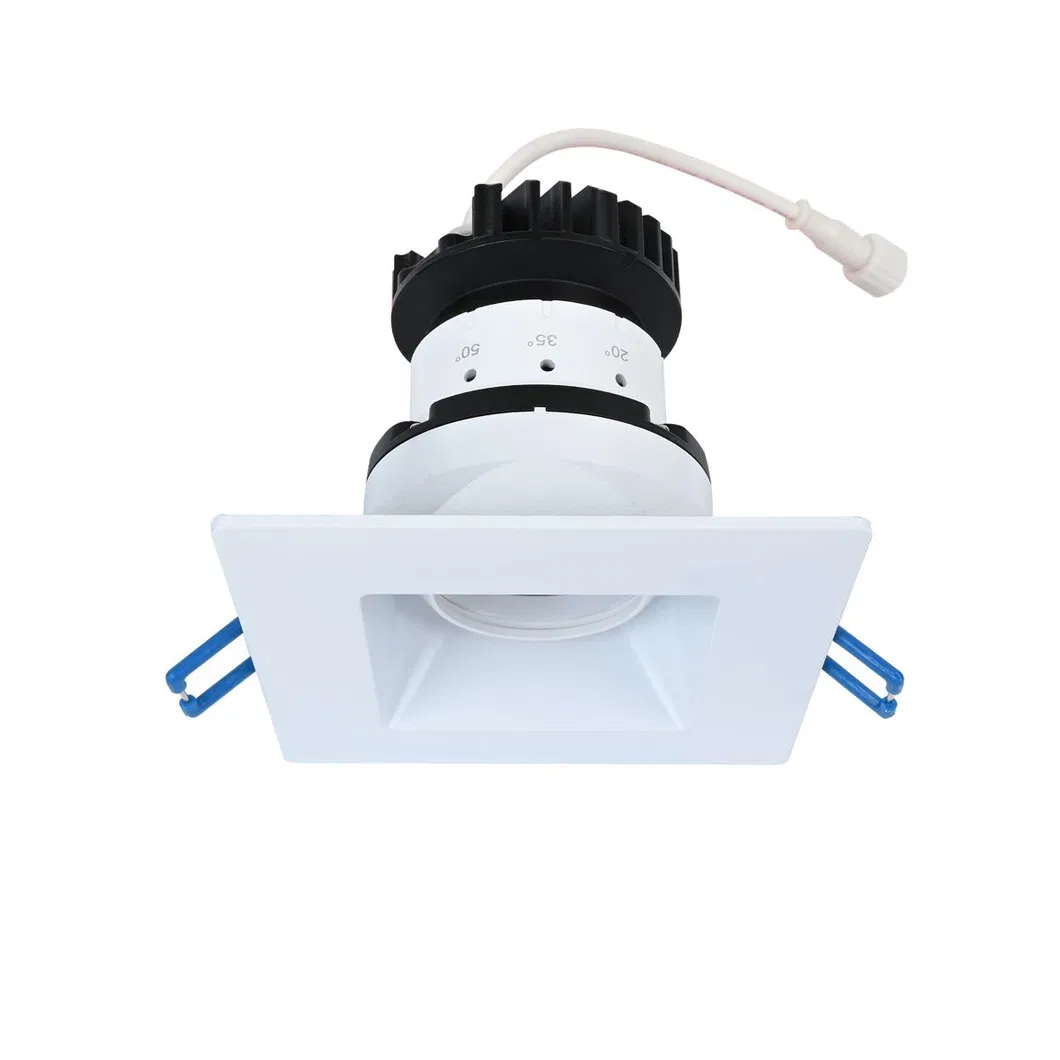

Detailed View 1

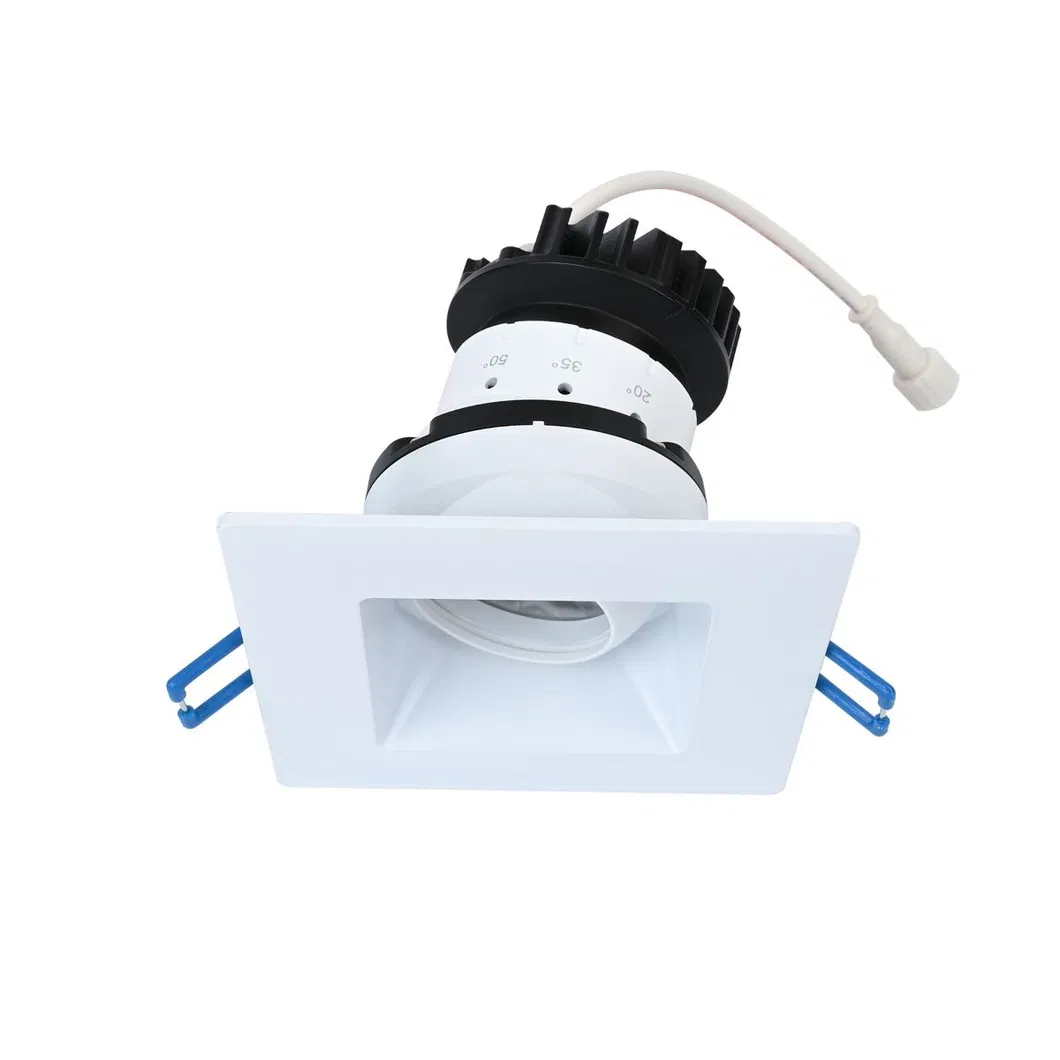

Detailed View 2

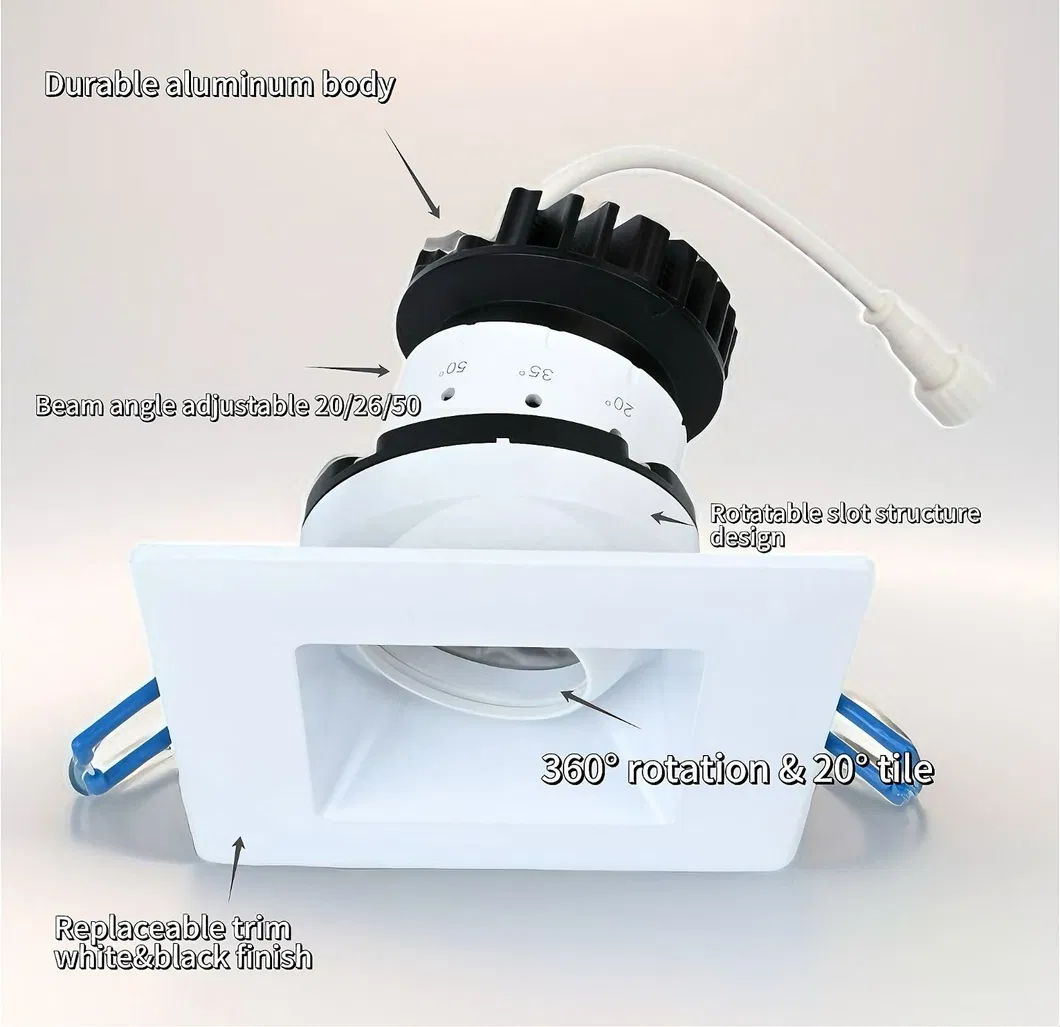

5CCT selectable downlight options

5CCT Selectable Color Temperature

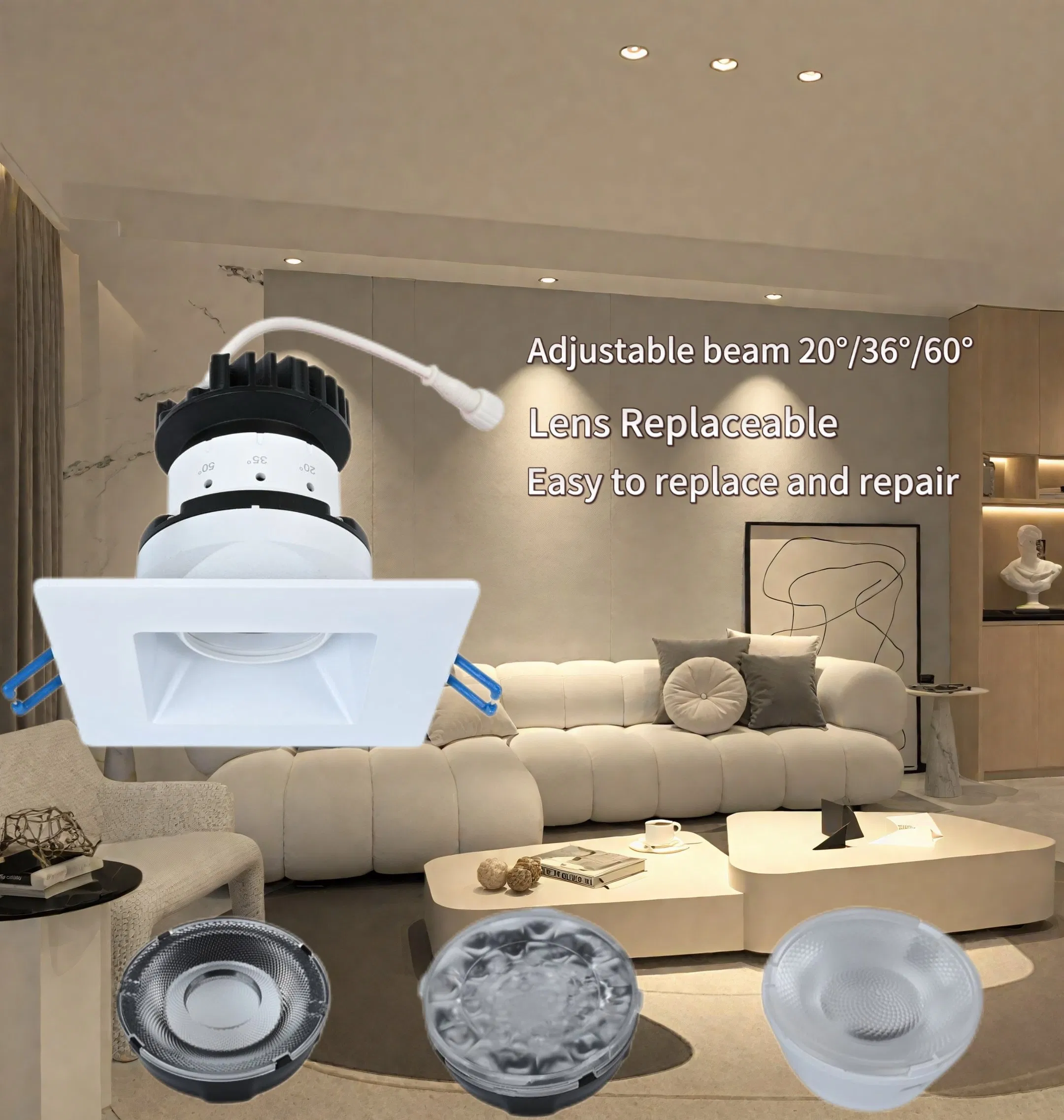

Beam Angle Options 20 36 60 degrees

Adjustable Beam Angles: 20° / 36° / 60°

Driver inside connection box details

Driver Inside Connection Box - No Junction Box (5W/7W/9W/12W Selectable & 5CCT Adjustable)

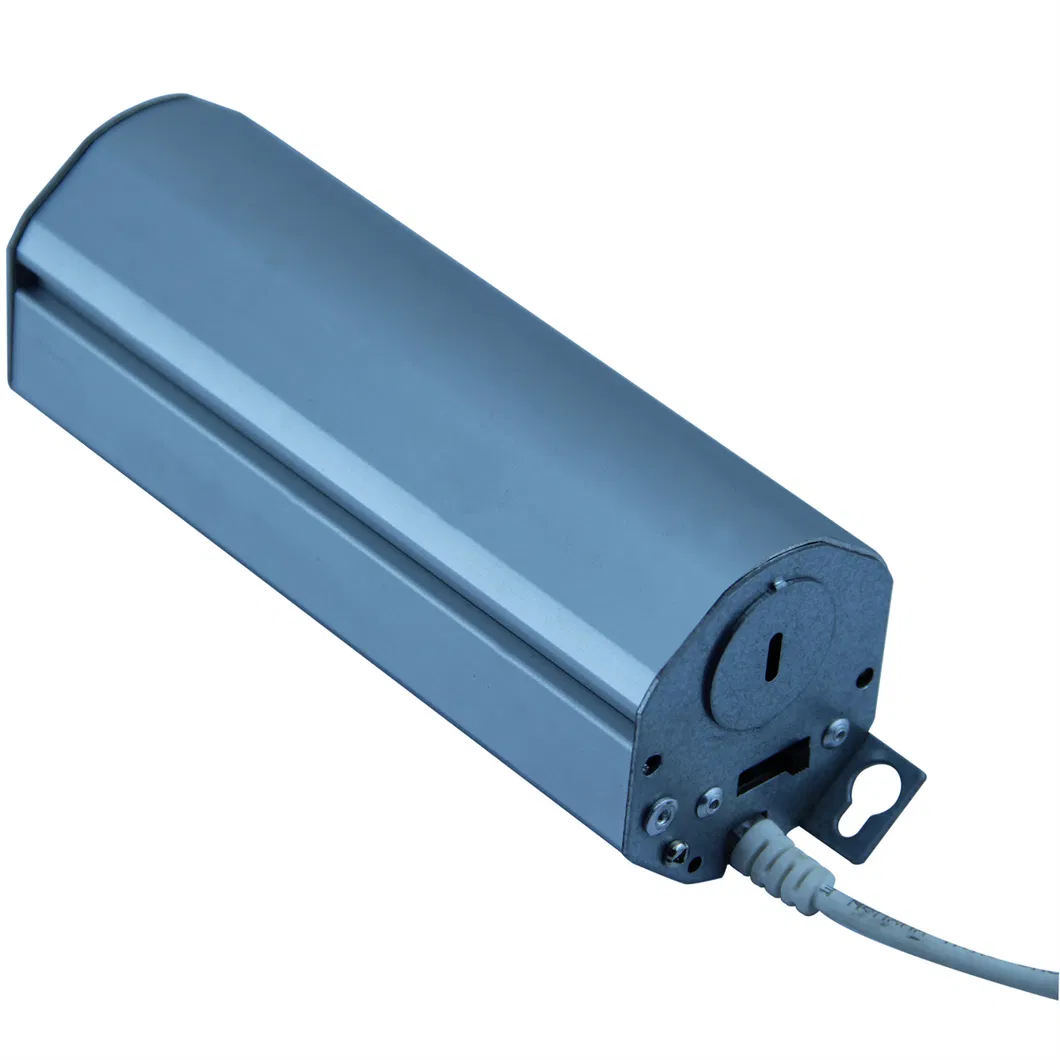

Product Angle 1

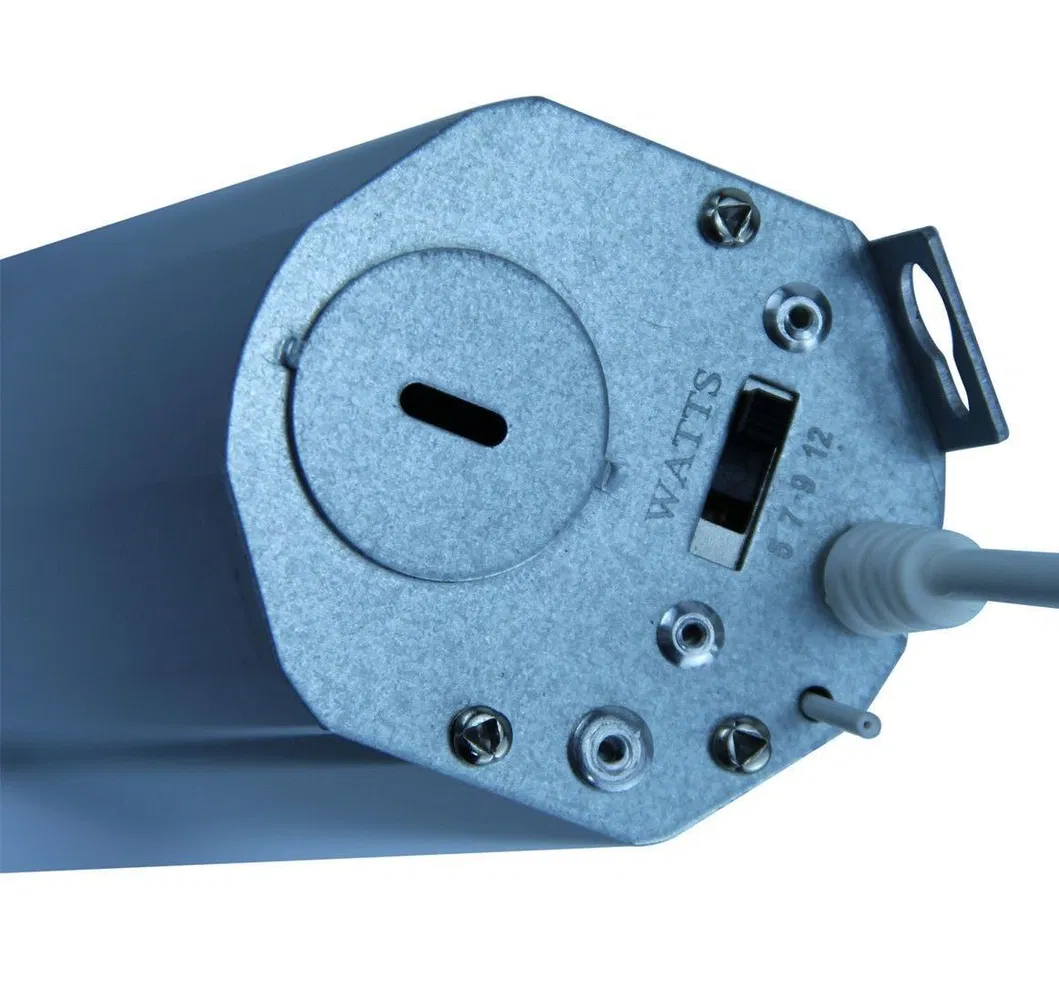

Product Angle 2

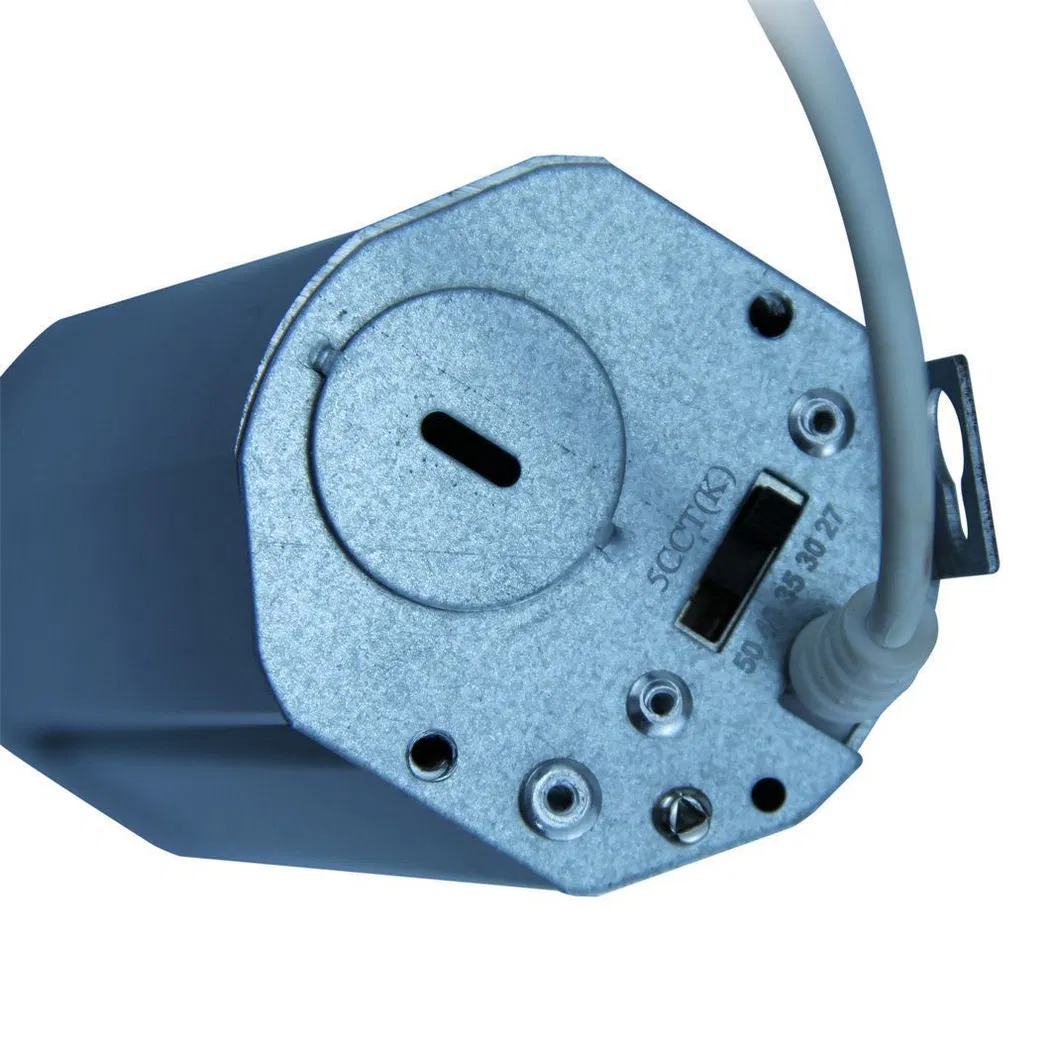

Product Angle 3

Related Products

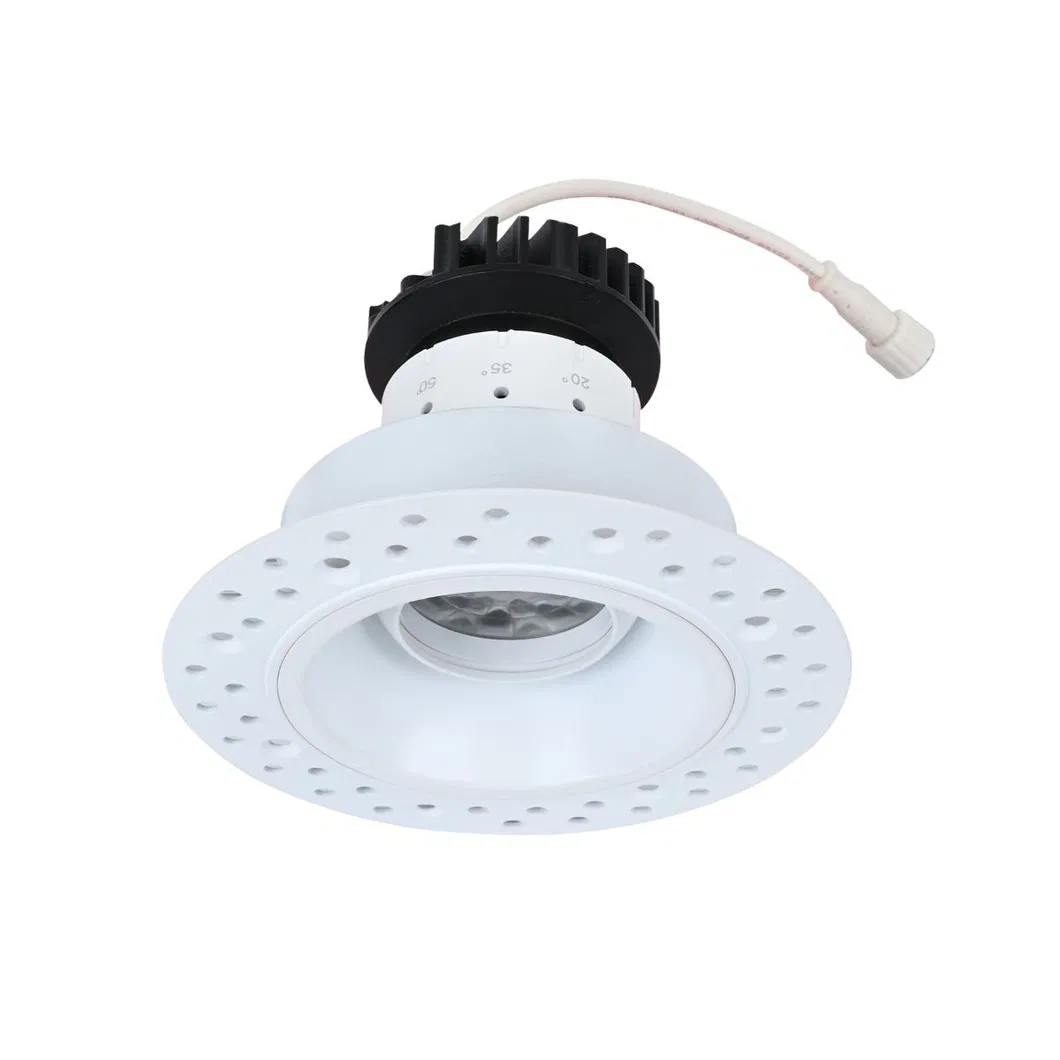

Related Product Option 1
Related Product Option 2

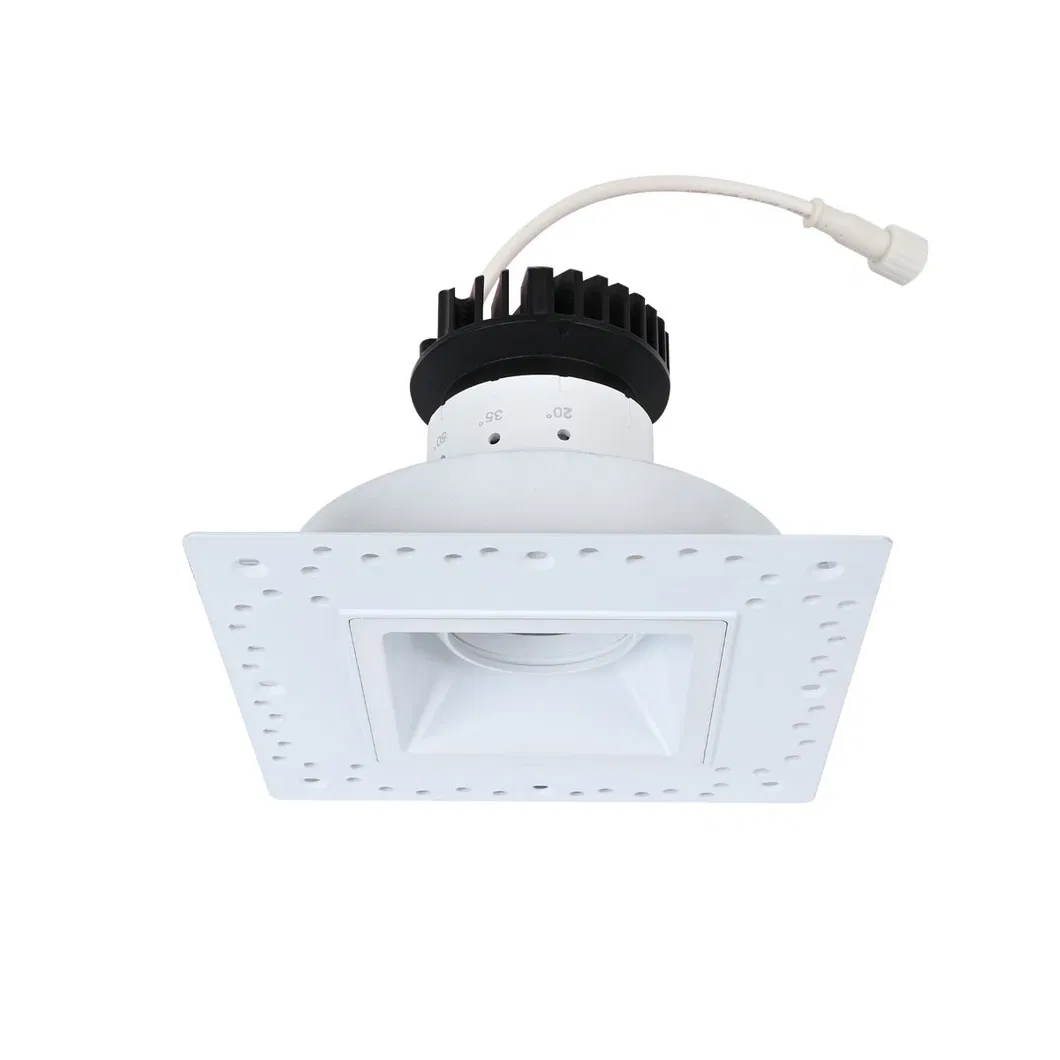

Related Product Option 3

Applications

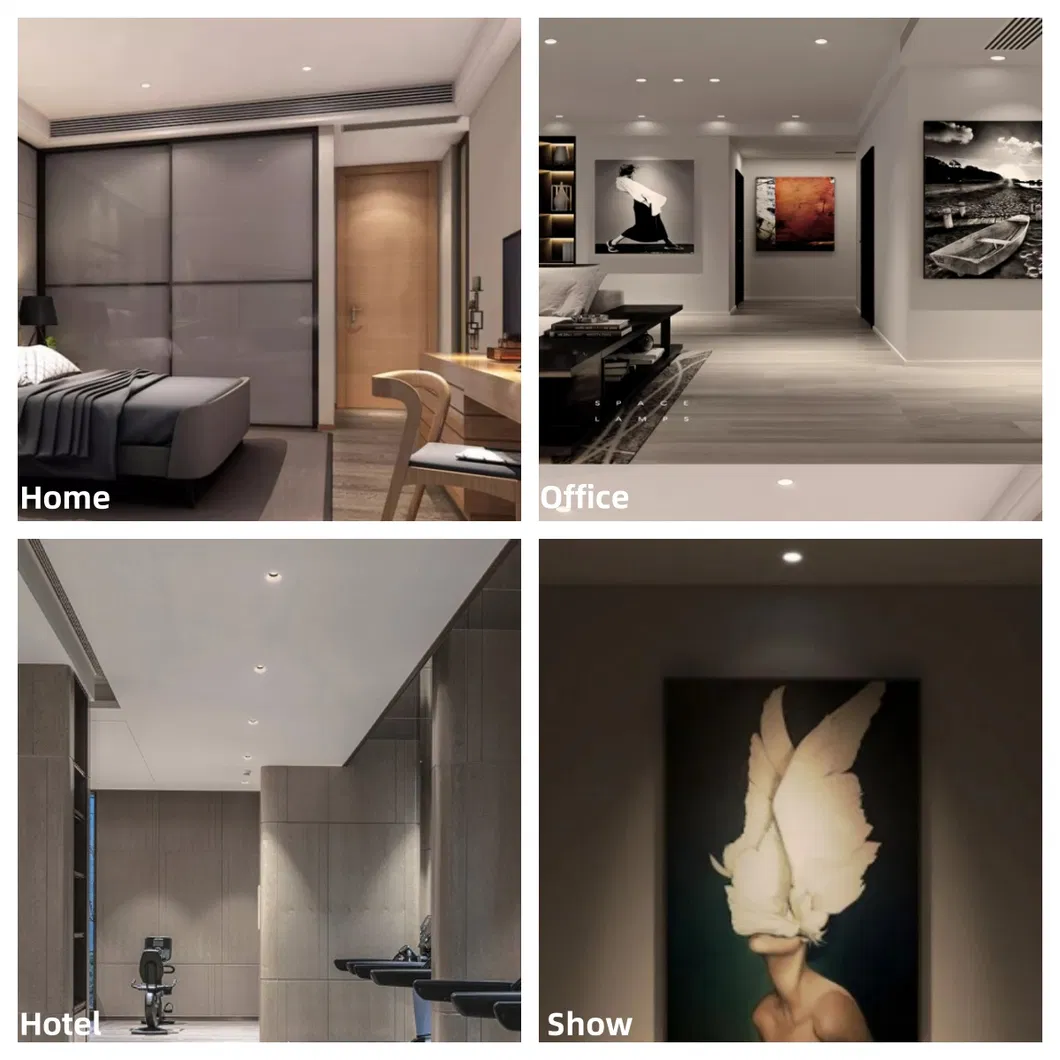

Downlight Application Scenarios

Packaging & Shipping

Our cardboard packaging is engineered to withstand long-distance transit. We offer a comprehensive suite of logistics options tailored to your requirements, including worldwide express, shipping by sea, air, or land.

Cardboard Packaging Material

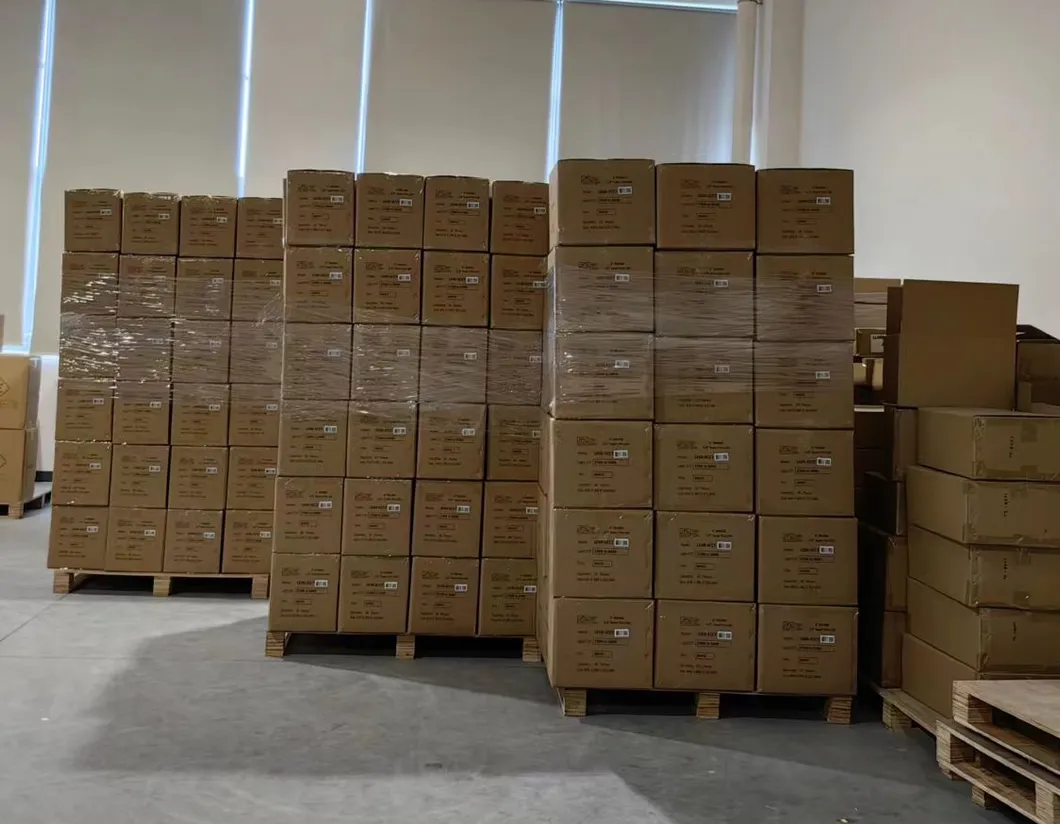

Transport Logistics Cartons
Shipping Logistics Methods Overview

Company Profile

We are a dedicated and professional LED lighting manufacturer established in 2014, operating a production facility covering 4,200 square meters. Over the past decade, we have established long-term cooperation with major retailers across North America. We are committed to supplying high-quality lighting solutions designed to optimize your business operations.

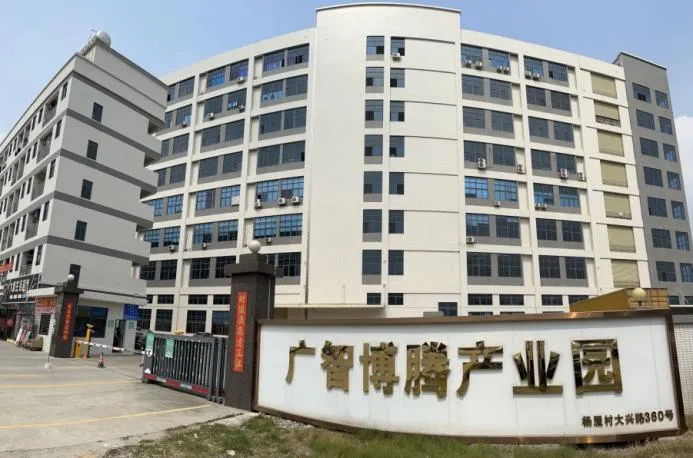

Company Office Space
Manufacturing Area

Our Advantages

Advanced Production Capacity

Our facility hosts a dedicated hardware factory, a power supply R&D center, and modern workshops. Outfitted with automatic soldering systems, SMT equipment, die-casting machinery, CNC systems, laser cutters, and optical measurement devices (including integrating spheres and distribution photometers). Over 10 low-voltage aging lines support a monthly capacity of up to 500,000 units.

Specialized R&D Team

We invest heavily in technological innovation. Our engineering department consists of more than 10 specialized R&D engineers focused on structural mechanics, circuitry, drivers, optics, and smart control systems. The majority of our inventory utilizes custom private tooling and holds ETL, TUV, CE, and RoHS certifications.

Strict Quality Assurance

Our trained QC staff ensures the integrity of all electronic, optical, water-resistant, and structural parameters under a rigorous ISO9001 quality framework. Every manufactured item undergoes a complete inspection and a minimum 48-hour aging process prior to shipment.

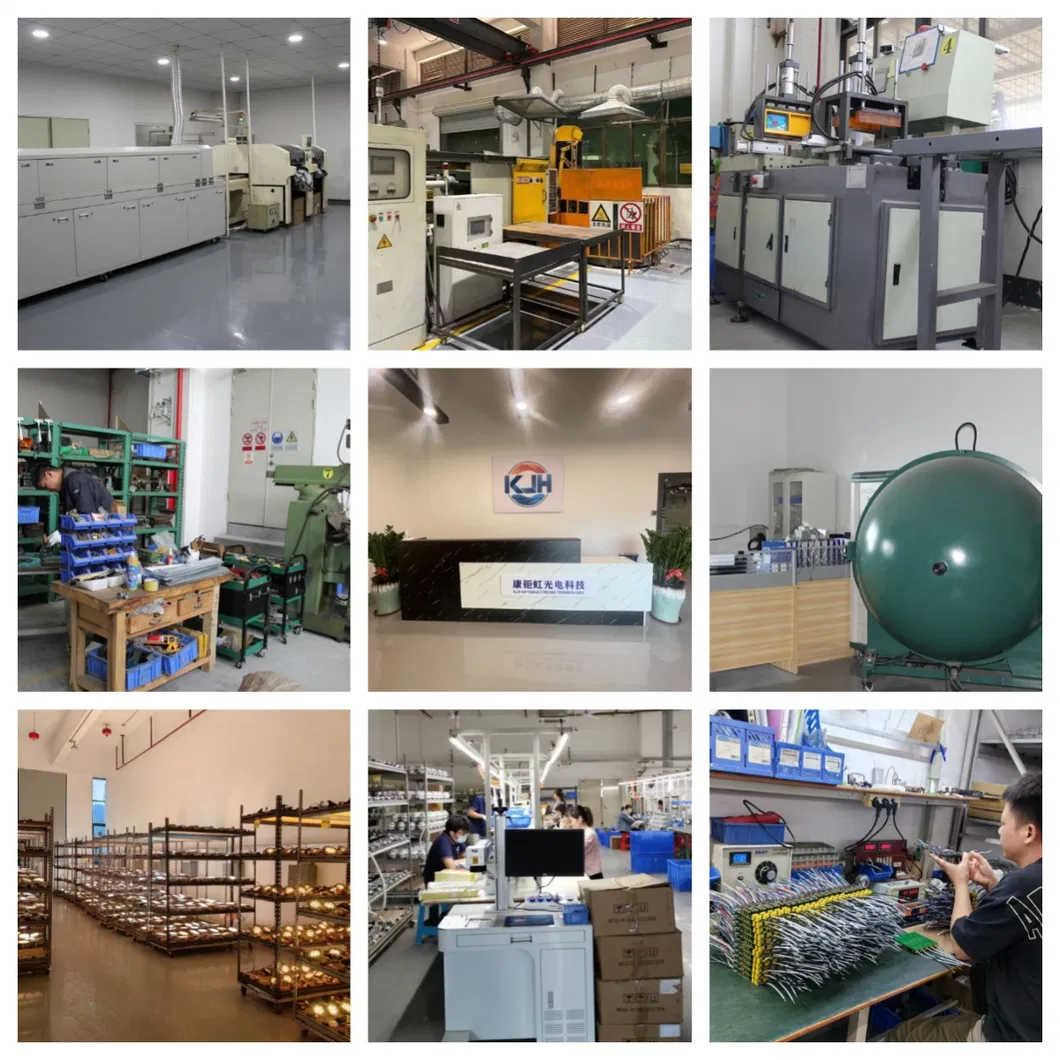

Factory Testing Facility

Factory Showroom & Testing Area

Frequently Asked Questions

Are you a manufacturer?
Yes, we operate our own manufacturing facilities with fully-integrated product lines to guarantee high efficiency and complete quality control.
Can you offer samples?
Yes, sample orders are available and highly recommended to verify the build quality and specifications before placing bulk orders.
How long is your production time?
For smaller orders, production typically ranges between 5 to 7 days. For larger batch sizes, the lead time is scheduled according to the precise order requirements.
Do all products undergo testing before transport?
Yes, all products undergo rigorous quality testing, including a minimum of 48 hours of continuous aging. Under our strict quality controls, the overall defect rate remains exceptionally low.
How is the packaging structured?
We package our products in robust, neutral cartons designed to handle long-distance international shipment safely. Fragile goods are packed using wooden crates when required.
How do you resolve after-sales issues?
In the rare event of an issue, please send us photos or videos of the problem. We will assess the situation and deliver a suitable solution within 24 hours.
