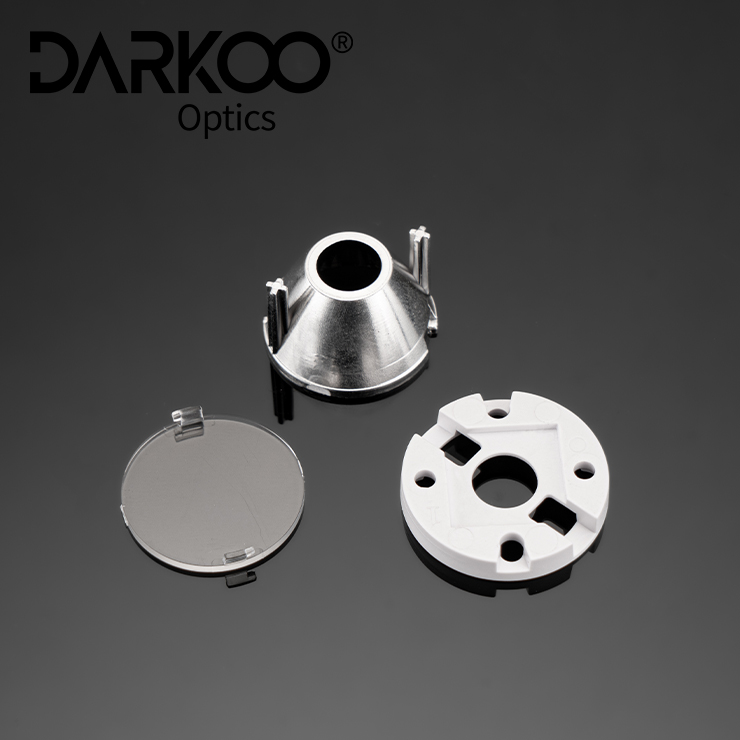

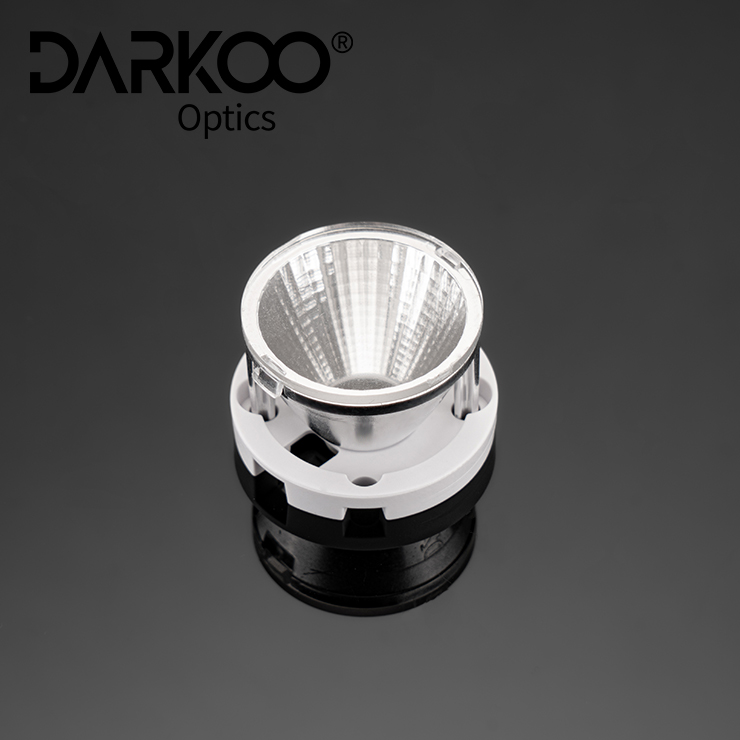

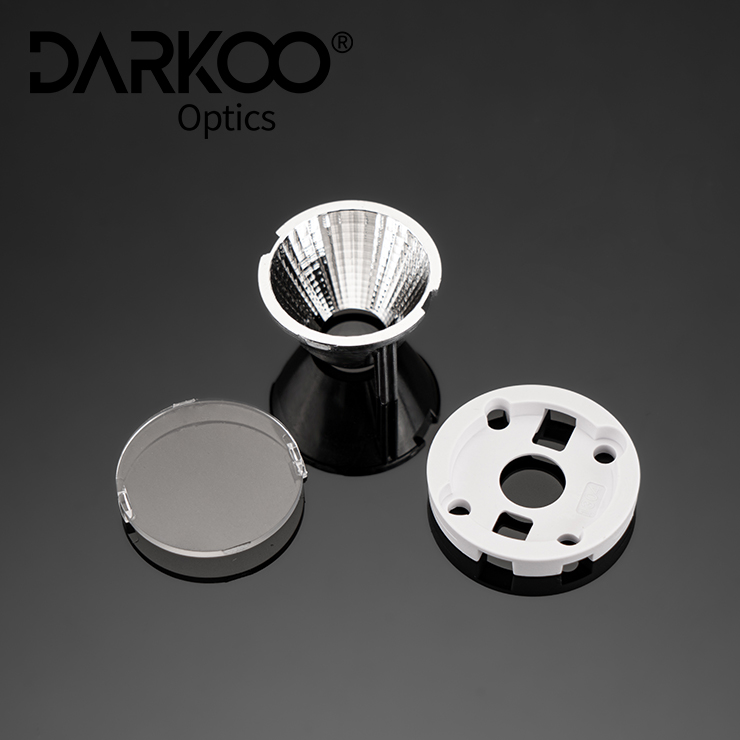

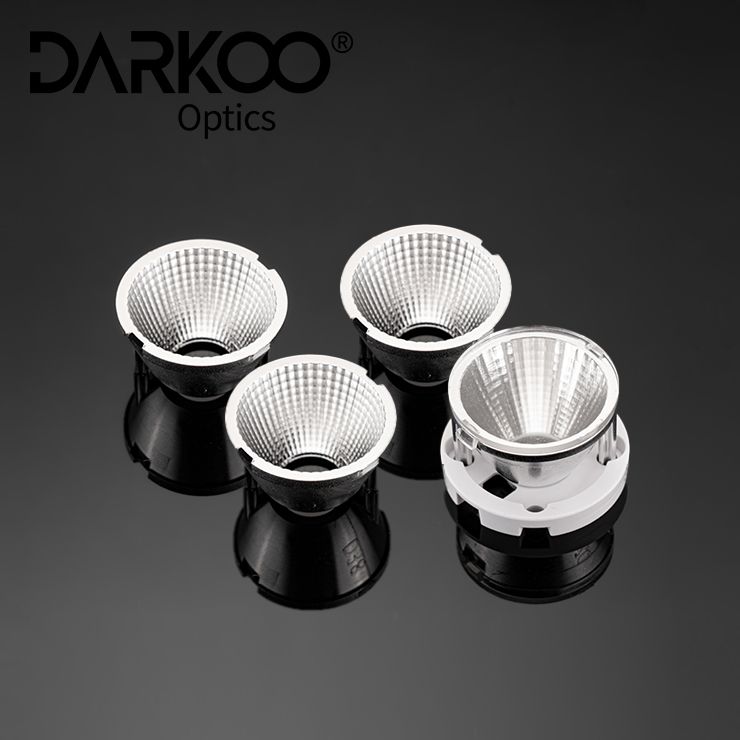

22Mm 30Mm Led Reflector Cob Aluminium Reflector Downlight Led Recessed Downlight Ip65 White Mini Led Cob Reflector

Send Inquiry

Product Description

Product Parameters

Model Number	Reflector：DK-22-XX-REF-ELF

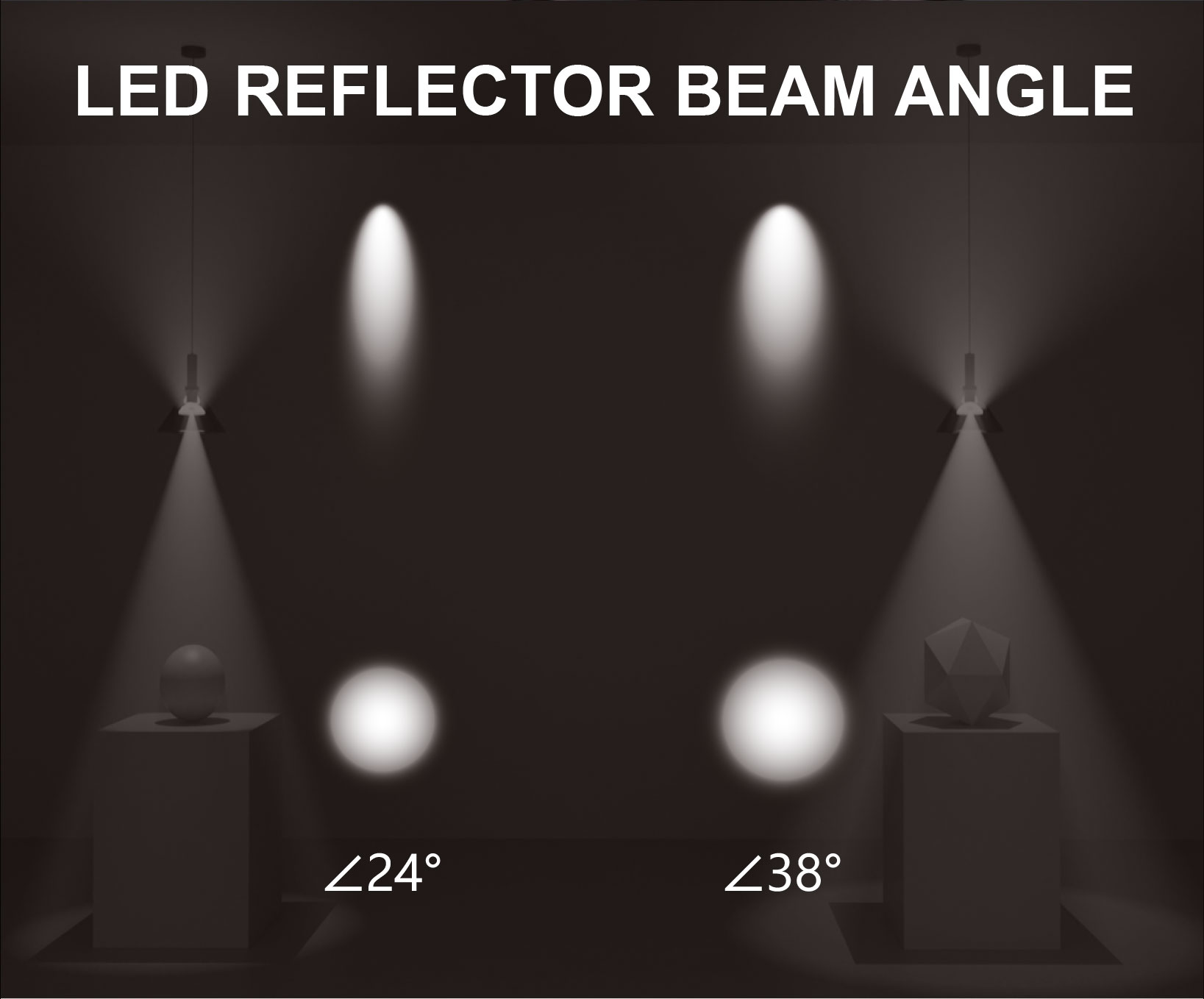

Beam Angle	10*60°/36°/60/24°

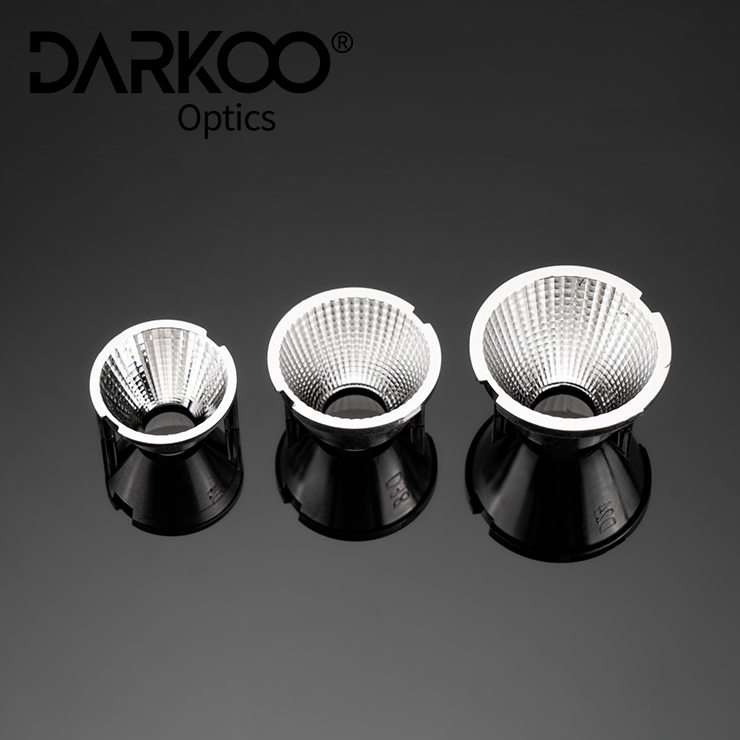

Dimension	22MM/26MM/30MM
Material	Optical grade PC

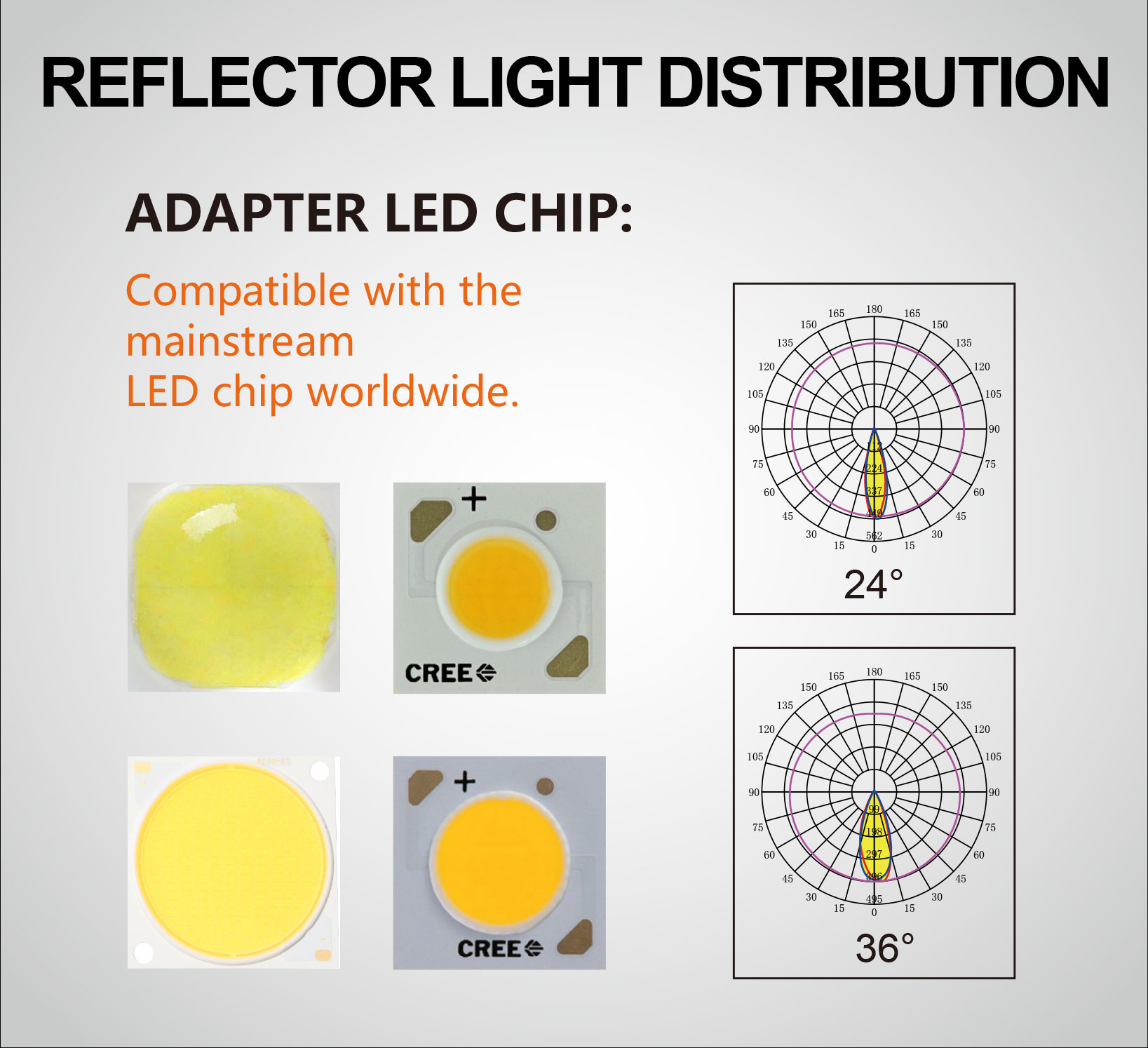

Match Led Chip	LED CXA1507/CXA1304/CXA1830
Transmittance	93%
Application	Downlights, spotlights, track lights, magnetic lights, wall lights, commercial lighting etc
Lead Time	5-10 work days (depends on stock)
Custom Services	Custom optical design solutions

Production Facility

Exhibition

Certifications

Frequently Asked Questions

What materials are used in these reflectors?

The reflectors are manufactured using optical-grade PC (Polycarbonate) material, which ensures superior thermal stability and durability.

What is the light transmittance rate of the reflectors?

These optical reflectors offer a high light transmittance rate of up to 93% for optimized efficiency and performance.

Which LED chips are compatible with this product?

The reflectors are specifically designed to match CXA1507, CXA1304, and CXA1830 LED chips.

What dimensions and beam angles are available?

We offer dimensions of 22MM, 26MM, and 30MM. Available beam angles include 10*60°, 36°, 60°, and 24°.

Where can these optical reflectors be applied?

They are highly versatile and ideal for commercial lighting setups such as downlights, spotlights, track lights, magnetic lights, and wall lights.

What is the standard lead time for ordering?

The typical lead time is 5-10 working days, though it may vary depending on current stock availability.
