Downlights Fixed LED Recessed Spotlight Aluminum Downlight Beam Angle Adjustable Light Modern Design Ceiling Spot Lights

Customization:	Available
Beam Angle:	Adjustable
Input Voltage:	110V

Basic Info

Model NO. KT2R-ABA- 5CCTG-R2 Regressed

Power 4-6W

Color Temperature 5CCT

Lamp Body Material Aluminum

Source Number COB

Installation Recessed

Switch Type Wall Switch

Warranty 5 Years

Application Home Furnishing

IP Rating IP54

Certification CE, EMC, Energy Star, ETL, FCC, LVD, RoHS

Watt 4/6W Adjustable

Color White/Black/Bronze

CCT 5CCT Adjustable

Cutout 68mm

Transport Package Box

Specification 20pcs/Ctn

Origin China

Production Capacity 70000PCS/Month

Product Description

Downlights Fixed LED Recessed Spotlight Aluminum Downlight Beam Angle Adjustable Light Modern Design Ceiling Spot Lights

Description:

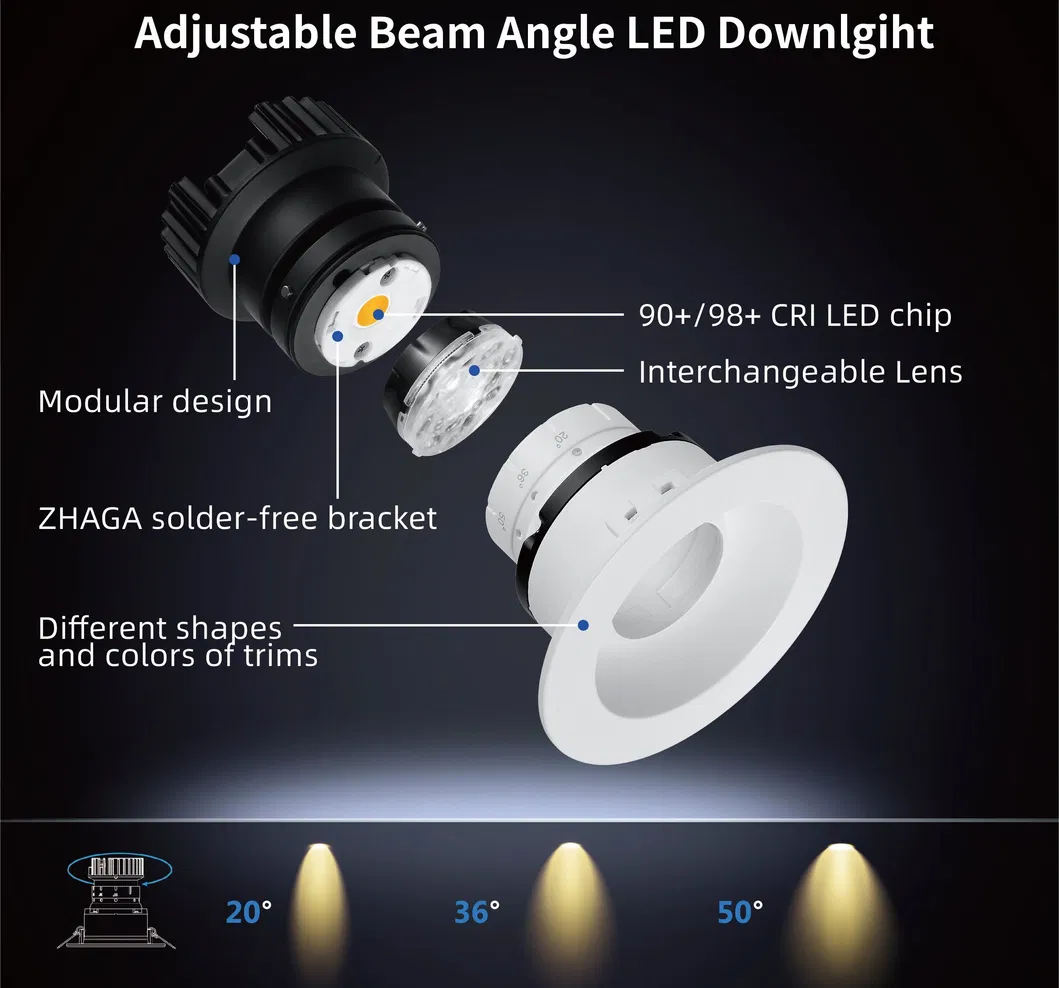

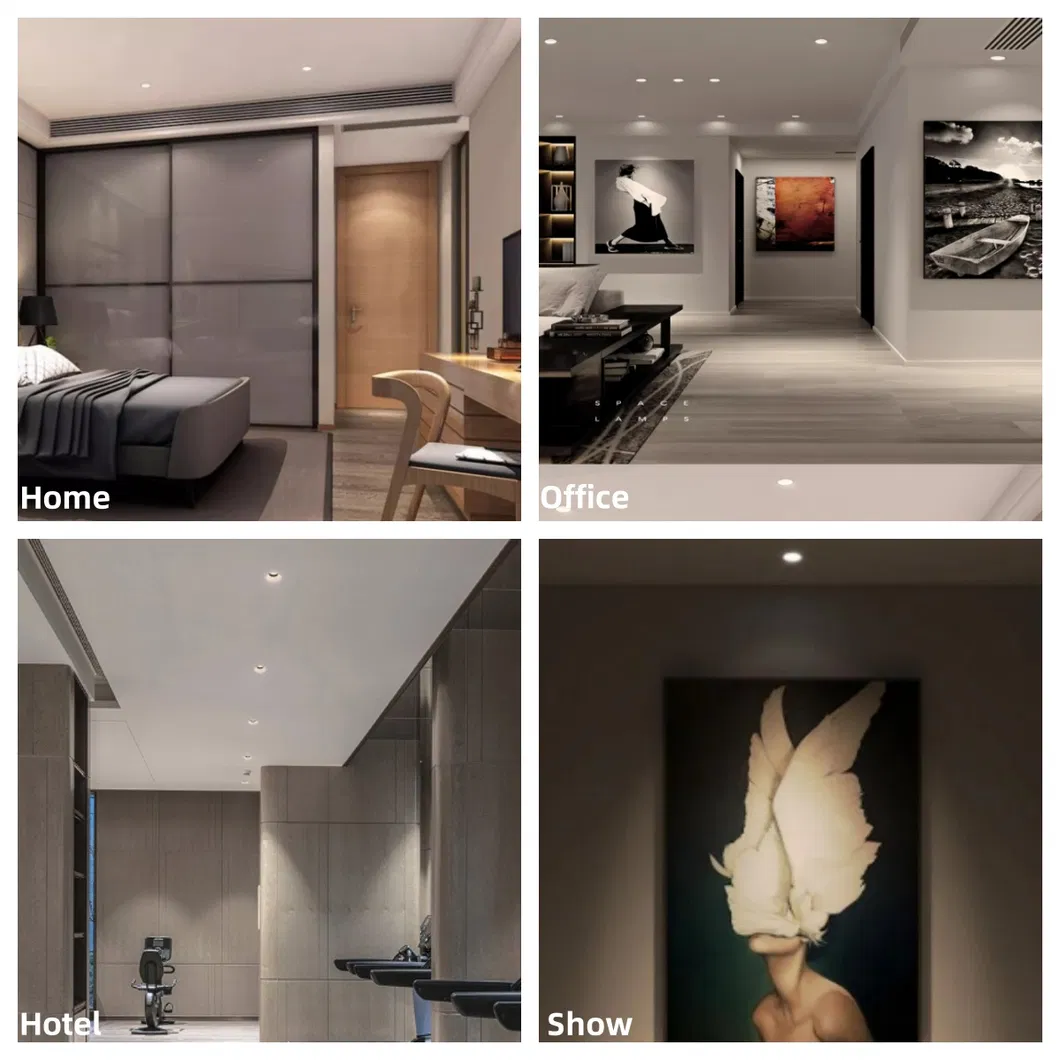

Modular design engine supports replaceable round/square 8 different trims. The beam angle can be adjusted to 20° 36 ° 50 ° with click feedback. Compatible with 3 series of LEDiL optics providing narrow to flood, wall-washing and oval beams. Interchangeable lenses can cater to diverse needs. Ideal for residential, commercial, and architectural applications.

One module match with 12 trims 3 beam angles in one light Deep regressed downlight

Features
*	Durable Aluminum body for good heat dissipation
*	Beam angle adjustable 20° 36 ° 50°
*	Compatible with super slim & anti-glare and adjustable beam angle lenses 1). Super slim lens degrees option: 15°/24°/36°/60° 2). Anti-Glare lens degrees option: 15°/24°/36°/50° 3). Adjustable beam Angle lens range is 20-50° adjustable
*	Wattages switchable: 7W/9W/12W
*	5CCT-switchable and compatible with TRIAC dimmer
*	Type IC, Air-Tight & Wet - No Housing Required
*	CRI> 90 (CRI>98 for option)
*	Optional Driver: 110-277V 0-10V / White tunable / Smart RGBCW

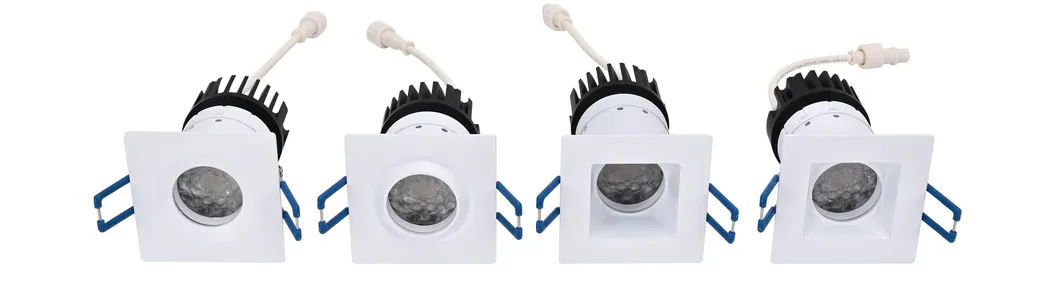

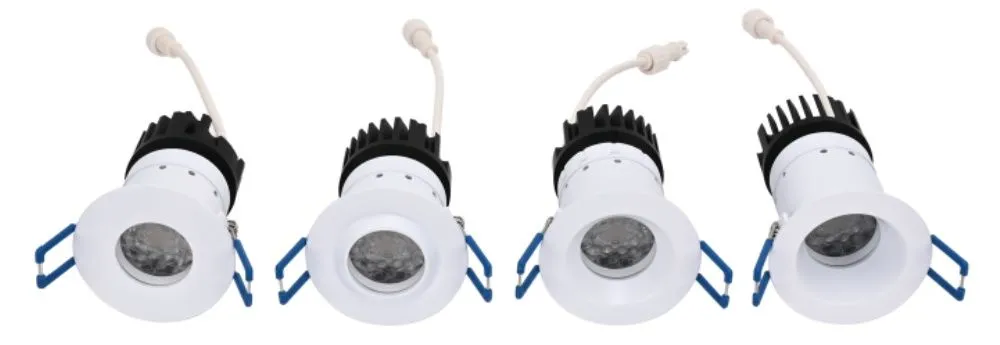

Model	KL2R-ABA-5CCTG ROUND Flat surface	KL2R-ABA-5CCTG-R1 ROUND Eyeball	KL2R-ABA-5CCTG-R2 ROUND Regressed	KD2R-ABA-5CCTG ROUND Deep Regressed	KL2S-ABA-5CCTG SQUARE Flat surface	KL2S-ABA-5CCTG-R1 SQUARE Eyeball	KL2S-ABA-5CCTG-R2 SQUARE Regressed	KD2S-ABA-5CCTG SQUARE Deep Regressed
Dimension(mm)	φ78*H83.25	φ78*H83.25	φ78*H89.25	φ78*H98.25	L78W78H85.25	L78W78H83.25	L78W78H89.25	L78W78H98.25
Cut Hole	68mm
Power	7W/9W/12W switchable
Input voltage	120V AC
Dimming	Triac dimmable
Color Temperature	5CCT (2700K/3000K/3500K/4000K/5000K) user switchable
Beam Angle	Adjustable beam 20°/36°/50°
CRI	>90+
Power Factor	>0.9

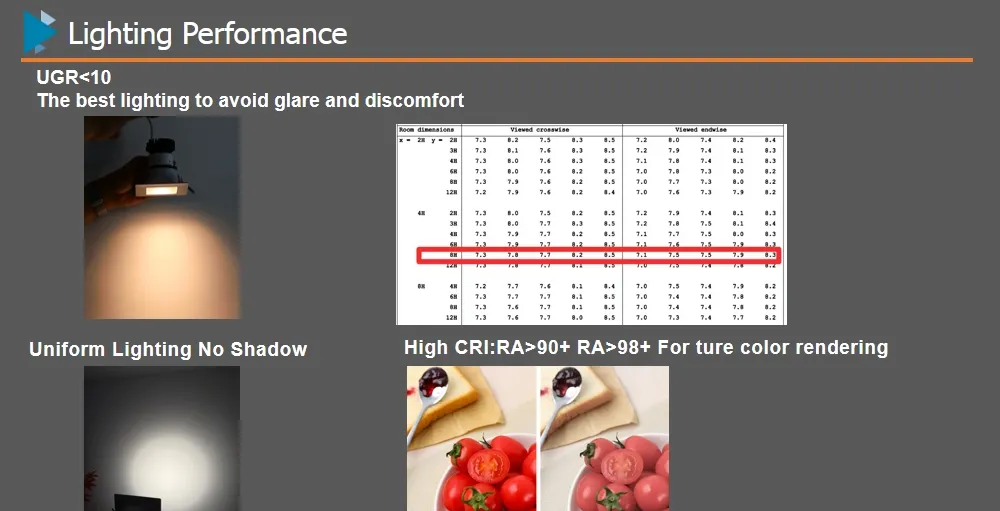

UGR	<10
Certificate	ETL/CE/FCC
Warranty	5-10 Years

Detailed Photos

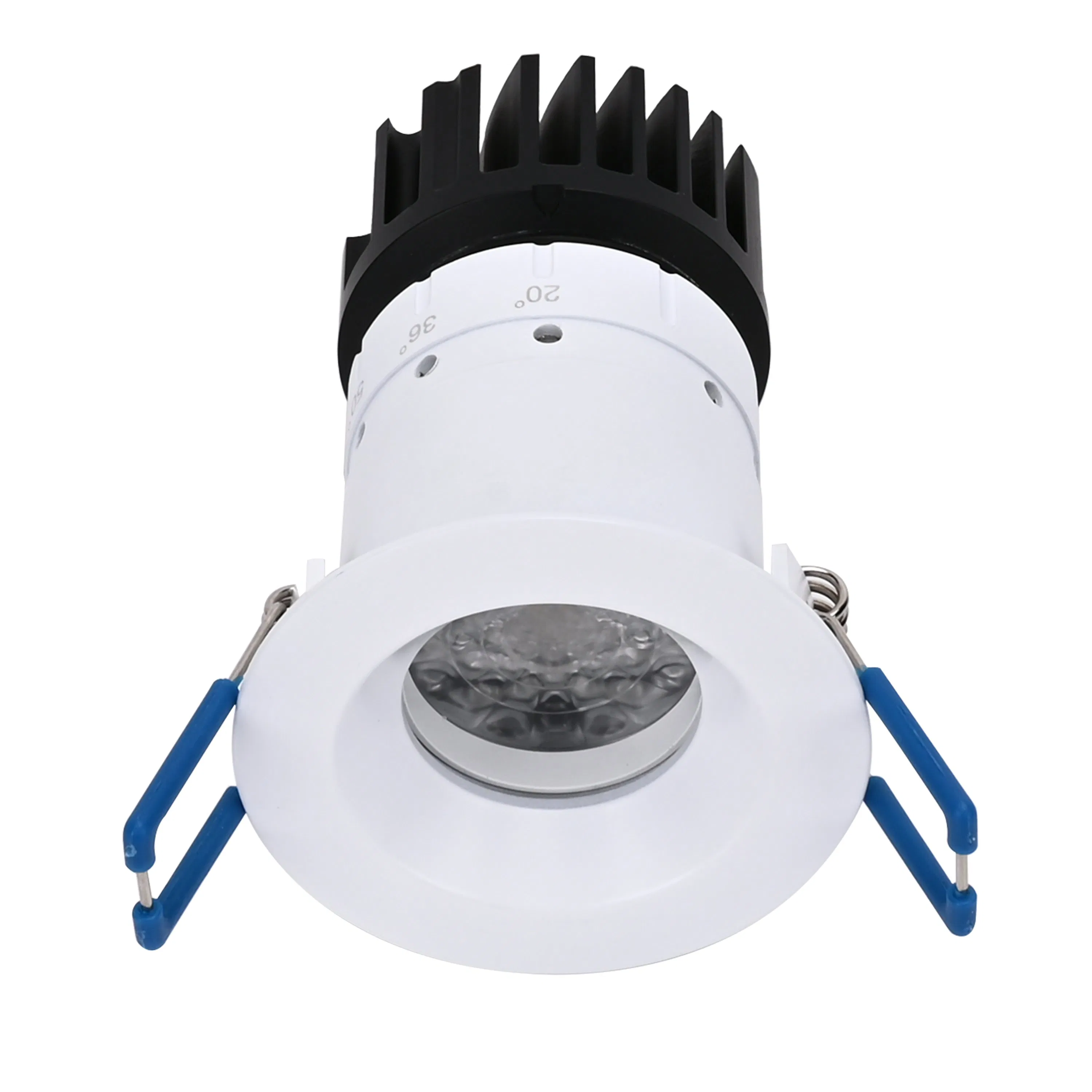

5CCT Selectable & Adjustable Beam Angles

20° 36° 60°

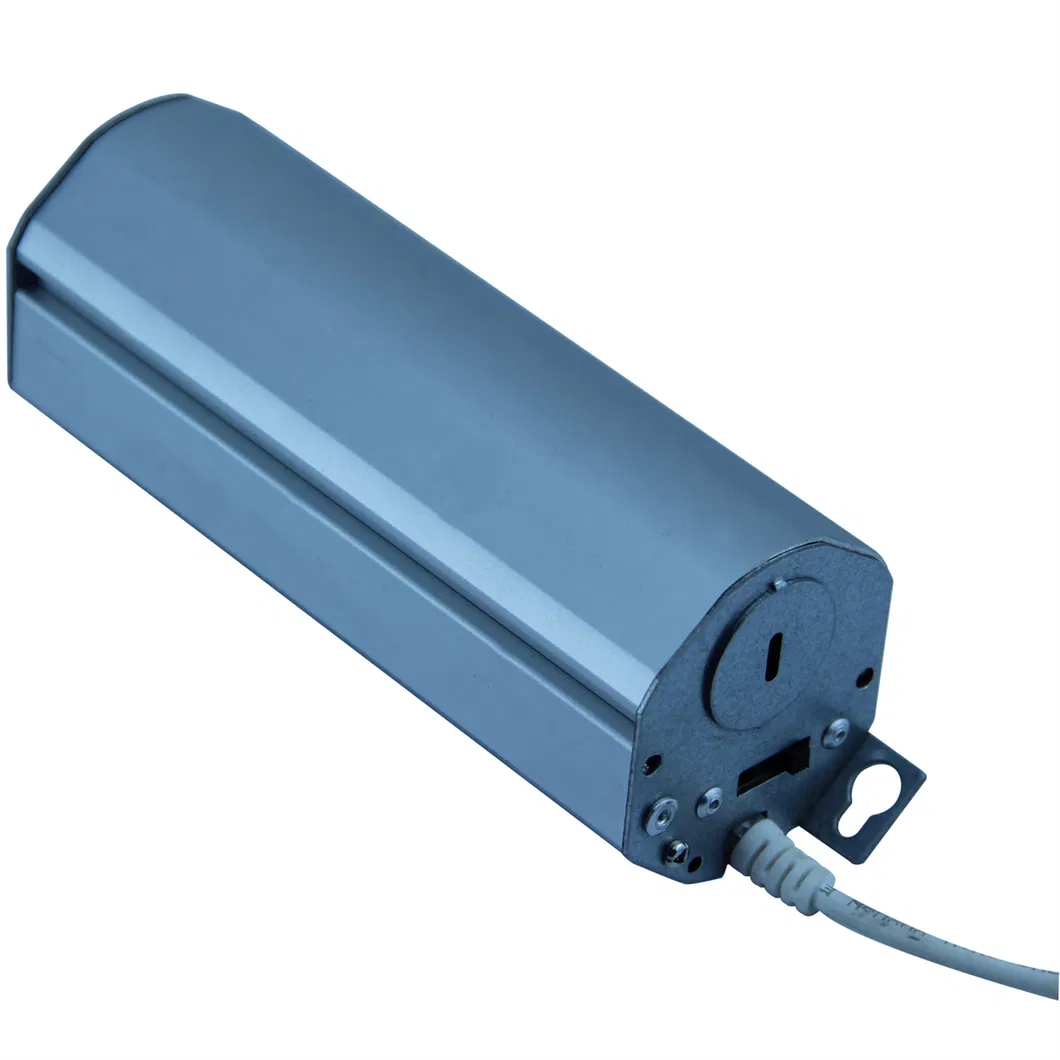

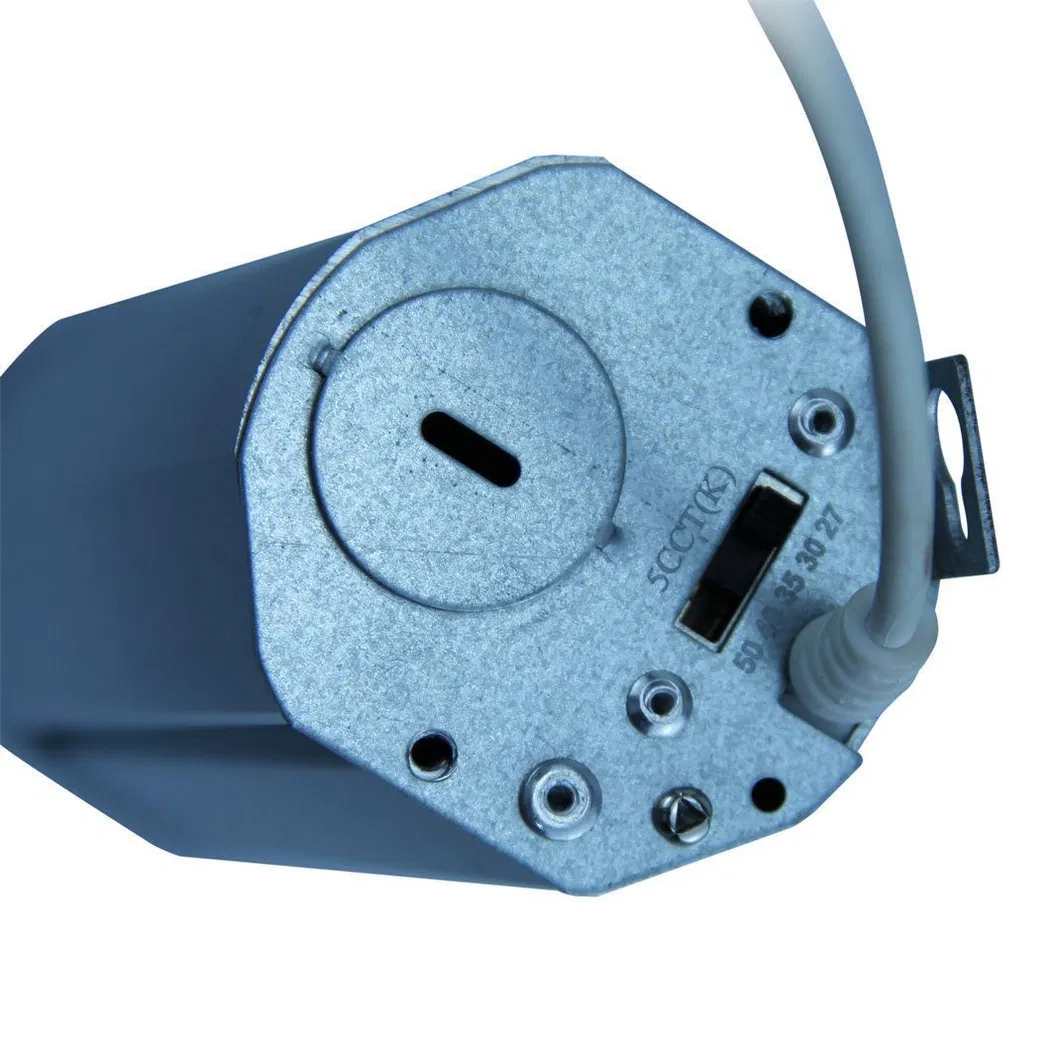

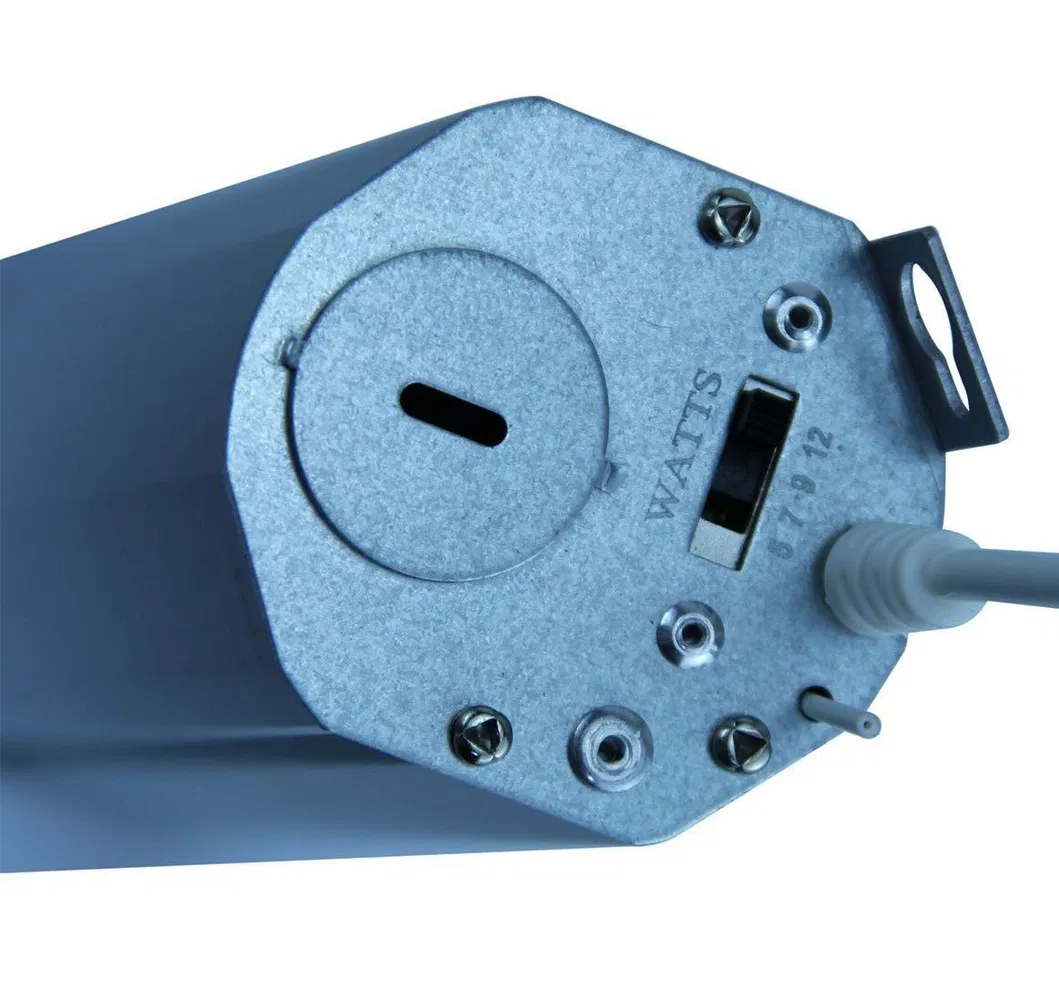

Driver Inside Connection Box - No Junction Box | 4W/6W Selectable | 5CCT Adjustable 27K/30K/35K/40K/50K

ABOUT US

We are a professional LED lighting company established since 2014, operating in a modern facility with a total area of 4,200 square meters. Having partnered with some of the largest retailers in North America for over 10 years, you can trust our expertise to deliver premium quality lighting solutions and outstanding support for your business needs.

OUR ADVANTAGES

Production Capability
Our modern setup features an in-house hardware factory, power supply R&D unit, and specialized workshops. Equipped with automatic soldering machines, SMT machines, die casting machines, laser CNC devices, integrating spheres, and distribution photometers, we run over 10 low-voltage aging lines capable of delivering 500,000pcs monthly.

R&D Strength
We are focused on utilizing state-of-the-art technologies. Backed by 10+ professional R&D engineers experienced in optical design, circuitry, structure, drivers, and controls, we mainly produce private-mould items fully conforming to ETL, TUV, CE, and RoHS.

Quality Control (Q&C)
Our specialized QC department closely oversees reliability assessments, implementing ISO9001 standards at every turn. Using specialized devices for electronic, optical, ingress protection, and anti-corrosion tests, we execute full inspections and a mandatory 48-hour aging process before shipping.

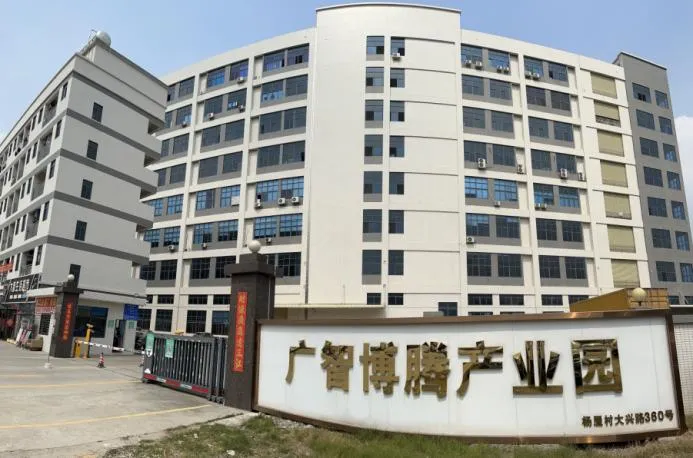

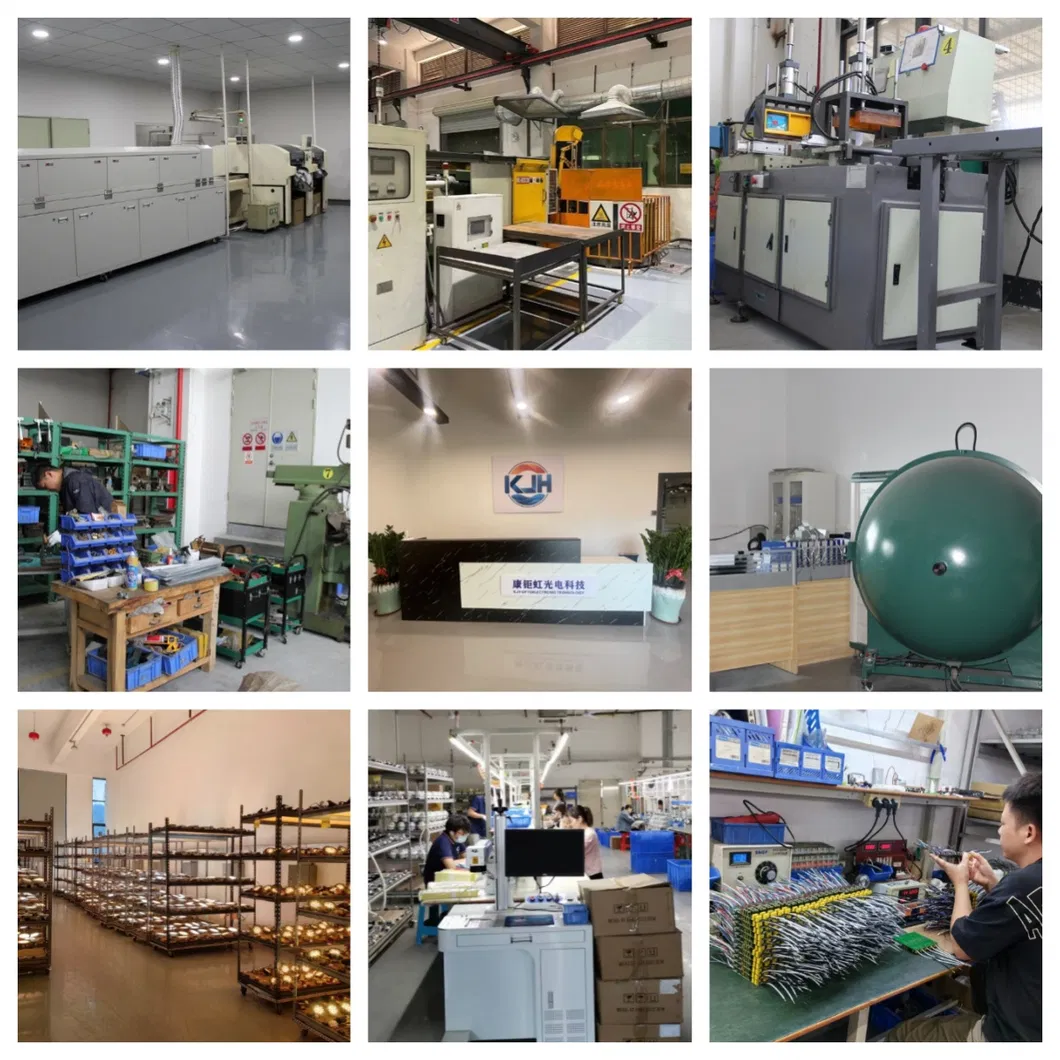

Factory Show

Frequently Asked Questions

Are you a manufacturer?

Yes, we have our own manufacturing factory complete with comprehensive production lines to control the process from raw materials to final output.

Can you offer samples?

Yes, we welcome sample orders to evaluate and test our quality before placing a bulk order.

How long is your production time?

For smaller quantities, production generally takes 5-7 days. For larger bulk orders, the lead time is determined based on order specifics.

Do all products have to be tested before shipping?

Absolutely. All of our products undergo a strict 48-hour aging and testing process to ensure minimal failure rate.

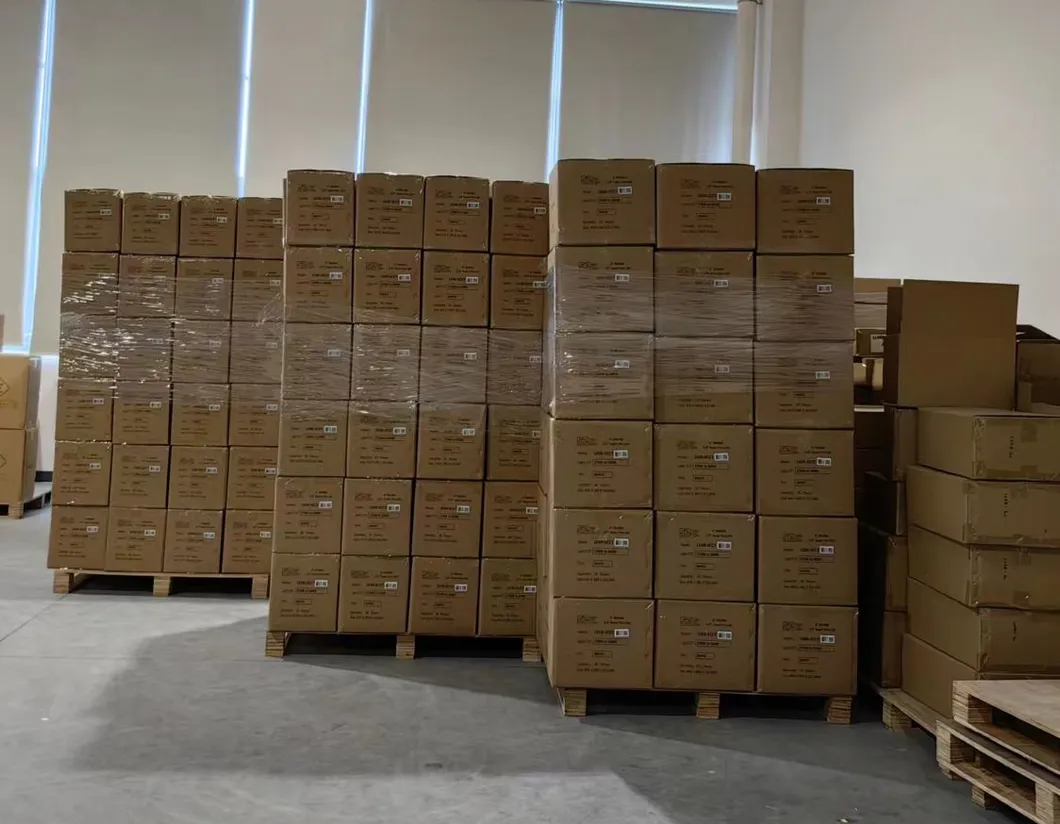

How do you pack the goods?

We use robust, neutral cardboard packaging suitable for international transit. Fragile accessories are packed using protective wooden crates if necessary.

How do you resolve after-sales issues?

If you encounter any issues, please send us photos or videos of the problem. We will provide a solution within 24 hours after verifying the case.
