Home > COB Chip Down Light > Downlight Led Cob 5w 10w 15w 2700k

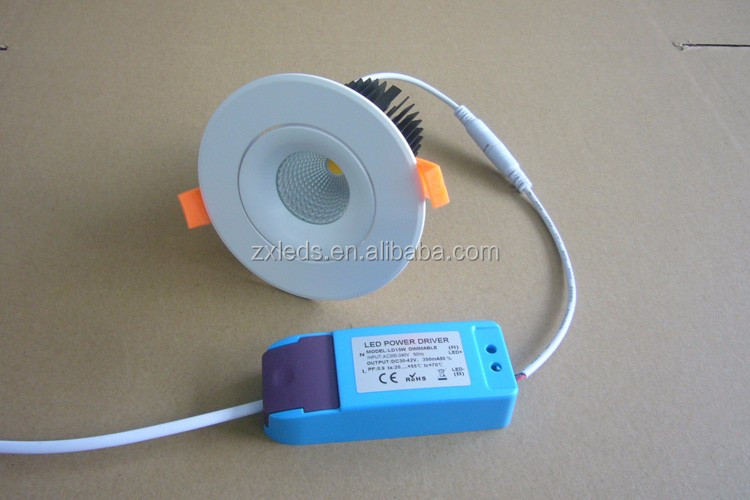

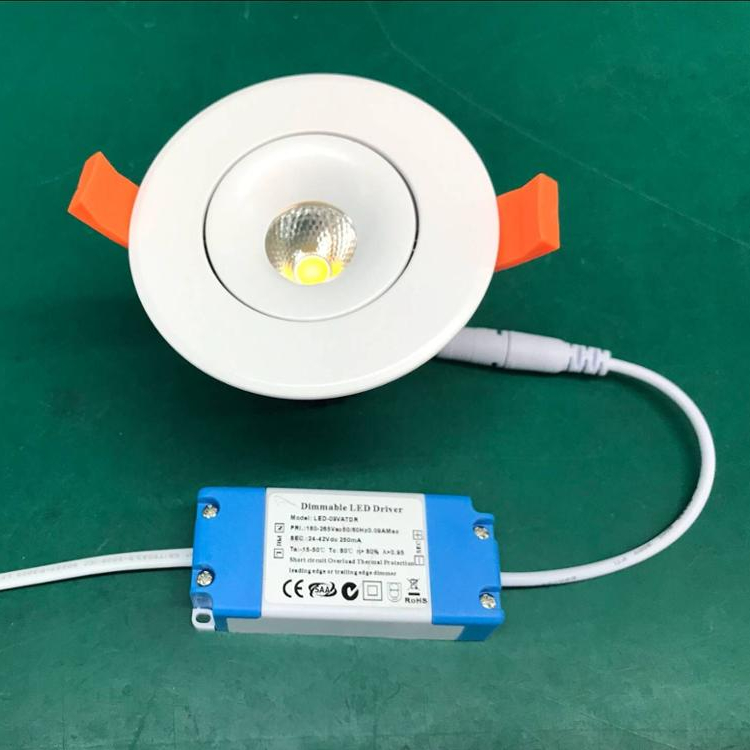

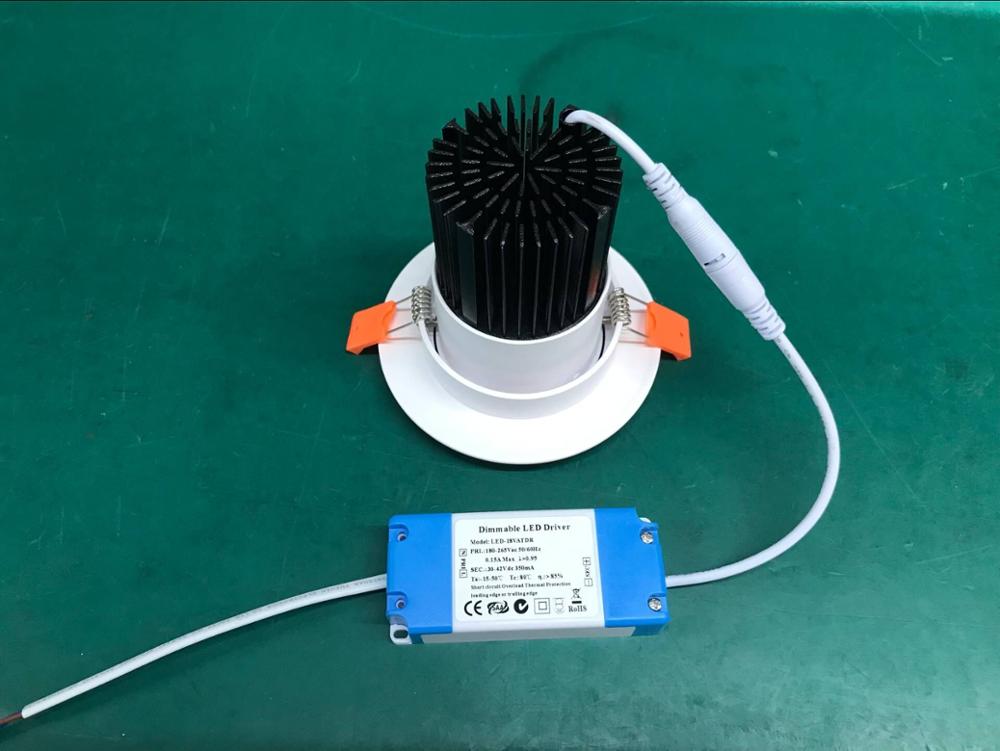

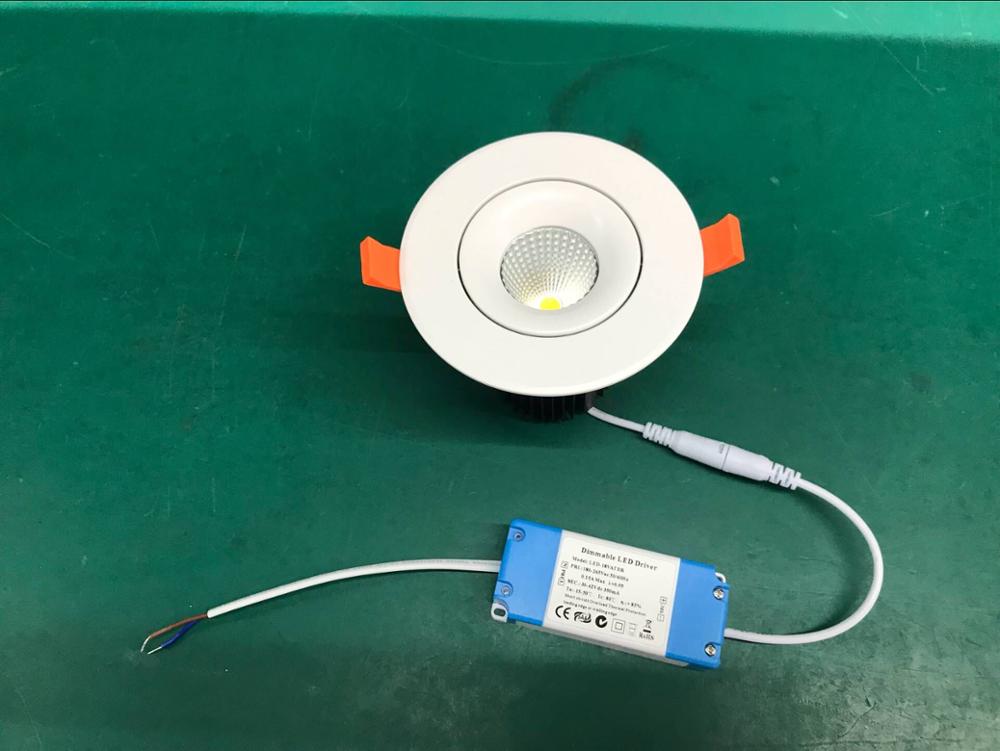

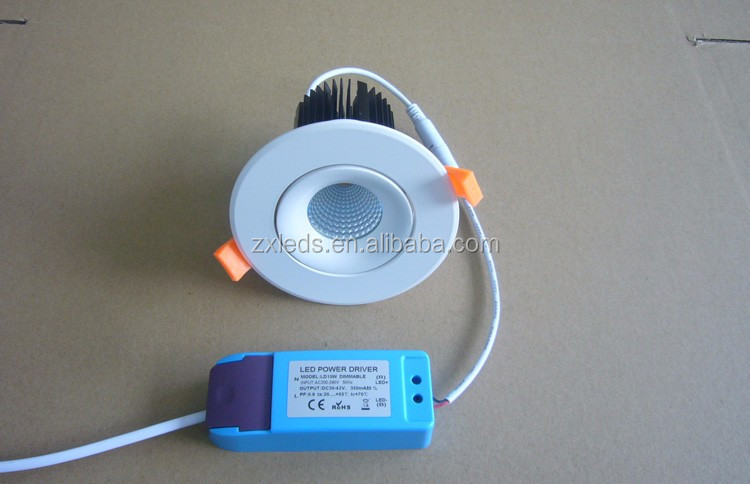

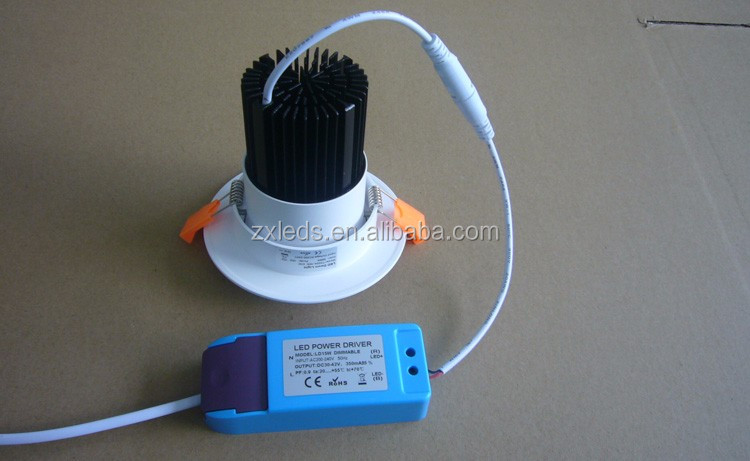

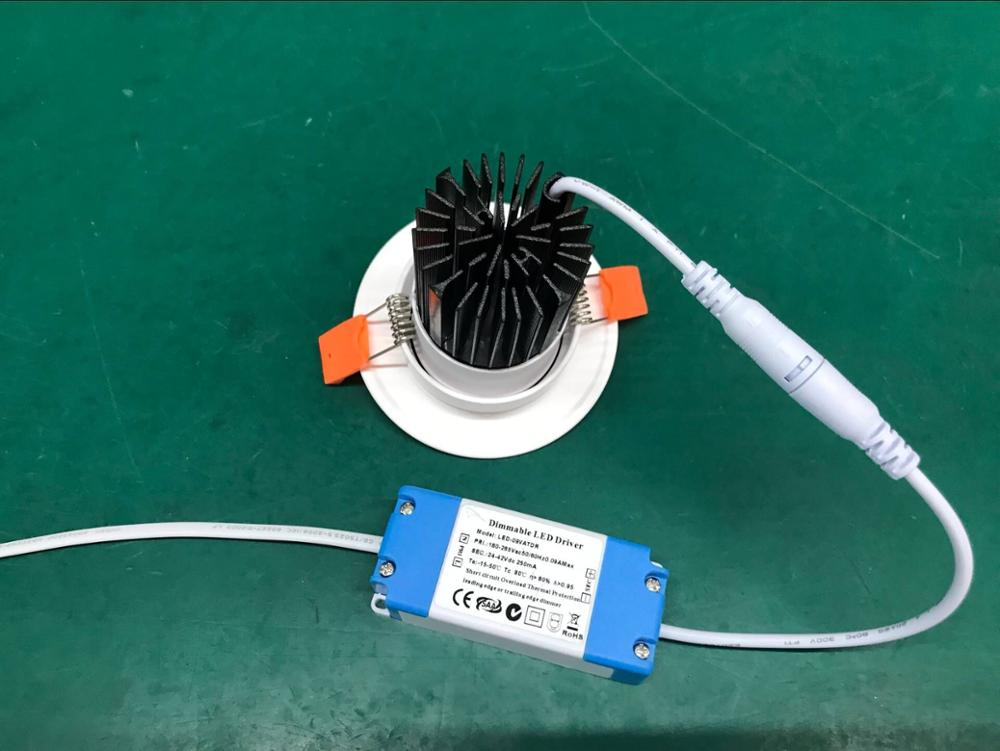

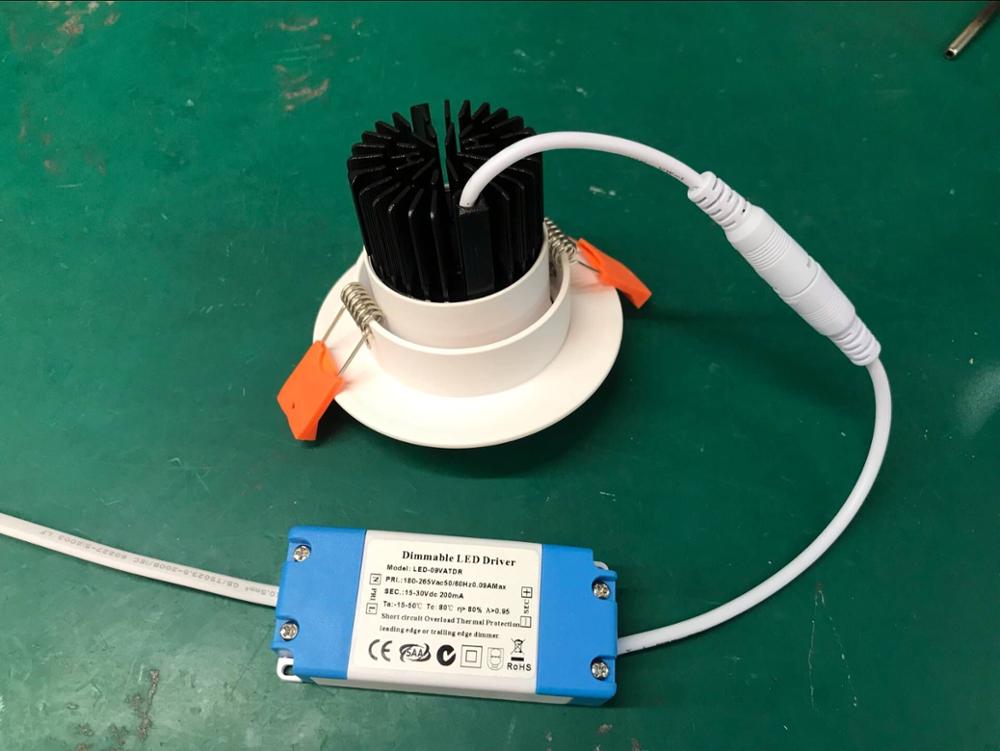

Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
1 / 5
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k

Downlight Led Cob 5w 10w 15w 2700k

Send Inquiry

Product Description

Product Description

Part No. TD224
Related wattage: 5w 7w 10w 15W
Input voltage: 100-240 VAC
Usage Accent lighting
Operating frequency: 50/60 Hz
Power factor 0.9
Beam angle 24/60°
LED CHIP cob led
Luminous flux 1150-1200LM
Light color Warm white/ Pure white/ Cold white
CRI ≥85/90
Diameter/ Cutout 95*H81mm/70mm
Shell Housing White
Driver External
Dimmable Optional
Main material Aluminum alloy
Working temperature -20~45 °C
Storage temperature -20~80 °C
Lifespan 50000 h
Certificates & standard CE, ROHS
Warranty 3 years
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k
Downlight Led Cob 5w 10w 15w 2700k

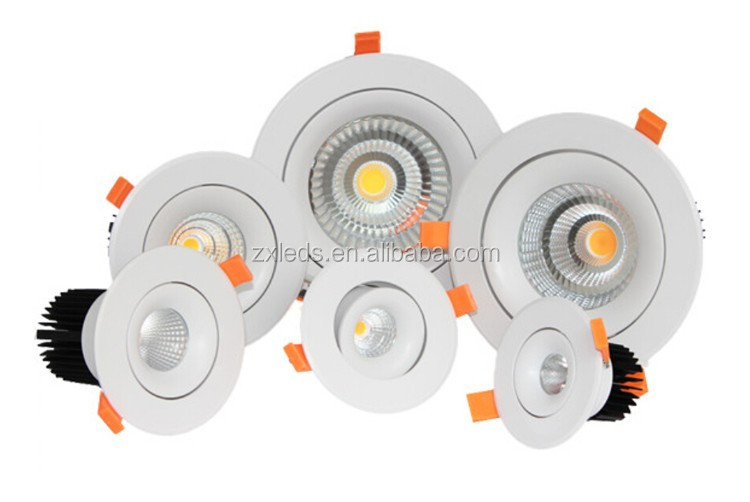

More Watts Options

Model No. Power Power Factor LED Lumen CRI Beam Angle Cut-out Dimension
TD224-05W 5W >0.95 COB 100-120lm/w ≥90 60° 70mm Φ95*H59mm
TD224-07W 7W >0.95 COB 100-120lm/w ≥90 60° 70mm Φ95*H59mm
TD224-10W 10W >0.95 COB 100-120lm/w ≥90 60° 70mm Φ95*H81mm
TD224-12W 12W >0.95 COB 100-120lm/w ≥90 60° 70mm Φ95*H81mm
TD224-15W 15W >0.95 COB 100-120lm/w ≥90 60° 90mm Φ119*H103mm
TD224-20W 20W >0.95 COB 100-120lm/w ≥90 60° 90mm Φ119*H103mm
TD224-30W 30W >0.95 COB 100-120lm/w ≥90 60° 110mm Φ142*H118mm
TD224-40W 40W >0.95 COB 100-120lm/w ≥90 60° 145mm Φ180*H128mm
TD224-50W 40W >0.95 COB 100-120lm/w ≥90 60° 158mm Φ193*H128mm

Advantages

1
Specialized manufacturing of different kinds of COB LED spotlights.
2
Supply of high quality products with the best pricing for clients.
3
Products have fully passed the standard certification of CE and ROHS.
4
Broad international market footprint, including North America, Europe, Australia, and South Asia.
5
Experienced R&D team and Quality Testing Department guaranteeing trend-setting products and premium quality.
6
Sufficient skilled workers to ensure all products are delivered timely.
Downlight Led Cob 5w 10w 15w 2700k

Applications

1
Home and office lighting, display case lighting.
2
Commercial and industrial lighting.
3
School and college lighting.
4
Showcase lighting, bar lighting, artwork lighting.
5
Warehouse lighting, hotel and restaurant lighting.
6
Decoration lighting, under cabinet lighting.

Frequently Asked Questions

Q1: How do you evaluate LED products?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency, optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2: How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 to 50,000 hours of use from your LED Lamp.
Q3: What certifications do these LED downlights hold?
These downlights have successfully passed CE and ROHS certification standards, ensuring safe operation, high product quality, and environmental compatibility.
Q4: Are the LED downlights dimmable?
Dimmable functions are optional and can be customized based on your specific lighting controls and project requirements.
Q5: What are the available light color options?
The TD224 LED downlight range offers Warm White, Pure White, and Cold White options to match different architectural and design requirements.
Q6: What is the main material and structure of the housing?
The main housing is constructed of high-grade aluminum alloy, which provides outstanding thermal dissipation management and long-term durability.
