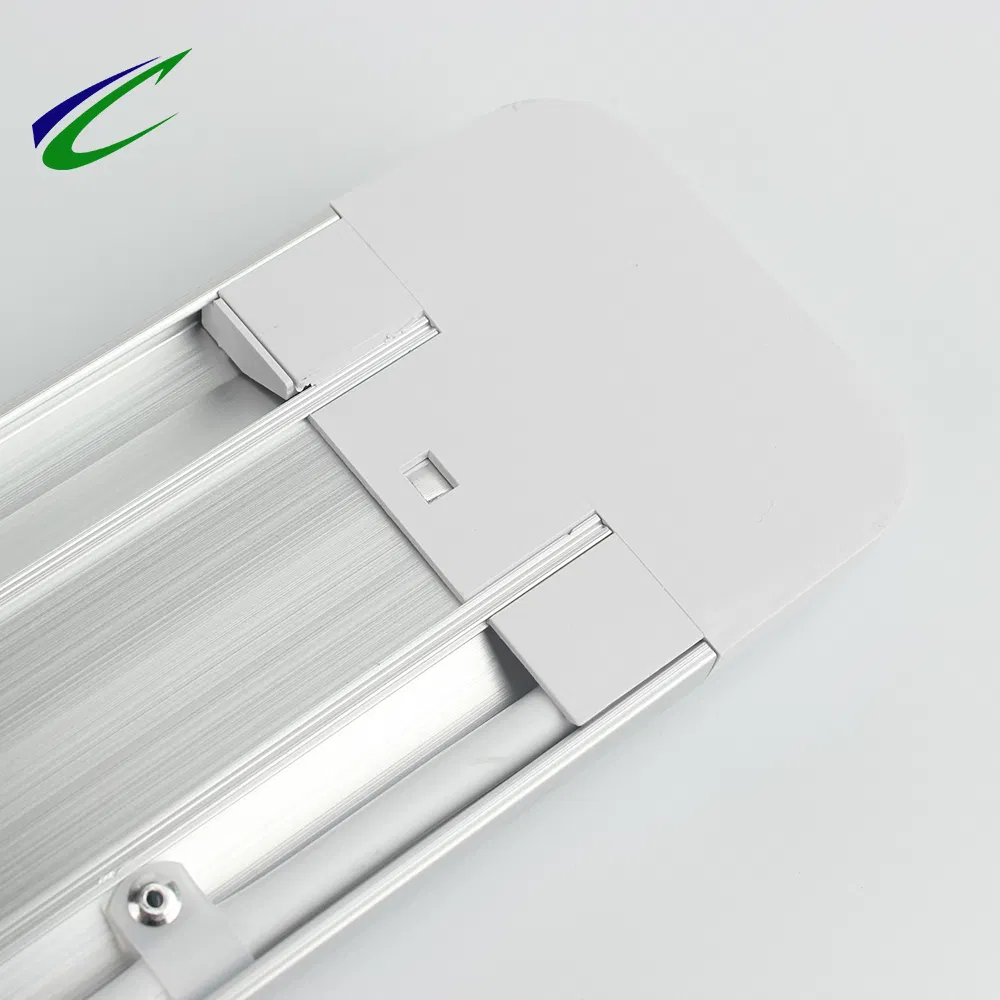

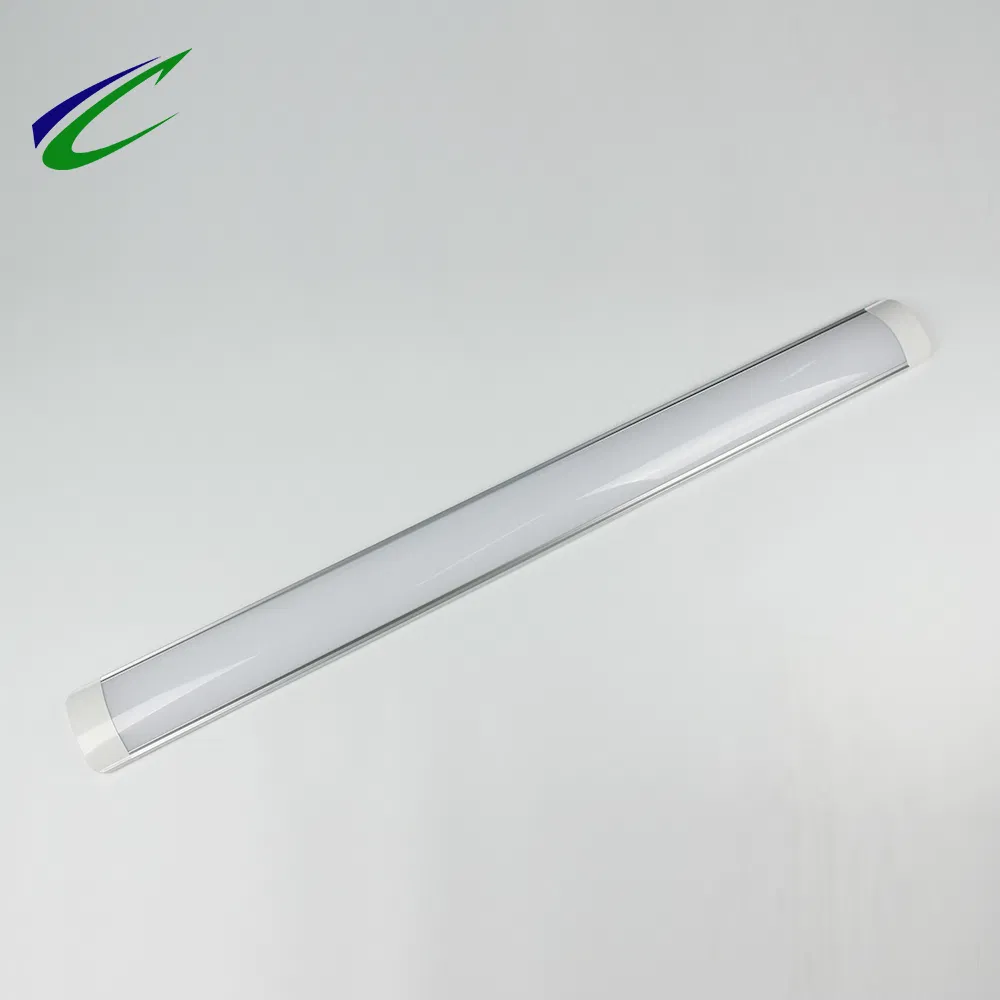

IP65 LED Batten Light 3000-6500K Tri Colour LED Tube Lighting Liner LED Light Batten Light Fixture Outdoor Light LED Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Feature Anti-corrosion, Dust-Proof, Waterproof
Light Body Material Aluminum
Product Name LED Tri-Proof Light
Material Aluminum+PC
Power 36W
Color Temperature(CCT) 2700-6500K
MOQ 500PCS
PF 0.9
CRI Ra>80
Transport Package Inner Box and Outside Carton
Trademark OEM
Origin China
HS Code 9405409000
Production Capacity 1000/15 Days

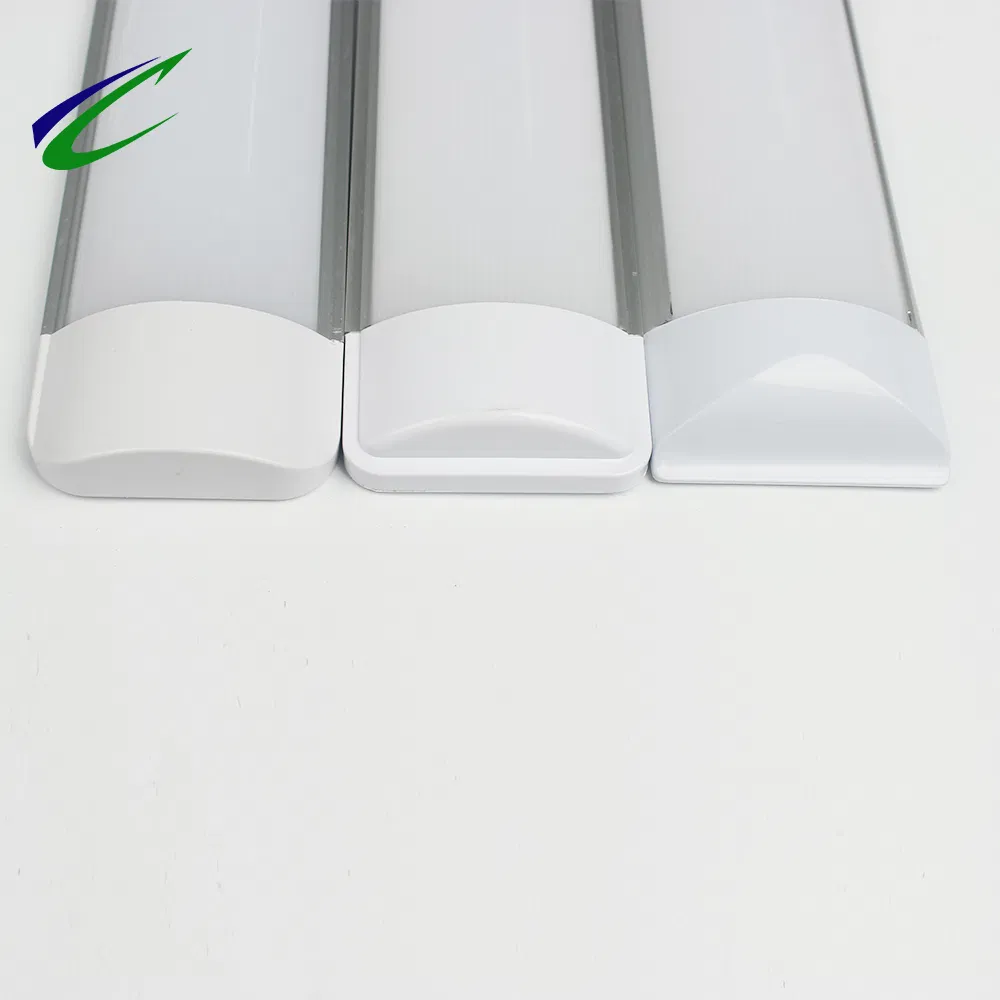

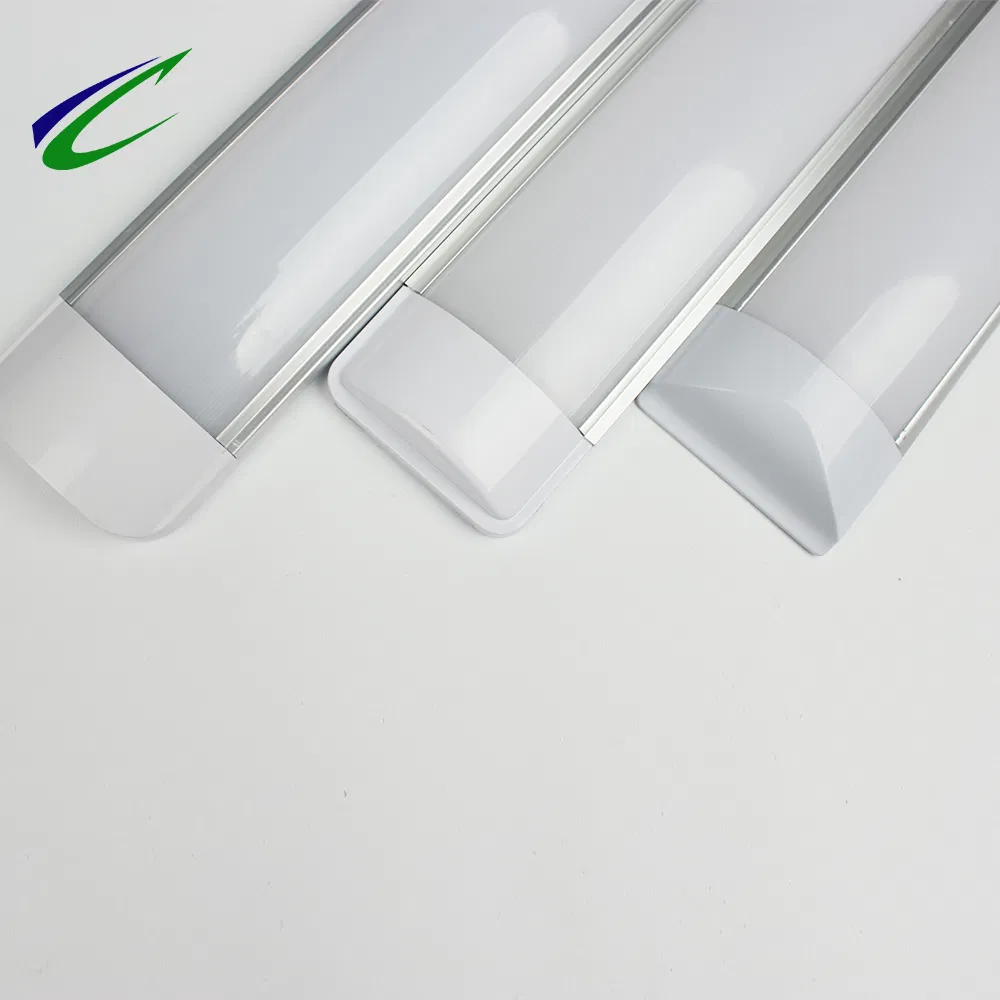

IP65 LED Batten Light
IP65 LED Batten Light
IP65 LED Batten Light
IP65 LED Batten Light
IP65 LED Batten Light
IP65 LED Batten Light
IP65 LED Batten Light

Product Description

Features:

  • The product appearance novel, the structure is simple.
  • The product is Class II lamps and lanterns, more safe and reliable.
  • The main material for aluminium lamp body, 6063 to ensure that the LED heat dissipation performance.
  • Two different function for choosing. Three different size for choosing. Tri-colour or linkable function.

Application:

  • Car parks, industrial area, office, Corridors, Supermarkets and Shops, Bakeries, Storage area and etc.

Technical Specifications

Tri-Colour Series
Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W/TRI 2ft 18W 3000K & 4000K & 5000K 110lm/w 192 600*85*29mm
DY-LED27W/TRI 3ft 27W 3000K & 4000K & 5000K 110lm/w 228 900*75*29mm
DY-LED36W/TRI 4ft 36W 3000K & 4000K & 5000K 110lm/w 288 1200*85*29mm
DY-LED45W/TRI 5ft 45W 3000K & 4000K & 5000K 110lm/w 480 1500*85*29mm
DY-LED55W/TRI 6ft 55W 3000K & 4000K & 5000K 110lm/w 576 1800*85*29mm
Standard Series
Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W 2ft 18W 2700-6500K 110lm/w 96 600*75*23mm
DY-LED27W 3ft 27W 2700-6500K 110lm/w 144 900*75*23mm
DY-LED36W 4ft 36W 2700-6500K 110lm/w 184 1200*75*23mm
DY-LED45W 5ft 45W 2700-6500K 110lm/w 240 1500*75*23mm
DY-LED55W 6ft 55W 2700-6500K 110lm/w 288 1800*75*23mm

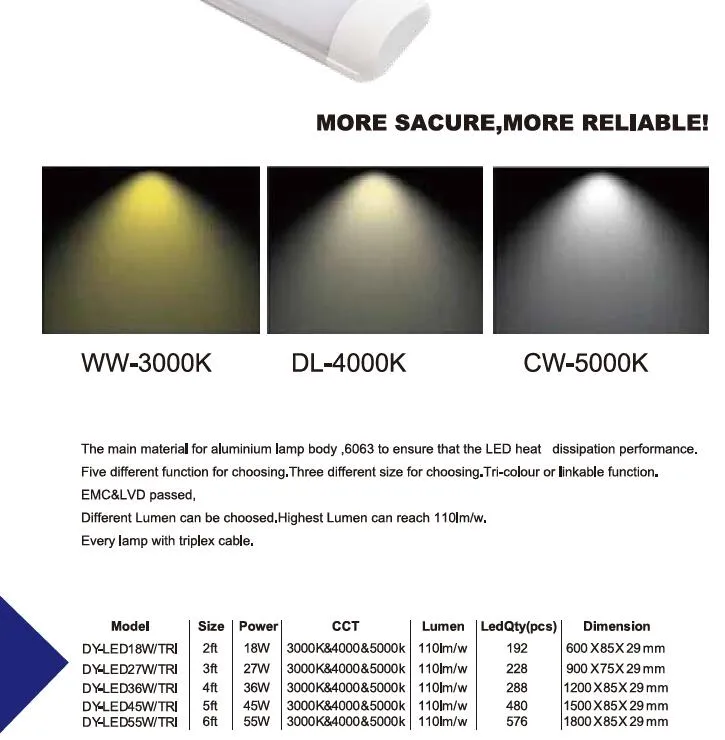

IP65 LED Batten Light Detail

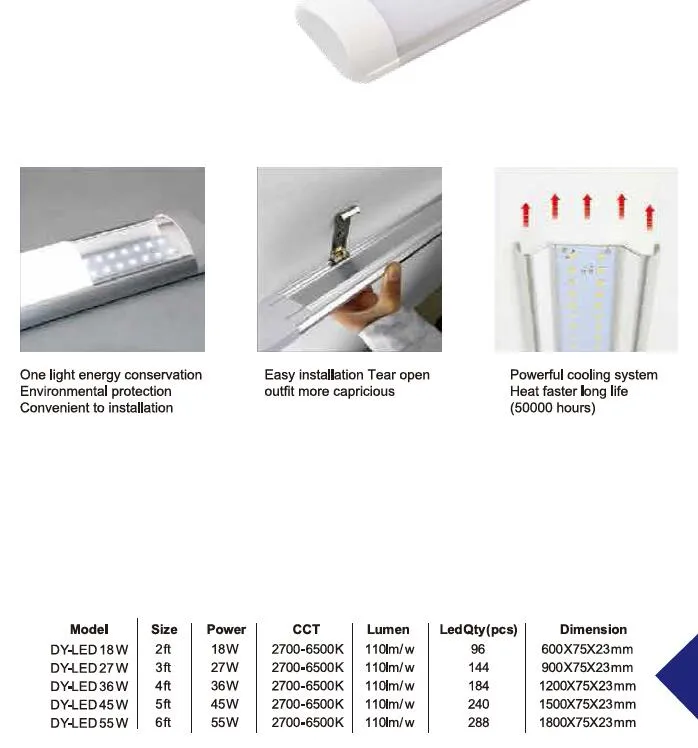

IP65 LED Batten Light Detail

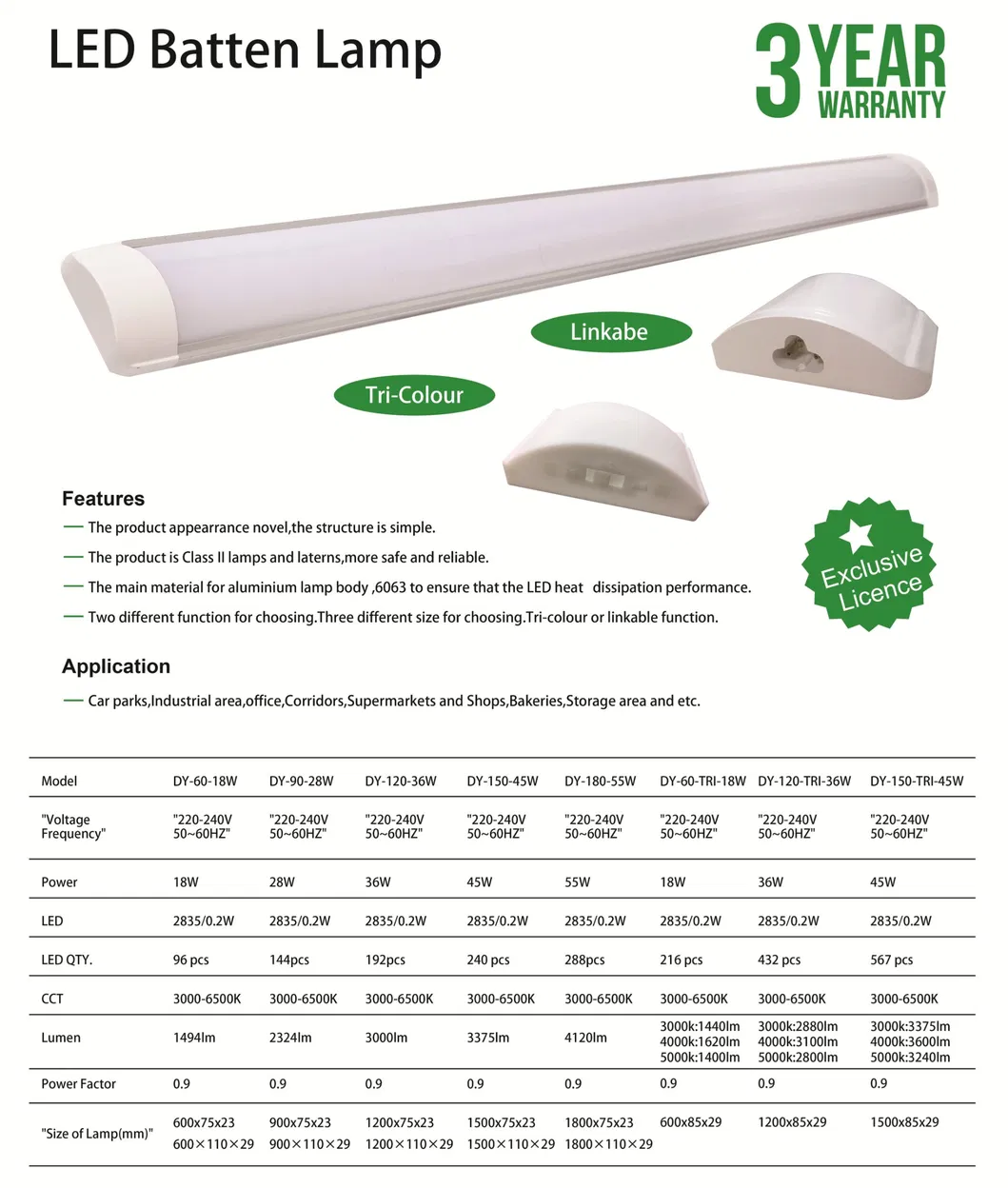

IP65 LED Batten Light Specification Detail
IP65 LED Batten Light Overview Banner

Frequently Asked Questions

What are the main advantages of using a 6063 aluminium body?
The 6063 grade aluminium provides exceptional thermal conductivity, ensuring optimal heat dissipation for the LEDs, which extends the lifespan and stability of the light fixture.
What is the difference between the Tri-colour and Standard models?
The Tri-colour series features selectable color temperatures (3000K, 4000K, and 5000K) within a single fixture, whereas the Standard series operates with a fixed color temperature output customized from 2700K to 6500K.
Is this light fixture safe for damp and dusty environments?
Yes, this LED Tri-Proof Light is designed with anti-corrosion, dust-proof, and waterproof features, making it highly suitable for challenging areas like car parks, industrial units, and warehouses.
What does Class II lighting fixture imply?
Class II electrical appliances feature double insulation and do not rely on a safety connection to electrical earth, offering an extra level of protection and reliability during installation and usage.
Can these LED Batten Lights be linked together?
Yes, the product line features a linkable version, allowing seamless connection of multiple units in series to illuminate large areas efficiently.
