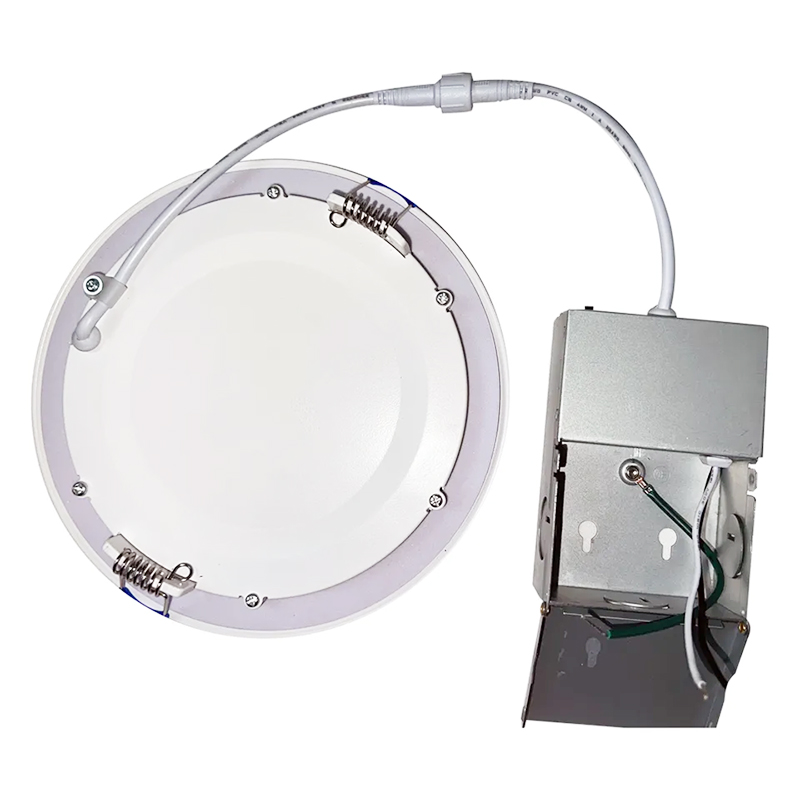

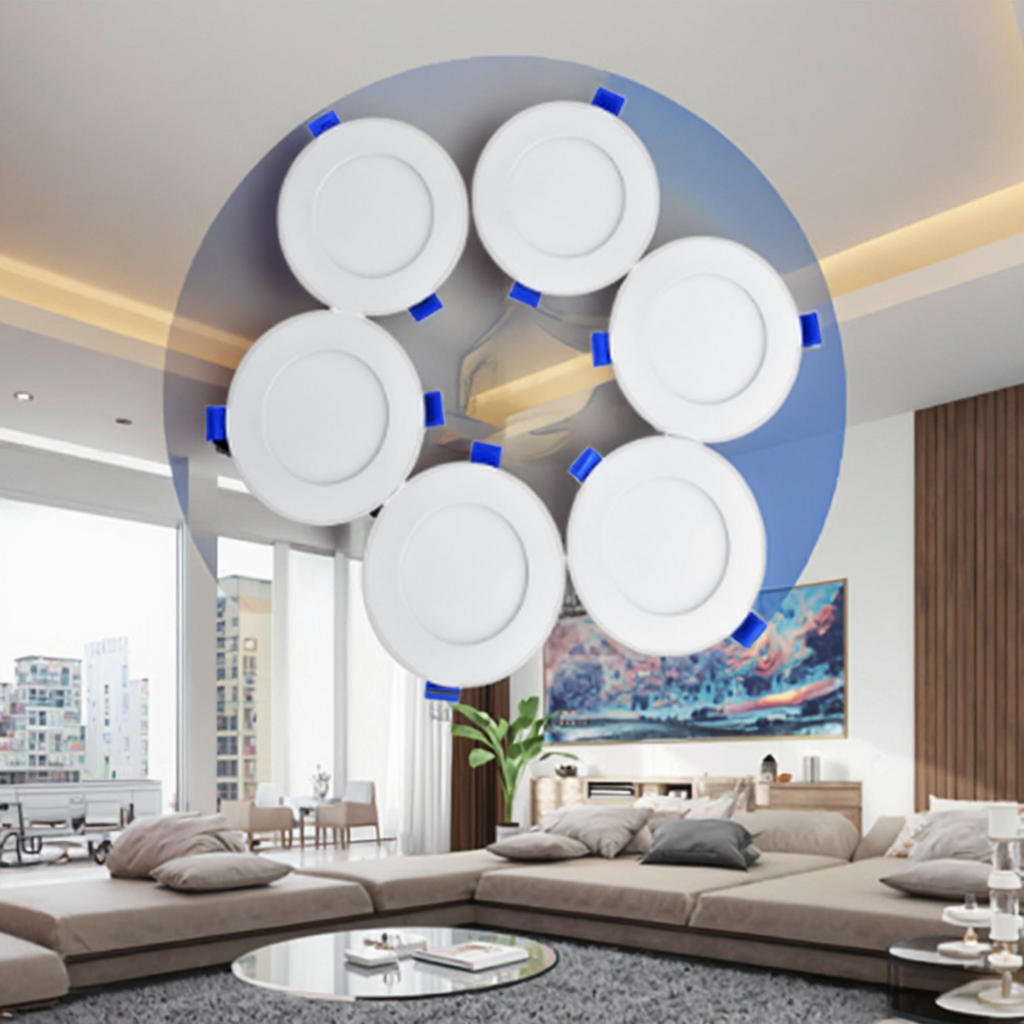

ETL Ultra Slim 6Inch 14W Recessed LED Panel Light Aluminum Body 5CCT Tunable Modern Indoor Lighting Downlight Fixture

Product Description

Company Introduction
Company Introduction

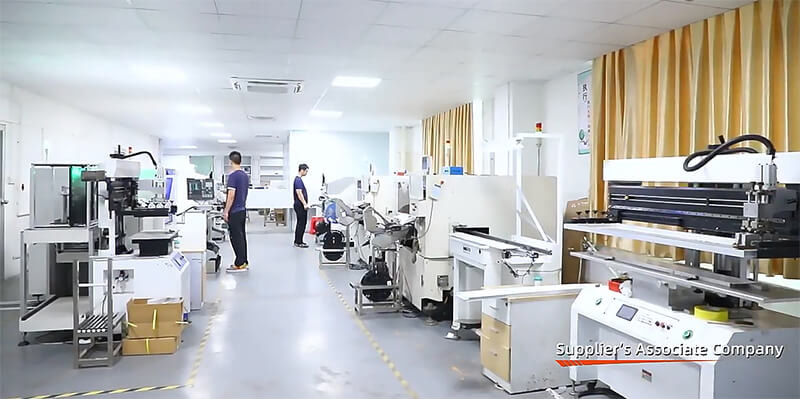

Office Facility Production Line
Product Description
DLD2 Series Dimmable Recessed LED Downlights are the perfect choice for new construction and retrofit opportunities when a sleek, integrated look is preferred. Excellent color consistency (CRI), smooth, uniform dimming from 100% - 0.5%, long Life of 35,000 hours, easy installation with pigtail and spring clips. Single color temperature or dial switch to select color temperature, 2700K, 3000K, 3500K, 4000K, 5000K. Support OEM&ODM customization.

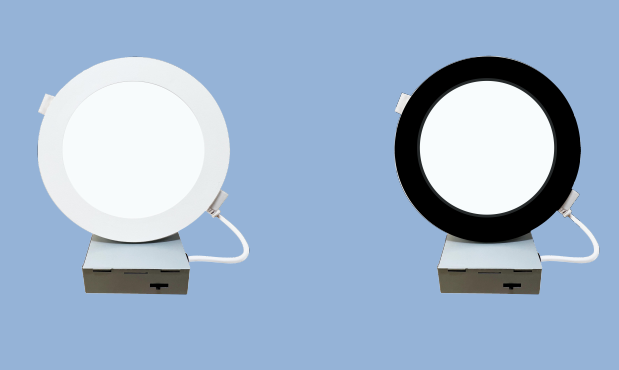

Product Layout Driver Detail
Product Model Dimension Wattage CCT Dimmable
DLD2-04-11-XXX Φ128*H25.4mm 11W Single CCT Triac
DLD2-04-11-5CT Φ128*H25.4mm 11W 5CCT Adjust Triac
DLD2-04-11-6CT Φ128*H25.4mm 11W+3W(nightlight) 5CCT Adjust+2000K Night light Triac
DLD2-06-14-XXX Φ178*H25.4mm 14W Single CCT Triac
DLD2-06-14-5CT Φ178*H25.4mm 14W 5CCT Adjust Triac
DLD2-06-14-6CT Φ178*H25.4mm 14W+3W(nightlight) 5CCT Adjust+2000K Night light Triac

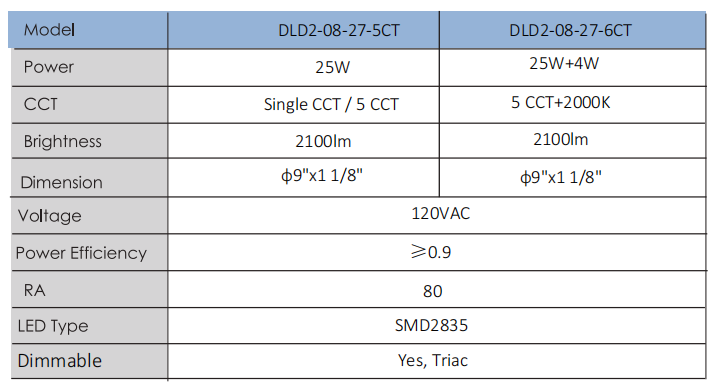

DLD2-08-27-5CT Φ230*H28mm 25W 5CCT Adjust Triac
DLD2-08-27-6CT Φ230*H28mm 25W+4W(nightlight) 5CCT Adjust+2000K Night light Triac

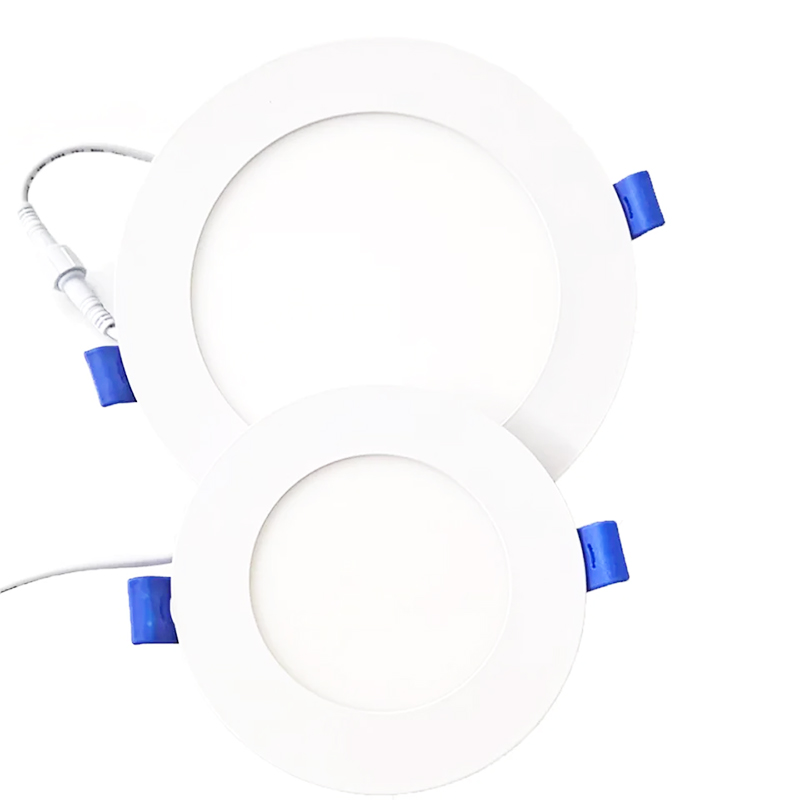

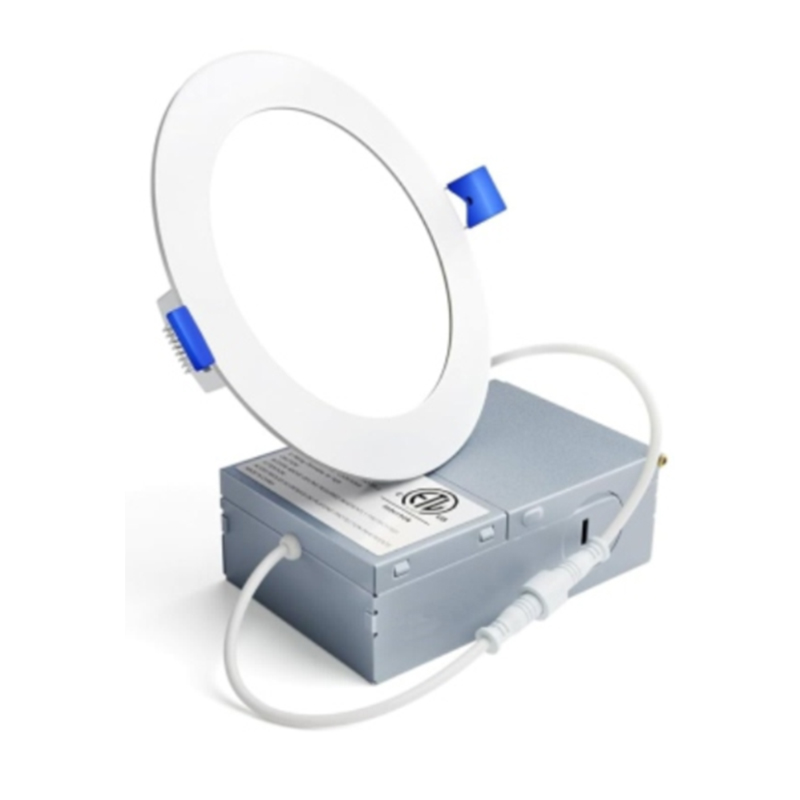

Installation Feature 1 Installation Feature 2 Installation Feature 3

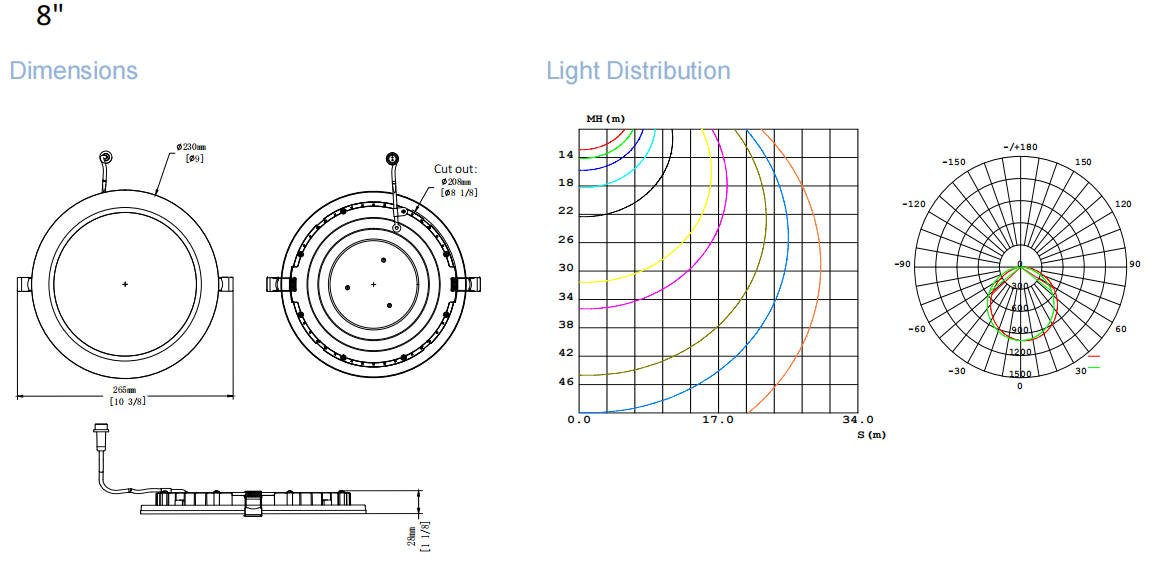

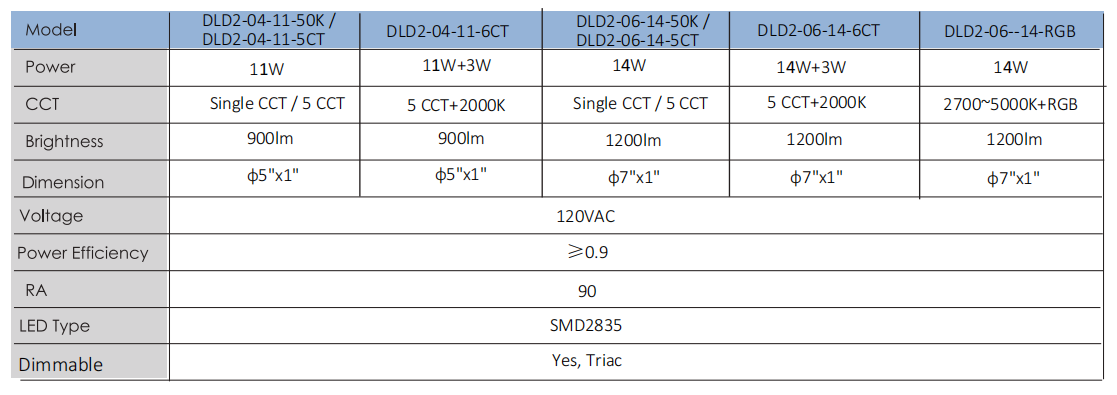

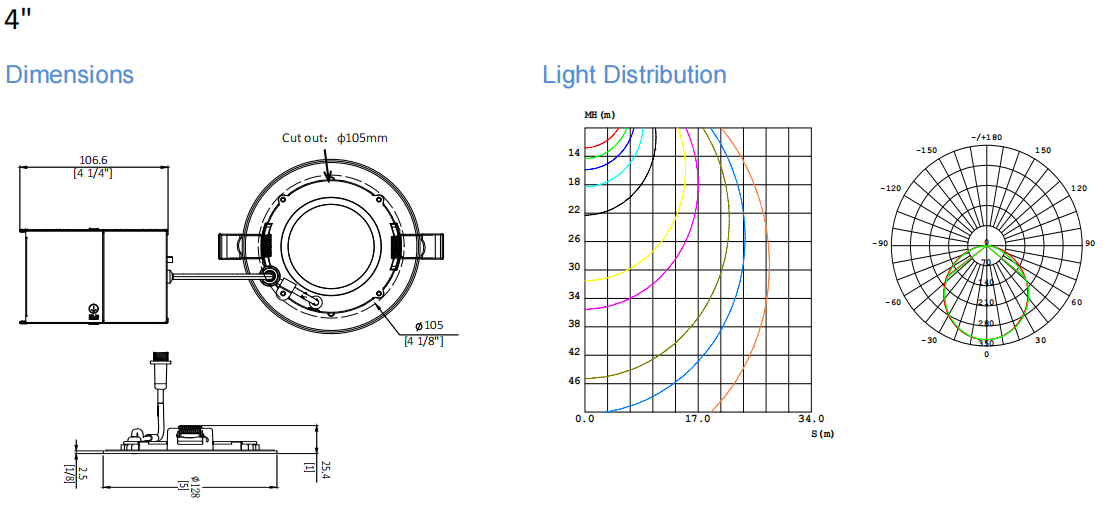

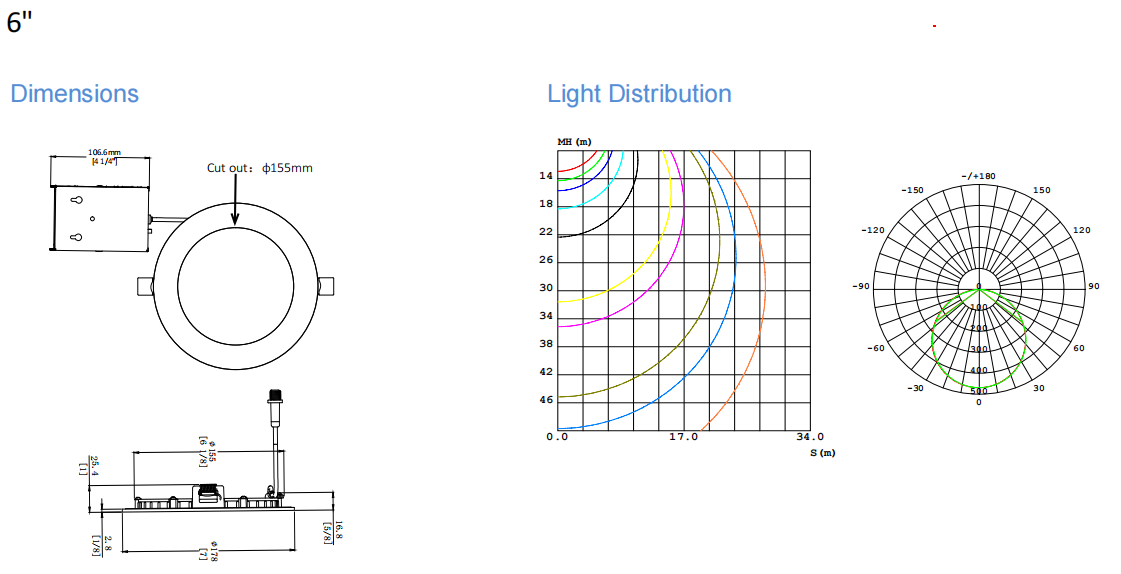

Product Dimensions
Ceiling Integration Light Glow

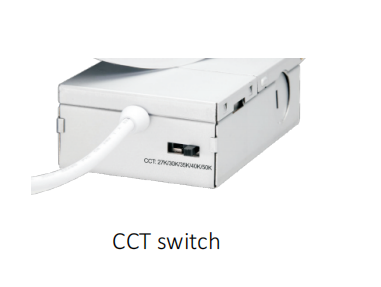

Dial switch selector Installation structure
Project Case

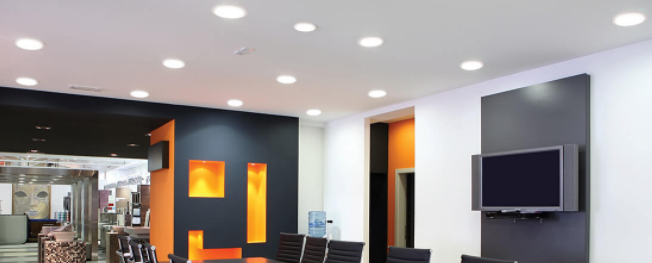

LED downlights are widely used in living rooms and office areas.

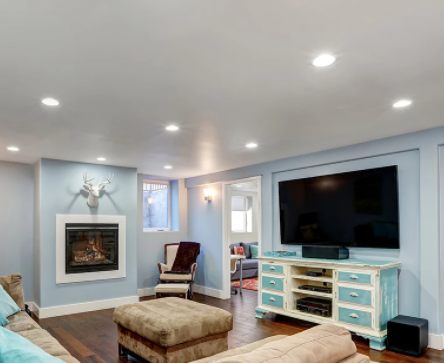

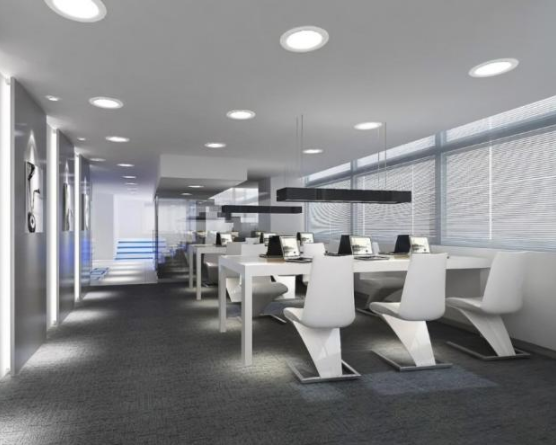

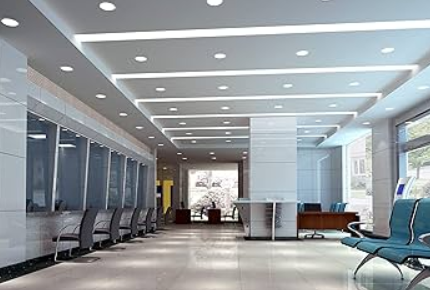

Living Room Application Office Area Application
Detailed Images

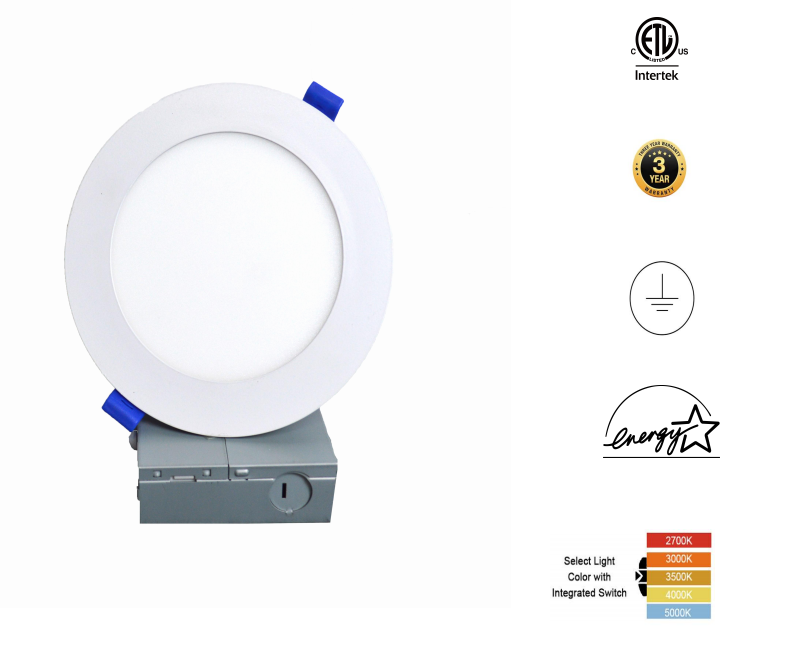

Detail View 1

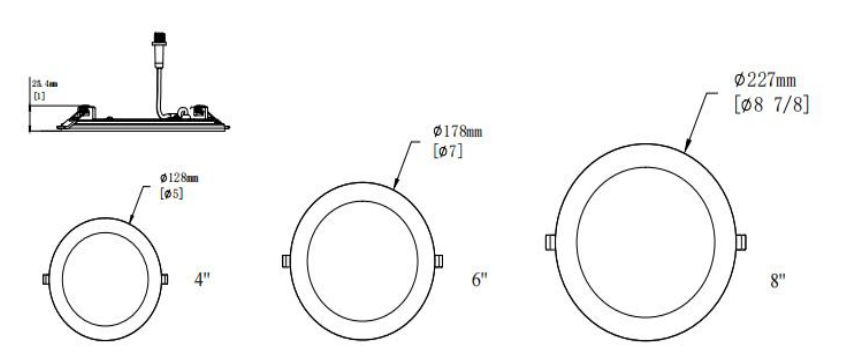

Product size: 4inch, 6inch & 8inch
Detail View 2

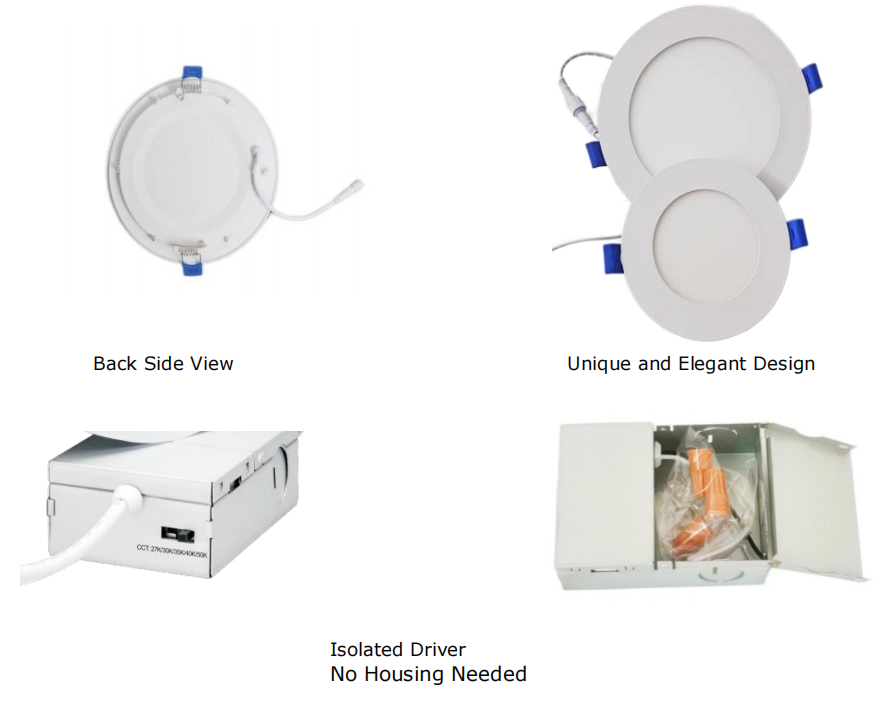

Introduction of product advantages
Product Advantages Diagram

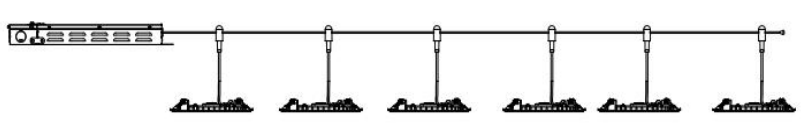

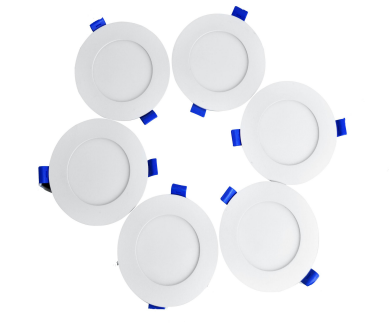

One Power Supply Wiring
4" 6" One Power Supply 6 Fixtures
  • Remote power supply to power up to 6 QuickLink fixtures;
  • Twist Connectors for ultra-fast wiring to cable and installation;
  • Individual CCT control of: white tuning (2700-5000K) & dimming;
  • Delivers high lumens per LED fixture; 90CRI;
  • For remodel (or new construction with optional mounting frames);
  • Additional fixtures sold separately.

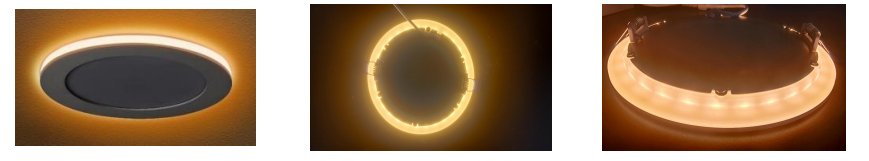

Nightlight Model
Nightlight Model
Powering lights with a twist
Powering lights with a twist

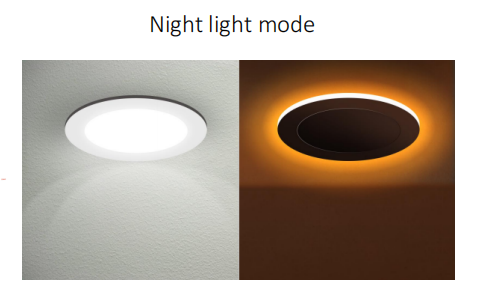

Application view Installation clips
Product Presentation
Product introduction: application, function, style, etc
Specification diagram
Installation Side
Product Name LED Ultra Thin Recessed Downlight
Material Die-cast aluminum material body
Driver IC Rated, isolated driver
Voltage 120VAC
Light Efficiency 85lm/w
Certificate ETL, ES
Warranty 3 years

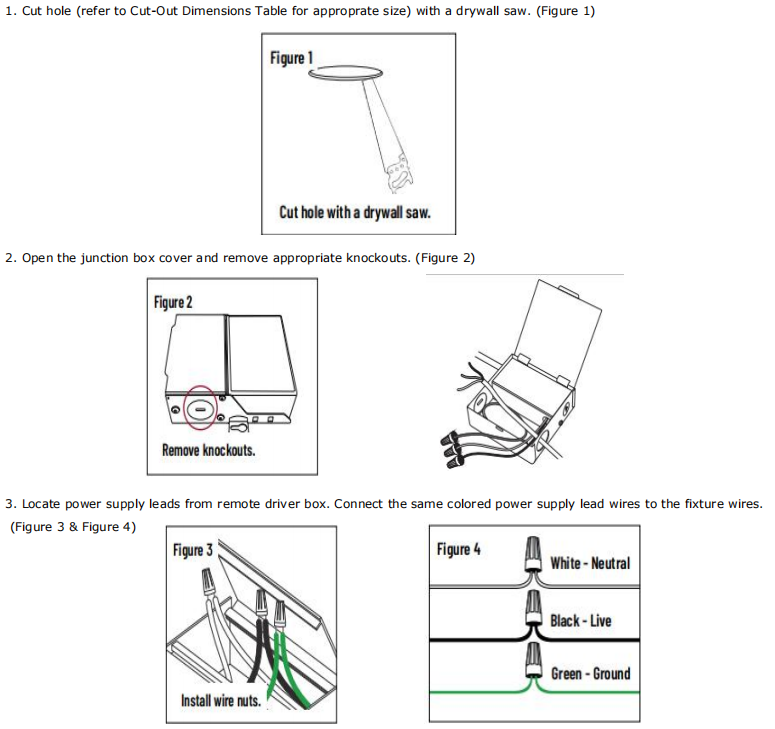

INSTALLATION INSTRUCTIONS
Warning 1

WARNING

!WARNING - Risk of fire or electric shock. LED Kit installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
!WARNING - Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
!WARNING - To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.

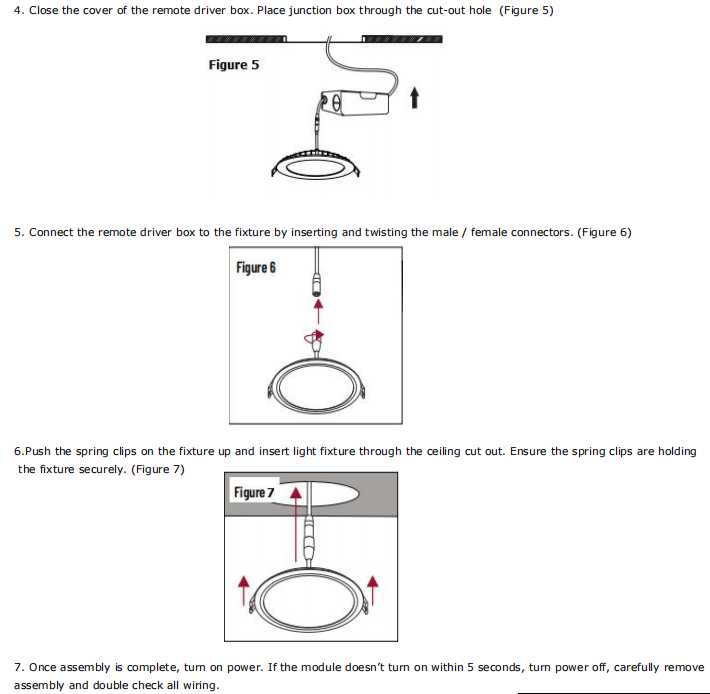

Warning 2

WARNING

!WARNING - This equipment is intended to be installed only by qualified personnel. The installation must be made in accordance with the current edition to the National Electrical Code and all applicable state and local building codes. The final installation must be approved by the appropriate qualified electrical/building inspector(s). Improper installation may result in a fire or electrical hazard. Be sure the electrical power to the circuit has been disconnected before installing this electrical system.
Certificate
UL ETL DLC CE RoHS ERP Energy Star CB SAA
Certificates Display Factory Audit Certificate
Packing & Shipping
Packaging Flow
Frequently Asked Questions
Q1: What sizes are available for the DLD2 series recessed downlights?
A1: The DLD2 series recessed downlights are available in 4-inch, 6-inch, and 8-inch specifications to fit various structural and design installations.
Q2: Are these LED downlights dimmable, and what range do they support?
A2: Yes, they support smooth, uniform Triac dimming from 100% down to 0.5% for excellent brightness customization.
Q3: How do I select or adjust the color temperature (CCT)?
A3: The lights are available in either a single color temperature configuration or with an integrated dial switch that allows you to easily select between 5 color temperatures (2700K, 3000K, 3500K, 4000K, 5000K). Select models also feature a 2000K nightlight mode.
Q4: What certifications and safety ratings do these downlights have?
A4: Our downlights are ETL and Energy Star (ES) certified. They feature an IC-rated, isolated driver designed for safe installation and consistent efficiency. We also comply with UL, CE, RoHS, ERP, SAA, and CB standards.
Q5: What is the warranty and lifespan of the DLD2 series downlights?
A5: They have a long working life of up to 35,000 hours and are backed by a reliable 3-year warranty.
Q6: Do you support custom manufacturing (OEM/ODM)?
A6: Yes, we provide full support for OEM and ODM customization services to meet your brand’s specific project requirements.
