Ultra Slim Led Panel Lights Ceiling Downlight Led Recessed Slim Ceiling Round Led Panel Light 18w

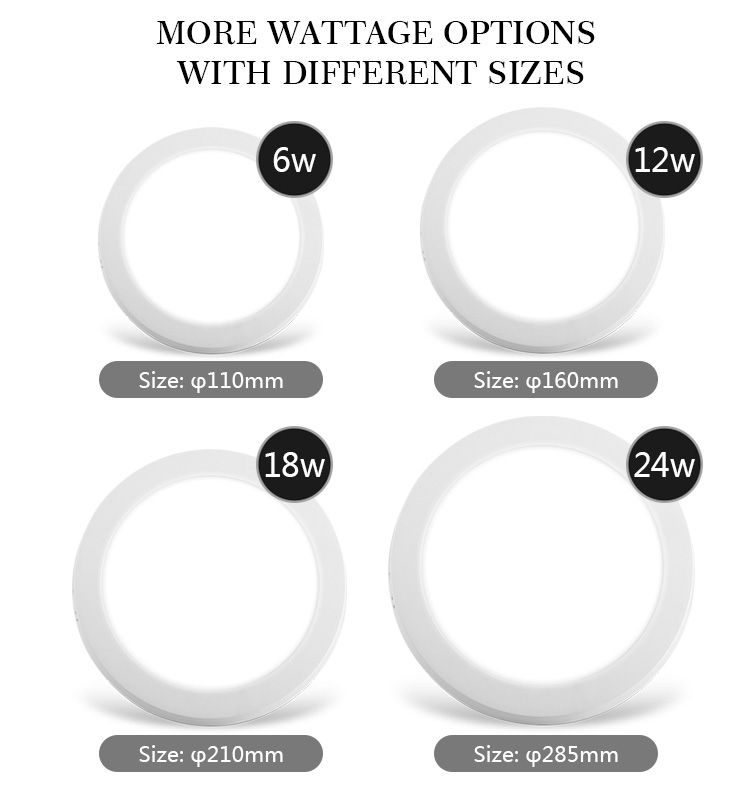

| Led Panel Light Specs |
| Model |
Shape |
Size |
Power |
Luminous Flux |
Lamp beads |
Install |
| QS-SRP-6 |
Round panel |
φ110mm |
6W |
360Lm |
30 |
Surface |
| QS-SRP-12 |
Round panel |
φ160mm |
12W |
810Lm |
60 |
Surface |
| QS-SRP-18 |
Round panel |
φ210mm |
18W |
1440Lm |
90 |
Surface |
| QS-SRP-24 |
Round panel |
φ285mm |
24W |
1800Lm |
120 |
Surface |
| QS-SSP-6 |
Square panel |
110*110mm |
6W |
360Lm |
30 |
Surface |
| QS-SSP-12 |
Square panel |
160*160mm |
12W |
810Lm |
60 |
Surface |
| QS-SSP-18 |
Square panel |
210*210mm |
18W |
1440Lm |
90 |
Surface |
| QS-SSP-24 |
Square panel |
285*285mm |
24W |
1800Lm |
120 |
Surface |

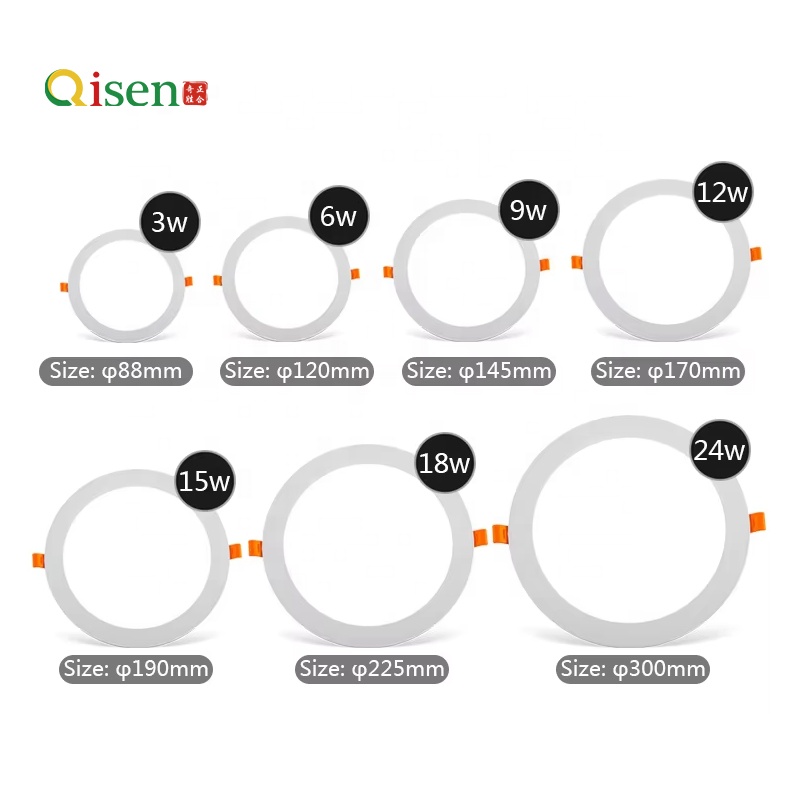

| QS-RP-3 |
Round panel |
φ88mm |
3W |
140Lm |
15 |
Recessed |
| QS-RP-6 |
Round panel |
φ120mm |
6W |
360Lm |
30 |
Recessed |
| QS-RP-9 |
Round panel |
φ145mm |
9W |
580Lm |
45 |
Recessed |
| QS-RP-12 |
Round panel |
φ170mm |
12W |
810Lm |
60 |
Recessed |
| QS-RP-15 |
Round panel |
φ190mm |
15W |
1200Lm |
75 |
Recessed |
| QS-RP-18 |
Round panel |
φ225mm |
18W |
1440Lm |
90 |
Recessed |
| QS-RP-24 |
Round panel |
φ300mm |
24W |
1800Lm |
120 |
Recessed |
| QS-SP-3 |
Square panel |
88*88mm |
3W |
140Lm |
15 |
Recessed |
| QS-SP-6 |
Square panel |
120*120mm |
6W |
360Lm |
30 |
Recessed |
| QS-SP-9 |
Square panel |
145*145mm |
9W |
580Lm |
45 |
Recessed |
| QS-SP-12 |
Square panel |
170*170mm |
12W |
810Lm |
60 |
Recessed |
| QS-SP-15 |
Square panel |
190*190mm |
15W |
1200Lm |
75 |
Recessed |
| QS-SP-18 |
Square panel |
225*225mm |
18W |
1440Lm |
90 |
Recessed |
| QS-SP-24 |
Square panel |
300*300mm |
24W |
1800Lm |
120 |
Recessed |
-
✔
Fast Delivery
-
✔

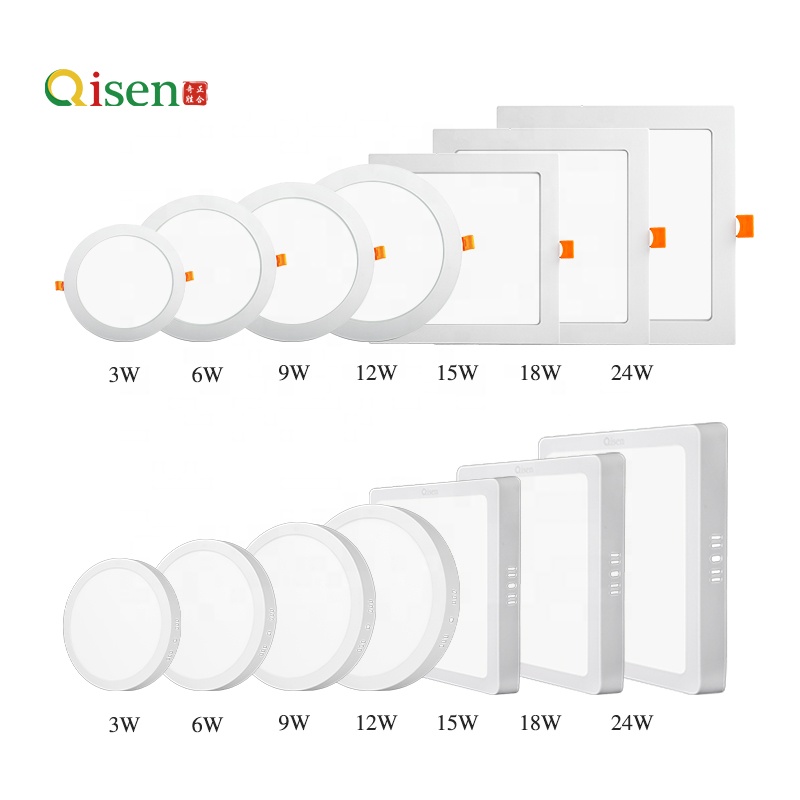

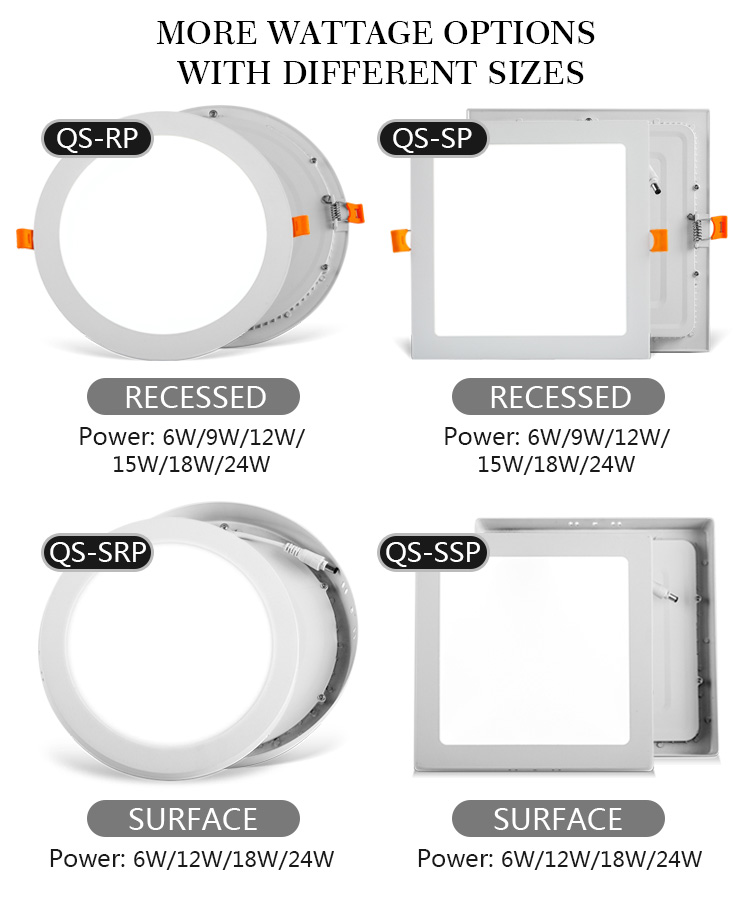

Power Range: 3W / 6W / 9W / 12W / 15W / 18W / 24W
-
✔
All-inclusive cover, no light leakage
-
✔
Lifespan over 25000 hours
-
✔
Good quality aluminum, good heat sink
For More Detail and Price List
Send Inquiry Now
Product Description
| Brand |
OEM |
Model |
QS-RP-24 |
| Input Voltage(V) |
85-265 |
Power |
6W / 12W / 18W / 24W |
| Luminous Flux(lm) |
360 / 810 / 1440 / 1800 |

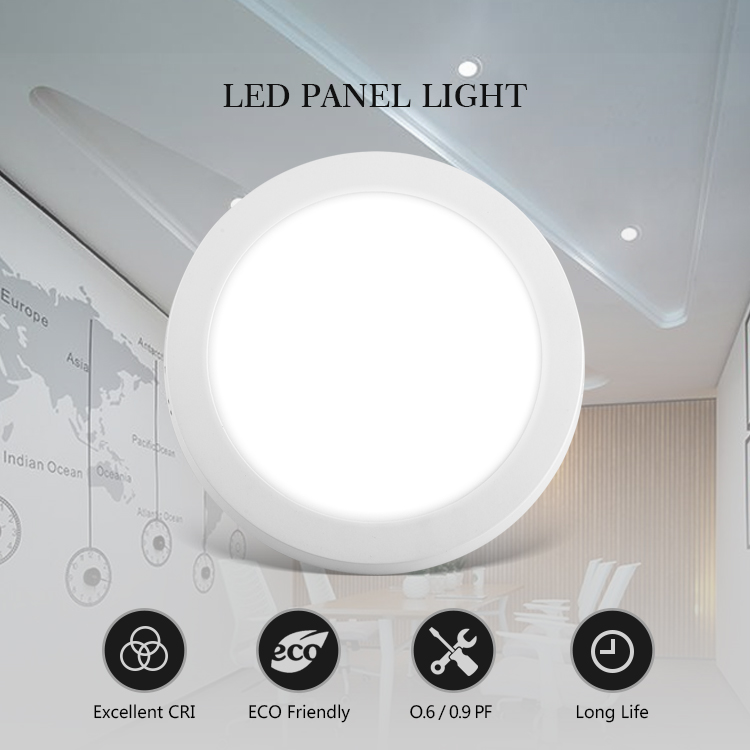

CRI (Ra>) |
80 |
| Temperature |
-20~50°C |
Lifetime |
25000h |
| IP Rating |
IP33 |
Black Cover |
Iron |
| Cover Material |
Aluminum |
Frame Material |
Aluminum |
| Light source |
LED |
LED Chips |
SMD2835 |

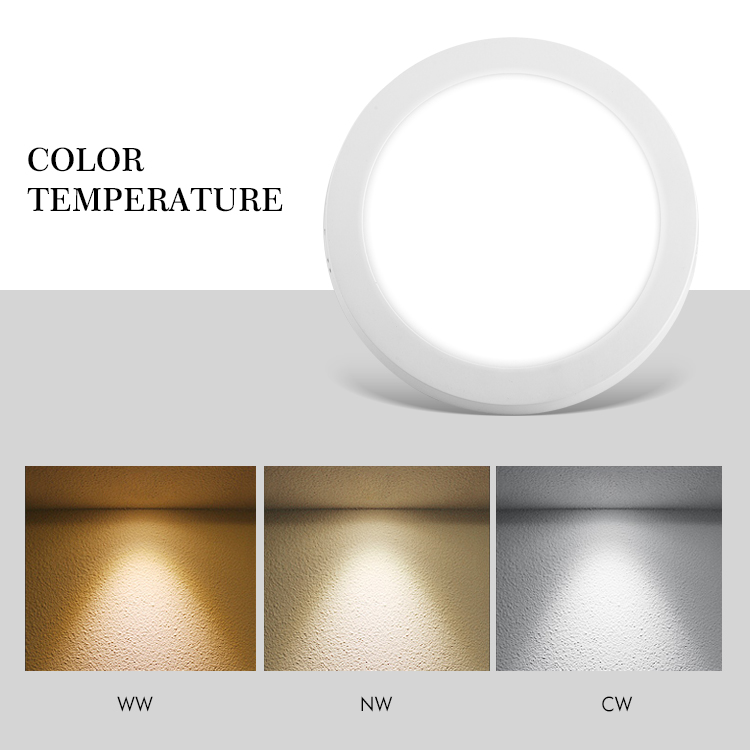

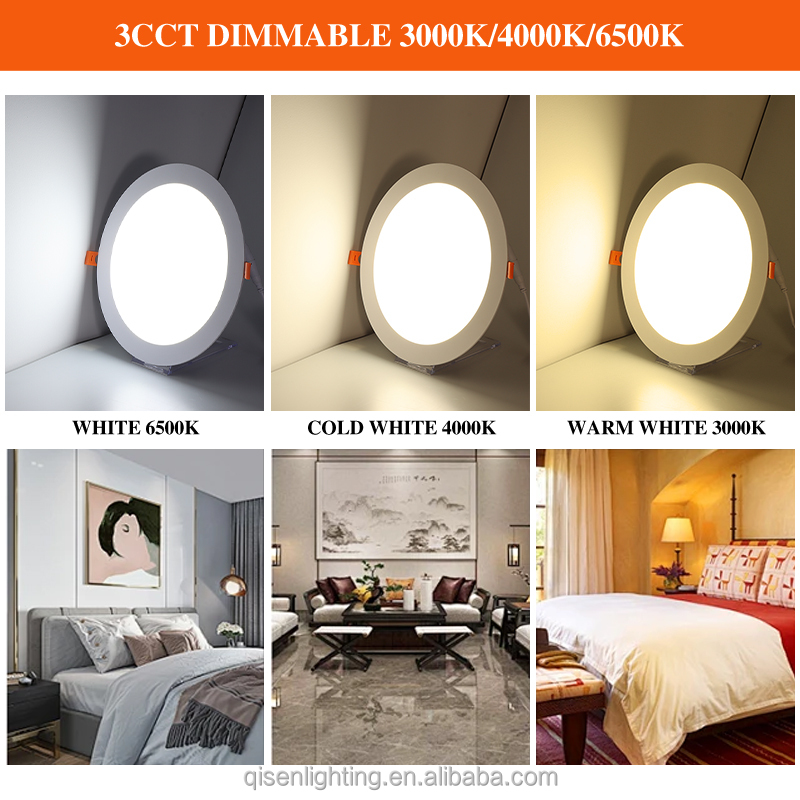

| CCT |
3000K/4000/6500K |
Beam angle |
120° |
| Light Color |
natural / warm / cold |
Installation |
Surface / Recessed |
-
▸

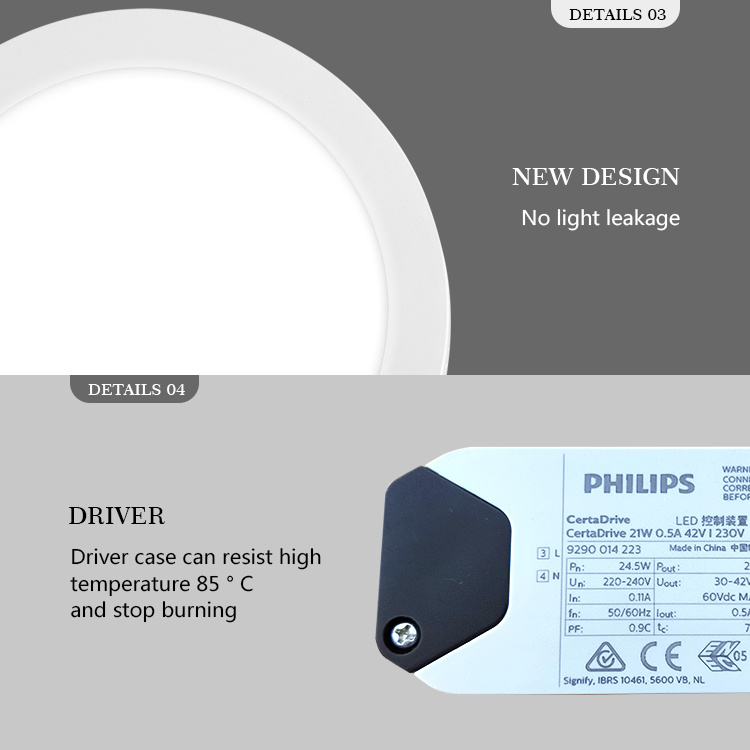

New design, all-inclusive cover, no light leakage
-
▸
Good quality aluminum, good heat sink
-
▸

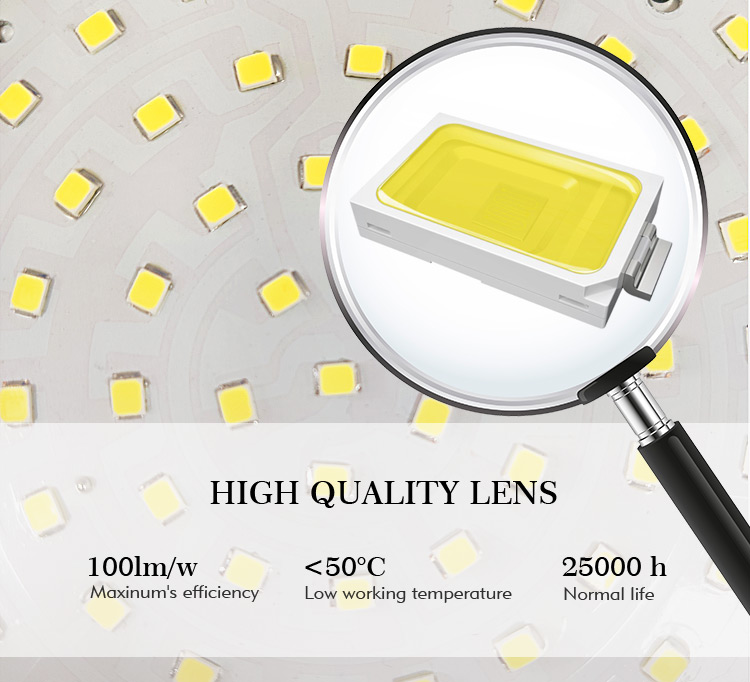

Imported high lumen copper 2835 chip, high temperature resistance
-
▸
Lifespan over 25000 hours
-
▸

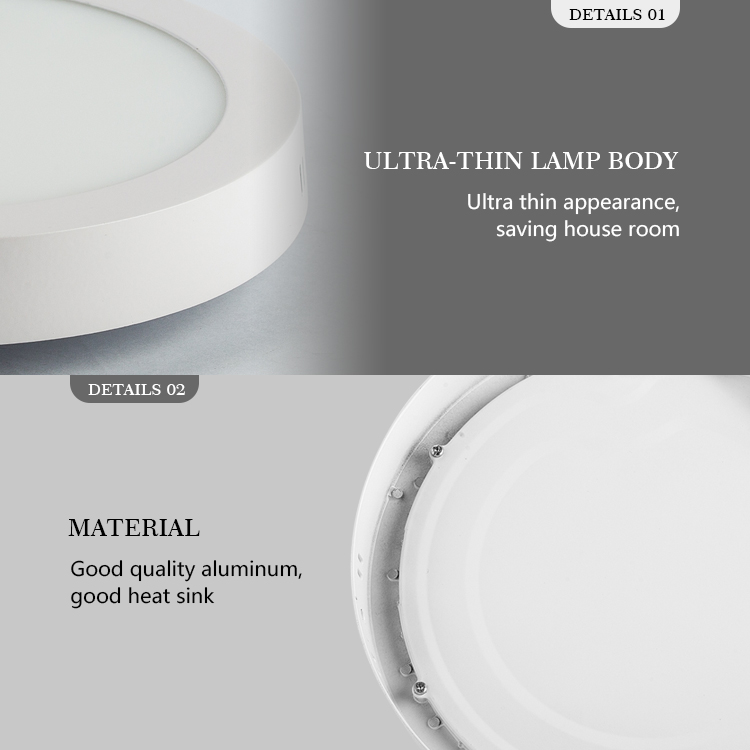

Ultra thin appearance, saving house room
-
▸
Edge-lit light, three reflections, light is soft and help protect eye
-
▸
Driver case can resist high temperature 85°C and stop burning
For More Detail and Product Catalog
Send Inquiry Now
Q1: What installation options are available for these slim LED panel lights?
A1: Our slim LED panel lights support both Recessed and Surface-mounted installation options to suit different ceiling setups.
Q2: What is the expected lifetime of this downlight series?
A2: These lights are built with imported high-lumen copper 2835 chips, offering a long operational lifespan exceeding 25,000 hours.
Q3: How does the design prevent light leakage?
A3: The panel features an innovative all-inclusive cover structure design that effectively prevents any light leakage around the edges.
Q4: Are these panel lights eye-friendly?
A4: Yes, they use an edge-lit design with three reflections to soften the light emission, helping to minimize eye strain and protect vision.
Q5: What sizes and wattage capacities can I choose from?
A5: We provide multiple models in round and square shapes, with wattages ranging from 3W, 6W, 9W, 12W, 15W, 18W, up to 24W.
Q6: What materials ensure the durability and heat safety of these lights?
A6: The cover and frame are constructed from premium aluminum which acts as an excellent heat sink. Additionally, the driver housing is designed to withstand temperatures up to 85°C to prevent combustion.
