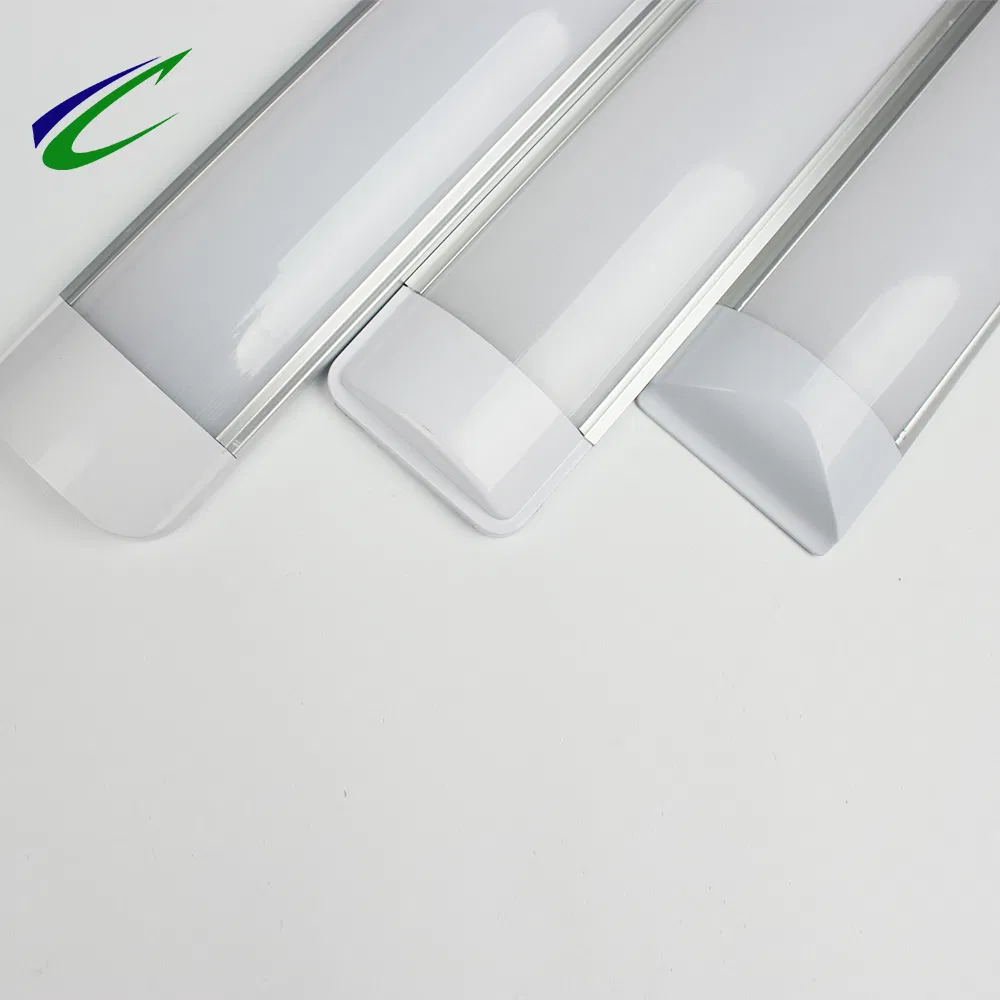

0.6m/0.9m/1.2m/1.5m Batten Light LED Strip Light 2FT 3FT 4FT 5FT 6FT Linear Light Outdoor Light LED Lighting Vapor Tight Light Waterproof Lighting Fixtures

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Product Name
LED Tri-Proof Light
Feature
Anti-corrosion, Dust-Proof, Waterproof
Light Body Material
Aluminum
Material
Aluminum+PC
Power
18W
Color Temperature(CCT)
2700-6500K
MOQ
500PCS
PF
0.9
CRI
Ra>80
Transport Package
Inner Box and Outside Carton
Specification
600*85*29mm
Trademark
OEM
Origin
China
HS Code
9405409000
Production Capacity
1000/15 Days
Product Description
LED Tri-Proof Batten Light

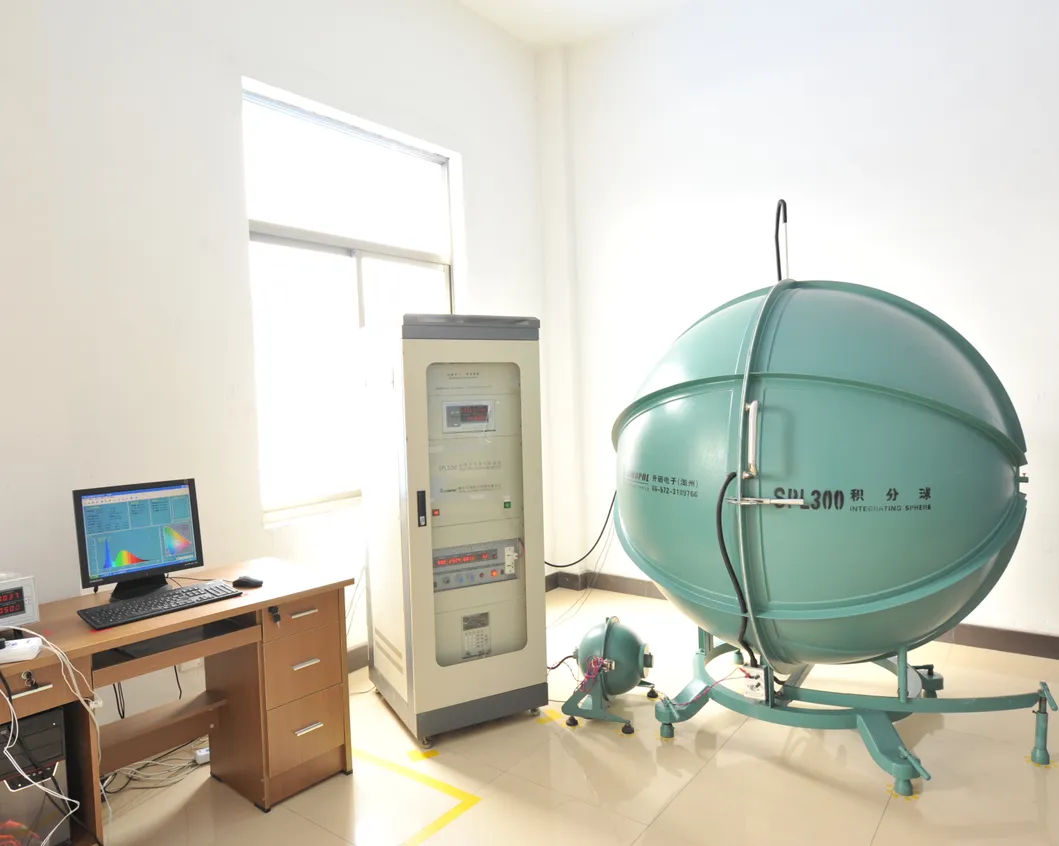

LED Strip Light Details

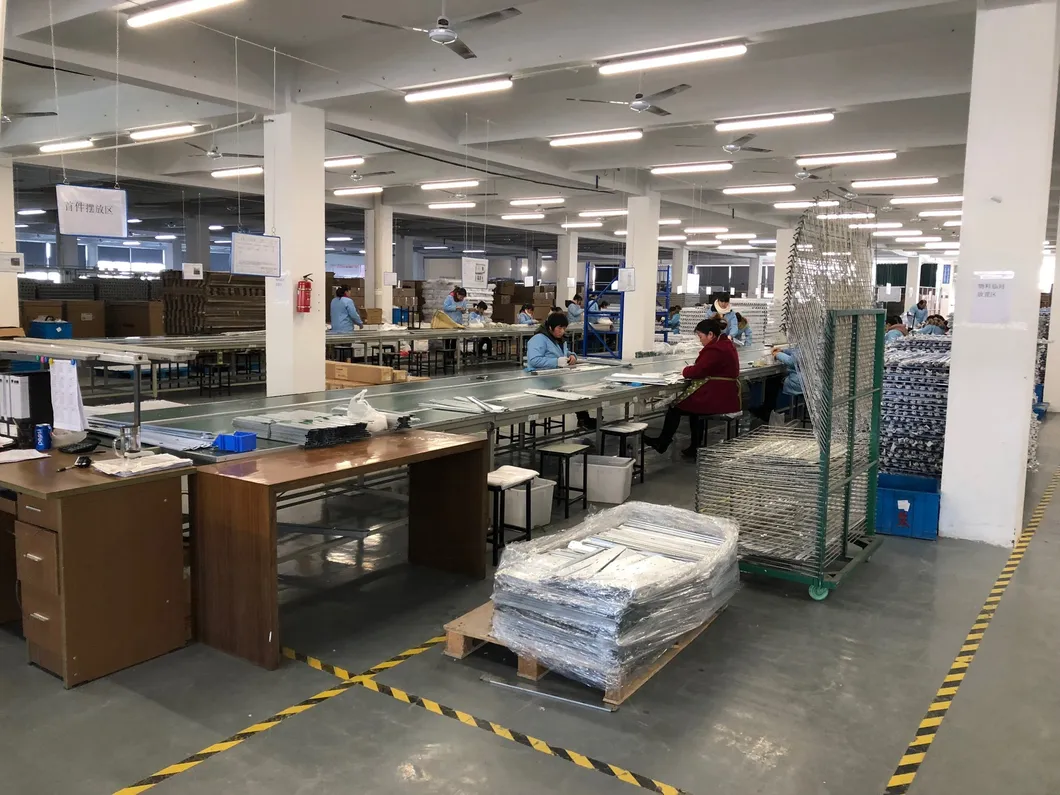

Linear Light Application

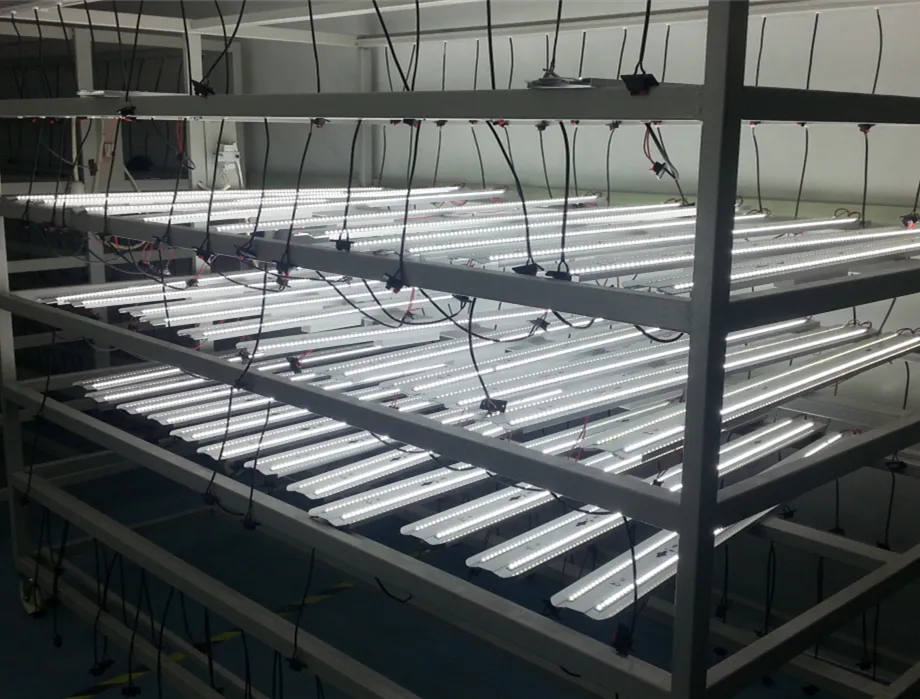

Vapor Tight Light Outdoor

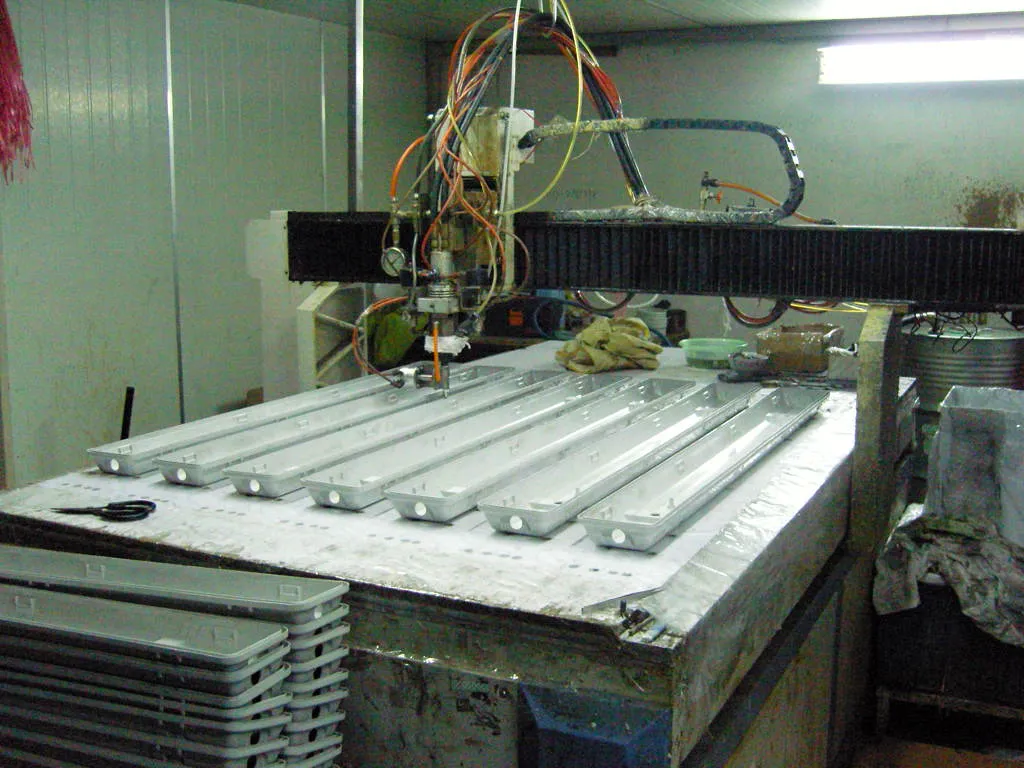

Waterproof Lighting Fixtures

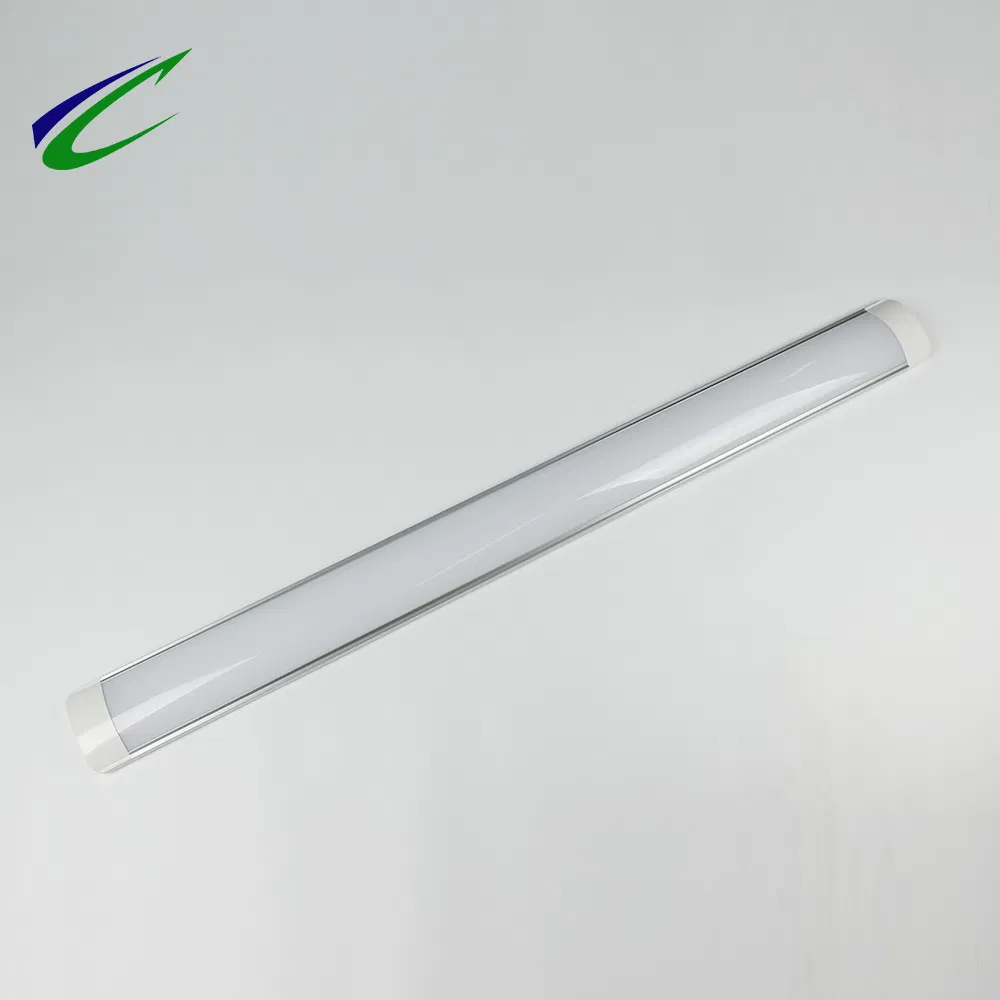

LED Batten Structural View
Tri-proof light components

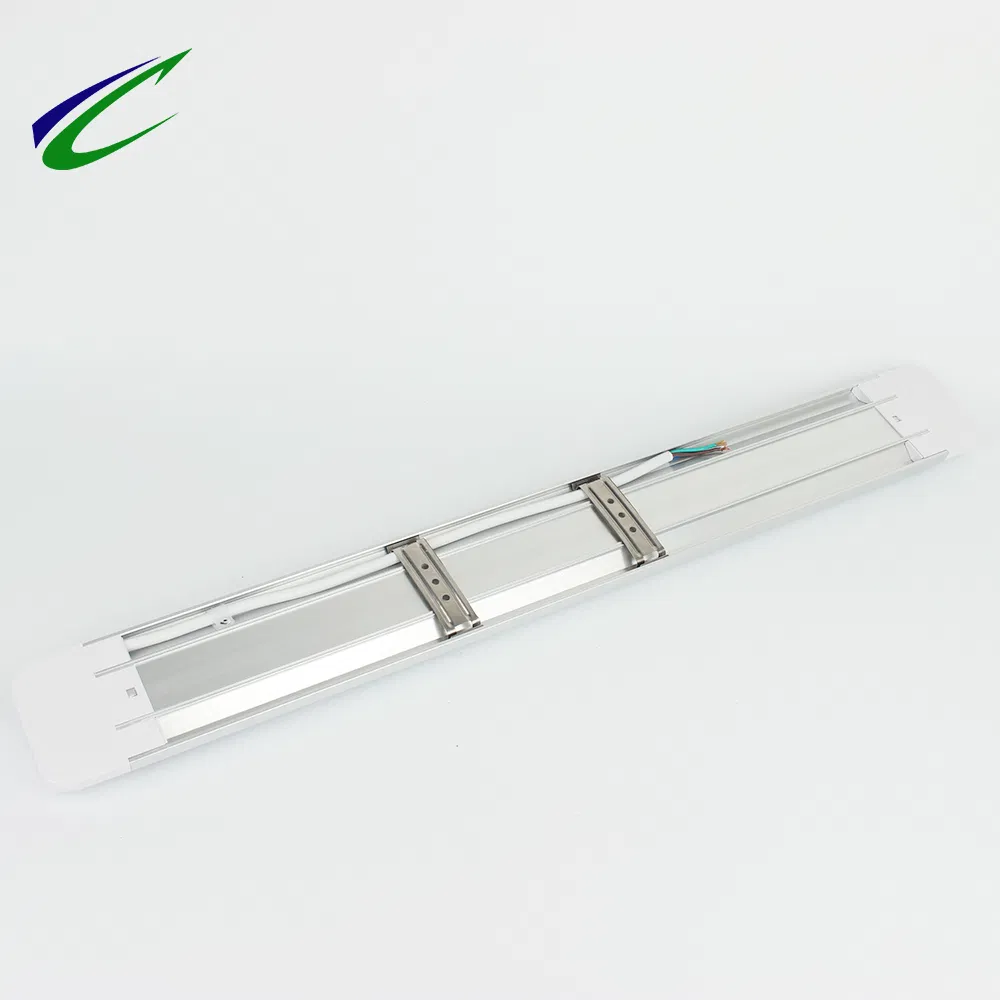

High performance LEDs

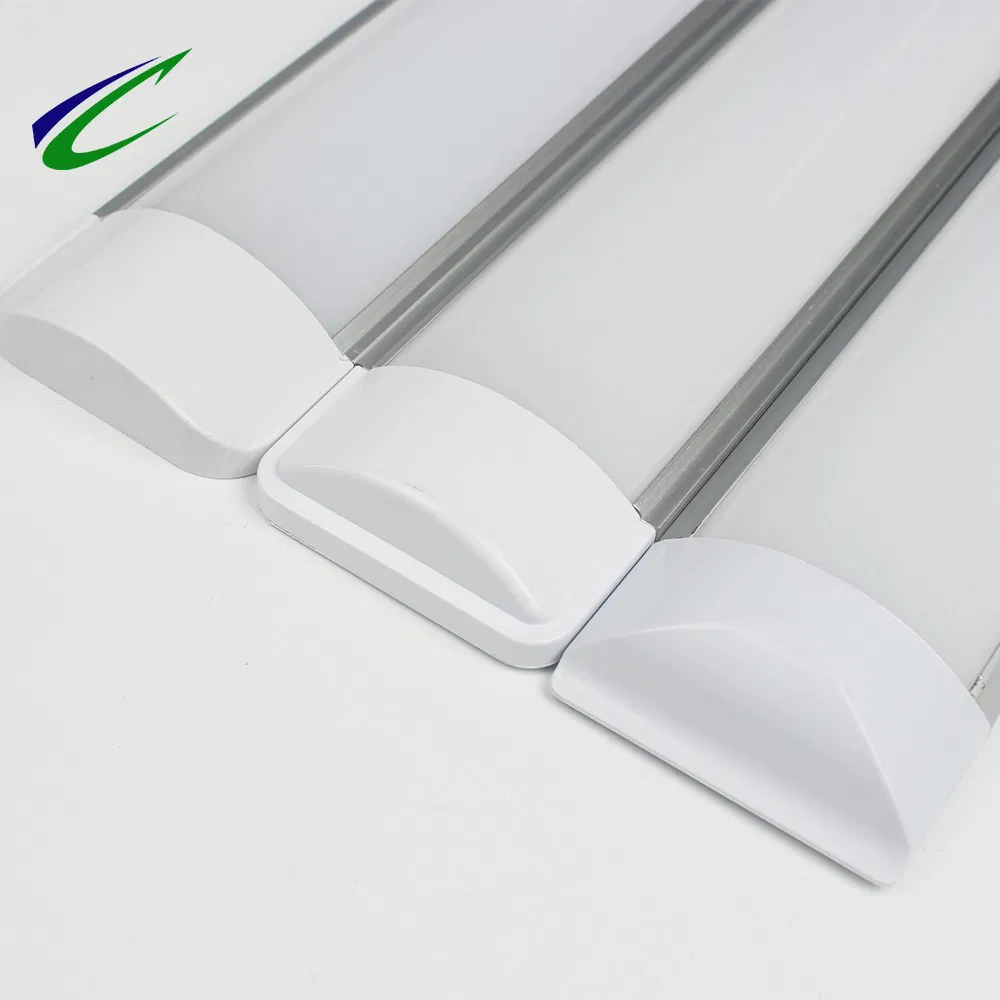

Reliable LED light driver
Key Features
  • The product appearance is novel, and the structure is designed for simplicity.
  • The product belongs to Class II lamps and lanterns, offering enhanced safety and reliability.
  • Features a 6063 aluminium lamp body as the primary material to ensure highly efficient LED heat dissipation performance.
  • Offers two distinct functions, three size variations, and supports tri-colour CCT selection or linkable configuration.
Applications
Car Parks Industrial Areas Offices Corridors Supermarkets & Shops Bakeries Storage Areas
Technical Specifications

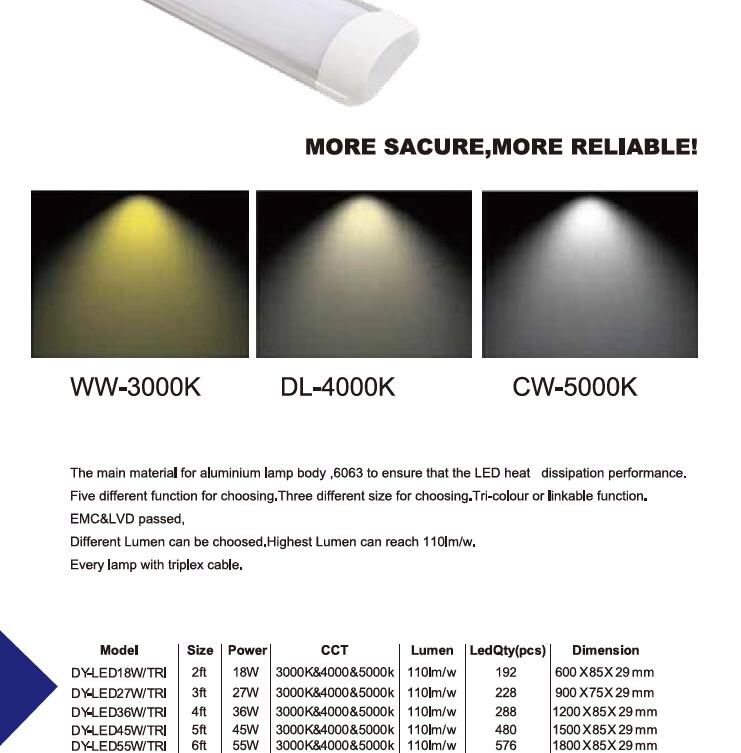

DY-LED TRI-Color Series (Selectable 3000K & 4000K & 5000K)
Model Size Power CCT Lumen LED Qty (pcs) Dimension
DY-LED18W/TRI 2ft 18W 3000K/4000K/5000K 110lm/w 192 600*85*29mm
DY-LED27W/TRI 3ft 27W 3000K/4000K/5000K 110lm/w 228 900*75*29mm
DY-LED36W/TRI 4ft 36W 3000K/4000K/5000K 110lm/w 288 1200*85*29mm
DY-LED45W/TRI 5ft 45W 3000K/4000K/5000K 110lm/w 480 1500*85*29mm
DY-LED55W/TRI 6ft 55W 3000K/4000K/5000K 110lm/w 576 1800*85*29mm
DY-LED Standard Series (CCT 2700-6500K)
Model Size Power CCT Lumen LED Qty (pcs) Dimension
DY-LED18W 2ft 18W 2700-6500K 110lm/w 96 600*75*23mm
DY-LED27W 3ft 27W 2700-6500K 110lm/w 144 900*75*23mm
DY-LED36W 4ft 36W 2700-6500K 110lm/w 184 1200*75*23mm
DY-LED45W 5ft 45W 2700-6500K 110lm/w 240 1500*75*23mm
DY-LED55W 6ft 55W 2700-6500K 110lm/w 288 1800*75*23mm

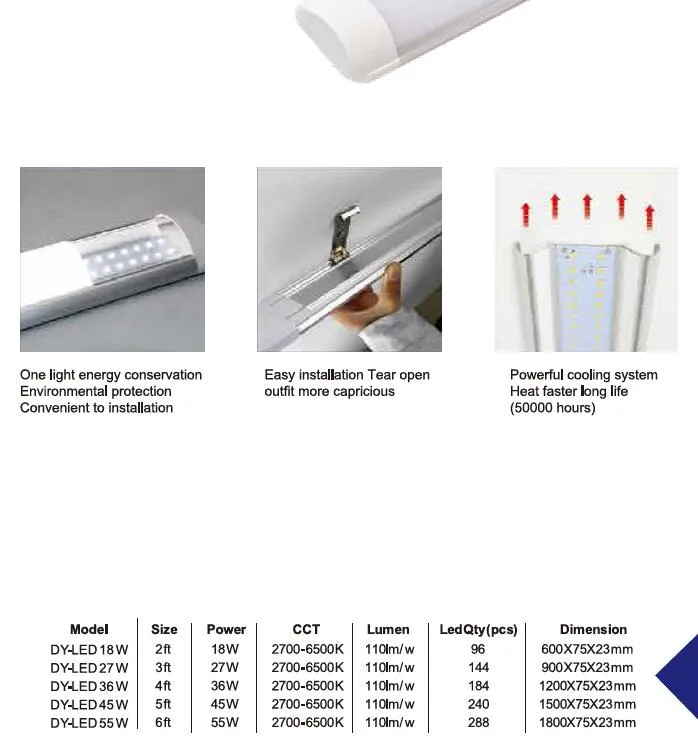

Linear Batten Dimension drawing

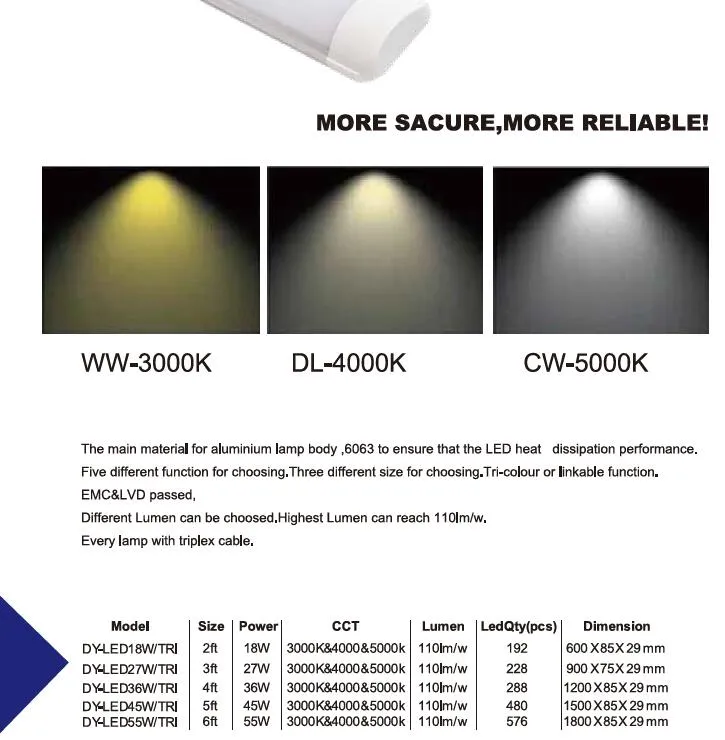

Linear light spec metrics

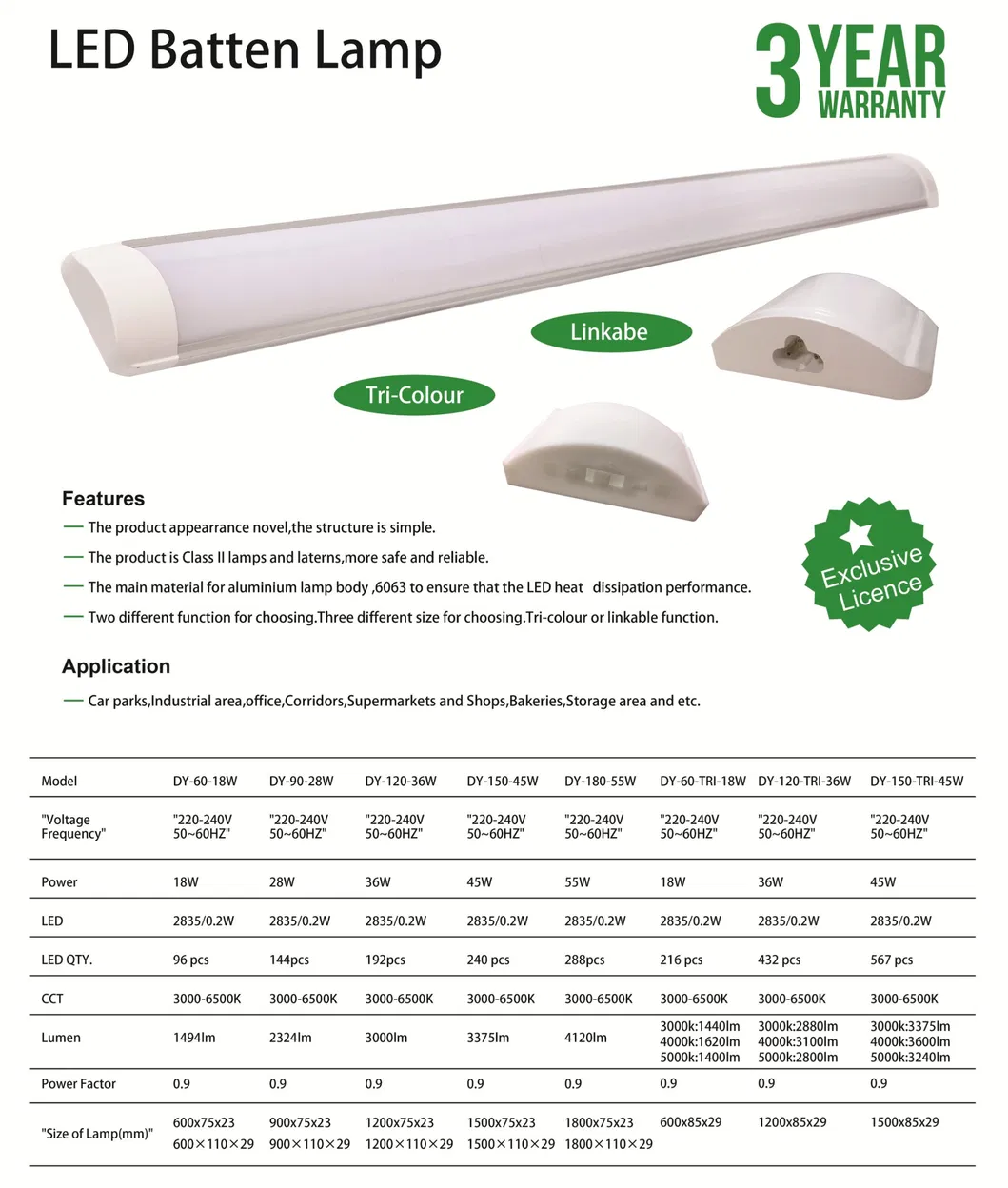

Tri-proof light structural parameters
Full range linear light options
Frequently Asked Questions
What does "Tri-Proof" mean for this LED light?
Tri-Proof refers to the fixture's high-durability protection against three environmental factors: it is waterproof, dust-proof, and anti-corrosive, making it excellent for harsh outdoor or industrial environments.
What materials are used to ensure the durability of this linear light?
The main body is constructed using 6063 aluminum, which maximizes heat dissipation and guarantees stable performance. The outer cover is made of high-quality PC material to protect components while maintaining optimal light transmittance.
Can I adjust the color temperature of the LED Tri-Proof Light?
Yes, we offer a TRI-Color series (DY-LED/TRI models) that allows you to switch between 3000K, 4000K, and 5000K color temperatures. The standard model also offers a wide range from 2700K to 6500K.
What safety class ratings do these linear lights have?
These lighting fixtures are rated as Class II lamps, which means they feature double insulation layers and do not rely on a safety connection to electrical earth, ensuring an extra layer of operation safety.
What are the primary mounting locations suited for this product?
This light is highly versatile and commonly applied in heavy-duty or public transit environments like car parks, corridors, supermarkets, retail stores, bakeries, warehouses, and general industrial working zones.
What are the length and size options available?
We provide multiple standard sizing configurations ranging from 2ft (600mm), 3ft (900mm), 4ft (1200mm), 5ft (1500mm), to 6ft (1800mm) to accommodate different space layouts and brightness requirements.
