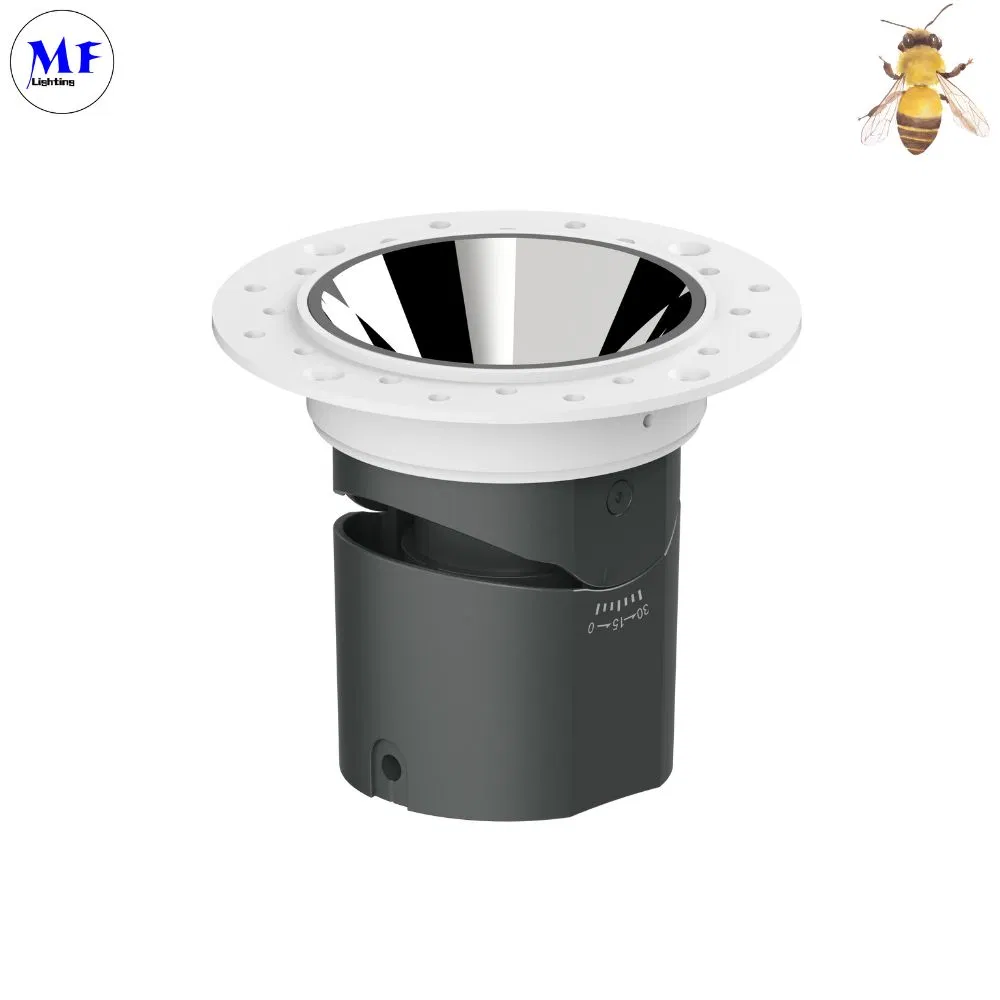

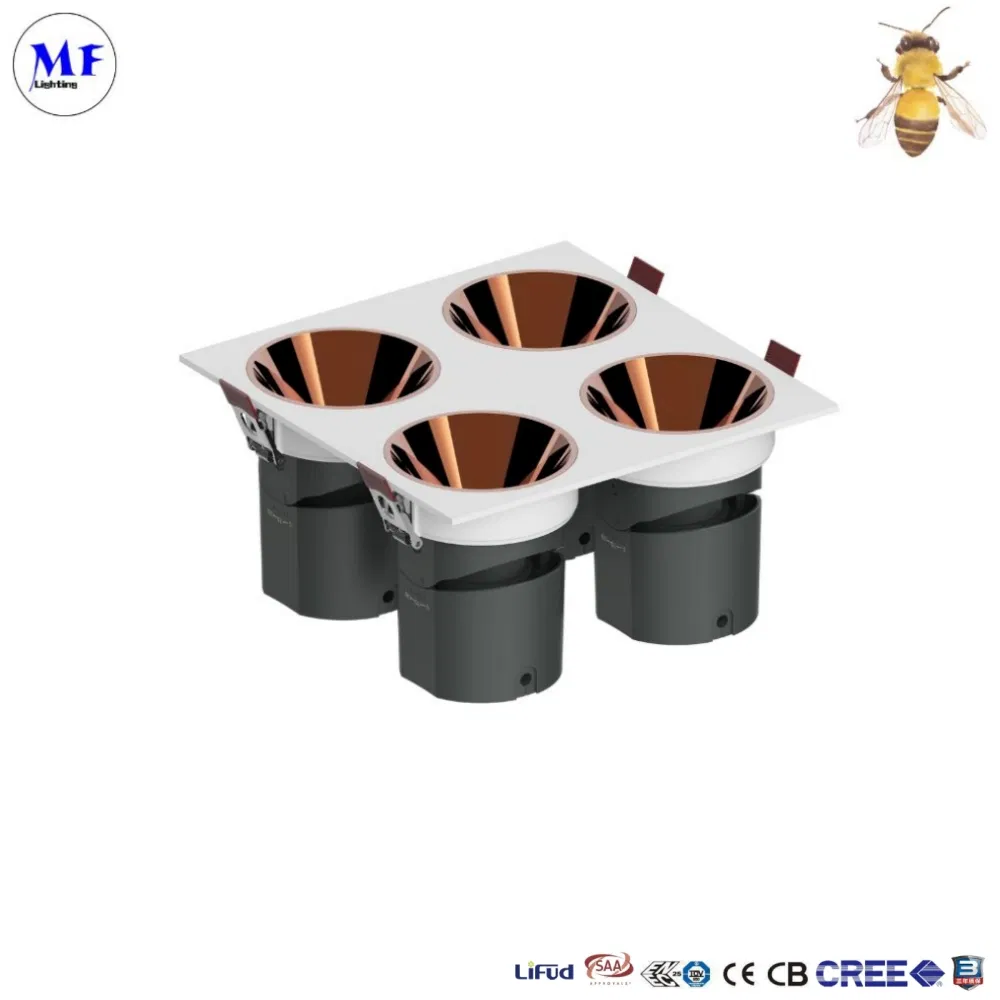

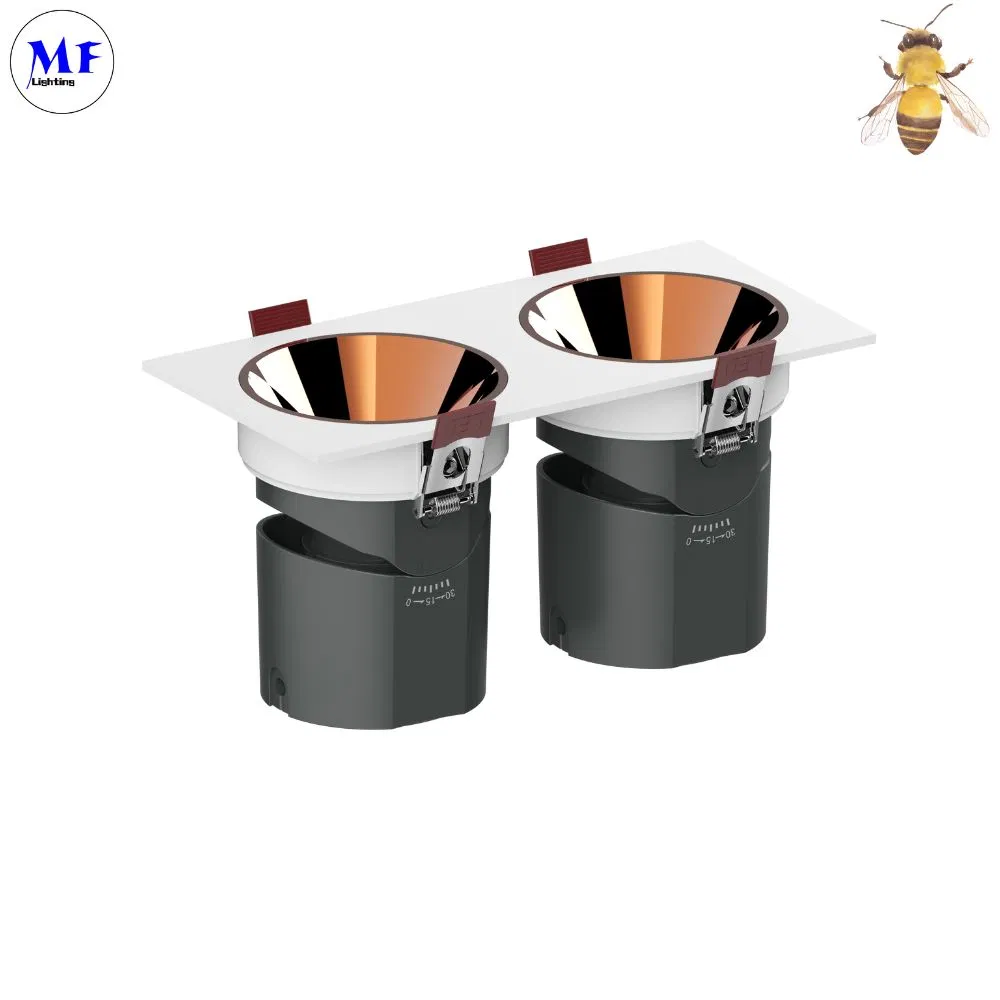

Angle Adjustable 5W 7W 10W 15W 18W 2inch 3inch 4inch Beam 15° /24° /36° Square Circle Trim Recessed Concealed Indoor Commercial LED Spot Down Light

Still deciding? Get samples of $ !
Request Sample

Product Description

  • Overview
  • Feature
  • Specification
  • Beam Options
  • Detailed Photos
  • Dimension
  • Application
  • Packaging

Angle Adjustable 5W 7W 10W 15W 18W 2inch 3inch 4inch Beam 15°/24°/36° Square Circle Trim Recessed Concealed Indoor commercial LED Spot Down Light

Basic Info.
Model NO.
Down Light Bee-3
Power
5W/7W/10W/14W/21W/28W/42W/15W/18W/20W/30W
Color Temperature
3000K/45000K/6000K
Lamp Body Material
Aluminum
Source Number
1/2/3/4/6 Module
Installation
Recessed
Lamp Installation
Screw Holder
Switch Type
Touch On/Off Switch
Warranty
3 Years
Application
Home Furnishing, Office/Restaurant/Retail Store/Kitchen/Room
IP Rating
IP44
Certification
CCC, CE, RoHS, SAA
Product Color(Ring)
White
Housing Color
Grey
Mercury Content
0.0 Mg
Ambient Temperature Range
-20~+40 °c
Type of Connection
Terminal, 2-Pin
Mounting Diameter
Refer to Pag 2
Lifespan L70/B50 at 25 °c
30000 H
Number of Switching Cycles
15000
Mains Frequency
50-60 Hz
Nominal Current
350.000 Ma
Power Factor λ
0.90
Protection Class
II
Operating Mode
Electronic Control Gear (ECG)
Luminous Efficacy
100 Lm/W
Color Rendering Index Ra
≥80
Transport Package
Carton Box
Origin
China
HS Code
9405429000
Production Capacity
10000pieces/Year
Feature
  • High luminous efficacy
  • Direct replacement for compact fluorescent lamp downlights
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • 3 years guarantee
  • Type of protection, back side: IP40
  • Type of protection, front side: IP44
  • Diameter of required ceiling cut-out: 55mm, 75mm, 95mm, 60mm, 80mm, 100mm
Feature Overview Banner
Cutting Size: Φ55mm/Φ75mm/Φ100mm/55x55mm/55x120mm/55x185mm/120x120mm/120x185mm/75x75mm/75x160mm/75x250mm/160x160mm/160x250mm/100x100mm/110x210mm

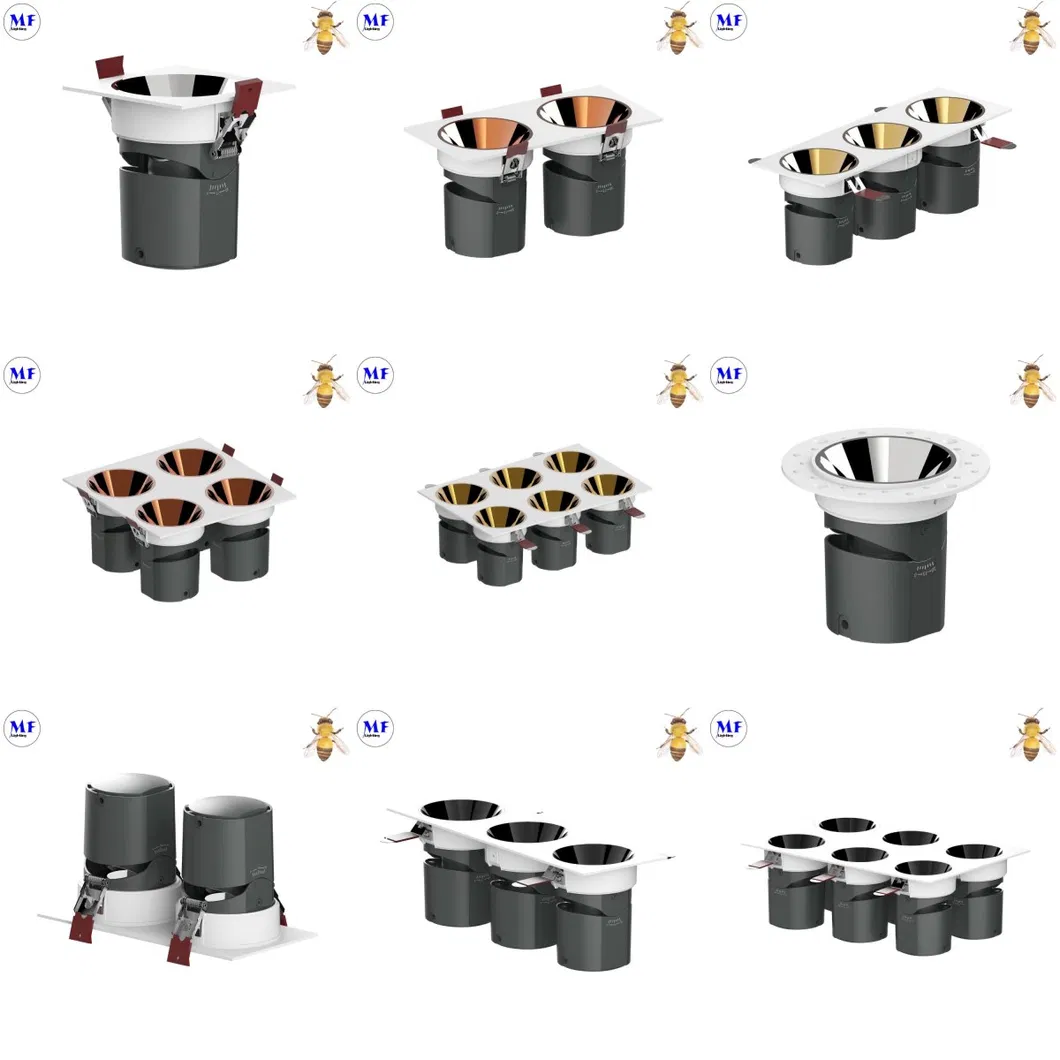

Cutting Size Chart
Specification
Parameter Value
Nominal wattage 5W / 10W / 18W x1 x2 x3 x 4x6
Nominal voltage 100-240 V
Mains frequency 50-60 Hz
Nominal current 350.000 mA
Power factor 0.9
Protection class II
Operating mode Electronic control gear (ECG)
Luminous flux 5W 500lm / 10W 1000lm/ 18W 1800lm x1x2x3x4x6
Luminous efficacy 100 Im/W
Color temperature 3000 K 4500 K 6000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Beam angle 15°/24°/36°/8°/15°/24°/36°/60°

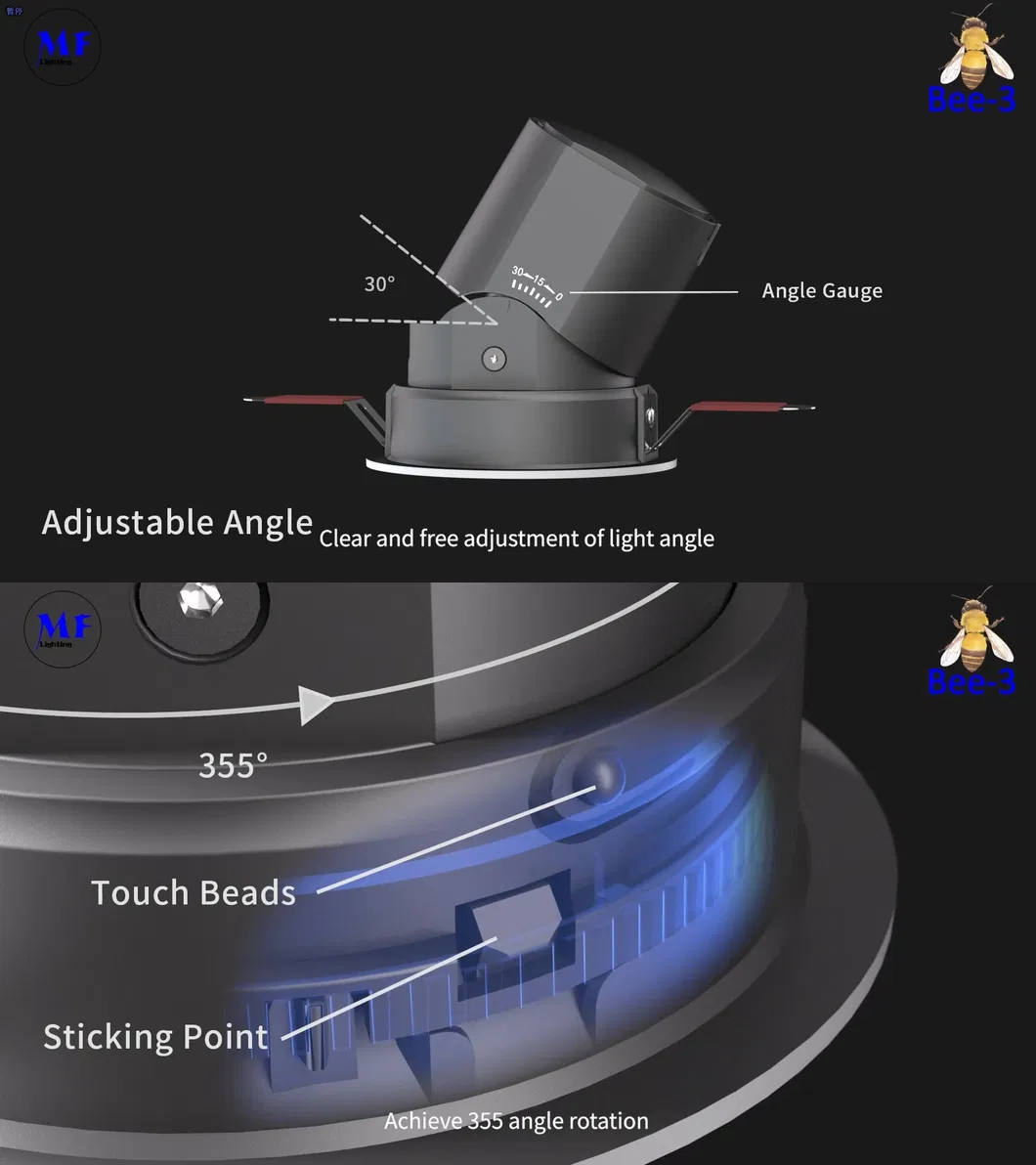

Specifications Detailed Diagram

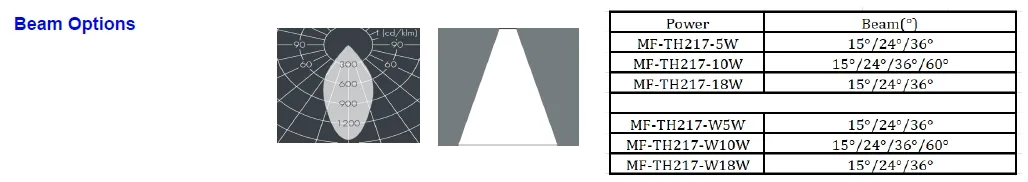

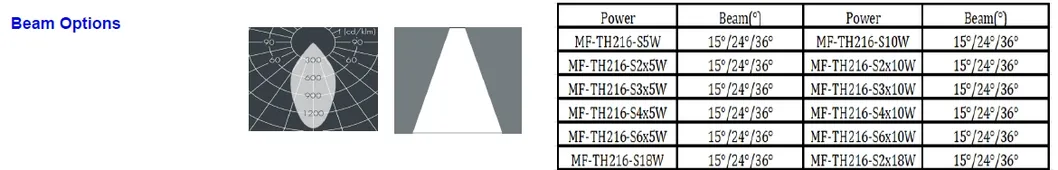

Beam Options
Beam Angle Options

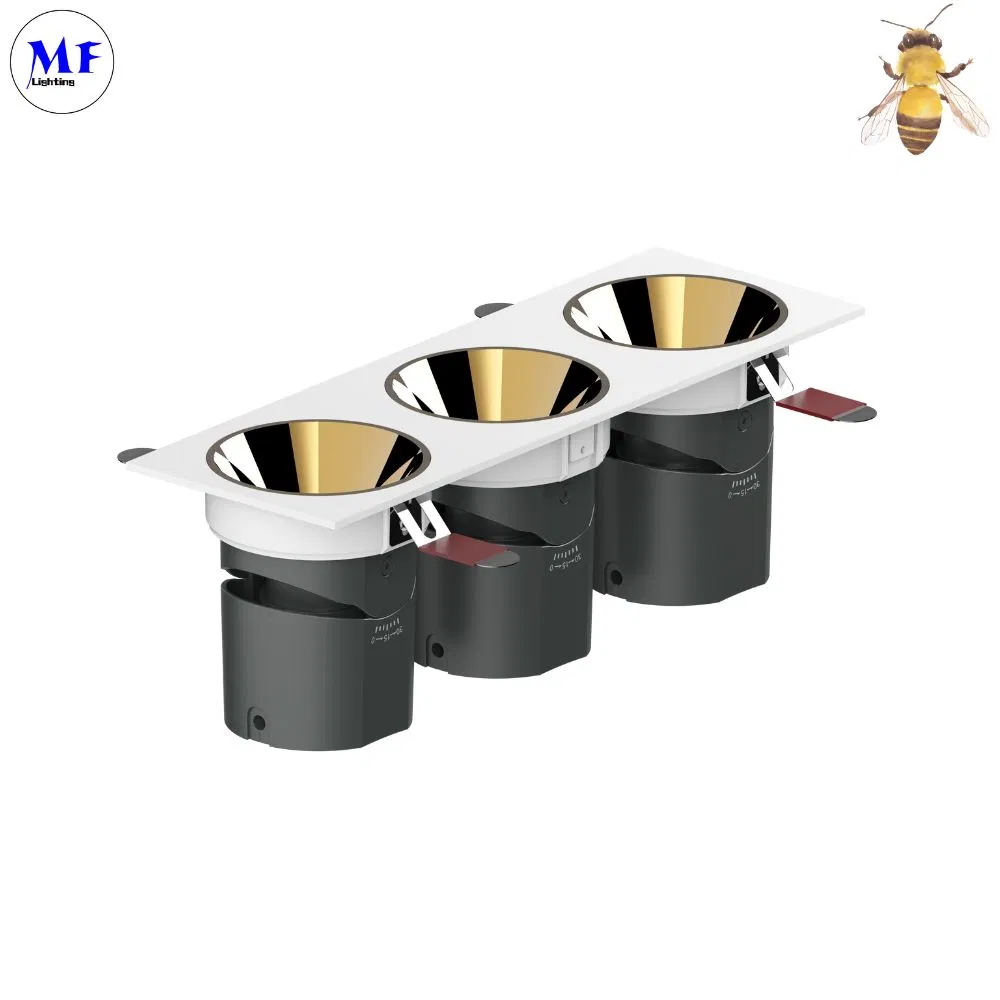

With Square Trim
Square Trim Downlight Type
With-without Circle Trim
Circle Trim Options
Detailed Photos

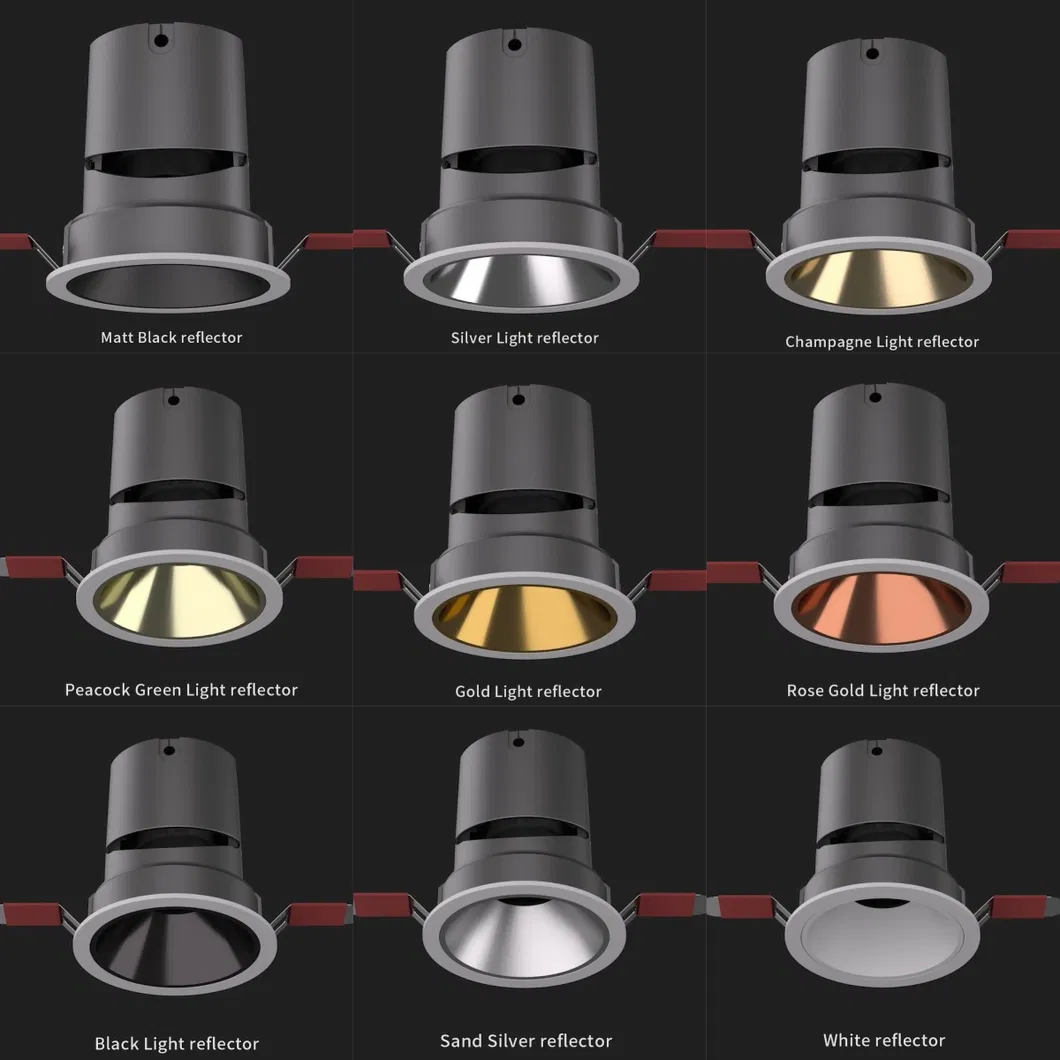

Reflector Color Options
Reflector Color Detailed View

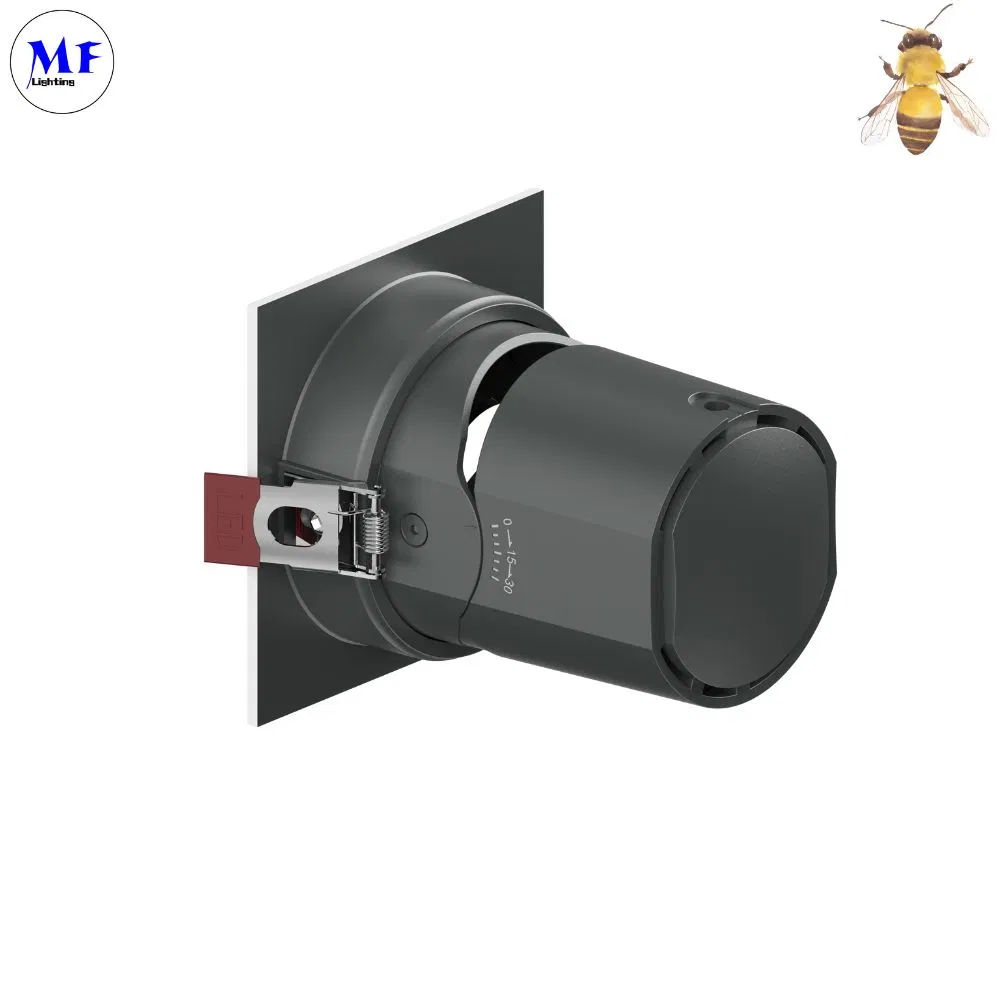

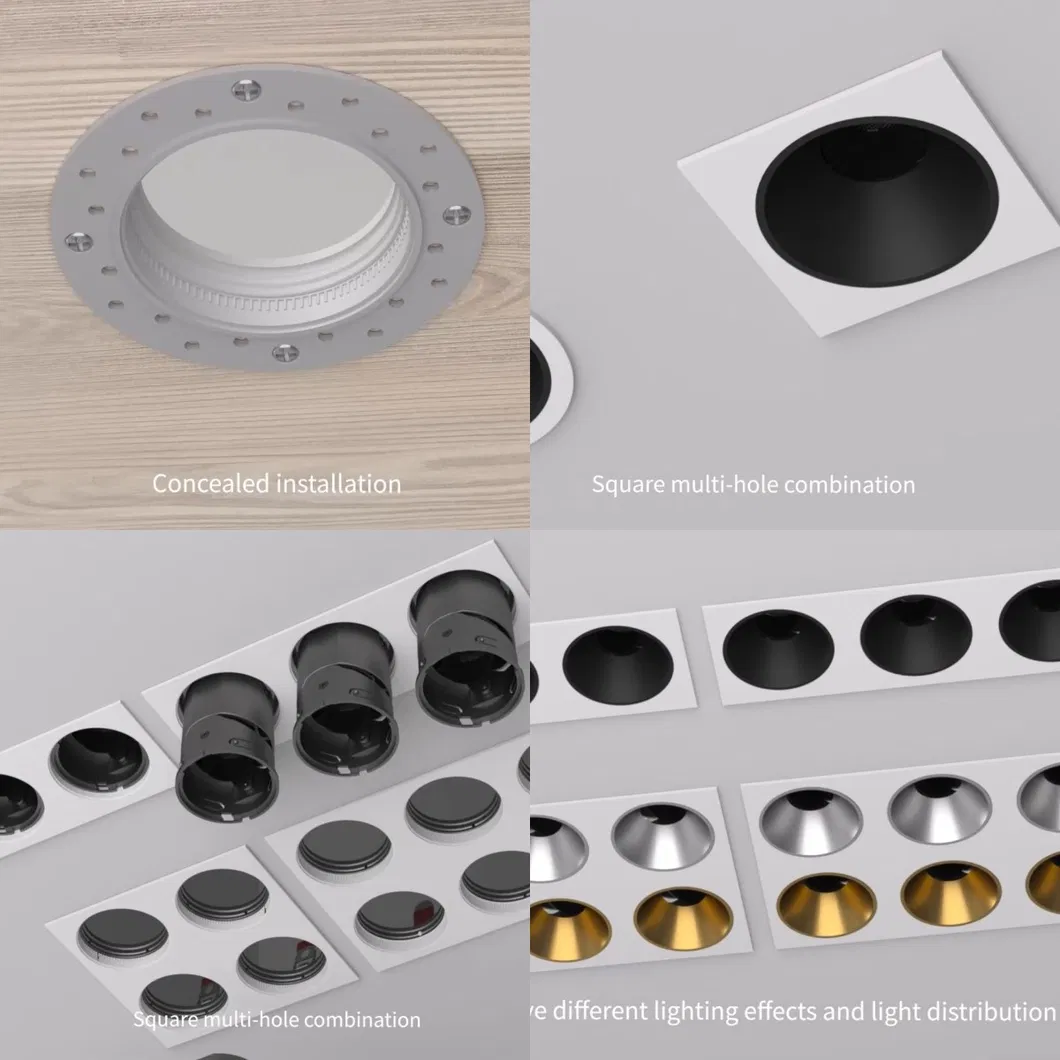

Installation Type: Concealed installation / Square Multi hole combination / Recessed Installation
Installation Diagram A

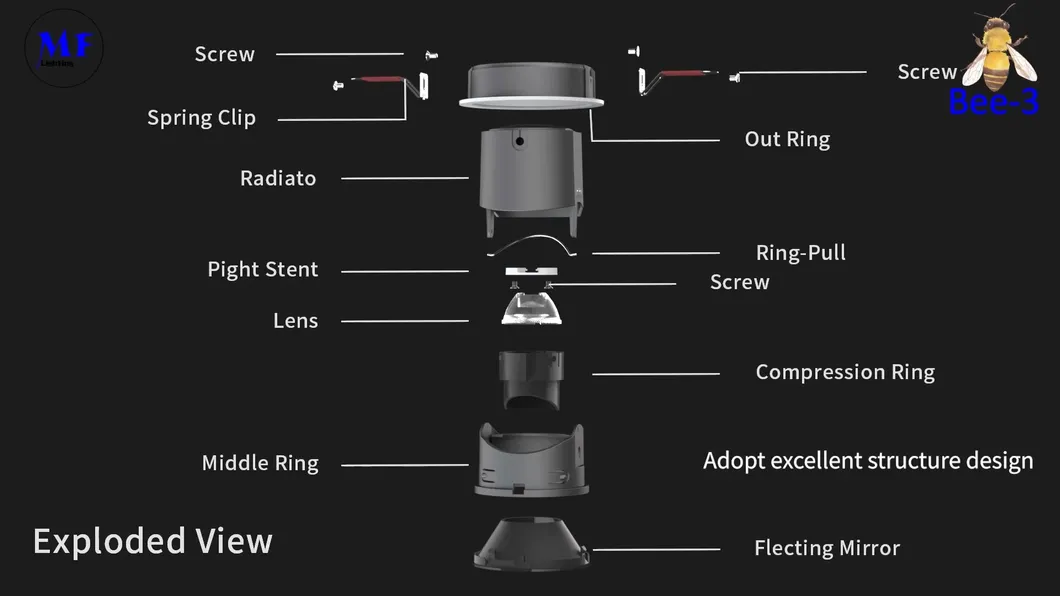

Installation Diagram B
Dimension
With Square Trim x1x2x3x4x6

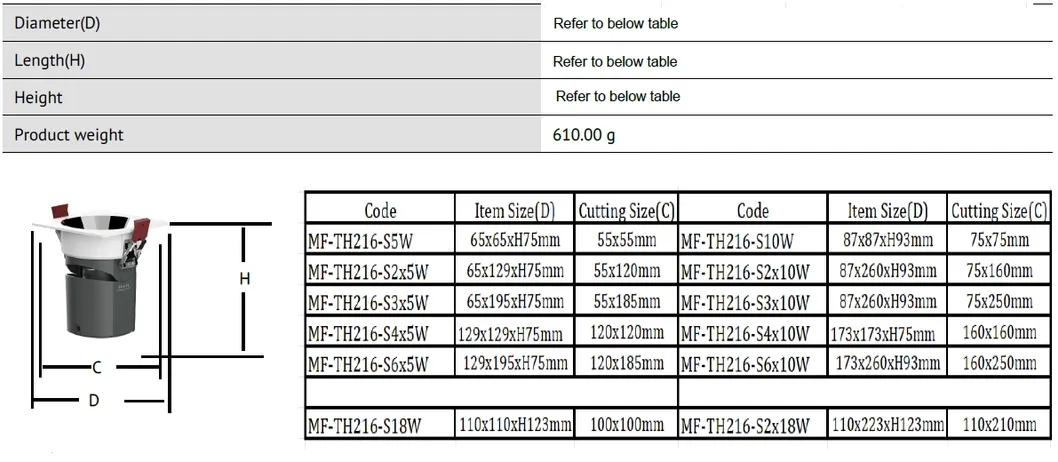

Square Trim Dimension Drawing
With-without Circle Trim

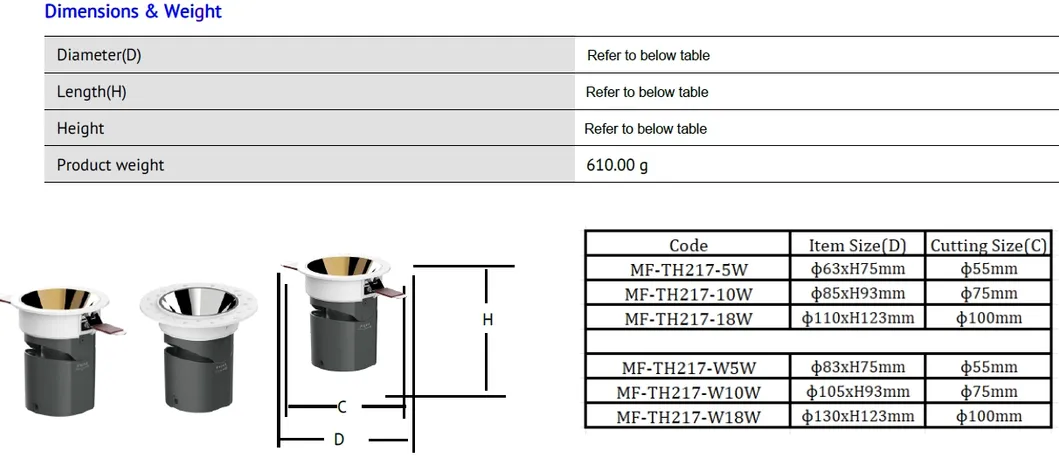

Circle Trim Dimension Drawing
Application

LED downlights are versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, LED downlights are commonly used in residential, commercial, and hospitality environments.

In residential settings, LED downlights are often installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional lighting options. LED downlights can create a warm and inviting atmosphere, enhancing the overall aesthetic appeal of the space.

Residential Application Living Room
Kitchen Lighting Application

In commercial spaces such as offices, retail stores, and showrooms, LED downlights are utilized to illuminate the area effectively. These downlights offer a focused and uniform light distribution, making them ideal for highlighting specific areas or products. LED technology ensures long-lasting performance, reducing maintenance costs and providing consistent lighting quality.

Hospitality venues, including hotels, restaurants, and bars, benefit from LED downlights to create a welcoming and visually appealing ambiance. These downlights can be used for general lighting, accenting architectural features, or accentuating artwork and displays. Additionally, the dimmable feature of LED downlights allows for flexible lighting control, enabling the adjustment of light levels to create different moods and atmospheres.

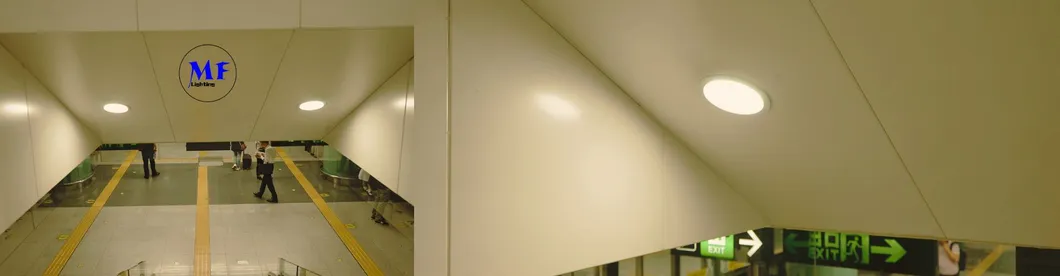

Hotel Lobby Downlighting

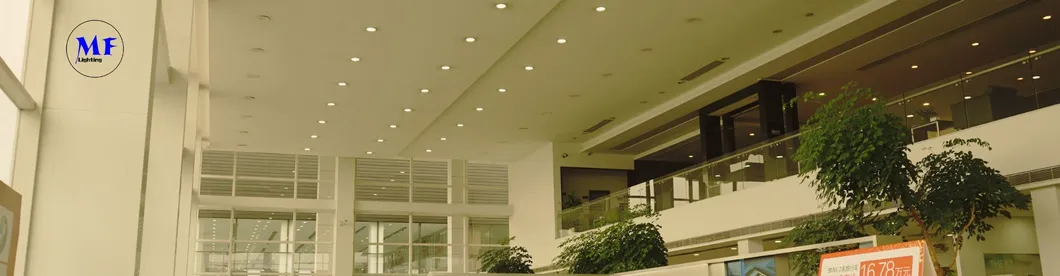

Office Commercial Lighting

Overall, LED downlights are widely used due to their energy efficiency, long lifespan, and versatility. They offer excellent lighting performance, enhance aesthetics, and contribute to energy savings, making them a popular choice for a range of applications in both residential and commercial settings.

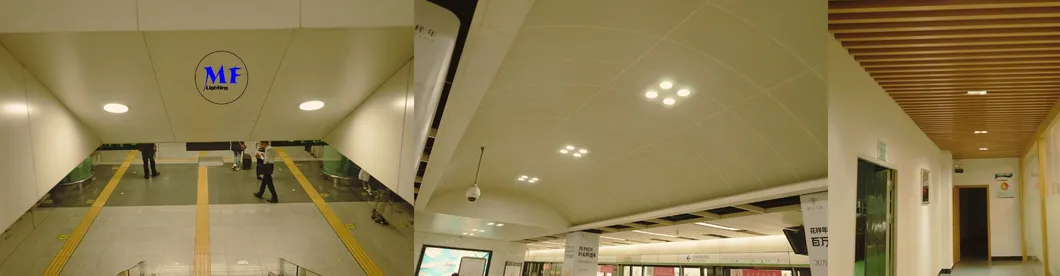

Aesthetic Downlighting Application Overview

Hospitality: LED downlights are commonly used in hotels, resorts, and spas to create a soothing and luxurious atmosphere in lobbies, corridors, guest rooms, and common areas. They provide soft, warm illumination that enhances the guest experience and adds a touch of elegance to the space.

Museums and Galleries: LED downlights are preferred in art galleries and museums to illuminate exhibits and artwork with precision and accuracy. Their directional lighting helps to highlight the details and colors of the art pieces while minimizing heat and UV emissions that could potentially damage the artwork.

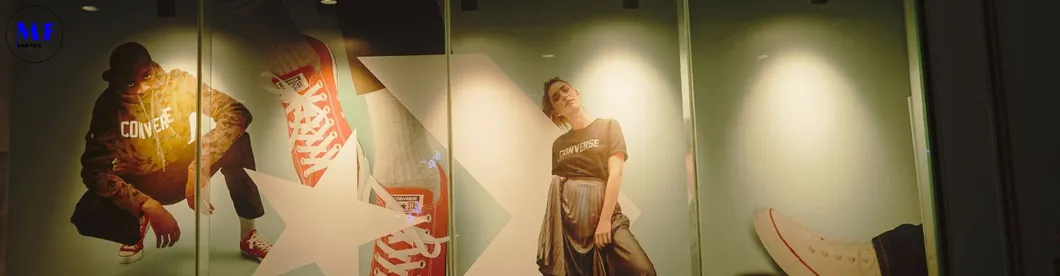

Showrooms: LED downlights are ideal for showcasing products in retail showrooms, car dealerships, and jewelry stores. Their focused beam and adjustable angles allow for effective accent lighting, drawing attention to specific merchandise and creating a visually appealing display.

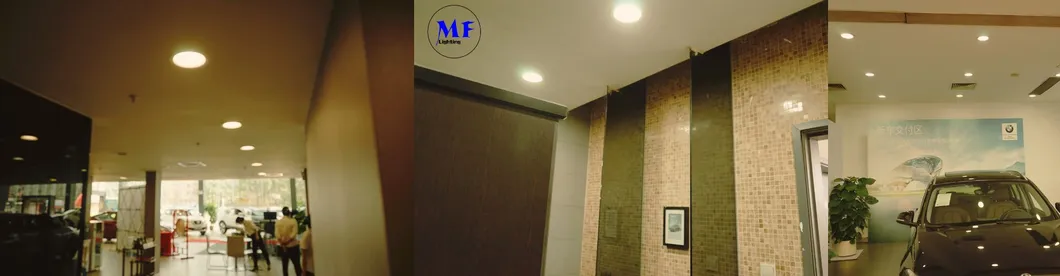

Gallery and Showroom Lighting application

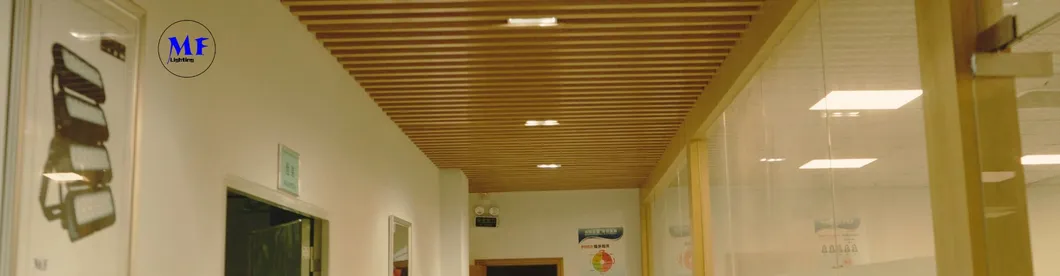

Offices and Workspaces: LED downlights are widely used in office environments to provide bright, glare-free illumination for workstations, conference rooms, and common areas. They offer a comfortable working environment, reduce eye strain, and contribute to better productivity.

Educational Institutions: LED downlights are employed in schools, universities, and libraries to create conducive learning environments. They provide uniform lighting in classrooms, libraries, and study areas, enhancing concentration and visual comfort for students and teachers.

Healthcare Facilities: LED downlights are utilized in hospitals, clinics, and healthcare facilities for general lighting in corridors, waiting areas, and patient rooms. They offer a clean and bright light source, promoting a sense of well-being and aiding in accurate medical examinations. Outdoor Spaces: LED downlights with suitable IP ratings can be used for outdoor applications such as building facades, pathways, gardens, and parking areas. They provide efficient and durable lighting solutions that enhance safety and security while reducing energy consumption.

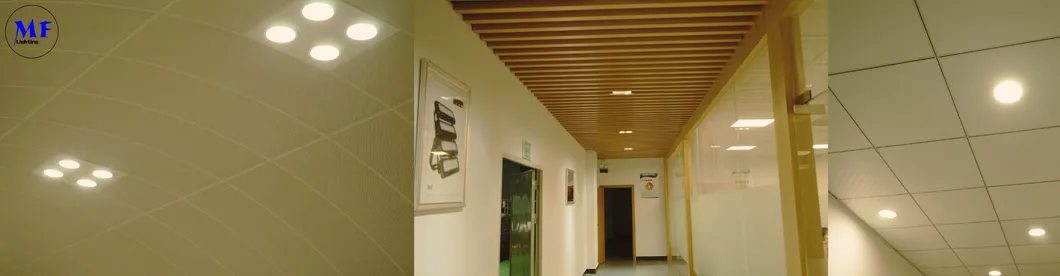

Office and Healthcare Environment Application
Packaging

The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.

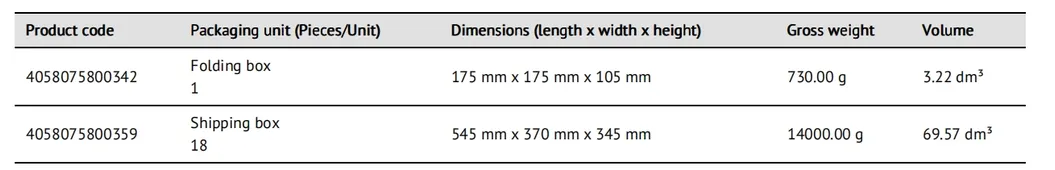

Packaging Box Information
Packaging Box Display A
Packaging Box Display B

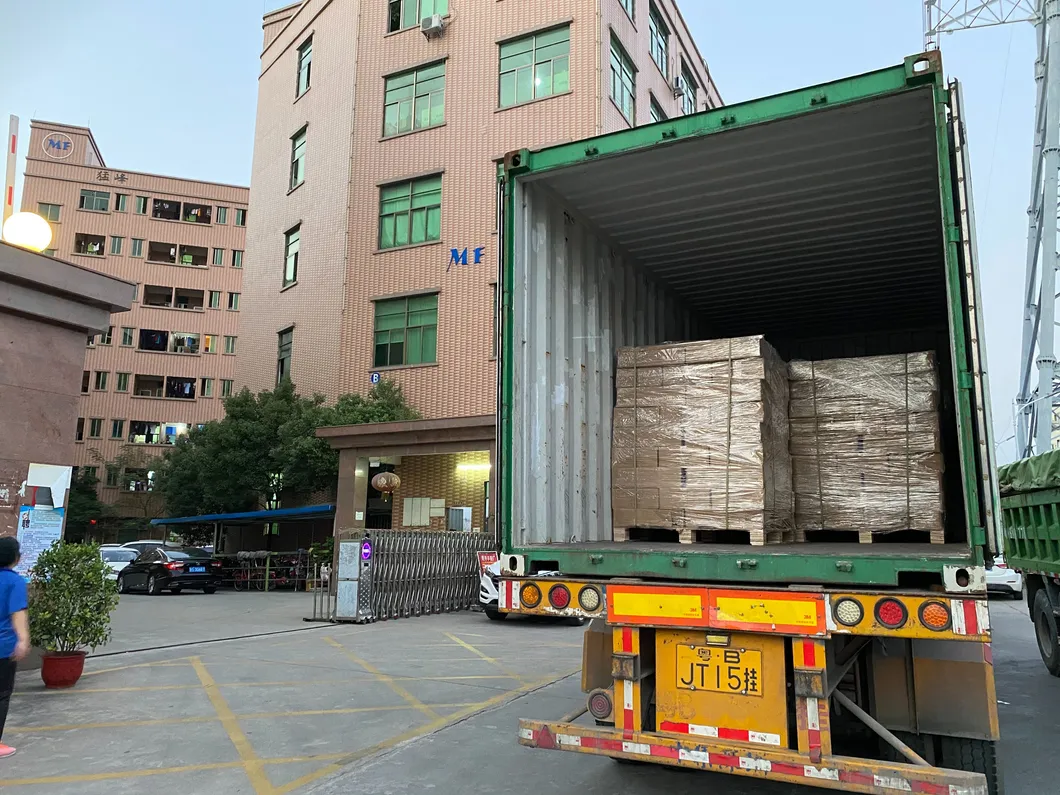

Packaging Box Display C
Carton Loading Diagram
Warehouse Storage
Frequently Asked Questions
What are the available wattages for these LED downlights?
These LED downlights are available in a wide range of wattages, including 5W, 7W, 10W, 14W, 15W, 18W, 20W, 21W, 28W, 30W, and 42W options to suit different commercial and residential requirements.
What installation types and trim shapes are available?
The product supports recessed and concealed installations. You can choose from both square and circle trim profiles, including multi-hole combination trims.
Can the beam angle of these spot downlights be adjusted?
Yes, these fixtures are angle-adjustable. They offer focused lighting with options for beam angles including 15°, 24°, and 36° (as well as 8° and 60° options depending on the exact model).
What are the IP ratings and where can they be installed?
The front side is IP44-rated and the back side is IP40-rated. This makes them suitable for dry and damp indoor environments like living rooms, commercial offices, kitchens, showrooms, and retail stores.
How much energy can I save by switching to these LED downlights?
These LED downlights offer high luminous efficacy (up to 100 lm/W) and can save up to 60% in energy consumption compared to traditional compact fluorescent lamp (CFL) downlights.
What color temperatures do these downlights support?
They support three color temperature options: Warm White (3000K), Neutral White (4500K), and Cool White (6000K) to create the ideal atmosphere.
