2Optimal Heat Dissipation: Perfect cooling configuration utilizing full air convection principles.
3Exquisite Aesthetics: Crafted with a durable frosted surface finish for modern styling.
4Excellent Value: Combines highly competitive pricing with premium product styling.
5Eco-Friendly & Energy Saving: Built to protect the environment while drastically lowering utility costs.
Applications
Office buildings, supermarkets, emporiums, and department stores.
Hotels, restaurants, cafes, and decorative illumination setups.
Exhibition halls, showcases, showrooms, jewelry stores, and fashion outlets.
Residential spaces including living rooms, bedrooms, kitchens, and washrooms.
Schools, universities, and hospital facilities.
Commercial complexes, factories, industrial plants, and warehouses.
Outdoor building outlines, running lamps, parks, and palace decorations.
Installation Instructions
1
Lamps input is low-voltage DC. Please observe polarity: connect the red terminal to positive and the black terminal to negative.
2
To adjust the number of lamps within a circuit (adding or reducing), you must utilize a series connection.
3
Ensure the mains power supply is turned off during installation. Before connecting the lamp to the LED driver, short the output lines of the driver to release residual electrical energy. Electrify the system only after completing this step.
4
Do not pull, stretch, or handle the electrical wiring roughly.
Product Gallery
Packaging & Services
Packing Detail
Carton box packaging
Delivery Schedule
Within 3-5 working days post-payment receipt
Warranty
2-year quality assurance warranty
Response Time
All inquiries answered within 24 hours
Customization
Full OEM & ODM assistance for customized designs
IP Protection
Sales area and unique design layout protection assured
Frequently Asked Questions

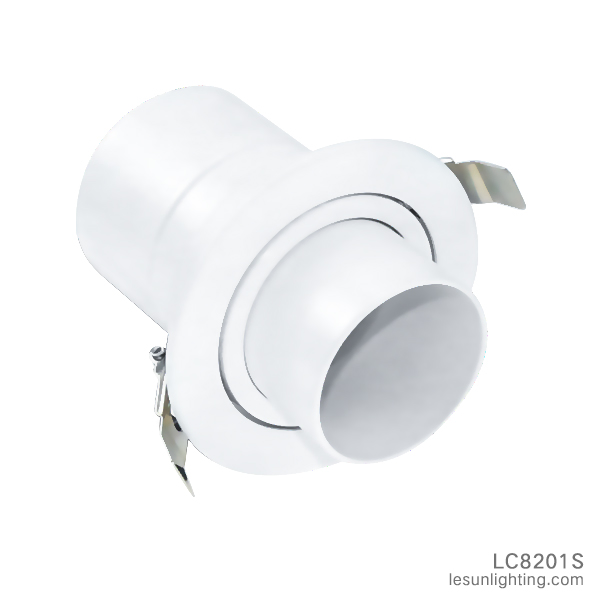

Q1: What is the main advantage of the LC8201S LED downlight?
A: The LC8201S features a variable focus design with an adjustable beam angle ranging from 15° to 60°, allowing you to customize the spotlight area to suit different architectural and showcase requirements.
Q2: What options are available for wattage and color temperature?
A: This model supports multiple power outputs (7W, 20W, and 30W) and provides a versatile CCT range from 3000K (Warm White) to 6000K (Cool White).
Q3: How much energy does this fixture save compared to traditional lighting?
A: The high-efficiency LED design reduces energy consumption by 60% to 80% compared to traditional light sources, whilst offering an operational lifetime of over 50,000 hours.
Q4: Are there specific connection rules to follow during installation?
A: Yes. The lamp operates on low-voltage DC, meaning the positive (red) and negative (black) terminals must be connected correctly. If you wish to connect multiple lamps in a system, they must be linked in a series connection.
Q5: Is this LED downlight environmentally friendly and safe?
A: Absolutely. It is mercury-free, emits no UV or IR radiation, generates minimal electro-magnetic interference, and is designed to operate safely without generating excess heat, making it completely harmless to humans.
Q6: What is the warranty policy and delivery time?
A: We offer a comprehensive 2-year quality warranty. Standard orders are typically prepared and packaged in carton boxes, with delivery completed within 3 to 5 working days after receiving payment.
