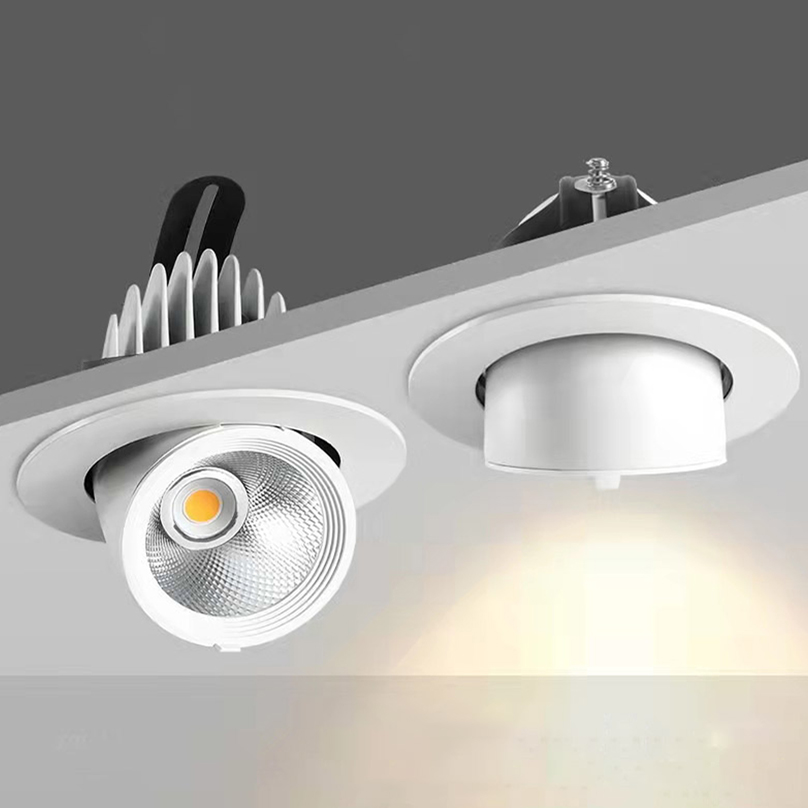

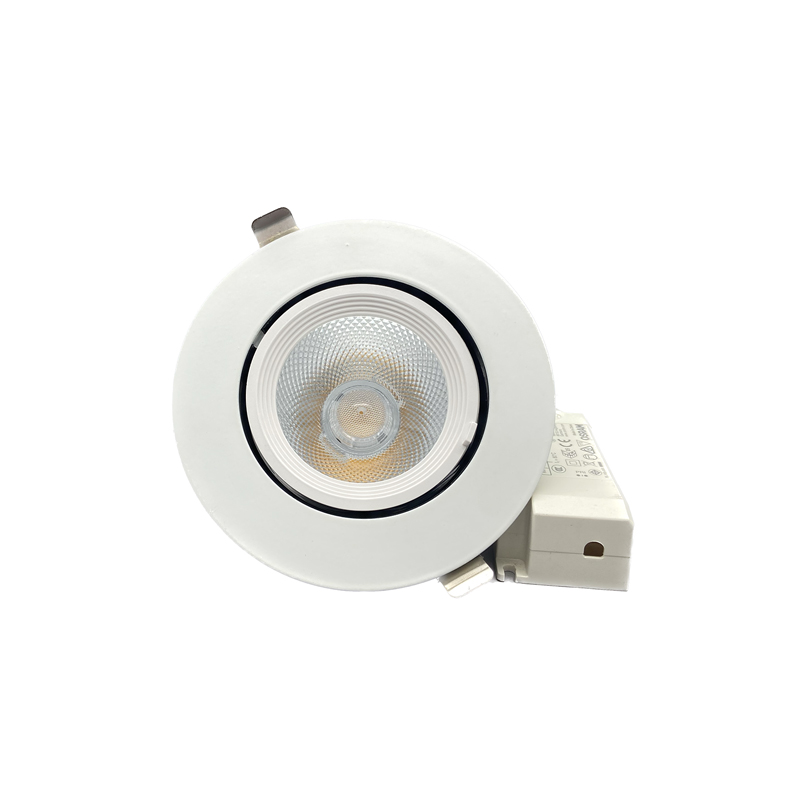

Hotel Lights 24 Degree 6 Inch Mini Ultra Slim Led Recessed Downlight 120mm Cutout

Product Description

Recommendation
Welcome to check more products:

spot light, down light, track light, linear light, surface mounted, fixed, adjustable, and so on.

Ask us for full product range.

Product Information

Key Features:

  • All aluminium housing, die-casting or machining housing.
  • Famous LED brand, like: Osram, Bridgelux, CREE. Depends on your request.
  • Optional Beam Angle. Check product specification.
  • CRI can be Ra80 / 90 / 95, depends on your request if you need different.
  • Good quality and good driver: Tridonic, Osram, Eaglerise, Kegu, Lifud, etc. Depends on your request.
  • Dimming optional: 1-10, phase-cut / triac, DALI, etc, ask us for price if you need.
  • Providing high / low power factor, flicker-free driver, as your choice, pls ask us.
  • Isolated cable. VDE certificated cable.
  • Custom-made sticker, box, carton. Depends on your request.

Feel free to ask us for more choice for you.

Model Details & Specifications

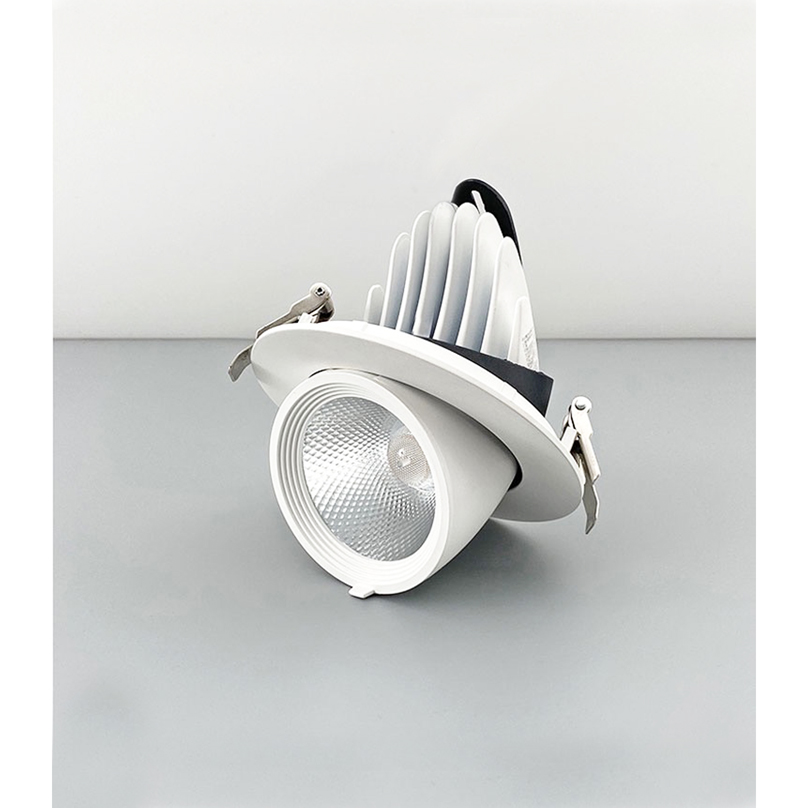

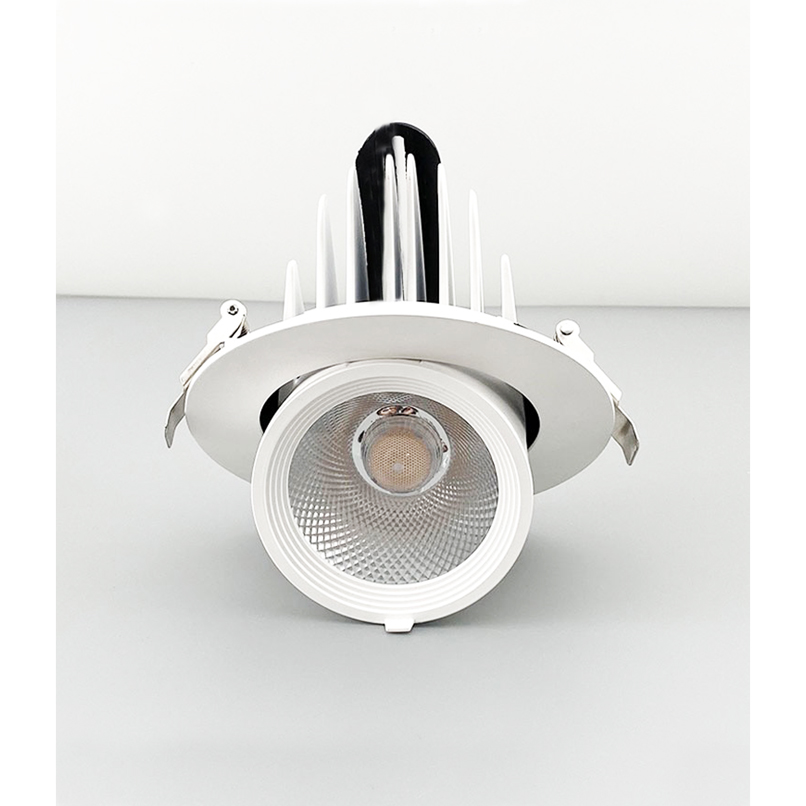

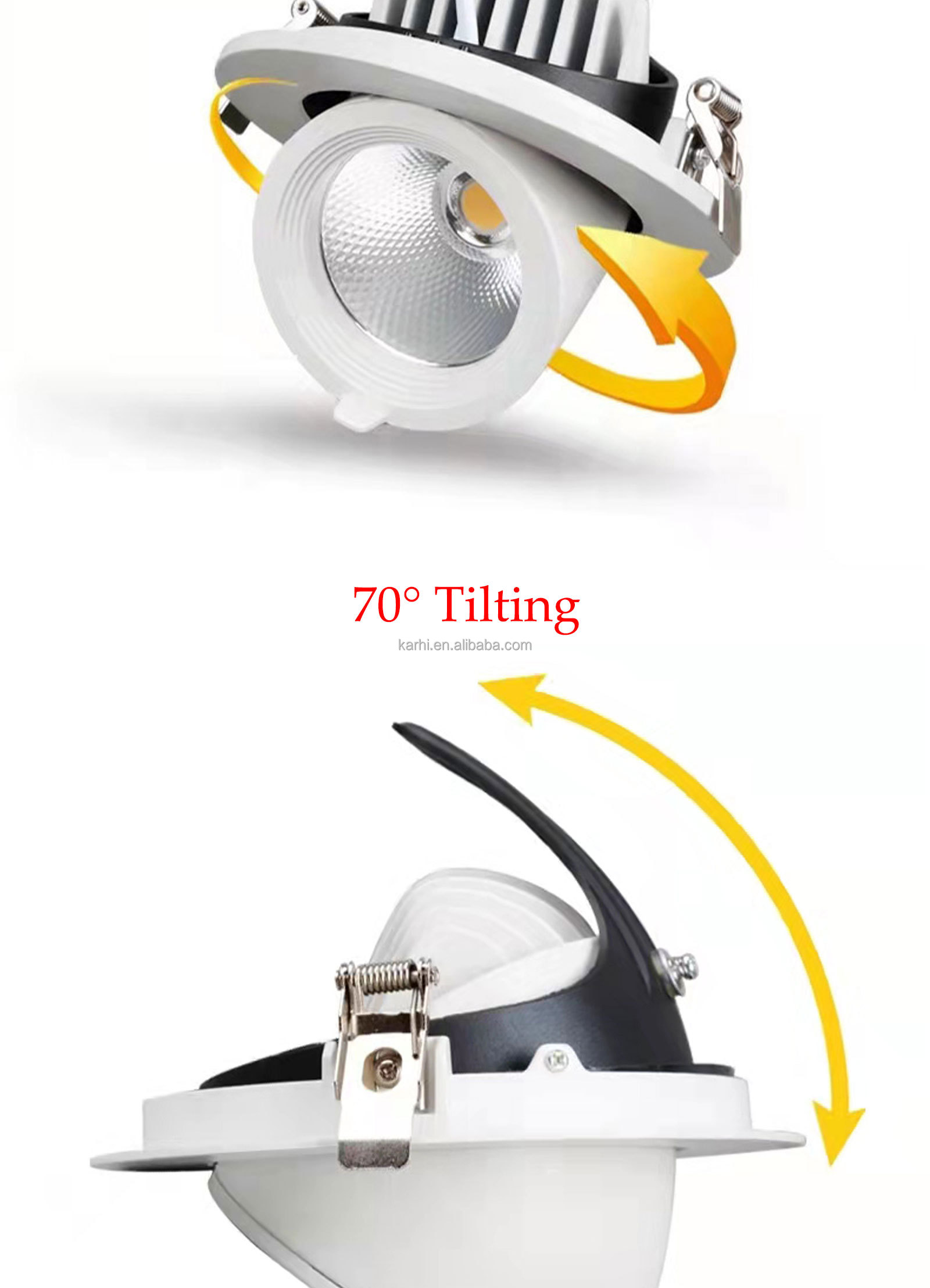

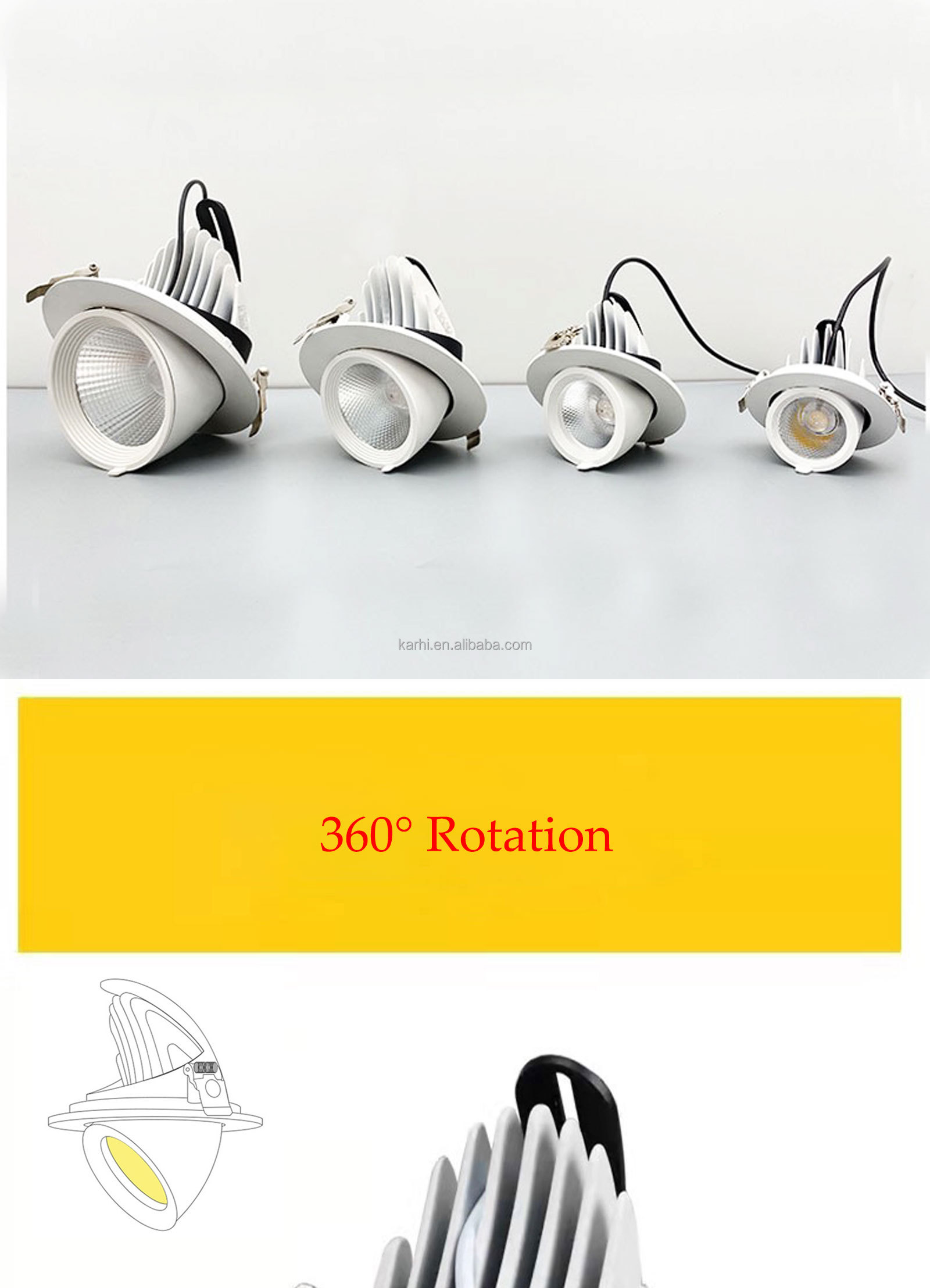

KH-9003 Description: Adjustable recess mounted LED gimbal light, die-cast aluminum body and heat sink in matt white powder-coated, equipped with anti-glare 15°/24° reflector, 350° rotation, 90° tilting
Dimension: Φ90*72mm | Cutout: Φ80mm
Rated Power: 8W
Light Source Osram COB LED 1202 3000K Ra90 DC36V 200mA 7.2W

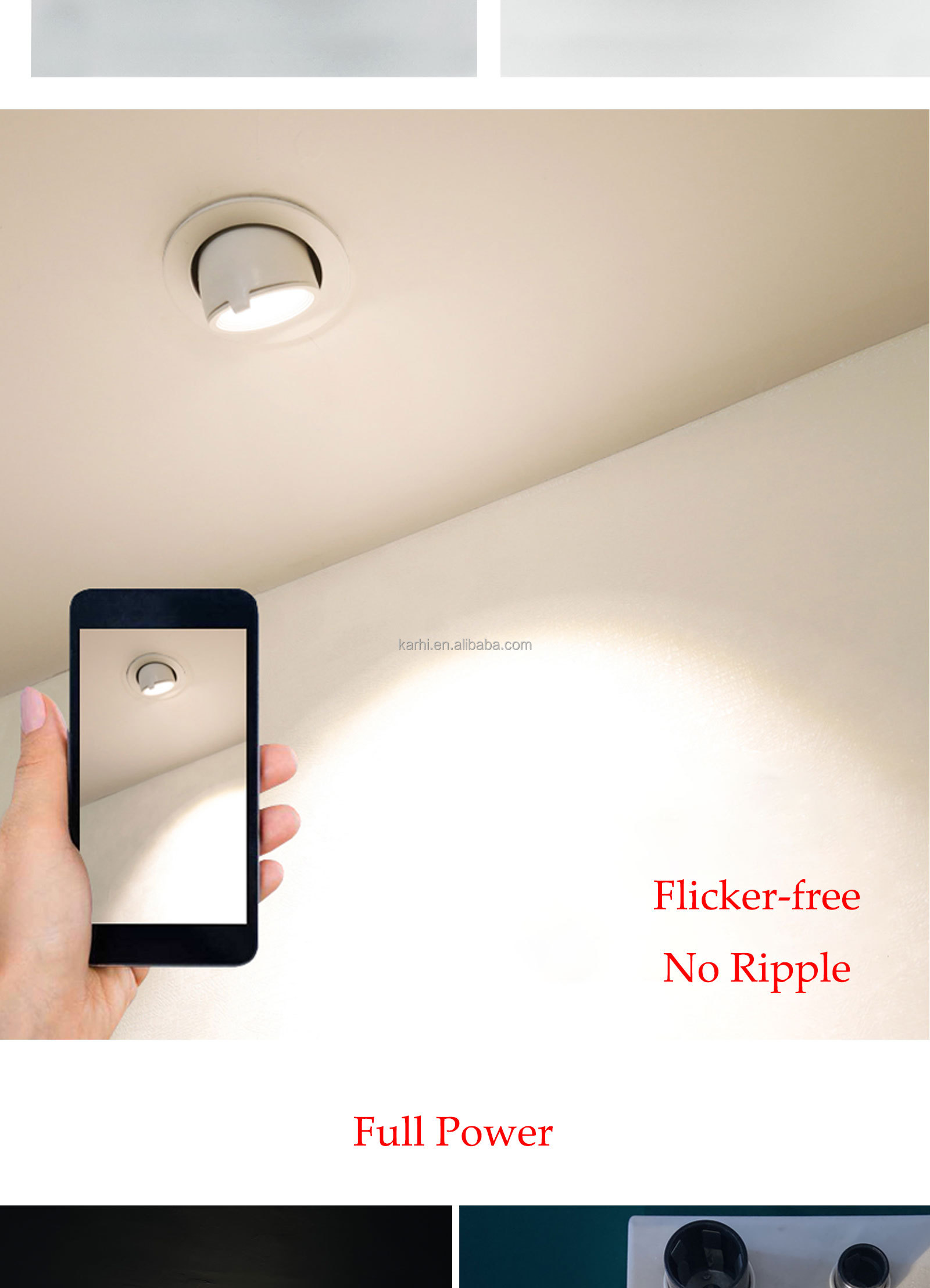

Appliance external driver 220-240VAC 50/60Hz 36VDC 200mA PF>0.5 Eaglerise, flicker-free

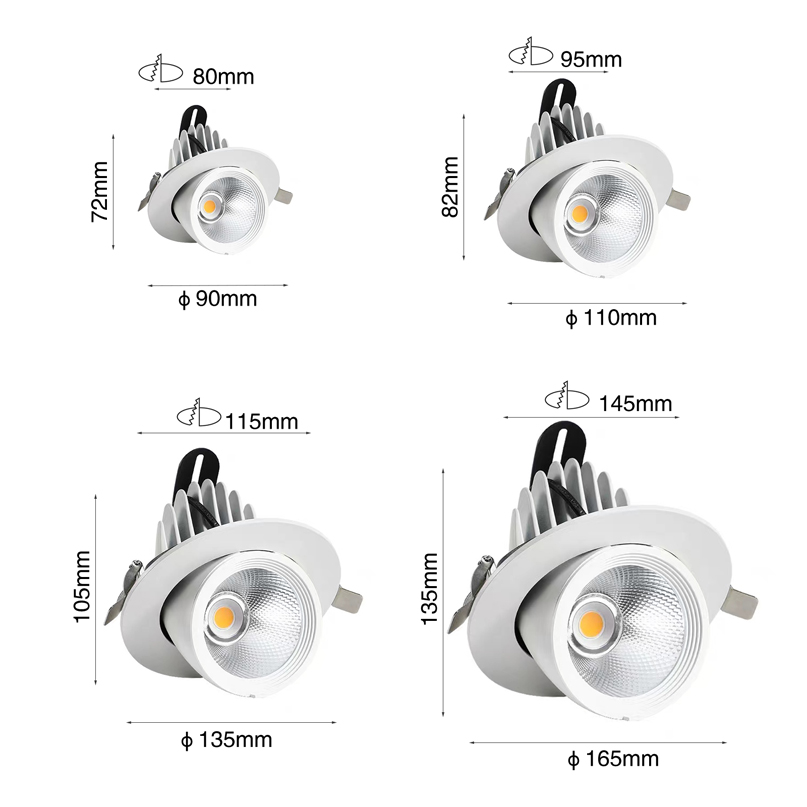

Model KH-9003 KH-9004 KH-9005 KH-9006
Wattage 8 W 14.5 W 25 W 35 W

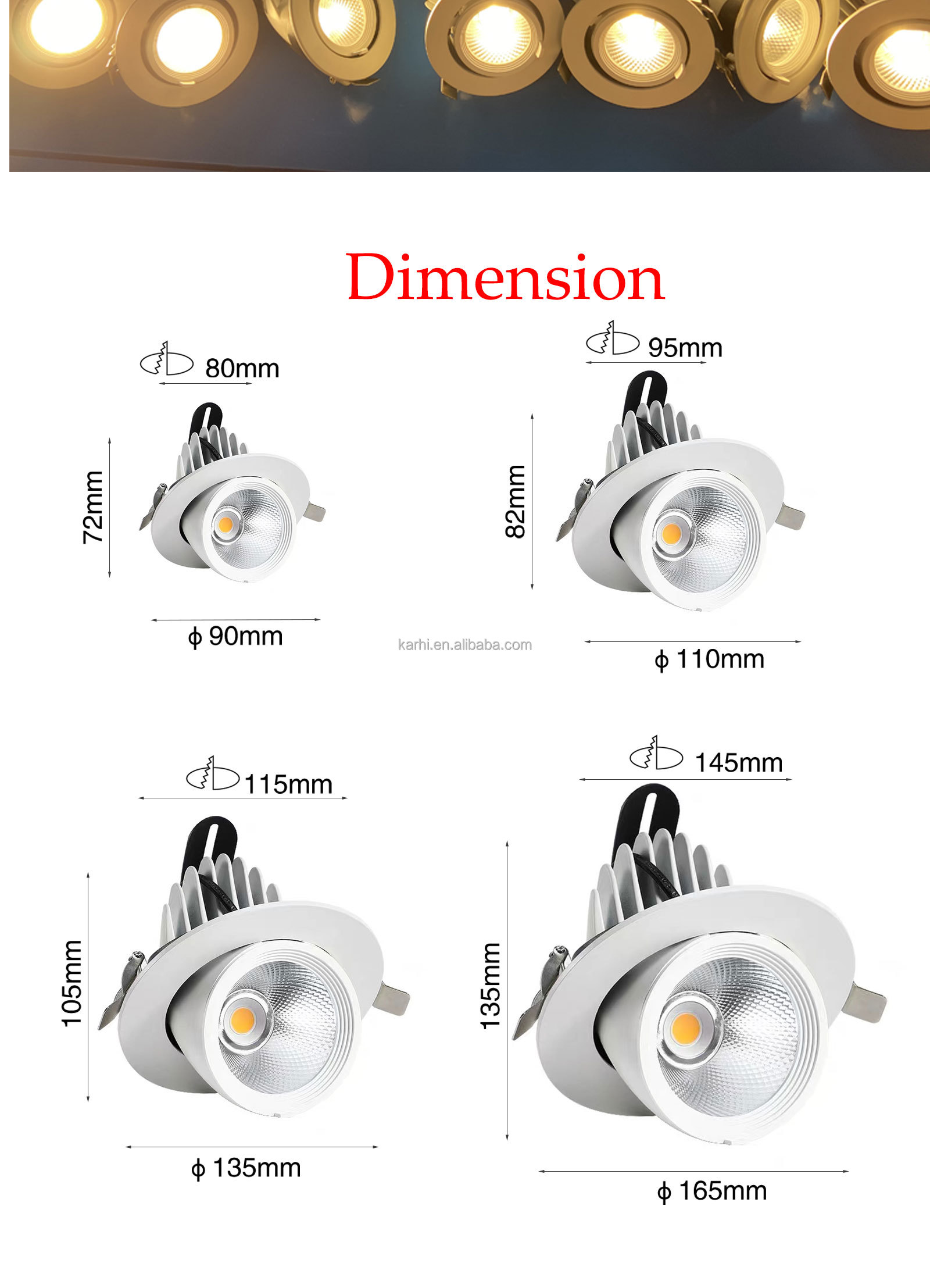

Dimension Φ90*72mm Φ110*82mm Φ135*105mm Φ165*135mm
Cut-out Φ 80 mm Φ 95 mm Φ 115 mm Φ 145 mm
Material Aluminium
LED Brand Osram (Germany brand)
LED Package COB LED
Color Temp. 1. 3000K/4000K/5000K
2. Pls ask us if you need 2700K or different color temperature.
CRI (Ra) ≥90 (Pls ask us if you need different CRI / Ra)
Control Method 1. On/off
2. Pls ask us if require 1-10v dimming, phase-cut/triac dimming or dali-dimming
Usage Indoor use, IP20
Input Voltage AC220~240V
Driver CE certificated. Flicker free CE certificated. High PF, flicker free
Testing Report Pls ask us for IES or spectrum testing reports
Package/Sticker 1. Neutral package with brand sticker / label
2. Pls ask us if you need neutral package or your own LOGO
IP IP20
Accessories 1. Accessories, like spring / clips, driver brand, may be different from images in page, depending on material stock.
2. Pls ask us to check stock if you need more information.
Warranty 1. 3 years
2. Pls ask us to offer price if 5 years needed
Different Size/Power Yes, we do have many types of this kind, pls ask us to send you product link.
Specification

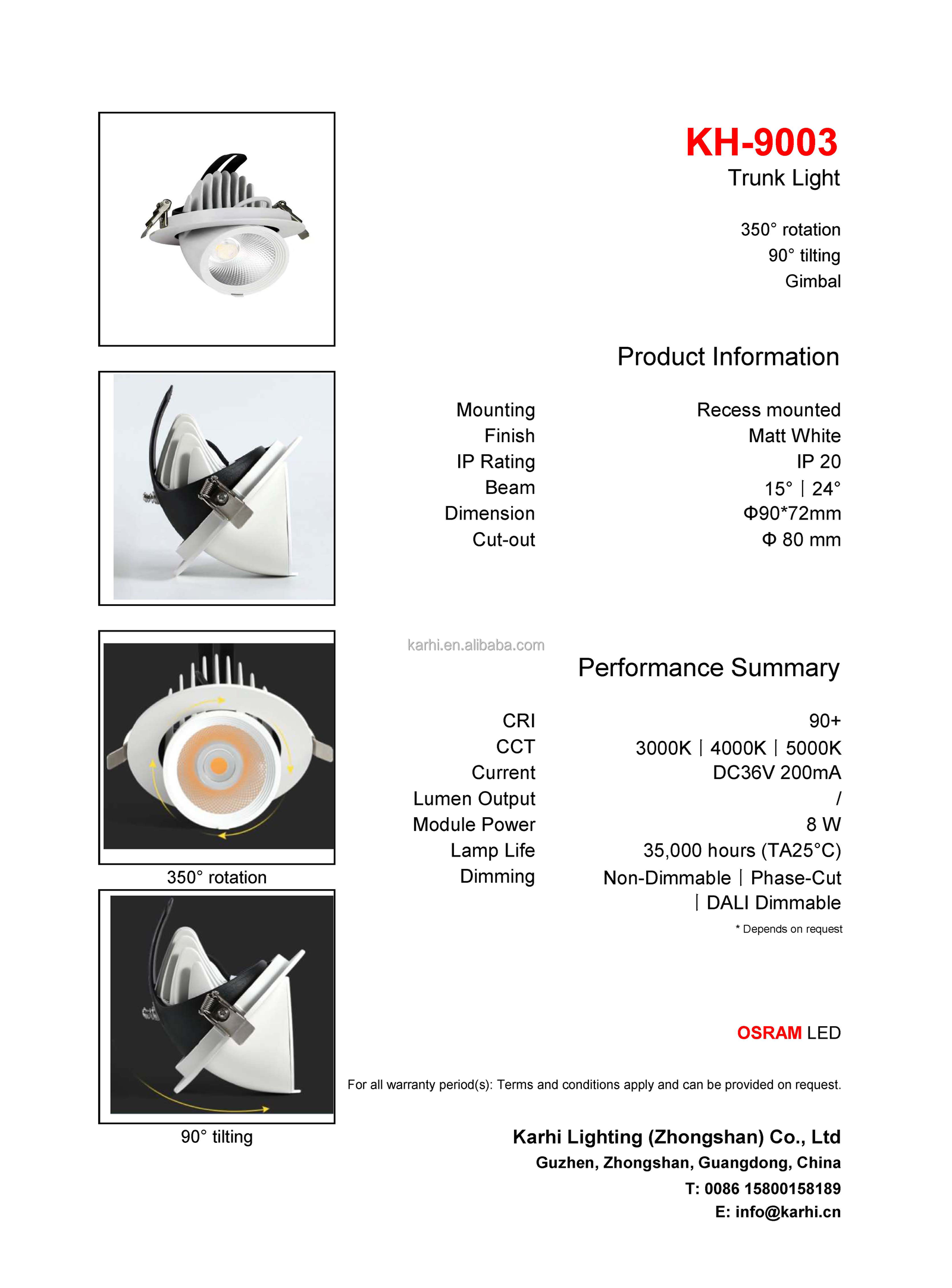

Specification 1 Specification 2 Specification 3

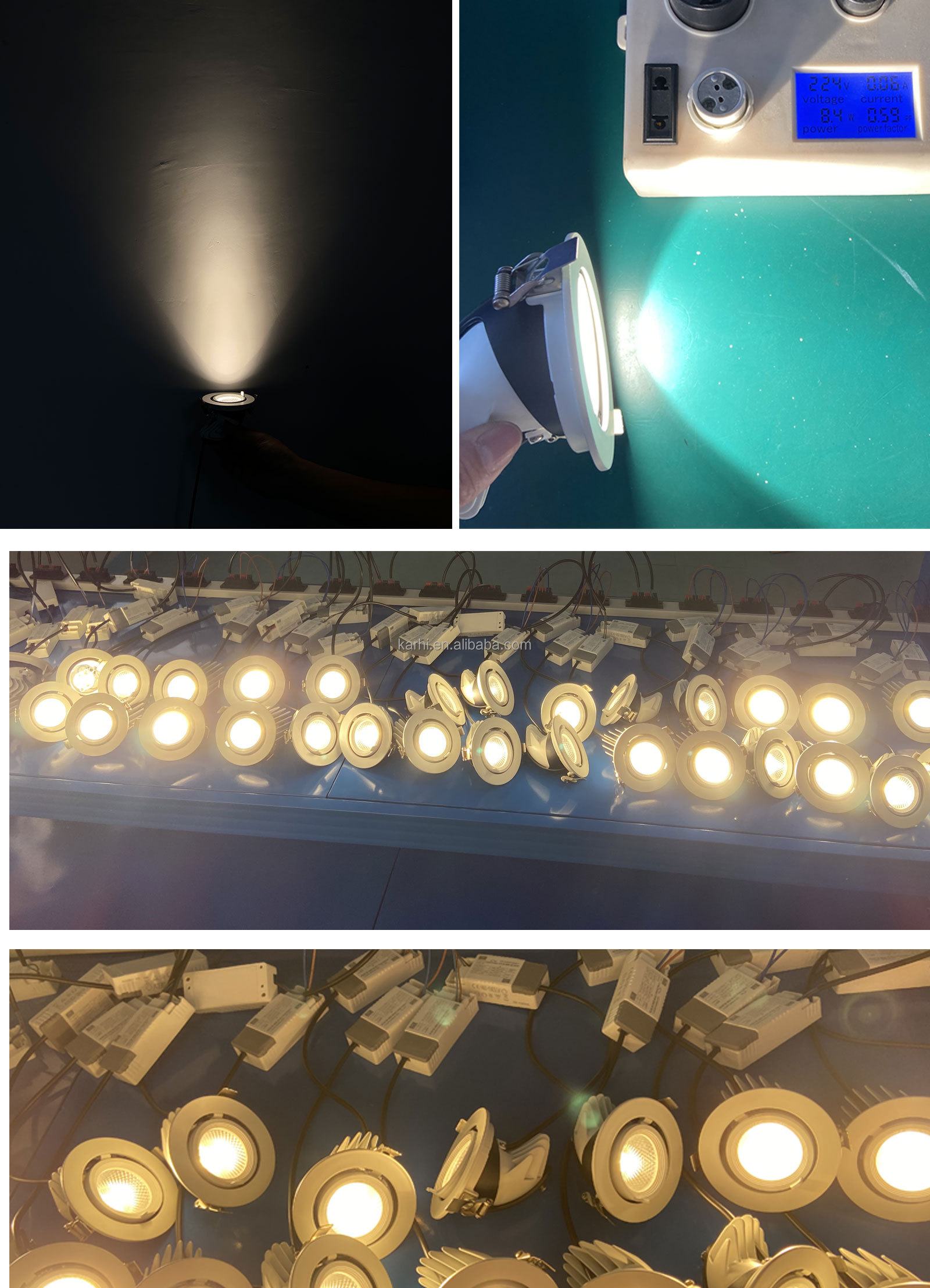

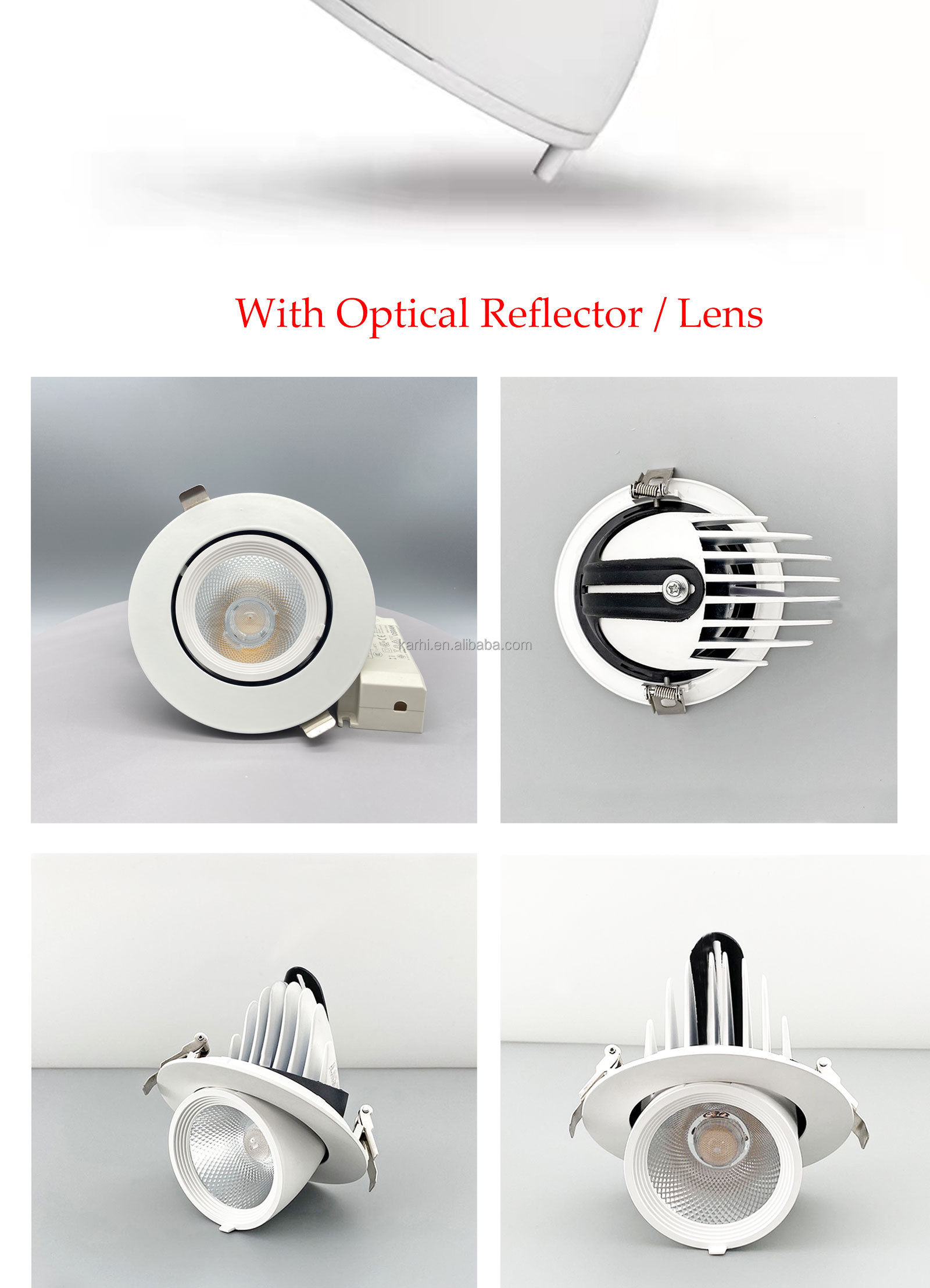

Specification 4 Specification 5 Specification 6
Specification 7
LED Details

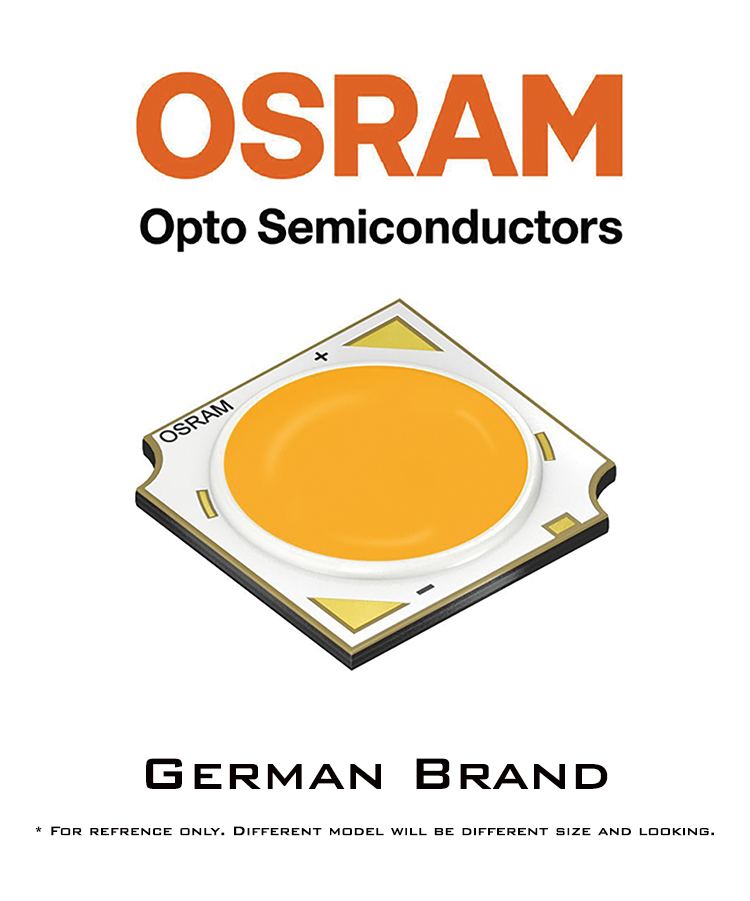

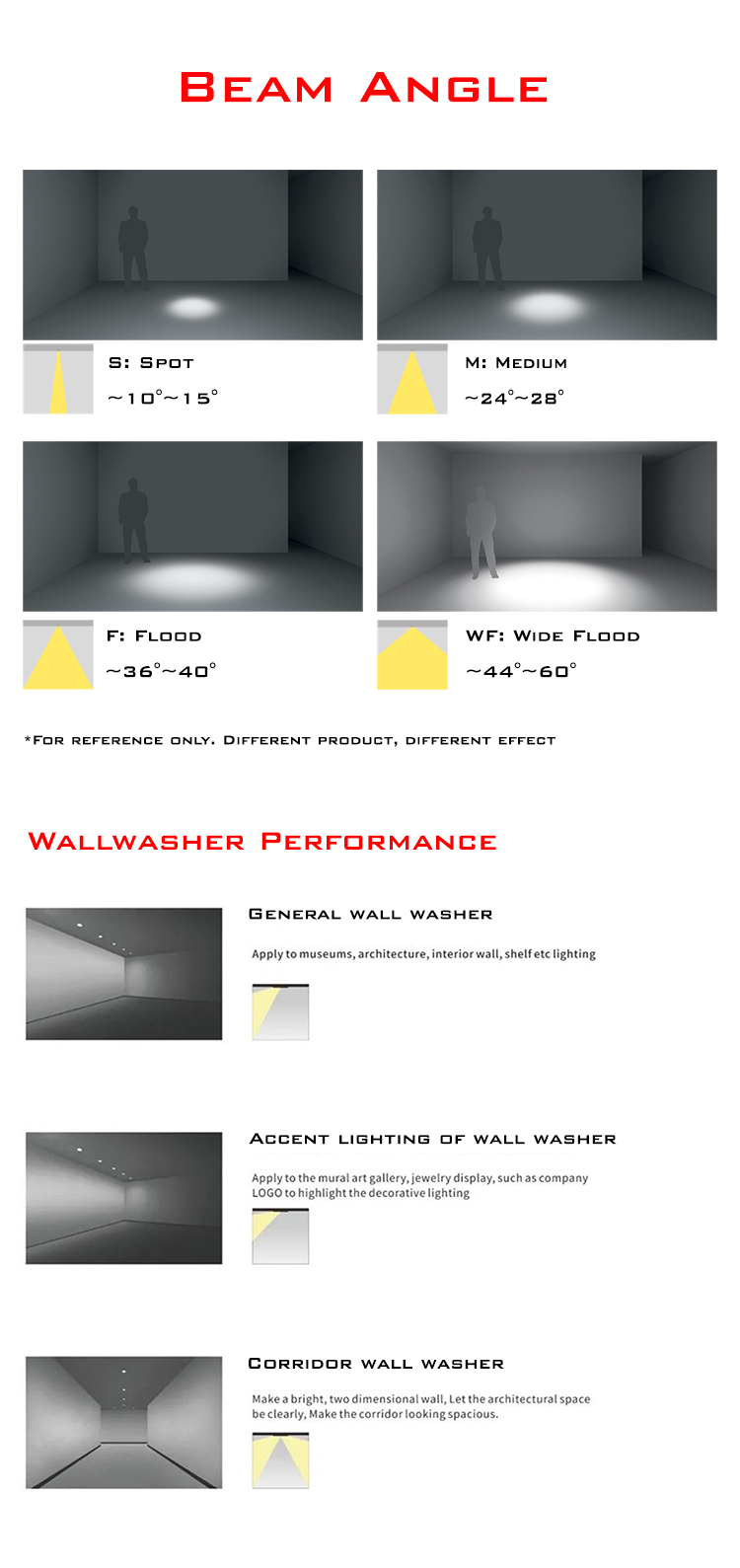

LED Info 1 LED Info 2 LED Info 3
Driver

Good quality and good price driver:

Tridonic, Osram, Eaglerise, Kegu, Lifud, etc. Depends on your request.

Provide high / low power factor, flicker-free driver.

1-10V, phase cut/ triac dimming, DALI options.

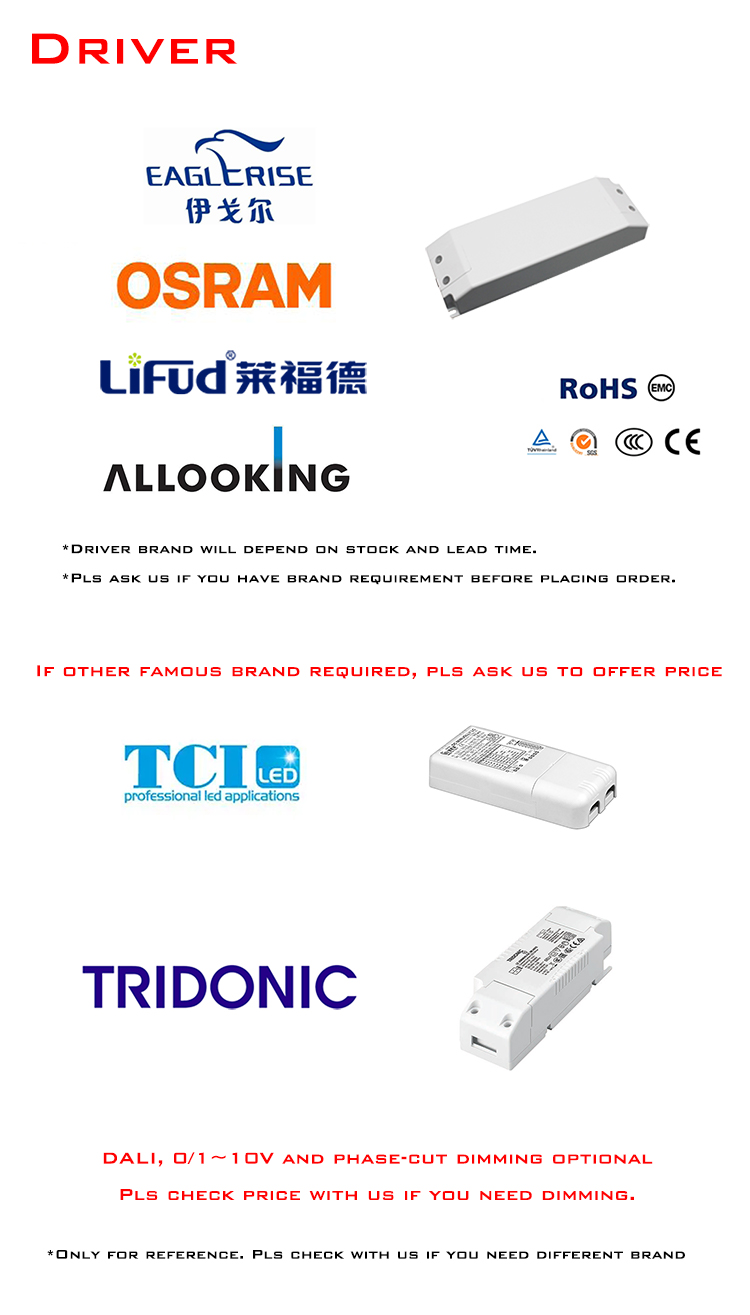

Driver 1 Driver 2
  • Isolated cable. VDE certificated cable.
  • Custom-made sticker, box, carton. Depends on your request.
Cable detail Sticker and certification info
Certifications
Certifications
Company Profile

Devoting into lighting business since 2008, our team has 15 years commercial lighting experience, project experience and sourcing ability, specializing in project - commercial lighting. We’ve taken part in many projects, like City of Dream (Macau), Oceanus Casino (Macau), Hotel Lisboa (Macau), Grand Lisboa (Macau), E-mart (Korea), and many others small projects in different countries. (Our team members took part in those projects when working in the lighting industry from 2008 to 2014).

We established our brand in 2021 and built up our own team to achieve in design, source, assemble, test and deliver by ourselves to get more cooperation possibility. We are a responsible lighting supplier, and that means we are responsible for all our actions – socially, ethically and environmentally. As well as providing local employment, we support a range of ongoing initiatives that help create healthy, vibrant and cohesive communities.

Project presentation

We believe the best way we can make a broad and meaningful contribution to the communities in which we operate is through engagement. We see ourselves as part of the communities in which we operate, and as such we strive to be positive, active and contributing participants in community life.

We are very flexible and can achieve your final goal. Talk to us to get better proposal, best price, and OEM sticker, small MOQ, and so on. We offer the best and suitable for you. We know that if we succeed, then all our valued clients and partners also succeed. This integrated approach begins with our people and the belief that together we can develop trusting relationships with all stakeholders to achieve long term mutual goals.

Give us a chance and get one more possible option for yourself and your clients. Ordering sample to compare and test, trying new and you will find out how good we are. Trust our professional service. Let’s get better and best together.

Quality display
Manufacturing Technique
Manufacturing techniques
Exhibition & Showroom
Exhibition Showroom
Why Choose Us
Why choose us advantages
  • 1. Low MOQ & Best Price.
  • 2. Good quality & certificated standard.
  • 3. Sample order & mini order accepted.
  • 4. Equipped Osram or Bridgelux (brand LED), with flicker-free, high power factor driver (brand driver).
  • 5. 15 years experience on commercial lighting projects and professional OEM manufacturer.
  • 6. Flexible service. Ask us anything you want.
Product Packaging
Packaging method
Frequently Asked Questions
1. Can we customize the wattage, dimension, or beam angle?
Yes. Please ask us if you need a different power, size, color temperature, or beam angle. We can adjust the configurations to suit your specific project requirements.
2. What LED and driver brands are available for configuration?
We supply high-efficiency, high PF, and flicker-free drivers from certified brands such as Osram, TCI, Tridonic, Eaglerise, and Lifud. We also configure chips from famous brands like Osram, Bridgelux, and CREE depending on your request.
3. What is the typical lead time for sample and bulk orders?
Our standard lead time is 7 days for sample orders, 15 days for small orders, and 15 to 30 days for bulk orders (under 500 pcs). Please verify the current lead time with us before placing your order.
4. What type of warranty do you provide?
We offer a standard 3-year warranty for our products. If your project requires a 5-year warranty, please let us know so we can offer you a suitable proposal and pricing.
5. Do you support OEM/ODM customized labels and packaging?
Yes, we are a professional manufacturer. We support customized sticker / label designs with your own LOGO and offer custom-made box and carton options to fit your brand identity.
6. Are the products suitable for outdoor or wet environments?
Most of our products are designed for indoor use (IP20 rating). However, some selected items feature IP65 surface protection. Please refer to the specific model description or consult with us.
