Surface mounted indoor supermarket aluminum 8 foot 8ft intergrated fixture 4 feet 4ft linkable linear led t8 shop tube lights
Shipping Tips:
1. The shipping cost is for the largest size. If you are not buying the largest size, please contact us and we will check the cheapest shipping cost for you.
2. We have a professional team to provide you with the cheapest shipping costs.
Key Features
✓
ETL DLC TUV SAA Approval
✓
Thickened 0.9mm aluminum radiator, excellent heat dissipation.
✓
Long Lifespan 50,000 hours, 5 years warranty.
✓
Environmental friendly - No mercury or lead.
✓
Up to 60% energy saving compared to fluorescent luminaires.
✓
Maintenance free operation, last up to 20 times longer than conventional lamps.
✓
Direct replacement for traditional T8 / T12 fluorescent.
Technical Specifications
| Model NO. |
Power (W) |
LED |
Lumens(±10%) |
Voltage (AC) |
PF |
CRI |
Beam Angle |
| Frosted |
Clear |
| LY-T8DL600-9W |
9 |
SMD2835 |
900 |
990 |
100-277V |
>0.9 |
>80 |
120° |
| LY-T8DL900-13W |
13 |
1300 |
1430 |
| LY-T8DL1200-18W |
18 |
1800 |
1980 |
| LY-T8DL1200-22W |
22 |
2200 |
2420 |
| LY-T8DL1500-25W |
25 |
2500 |
2750 |
| LY-T8DL1800-28W |
28 |
2800 |
2800 |
| LY-T8DL2400-44W |
44 |
4400 |
4840 |
| CCT Range : 3000K (Warm white), 4000K (Natural white), 5000K (Day white), 6000K (Cool white) |

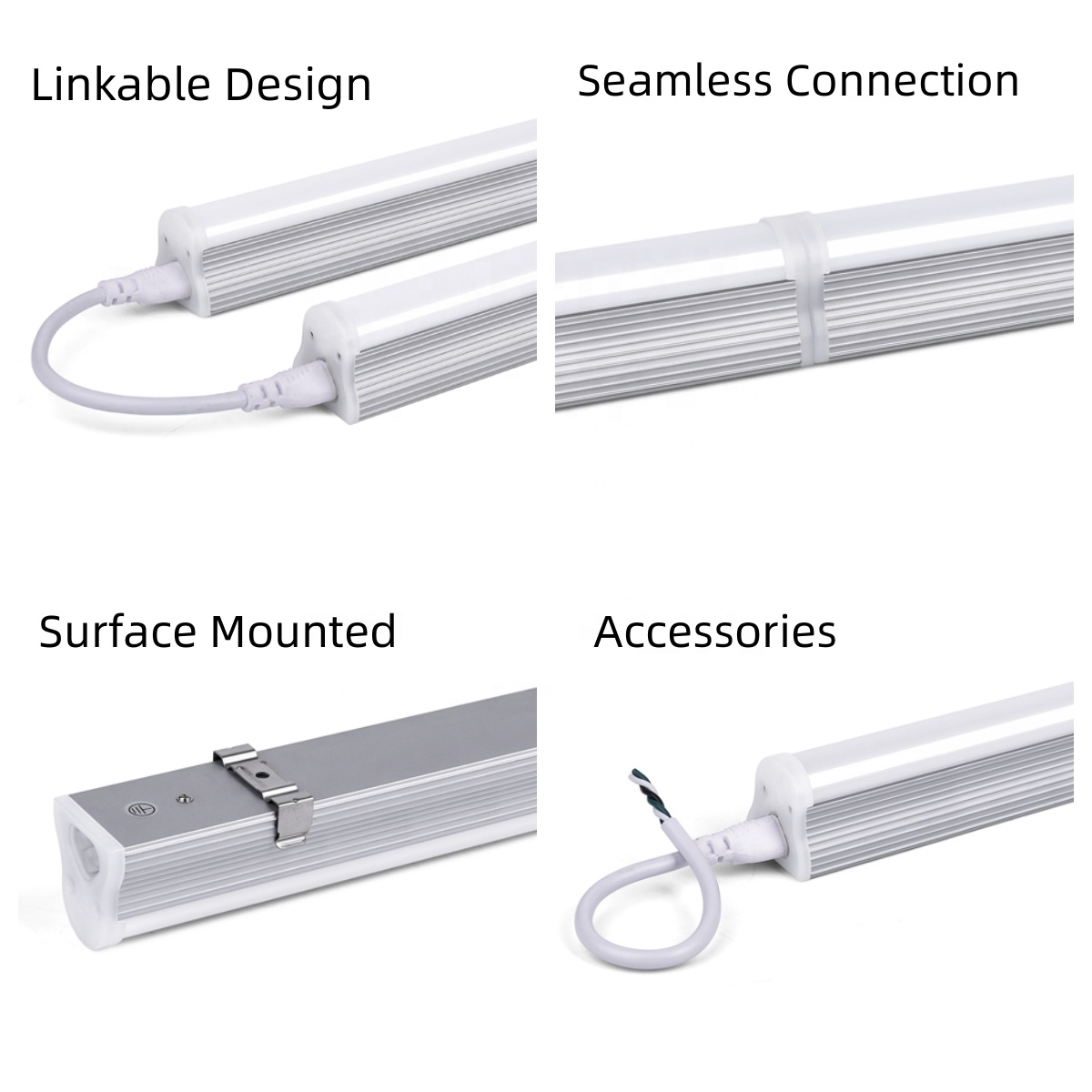

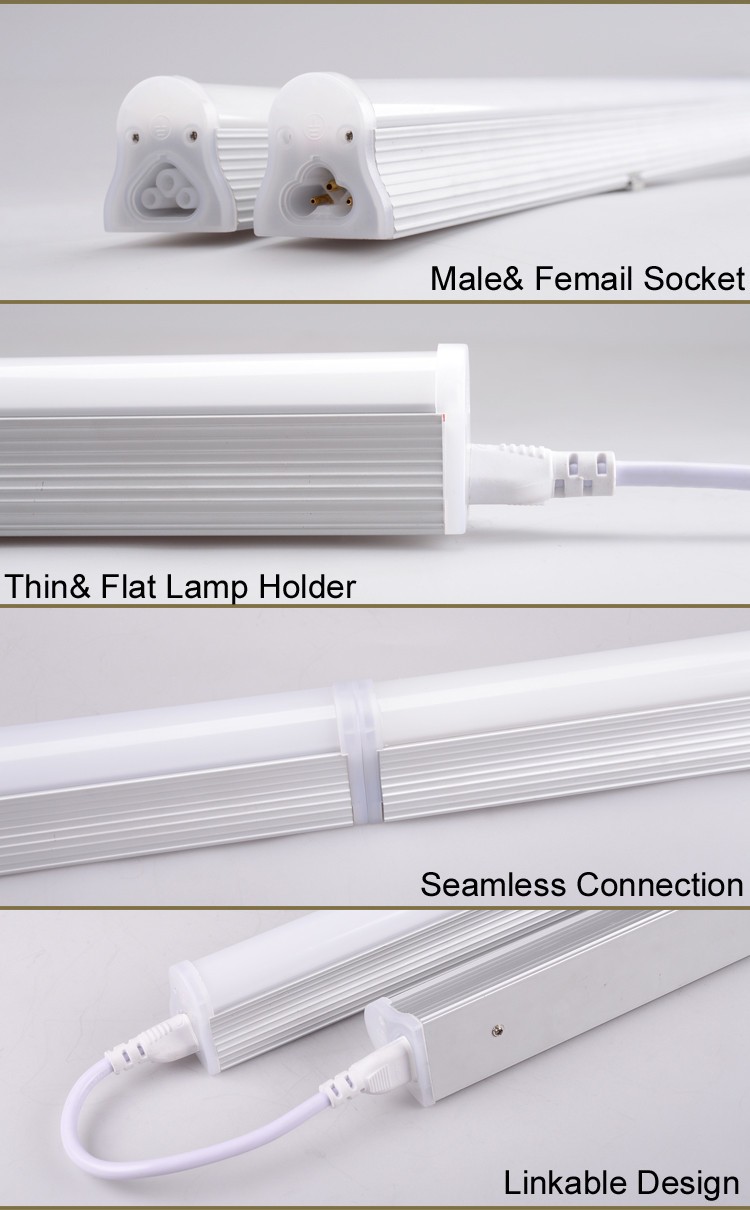

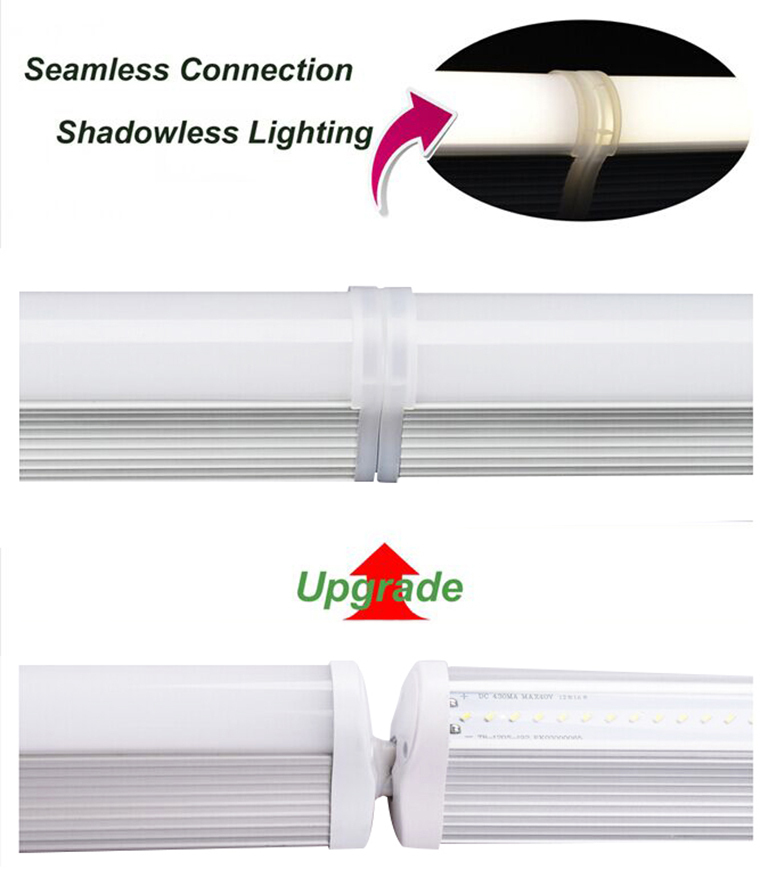

Product Shows

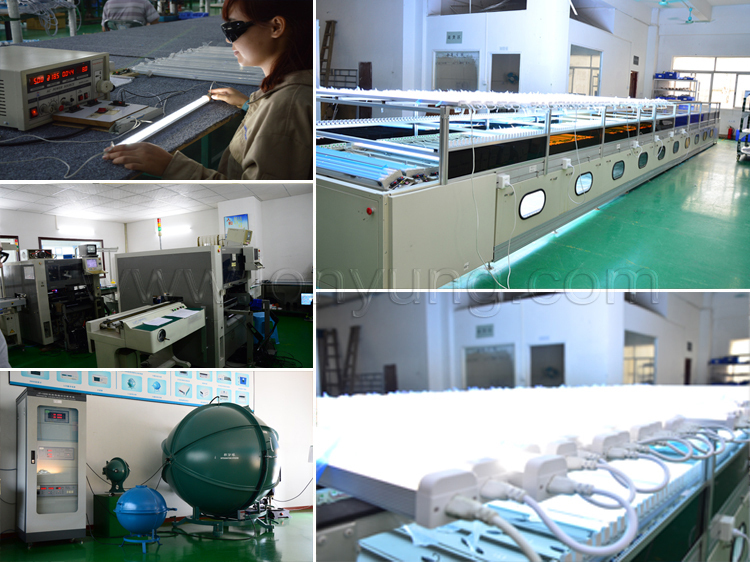

Quality Control

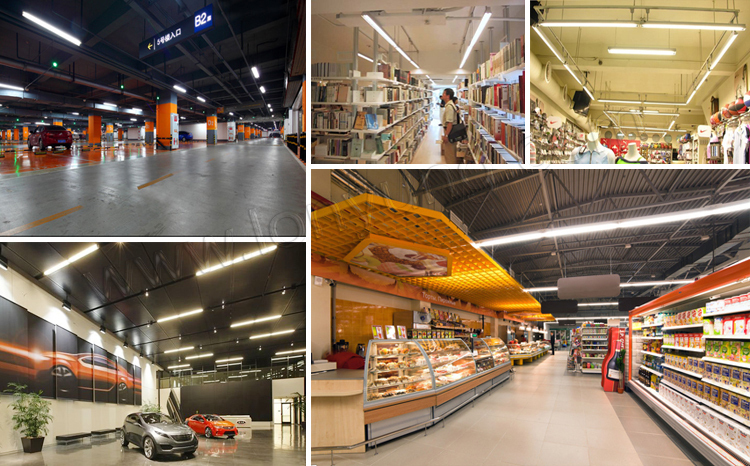

Applications
Hotels, Restaurants, Schools, Factories, Hospitals
Houses, Offices, Exhibitions, Meeting rooms
Workshops, Storages, Roads, Streets, etc.

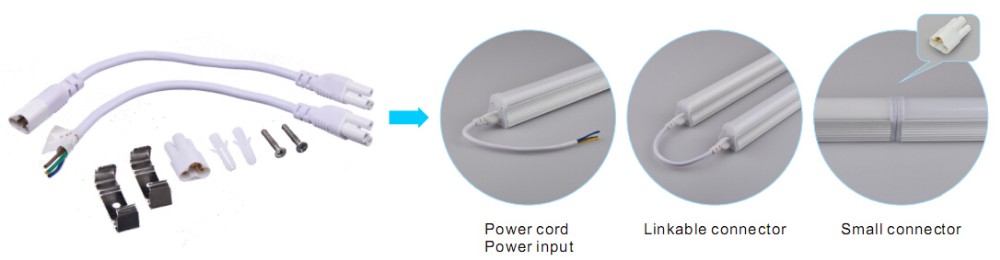

Installation

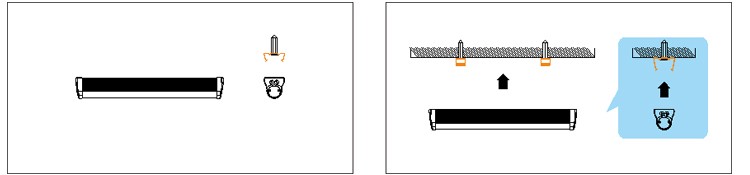

STEP 1. Place the clip kit and screws correctly.
STEP 2. Fix the LED tube to the ceiling or wall.

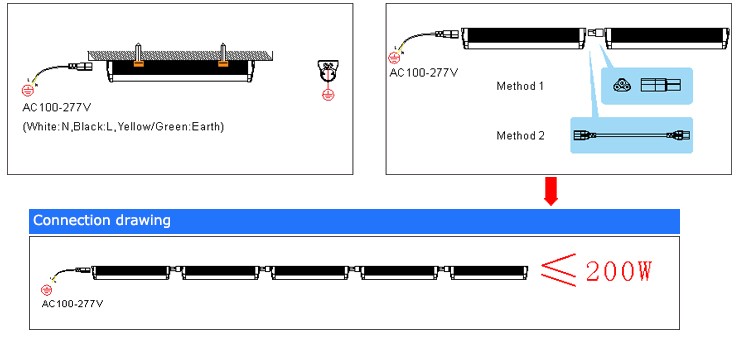

STEP 3. Connect the power cord to the integrated tube.
STEP 4. Connect up by linkable connector, done.

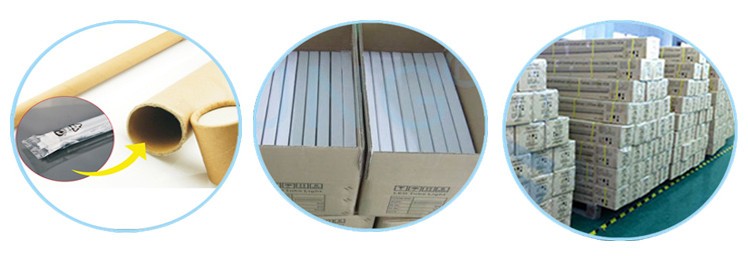

Packaging & Shipping
| Model |
Product Size |
Carton Size |
Qty/Carton |
N.W./Carton |
G.W./Carton |
| (mm) |
(mm) |
(Pcs) |
(KG) |
(KG) |
| LY-T8DL600-9W |
582*40*42 |
685*245*205 |
20 |
7.3 |
9.3 |
| LY-T8DL900-13W |
888*40*42 |
995*245*205 |
20 |
10.1 |
12.9 |
| LY-T8DL1200-18W |
1192*40*42 |
1295*245*205 |
20 |
12.8 |
16.3 |
| LY-T8DL1200-22W |
1192*40*42 |
1295*245*205 |
20 |
12.8 |
16.3 |
| LY-T8DL1500-25W |
1493*40*42 |
1600*245*205 |
20 |
15.6 |
19.7 |
| LY-T8DL1800-28W |
1755*40*42 |
1860*245*205 |
20 |
18.8 |
23.5 |
| LY-T8DL2400-44W |
2368*40*42 |
2470*105*205 |
9 |
13.5 |
15.5 |
Company Profile
ISO9001 Professional LED light Manufacturer, Established in 2008. Covers 6000 square meters.
High technology equipment, Standout R&D team, over 200 Skillful workers, 8 production lines.
Monthly Production Capacity over 80,000pcs.
Remarkable QC system, Make sure the Quality and stability.
ETL, DLC, SAA, TUV, CE, ROHS Certificates.
Wholesale price LED t8 tube light 8 feet integrated led tube 96 inch 2400mm tube fixture 5 years warranty
Our Services
✓
Your inquiry related to our products or prices will be replied in 24hrs.
✓
Well-trained and experienced staffs to answer all your inquiries.
✓
EXAMPLES are prepared. Discounts are offered based on order QTY.
✓
We offer DIY services. Can print your own logo, can customize the retail box packing and other things.
Frequently Asked Questions
What certifications do these integrated LED tube lights hold?
These LED tube lights are fully certified with ETL, DLC, SAA, TUV, CE, and ROHS approvals.
What is the lifespan and warranty policy?
The lights feature a long lifespan of up to 50,000 hours and are backed by a comprehensive 5-year warranty.
How much energy can I save compared to conventional fluorescent lighting?
You can save up to 60% in energy consumption compared to traditional fluorescent luminaires, with maintenance-free operation.
Are these LED tube lights linkable?
Yes, these integrated linear LED T8 tube lights are linkable and can be easily connected in series using linkable connectors.
Do you offer OEM or custom branding services?
Yes, we provide DIY/customization services. We can print your own logo and customize the retail box packing to meet your specifications.
What color temperatures (CCT) are available?
The available CCT ranges are 3000K (Warm White), 4000K (Natural White), 5000K (Day White), and 6000K (Cool White).
