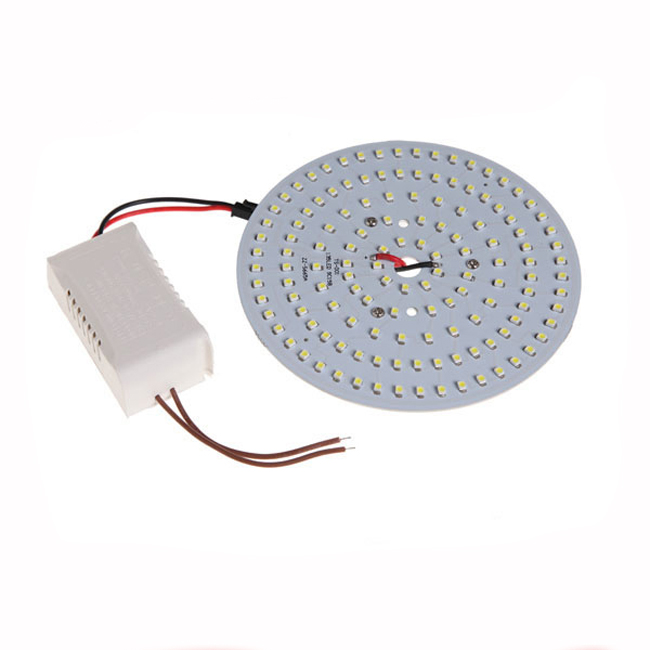

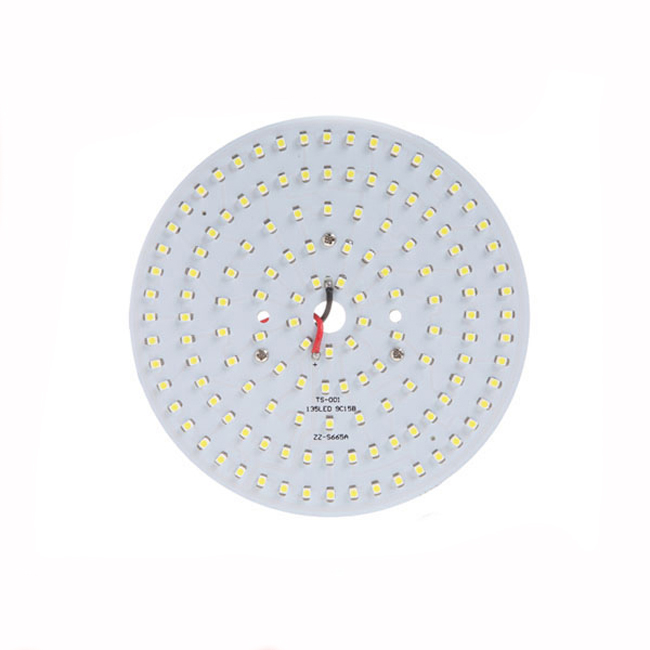

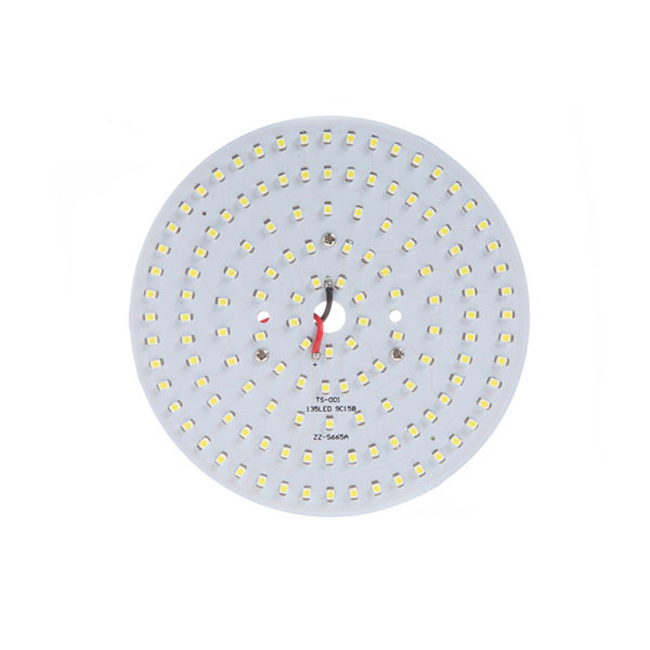

Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
1 / 5
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer
Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer

Good Quality Electronic Custom Led Light Led Panel Ceiling Light Board Assembly Manufacturer

Send Inquiry

Product Description

What can we do for LED PCB Assembly?

  • We can supply free design for LED PCB board.
  • Offering solution for Light, such as suggesting design choices depending on application needs and schematics. Our engineers will put forward related suggestions based on design thinking.
  • OEM service for LED PCB: we can assemble finished LED lights, produce bare board PCBs, purchase components, and run full assembly. Both assembly housing options and LED driver supply services are available for comprehensive control and integration.

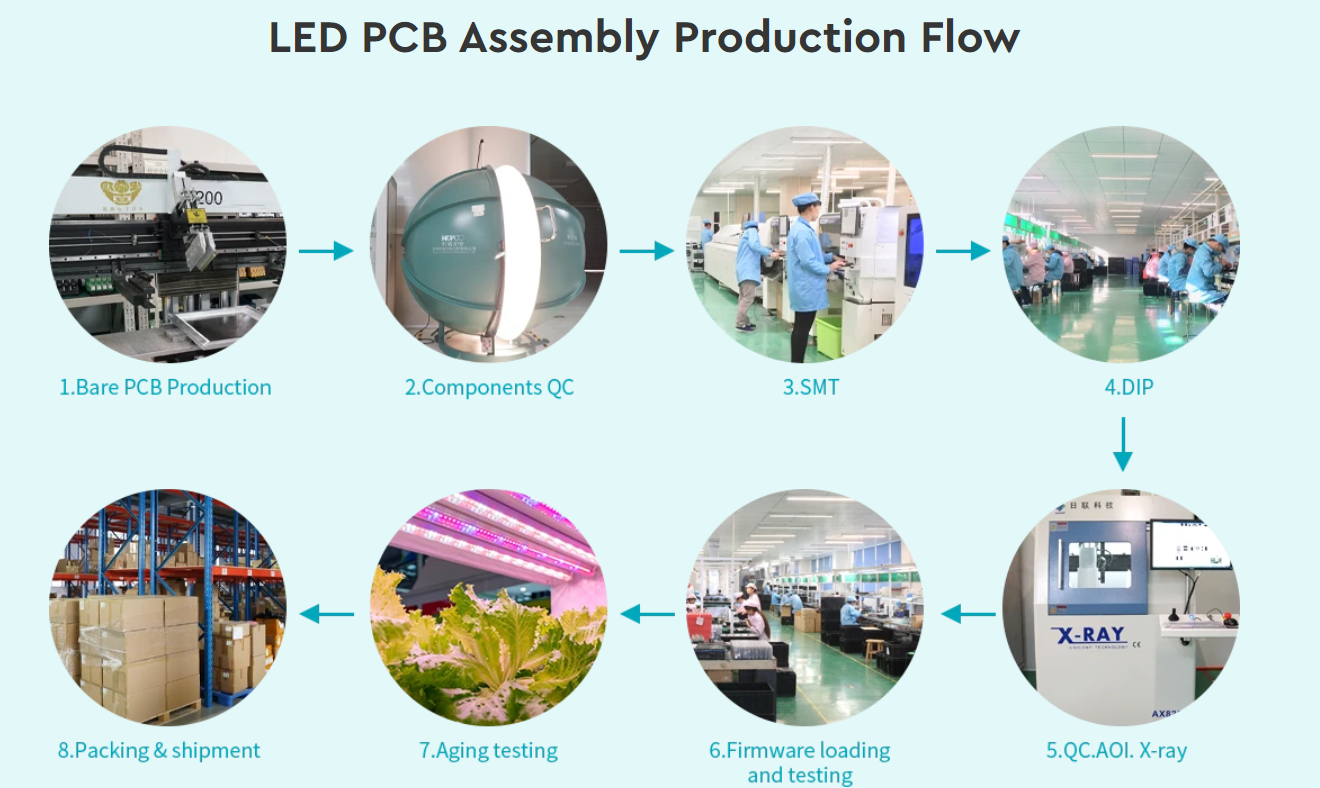

LED PCB Assembly Service

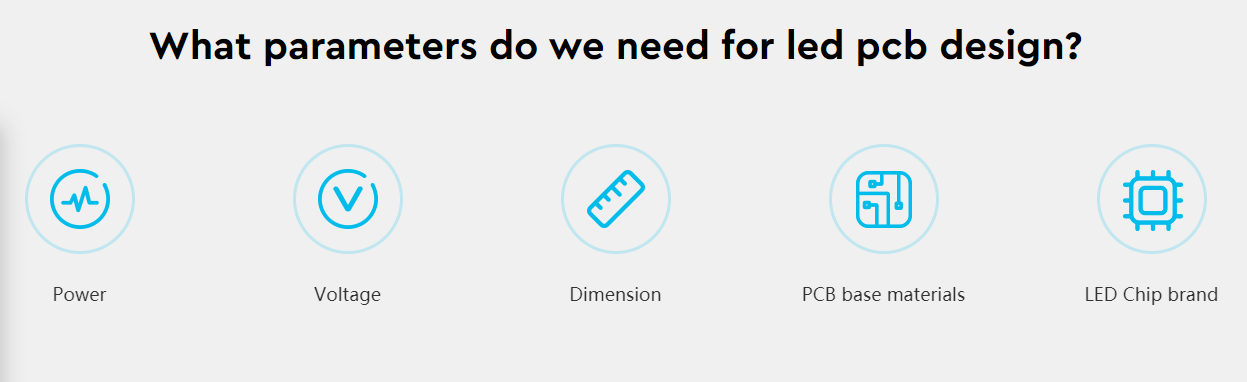

What information do we need to design LED PCB?

  • Actual Power
  • Input Voltage
  • Board Dimensions
  • Basic PCB specifications (including board thickness, copper thickness, material, thermal conductivity, surface finish, solder mask & silkscreen)
  • LED Chip details (such as LED chip brand, CCT, and LED packages)
LED PCB Design Information Required

Why Choose Us for LED PCB Assembly?

01

FREE Design for LED PCB

We have our own engineering team, allowing us to supply free designs when provided with project details.

02

Professional Services

Our sales team has at least 2 years of industry experience, and our dedicated LED light engineers have over 16 years of experience. All OEM/ODM projects are welcome.

03

Cost-Effective Pricing

With over 16 years in LED PCB assembly, we maintain high order volumes and supportive quality suppliers to pass maximum savings onto you.

04

100% Original LED Chips

We confirm Voltage, CCT, Luminous Flux BINs, SDCM, and exact part numbers with our clients. All chips are sourced from original factories or official agents, verified by integrating sphere tests.

05

Fast Delivery Times

We proactively procure components subject to shortages to guarantee continuous project timelines. LED PCB production requires 15 days, and assembly takes 5-7 days.

06

Strict Quality Control System

Every step runs under rigid quality controls, including incoming component checks, finished product evaluation, functional tests, and appearance checks.

07

Professional Production

Our facilities feature 5 SMT lines and 4 DIP lines operating under ISO9001 requirements. Production processes strictly follow Standard Operation Procedures (SOP).

08

Guaranteed After-Sales Service

We offer direct solutions for component issues (excluding user design issues), including product replacement for small failures, free repairs within 1 year, or local repair compensations.

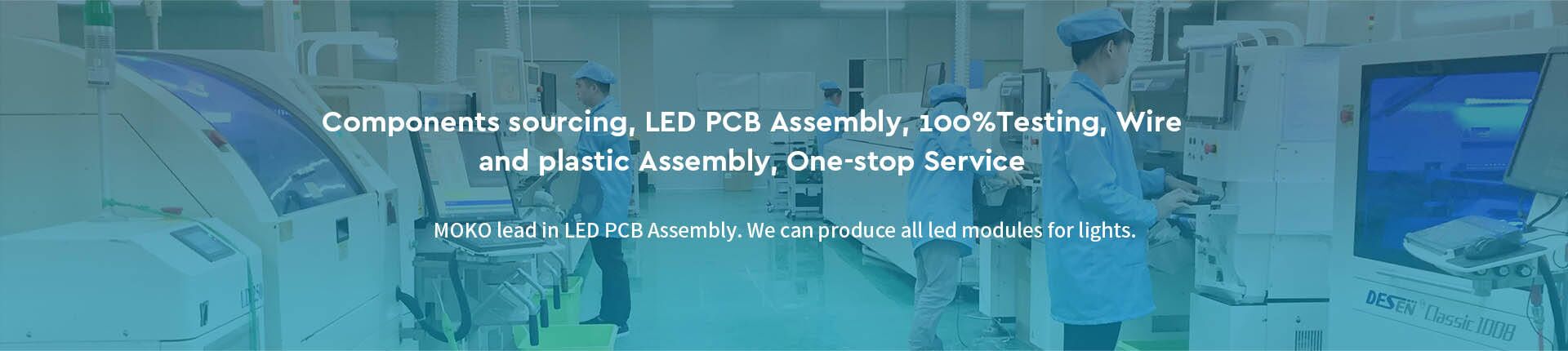

Quality Control and SMT Line

PCB Specifications

If you do not have fixed specifications, you can choose from our basic configuration parameters:

Specification Parameter Available Choice / Value
Base material Normal FR4, High Tg FR4, Aluminum, FPC...
Solder mask Green, red, blue, white, yellow, purple, black
Silk screen White, yellow, black...
Silk screen min line width 0.006'' or 0.15mm
Surface treatment type ENIG, OSP, HASL lead free
Max. layer-up(L) 50 Layers
Max. PCB dimensions(mm) 1500 * 500 (590.5'' × 196.8'')
Thickness(mm) 0.2 - 12.0mm, Flex 0.01 ~ 0.25''
Board thickness tolerance(mm) ±0.10
Copper thickness(oz) 0.5 - 4.0 oz
Copper thickness tolerance(oz) ± 0.25 oz
Profile size tolerance(mm) ±0.08
Min. drill hole diameter(mm) 0.25mm, 0.01'' or 10 mil
Min. trace/gap(mm) 0.075mm or 3 mil
PCB cutting Shear, V-score, tab-routed

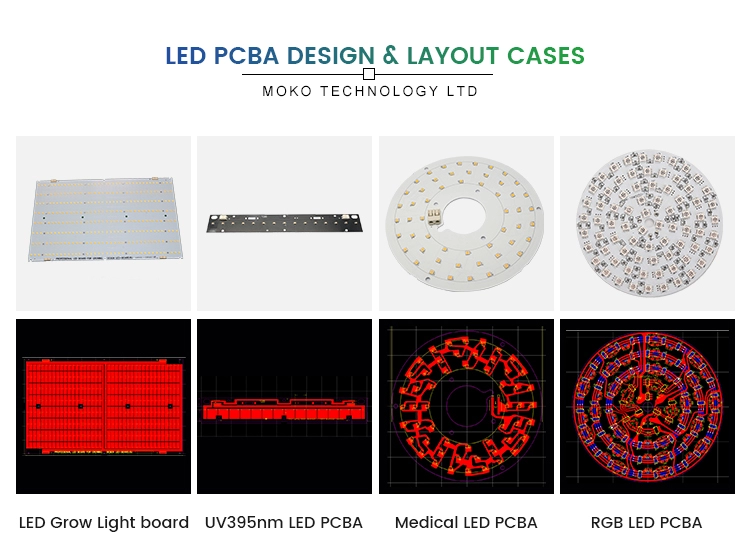

Design Work Show

Our engineering team analyzes and evaluates each project to choose the optimal LED chip for both performance and price. Below are designs engineered for our clients:

Design Work Show 1
Design Work Show 2

Application Fields of LED PCB

  • Plant Lighting Industry
  • Telecommunication Industry
  • Automobile Industry
  • Computer Technology Industry
  • Medical Industry
  • Residential and Storefront Applications
LED PCB Applications

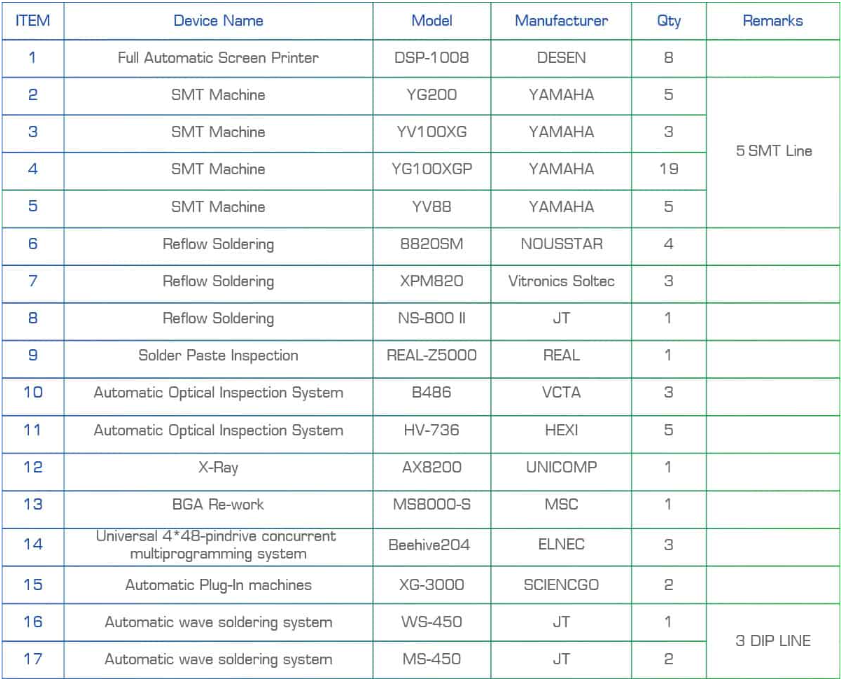

Factory Strength

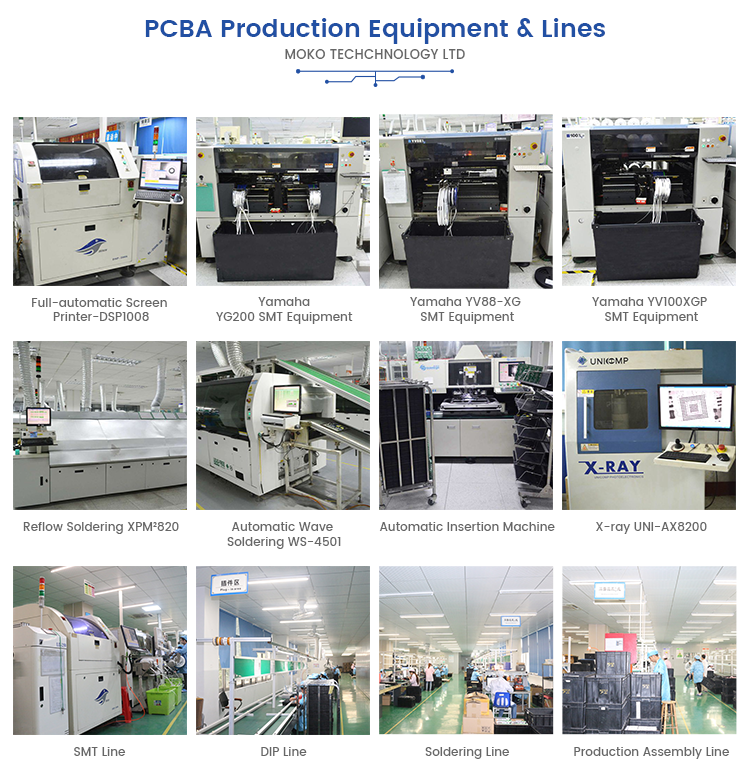

Our factory for PCBA has obtained ISO9001:2008, ISO14001, UL, and ROHS certificates. Facilities feature 5 SMT lines, 4 DIP lines, 3 enclosure assembly lines, alongside 2 AOI test, X-Ray, and SPI test units. Daily production capacity achieves SMT assembly of 10 million chips per day, and DIP assembly of 1.2 million pcs per day.

Factory Machine 1
Factory Machine 2

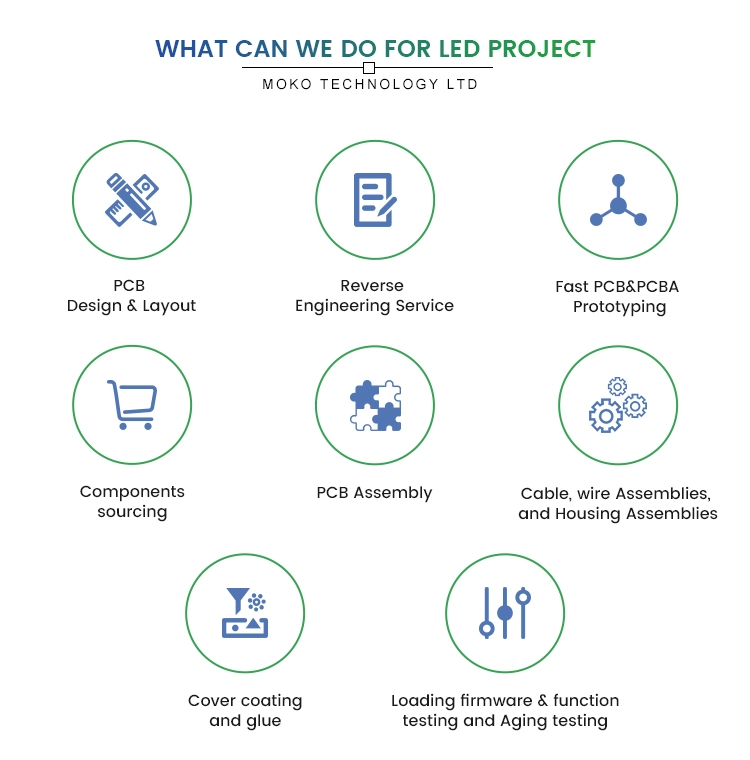

Our Services & Advantages

Services Include:

  • One-stop ODM/OEM design services
  • Plastics assembly and mold making
  • PCBA free functional testing
  • LED PCB assembly
  • PCBA with 2-year warranty
  • Components sourcing

We supply complete turnkey services from design through delivery.

Services Range Diagram
Advantages Diagram

OEM & ODM Project Advantages

OEM Advantages

  • Strong engineering group with 65 design engineers and 35 production engineers.
  • Efficient one-stop turnkey service: PCB fabrication, component sourcing, assembly, and packaging.
  • Full supply chain management ensuring efficient prototype and mass production timelines.
  • Optimized design structure to lower material costs.

ODM Advantages

  • Professional R&D team supporting custom specifications.
  • Advanced design software platforms.
  • Over 10 years of experience in project management.
  • Flexible MOQ requirements and rapid delivery.

Certifications

We provide professional certification and compliance tests. Our team works closely with SGS and UL laboratories to offer fast UL, ETL, CE, FCC, RoHS, or other specific certifications to meet customer requirements.

Certificate 1
Certificate 2

Packing, Shipping & Payment

Packing: Individual LED PCBs are packed in plastic ESD bags. Custom packaging, pearl cotton, or blister trays are used for extended length boards.

Shipping: Shipments are arranged via sea, air, and express options including DHL, UPS, TNT, FEDEX, and EMS.

Payment Terms: We accept T/T, Western Union, Money Gram, L/C, and PayPal (for sample orders). Incoterms accepted include FOB, CIF, and EX-work.

Packaging Options

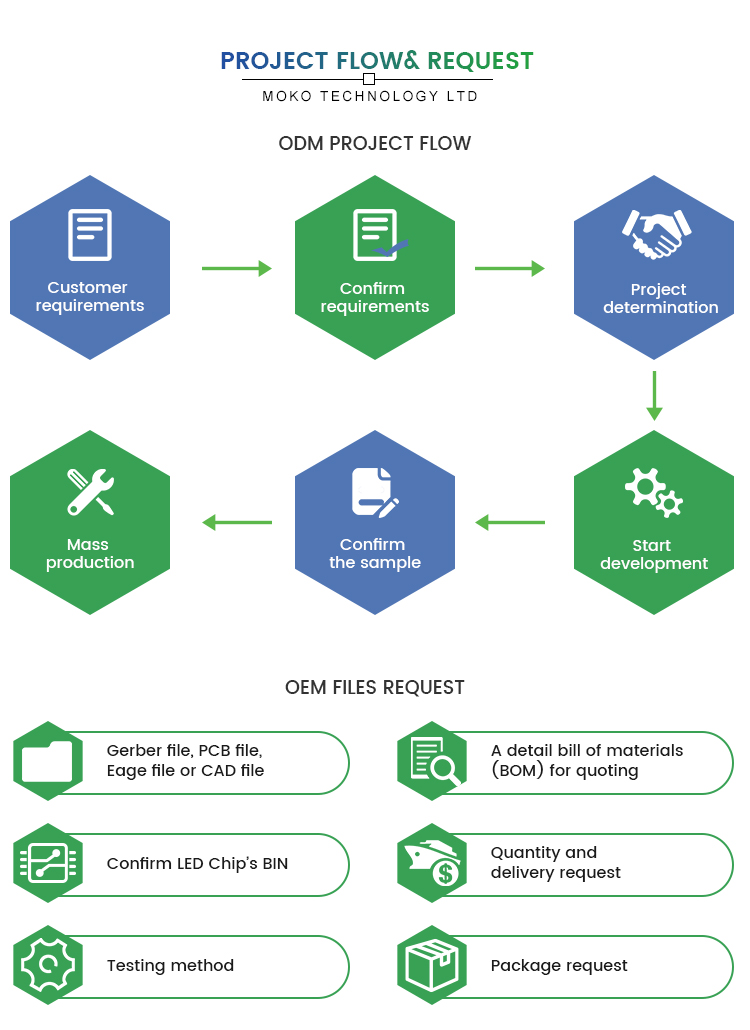

Project Process

Project Process Flowchart

Company Profile

Founded in the year 2006, our company is an expert in PCB manufacturing and LED light production. Our facility covers an area of more than 15,000 square meters and houses over 500 employees, including a dedicated 65-engineer R&D team and 66 overseas sales professionals. In 2012, we expanded overseas business operations. We commit to meeting your requirements through integrity, value, and continuous innovation.

Frequently Asked Questions

How long does it take to get a quotation after sending the PCB Gerber file, BOM, or requirements?
Quotations are generally processed and sent within 2 workdays. Clients may also suggest specific suppliers for special components if required.
Are all PCBAs, LED PCBs, LED Drivers, and LED Controllers tested prior to delivery?
Yes, every product undergoes testing based on your specific quality and functional criteria. We conduct 100% aging tests on LED PCBs and drivers, and functional tests on LED controllers.
How do you determine the pricing of your products?
Pricing depends on order quantity, product dimensions, components, and layout complexity. We evaluate files and Bill of Materials (BOM) individually to provide an accurate quotation.
What information is needed to begin design work on a custom LED PCB?
If Gerber files are not available, we can develop the design based on parameters such as: the application environment, board dimensions, input power, desired LED chip brand, and target CCT.
What production capabilities and services do you supply?
We provide one-stop services including OEM/ODM design, component sourcing, PCB fabrication, SMT & DIP assembly, custom plastic housing and mold making, functional testing, and encapsulation.
