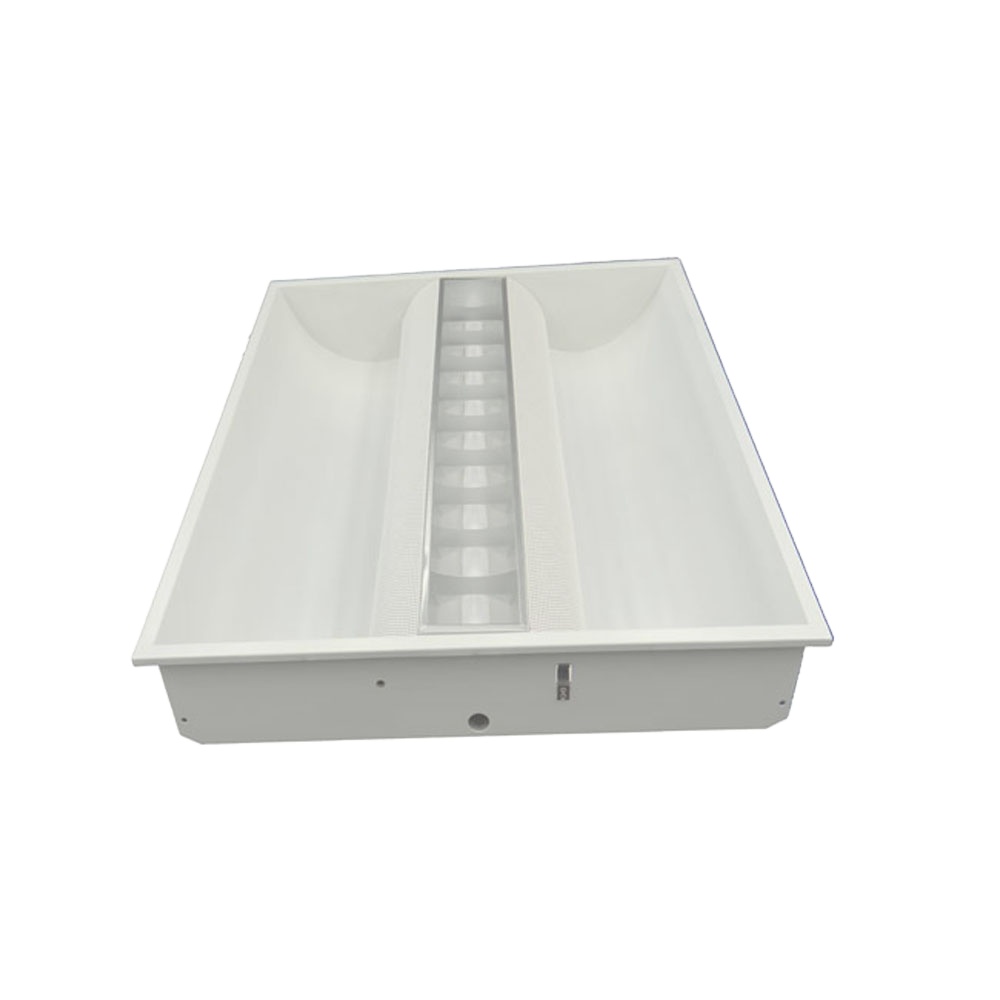

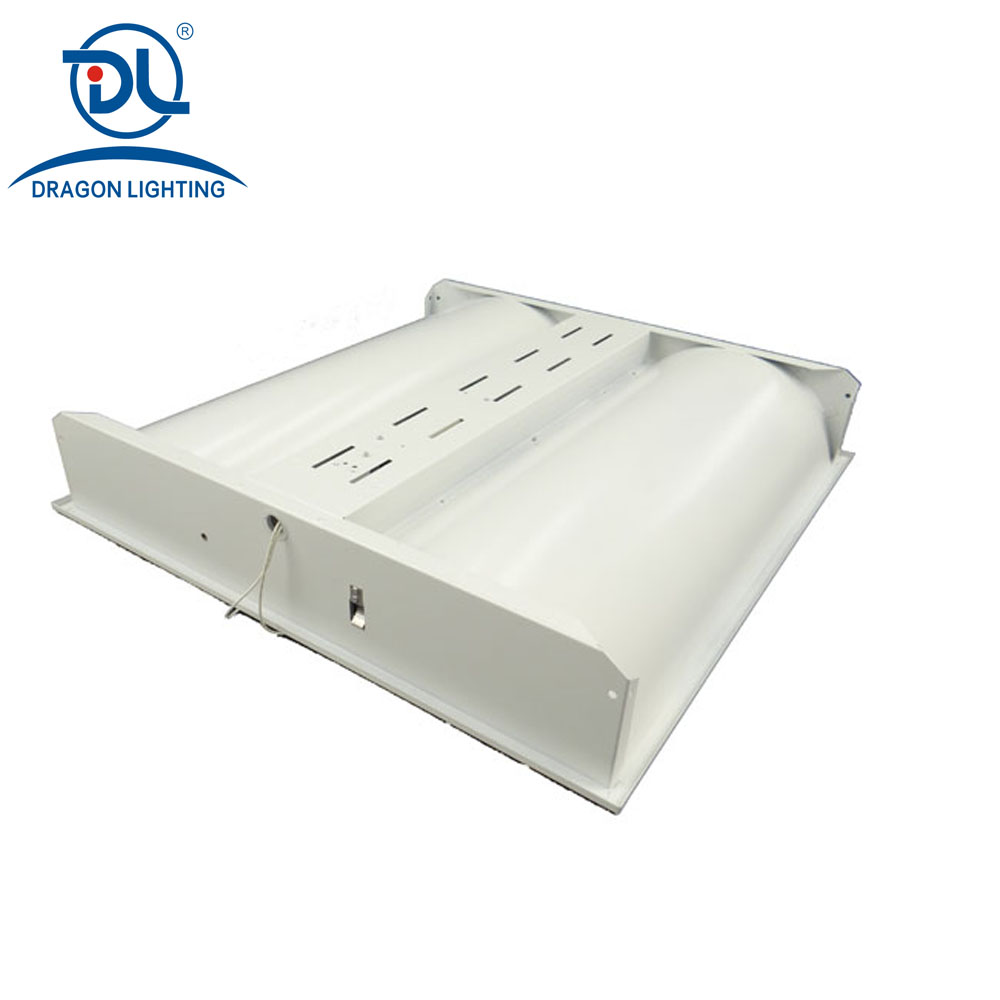

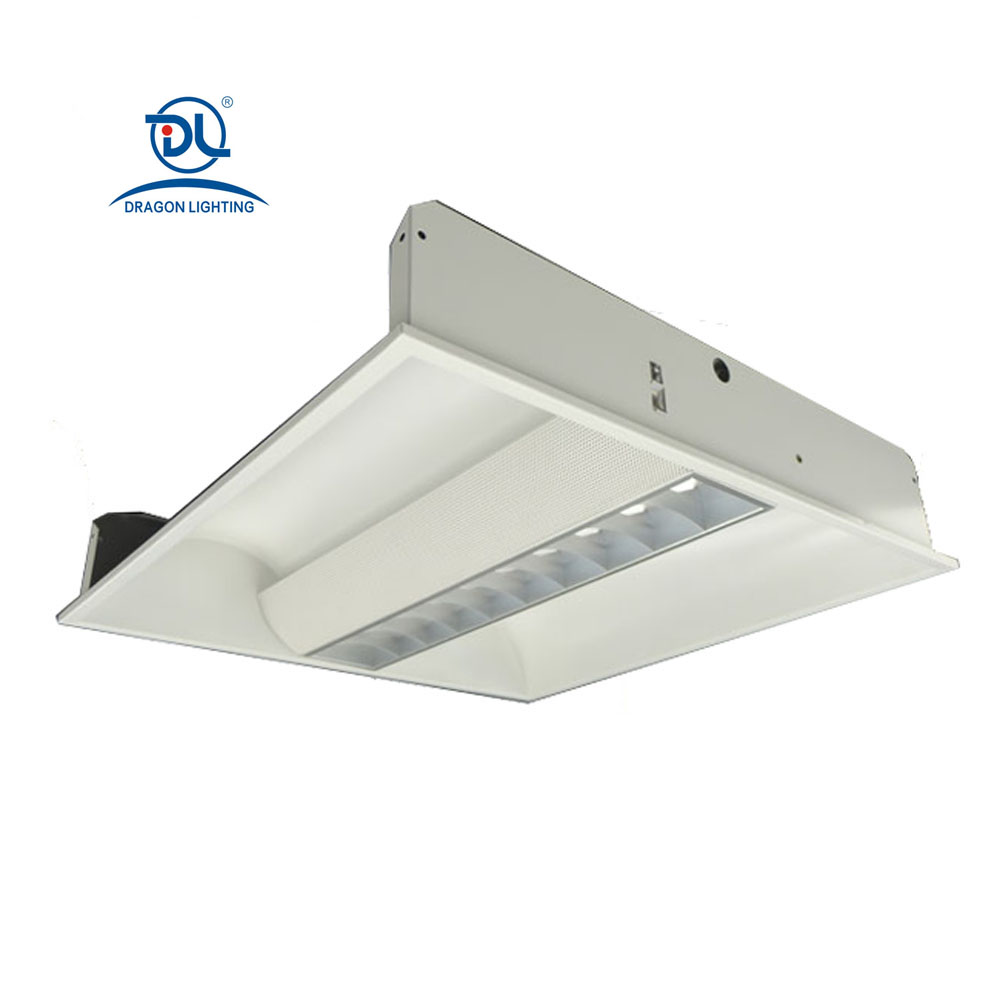

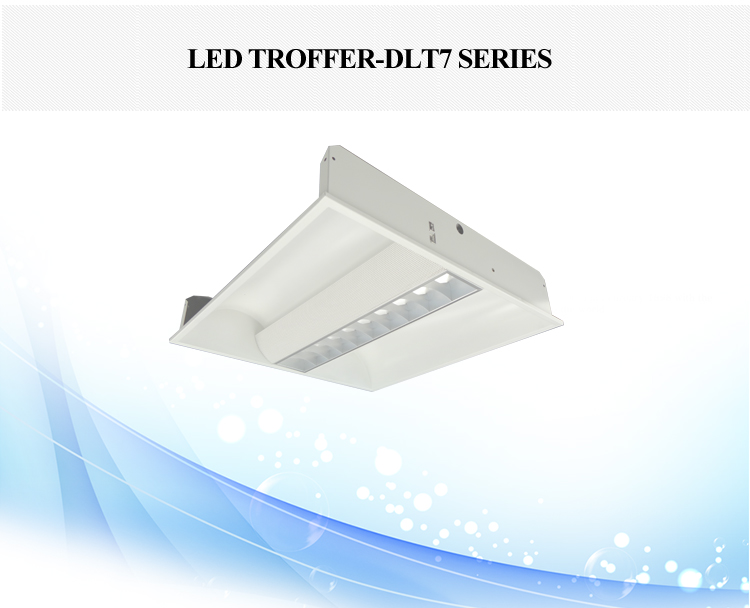

No Flicker 3W LED TROFFER DLT71195*295*100mm SERIES
Product Description
Technical Data
Model & Output Specifications
-
Model
DLT7-1230 -36
-
Fixture Dimension
1195*295*100mm
-
Output Power
36W
-
Luminous Flux
2700lm
-
Light Efficiency
85lm/W
-
LED Type
LED SMD 2835
-
Driver
LED/0-10V driver, dim driver, Dali driver
Performance & Standard Parameters
-
CRI
>80
-
CCT
4000k-6000k
-
Rated Input
220-240V
-
Beam Angle
160°
-
Certification
CE/ROHS
-
Warranty
50000 hours
-
Notes
Dimmable or Dali driver is available on request
Housing for LED troffer:
Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white/black powder coating.
Diffuser for LED troffer:

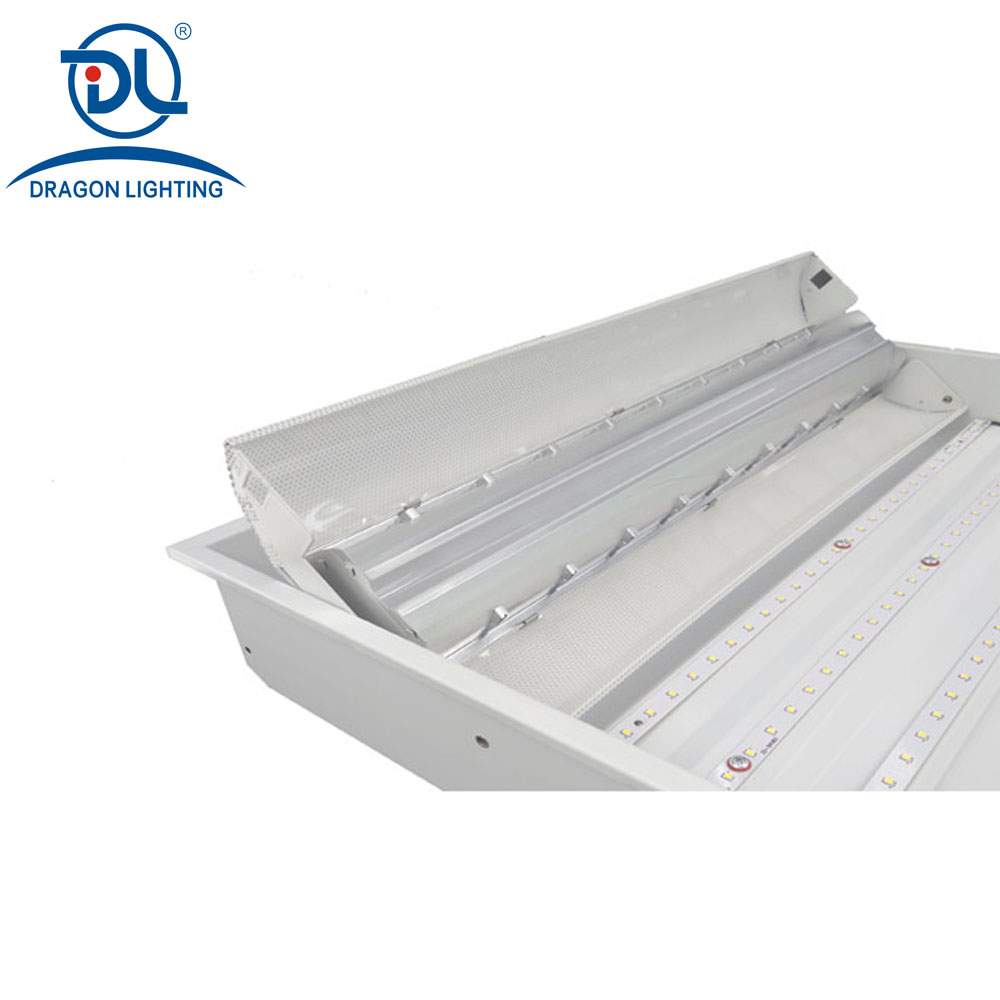

Para-curve indirect reflection design with perforated steel sheet and the reflector is glare free, soft light, eye-protection.
LED type for LED troffer:
It uses LED Samsung / Epistar / Hongli SMD 2835.
Electrical for LED troffer:
Lifud standard driver of famous driver for LED line.
Mounting for LED troffer:
Recessed mounting.
Main applications:
- Hotel / shopping mall / institution building
- Conference / Meeting room / Factory / Office.
- School / College / University
High efficiency saves energy:
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminous efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.
Luminous uniformity:
It is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, so the reasonable distance between the LED SMD and the Polycarbonate or Acrylic LED Diffuser, so that it improves the brightness uniformity when it's lighting up.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications
| Model |
Power |
Leds |
Luminous Flux(lm) |
Efficiency(lm/w) |
CRI |
CCT |
| DLT7-6060-30 |
30 |
2835 |
2700 |
105 |
>80 |
4000K-6000K |
| DLT7-6060-40 |
40 |
2835 |
3600 |
105 |
>80 |
4000K-6000K |
| DLT7-1230-30 |
30 |
2835 |
2700 |
105 |
>80 |
4000K-6000K |
| DLT7-1230-40 |
40 |
2835 |
3600 |
105 |
>80 |
4000K-6000K |
| DLT7-1260-50 |
50 |
2835 |
4500 |
105 |
>80 |
4000K-6000K |
| DLT7-1260-60 |
60 |
2835 |
5400 |
105 |
>80 |
4000K-6000K |
Packing Details
| Model |
Dimension(L*W*H)(mm) |
Packing size(mm) |
Qty/ctn |
| DLT7-6060-30 |
595*595*100 |
620*620*220 |
2 |
| DLT7-6060-40 |
595*595*100 |
620*620*220 |
2 |
| DLT7-1230-30 |
1195*295*100 |
1225*325*220 |
2 |
| DLT71230-40 |
1195*295*100 |
1225*325*220 |
2 |
| DLT7-1260-50 |
1195*595*100 |
1225*625*110 |
1 |
| DLT7-1260-60 |
1195*595*100 |
1225*625*110 |
1 |

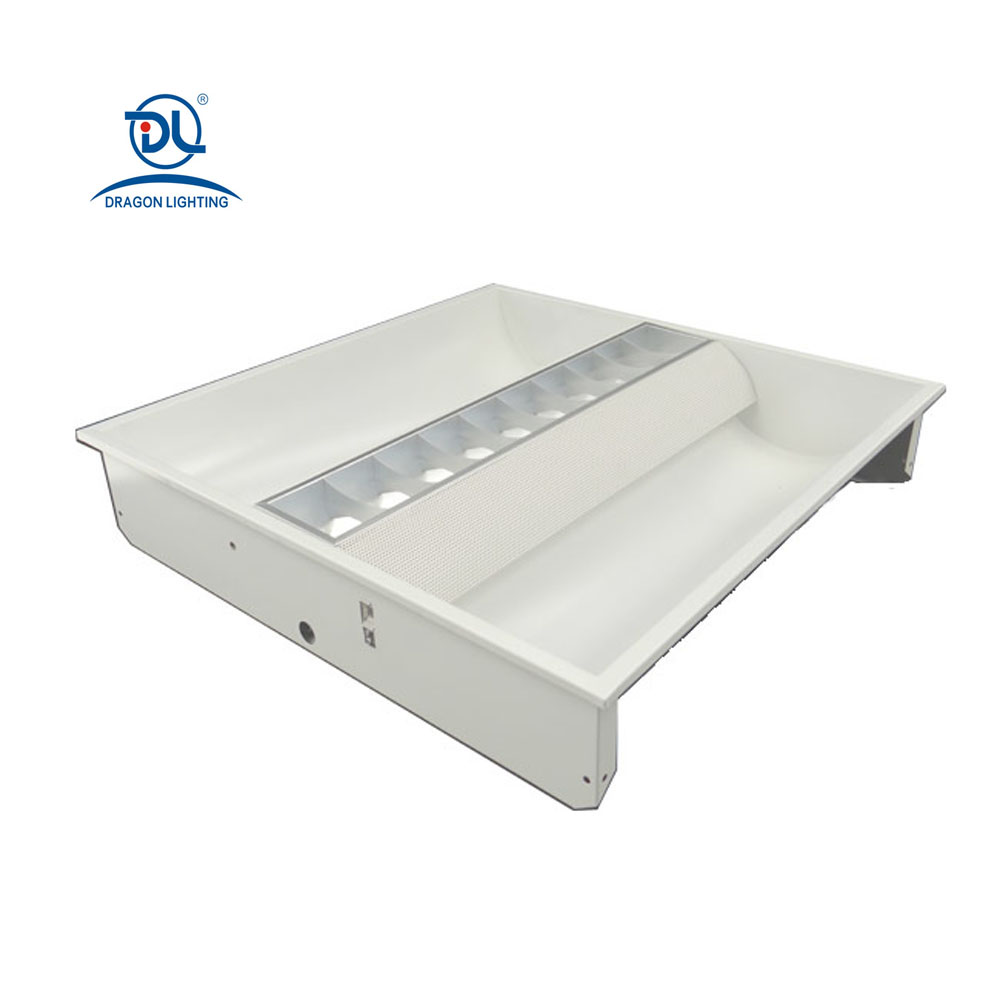

Product Details

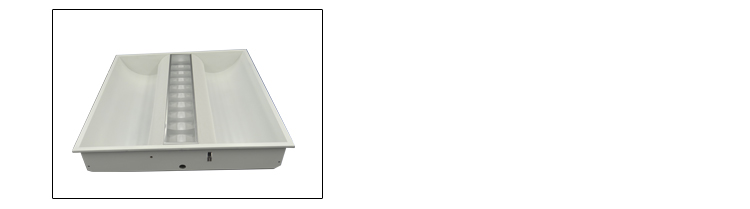

High transmittance of polycarbonate diffuser for bright and uniform lighting distribution.

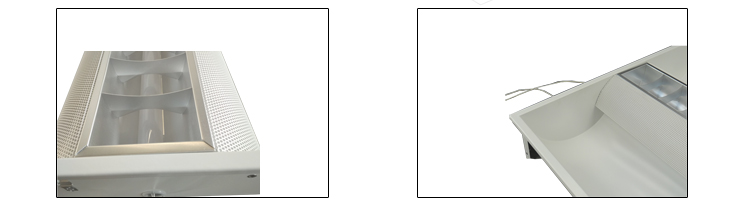

Indirect reflectors are precision formed and contoured to provide soft, indirect illumination.

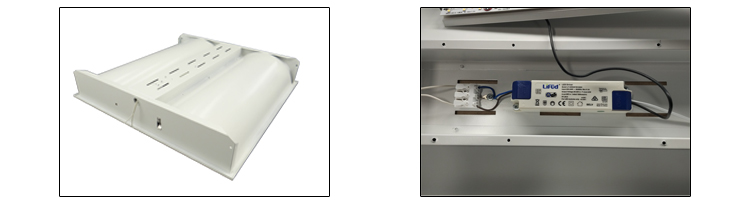

Open rear cover design it is easy to install the wiring and maintenance. It uses LIFUD it can gives the troffer long life.
Why Choose Us
FAQ
Can I have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Do you have any MOQ limit for LED light order?
1pc for sample order is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
How to place an order for LED light?
Firstly let us know your requirements or application. Secondly we quote according to your requirements. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
